20,000 lbs. x 30" wide Coe Conventional Servo Coil Feed Line For Sale

20,000 lbs. x 30" wide Coe Conventional Servo Coil Feed Line For Sale

Name: 20,000 lbs. x 30" wide Coe Conventional Servo Coil Feed Line For Sale
Brand: COE
SKU: 2979
Price: 119500.00 USD
Availability: InStock

Brand

COE

Location

Michigan

Price

$119,500.00

REQUEST FINANCING

Specifications
Files & Videos

Coil Weight	20000 pounds
Coil Width	30 inches
Coil Thickness	.125 inches

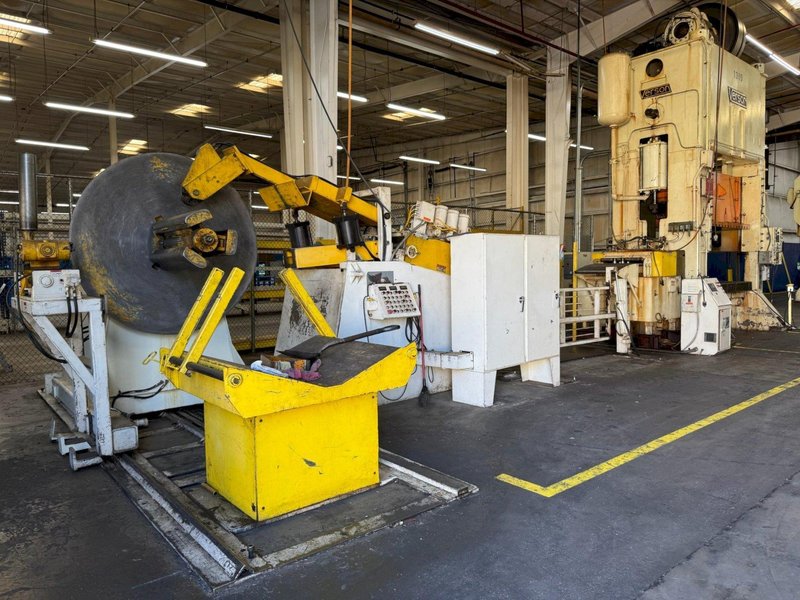

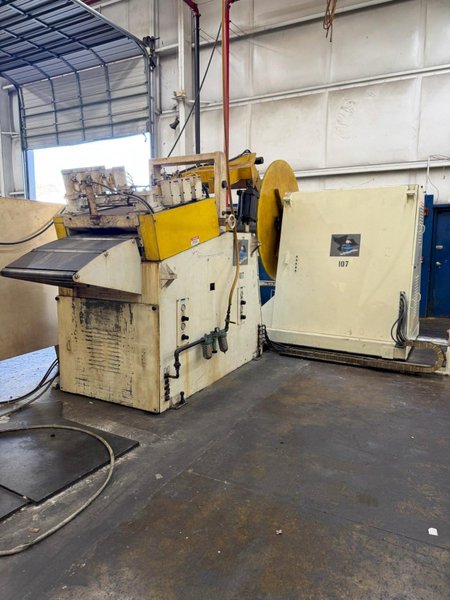

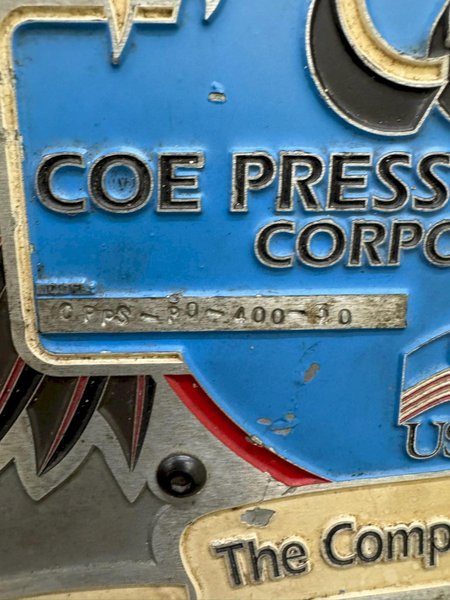

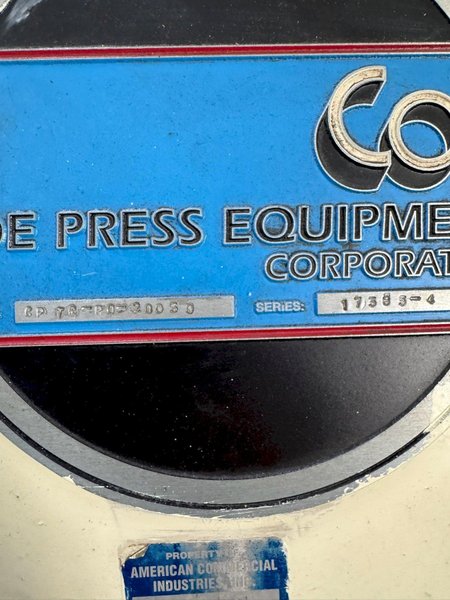

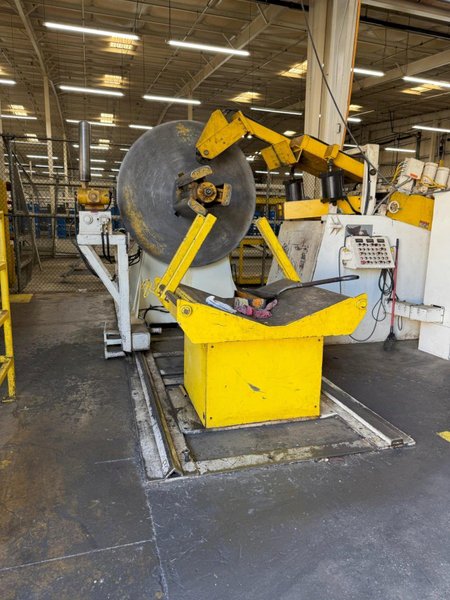

Coil Feed Line Specifications Coe Press Equipment "Conventional" Servo Coil Feed Line Coil Feed Line Models CPTR-PO-20030 / CPPS-PO-400-30 / CPRF-430 20,000 lbs. Maximum Coil Capacity 30" Maximum Coil Width .125" Thick Material at 30 Inch Wide Capacity .187" Maximum Coil Thickness at 18 inch Wide .280" Maximum Material at 8 inch Wide (H. S. L. A.) .020" Minimum Coil Capacity at Full Width 80 Feet Per Minute Payoff Rate Right to Left Feed Direction (Can be switched with order) Coe Coil Feed Line Consisting of: Coe Press Equipment Traveling Coil Reel Model# CPTR-PO-20030 20,000 libs. Maximum Coil Weight 30" Maximum Coil Width 72" Maximum Coil O.D. 19.5" - 24.5" Mandrel Expansion Range Full O.D. backplate 72" diameter 3 pad mandrel One set of (3) coil keepers Hydraulic threading drive Hydraulic mandrel expansion Air brake with pressure regulator and dual pressure circuitry Jog forward and reverse Remote reel jog control with coil cord Pneumatic controls solenoid operated Hydraulic controls solenoid operated Stationary coil lift with hydraulic raise and lower Air operated coil guide assembly with motorized side adjustment Coe Press Equipment Coil Straightener Model# CPPS-PO-400-30 Seven Straightening Rolls x 4 inch diameter rolls Independently adjustable breaker rolls, raise and lower by means of 2 ½ ton screw jacks Entrance and exit cluster gear driven pinch rolls Air operated entrance pinch rolls raise and lower with 5" bore cylinders Air operated exit pinch rolls raise and lower with 5" bore cylinders Pressure regulators and flow controls on pinch roll cylinders Crodon coated upper and lower entrance pinch rolls 3 roll exit catenary support section full side plate with funnel 20 HP DC variable speed drive Jog forward and reverse Remote jog with coil cord Push button solenoid operated control valves Fused electrical safety disconnect Entrance edge guide with self centering hand crank adjustment 2 ¼ by 7.5 inch long rolls Peeler/threader/hold down station with motorized end wheel 4 position stock peeler for hands free threading capabilities Ultra sonic loop control system Reel/straightener tie in bracket Automatic lube system with low level indicator light Straightening rolls with motorized screw jacks and LED readout P.C. monitored straightener and coil reel through SLC/504 Coe Press Equipment Air Operated Threading Table Model No. CPTT-3020 Air raise and lower Adjustable pass line Single side construction Based on an 20 foot loop Coe Press Equipment Servo Roll feed Model# CPRF-530 (2) Feed Rolls x 5" Diameter - Solid Rolls Close tolerance cluster geared upper and lower feed rolls Air operated pilot release Regulators for feed roll, raise & lower cylinders with flush mount regulator panel Crodon coated upper and lower feed rolls AC brushless servo drive Motor shaft encoder Drive ratio - standard Master control station 10 foot cable set Jog forward and reverse Single cycle pushbutton Emergency stop button Electrical safety disconnect Remote jog with coil cord Heavy duty cabinet base with pass line adjustable +/-5" by means of 10,000 lbs. leg jacks 3 roll entrance catenary support section full side plate with funnel Existing C.P.E.C. Controller - BG-2 . Keypad length and speed input . Alpha numeric control parameter diagnostics . 200 job memory (alpha-numeric, 8 digit) . Adjustable acceleration and deceleration rates . Footage meter . Programmable dwell for pilot release . Batch counter Entrance edge guide with self centering Independent hand crank adjustment with 2 ¼ diameter rolls End of coil sensor Special press mount to match press with motorized pass line height adjustment with air clamp bolted to bolster Optional New: Coe Servomaster 6 Retrofit Controls Installed #CPRF-5 Installed
