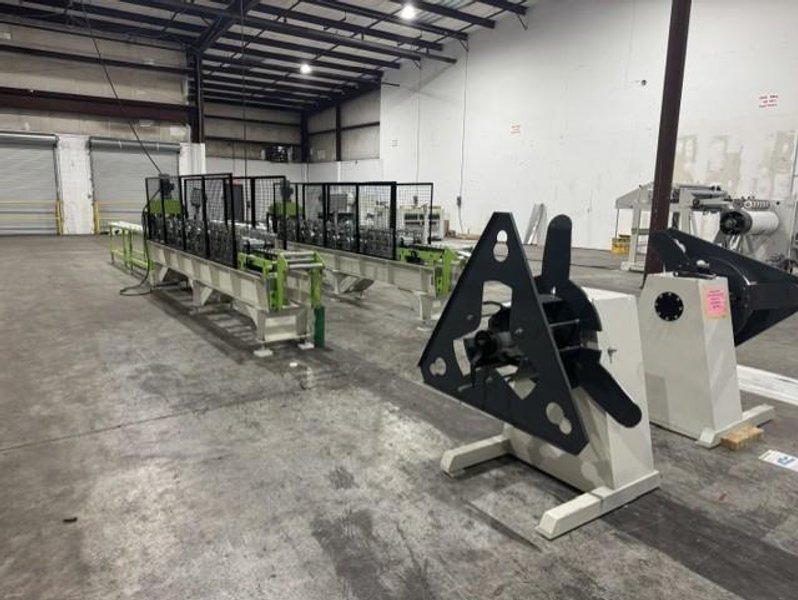

CIDAN Full Drip Edge Production Line, 2023-slitter

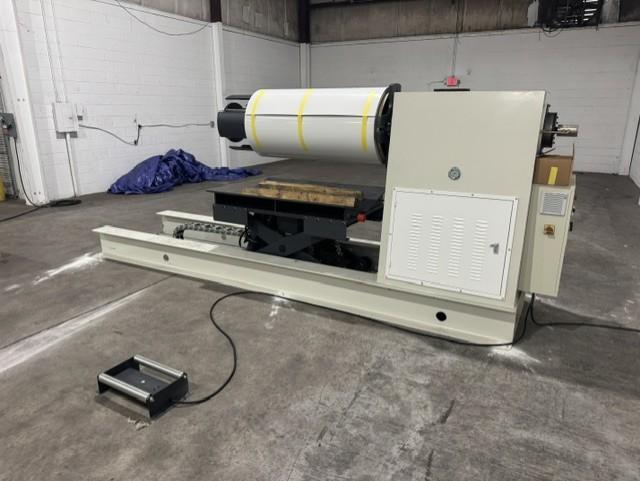

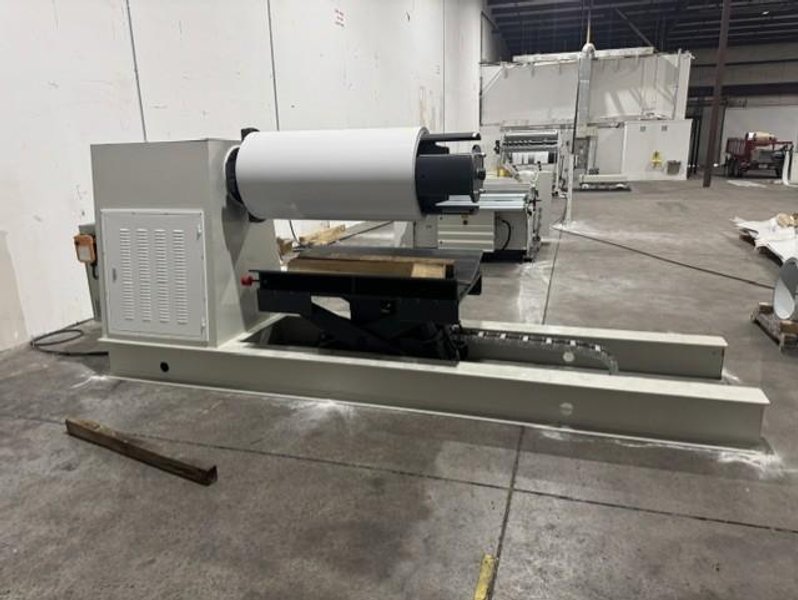

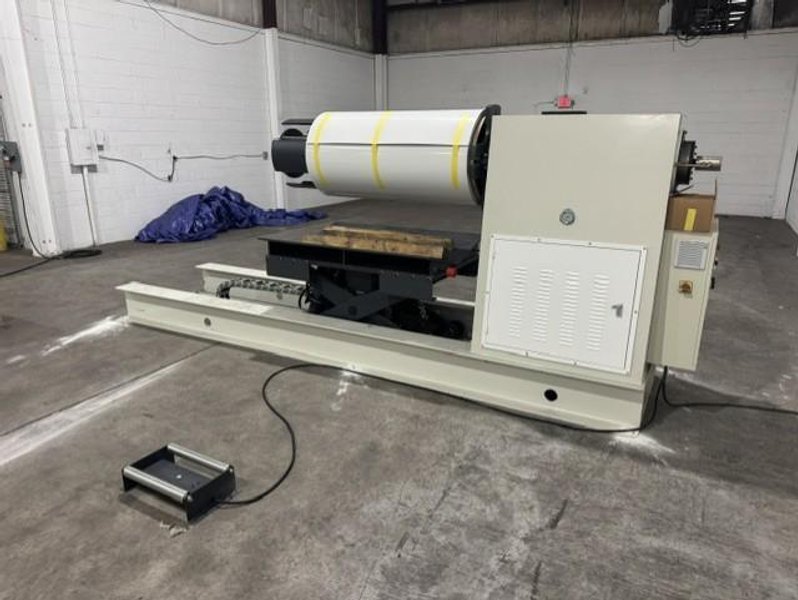

CIDAN QX16C Powered Decoiler & Hydraulic Coil Cart Coil Weight Capacity: 16,000lbs Max Coil Width: 51″ Mandrel Expansion: Hydraulic 4-Plate Wedge Expansion Rotational Drive Power: 5.5 HP Hydraulic Pump Motor: 4 HP Coil Cart: Hydraulic Scissor-Lift Cart with 13.75″ stroke height Speed Control: Floor-Mounted Ultrasonic Loop Control Sensor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 460V, 3-Phase Approximate Machine Dimensions: 151″ x 43″ x 68″ Approximate Machine Weight: 8,000lbs

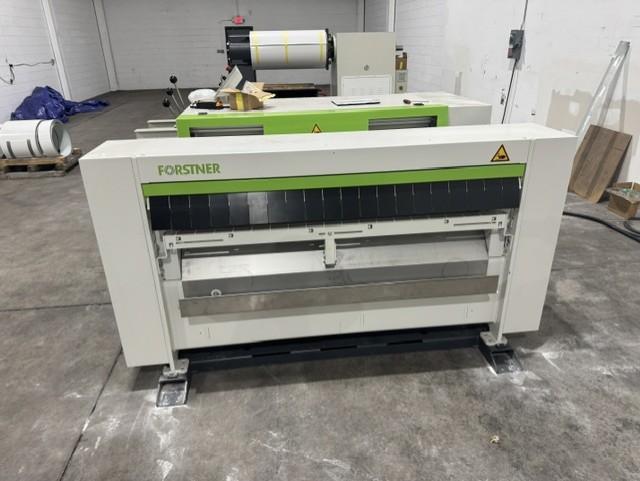

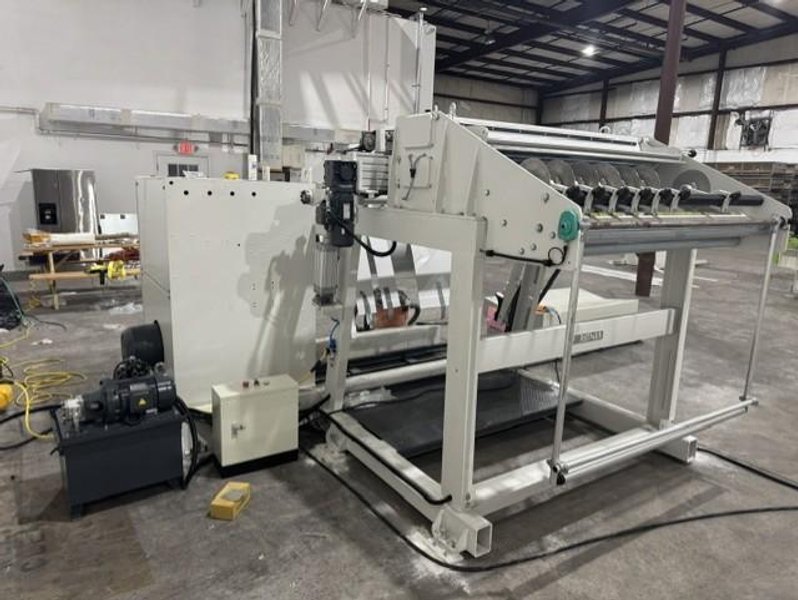

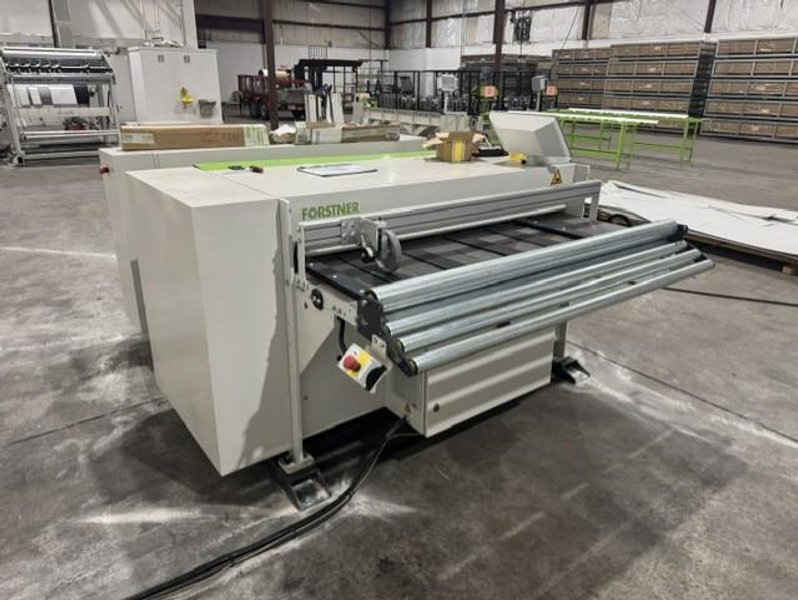

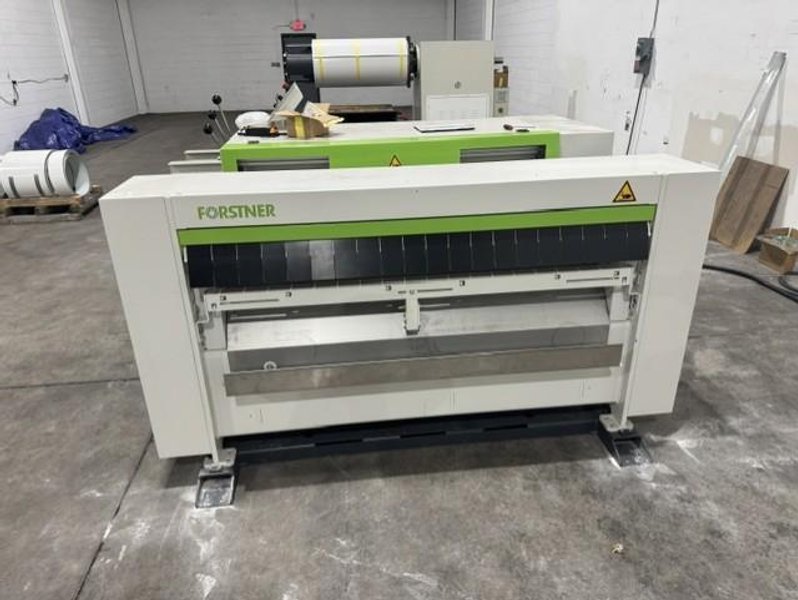

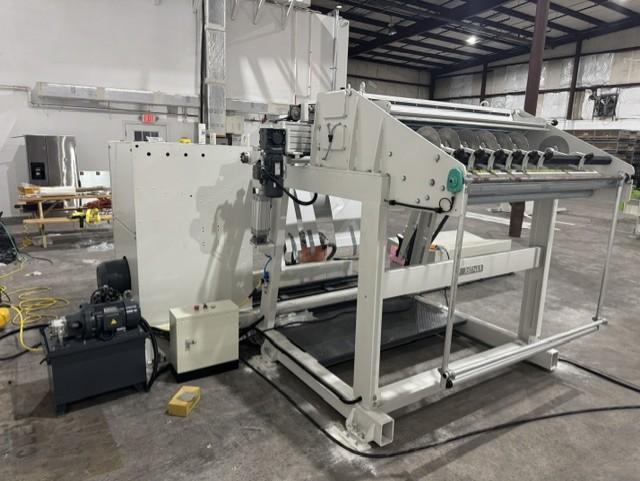

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CIDAN Compact Pro Slitting & Cut-to-Length System Infeed Width Capacity: 50″ Straightening Unit: 6 Power straightening rollers Slitting Shafts: 3.94″ Slitting Knives: 5 dual-sided Rc45 Cap-Lock Slitting Knives Shearing Unit: Integrated 16 ga with High-Carbon Blades Processing Speed: 82 FPM with Variable Speed Dial Control Pinch Rollers: Fully Rubberized Full-Width Pinch Rollers Motor Power: 6 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 460V, 3-Phase Approximate Dimensions: 68″ x 72″ x 42″ Approximate Weight: 5,600lbs

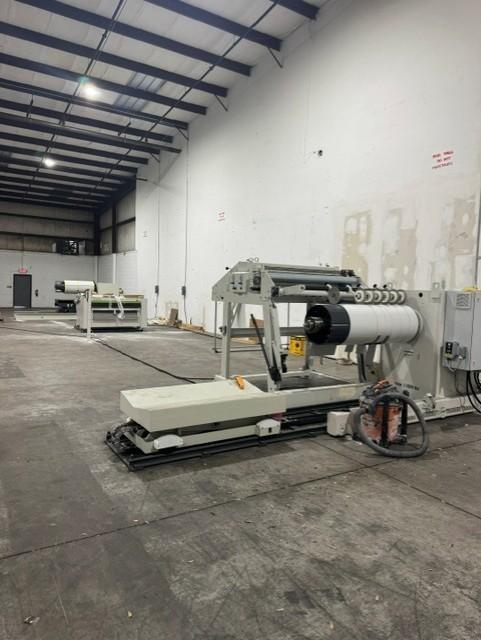

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CIDAN Forstner RC5 Recoiling System Working Width Capacity: 50″ Sitting Recoil Capacity: Up to 5 Simulatensous Slits in 20 ga (Mild Steel) Mandrel Drive Motor: 15 HP Mandrel Expansion Range: 18.9″ – 20″ with Drop-Down Arbor Support Tensioning System: Dual Pneumatic Felt Bladder Tensioner Material Guiding 7 Free-Spinning Adjustable Guide Discs Integration: Integrated Dancer Arm Sensor for Variable-Speed Matching up to 85 FPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 460V, 3-Phase Approximate Machine Dimensions: 142″ x 126″ x 82″ Approximate Machine Weight: 7,500lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overall Approximate Combined Net Weight: 21,100lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With SPS-S1 Touchscreen CNC Controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
