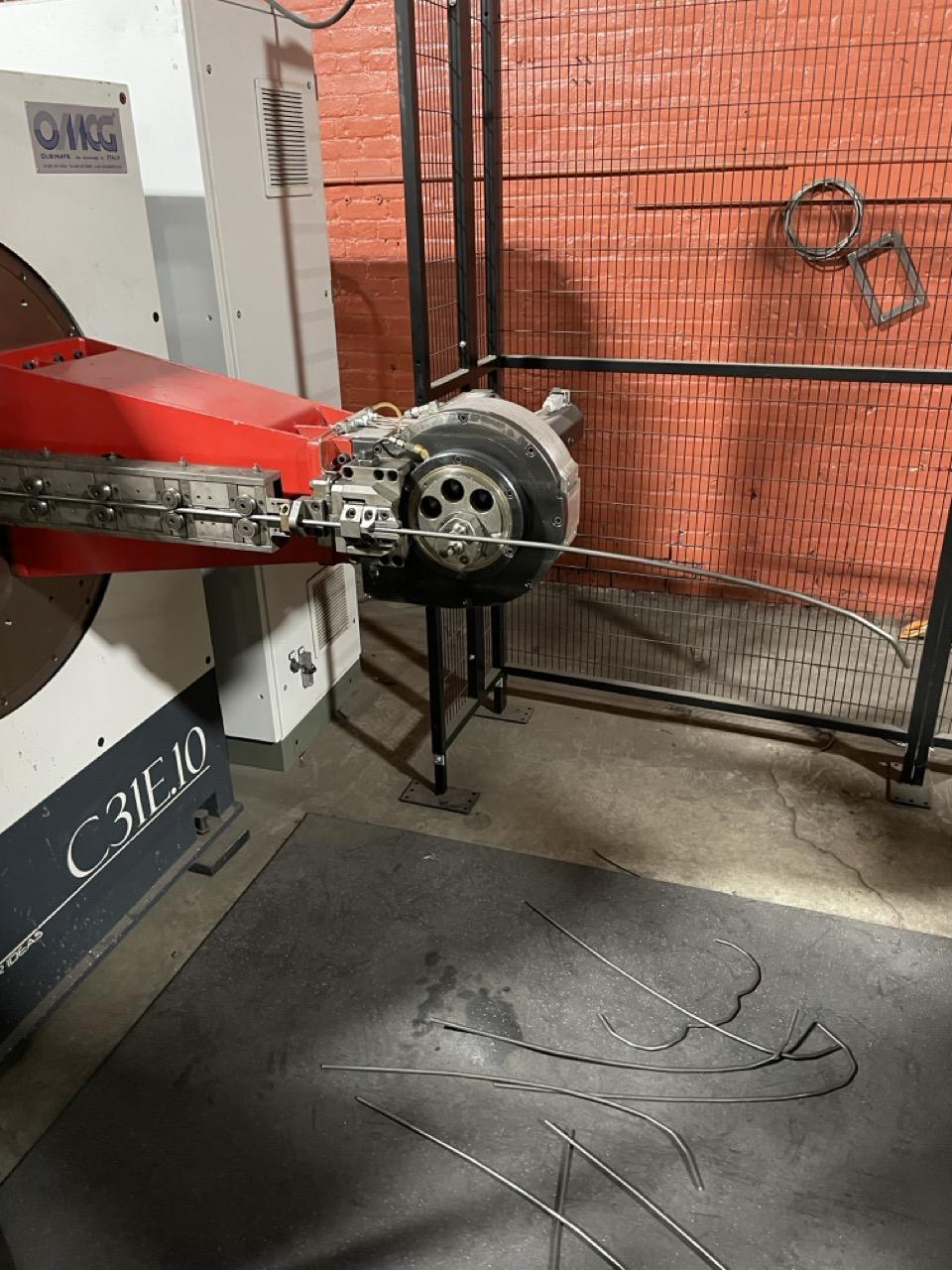

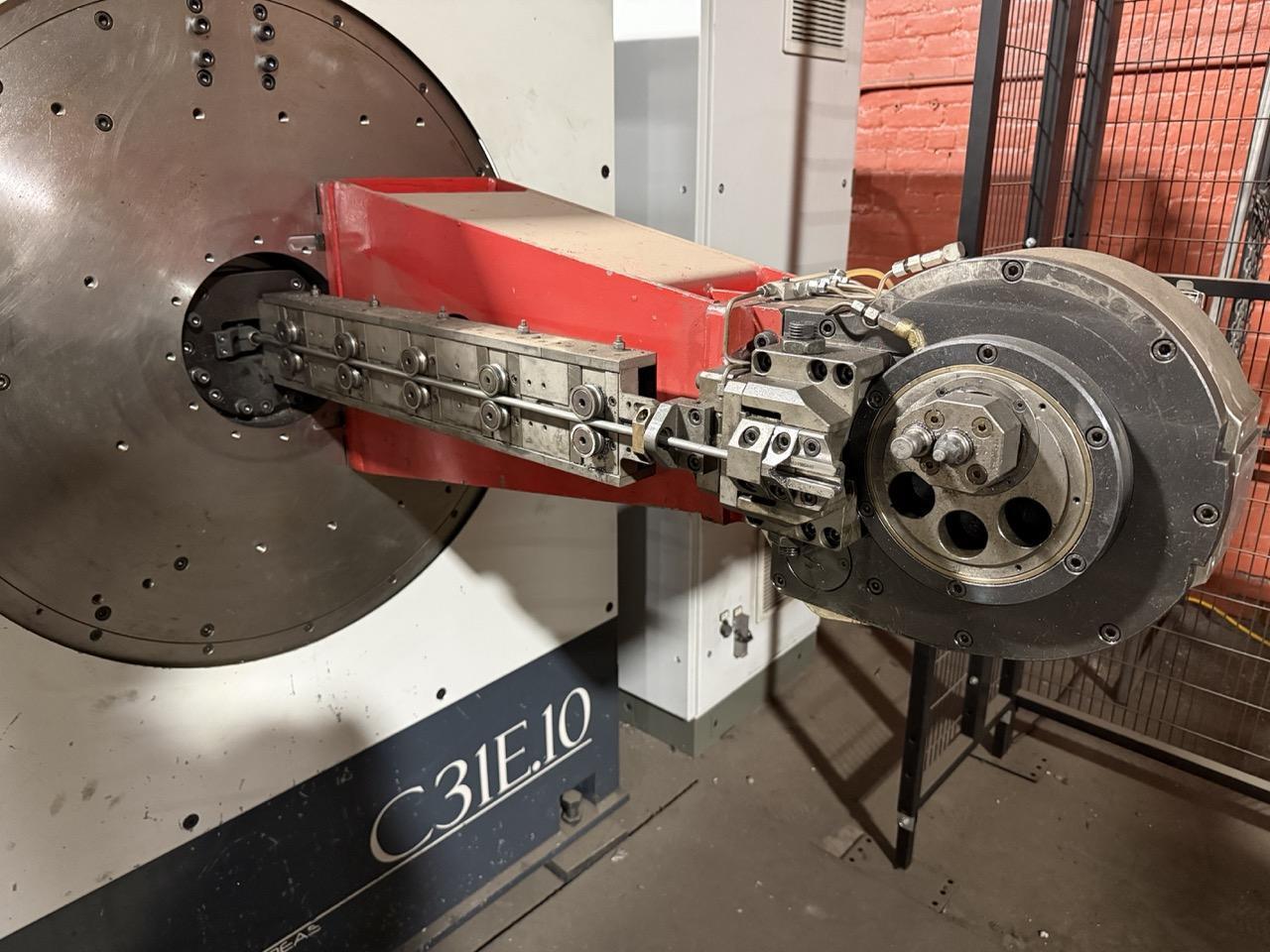

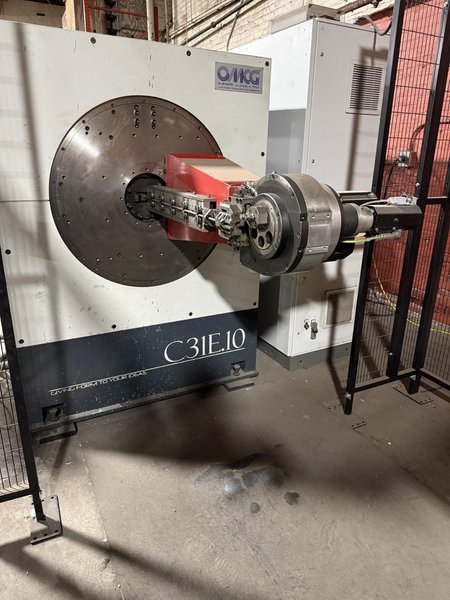

OMCG 31 E10 CNC Wire Bending Machine, 2019 – Wire Straightener, Decoiler

Mechanical & Operational Specs Wire diameter (steel/stainless steel): 0.12–0.39” Tube Ø × thickness (steel/stainless steel) max.: 0.39 × 0.08” Nominal tensile strength: 600 N/mm² Axes: 5 Max bending radii (on mandrel): 2 Max bending radii (on insert): 2 Radius change: Electric Max flat frame side length: 29.92”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Axis (X) Material feed length: 0 to infinity Feed precision: ±0.004” Max feed speed: 456 ft/mi

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bending Axis (Y) Bending precision: ±0.2° Bending time (90° bend): 0.4 s Bending time (180° bend): 0.6 s Radius generation: Available Rotation: ±166° Wire guide arm length: 33.46”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotating Platform Axis (Z) Precision: ±0.2° Max rotation angle: +180° / –160° Max rotation speed: 424°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Eccentric Bend Center Axis (B) Axis rotation: R30

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power, Dimensions & Weight Electrical supply: US: 208–480 V, 3‑phase, 60 Hz Total installed power: 28 kW Required power: 12 kW Average consumption: 7 kWh Compressed air requirement: 90 psi (6 bar) @ 100 NI/min Dimensions (L × W × H, incl. guards & straightener): 201” × 104” × 71” Weight: 9039 lbs

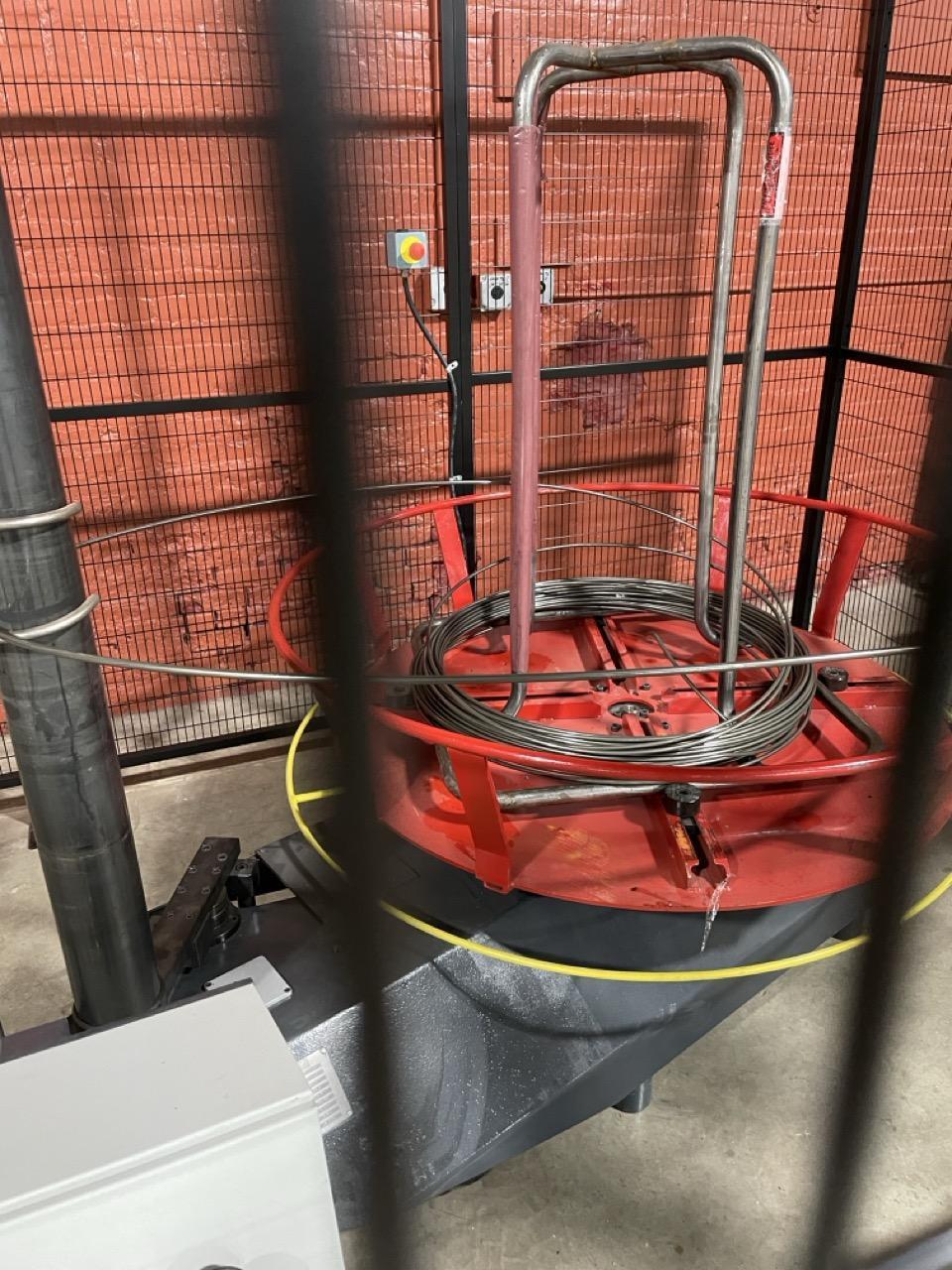

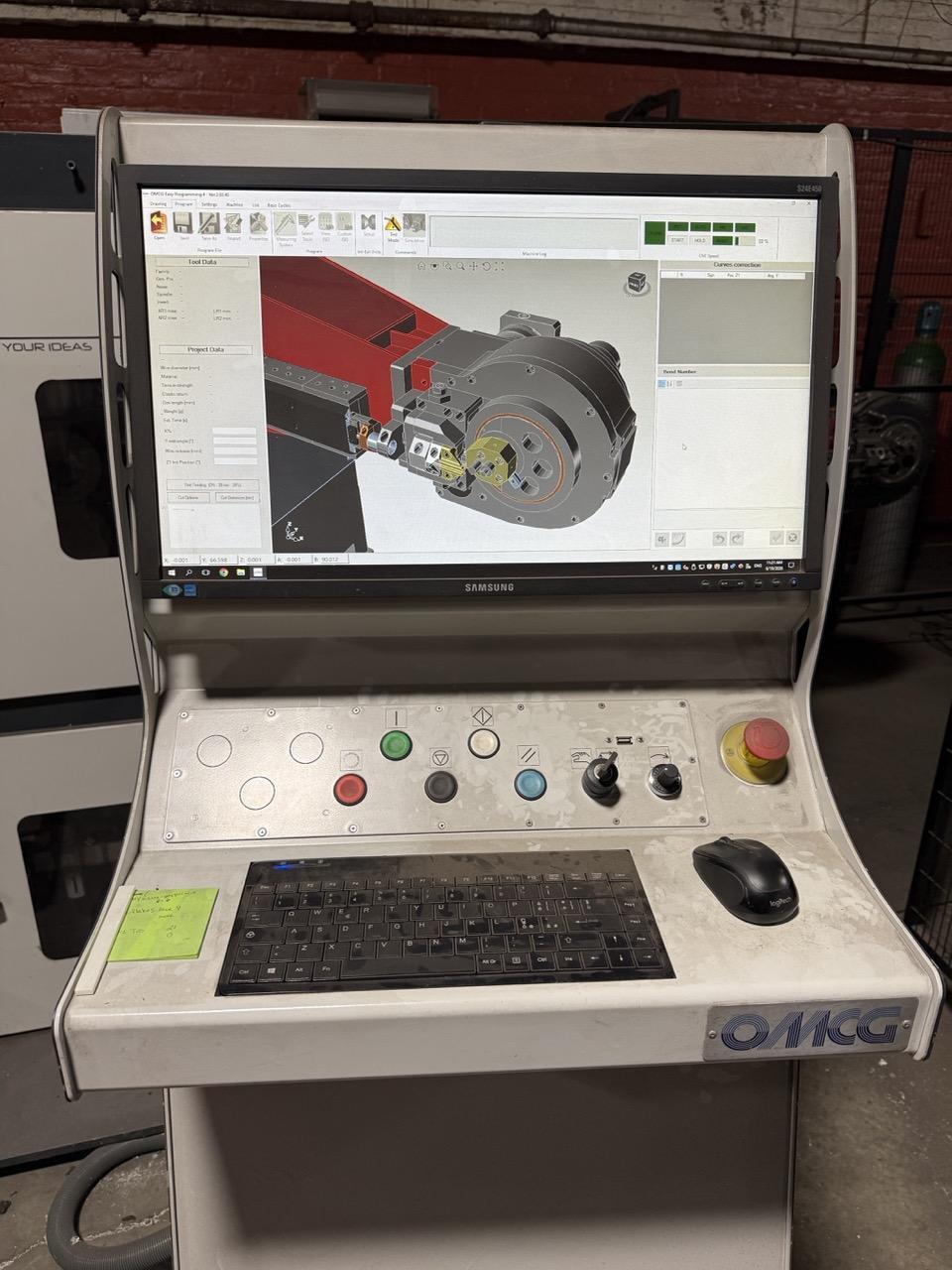

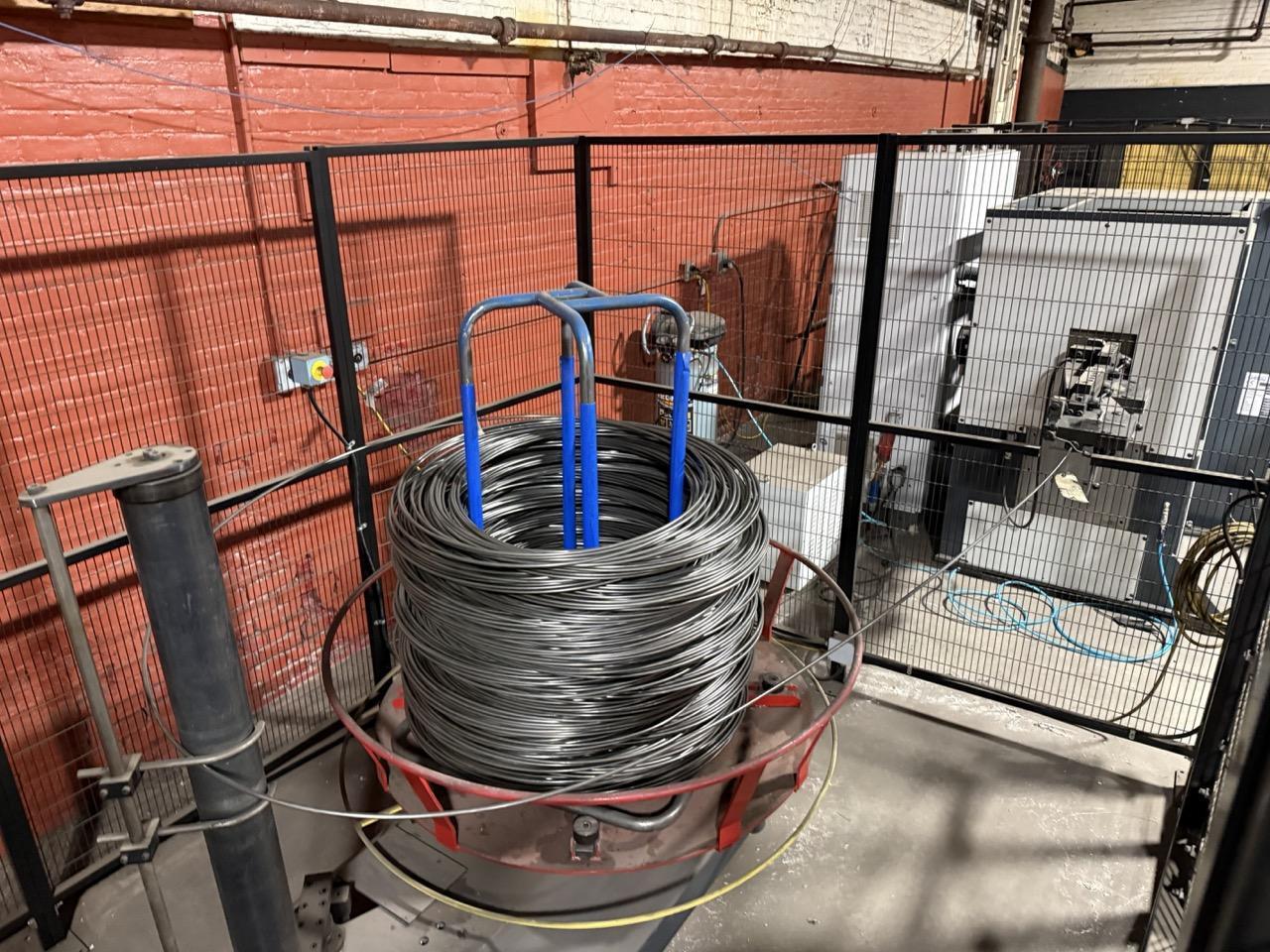

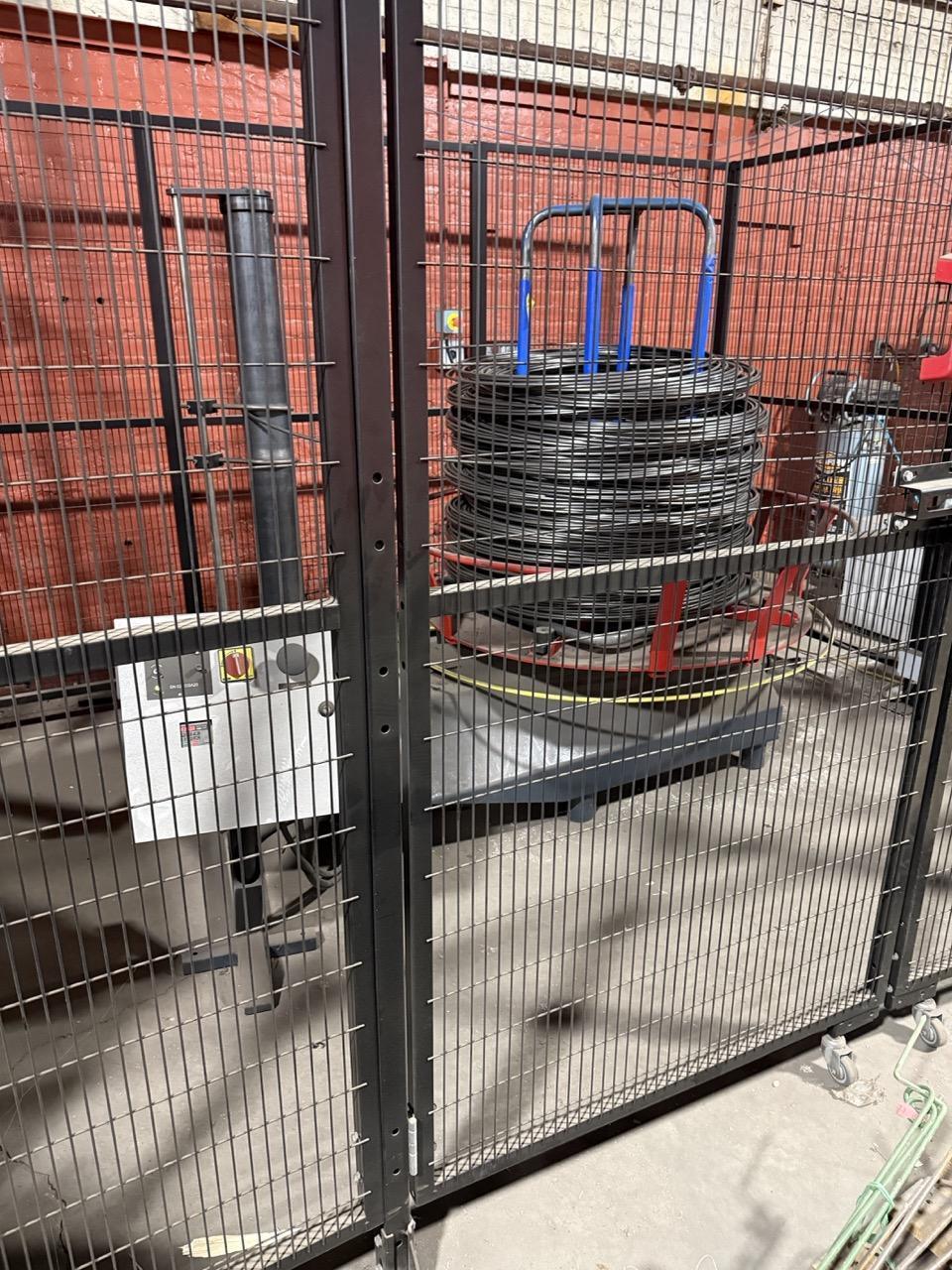

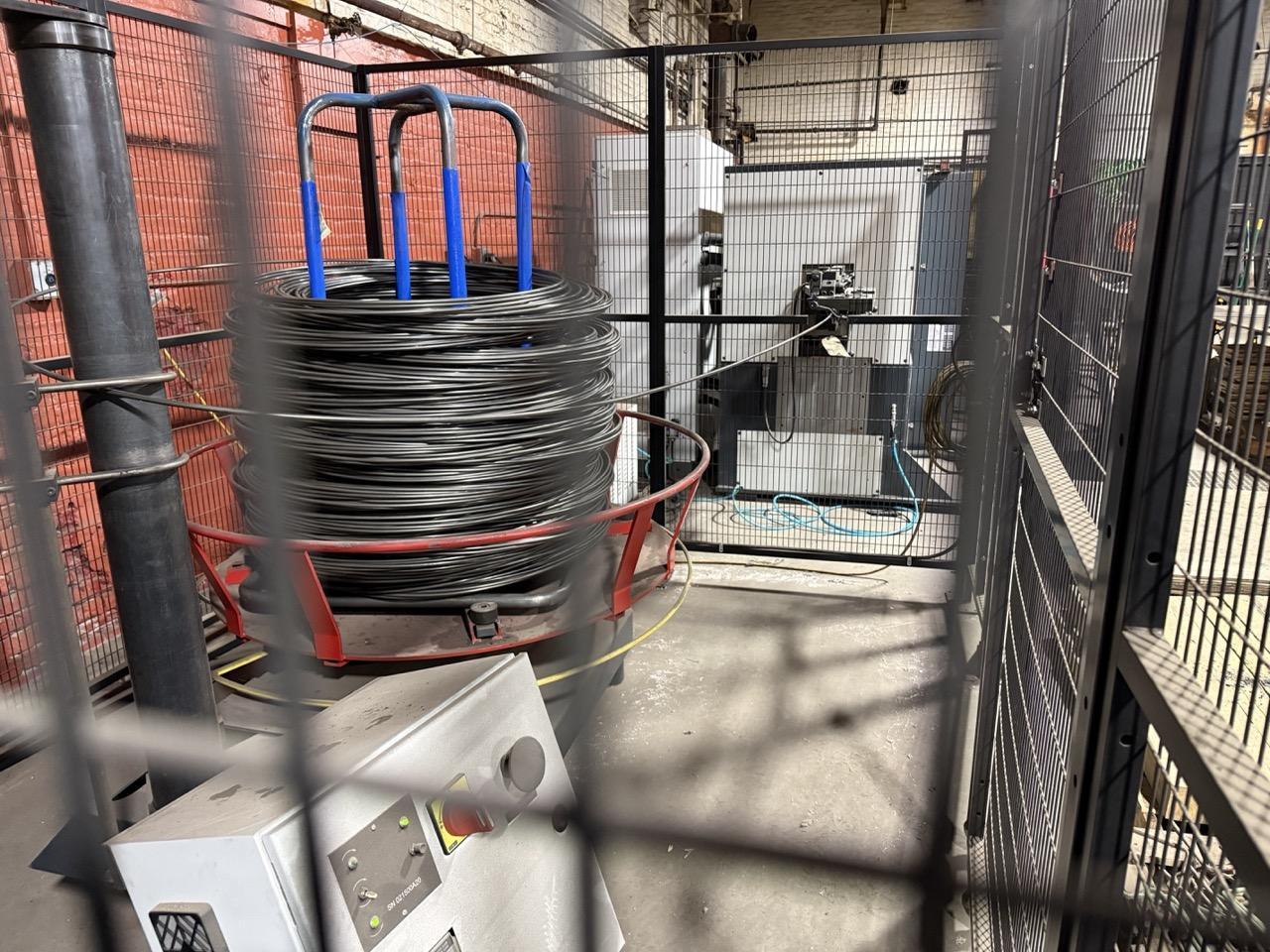

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: OMCG 4FA Wire Straightener D 4–10 mm (10+10 rolls OD 55 mm) Easy Programming 4 software Safety guards with door and safety switch standard Set of maintenance tools and wrenches OMCG | 220 V 25KVA three-phase transformer (with cover) OMCG SM02 Motorized Decoiler/Payoff 2200 kg (4850 lb) Safety guards with doors and safety switch Tooling Available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
