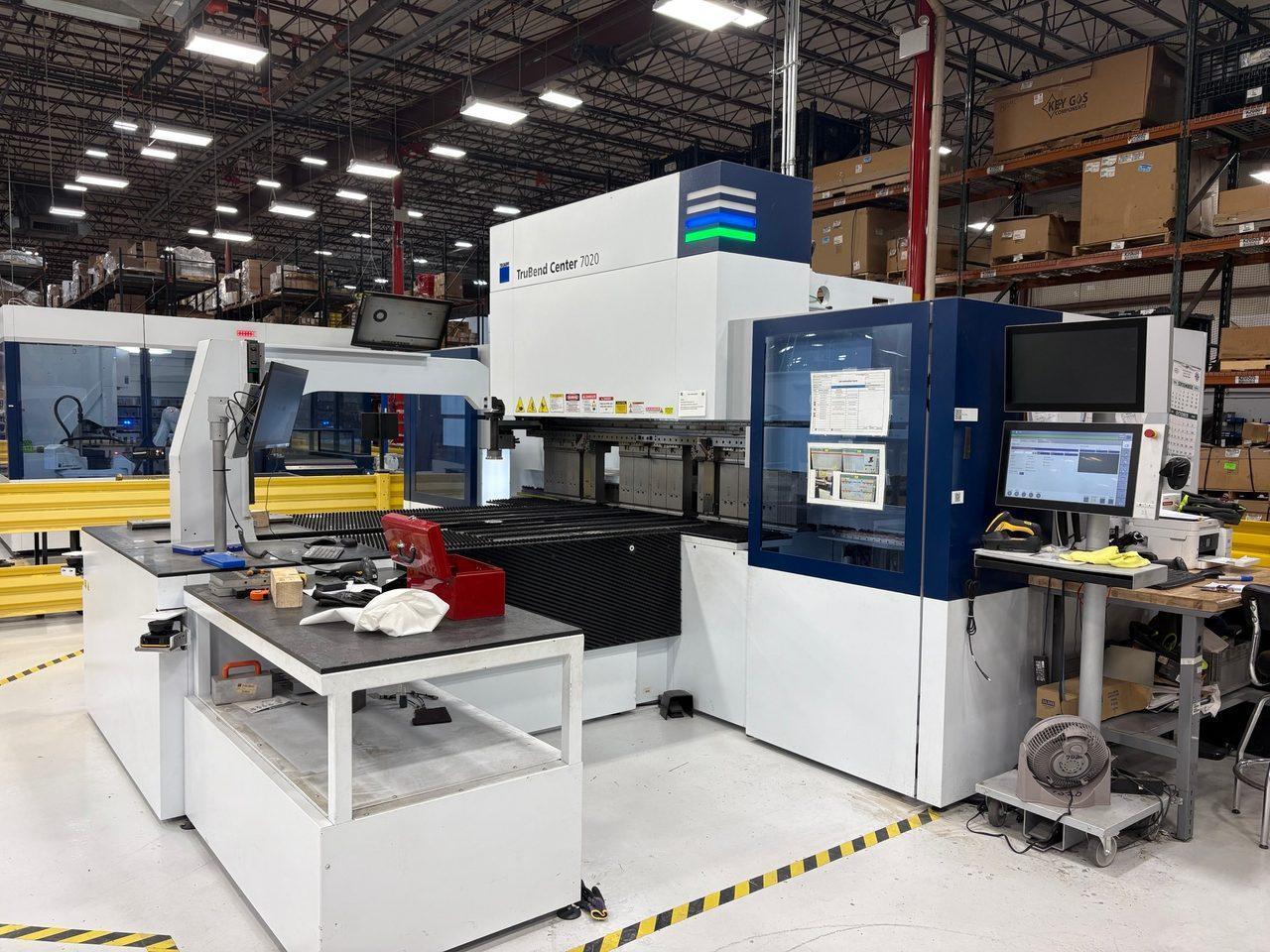

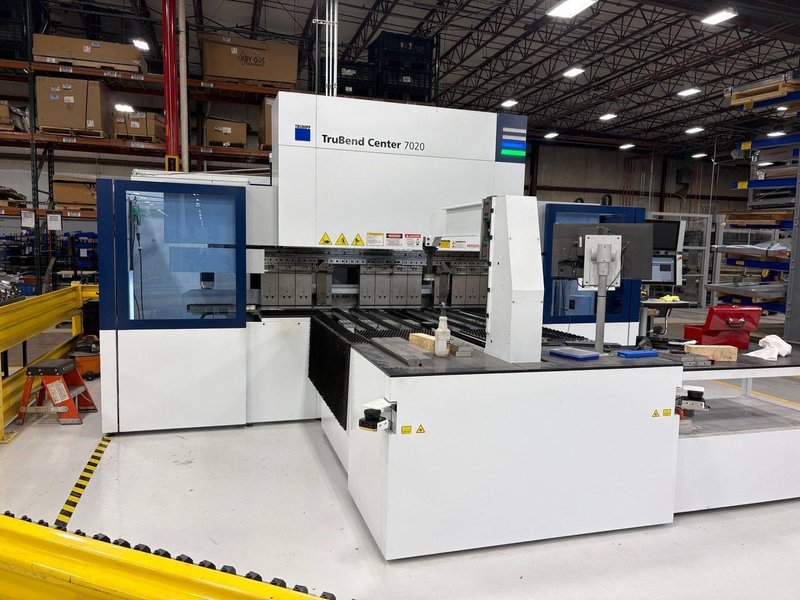

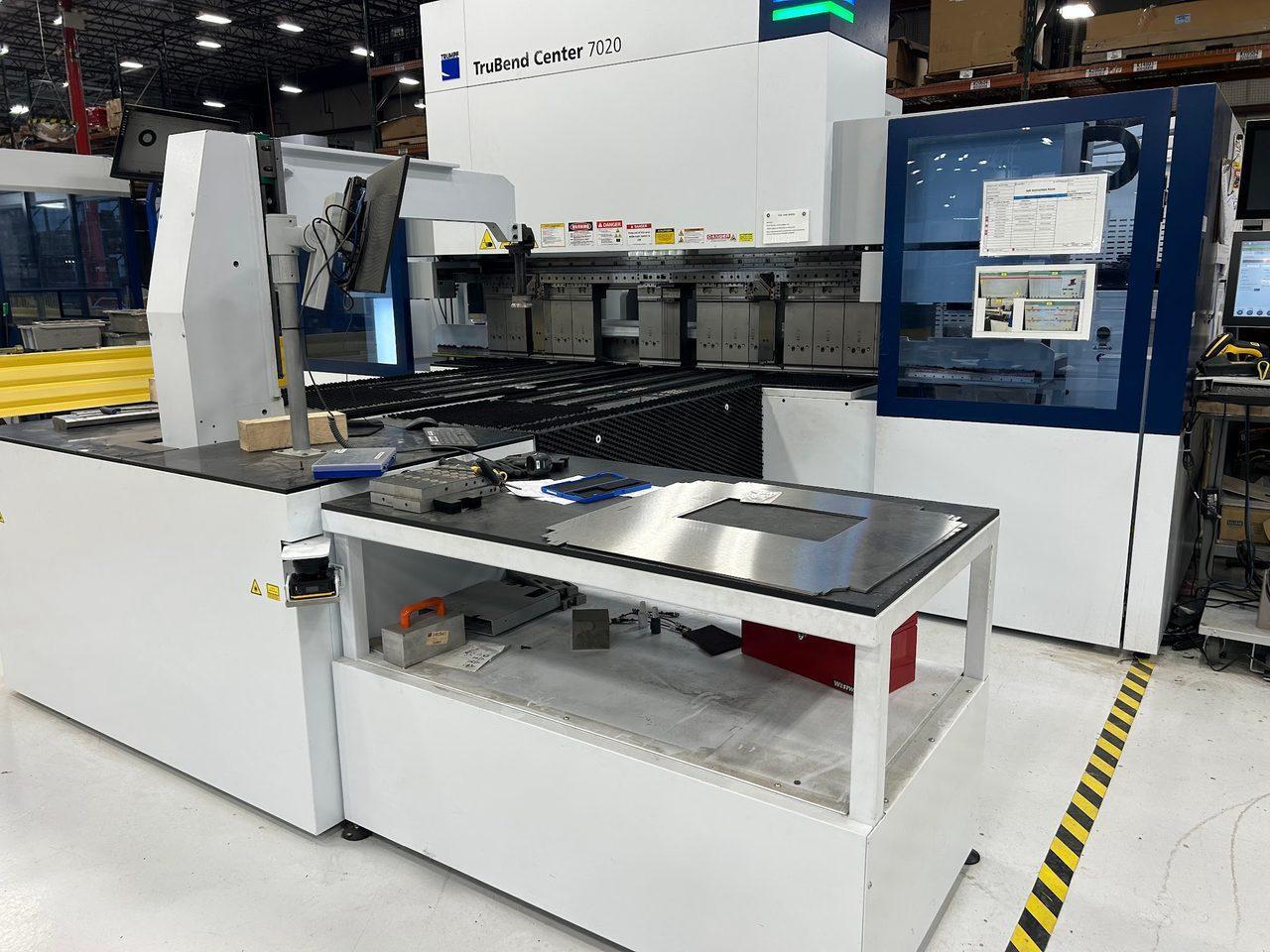

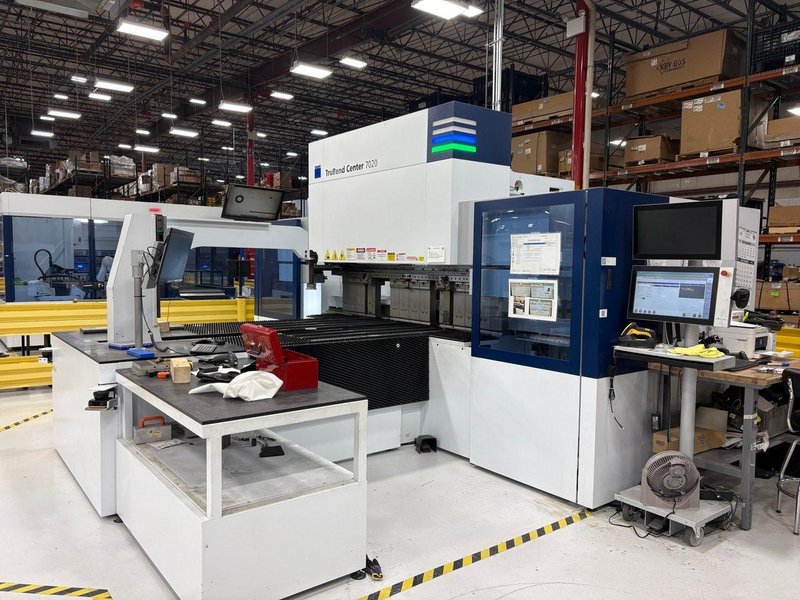

Trumpf TruBend Center 7020 CNC Bending Center, 2023 – Crowning, 5 Axis Backgauge

Max Component Size: 85″ x 59″ Max Component Diagonal: 103.9″ Max Bending Length: 85.15″ Min Bending Length: 7.87″ Min Bending Depth (Standard Tool): 5.70″ Min Bending Depth (ENW): 1.57″ Max Box Height: 13.87″ Max. material thickness for mild steel: 0.11″ Max. material thickness for stainless steel: 0.08″ Max. material thickness for aluminum: 0.15″ Min. material thickness: 0.015″ Machine Weight: 48,000 LBS

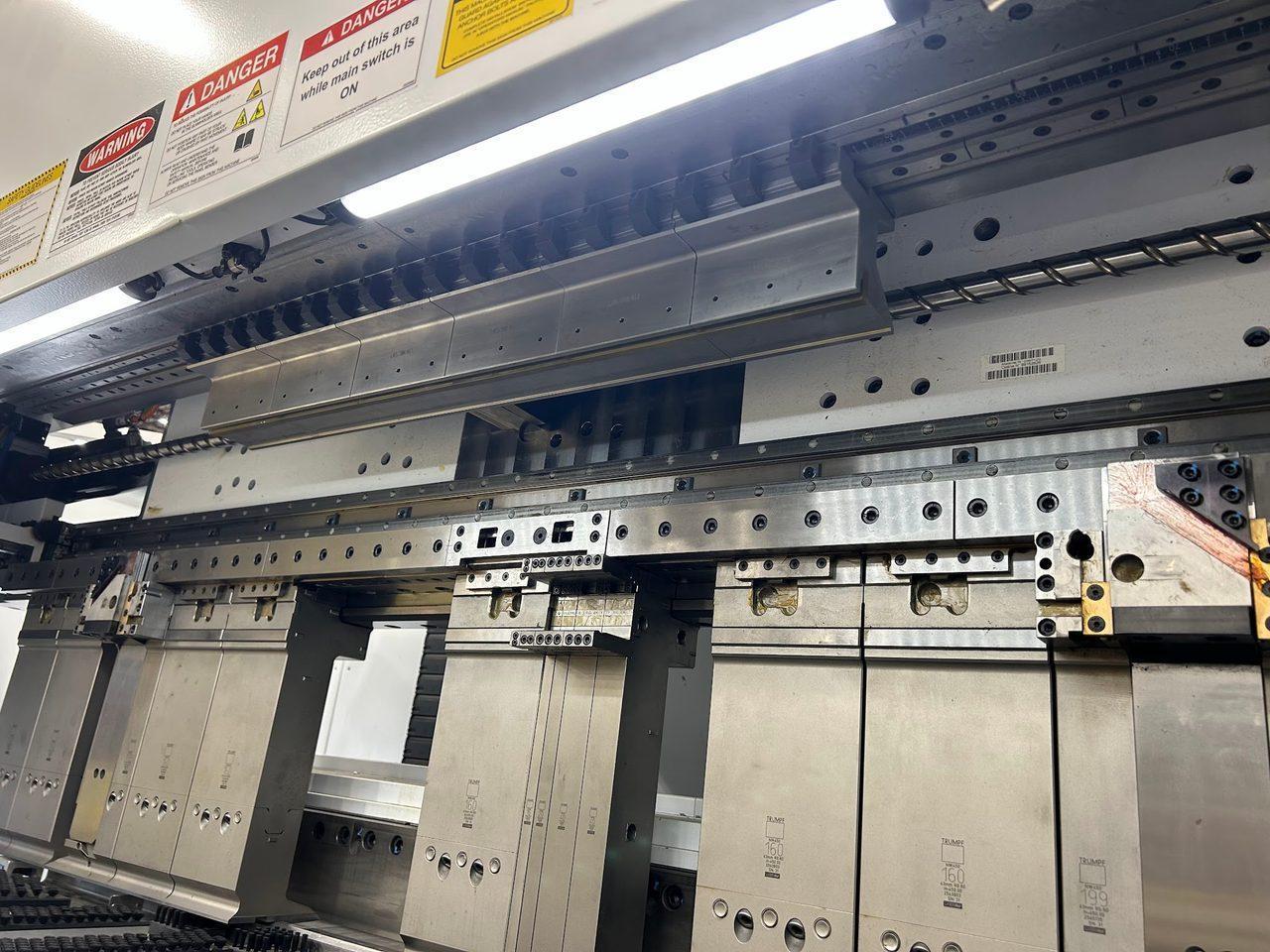

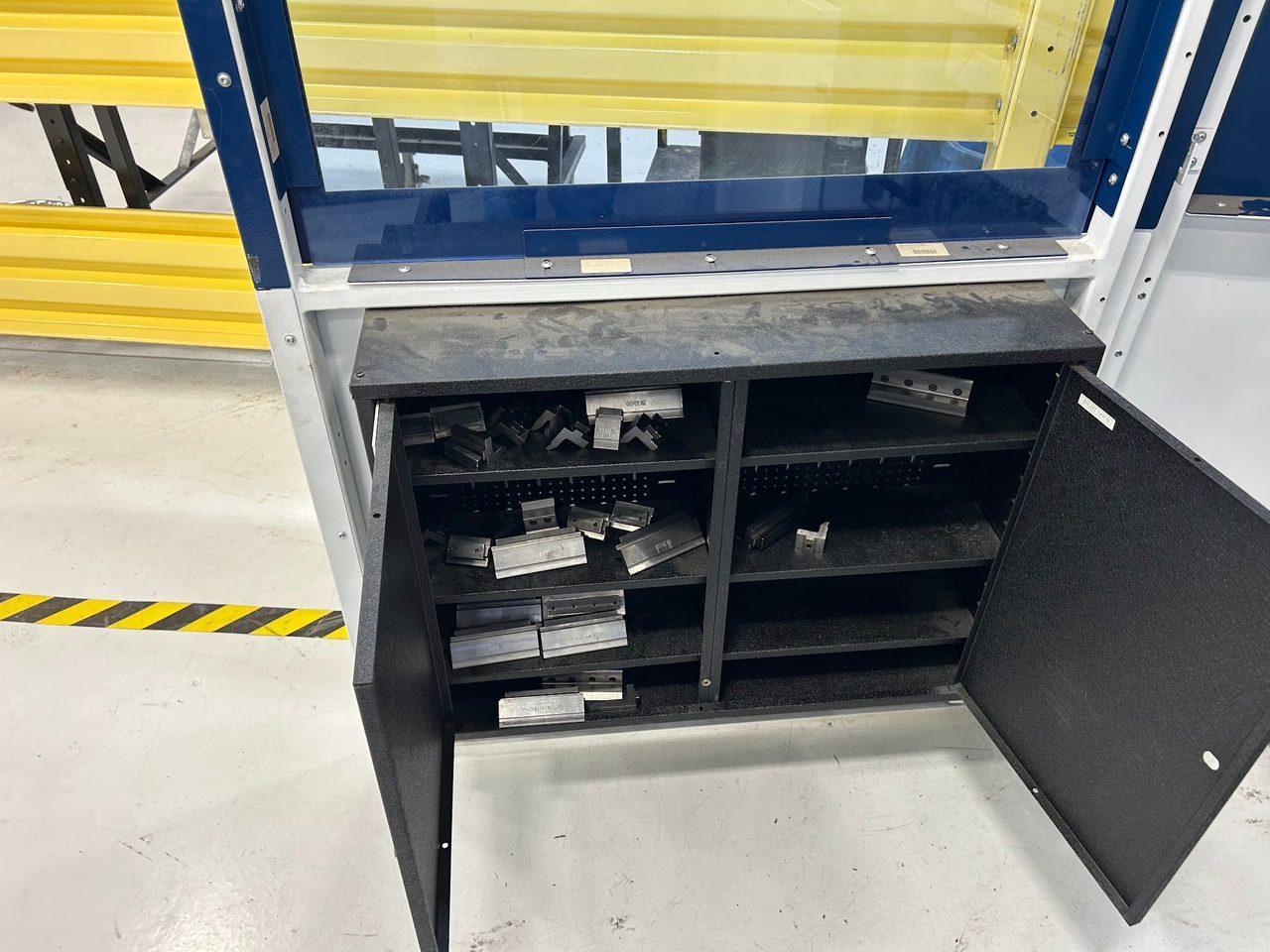

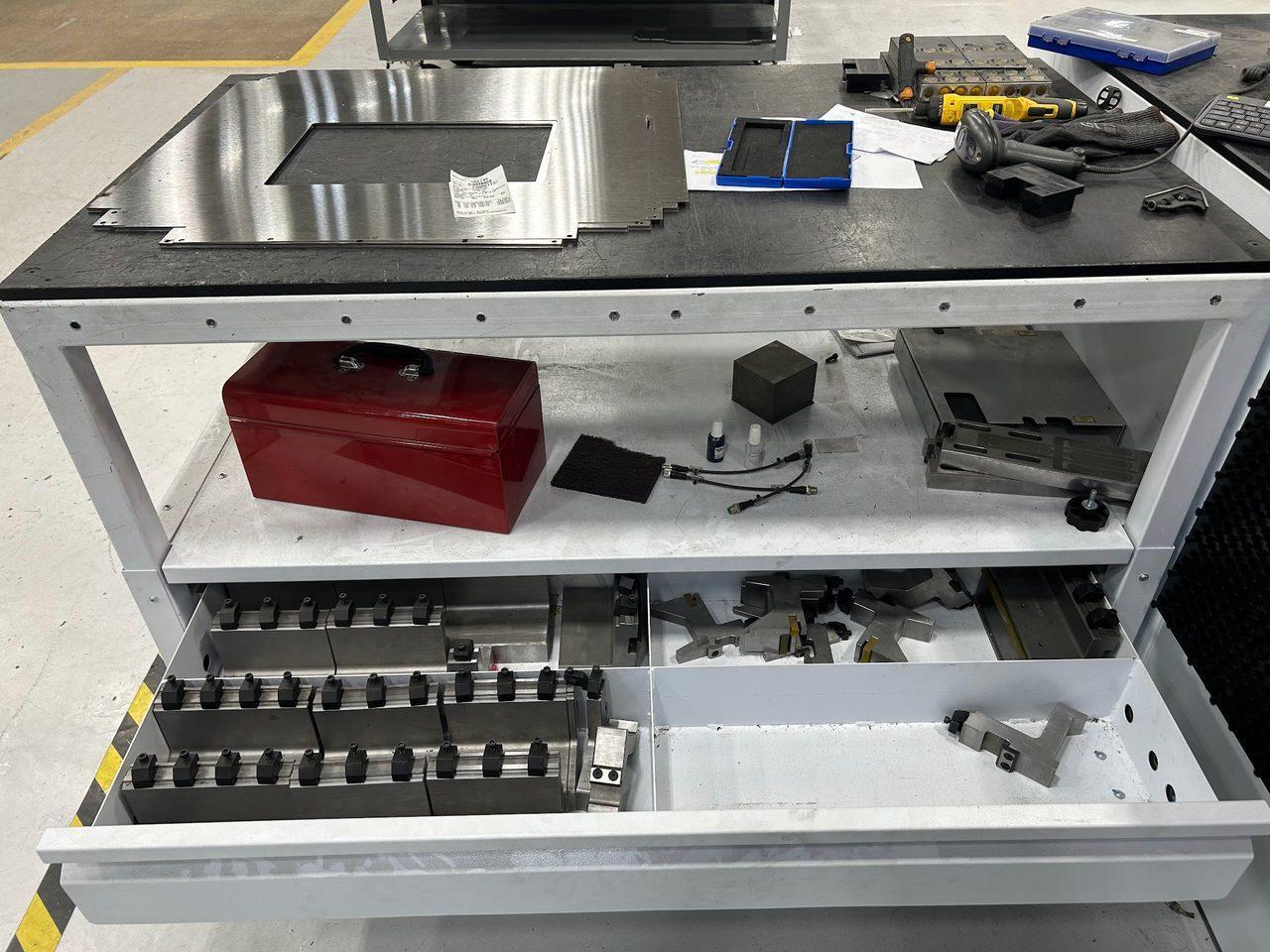

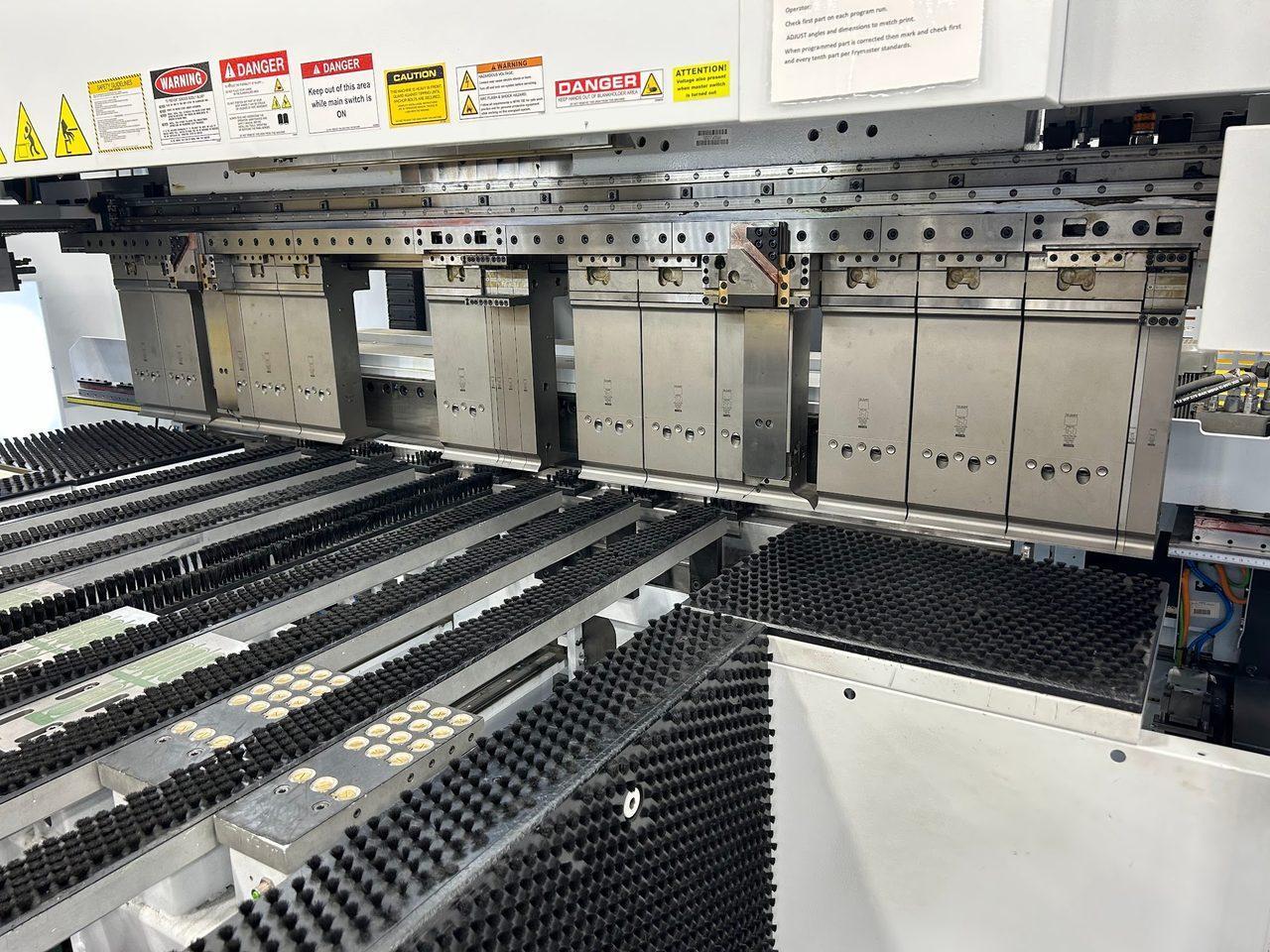

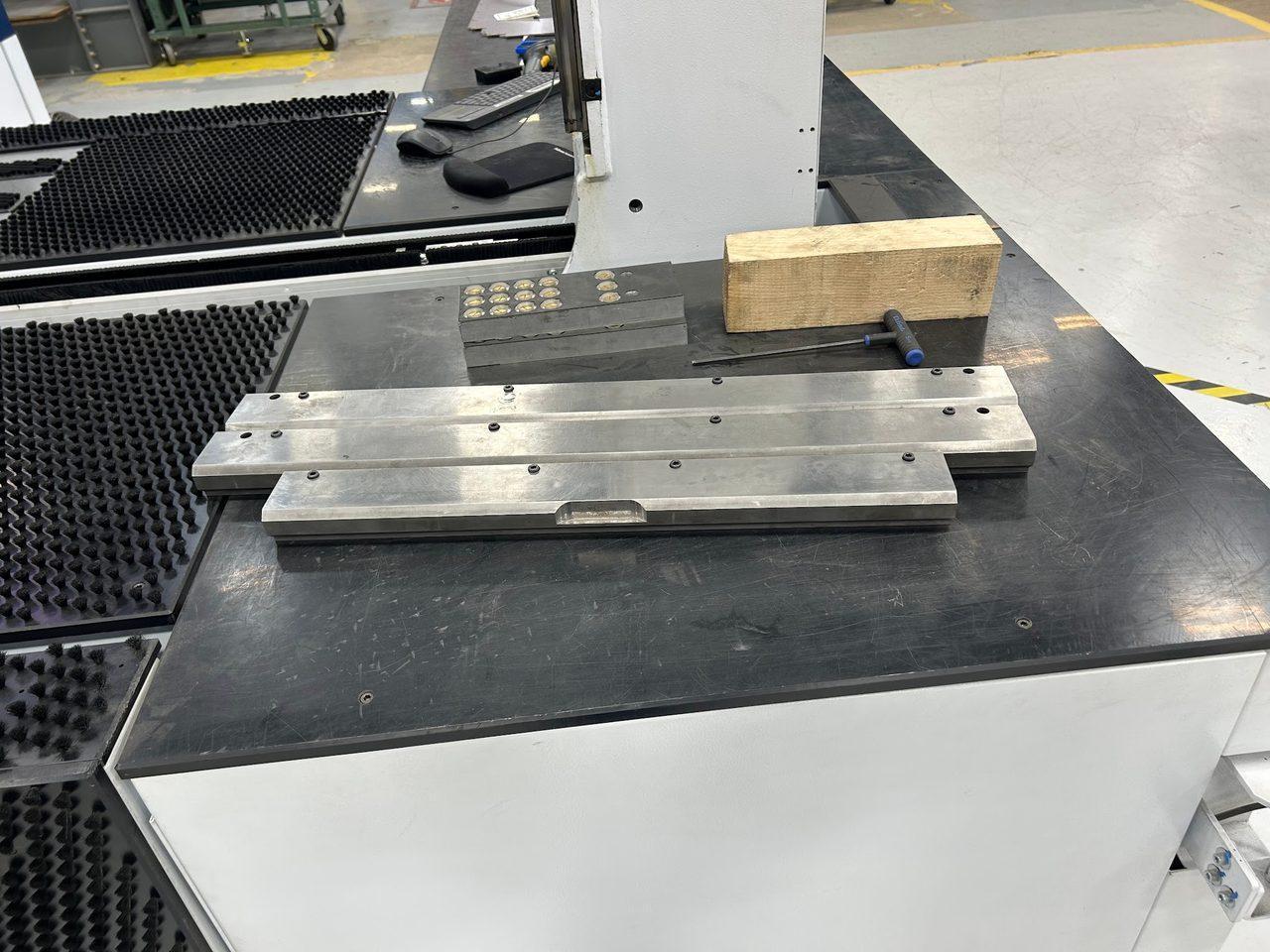

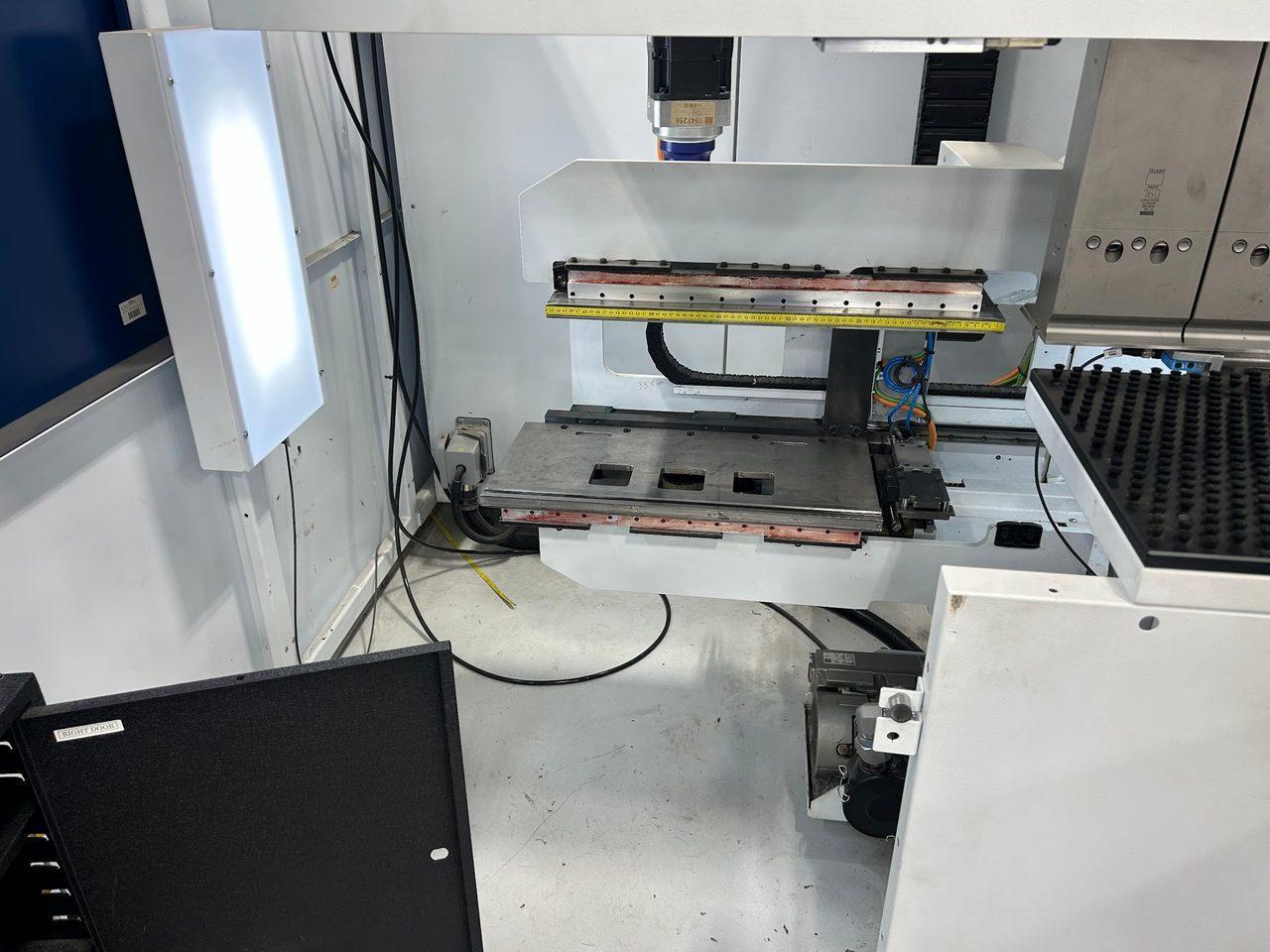

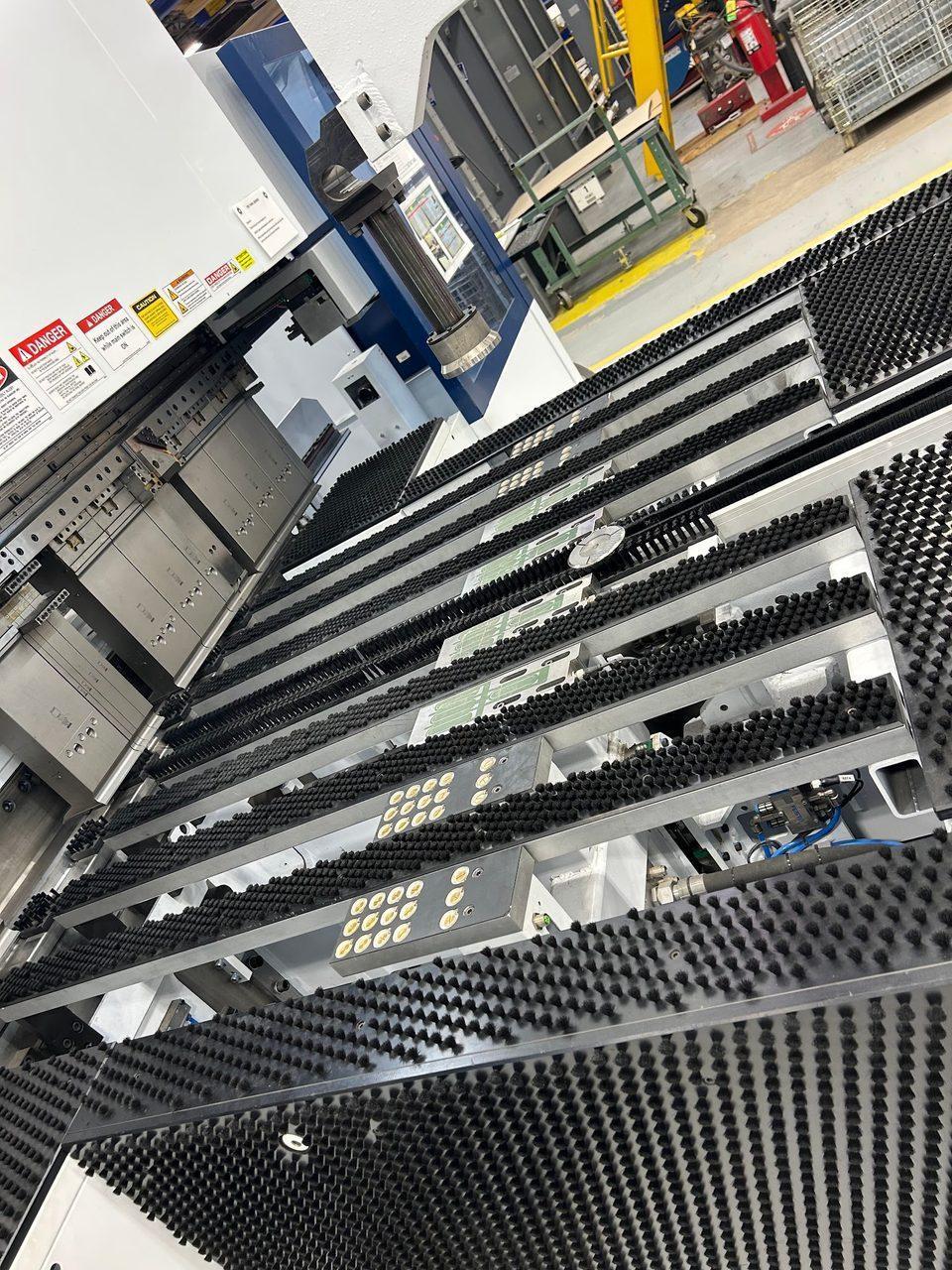

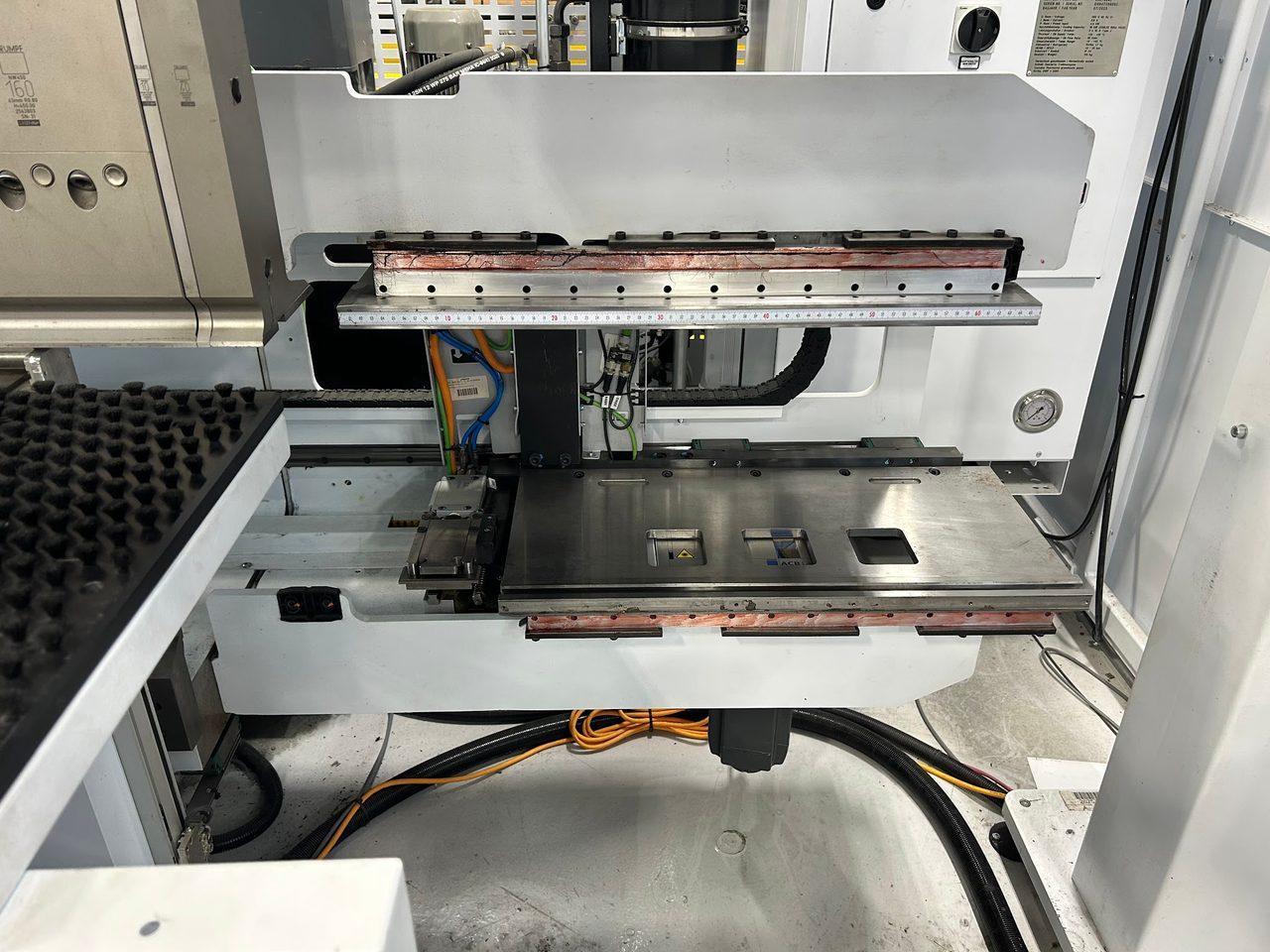

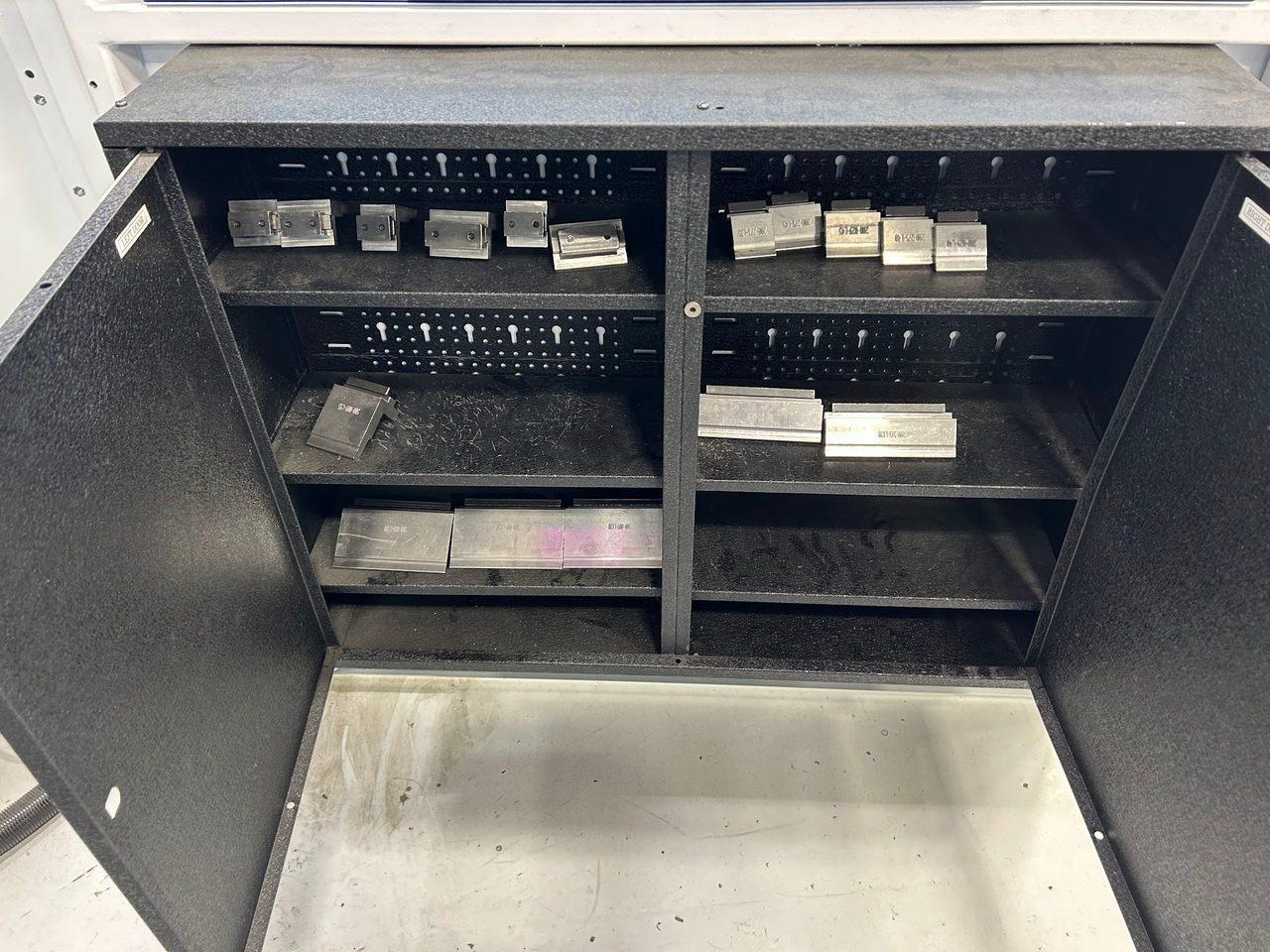

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Touch-operated machine control with keyboard and mouse Crowning 5 Axis Backgauge Programming: TecZone Fold programming floating license noted for PC and machine Loading grippers and rotary part manipulator OBW90 and UBW90 tooling included Blank-holder tools Optical angle assistant ToolMaster bending ACB laser USB and RJ45 network interface CE marking Hinged Doors Safety Light Barriers 2D Bluetooth code scanner Auxiliary loading table Additional screen Production status interface ZBW Function ENW Function Foot Switches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
