48″ x 48″ Fixturecraft Cobot Table, 2026

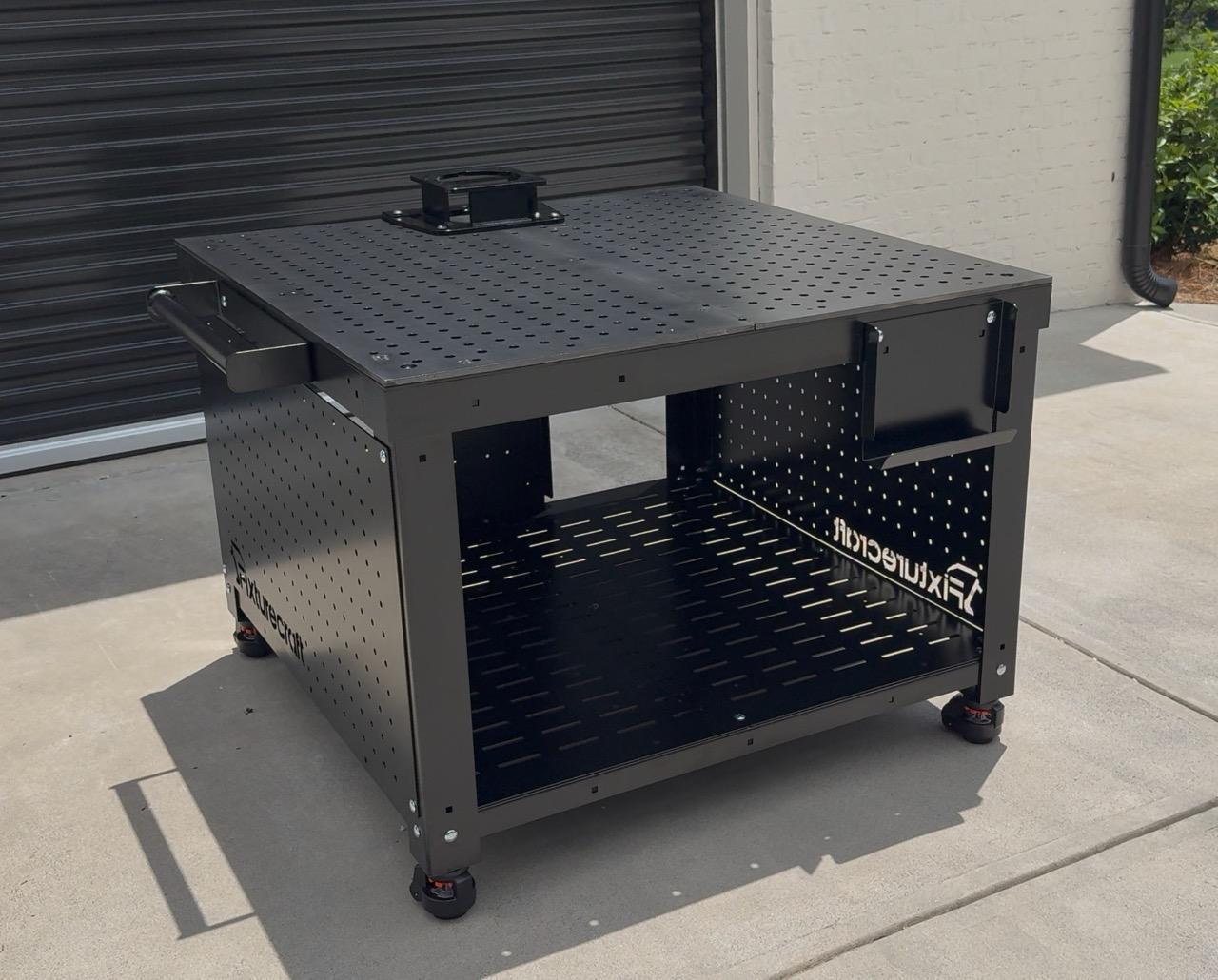

Fixturecraft Cobot Table – 48″ x 48″ Welding/Fixture Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overview Fixturecraft Cobot Table designed for robotic welding and fixturing applications. Heavy-duty steel construction with a precision-ground tabletop, mobile base with integrated leveling, and high static load capacity.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions & Weight

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 48″ x 48″ Overall Height: 36″ Table Weight: 660 lb Shipping Weight: 700 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tabletop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material: A36 steel, 3/8″ thick Surface Finish: Black oxide Hole Pattern: 2″ x 2″ grid, 16mm hole size Flatness Tolerance: ±0.020″ over 4 sq ft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Load Capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Static Load Capacity: 2,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frame

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: 3/16″ laser-cut and bent steel Assembly: Bolt-together structure with welded top frame Finish: Satin black powder coat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mobility

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Casters with integrated leveling feet Leveling Range: ±1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
