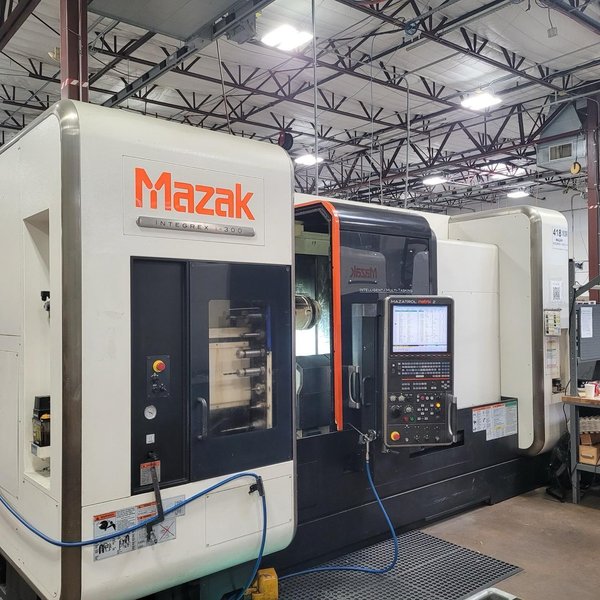

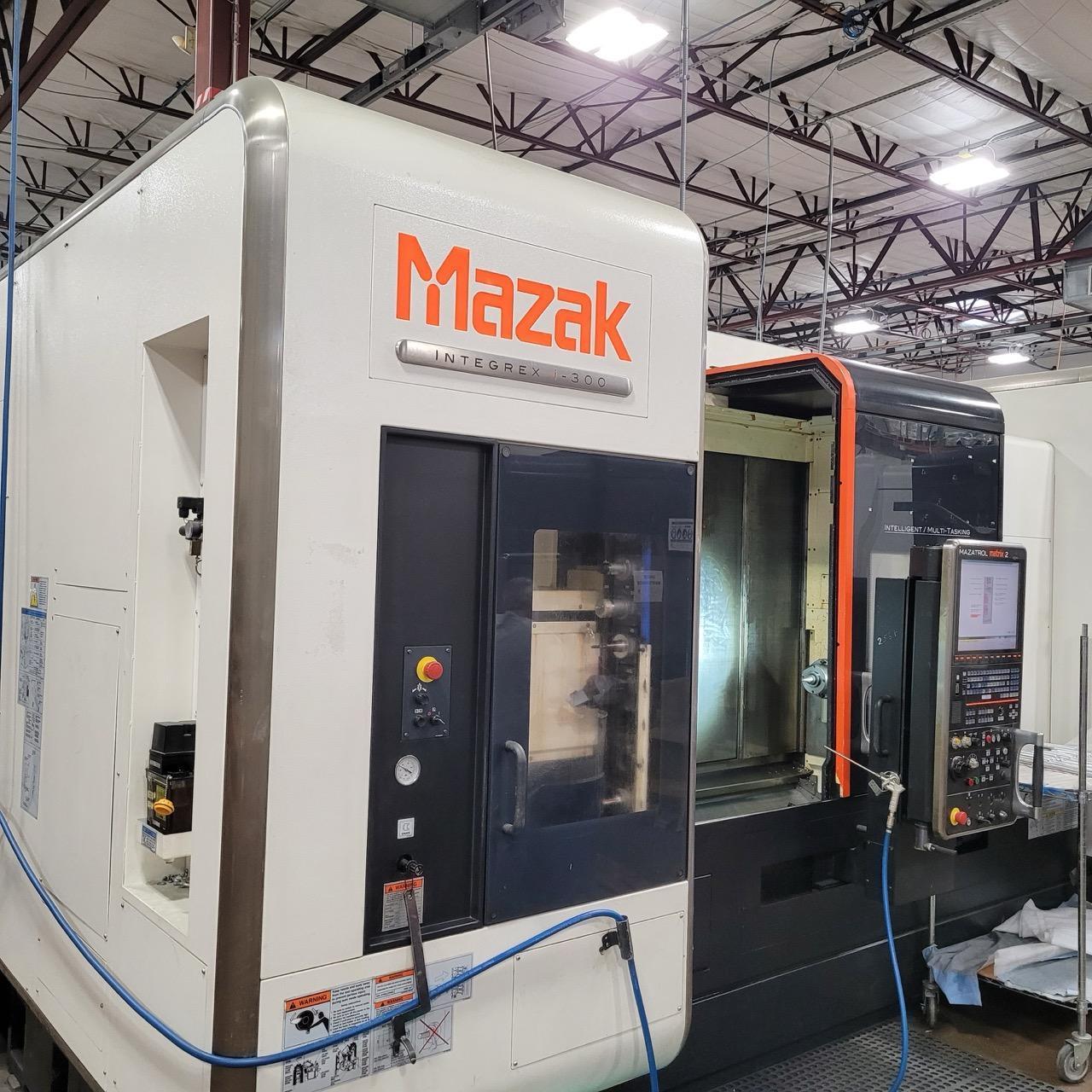

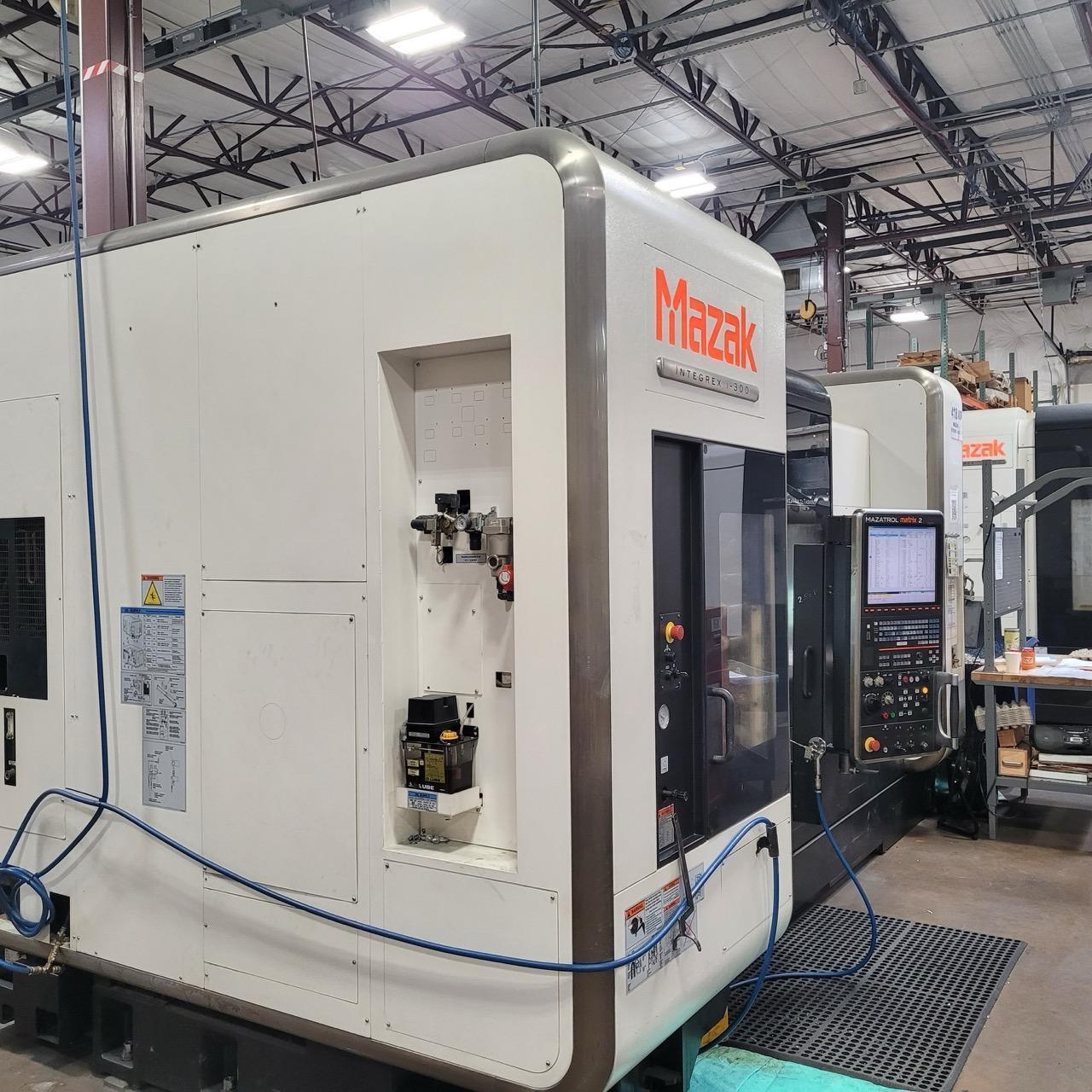

Mazak Integrex i-300 Multi Axis CNC Lathe, 2011 – Y Axis, Live Milling

Max. swing / Swing over cross slide: 25.9″ Max. machining diameter (Upper turret): 25.9″ Max. machining length: 39.8 Max. bar work capacity: 3.15″ X Axis Travel: 24.2″ Z Axis Travel: 42.4″ Y Axis Travel: 10.24″ B Axis Travel: 30° ～ 210° Chuck Size: 10″ Main Spindle Speed: 4,000 RPM Main spindle nose: A2-8 Main spindle bore: 3.58″ Minimum main spindle indexing increment: 0.0001° Milling spindle speed: 12,000 RPM Boring bar shank diameter: 1.5″ B-axis minimum indexing increment: 0.0001° Tool Changer Capacity: 36 Spindle Motor: 30/40 HP Milling Spindle Motor: 20 / 30 HP

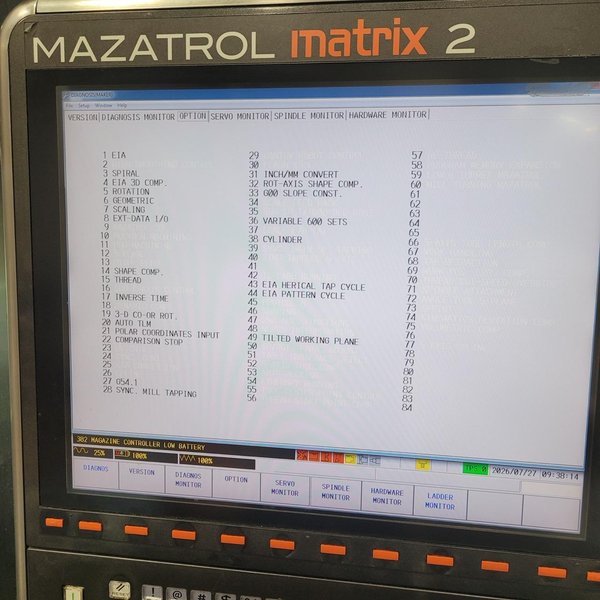

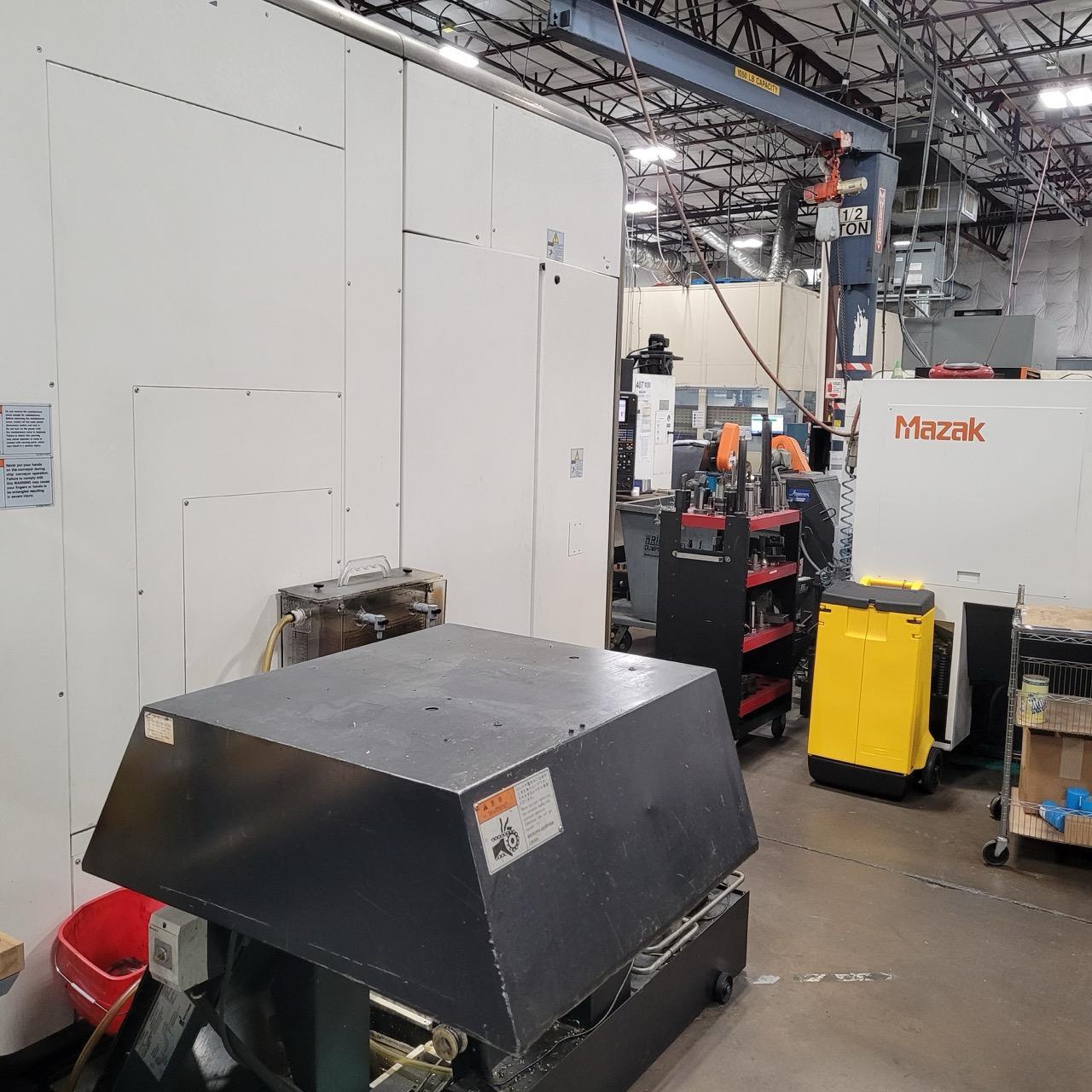

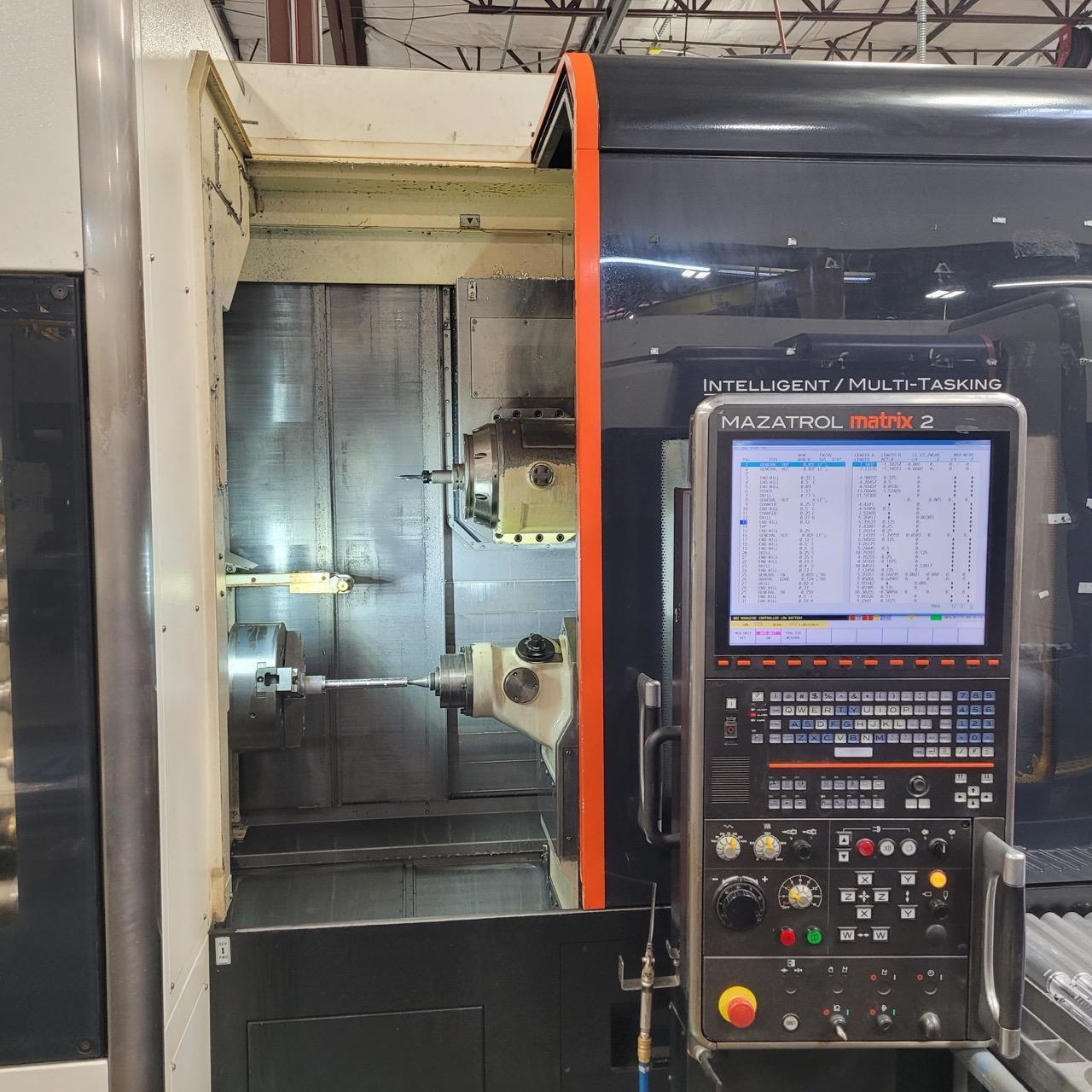

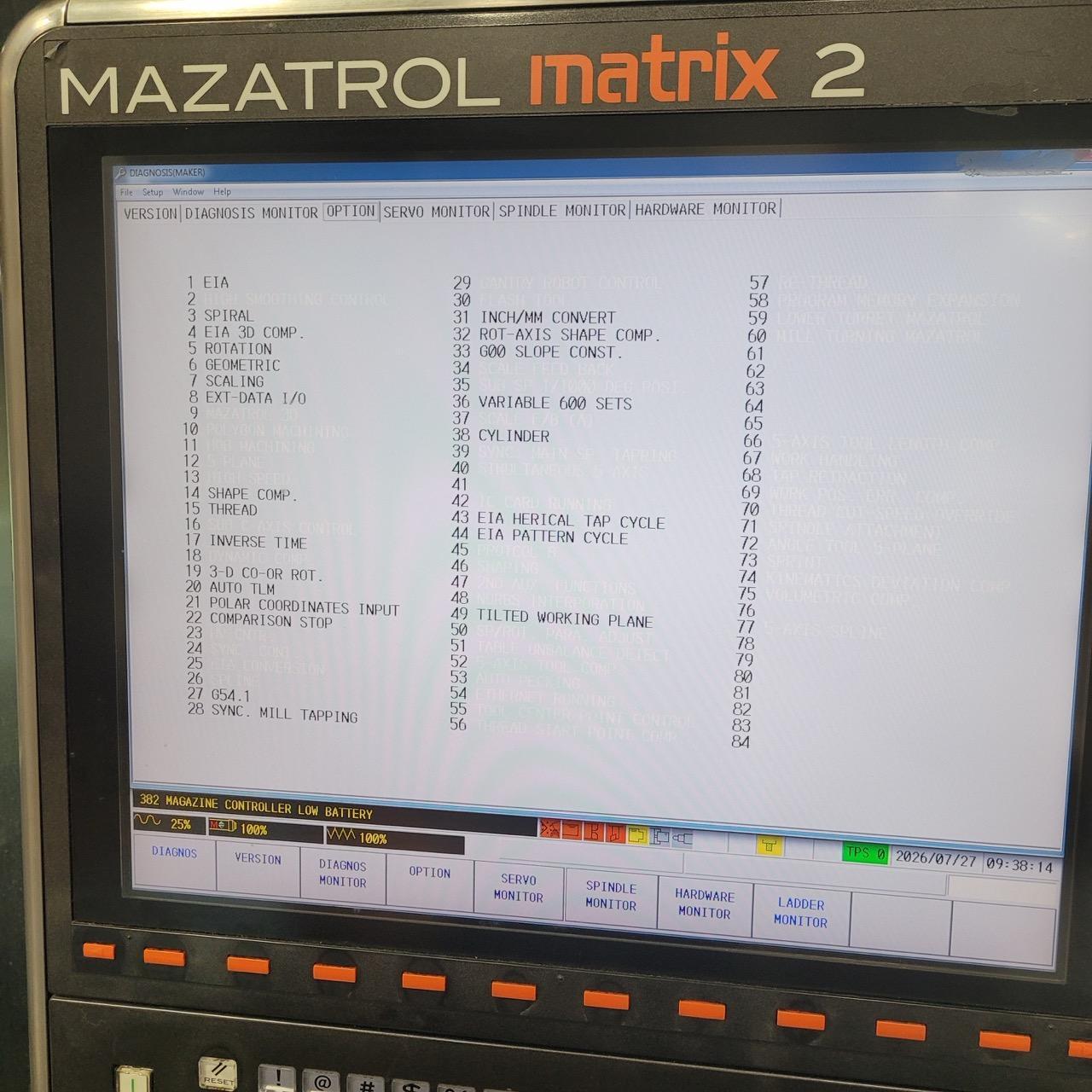

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol Matrix 2 CNC Control Chip Conveyor Live Milling Y Axis Tailstock EIA EIA 3D Comp Sync. Mill Tapping Tilted Working Plane

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
