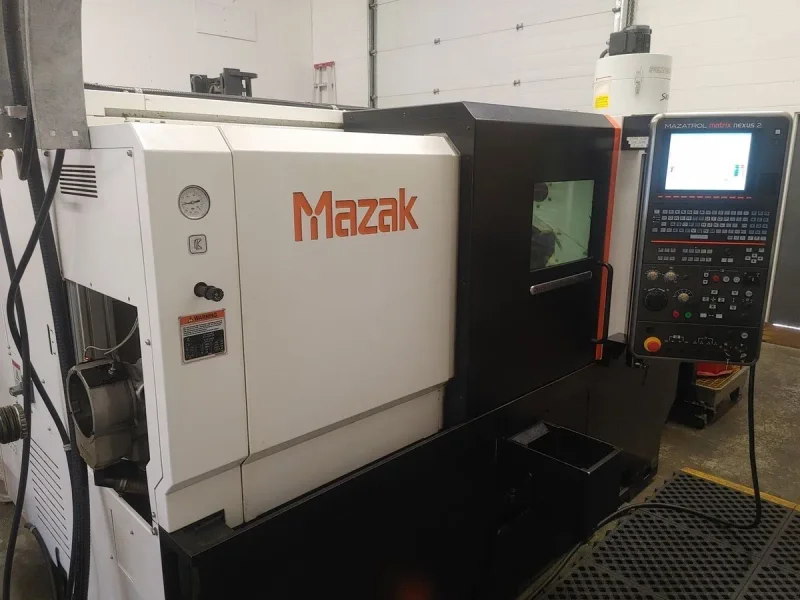

2016 MAZAK QT350MY | Lathes, CNC (3-Axis or More)

AXIS TRAVELS (from home position)

- X-Axis: -16.23 in (to tailstock barrier)
- Z-Axis: -21.25 in
- Y-Axis: +/- 1.99 in (envelope varies with X position)
- At X +1.00: Y +1.99 / Y -1.25
- At X +3.00: Y +1.99 / Y -1.83
- At X +4.00: Y +1.99 / Y -1.99

SPINDLE

- Main Spindle Max Speed: 3,500 RPM
- Main Spindle Motor: 25 HP
- Live Tool Spindle Max Speed: 4,500 RPM

CAPACITY

- Max Practical Turning Diameter: 12.5 in
- Max Practical Turning Length: 18 in

RUNTIME

- Power-On Hours: 13,264
- Auto Operation Hours: 6,512

EQUIPPED WITH

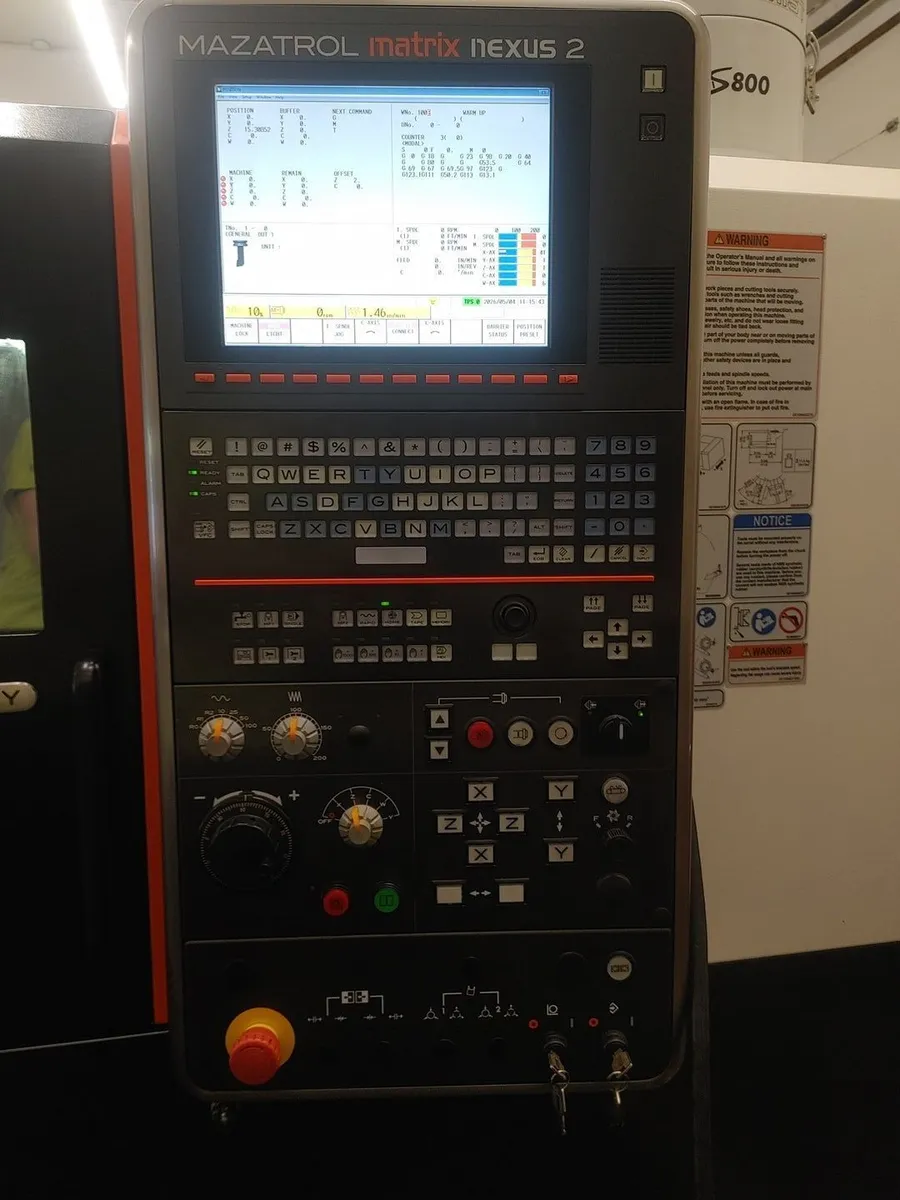

- Mazatrol Matrix 2 Nexus CNC Control

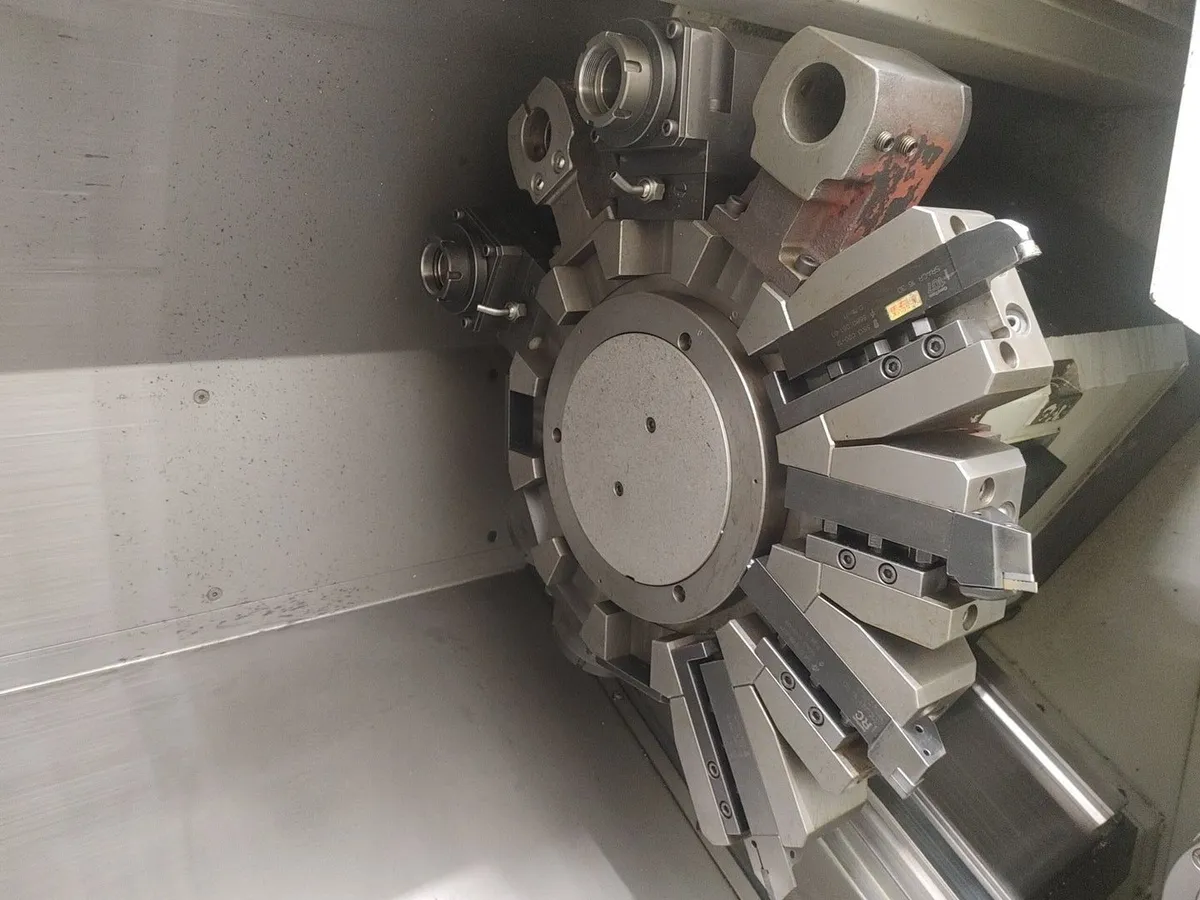

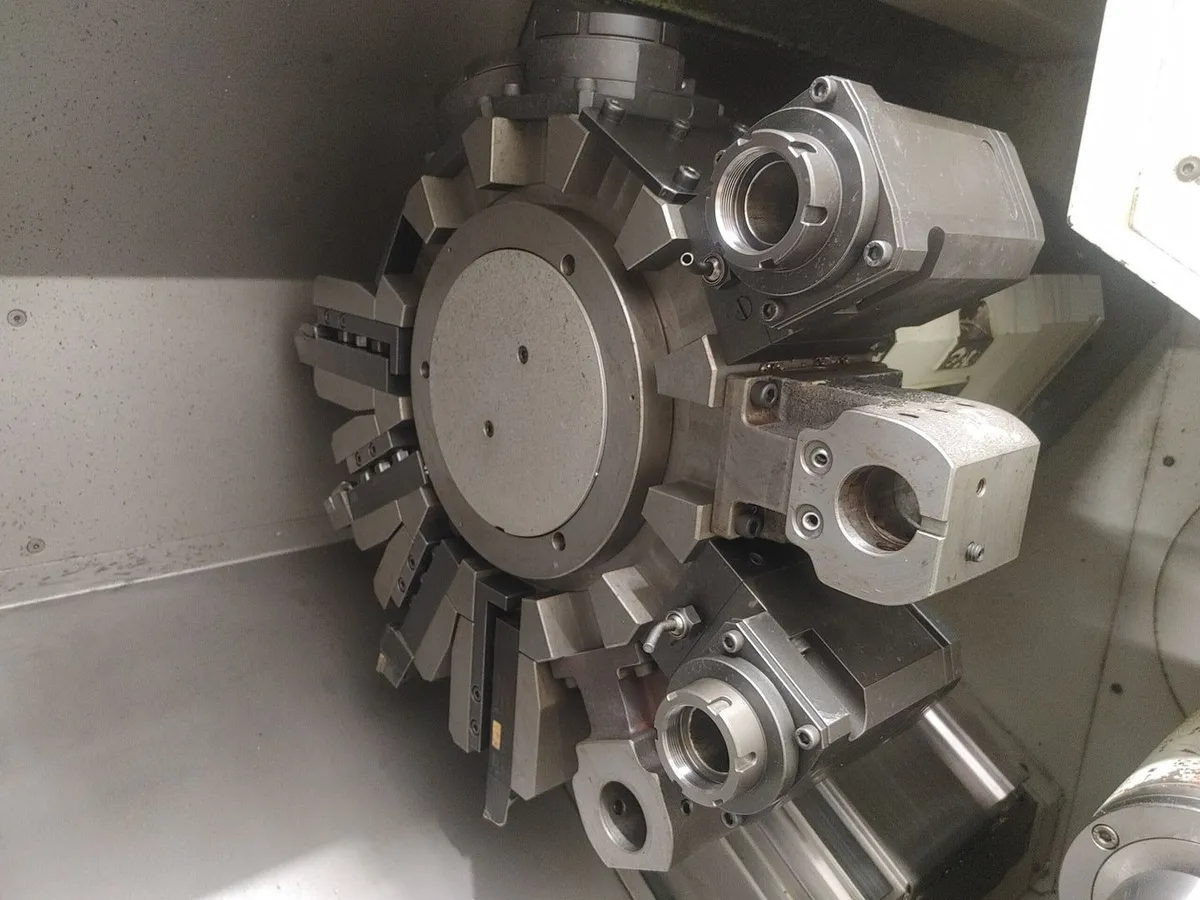

- 12-Station BMT Turret with Live Tooling (Axial and Radial)

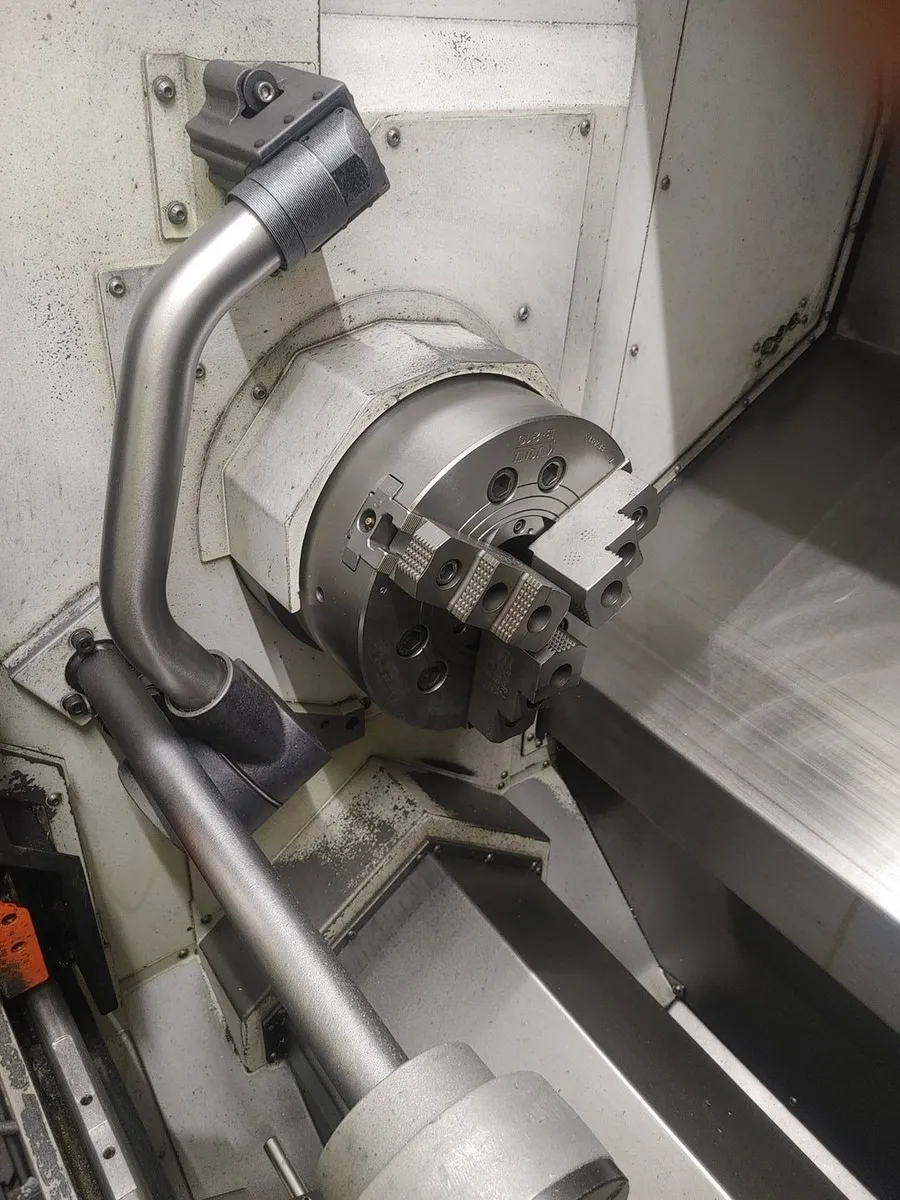

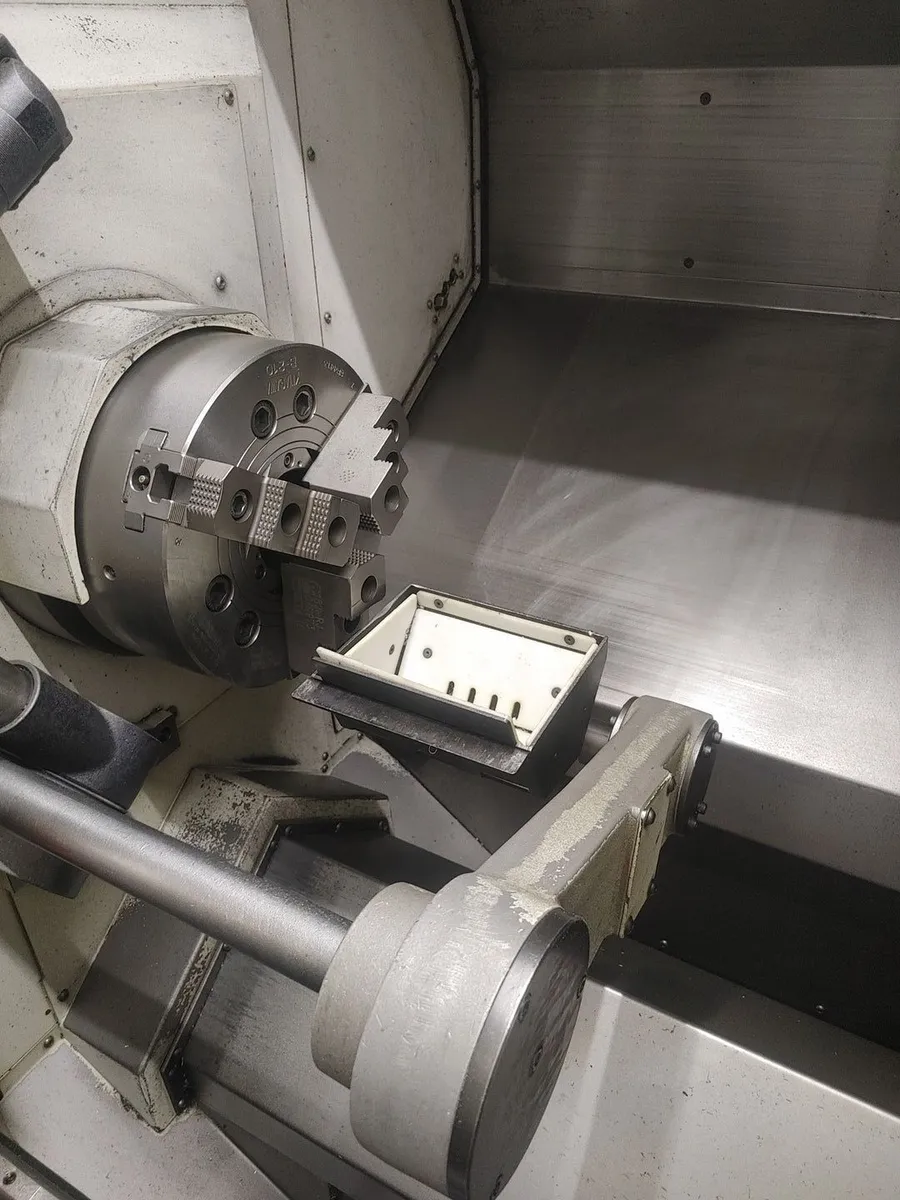

- Kitagawa B-210 10" 3-Jaw Hydraulic Chuck
- Through-Coolant Capability (1 ID Position)

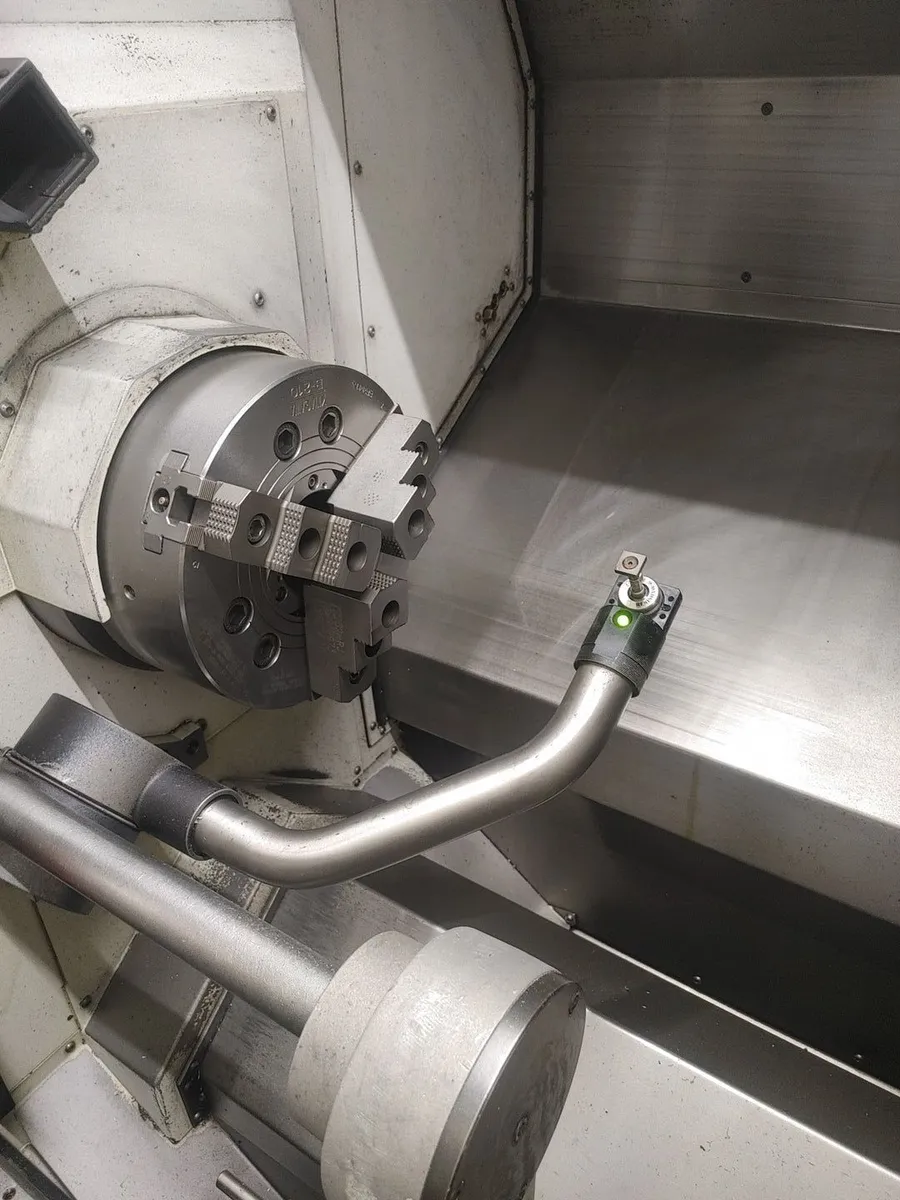

- Renishaw Tool Setter

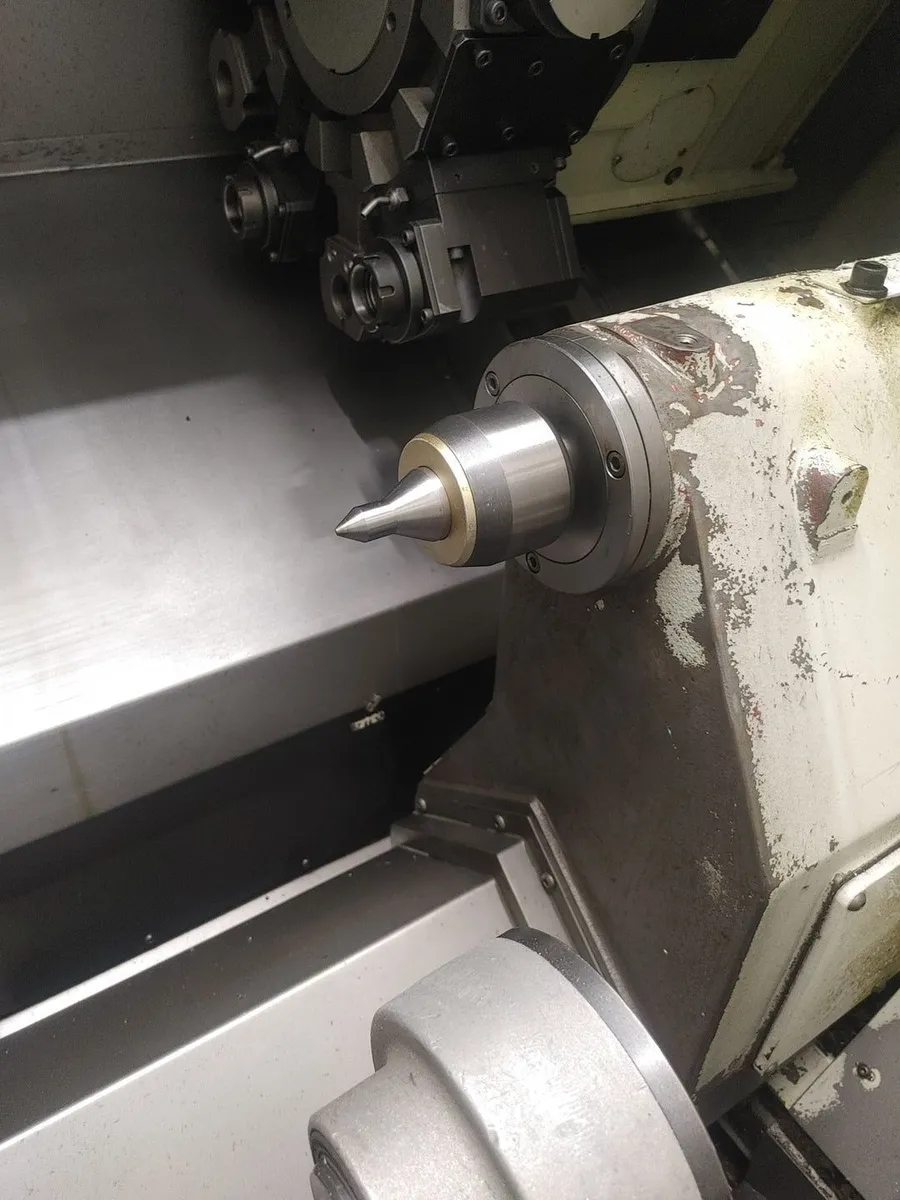

- Programmable Tailstock
- Parts Catcher

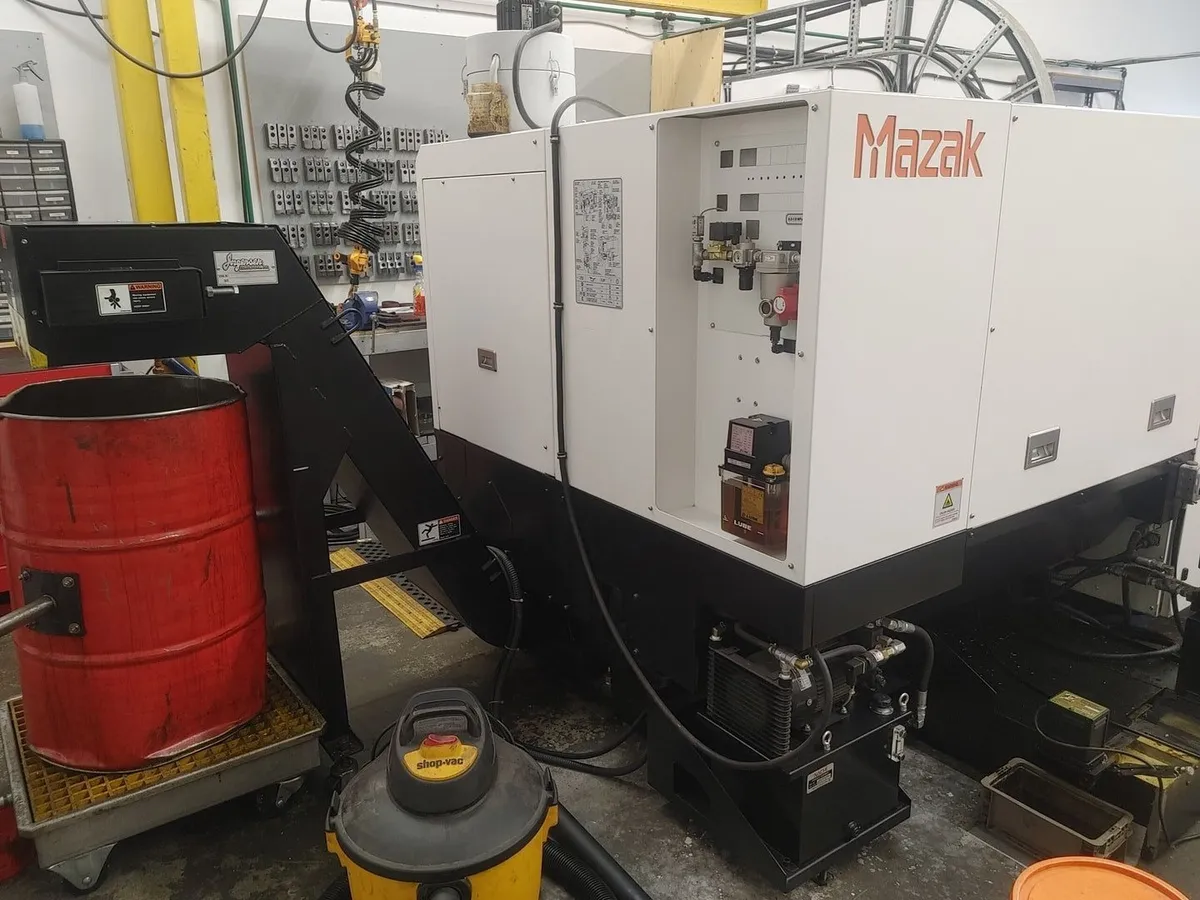

- Side-Exit Chip Conveyor
- Top-Mounted Filtermist Mist Collector

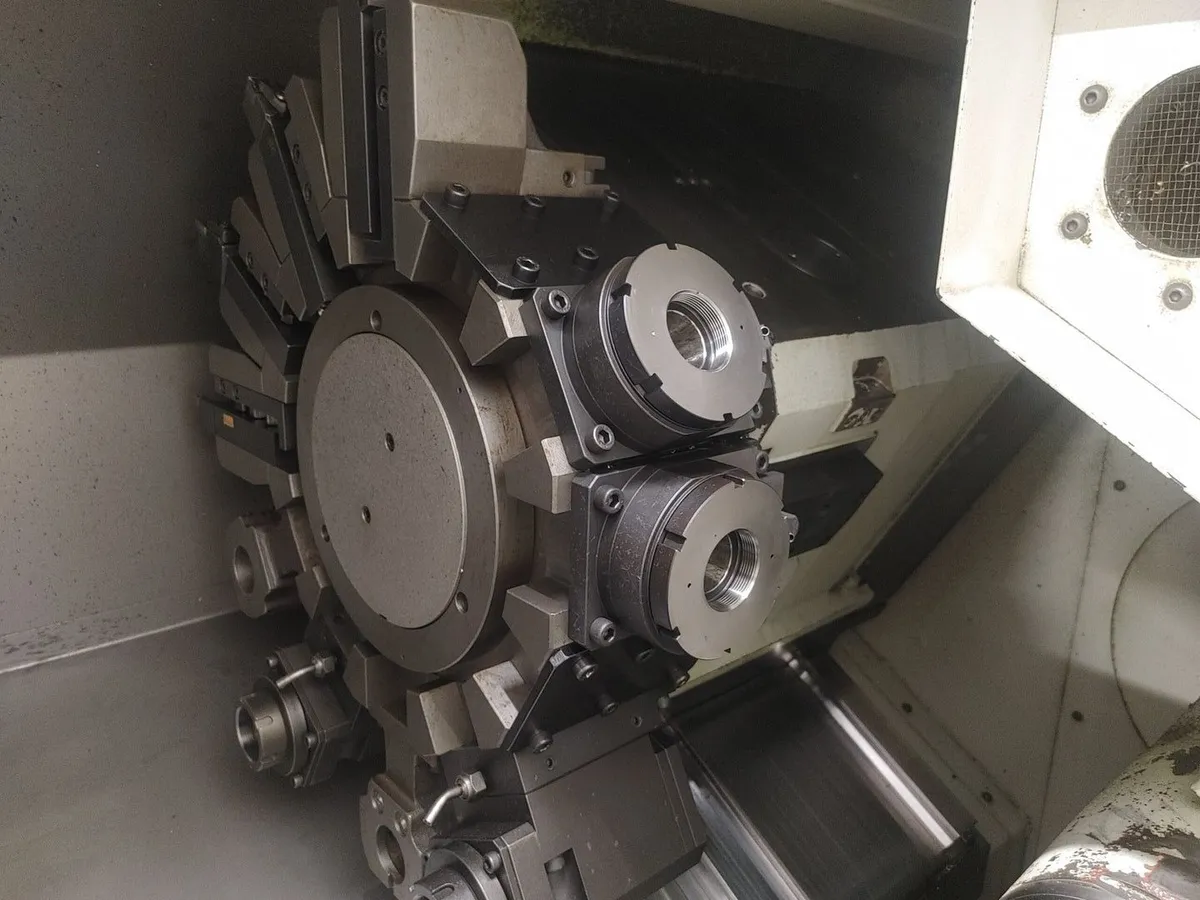

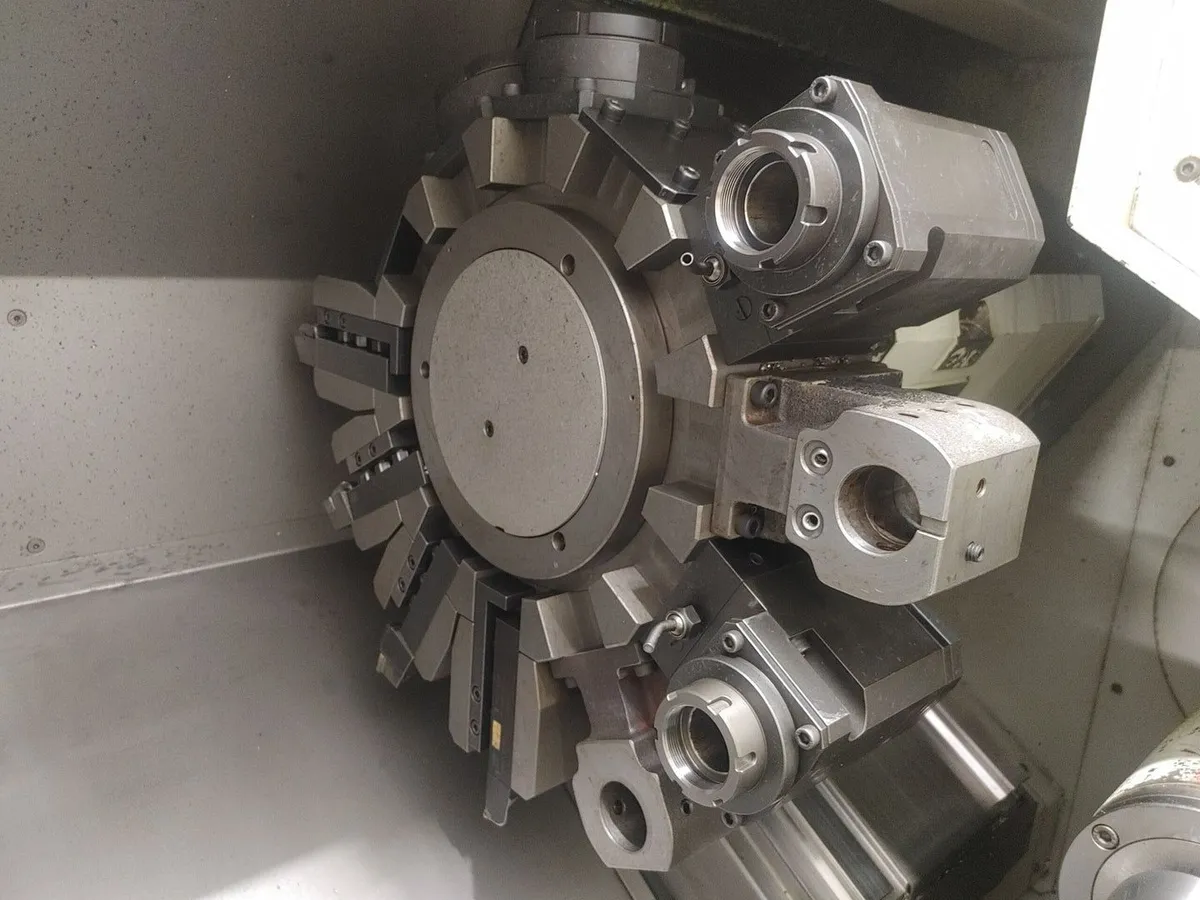

LIVE TOOLING CONFIGURATION

- Live Tooling at Any Turret Position
- 2 Axial Live Tools
- 2 Radial Live Tools
- 4 OD Tool Mounts
- 4 ID Tool Mounts (1 with Through-Coolant)

ELECTRICAL

- Voltage: 208V, 3-Phase, 50/60 Hz
- Control Circuit: AC 100V / DC 24V
- Rated Capacity: 35 kVA
- Rated Current: 97 A
- SCCR: 50 kA
