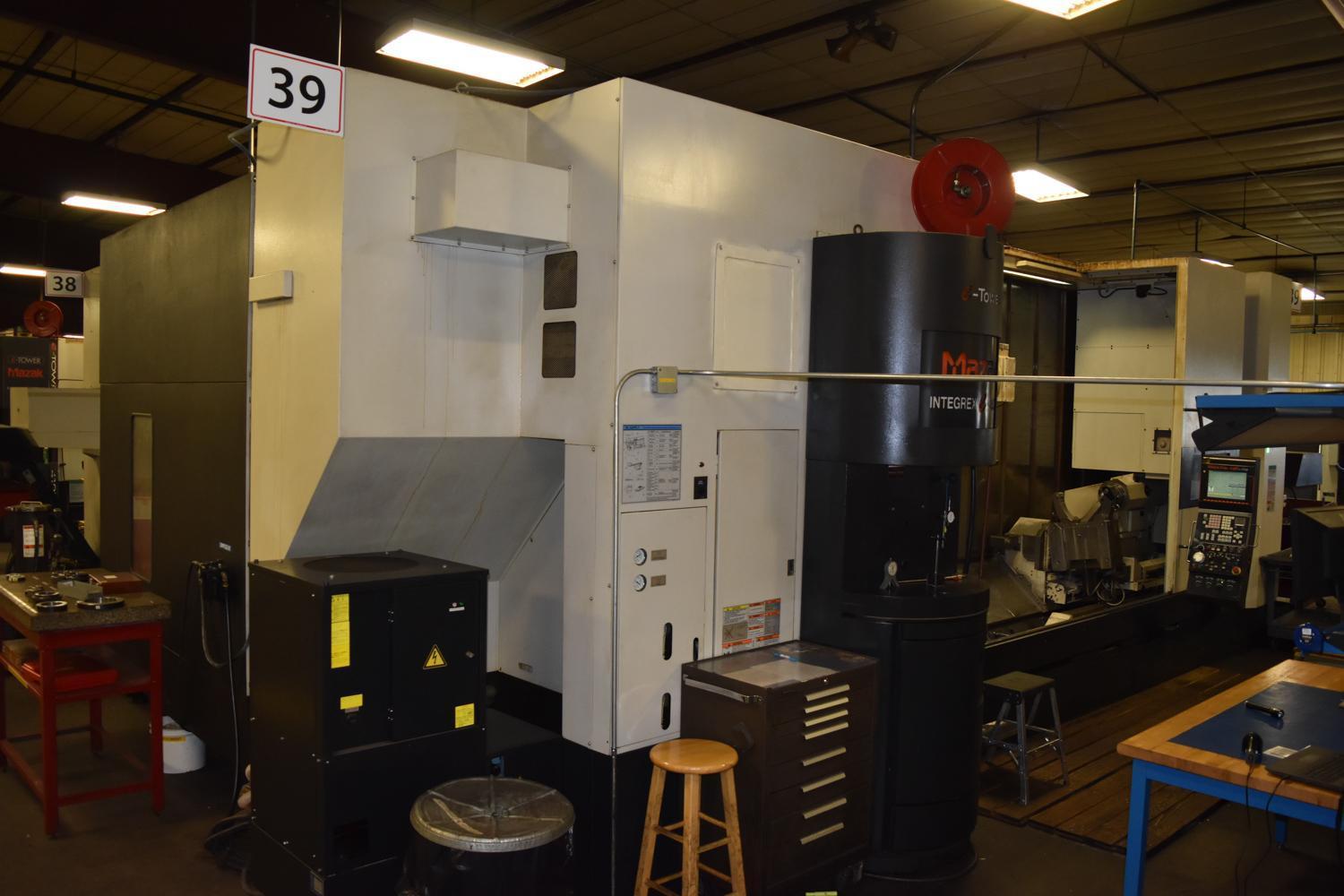

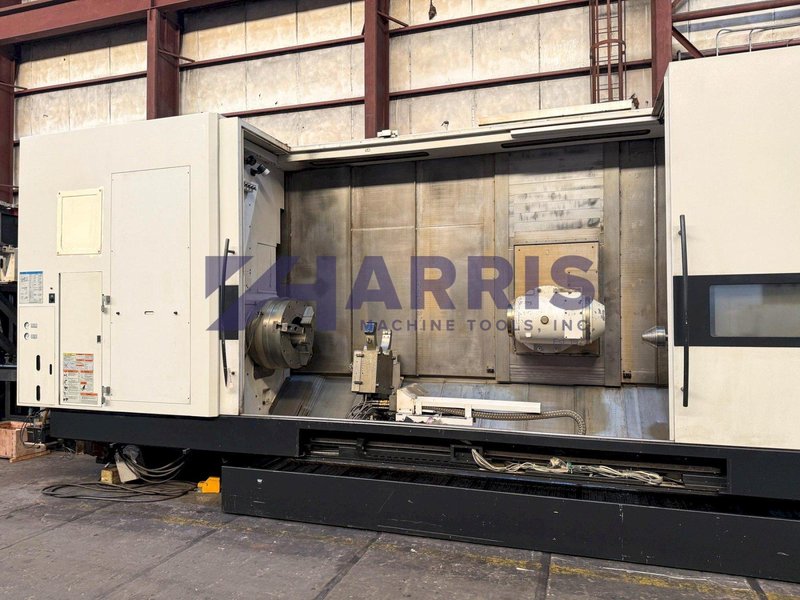

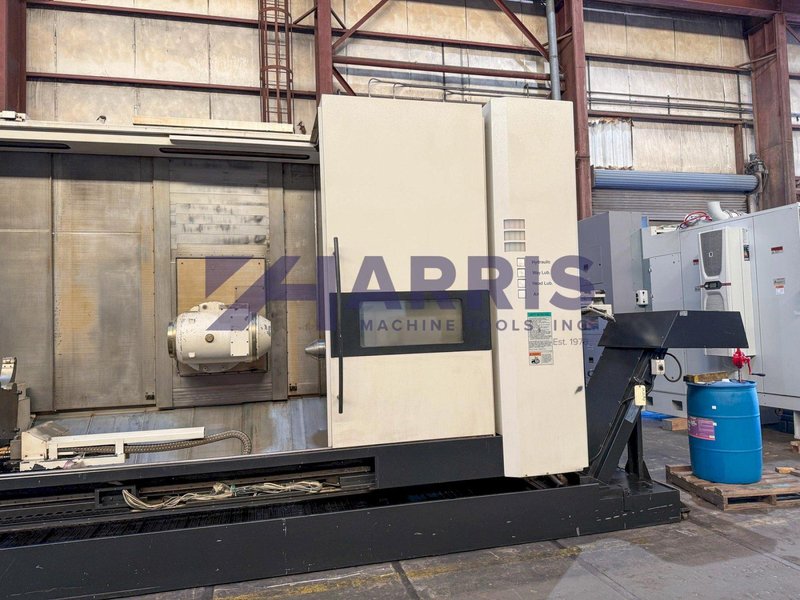

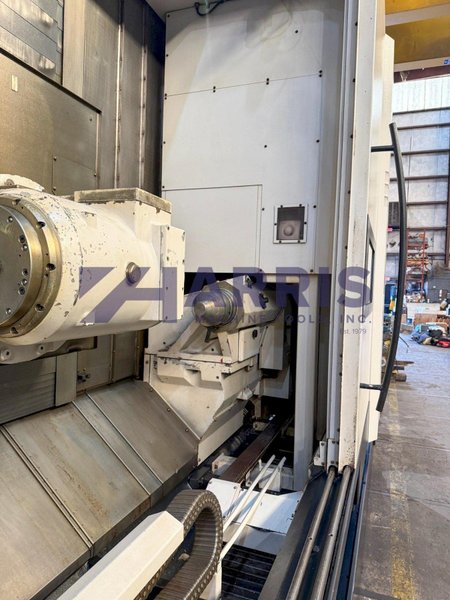

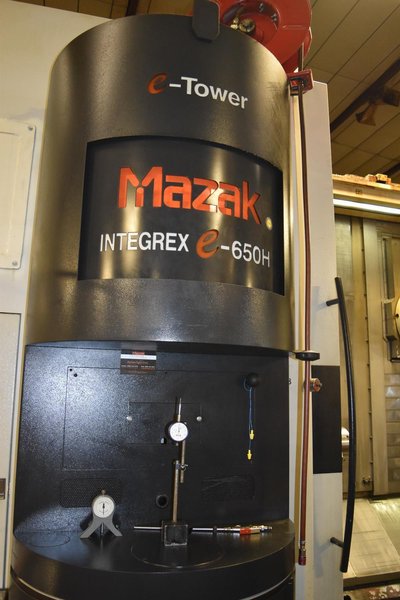

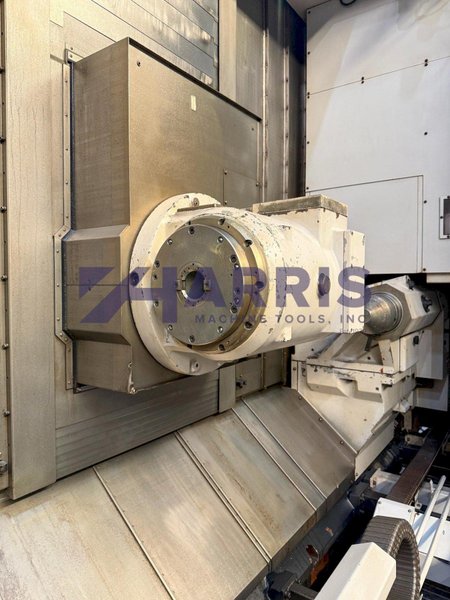

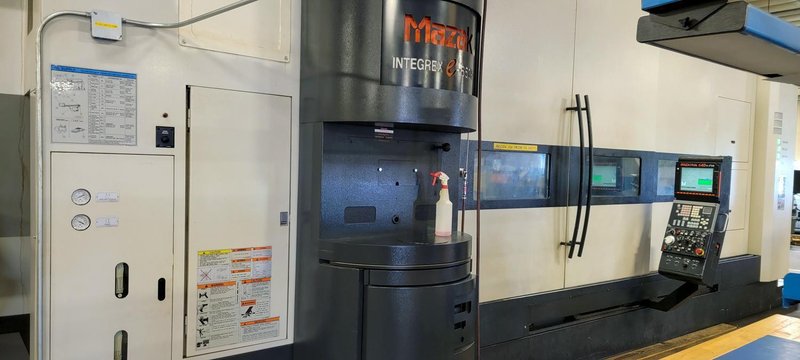

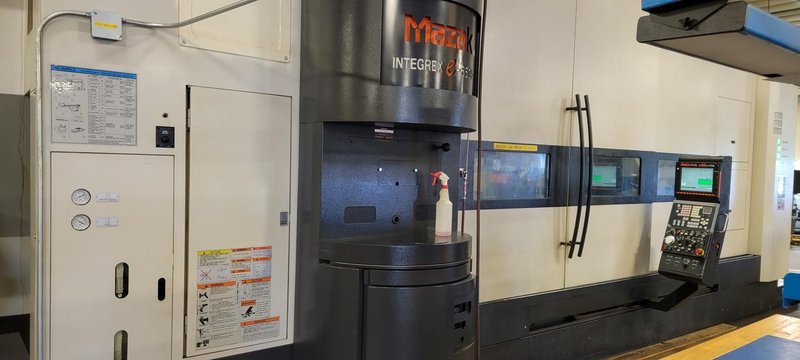

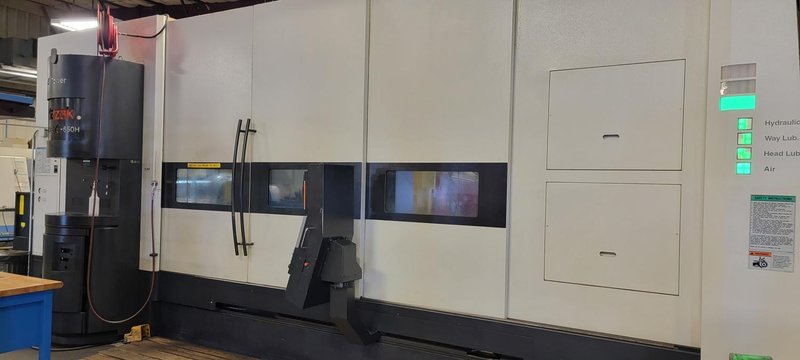

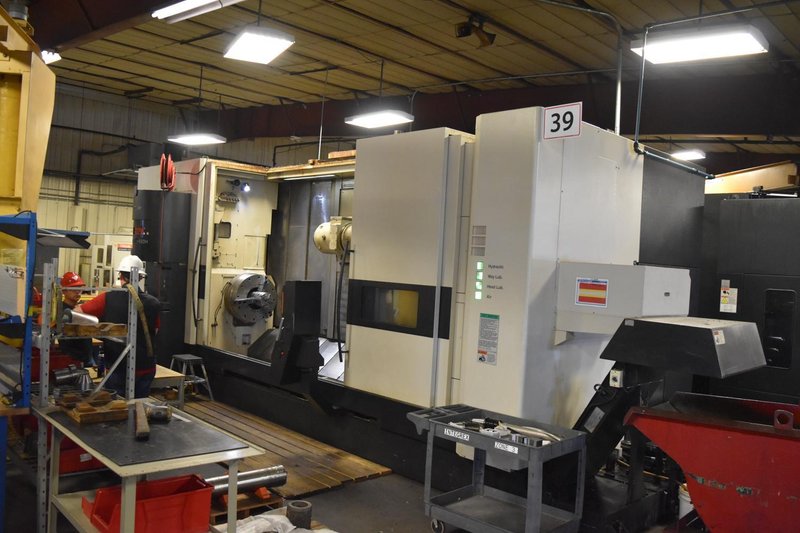

USED, MAZAK INTEGREX E-650 / 3000MM 5 AXIS TURNING AND MILLING CENTER
Brand
Category

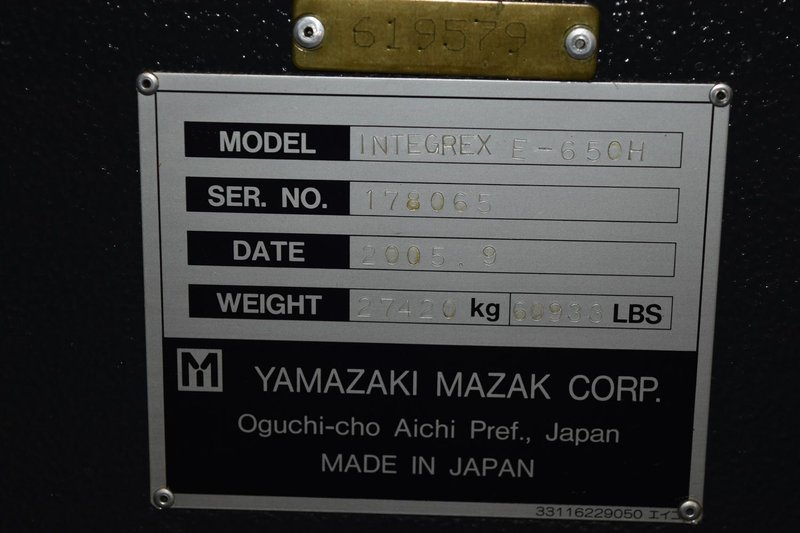

Model
INTEGREX E650H
Stock #
20748
Year
2005
Condition
Not specified
Location
Texas
| CNC Control | yes |
| Type Of CNC Control | MAZATROL |
| # Axis | 5 |
| Chuck Size | 24 inches |
| Swing | 36 inches |
| Turning Diameter | 36 inches |
| Center Distance | 120 inches |
| Bar Capacity | 10.2 inches |
| Spindle Bore | 10.2 inches |
| X Axis Travel | 40 inches |
| Z Axis Travel | 122 inches |
| Y Axis (Yes / No) | yes |
| Spindle Speed (RPM) | 1000 |
| Main Motor | 50 HP |
| Live Milling (Yes / No) | yes |
| Live Milling Speed (RPM) | 10000 |
| Live Milling Motor | 50 |

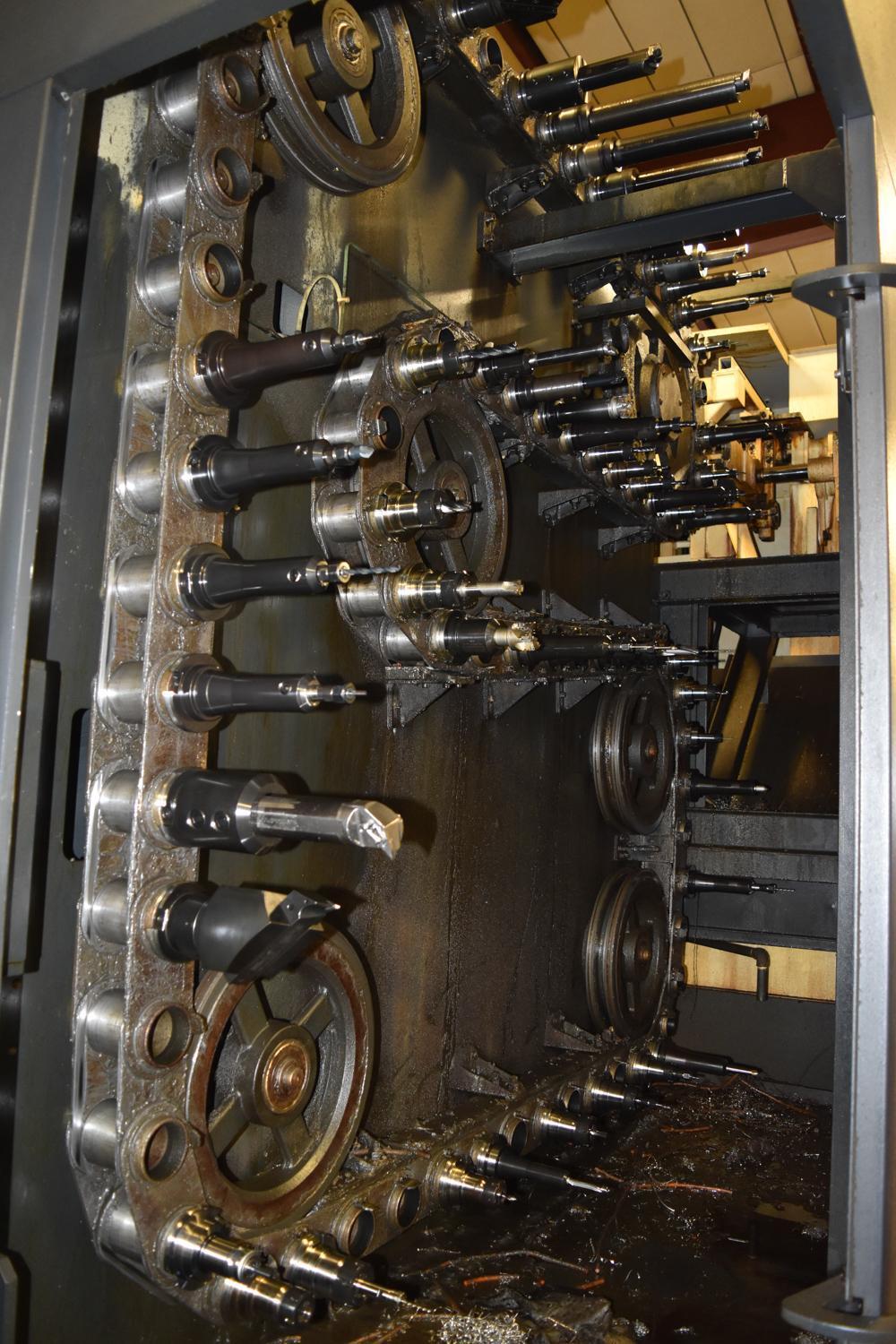

| Turret Capacity | 80 |

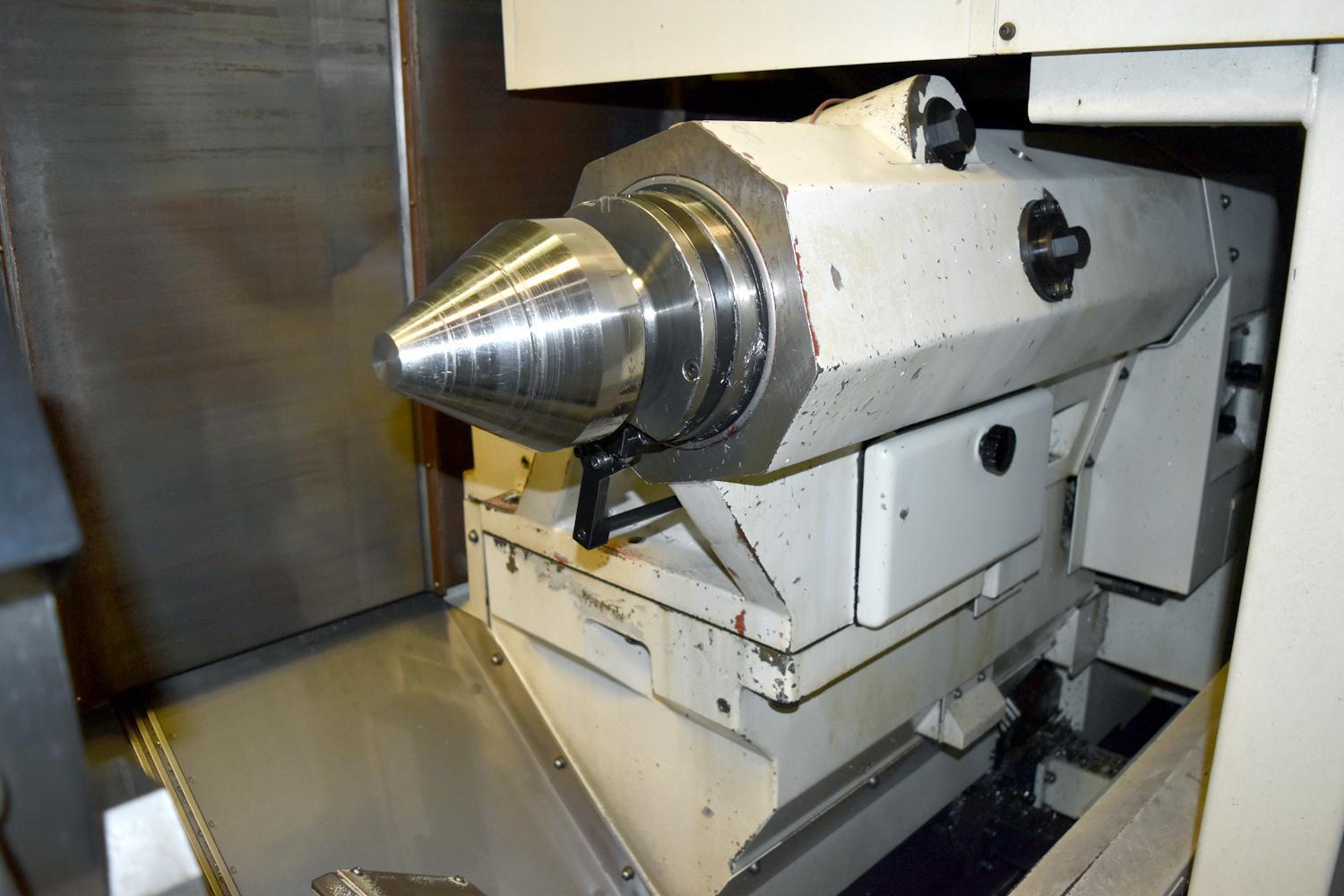

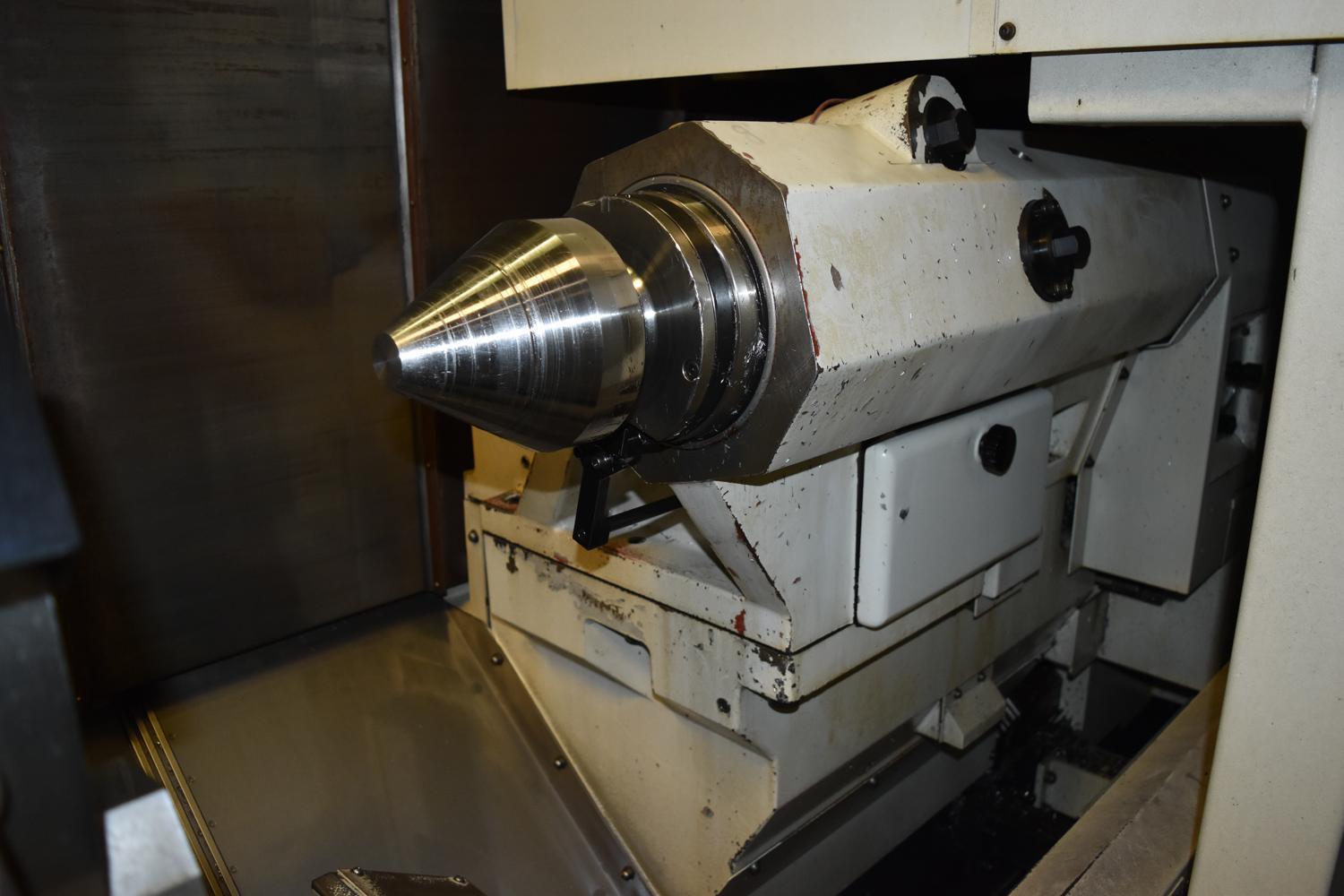

| Tailstock (Yes/No) | yes |
| Power | 50 horsepower |
| Live Tooling Max Spindle Speed (RPM) | 10000 |
|
Travels:

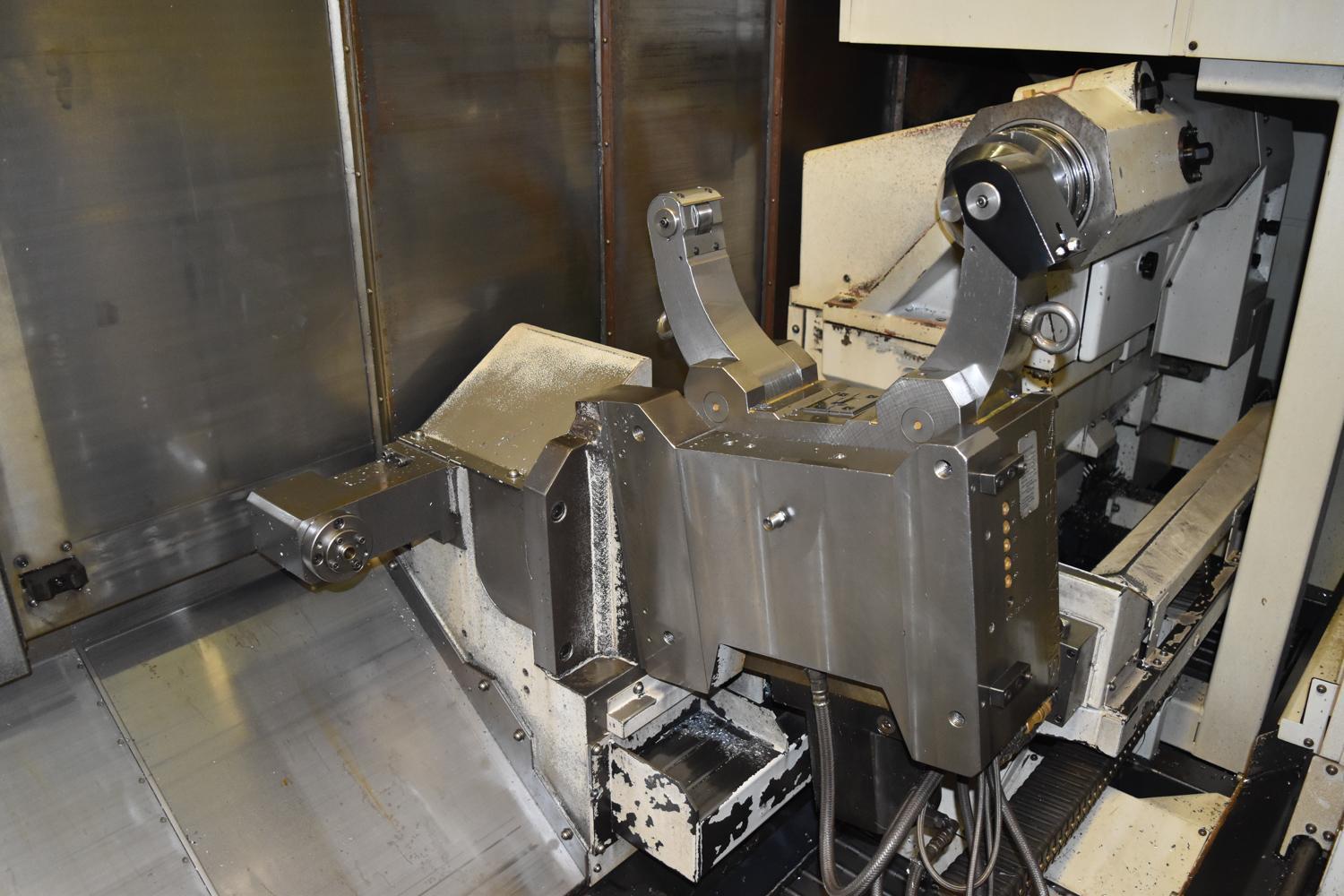

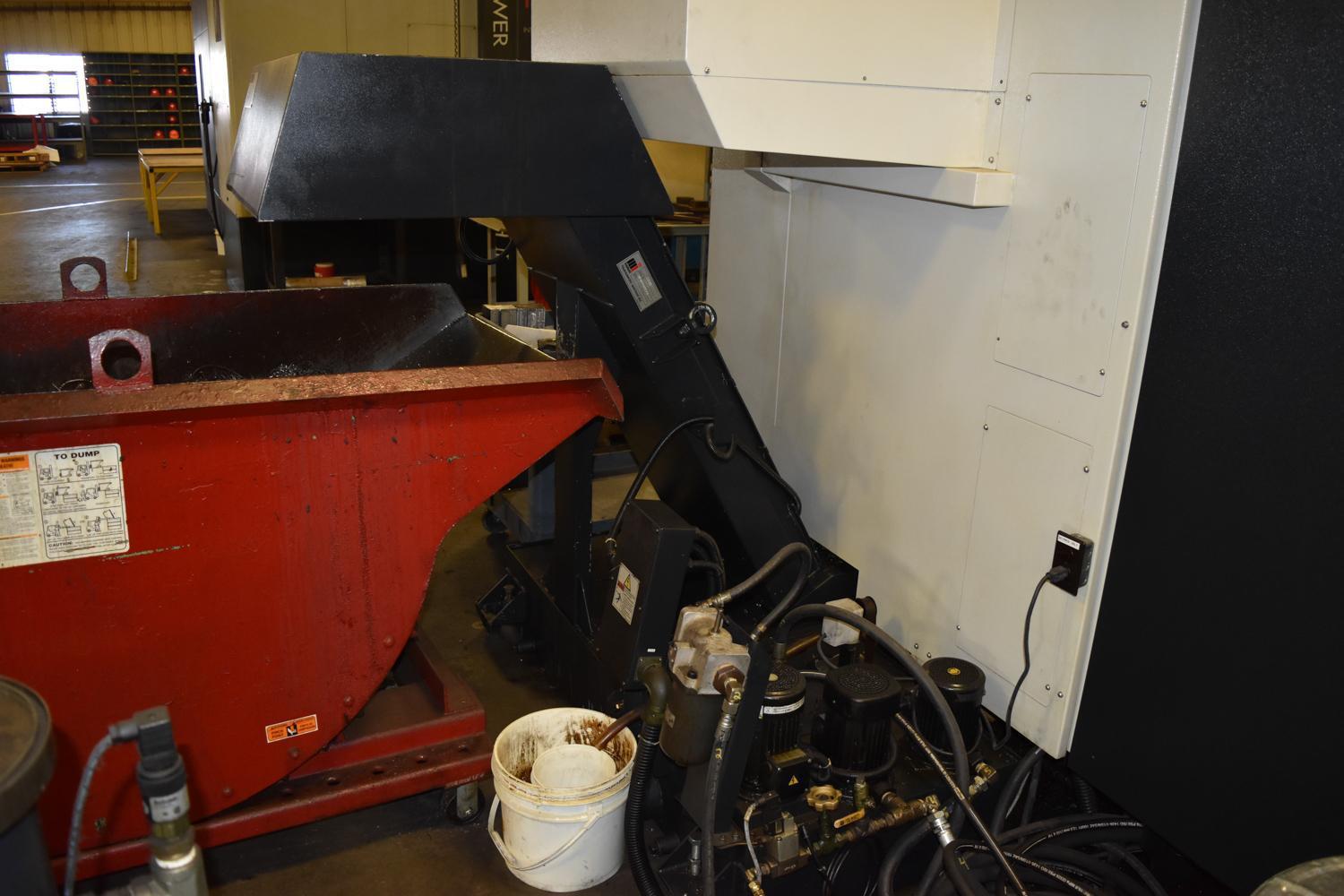

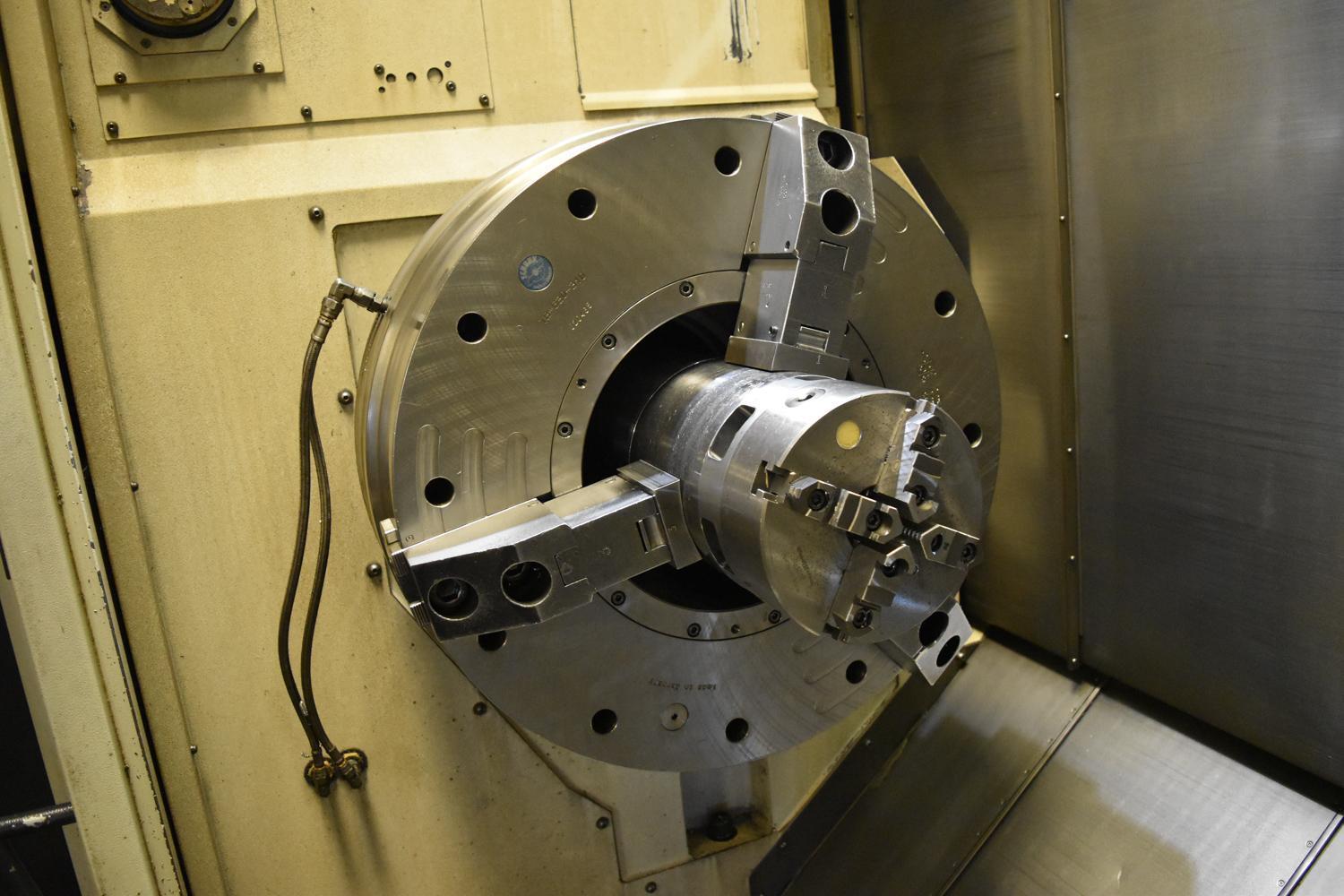

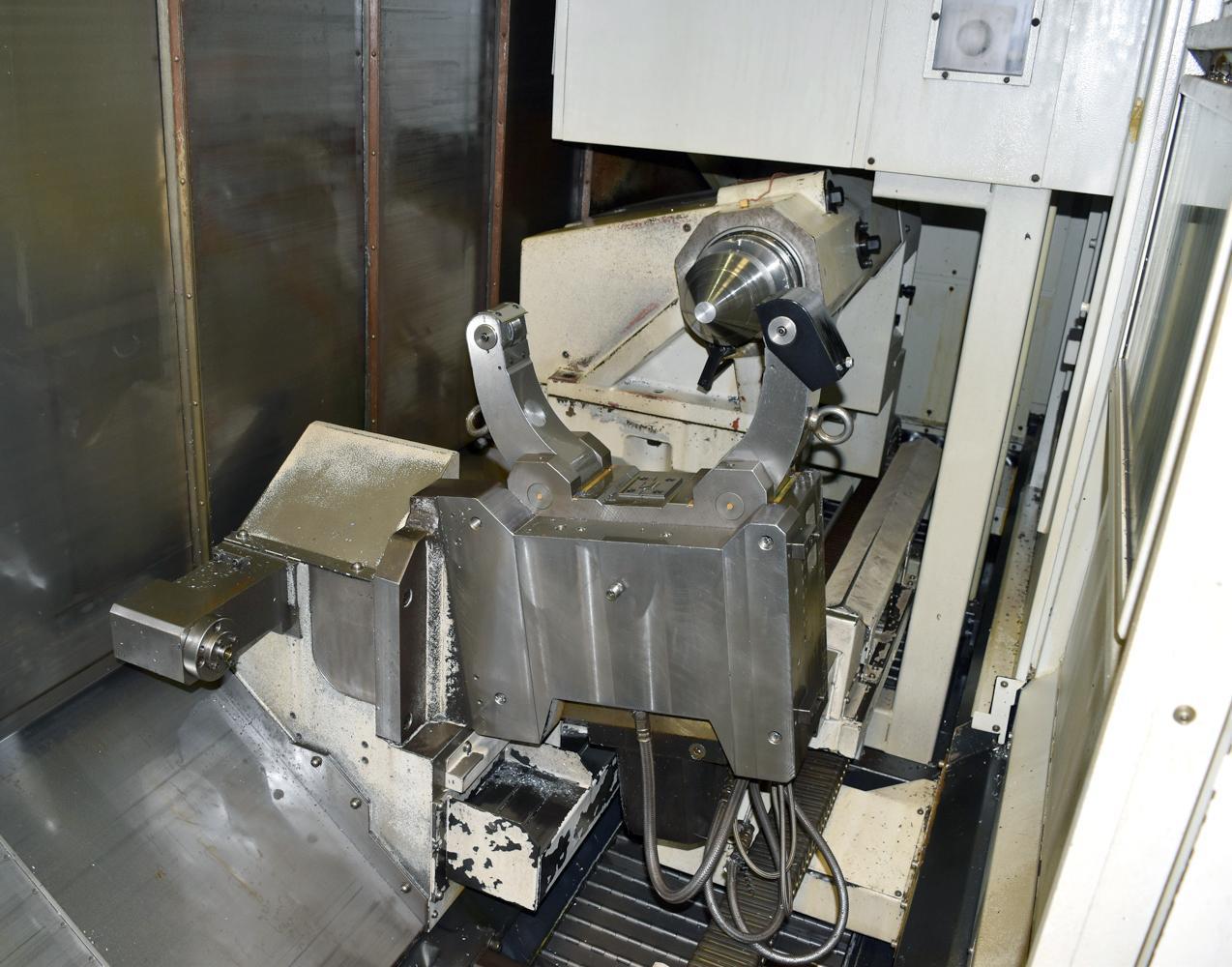

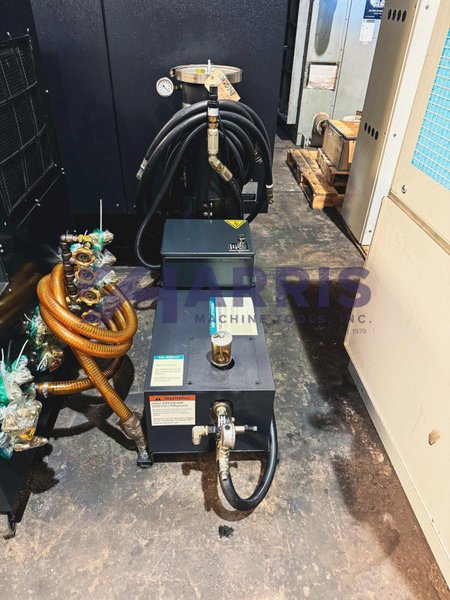

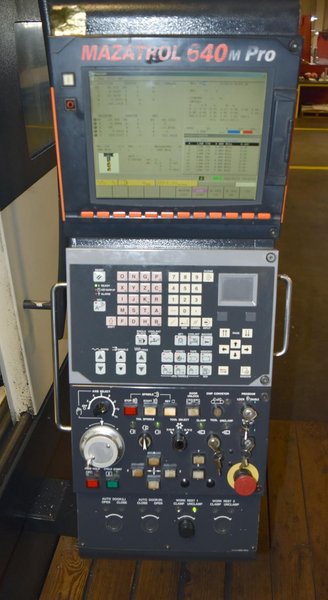

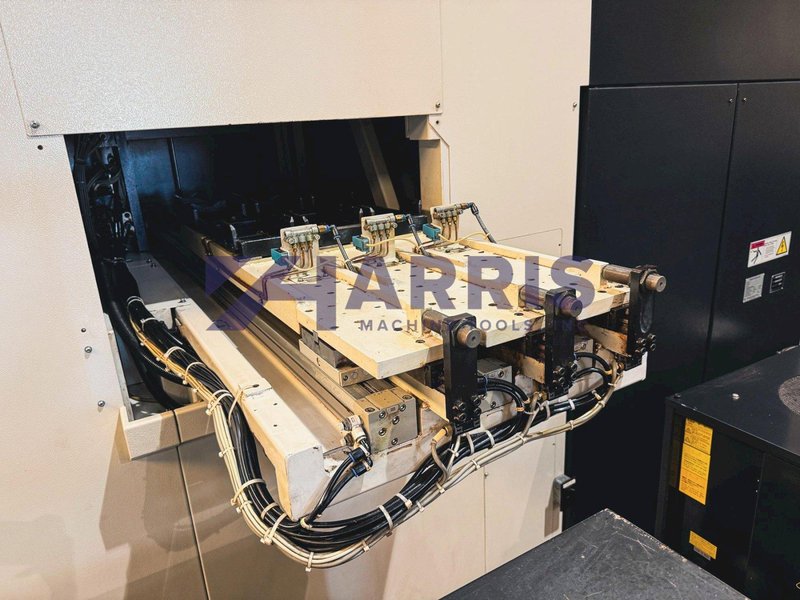

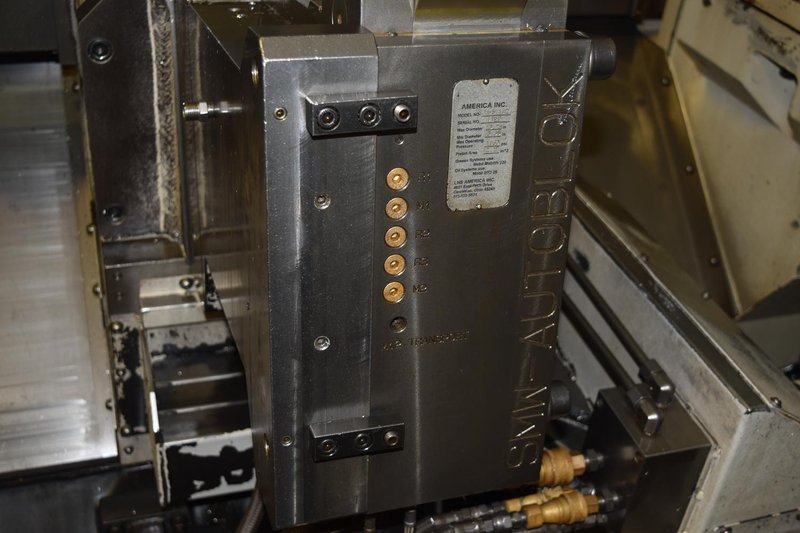

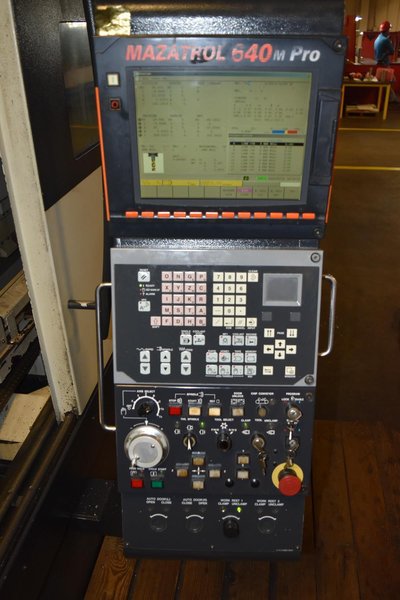

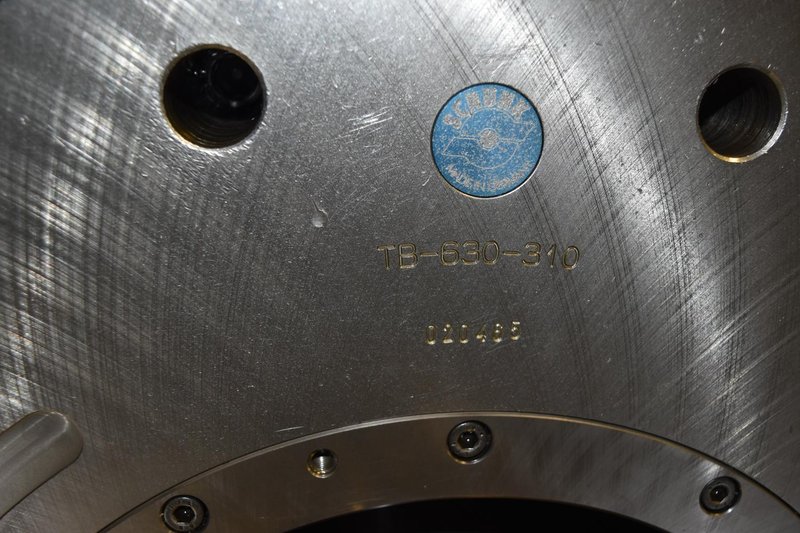

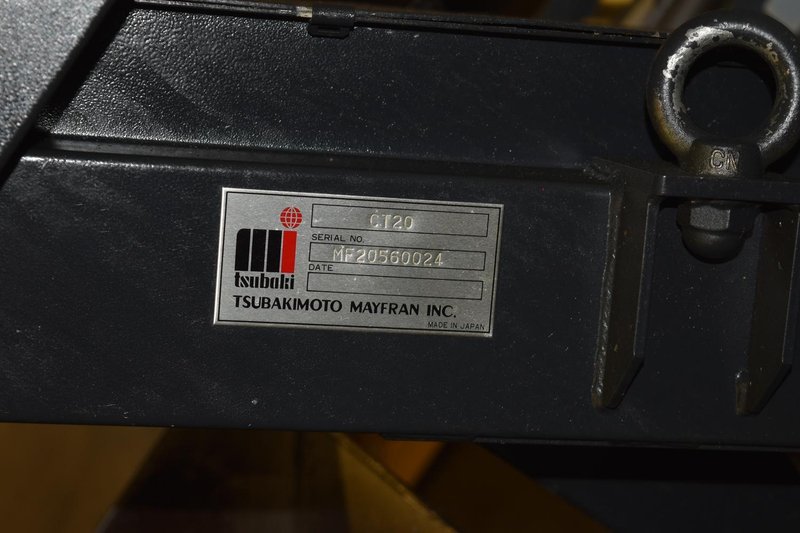

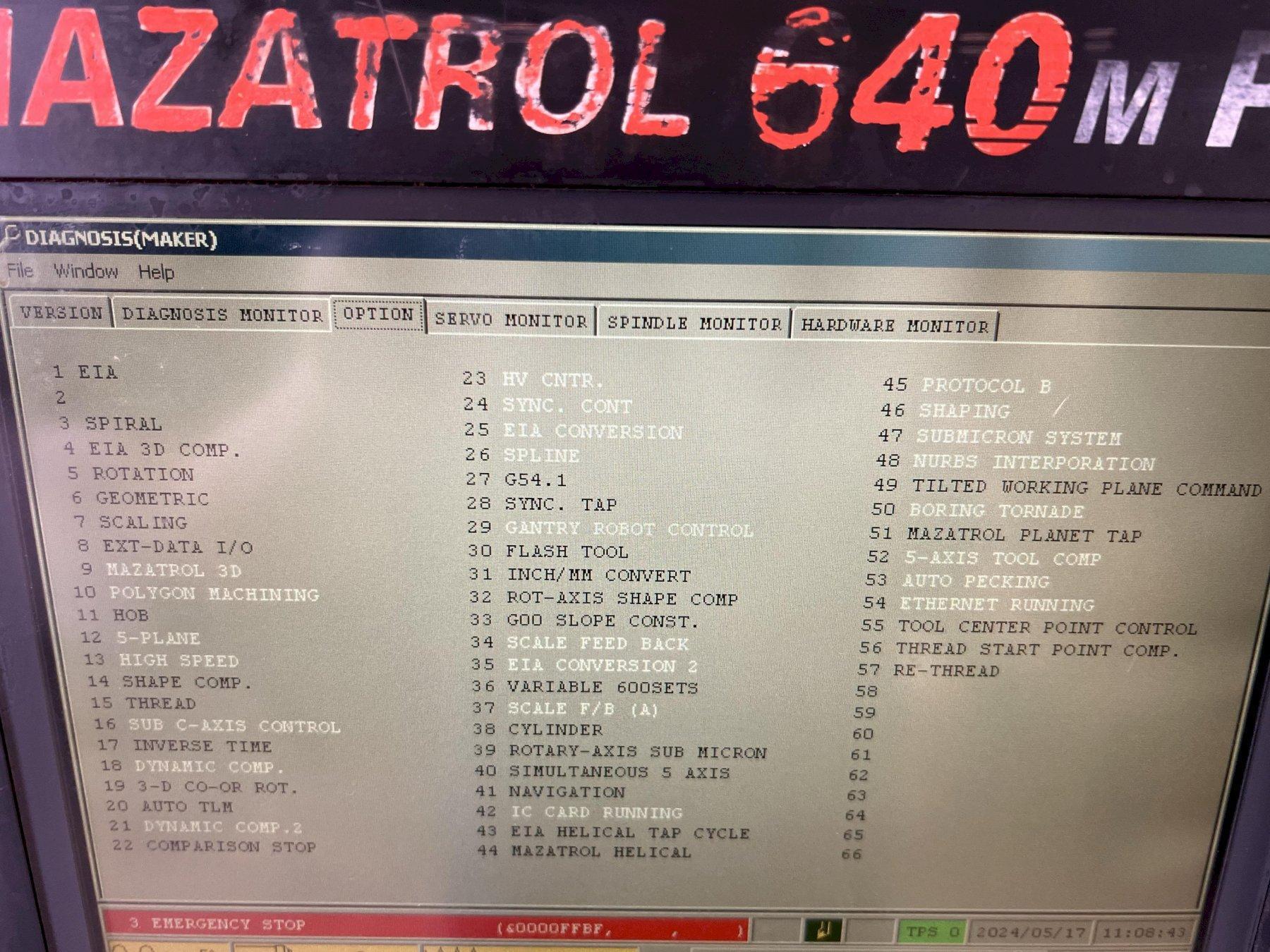

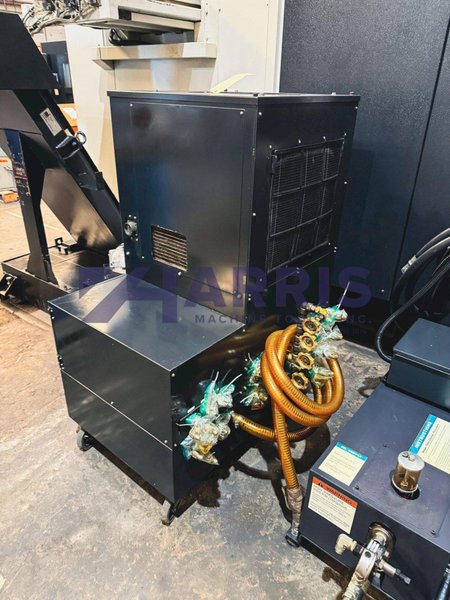

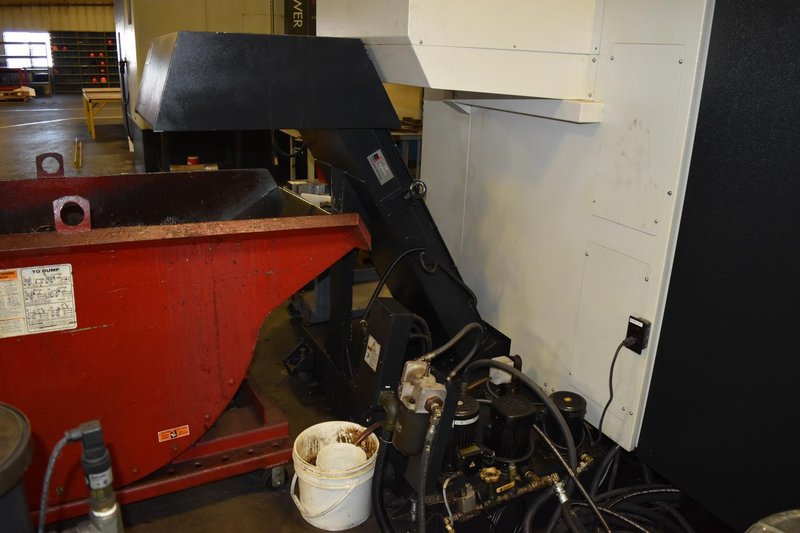

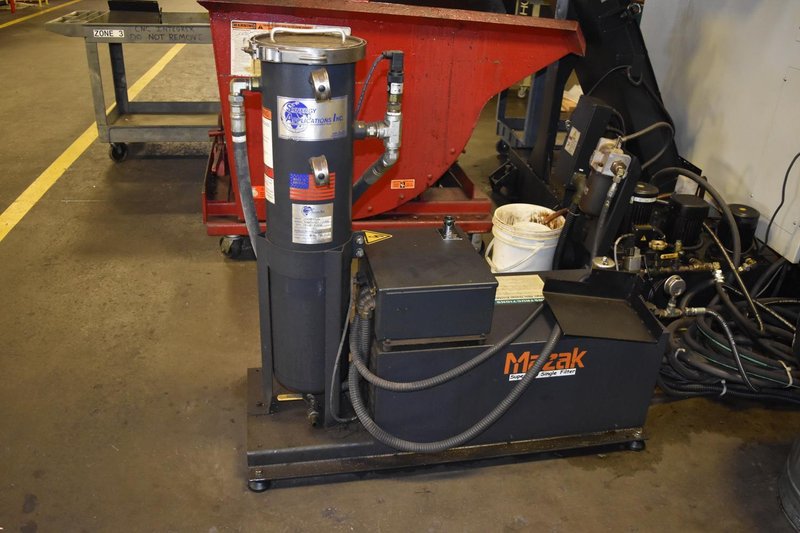

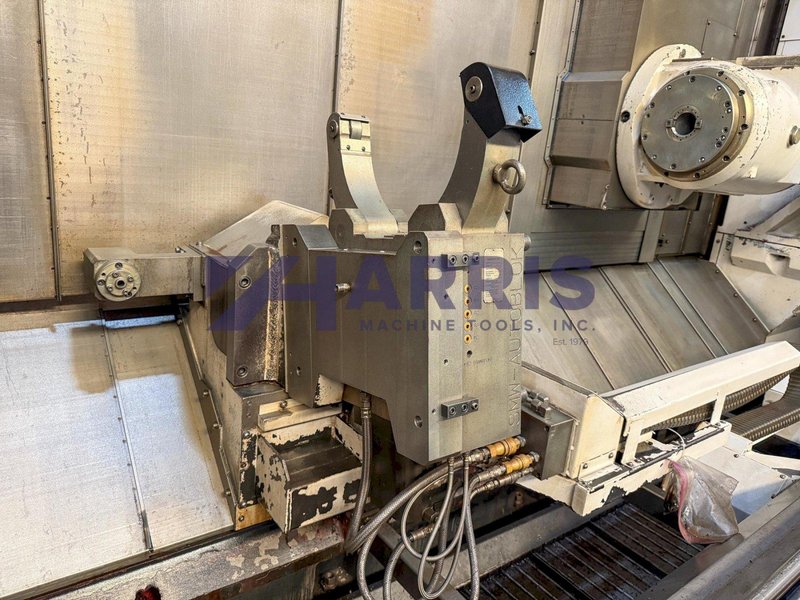

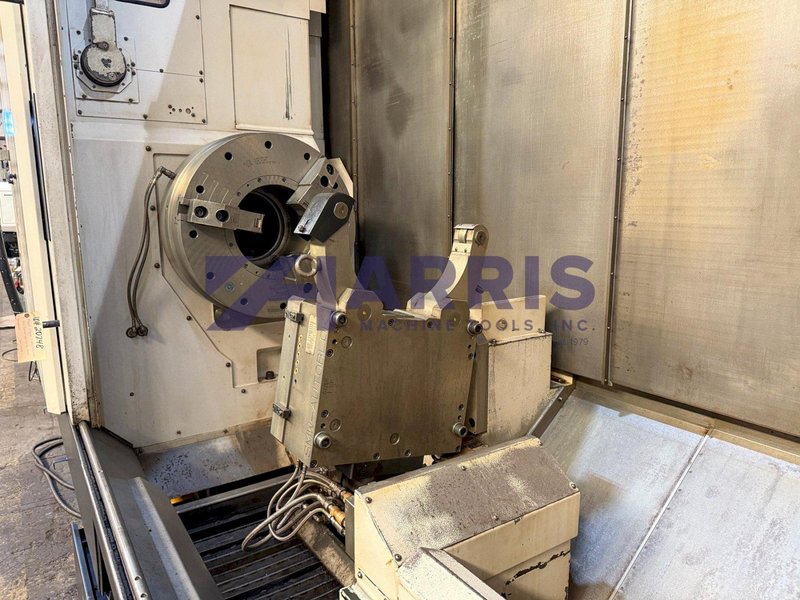

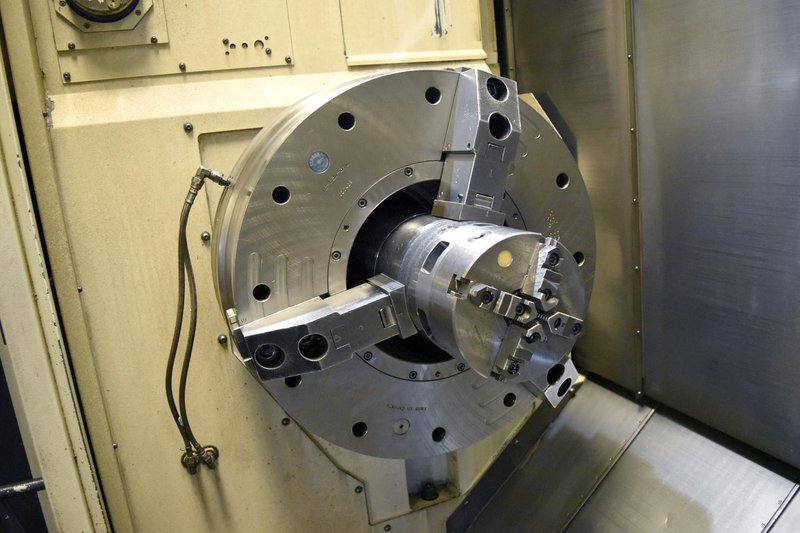

- Y-Axis: 25.6" - B-Axis: 0.0001° Contouring - C-Axis: 1000 RPM EQUIPPEED WITH: 24" SCHUNK 3 JAW FRONT MOUNT AIR CHUCK MAZATROL 640M PRO CNC CONTROL SMW HYDRAULIC STEADY REST (1.7 - 12.2" CAPACITY) BORING BAR STOCKER FOR 100 AND 80MM BARS MIST COLLECTOR AUTOMATIC TOOL LENGHT MEASUREMENT SYSTM TOOL EYE HIGH PRESSURE COOLANT REAR CHUCK MOUNT RENISHAW PROBE CHIP CONVEYOR CONTROL OPTIONS: Coordinate Rotation and Scaling;Helical Interpolation;Synchronized Tapping;Inch/Metric Conversion;Rotation and Scaling;EIA/ISO Code Input Function Spiral Interpolation 3D Cutter Compensation Geometric Command Hobbing Shape Compensation Thread Cutting Re-Threading Thread Start Point Compensation Inverse Time Feed 3D Coordinate Rotation Comparison Stop G54.1 Flash Tool Rotation Axis Shape Compensation G00 Slope Constant 600 Sets Variable Cylinder Rotary-Axis Sub Micron Simultaneous 5-Axis Helical Tap Cycle Tilted Working Plane Command Mazatrol Planet Tap Tool Center Point Control NOTE: TOOLING AND BORING BAR IN PHOTOS NOT INCLUDED ** |
|
