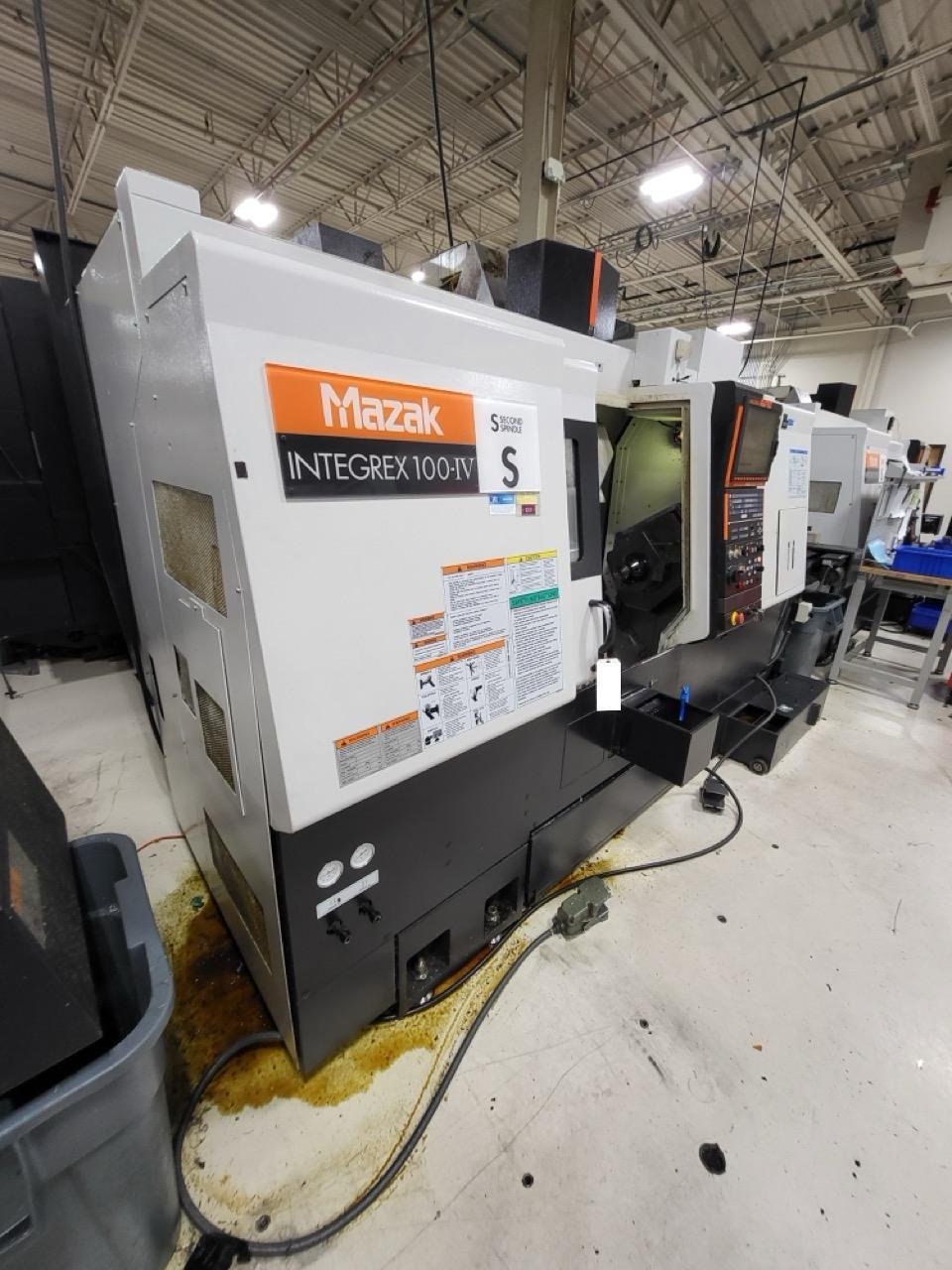

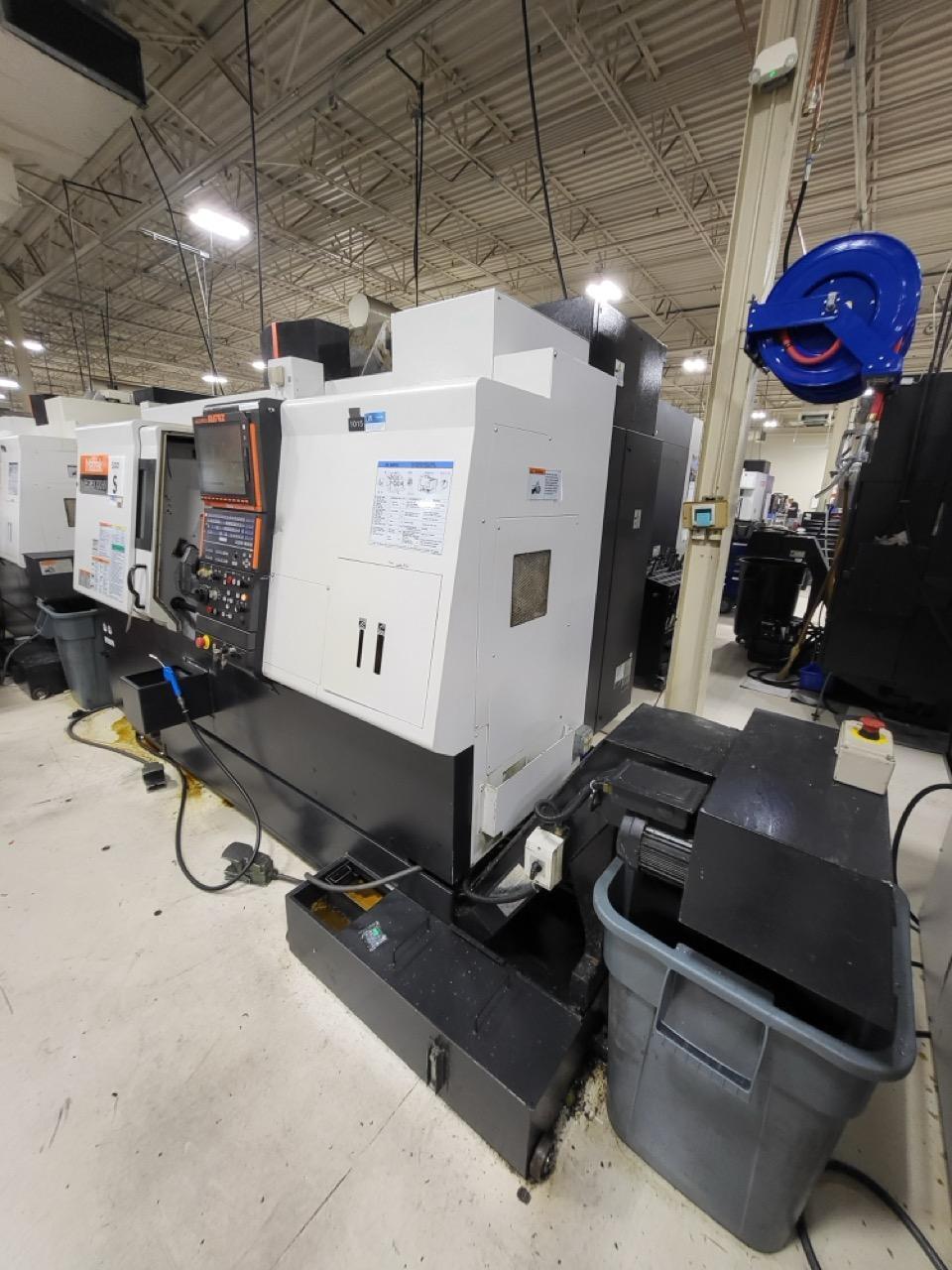

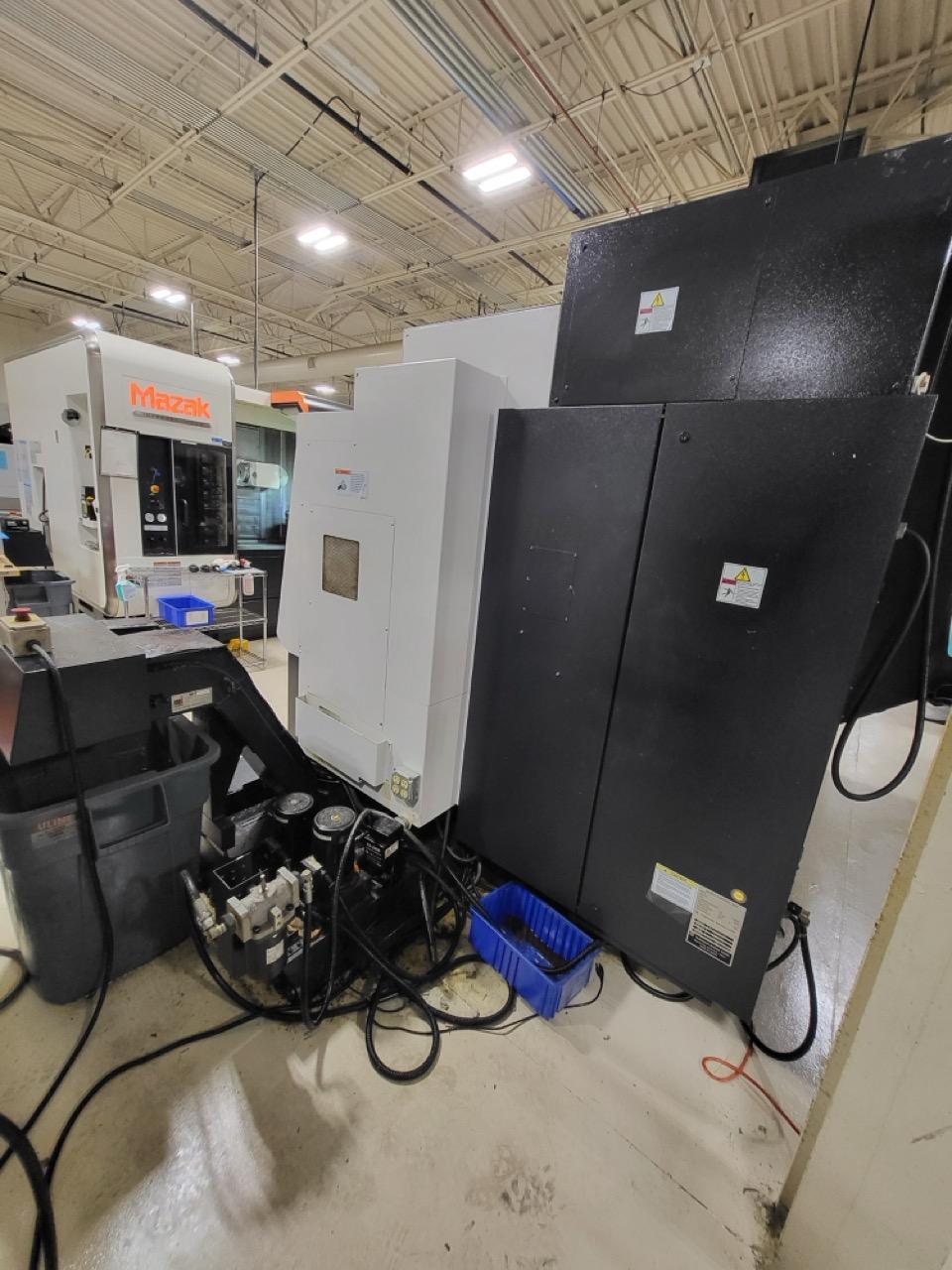

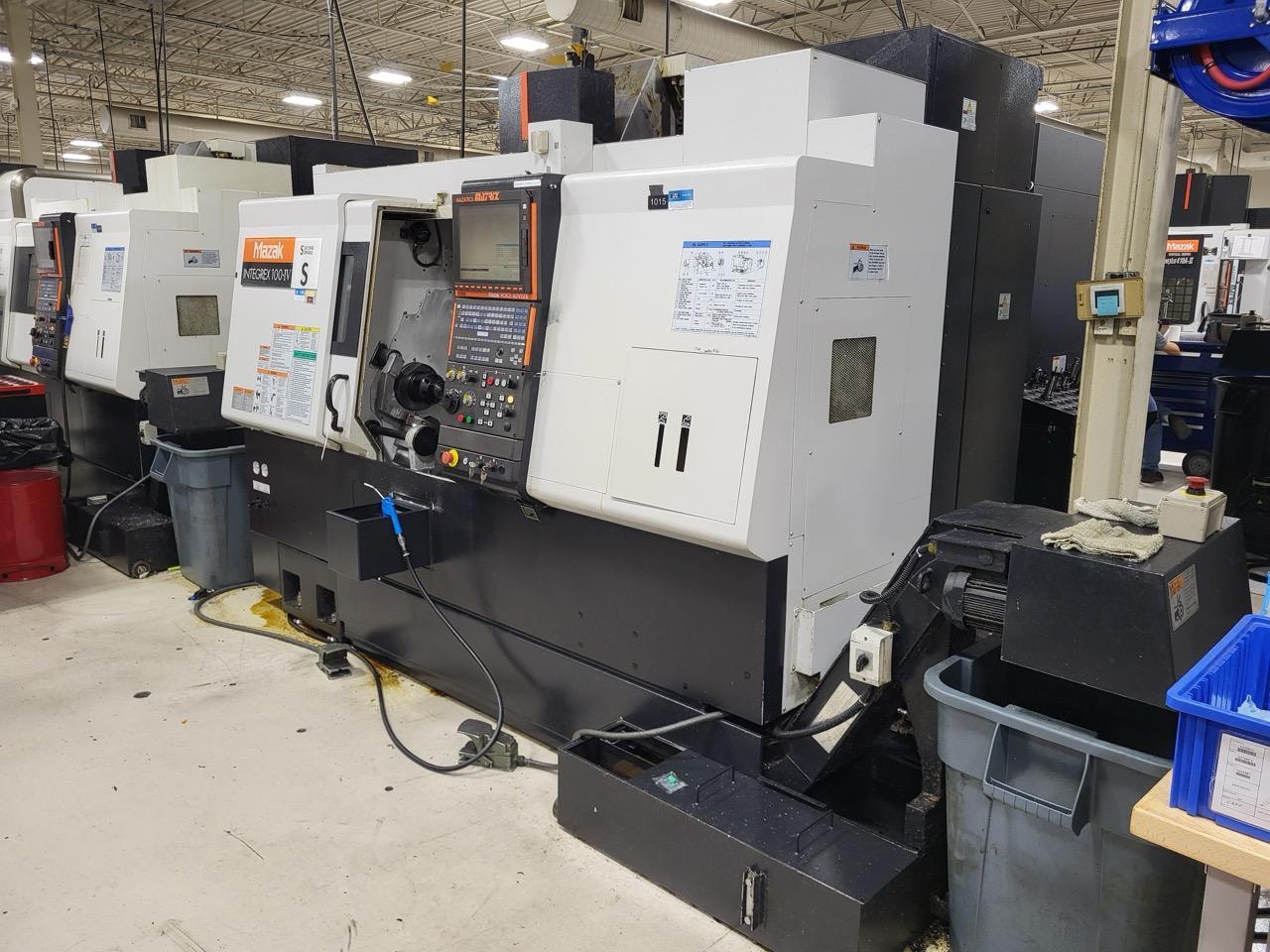

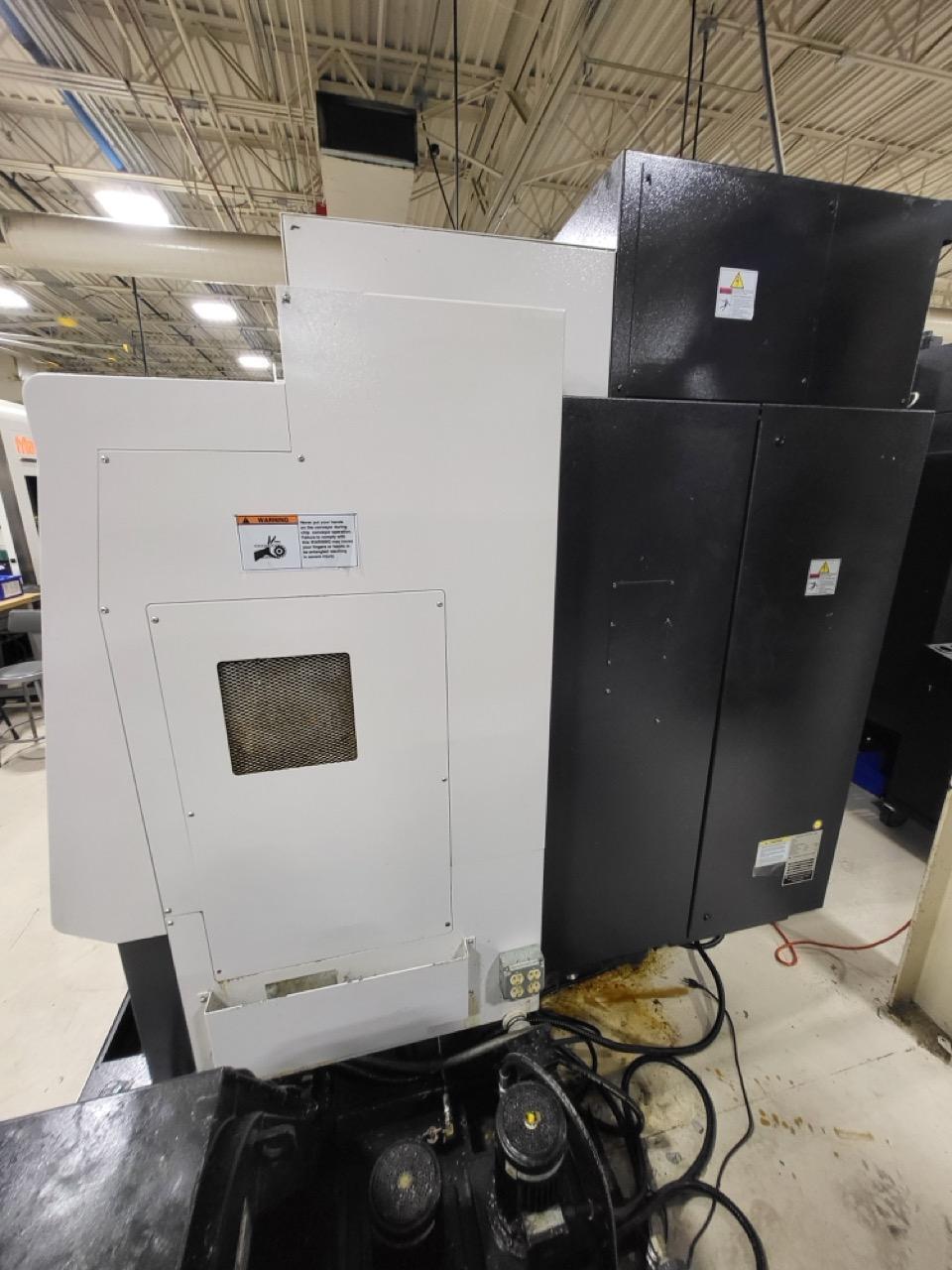

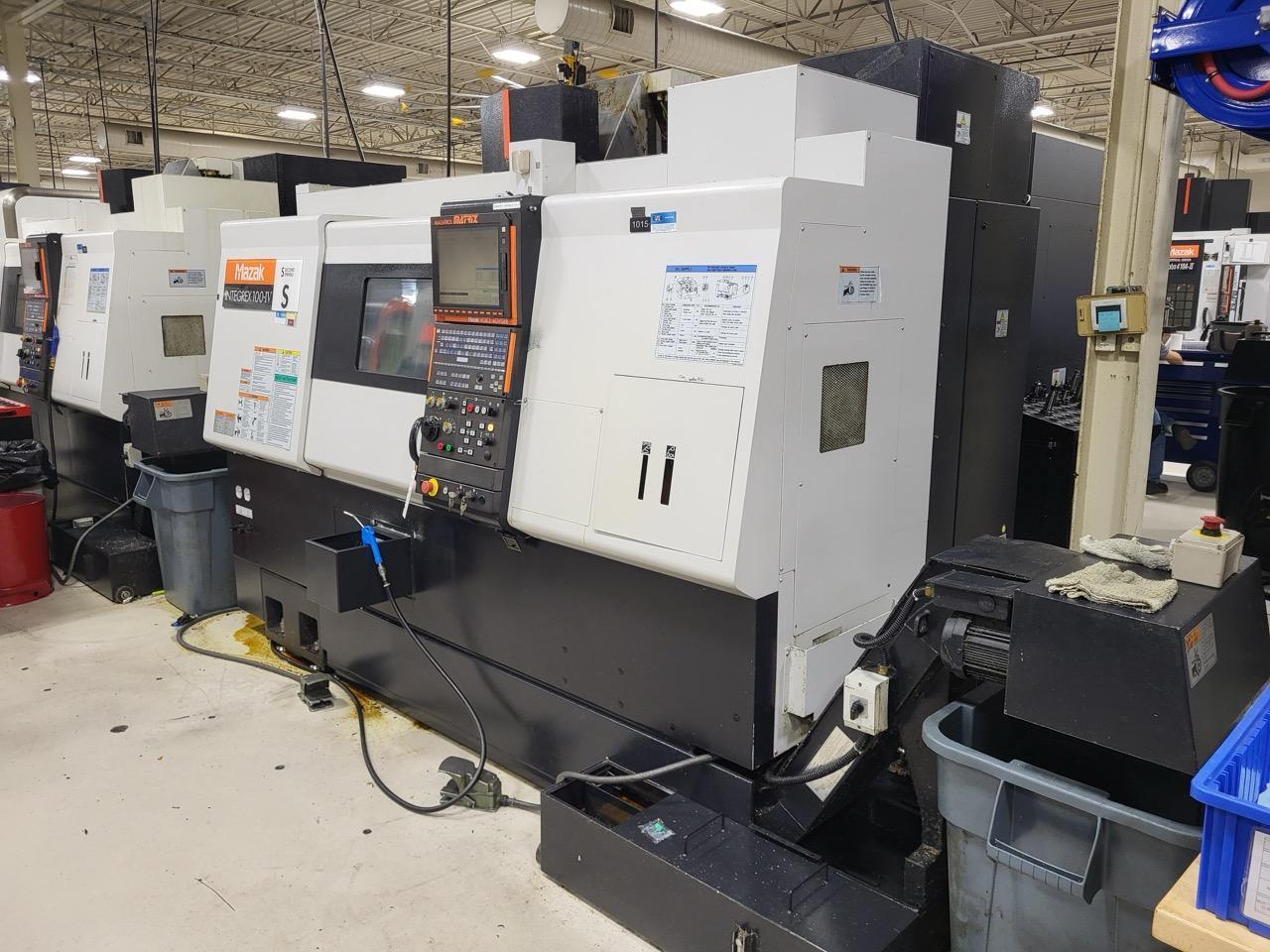

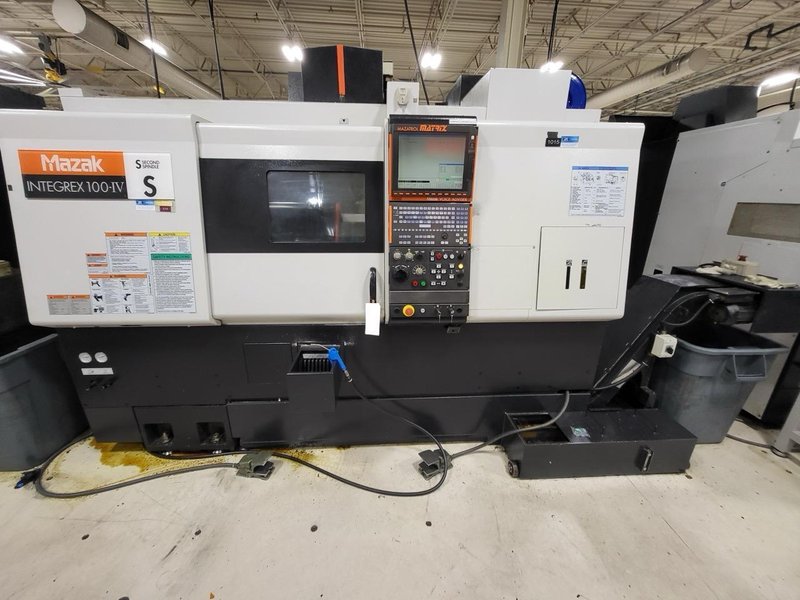

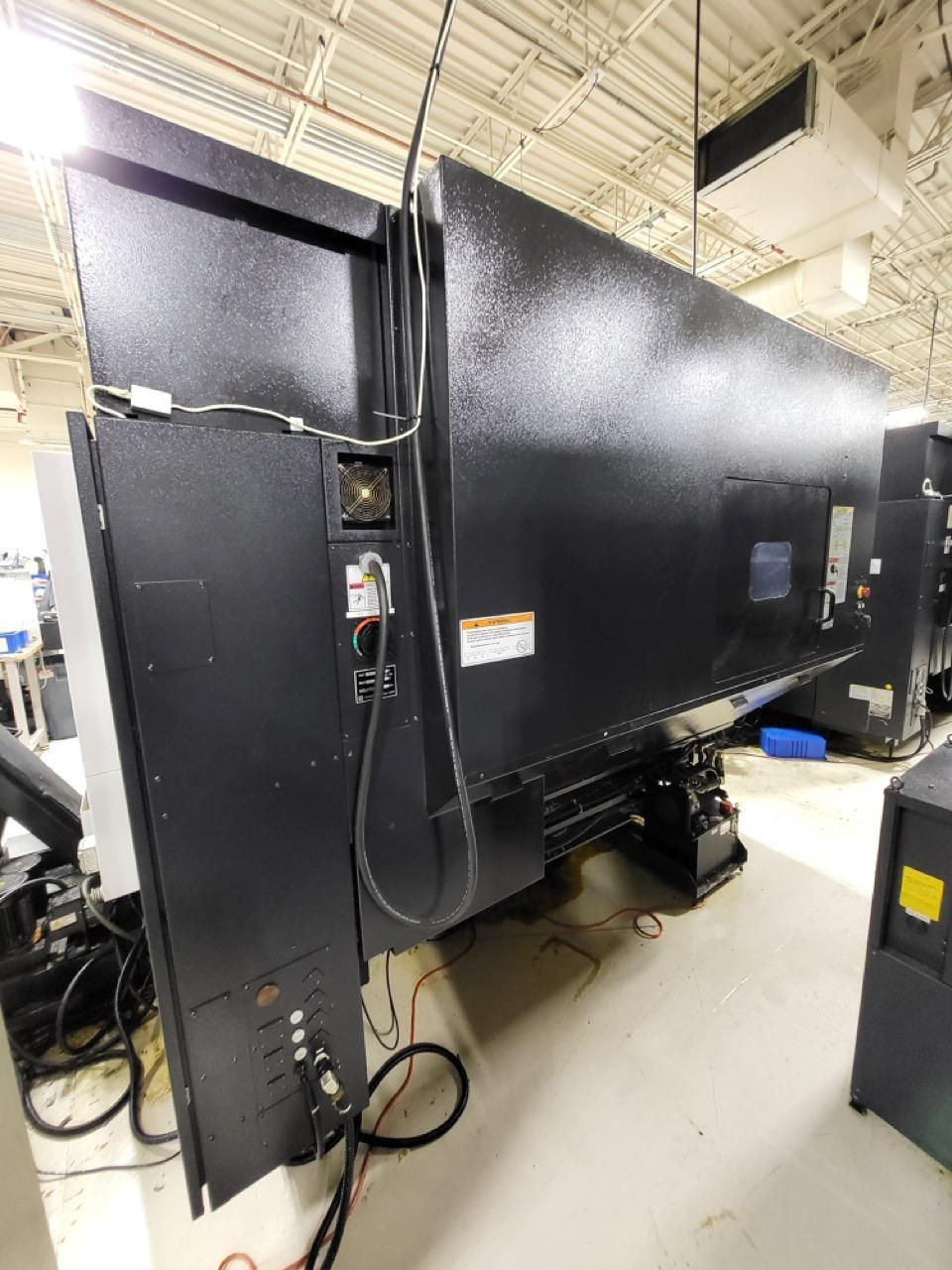

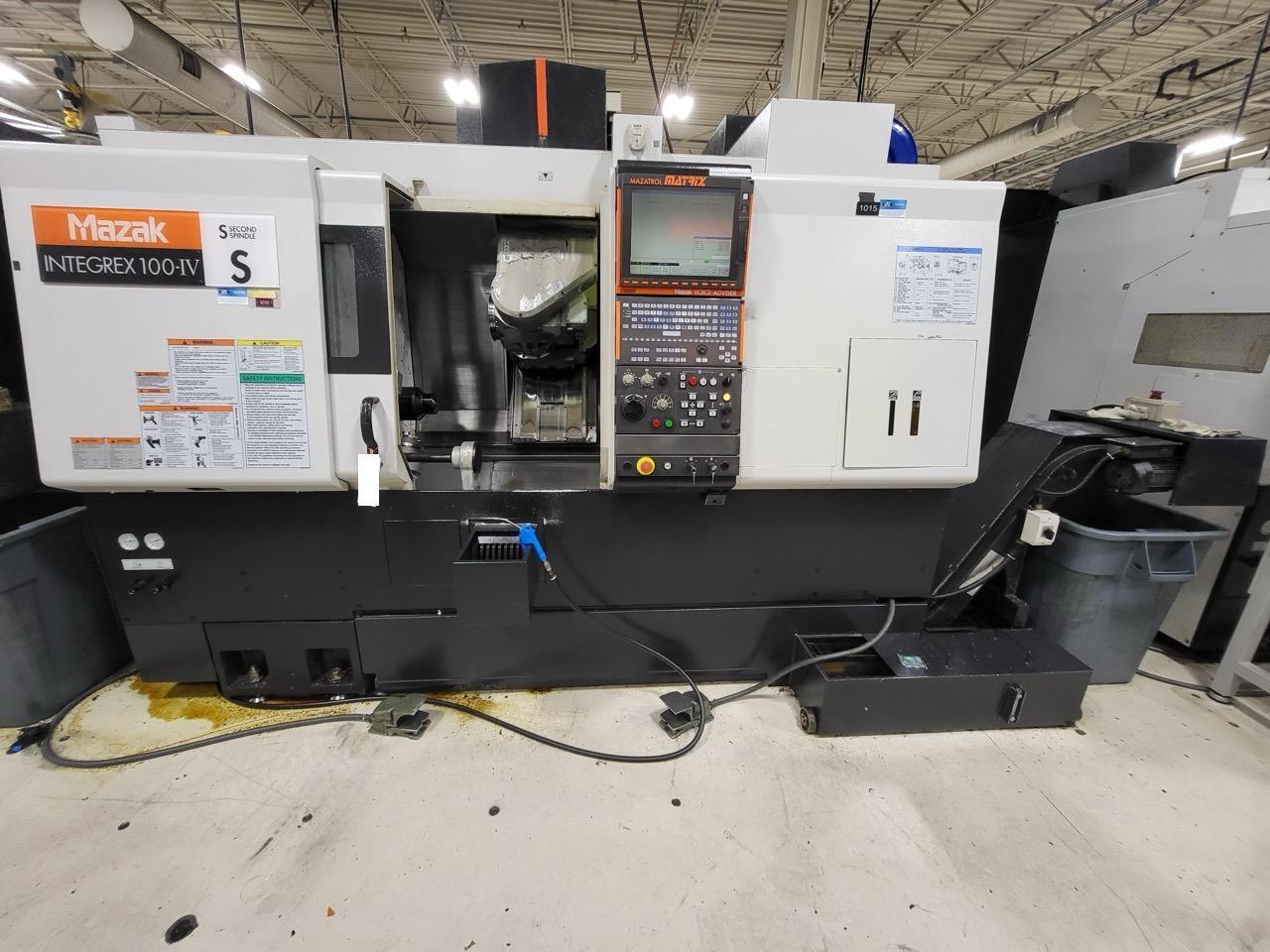

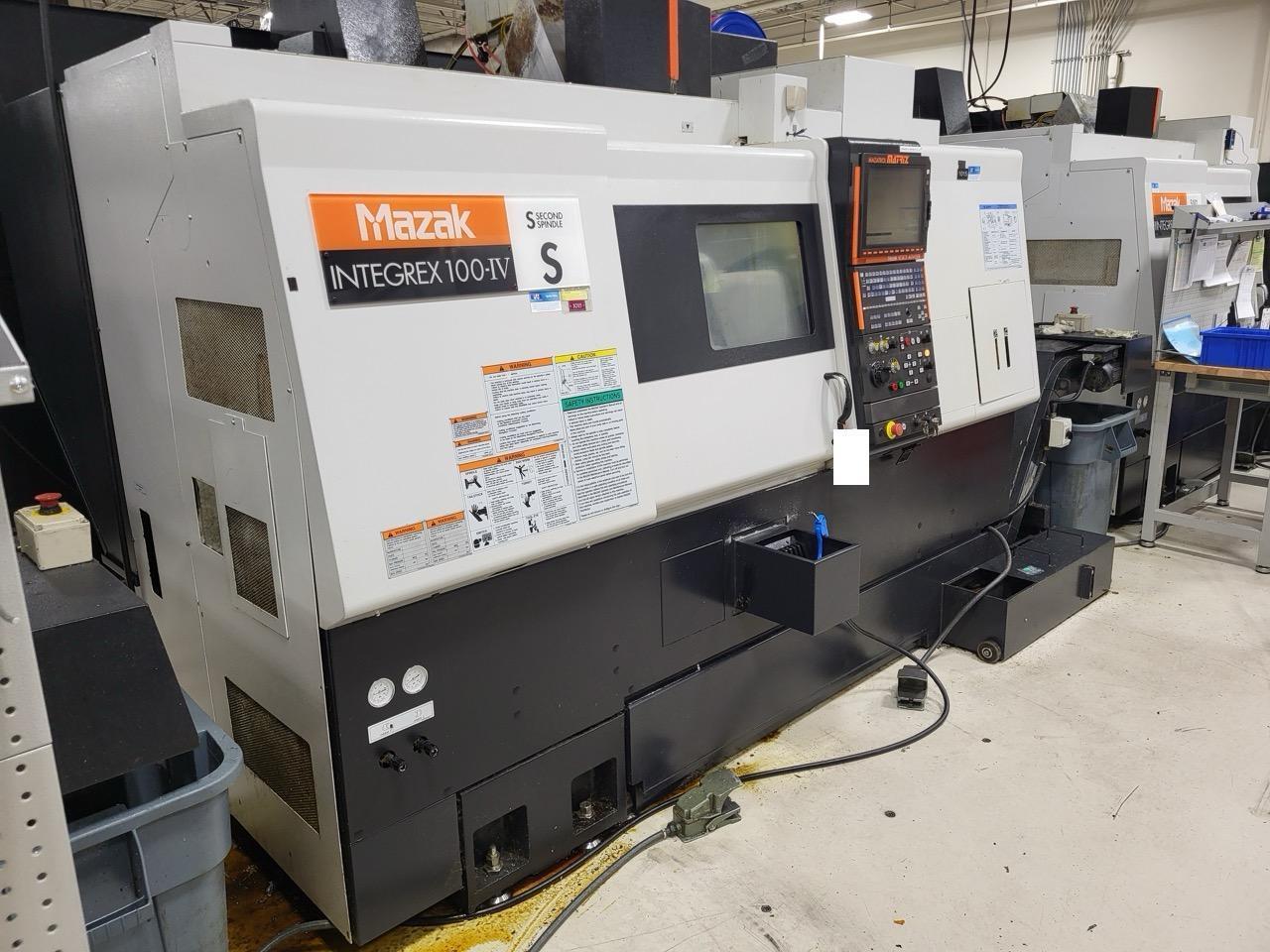

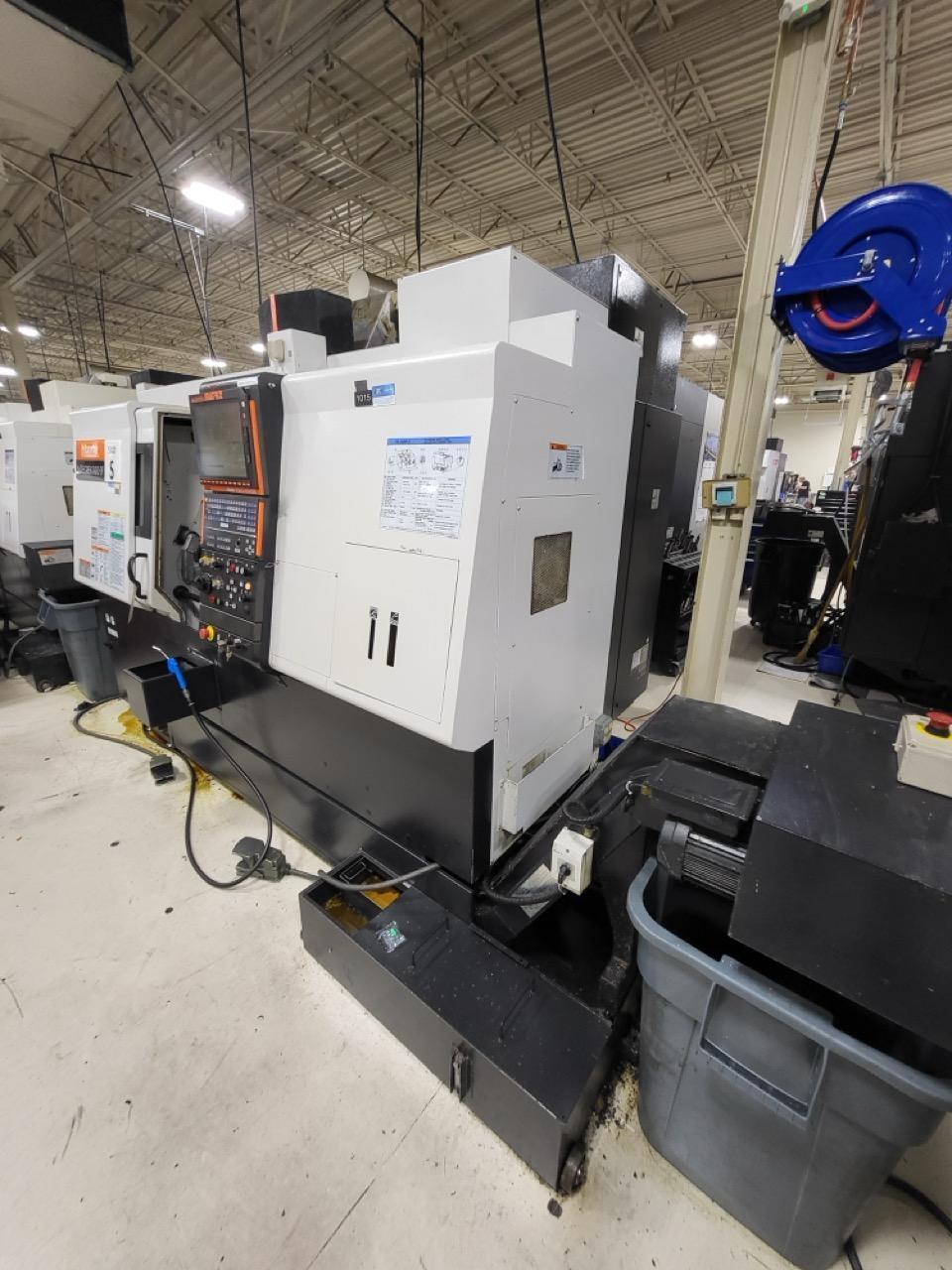

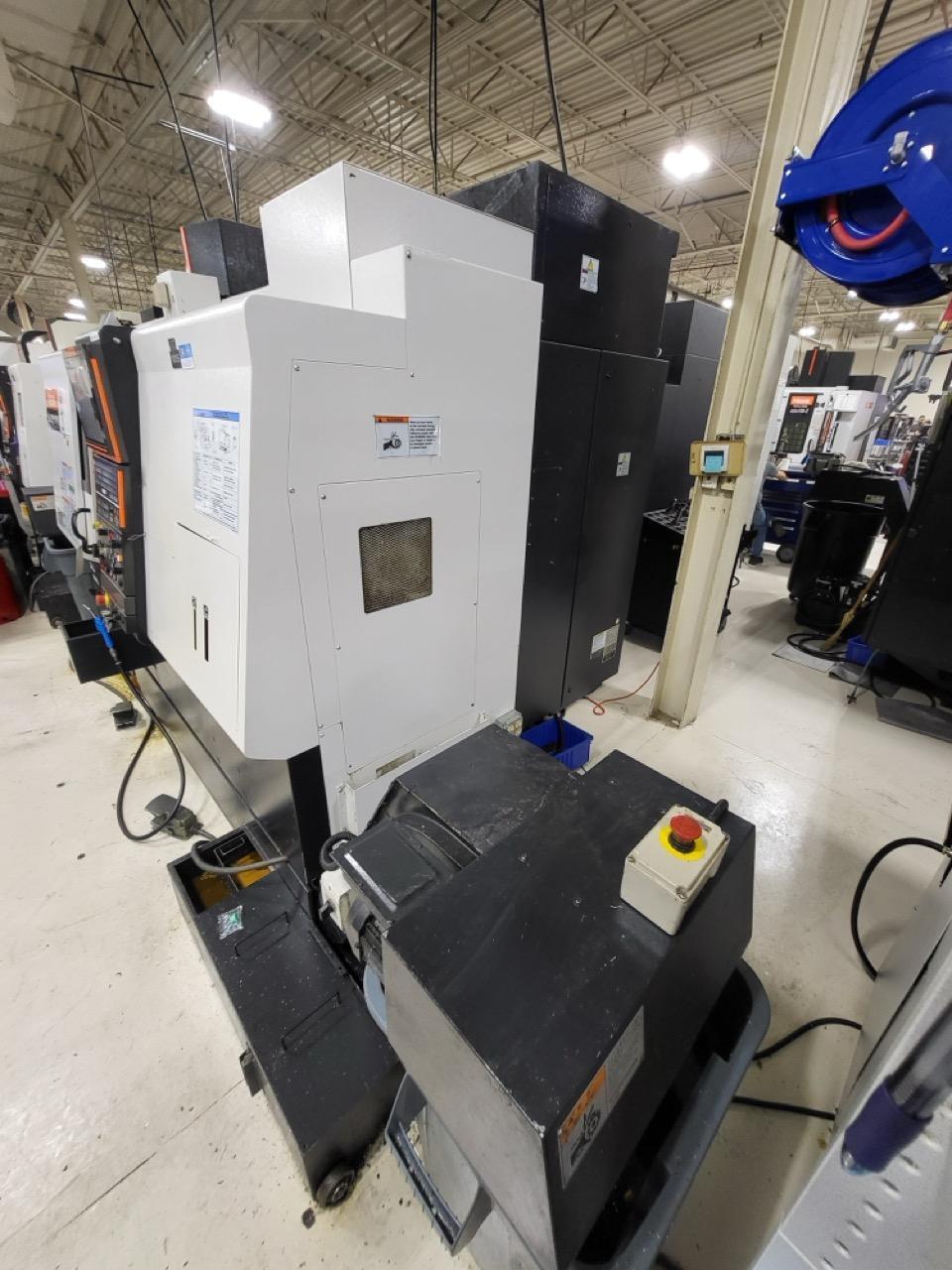

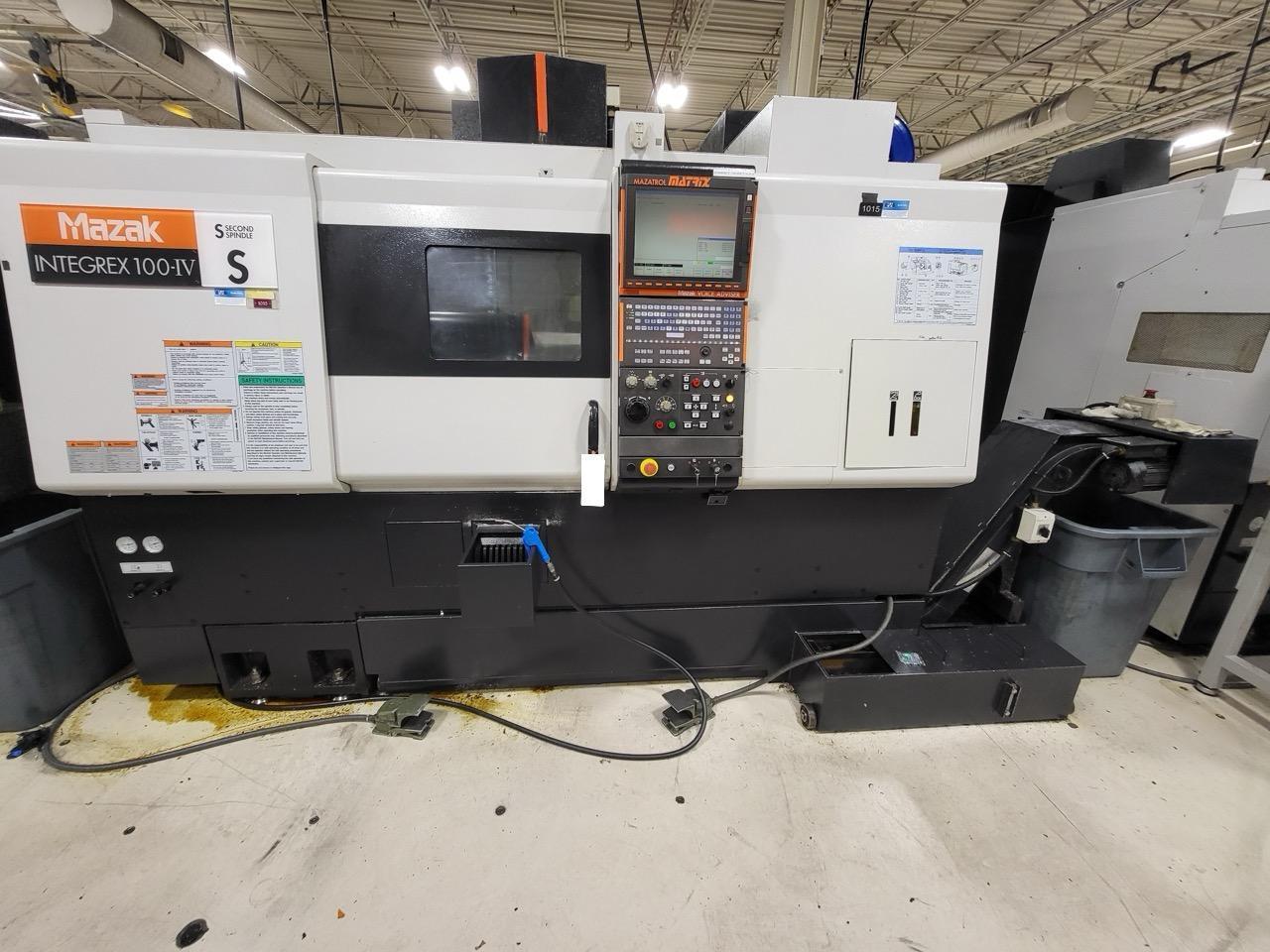

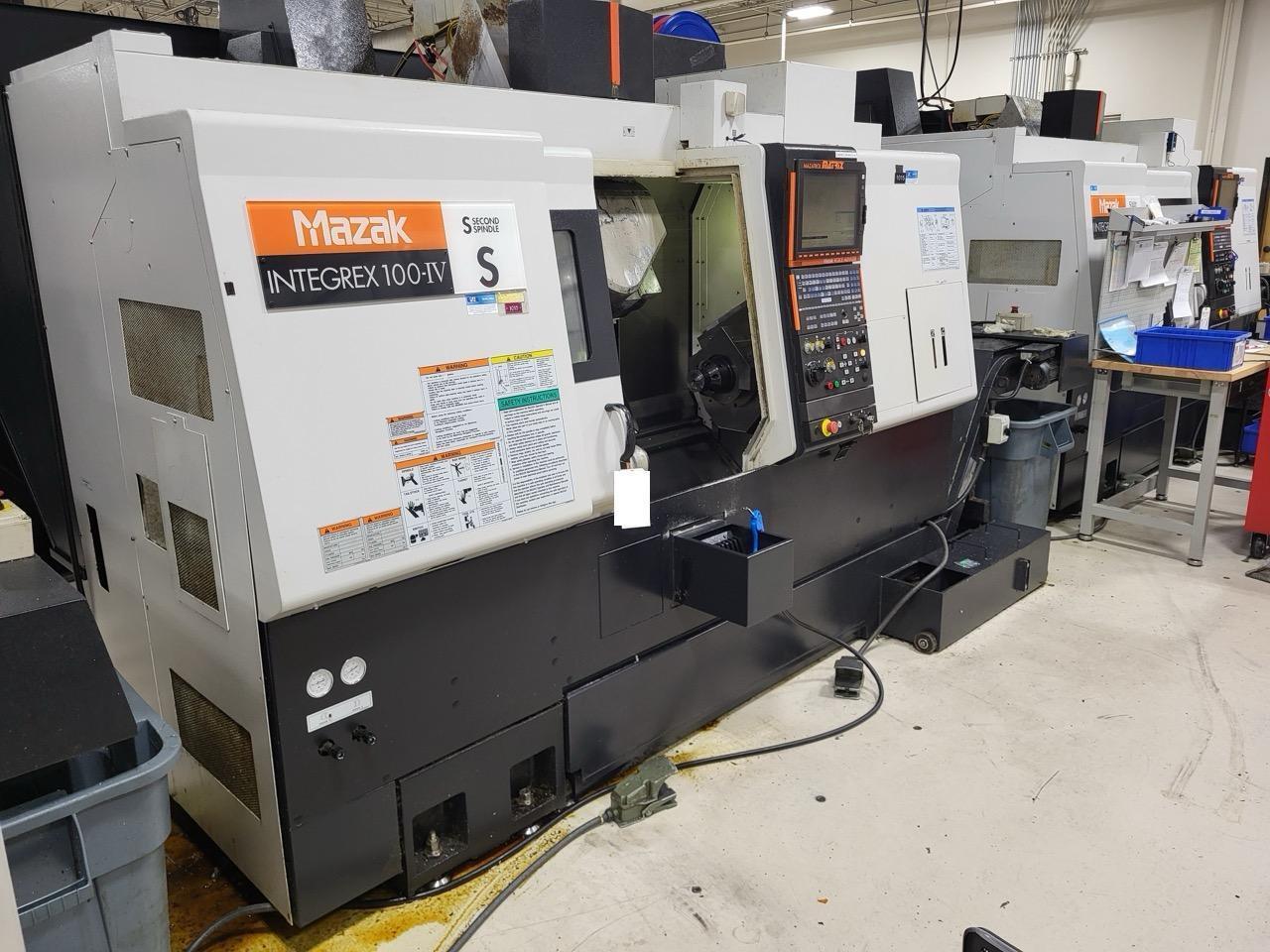

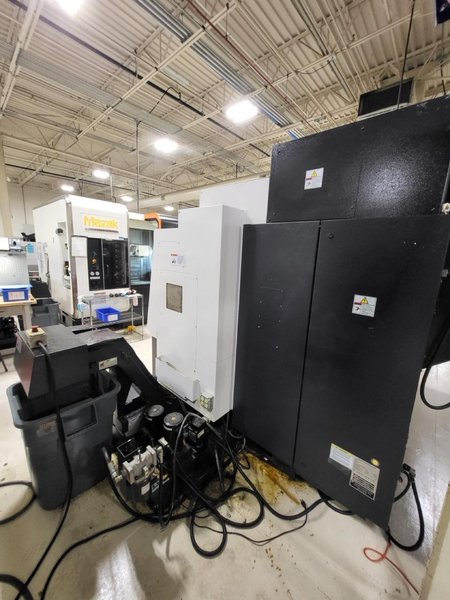

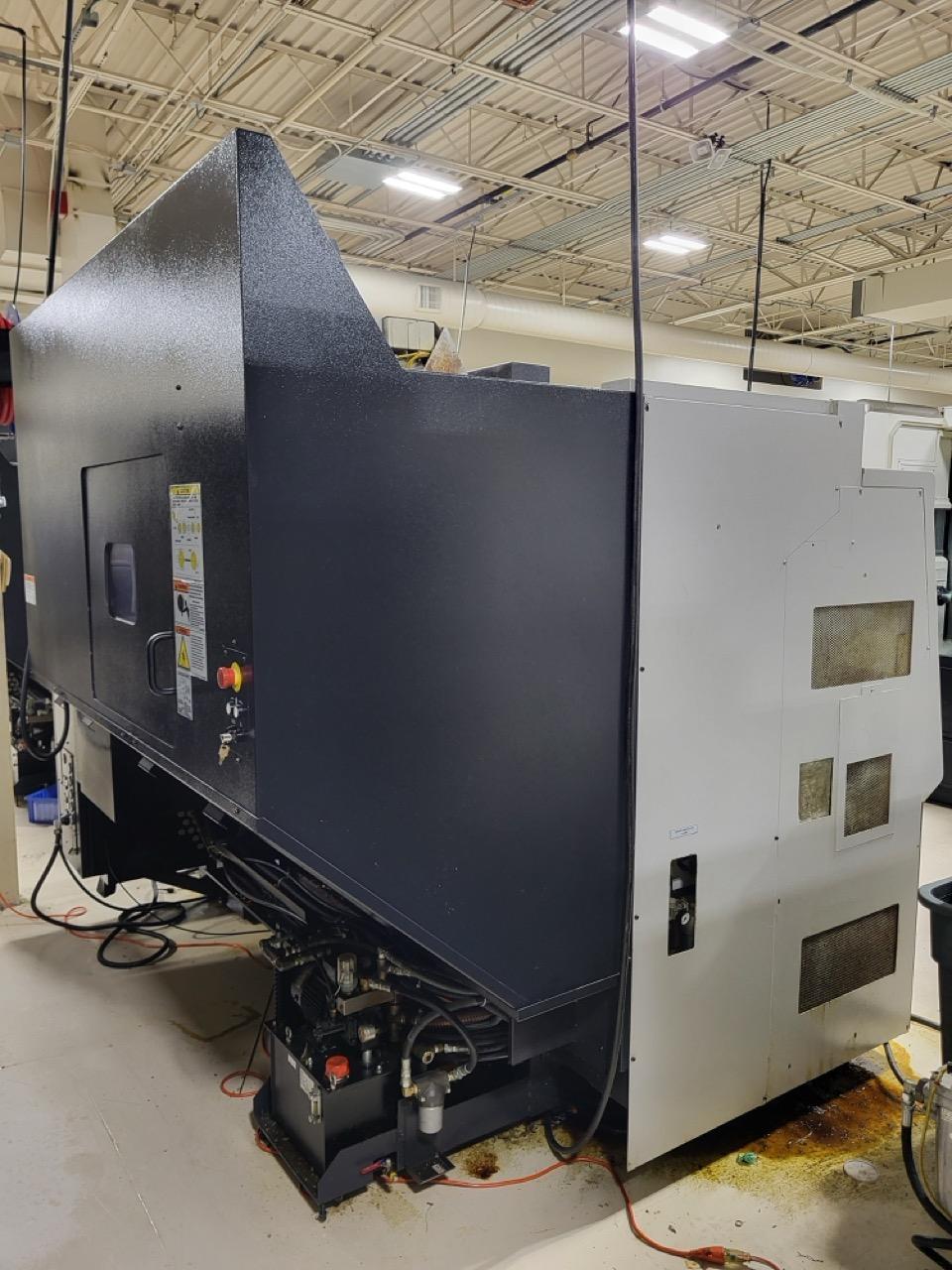

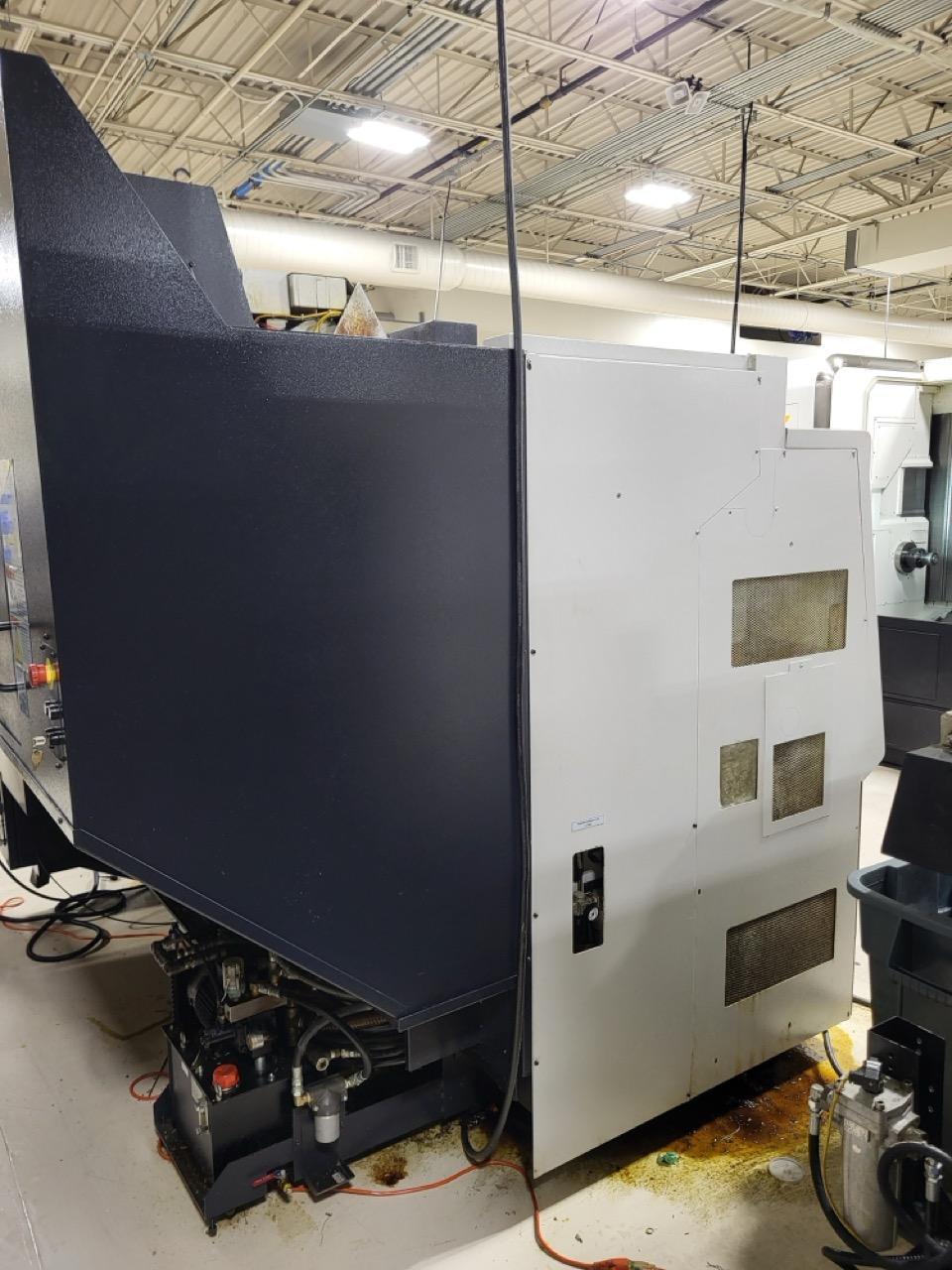

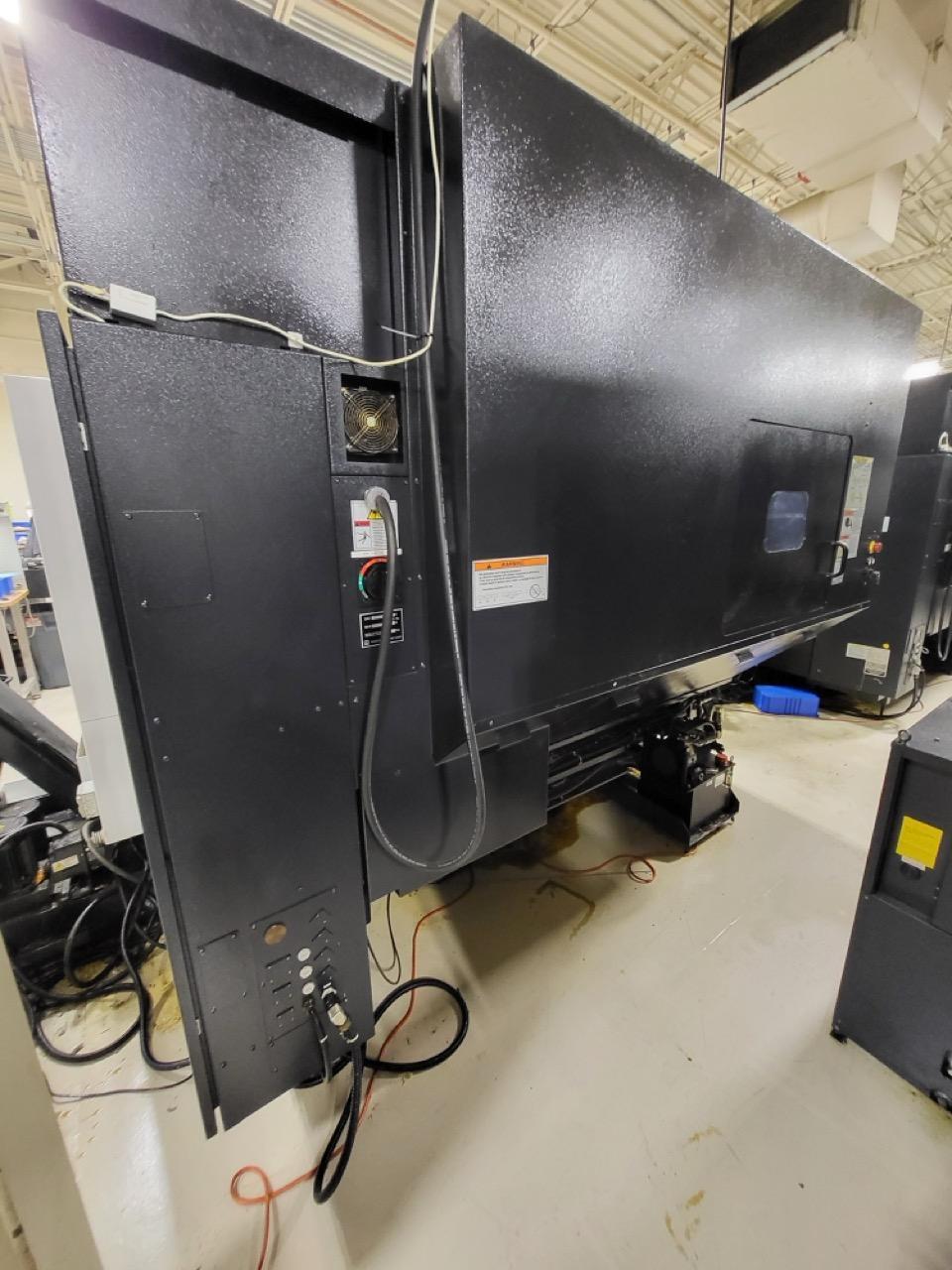

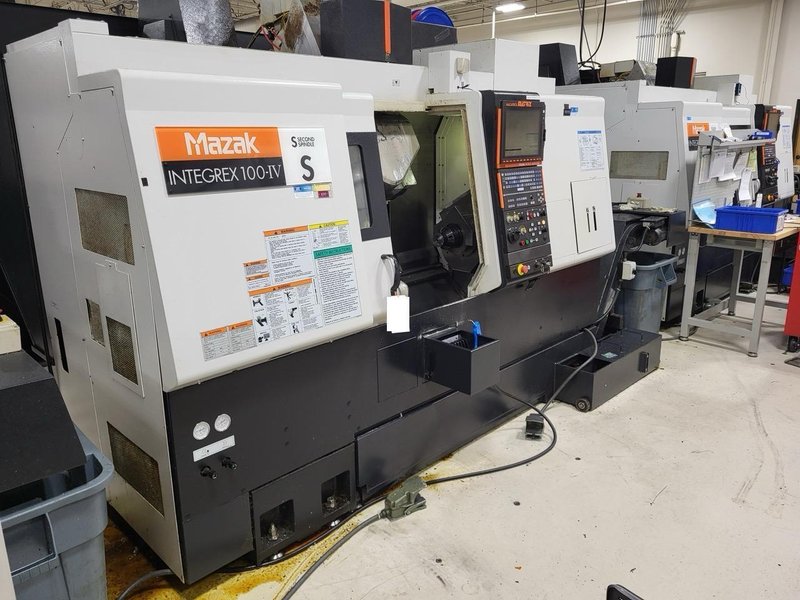

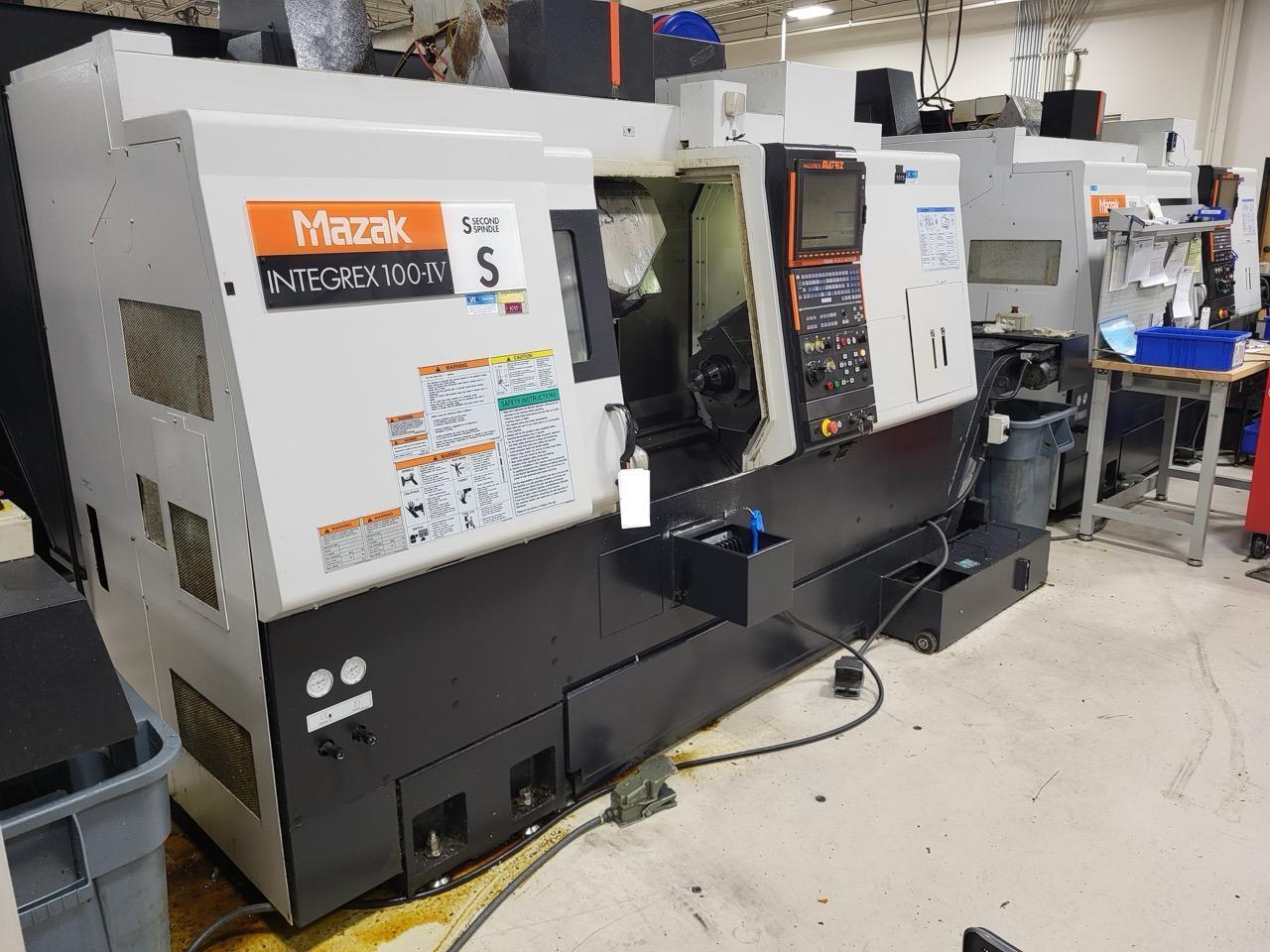

Mazak Integrex 100-4 S Cnc Multi-Tasking Turning Center, 2007

Brand
MAZAK
Category
Lathes & Turning Machines
Type
CNC Lathes (3-axis Or More)
Model
INTE100-4S
Stock #
88715
Year
2007
Condition
Not specified

Location

Not specified
X-Axis: 16.14″ Y-Axis: ±2.76″ Z-Axis: 31.69″ W-Axis (Sub-Spindle): 31.3″ B-Axis (Milling Head): 225° (-30° To +195°) Main Spindle Chuck Size: 6″ Max Speed: 6,000 Rpm Motor Power: 15 Hp Bar Capacity: 2.0″ C-Axis Indexing: 0.0001° Second (Sub) Spindle Chuck Size: 6″ Max Speed: 6,000 Rpm Motor Power: 15 Hp C-Axis Indexing: 0.0001° Milling Spindle Max Speed: 12,000 Rpm Motor Power: 7.5 Hp Tool Shank: CAPTO C6 Tool Storage: 40 Tools Machining Capacity Max Machining Diameter: 21.46″ Max Machining Length: 29.7″ Physical Dimensions Machine Weight: 15,400 Lbs Footprint: Approx. 92.5″ X 80.7″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Mazatrol Matrix CNC Control Collet Chucks Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
