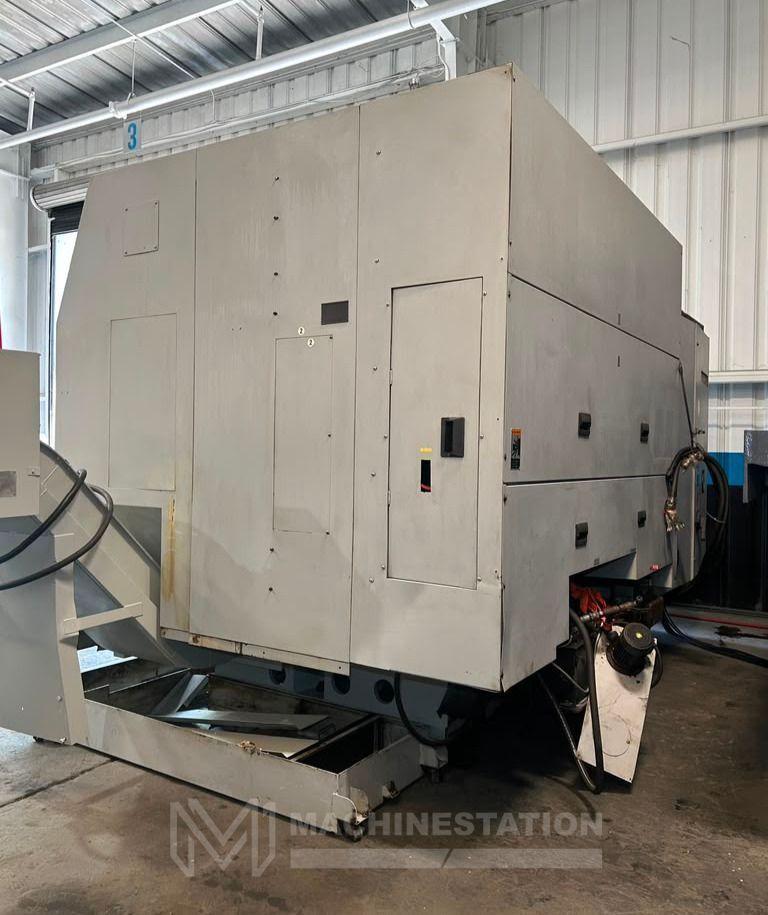

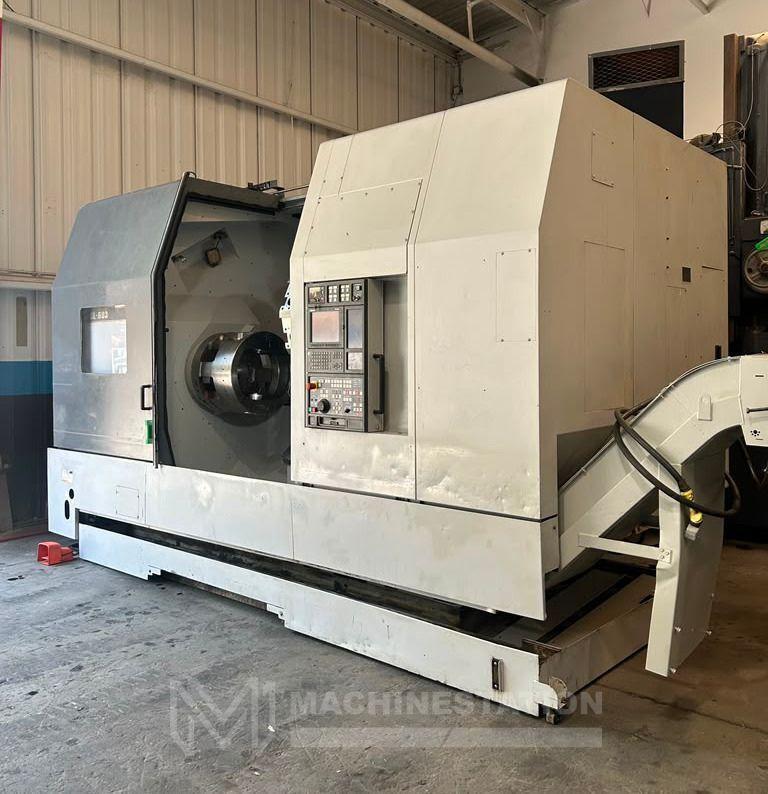

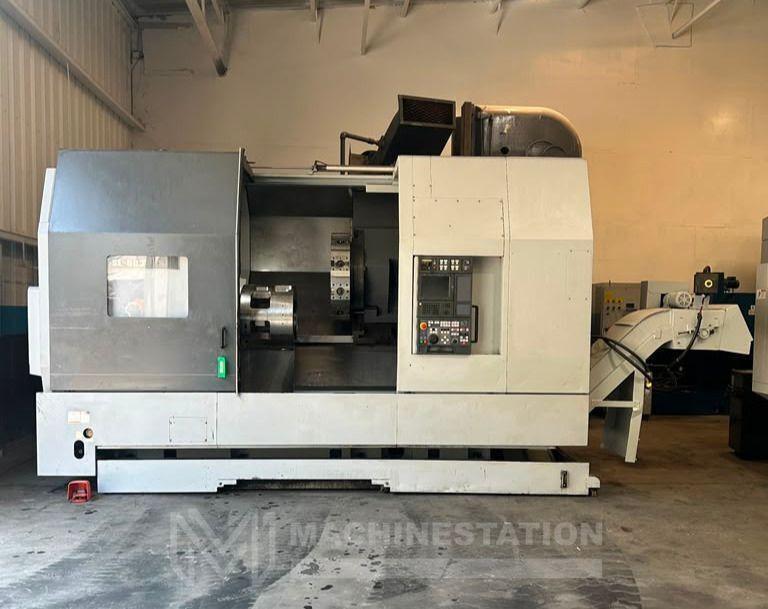

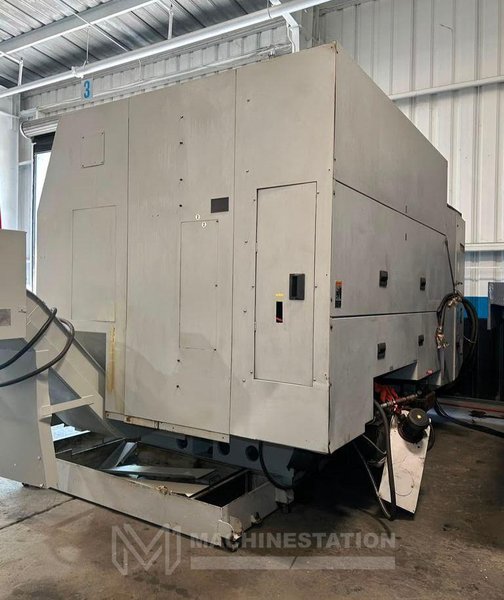

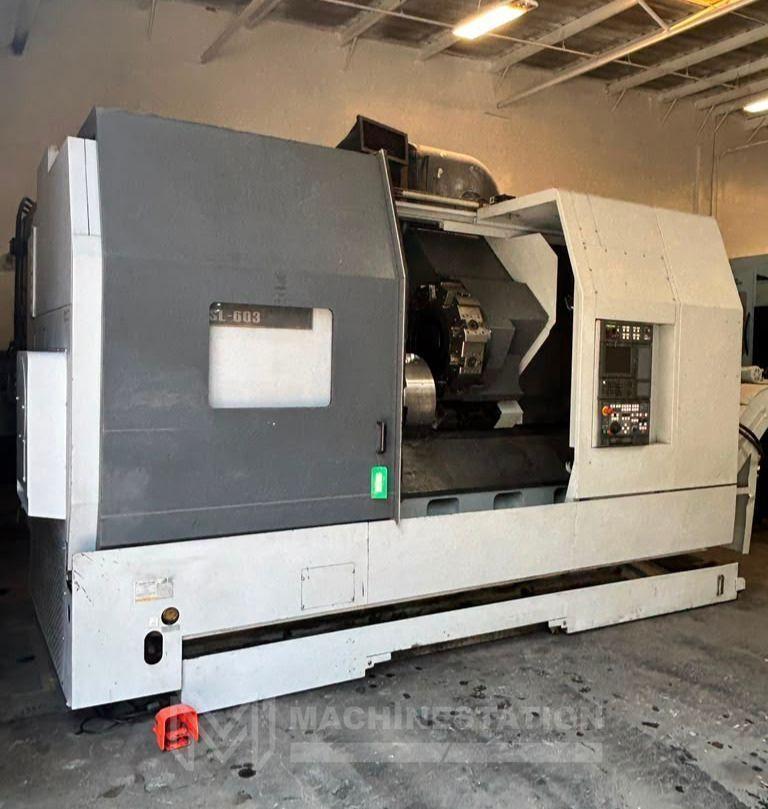

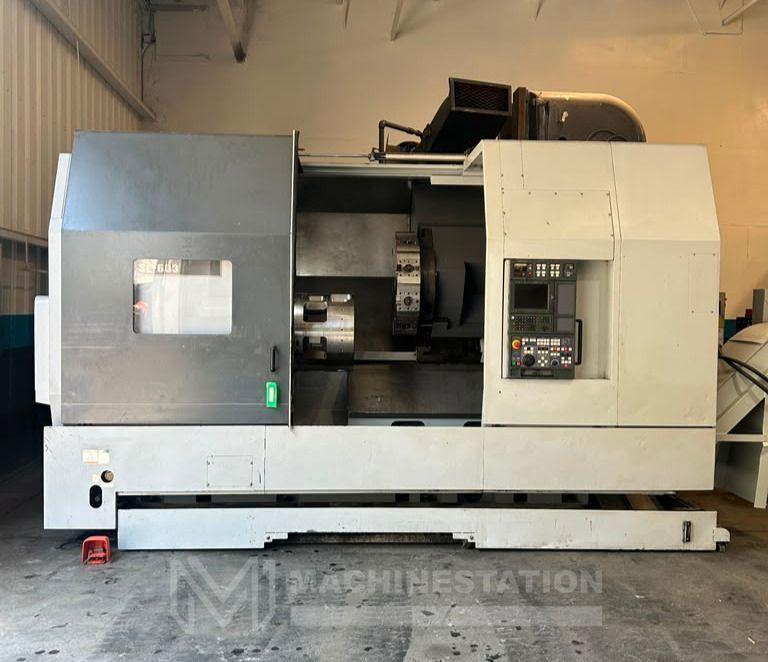

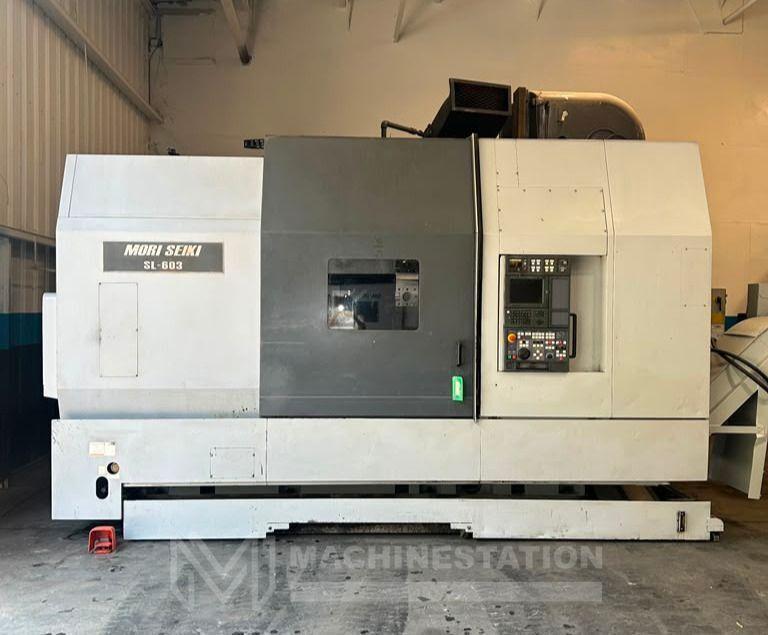

Mori Seiki SL-603B/1000 CNC Turning Center – 22.4″ Chuck Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SL-603B/1000
Stock #
112994
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make: Mori Seiki
Model: SL-603B/1000
Year: 2004
Equipped With:

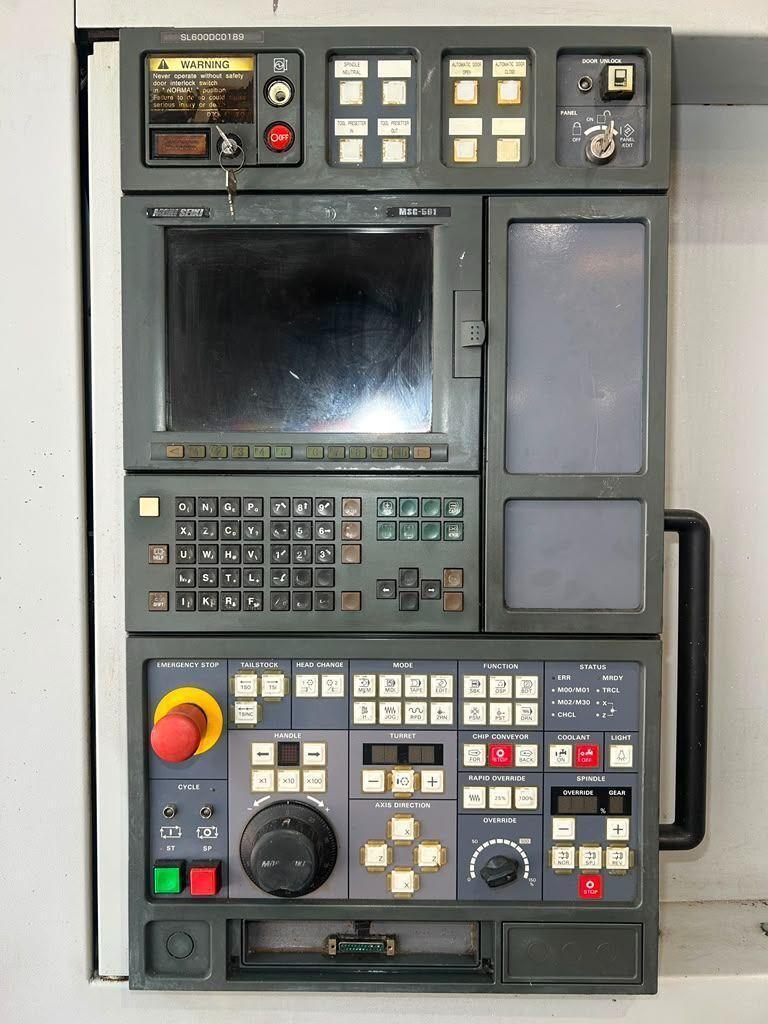

Mori Seiki MSG-501 (Fanuc) CNC Control

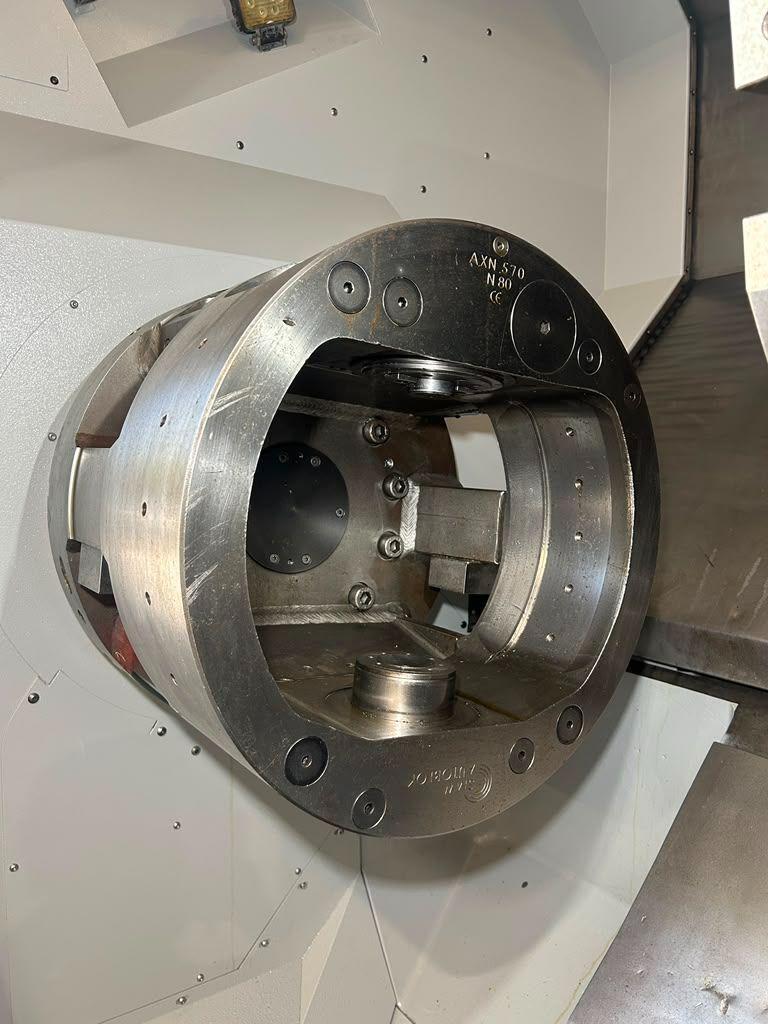

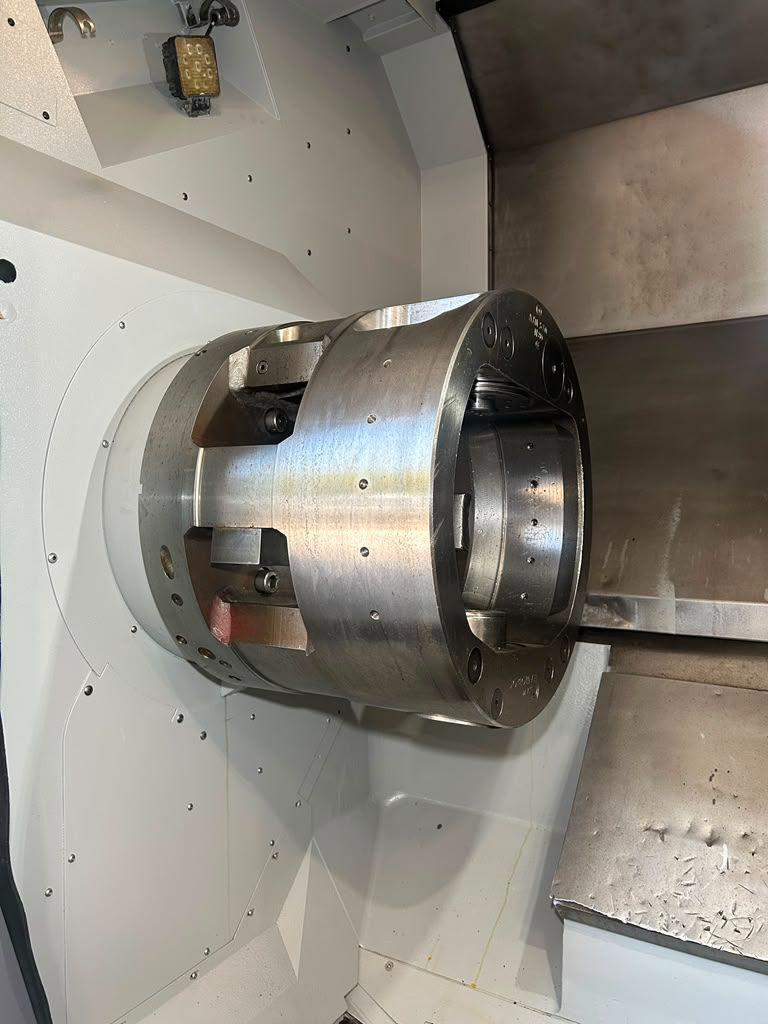

22.4″ SMW Autoblock AXN-570 Automatic Indexing Chuck
A2-15 Spindle Nose
1,500 RPM Spindle

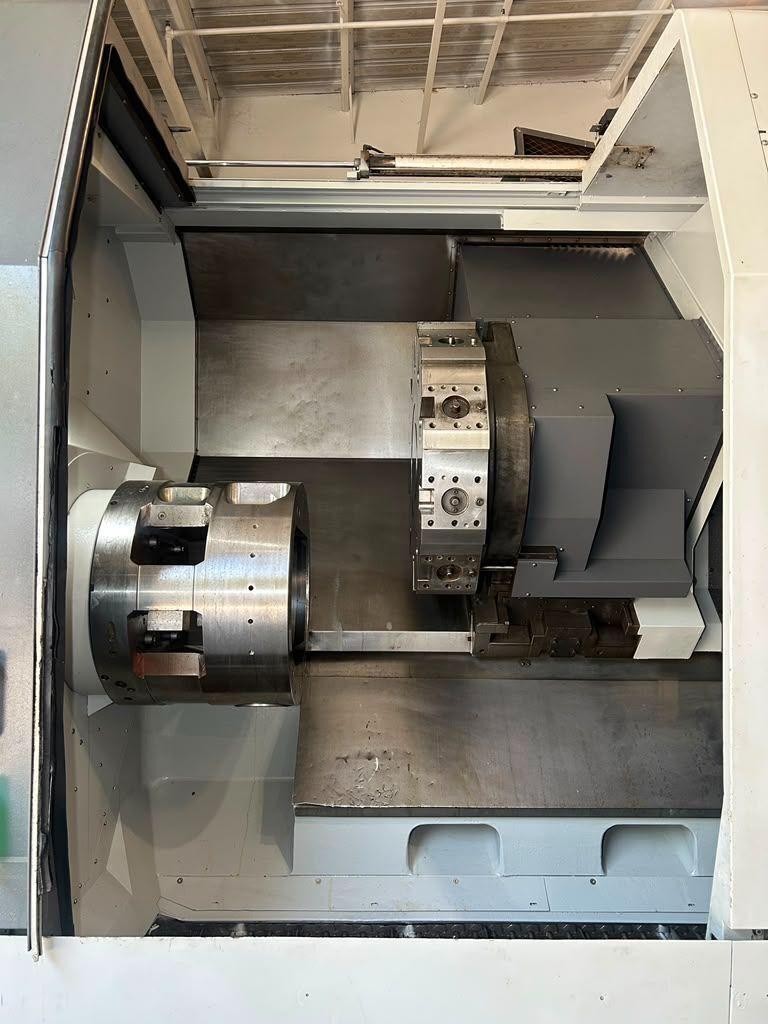

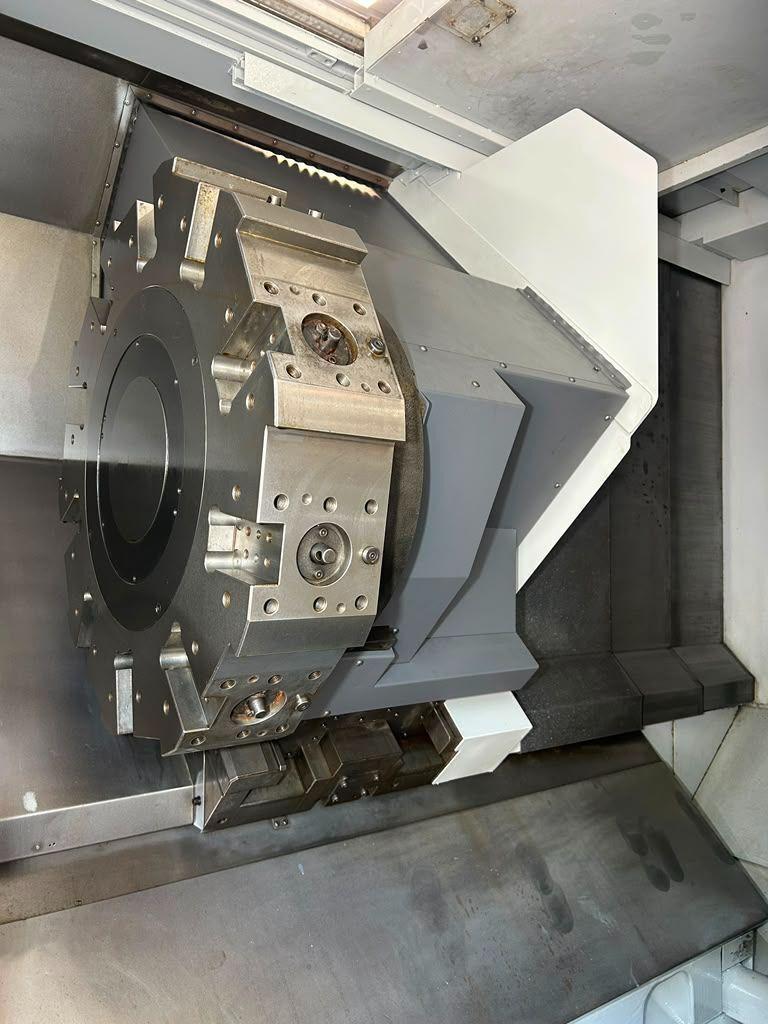

10-Station Automatic Turret
Coolant Tank

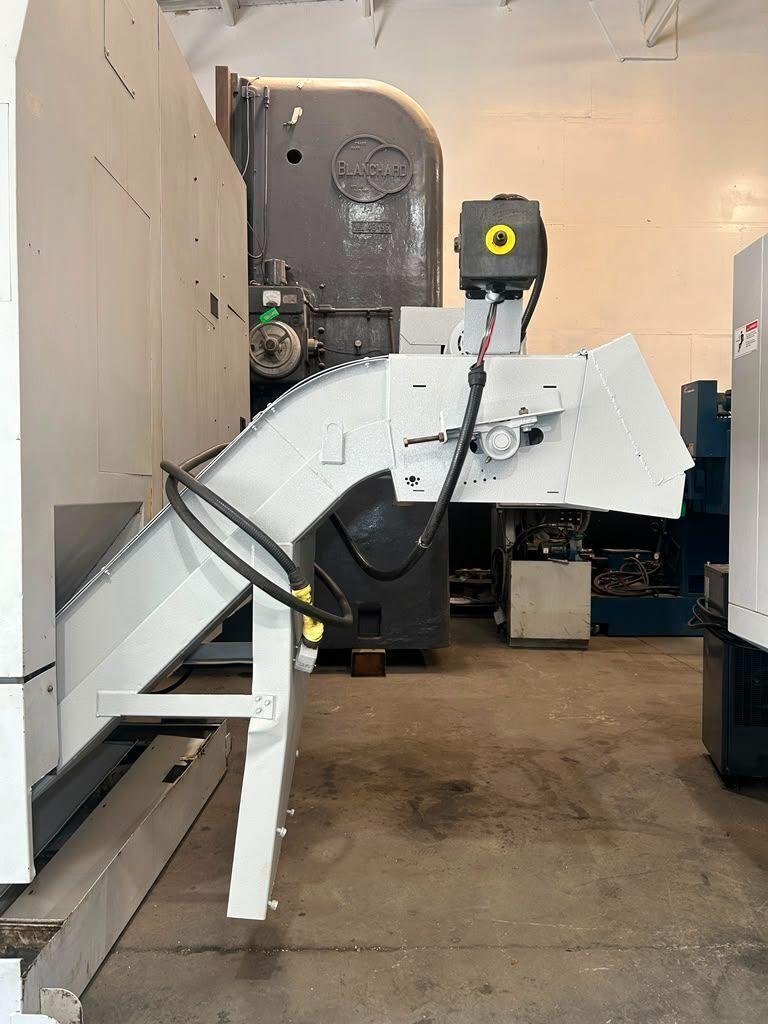

Chip Conveyor
Foot Switch
Capacity:
Maximum Turning Diameter: 35.4″
Maximum Turning Length: 39.3″
Swing Over Bed: 40.6″
Swing Over Cross Slide: 28.9″
Distance Between Centers: 51.2″
Travels:
X-Axis Travel: 19.1″
Z-Axis Travel: 45.3″
Feed Rates:
Rapid Traverse X-Axis: 787.4 IPM
Rapid Traverse Z-Axis: 787.4 IPM
Spindle:
Spindle Nose: A2-15
Spindle Speed: 1,500 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.4 Seconds
Turning Tool Size: 1.25″
Boring Tool Diameter: 2.6″
General:

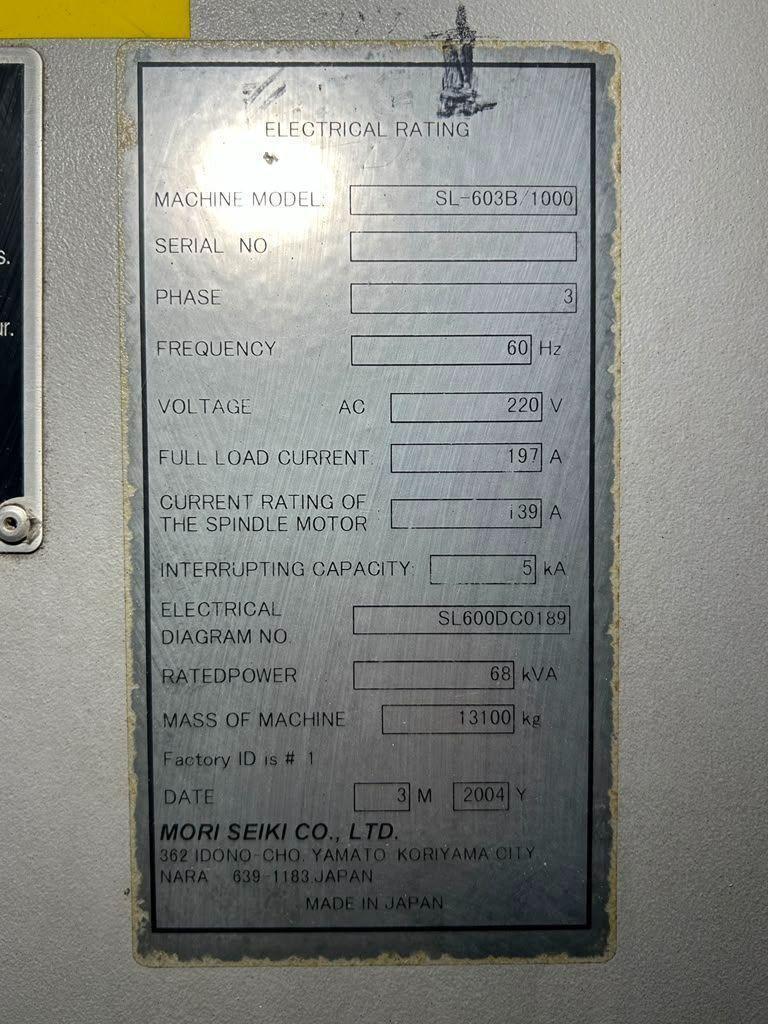

Power Source: AC 220V / 3-Phase / 60 Hz
Power Requirement: 68 kVA
Overall Dimensions: 196″ × 121″ × 114″ High Approx.
Machine Weight: 28,880 lbs Approx.
