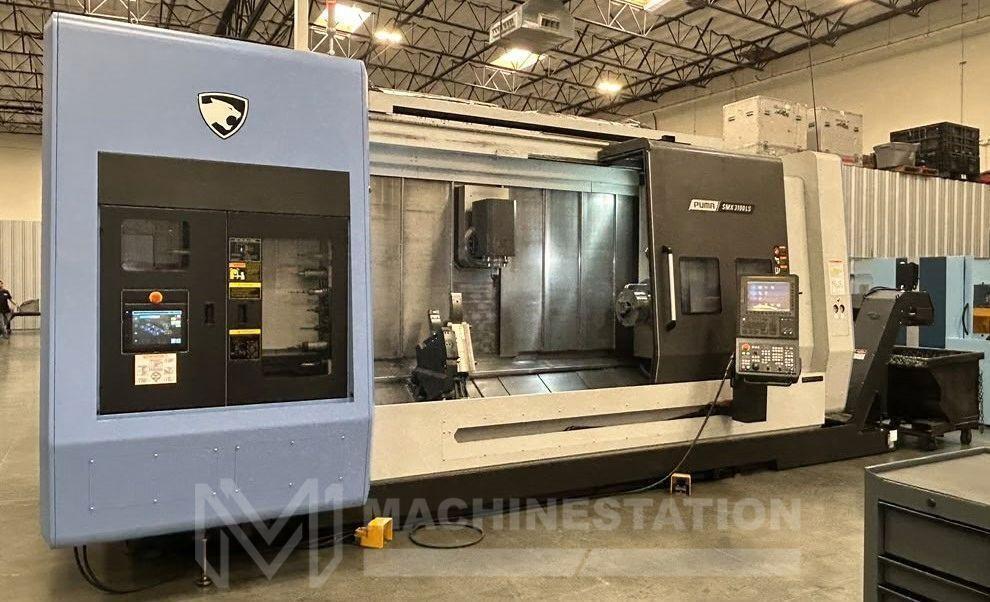

Doosan Puma SMX3100LS Multi Axis CNC Lathe – 2023 Sub Spindle, Y Axis, Milling Head, Long Bed

Doosan Puma SMX3100LS Multi Axis CNC Lathe – 2023 Sub Spindle, Y Axis, Milling Head, Long Bed

Name: Doosan Puma SMX3100LS Multi Axis CNC Lathe – 2023 Sub Spindle, Y Axis, Milling Head, Long Bed
Brand: DOOSAN
SKU: 113704
Availability: InStock

Brand

DOOSAN

Location

Not specified

Specifications
Files & Videos

All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Doosan
Model:	Puma SMX3100LS
Year:	2023

Features:
Fanuc Series 31i-Model B5 Plus CNC Control
12,000 RPM Pendulum Milling Head
80 Station Automatic Tool Changer
12.8 inch SMW Autoblok KNCS-N-325 3-Jaw Chuck on Main Spindle
12.8 inch SMW Autoblok KNCS-N-325 3-Jaw Chuck on Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Y Axis Capability
SMW Autoblok Programmable Steady Rest
Hydcool Hydtec-Kouwa Chiller Unit
Rigid Tapping
Automatic Lubrication Unit
Coolant Tank
Hennig Chip Conveyor
Foot Switch

Capacity:
Max Swing Over Bed: 26.00 inch
Max Machining Diameter: 26.00 inch
Max Machining Length: 100.00 inch
Max Bar Capacity: 4.01 inch

Travels:
X Axis Travel: 24.80 inch
Y Axis Travel: 11.81 inch (± 5.9 inch)
Z Axis Travel: 101.77 inch
A-Axis Stroke (Sub Spindle): 98.40 inch
C Axis: 360° (0.0001°)
B Axis: 240° (± 120°) (0.0001°)

Feedrate:
Rapid Traverse X Axis: 1,889 IPM
Rapid Traverse Y Axis: 1,417 IPM
Rapid Traverse Z Axis: 1,181 IPM
Rapid Traverse A Axis: 1,181 IPM
Rapid Traverse B Axis: 40 RPM
Rapid Traverse C Axis: 200 RPM
