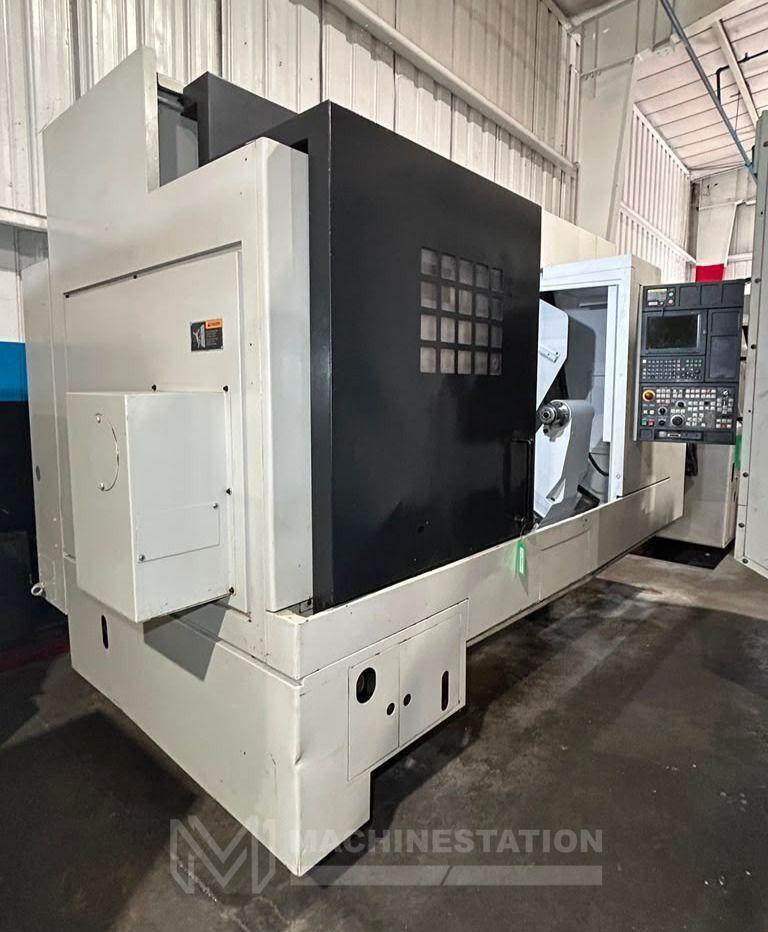

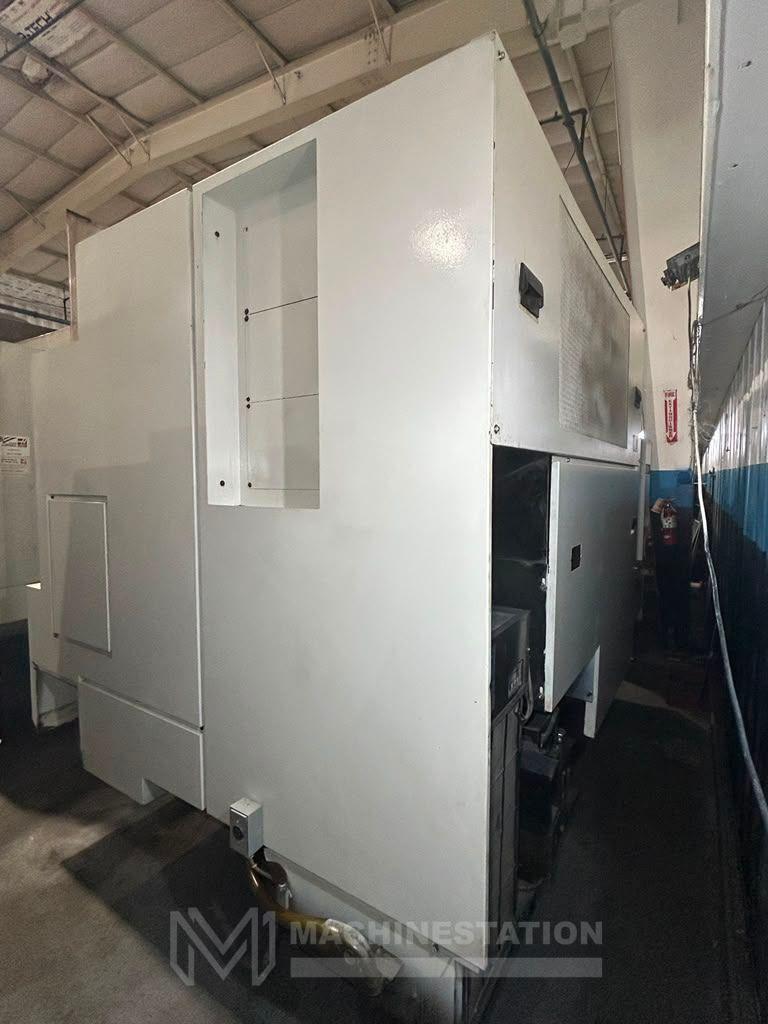

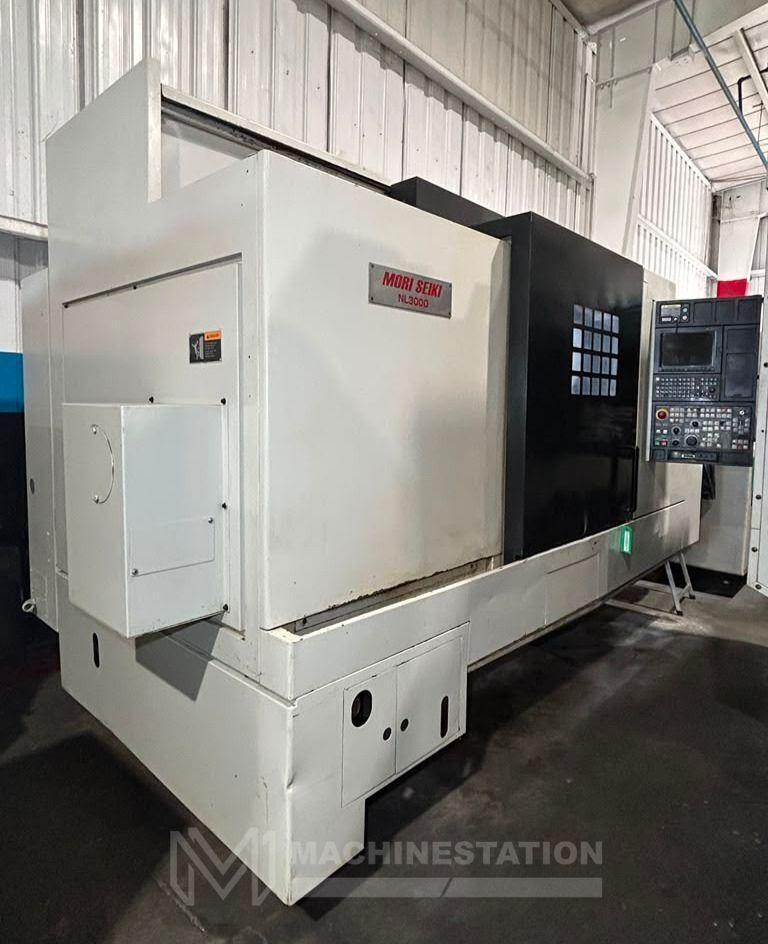

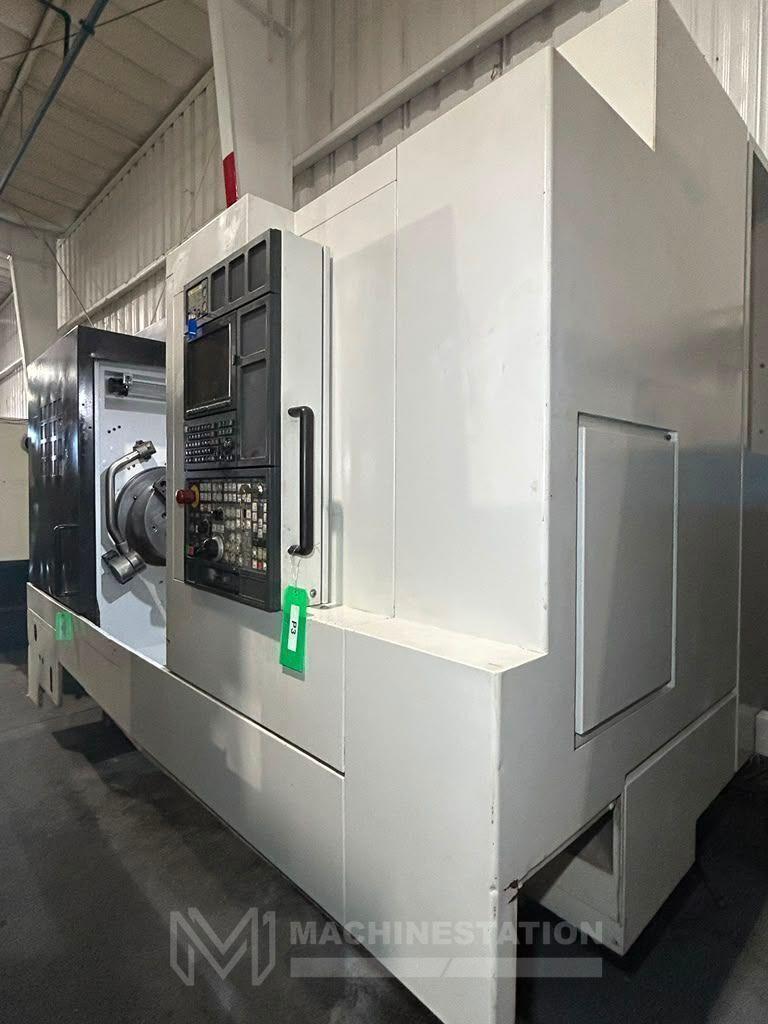

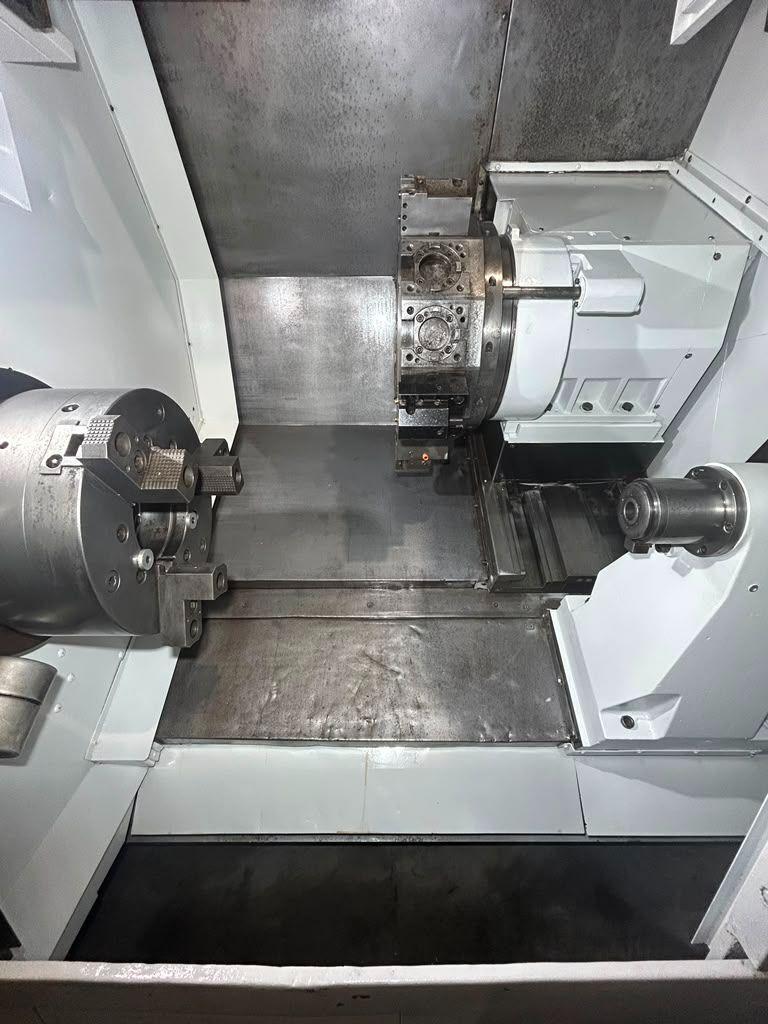

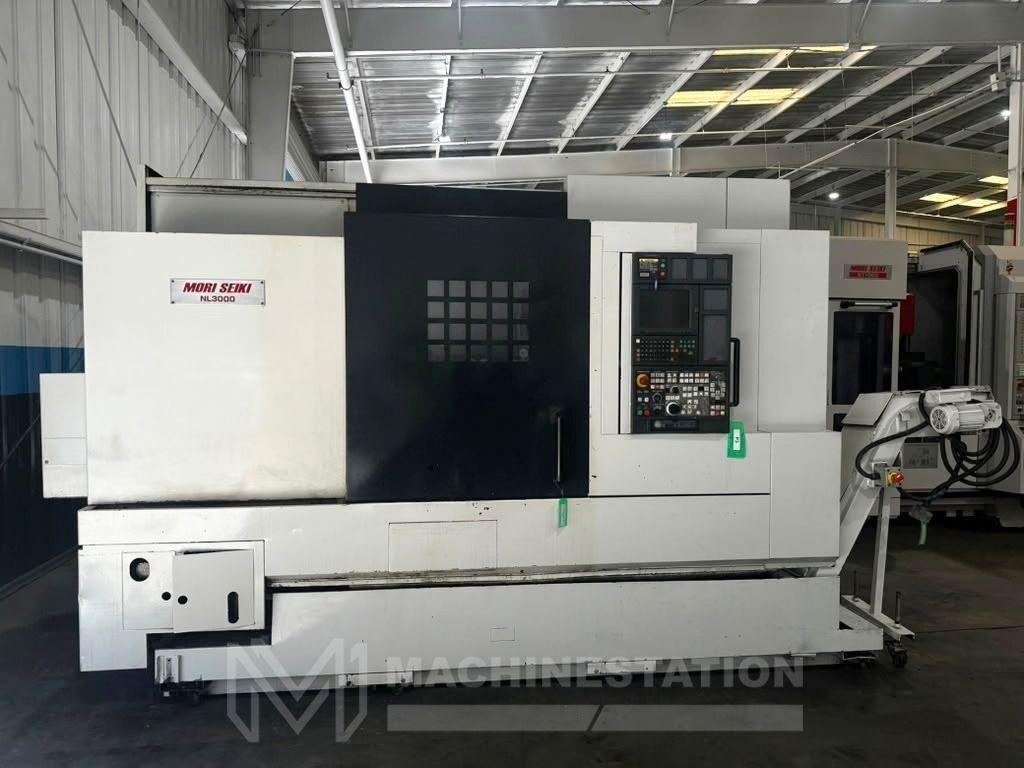

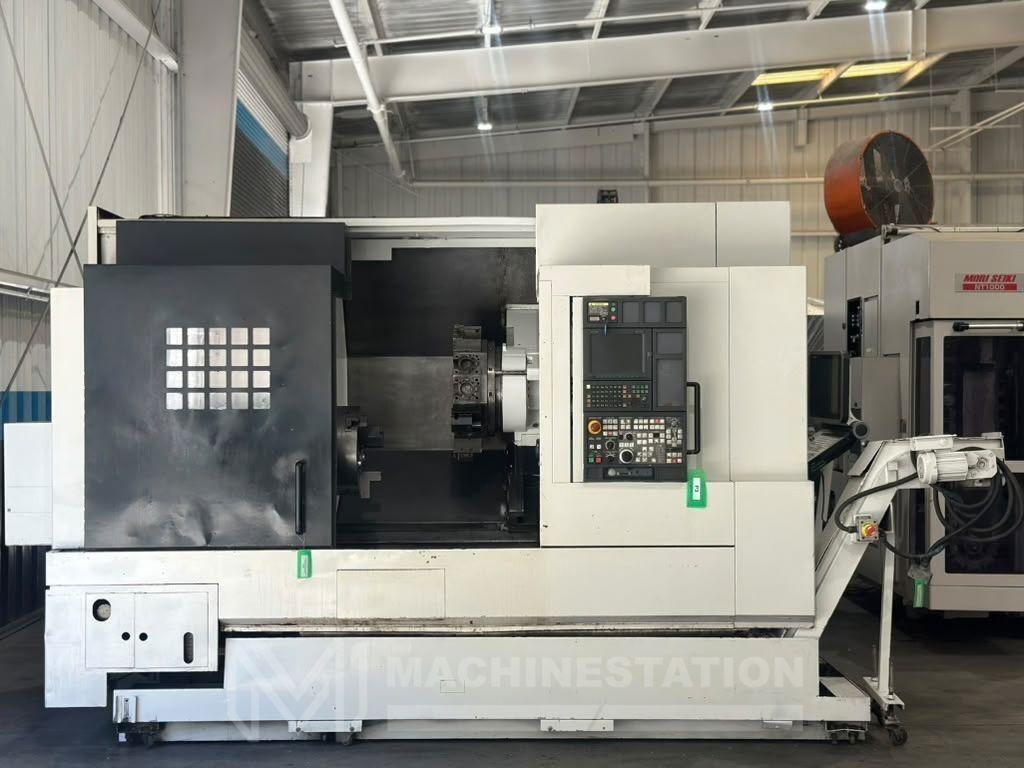

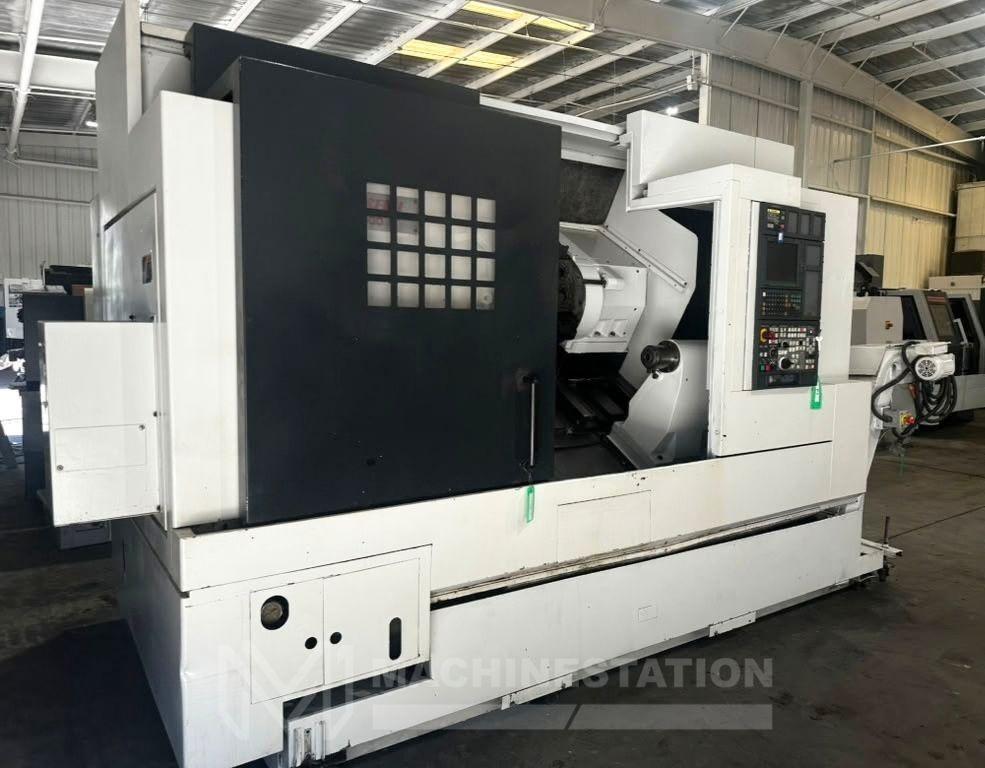

Mori Seiki NL-3000/700 CNC Turning Center – 15.75″ Chuck Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
NL3000/700
Stock #
113579
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make: Mori Seiki
Model: NL-3000/700
Year: 2006
Equipped With:

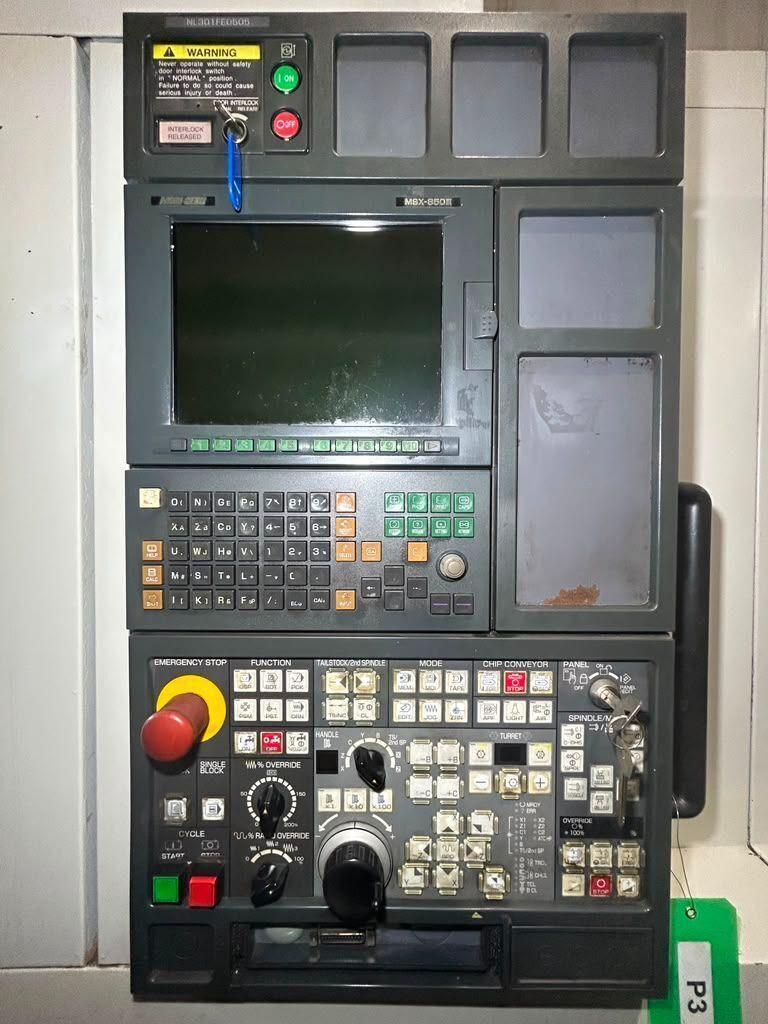

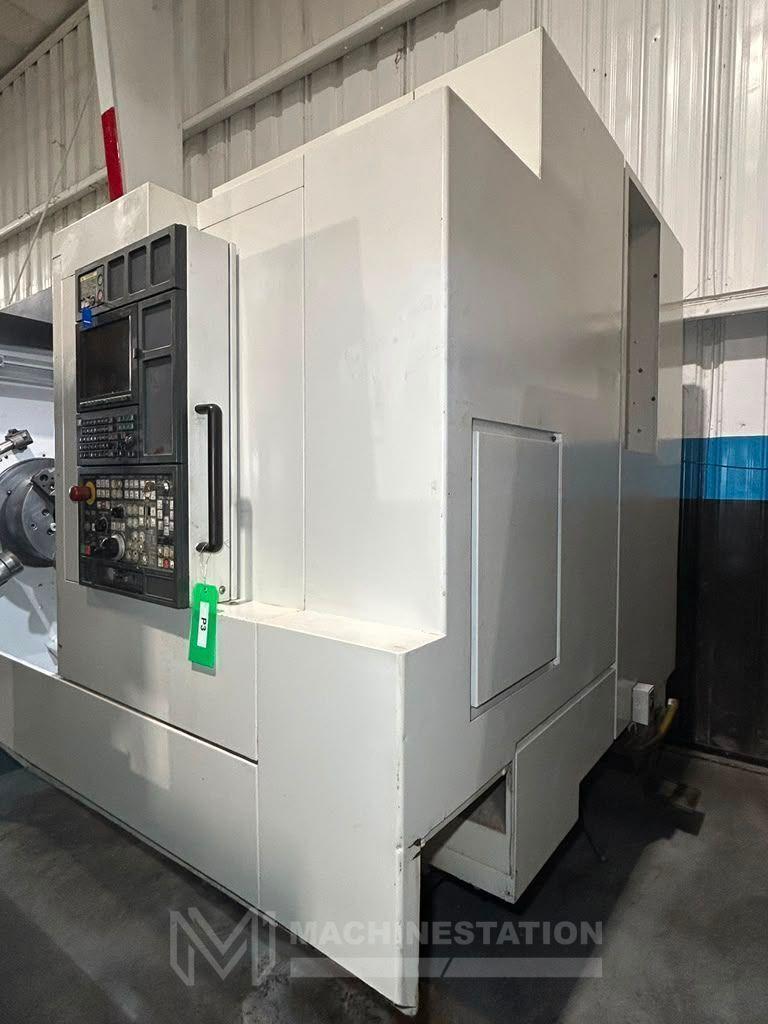

Mori Seiki MSX-850III CNC Control

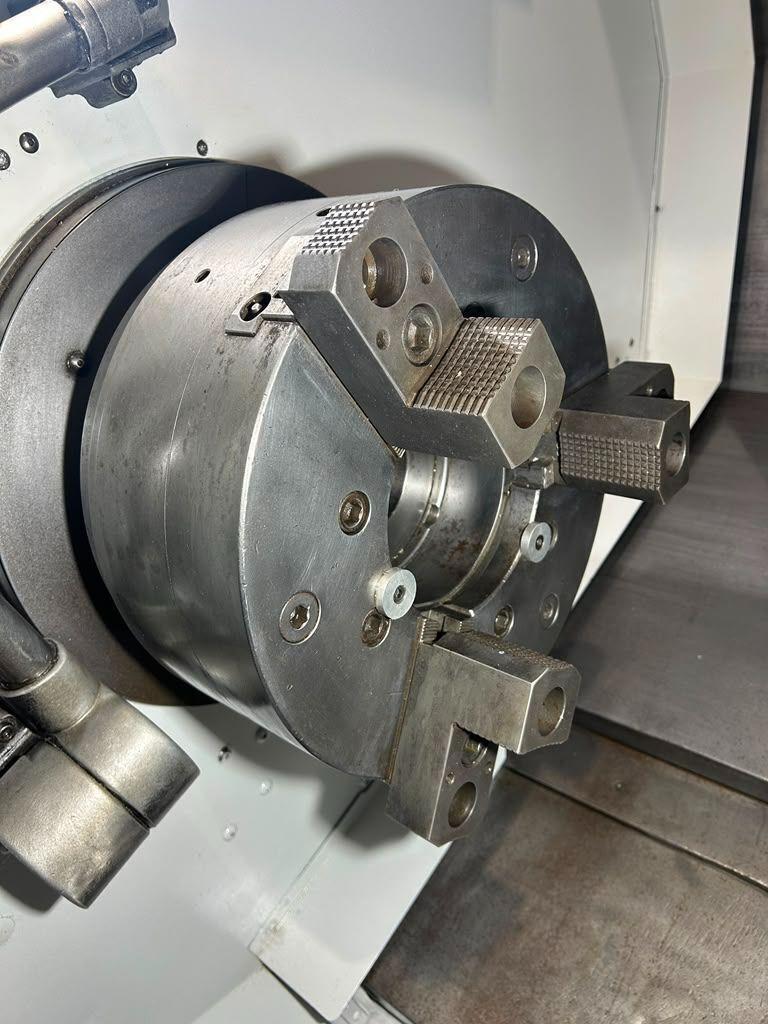

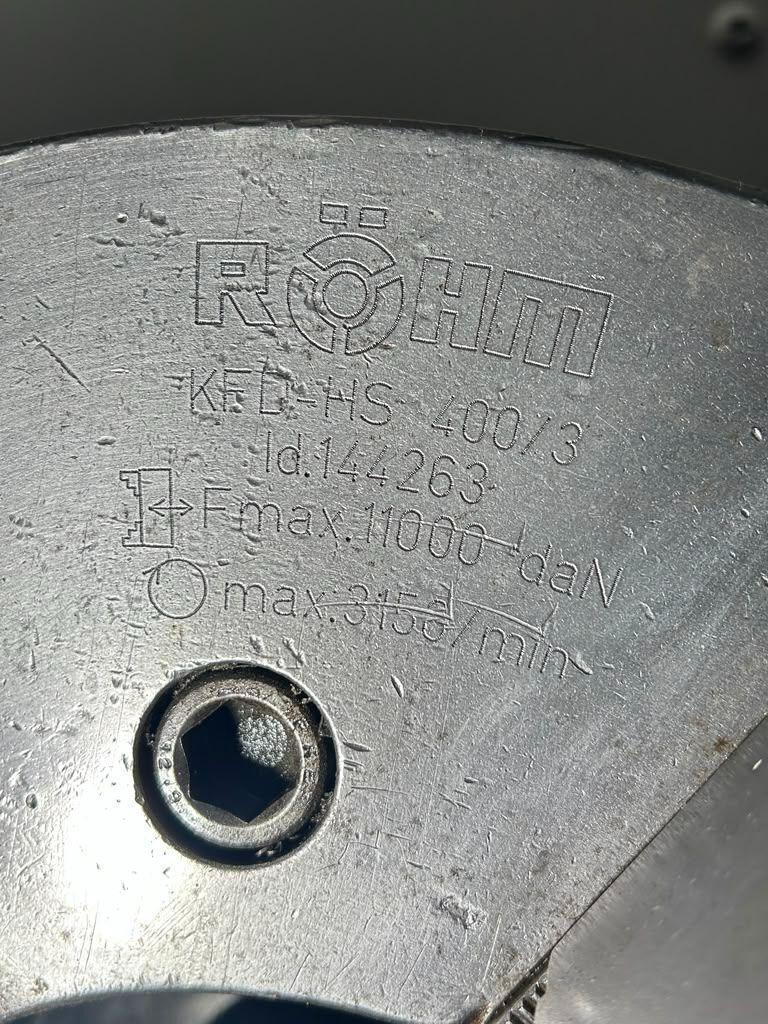

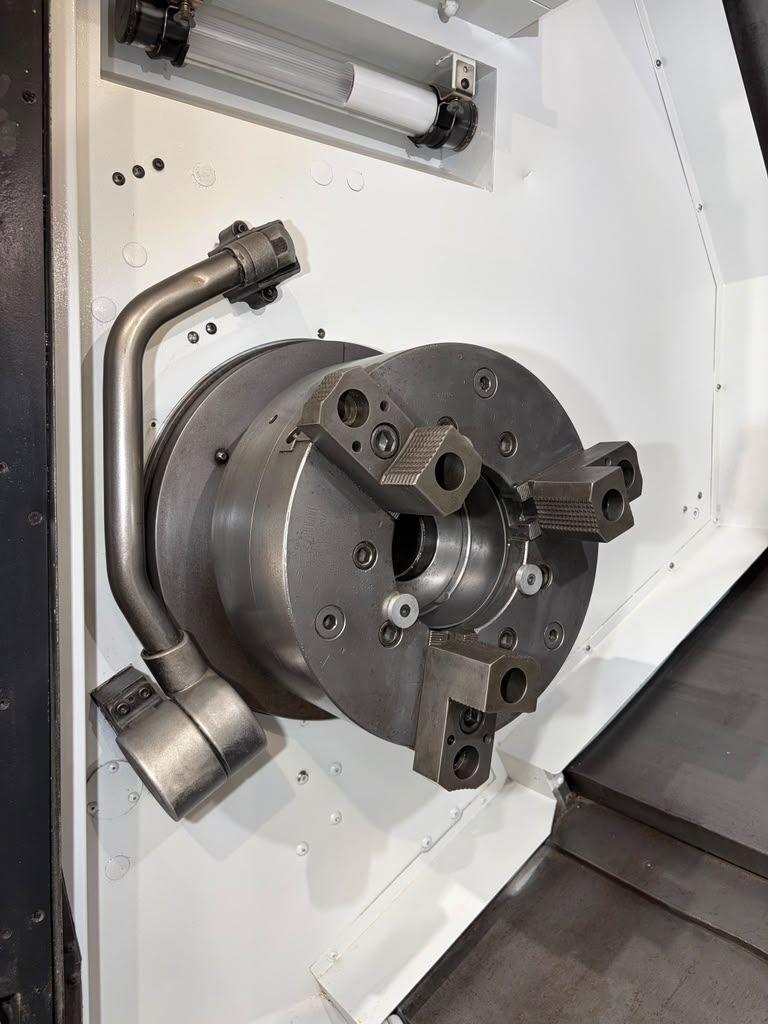

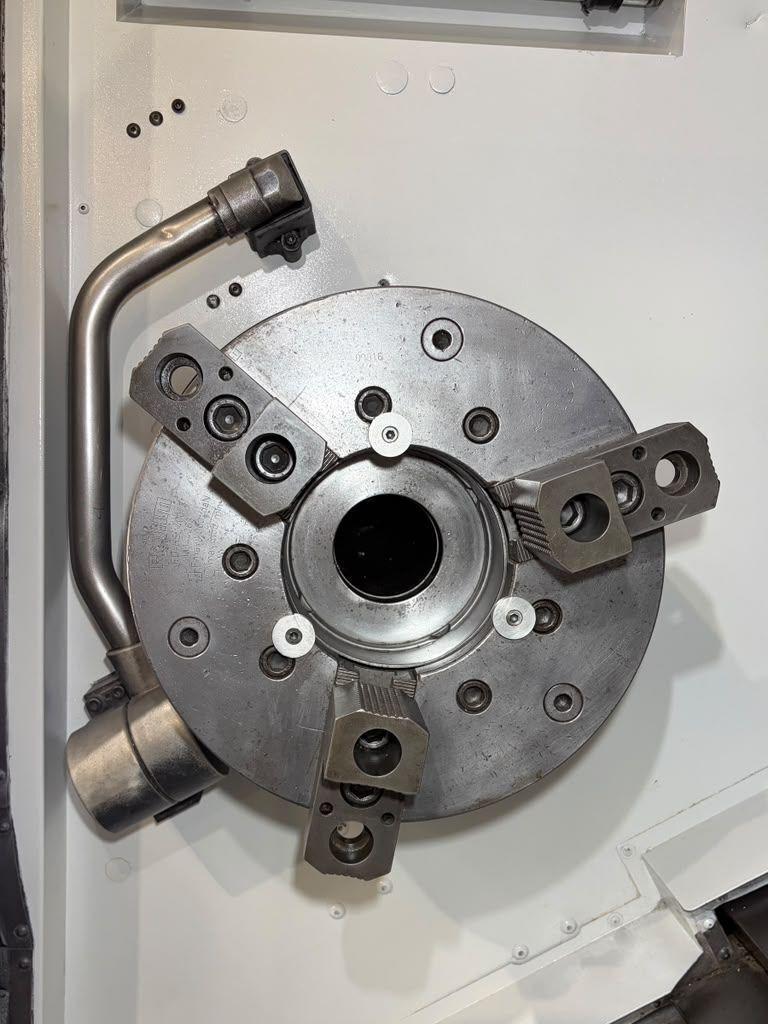

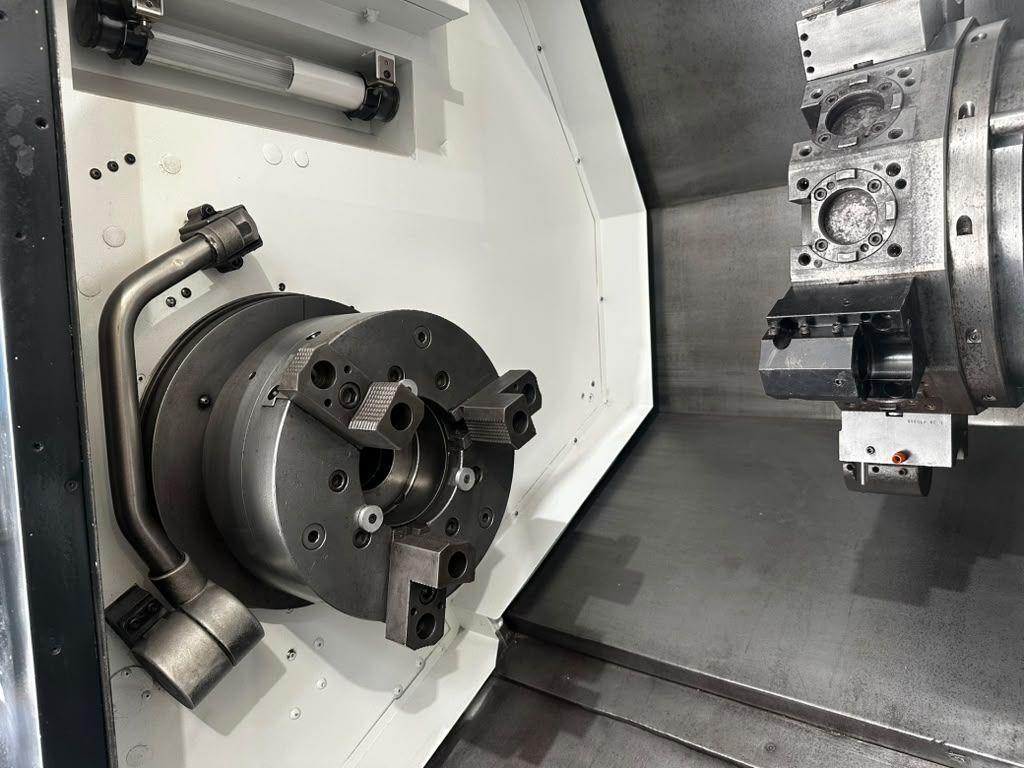

15.75″ 3-Jaw Hydraulic Chuck

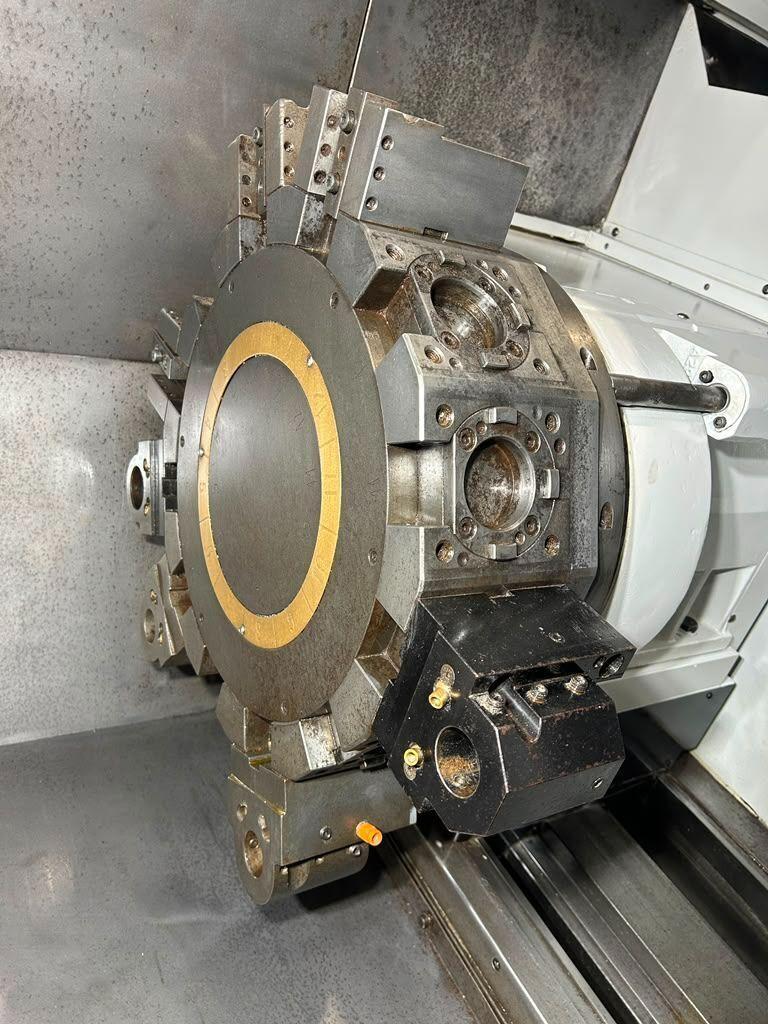

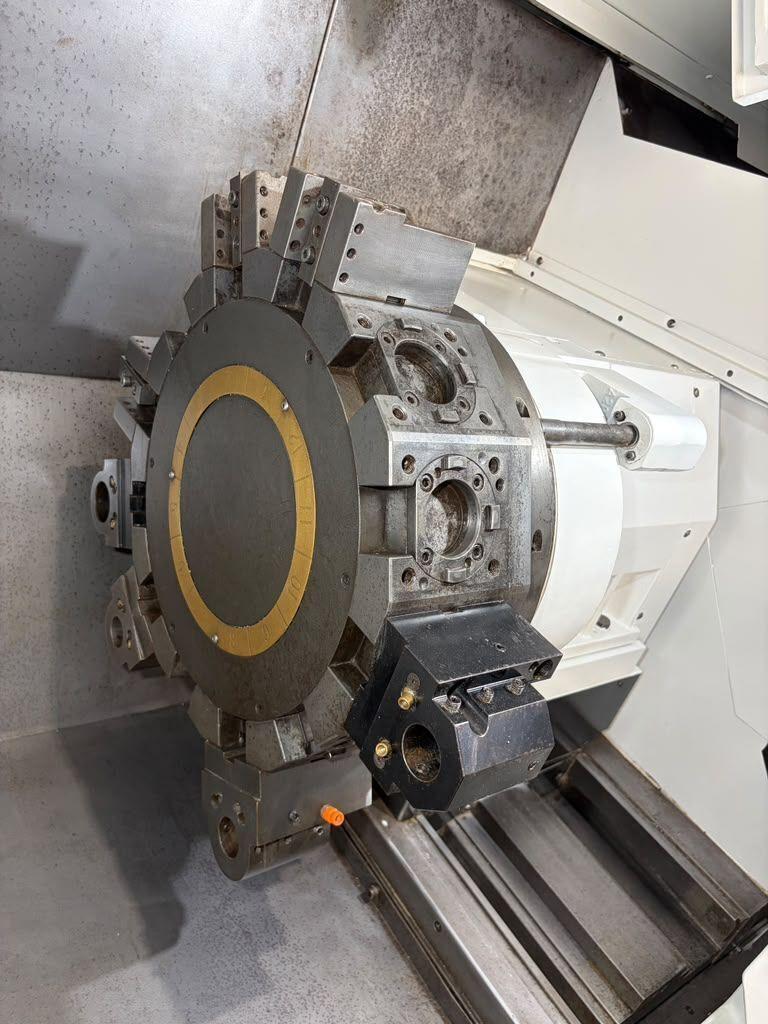

10-Station Automatic Turret
30 HP Gearbox Spindle
Tool Presetter
Spindle Chiller Unit
RS-232 Port

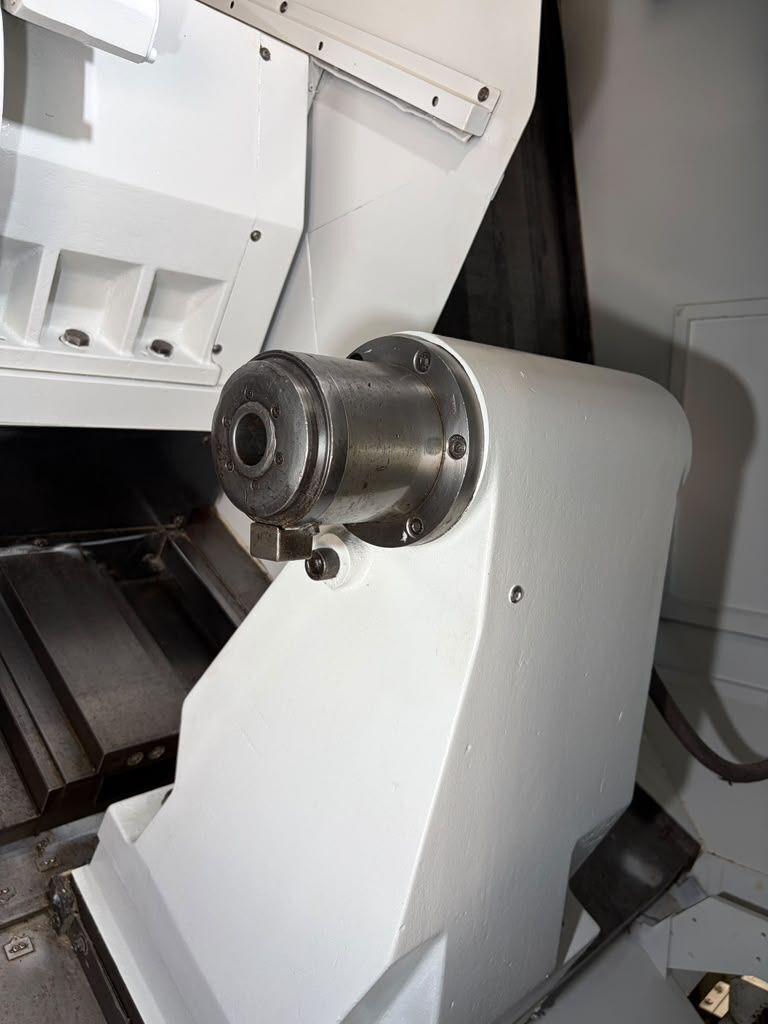

Programmable Tailstock
Rigid Tapping
Coolant Tank
Chip Conveyor
Leveling Pads

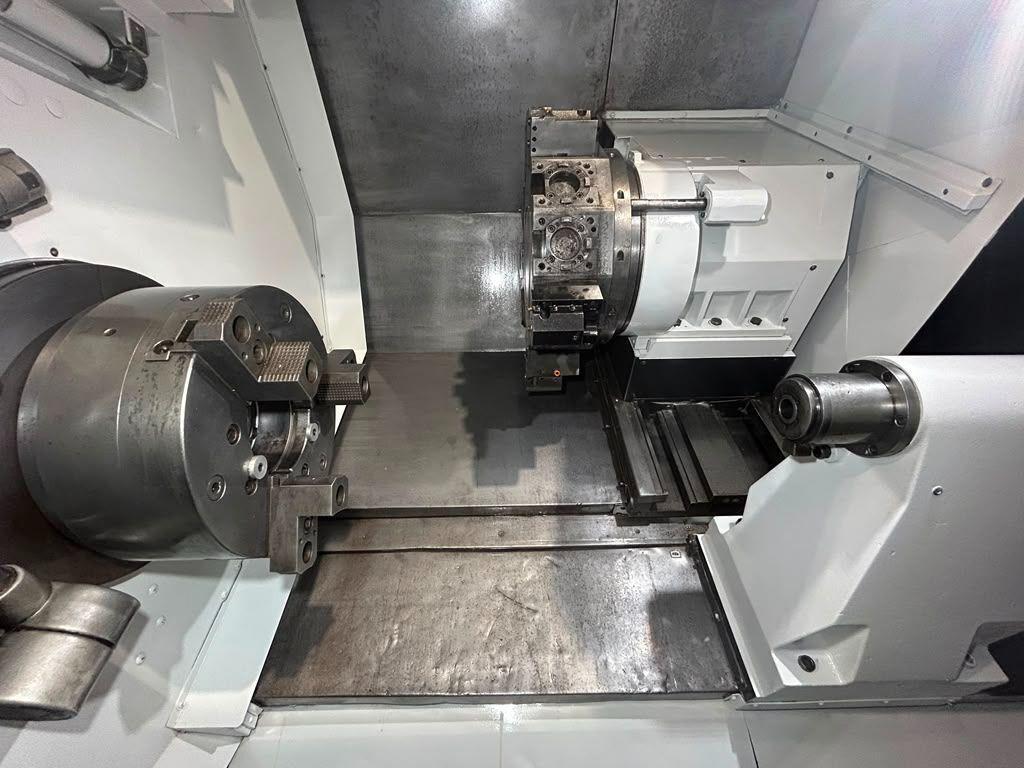

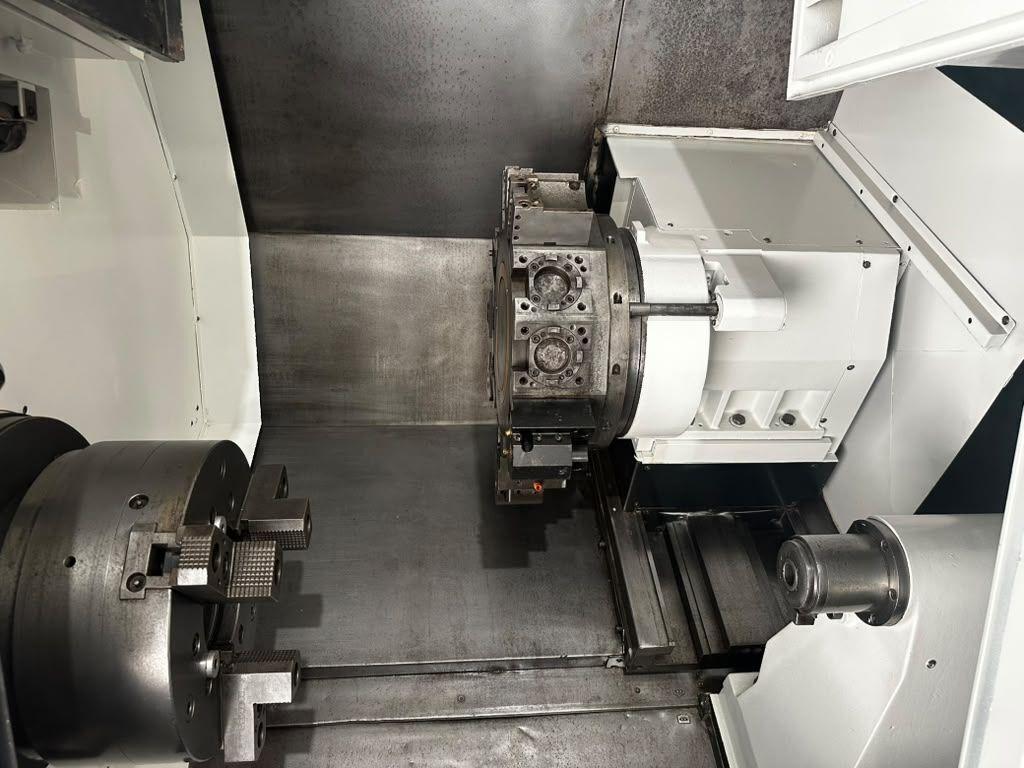

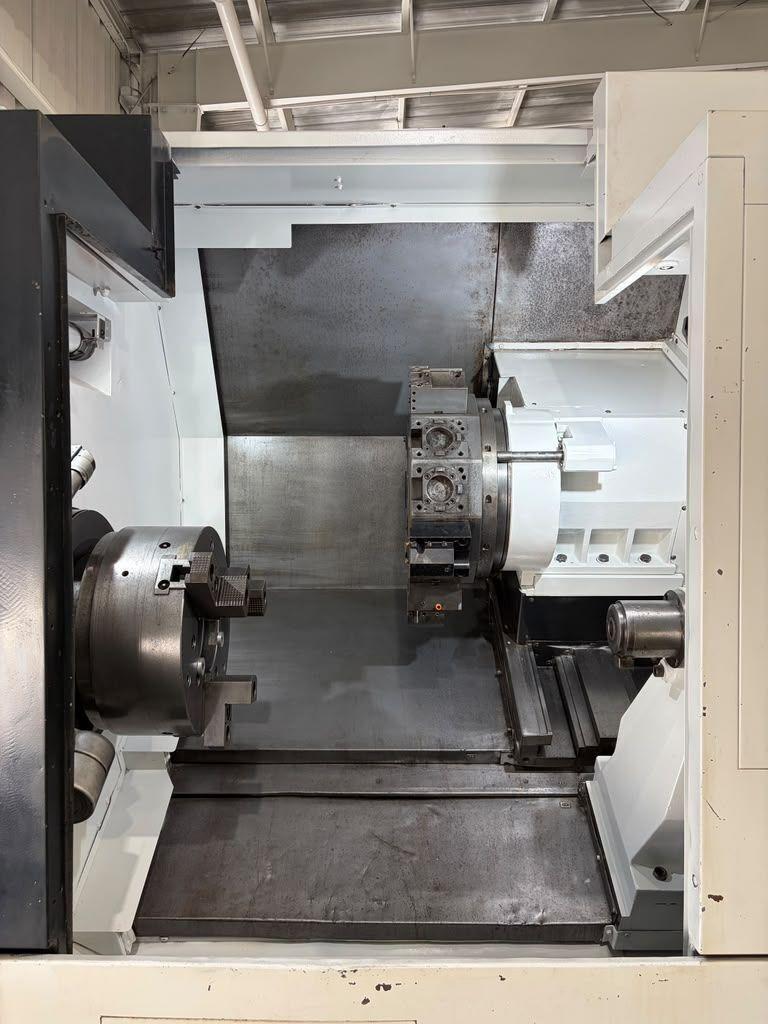

(3) Turning & (4) Boring Tool Holders Mounted on Turret (As Shown in the Images)
Capacity:
Maximum Turning Diameter: 16.5″
Maximum Turning Length: 28.0″
Swing Over Bed: 26.4″
Maximum Bar Capacity: 3.50″
Travel:
X-Axis Travel: 11.0″
Z-Axis Travel: 32.3″
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1″
Spindle Speed: 3,000 RPM
Spindle Motor: 30 HP

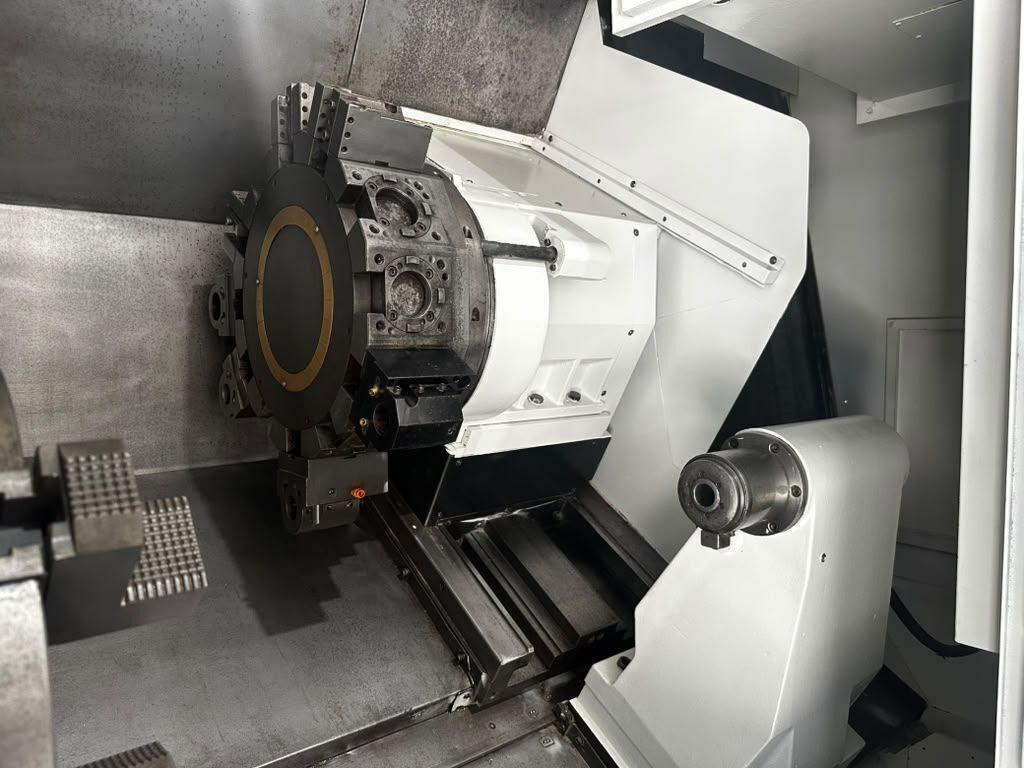

Turret:
Turret Capacity: 10 Stations
Shank Height for Square Tool: 1.0″
Shank Diameter for Boring Bar: 2.0″
Turret Index Time: 0.3 Second

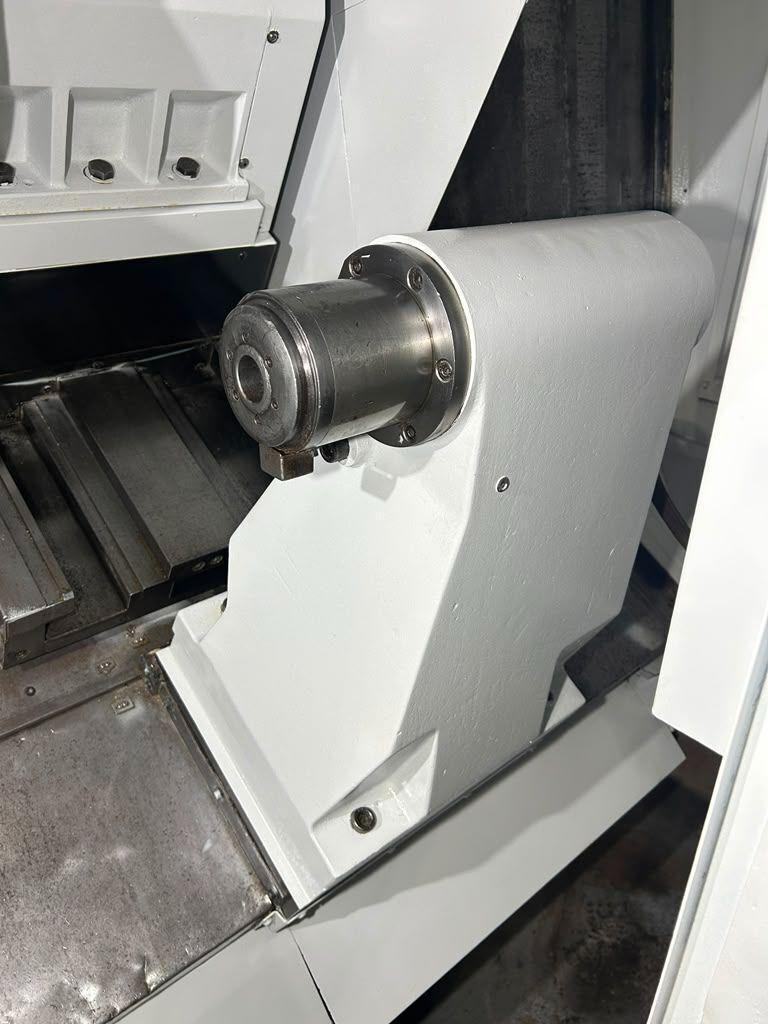

Tailstock:
Tailstock Body Travel: 28.9″
Tailstock Quill Diameter: 4.3″
Tailstock Taper: MT-4
General:

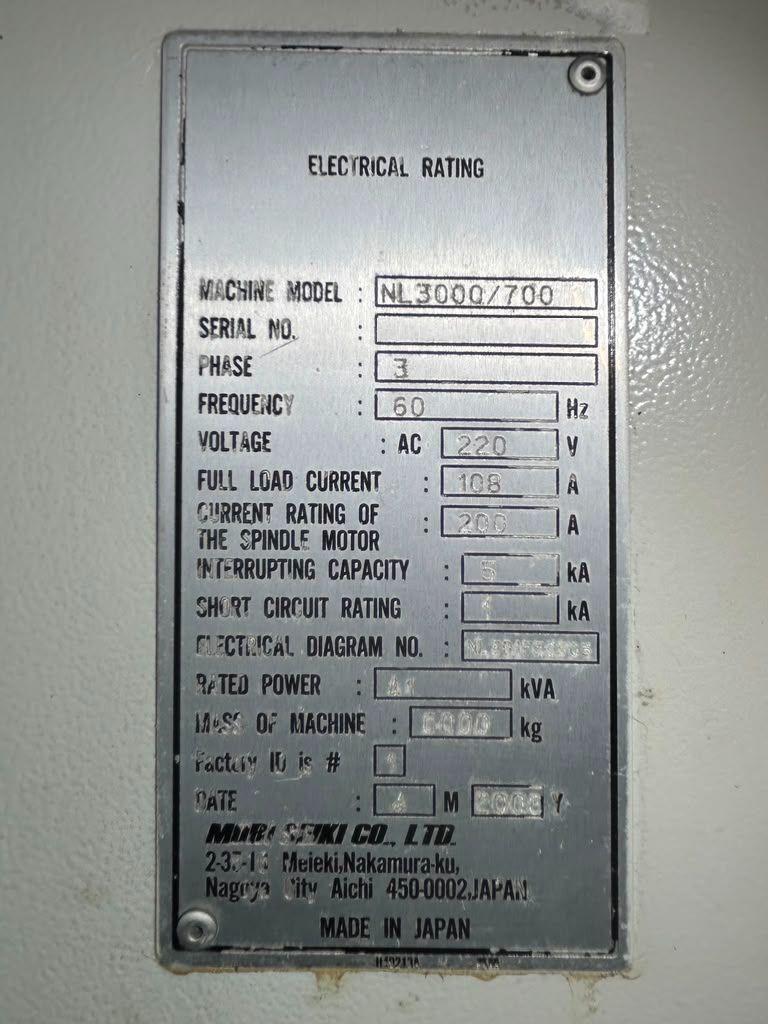

Power Source: AC 220V / 3-Phase / 60 Hz
Power Requirement: 41 kVA
Overall Dimensions: 134″ × 82″ × 89″ High
Weight: 13,200 lbs Approx.
