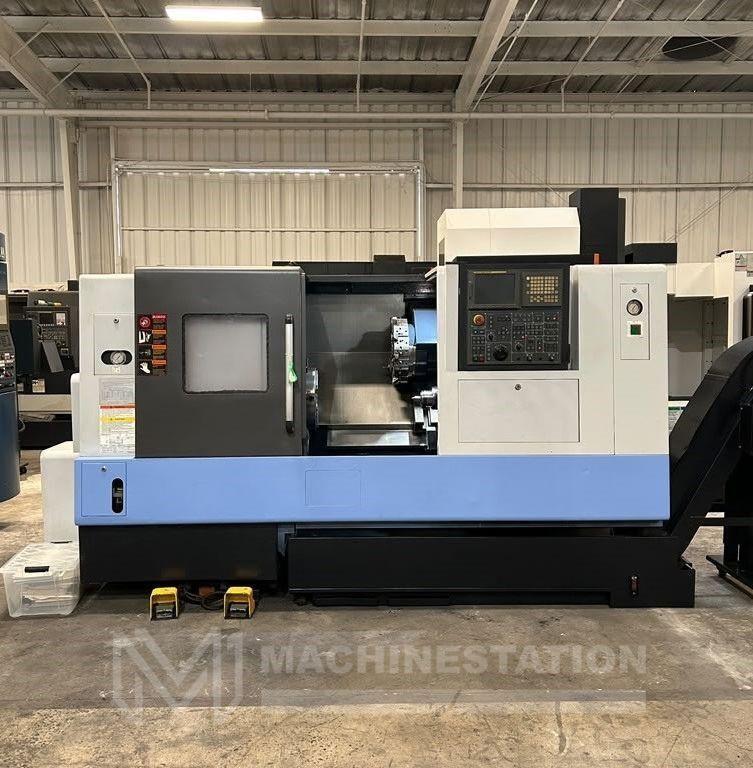

Doosan Puma 300C CNC Turning Center – 15″ Chuck Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Puma 300C
Stock #
113640
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Fanuc Series 21i-TB CNC Control
Heavy Duty Box Way Construction
15 inch 3-Jaw Kitagawa B-15 Hydraulic Chuck
4.52 inch Bore A2-11 Spindle
12-Station Automatic Turret
Automatic Tool Presetter
Rigid Tapping
Tailstock
Coolant Tank
LNS Turbo Chip Conveyor
Foot Switches
Books & Manuals
Levelling Pads
(2) Boring Tool Holders Mounted on Turret (As Shown in the Images)
Capacity:
Max Turning Diameter: 15.74 inch
Max Turning Length: 25.19 inch
Swing Over Bed: 22.44 inch
Swing Over Saddle: 14.56 inch
Max Bar Capacity: 4.01 inch
Travel:
X Axis Travel: 11.10 inch
Z Axis Travel: 26.77 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.52 inch
Spindle Speed: 2,800 RPM
Spindle Motor: 35 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.0 inch
Boring Bar Diameter: 1.57 inch
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.93 inch
Tailstock Quill Travel: 3.93 inch
General:
Power: 200V – 220V / 3-Phase / 45.14 kVA / 50/60 Hz
Overall Dimensions: 145 inch x 71 inch x 72 inch High Approx.
Weight: 12,920 lbs Approx.
