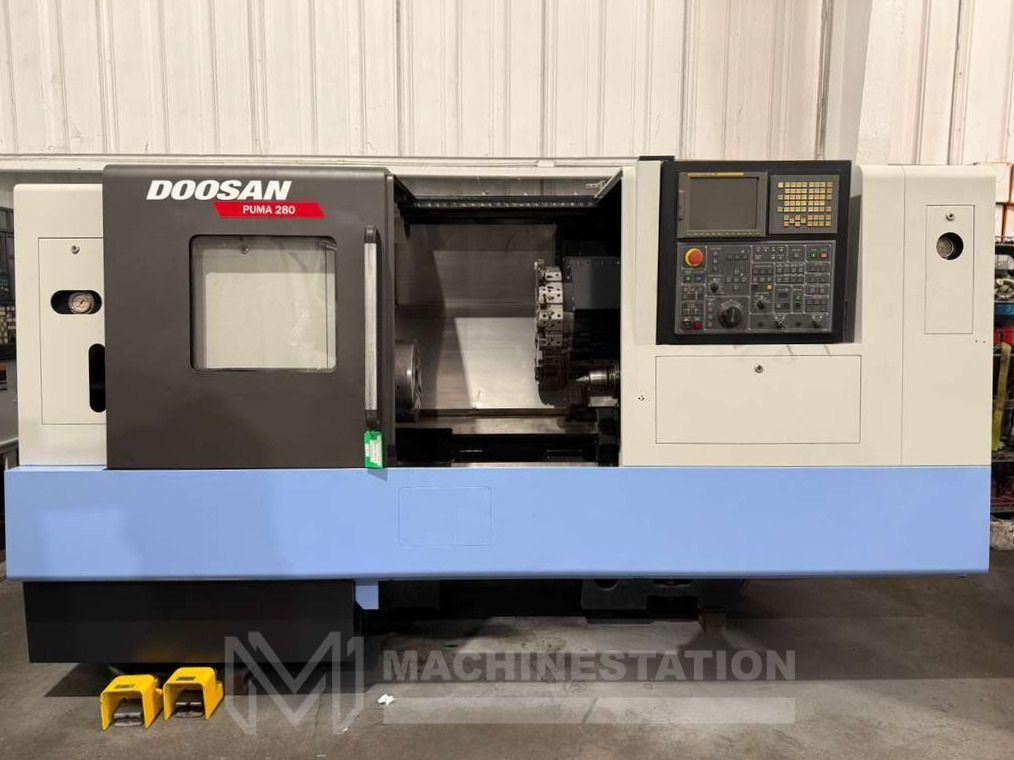

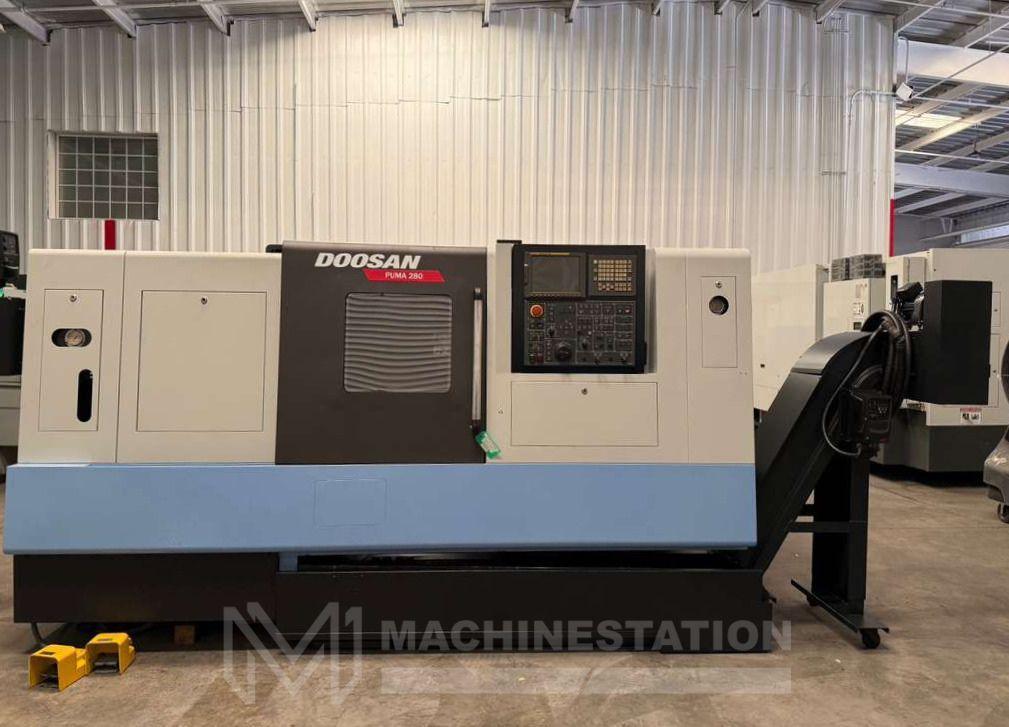

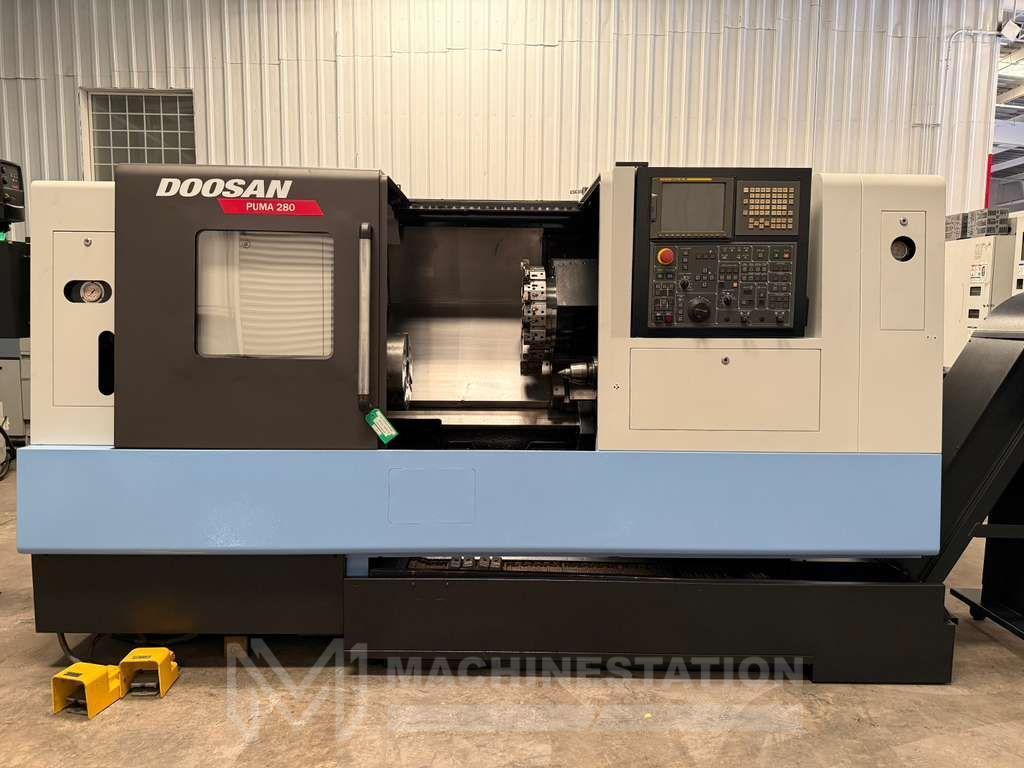

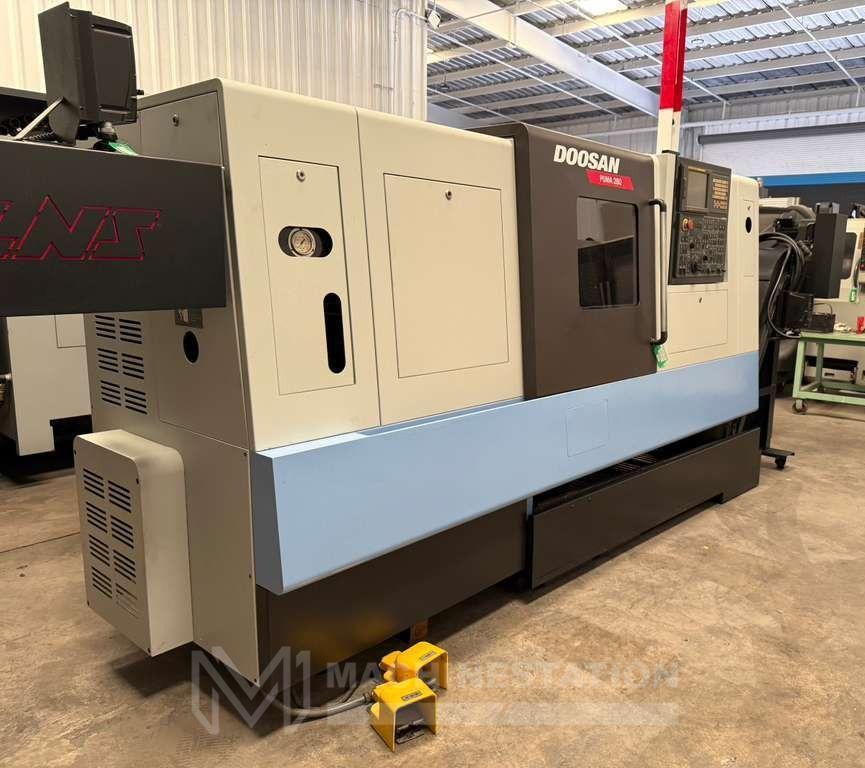

Doosan Puma 280 CNC Turning Center – 12″ Chuck Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Doosan Puma 280
Stock #
113503
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 113503
Make: Doosan Puma 280
Condition: Used – Good
Equipped With:

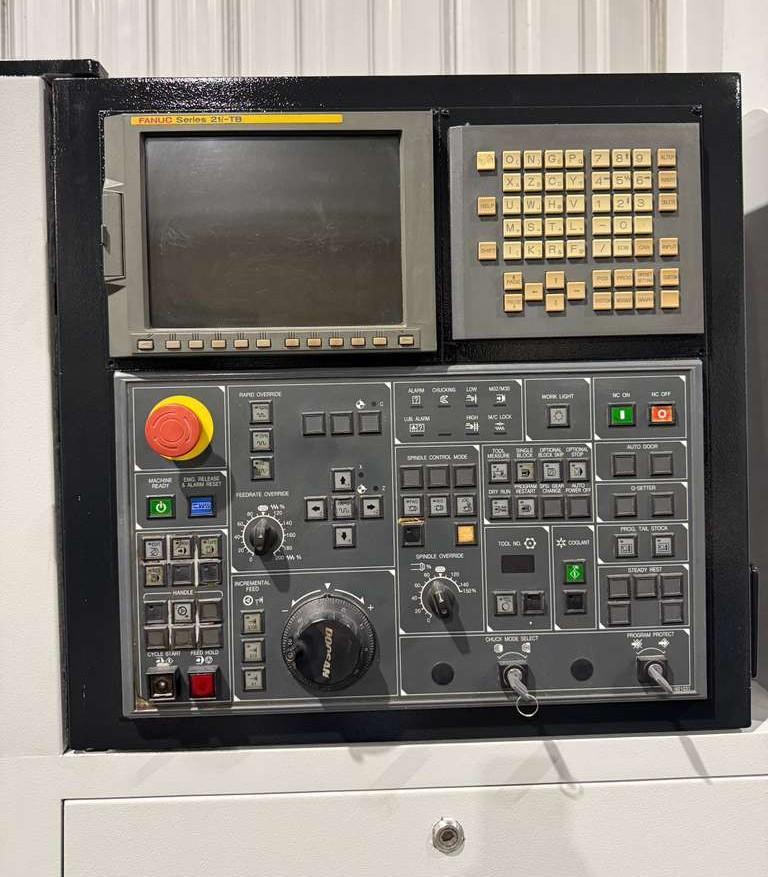

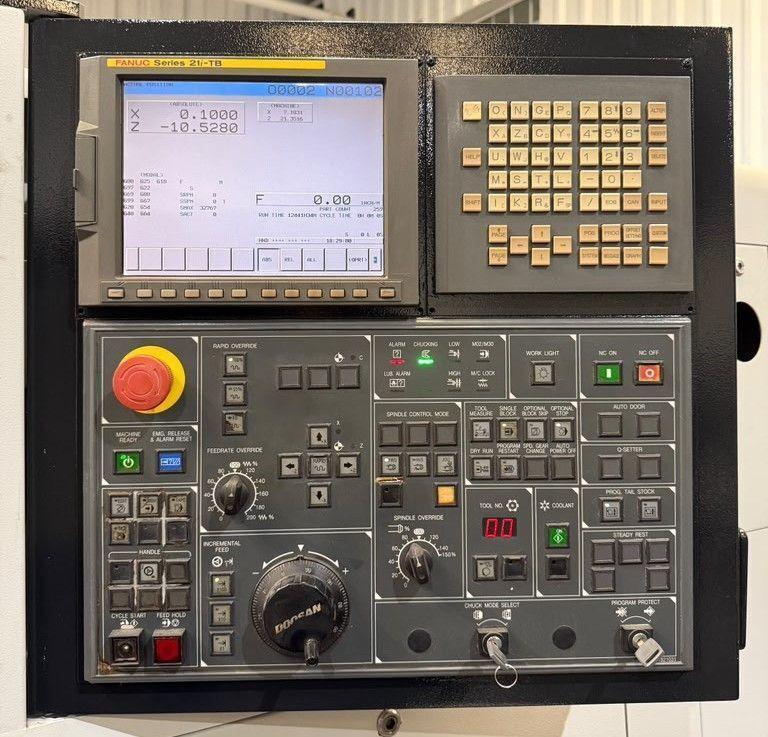

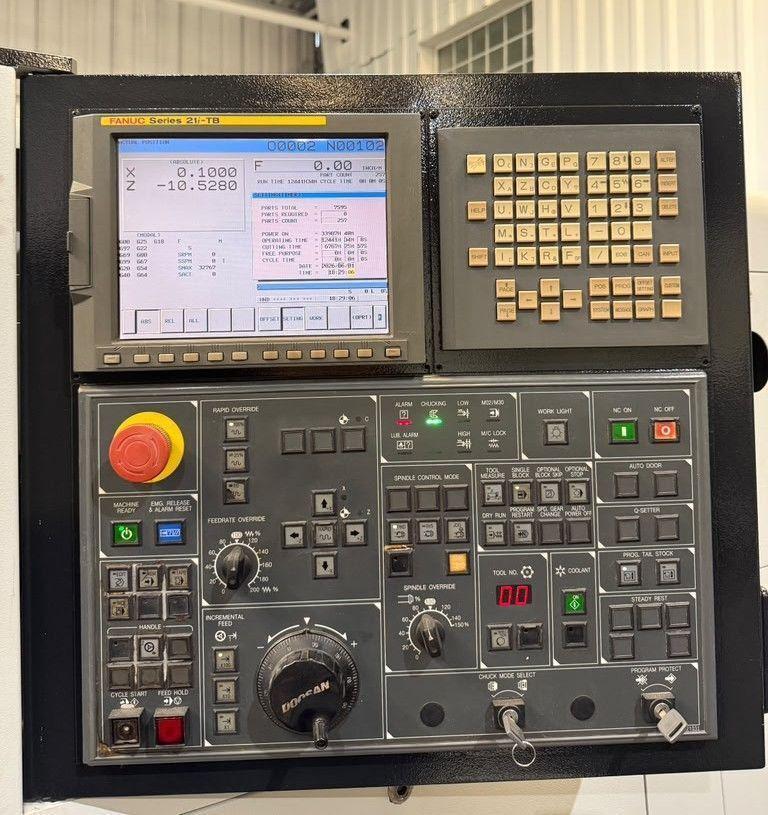

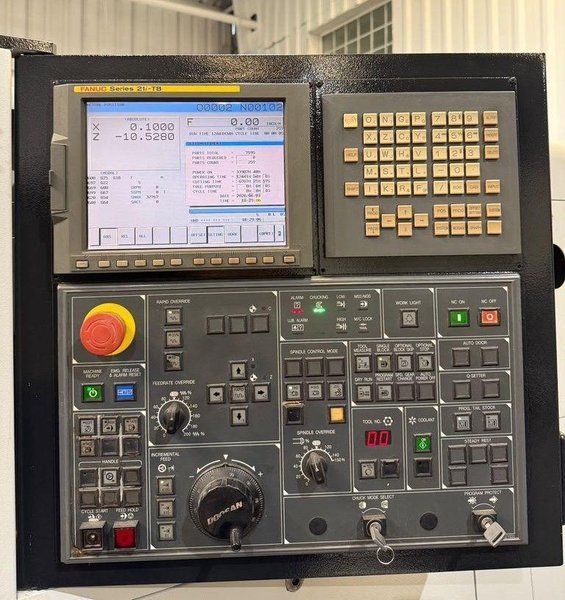

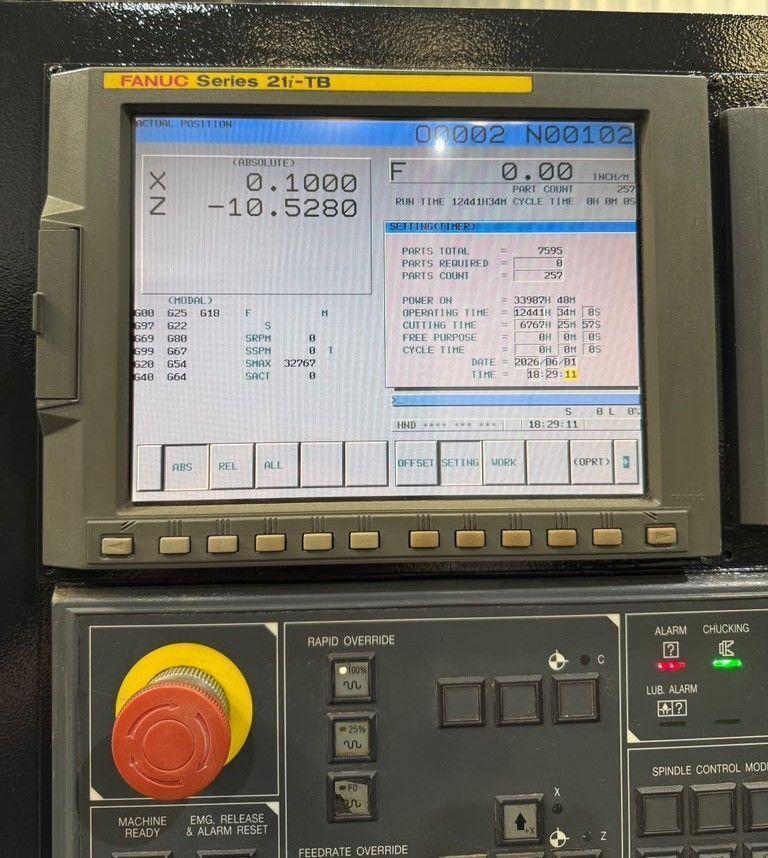

Fanuc 21i-TB Series CNC Control
Heavy Duty Box Way Contruction

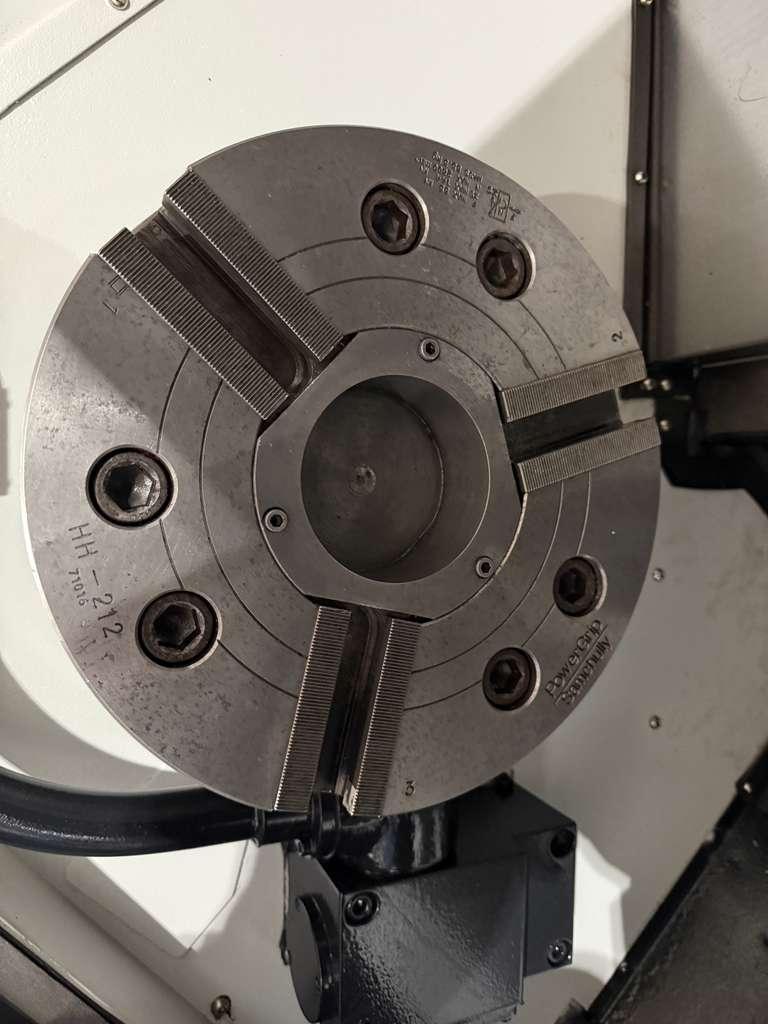

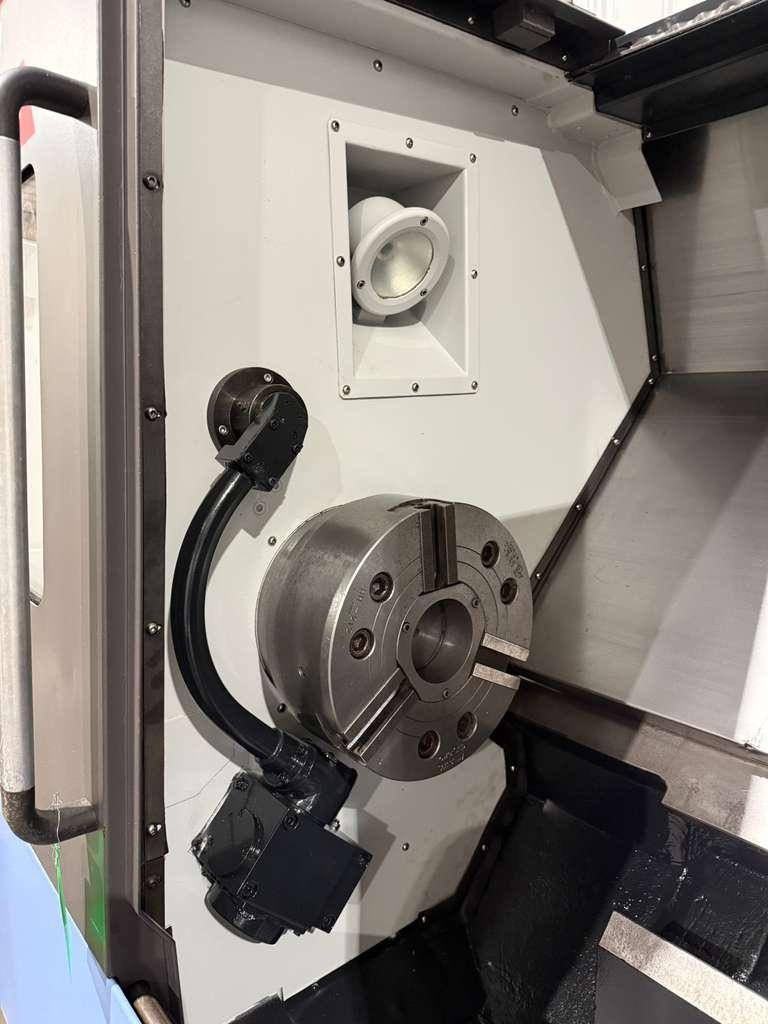

12″ 3-Jaw Samchully HH-212 Hydraulic Chuck
A2-8 Spindle Nose

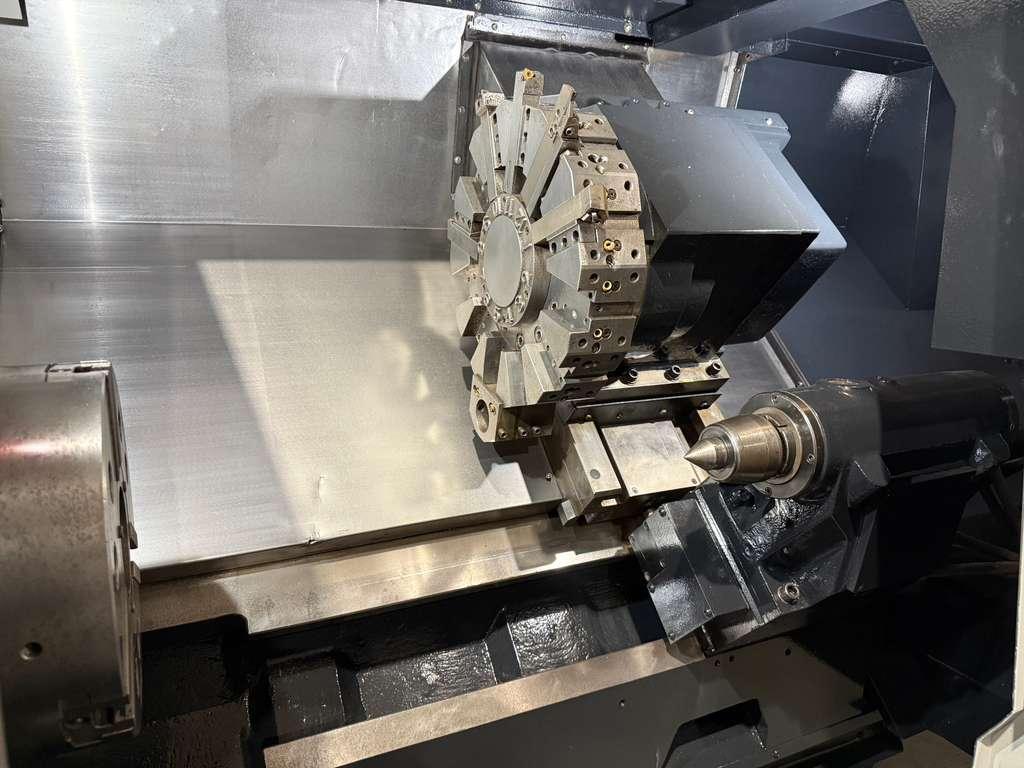

12 Station Automatic Turret
Tool Presetter
Hydraulic Tailstock and Quill
Rigid Tapping
PCMCIA Card Interface
Foot Switches
Coolant System

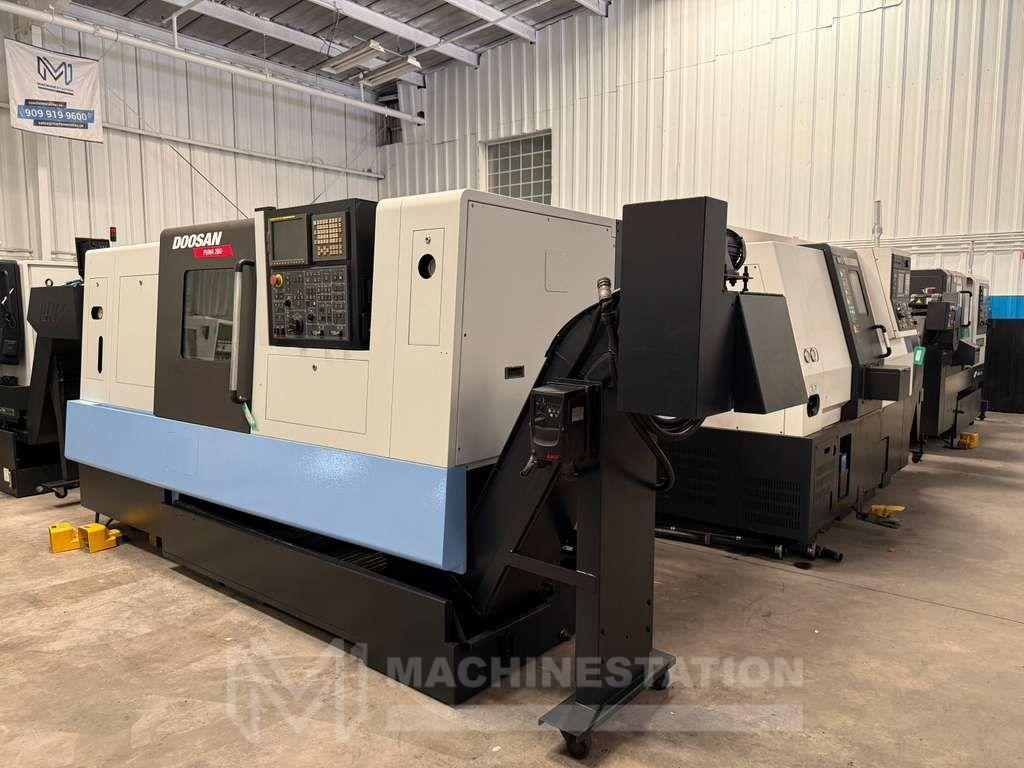

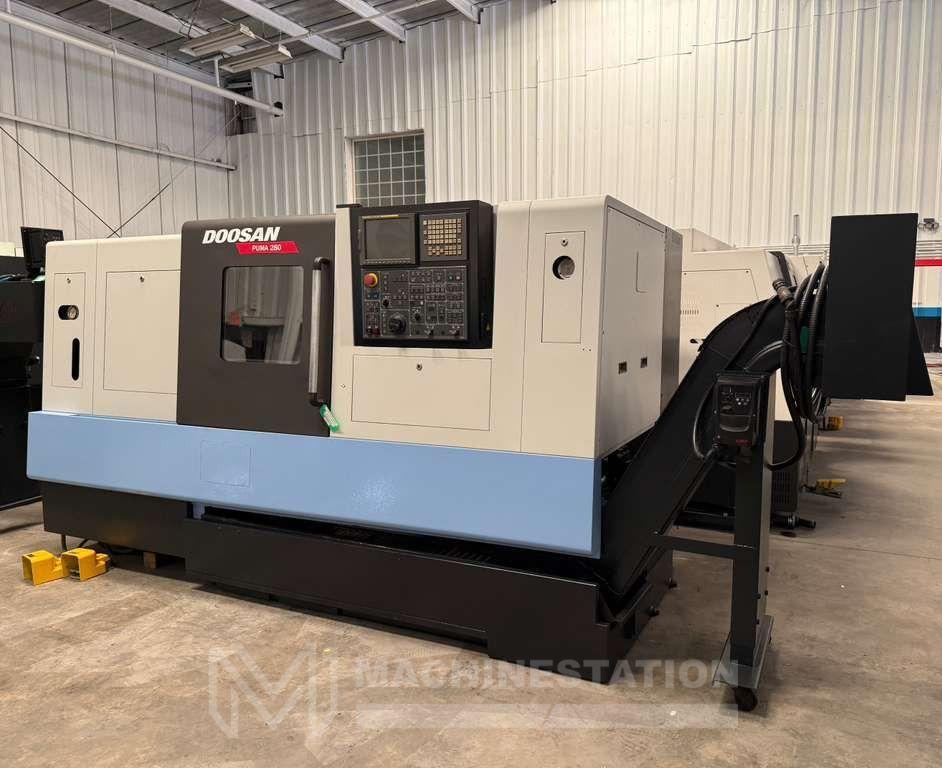

Chip conveyor

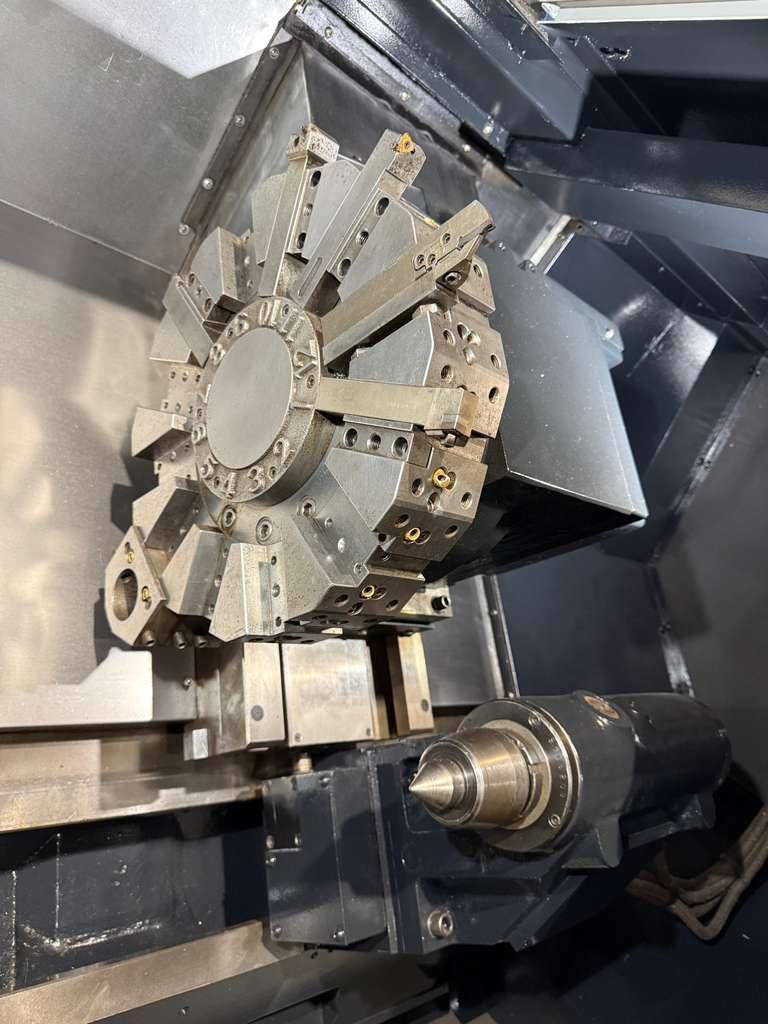

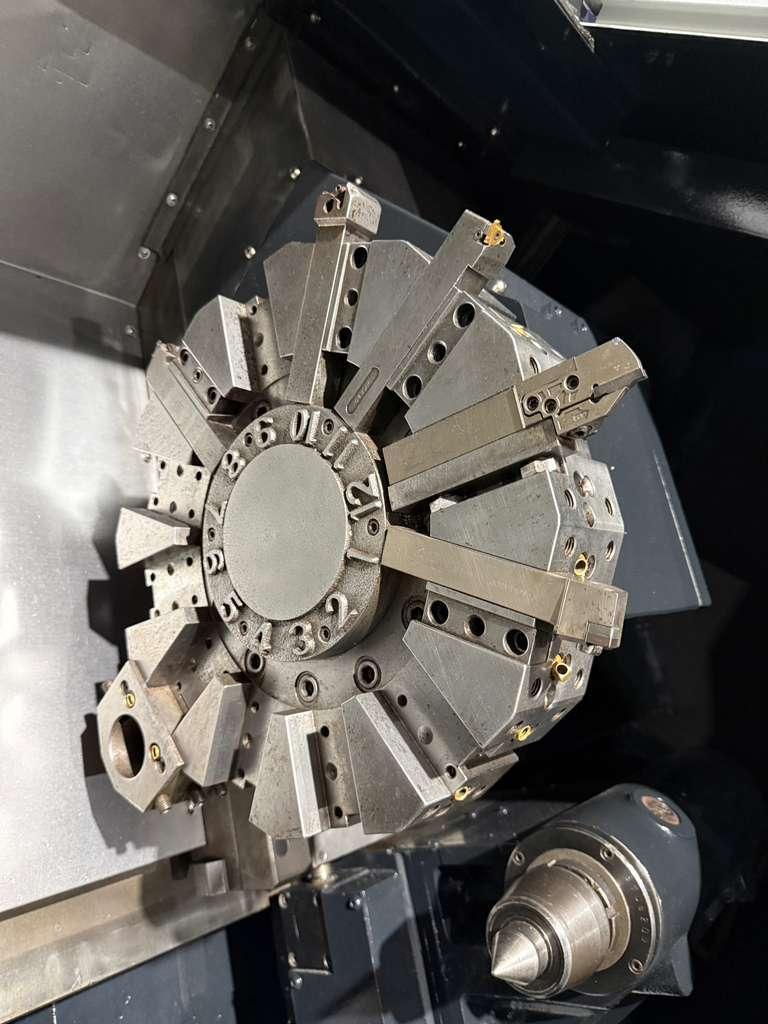

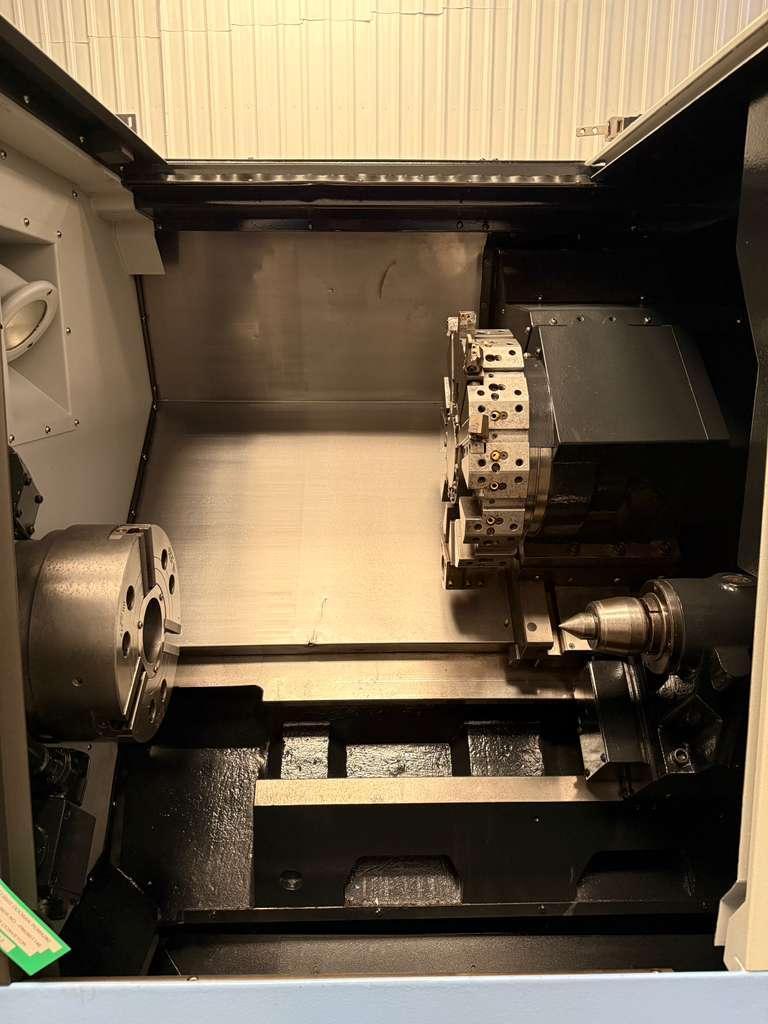

(1) Boring Tool Holder, (4) Turning Tools Are Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter: 16.53″
Max Turning Length: 25.90″
Swing Over Bed: 24.80″
Swing Over Saddle: 19.68″
Max Bar Capacity: 2.99″
Travel:
X Axis Travel: 9.52″
Z Axis Travel: 26.77″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.38″
Spindle Speed: 3500 RPM
Spindle Motor: 25 HP

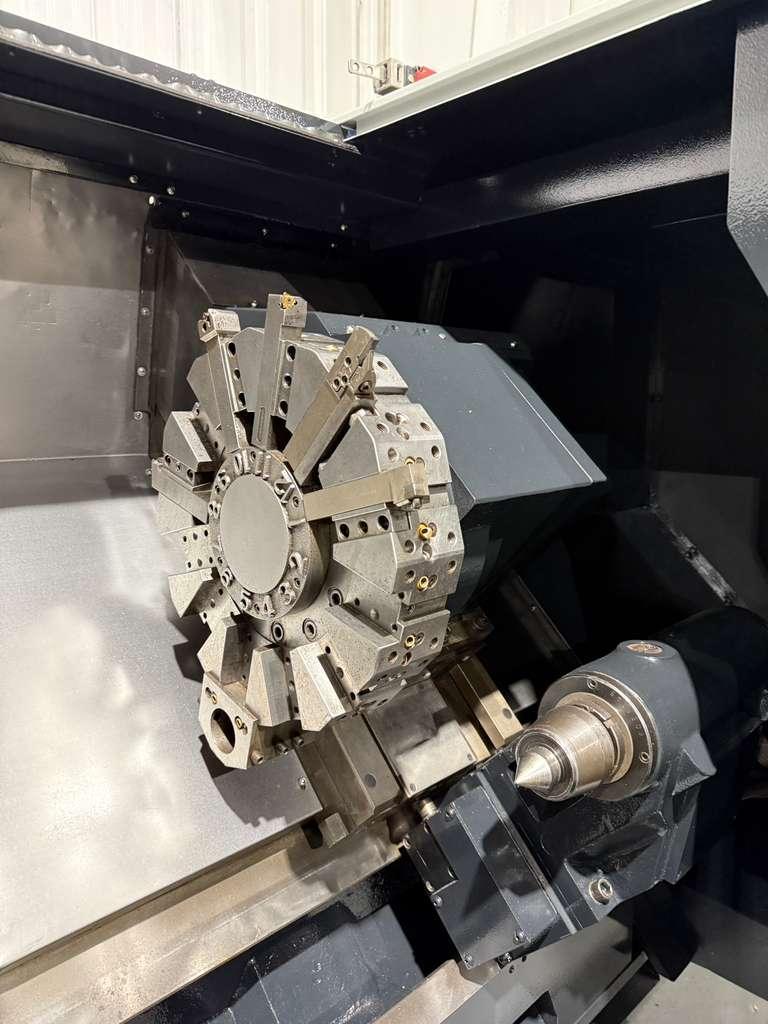

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.0″ x 1.0″
Boring Tool Diameter: 2.0″
Tailstock:
Tailstock Taper: MT- 5
Tailstock Quill Dia.: 4.0″
Tailstock Quill Travel: 4.0″
General:

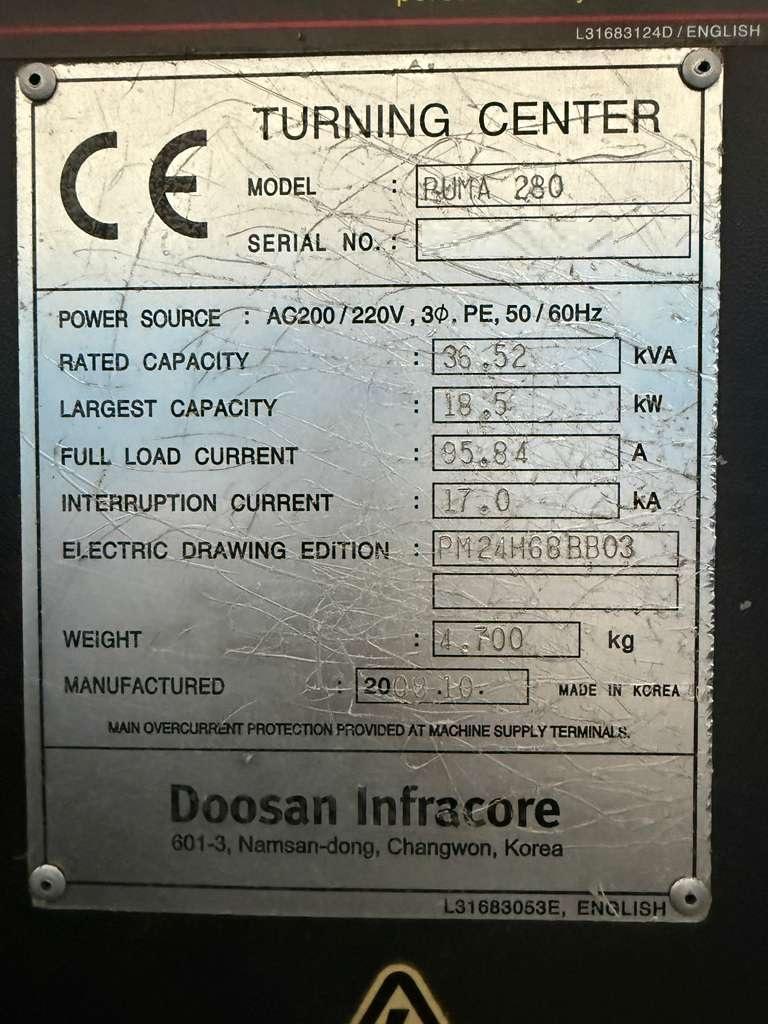

Power: 36.52 kva / 220v / 3-Phase / 50/60 Hz
Overall Dimensions: 135″ x 66″ x 68″ High
Weight: 10,360 lbs
No files or videos to display
