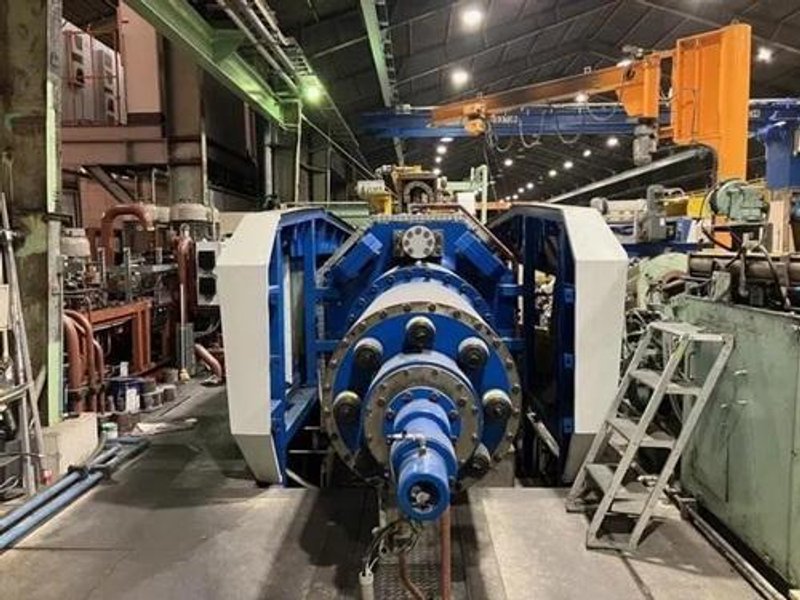

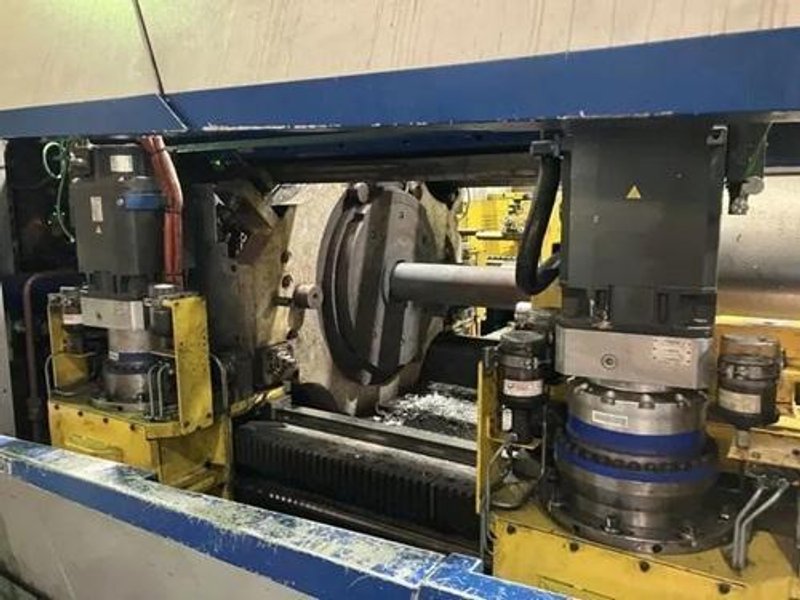

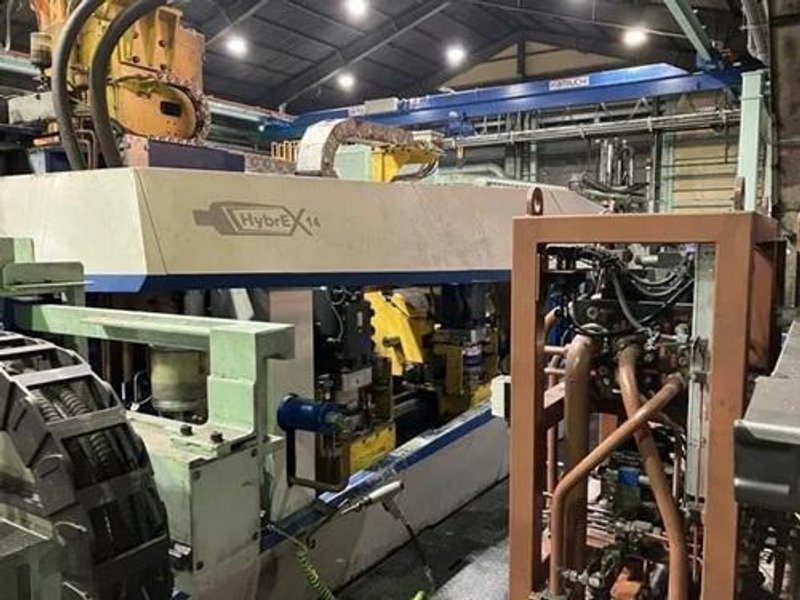

1450 Ton, 6" SMS HybrEX EXTRUSION PRESS
Brand
Not specified
Category
Type
Model
Not specified
Stock #
117331
Year
2016
Condition
Used
Location
Not specified
|
NEW 2016
Specifications
Tonnage: 1450 tons
Stroke: 960 millimeters
Billet: 160 millimeters
Equipped With
Main Machine Data:
Press Force: 14.5 MN
Operating Pressure: 310 Bar
Extrusion Center Above the Pass Line: 1000mm
Extrusion Height Above the Pass Line: 3400mm
Press Stroke: 960mm
Press Speed at 14.5 MN: 17mm/s
Electric Servo Drive
Billet Container Drive Power: 2 x 15.7kw motors
Moving Crosshead Drive Power: 2 x 31.7kw motors
Billet Loader Drive Power: 14kw
Billet Container:
Take Up Stroke: 1155mm
Bore Range: 160mm
Container Length: 830mm
Billet Length Range: 250mm-800mm
Pressure Plate Opening Diameter: 190mm
Pressure Plate Opening Width: 230mm
Complete With:
Billet Container Holder
Cassette Slider
Tool Cassette
Discard Shear
Intermediate Table
Billet Slide
Billet Loader
Discard Conveyor
Hydraulic Equipment
Electrics
|
