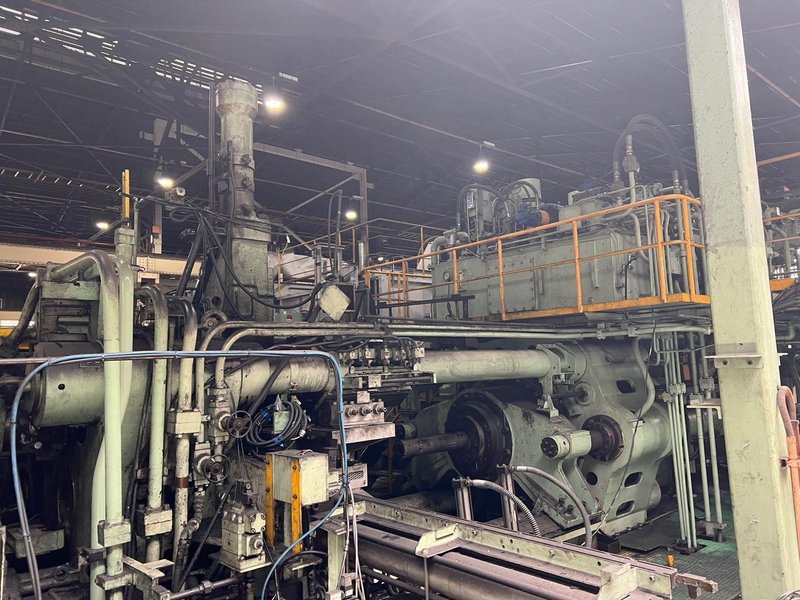

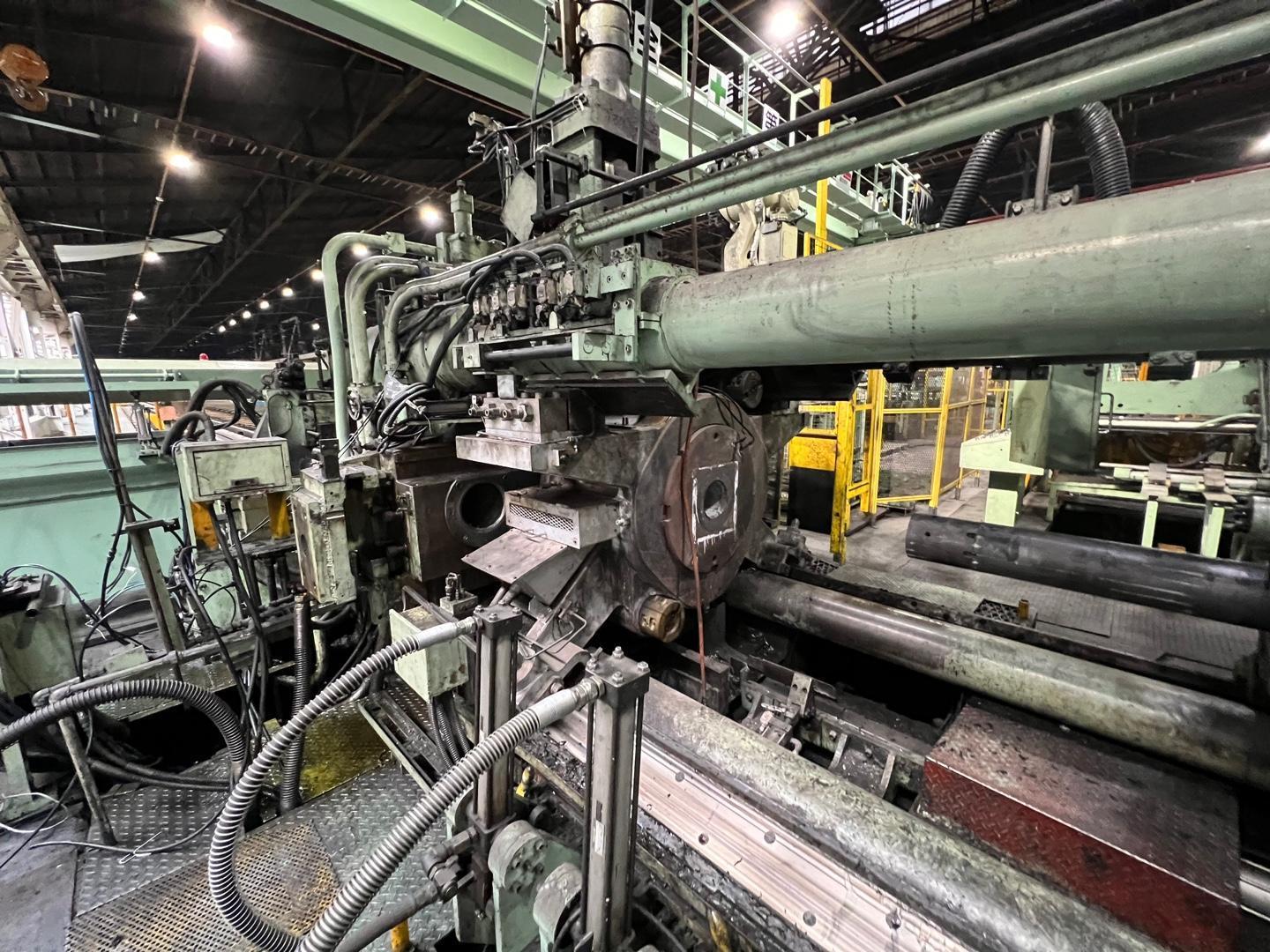

1800 Ton UBE Aluminum Extrusion Press (14715)

1800 US TON ALUMINUM EXTRUSION PRESS
Stock # 14715

Machine Type: Horizontal Hydraulic Extrusion Press
Capacity: 1800 US Tons (approx. 1633 Metric Tons)
Application: Hot extrusion of aluminum and aluminum alloys

TECHNICAL SPECIFICATIONS

Billet:

    Billet Length: 194–660 mm

Press Forces:

    Main Extrusion Force: 1800 US Tons
    Container Closing Force: 190 US Tons
    Return Force: 93 US Tons
    Container Opening Force: 156 US Tons
    Shear Force: 46 US Tons
    Auxiliary Shear Force: 18 US Tons

Stroke Lengths:

    Main Ram Stroke: 1630 mm
    Container Stroke: 350 mm
    Shear Stroke: 630 mm
    Die Slide Stroke: 930 mm

Operating Speeds:

    Container Closing: 350 mm/sec
    Upsetting: 182 mm/sec
    Extrusion at 1800 US Tons: 19.3 mm/sec
    Return: 417 mm/sec
    Container Closing (Secondary): 280 mm/sec
    Container Opening: 217 mm/sec
    Shear Downward: 374 mm/sec
    Shear Upward: 612 mm/sec

Additional Information:

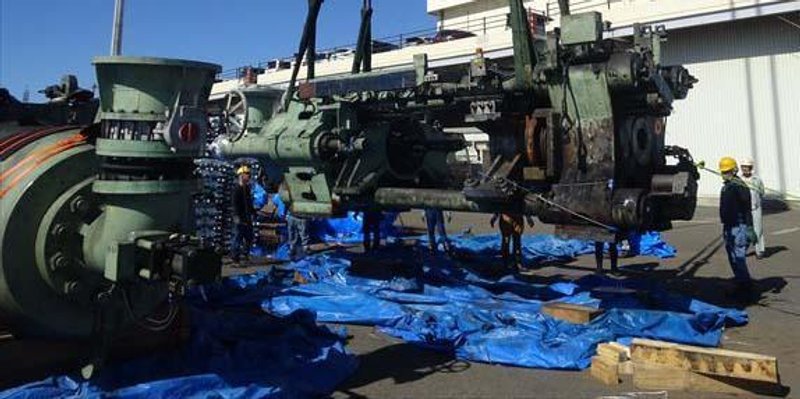

Press is dismantled and in storage
The press is designed for industrial production of
aluminum profiles and extruded sections.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
