1650 TON YOUNGSTOWN ALUMINUM EXTRUSION PRESS (14652)

1650 TON YOUNSTOWN EXTRUSION PRESS
STOCK # 14652

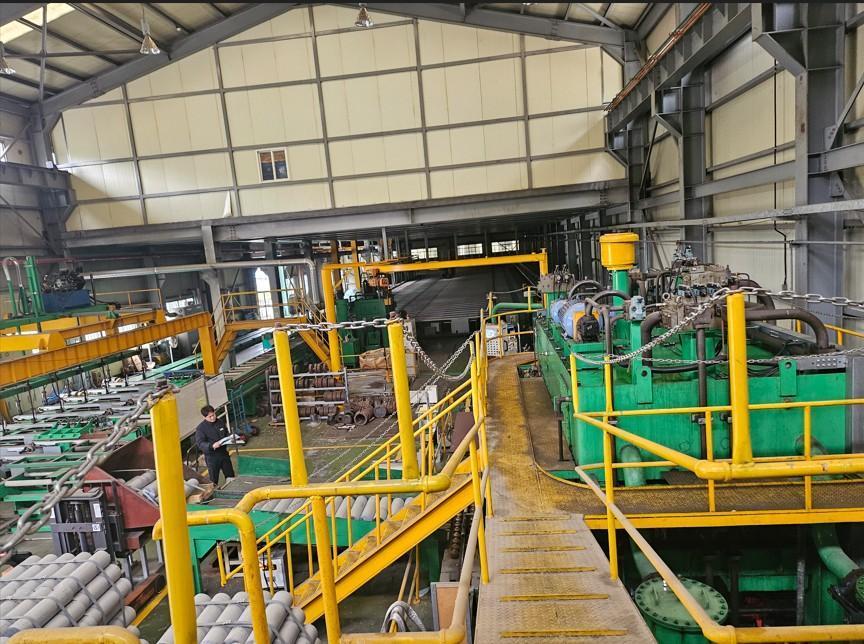

USED ALUMINIUM PROFILE PRODUCTION LINE
GENERAL INFORMATION
Equipment:..............Aluminium Extrusion Press
Manufacturer:...........Youngstown (USA)
Press Capacity:.........1650 Metric Tons
Press Type:.............Horizontal Hydraulic, Direct Extrusion
New in:.................Unknown (1980‘s)
Refurbished in:.........1999
Condition:..............Under Power
Availability:...........Immediate

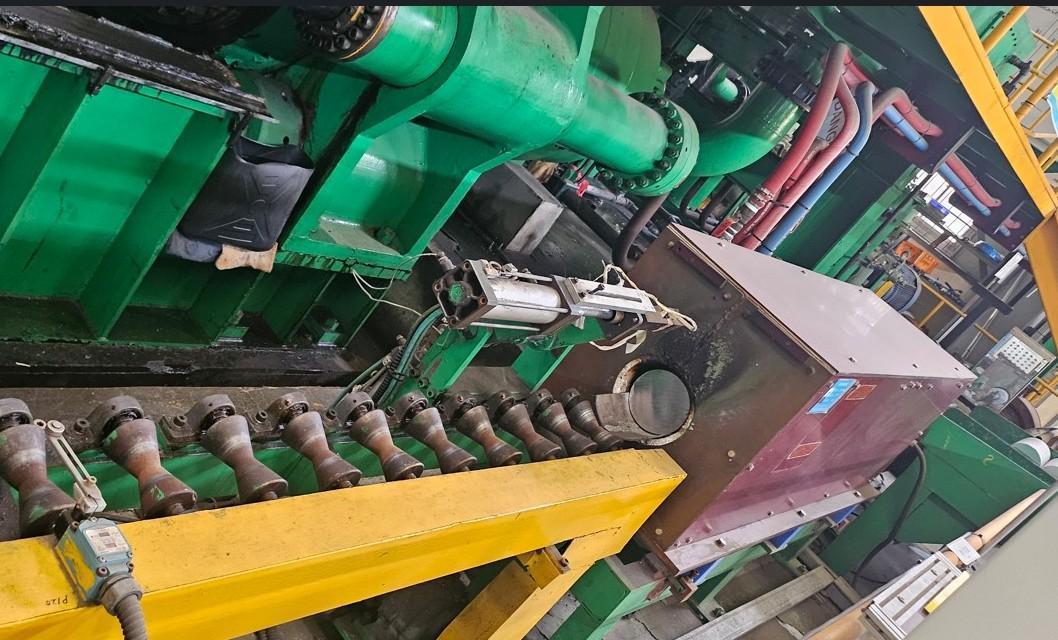

1. Induction Heating System
Make:...................Local
control:................PLC (LS Master-K80)
Built in:...............1999
Rated power:............200 Kw
Loader

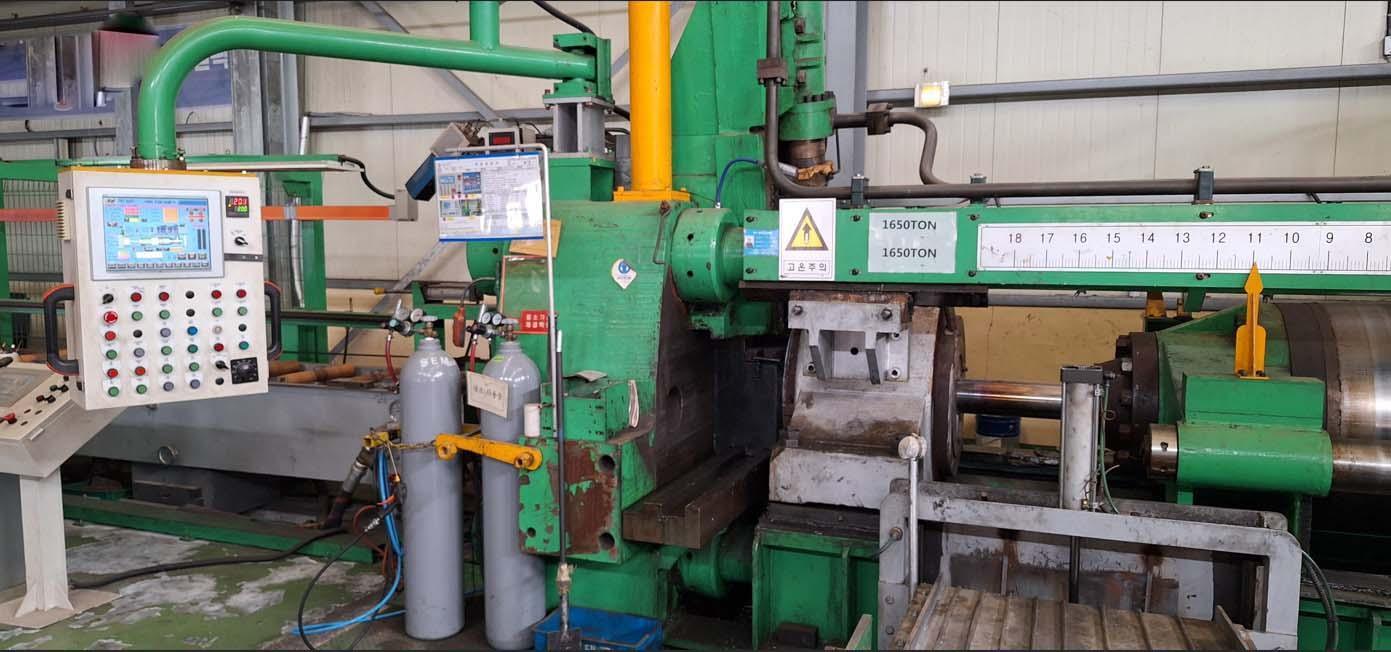

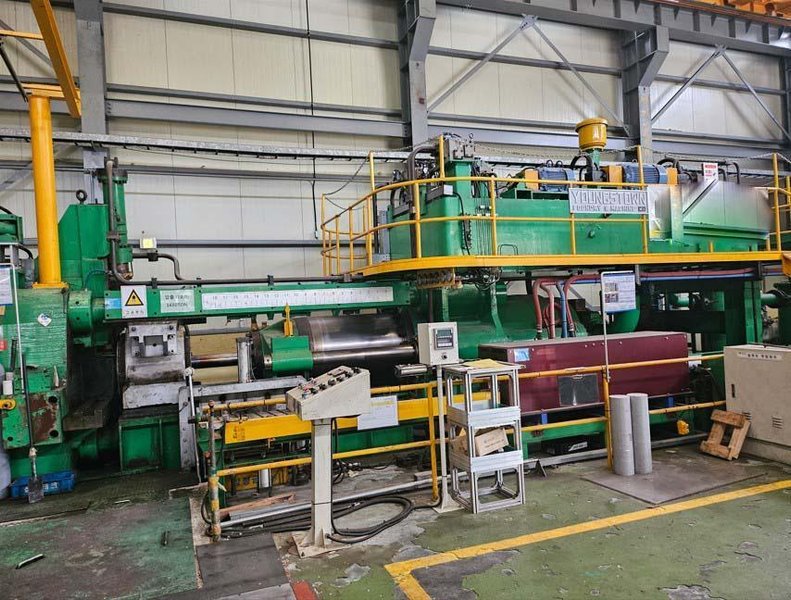

2. EXTRUSION PRESS
Rated Extrusion Force:..1650 Tons
Main Ram Stroke:........1,200 mm
Extrusion Speed Range:..15 mm/sec.
Max Extrusion Pressure:.20 – 25 MPa

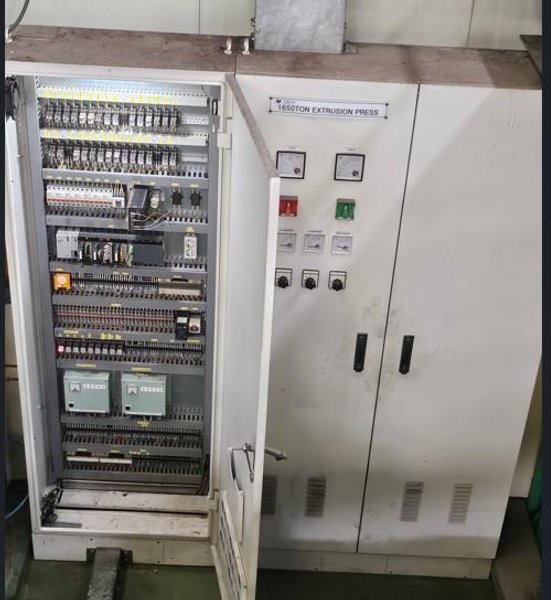

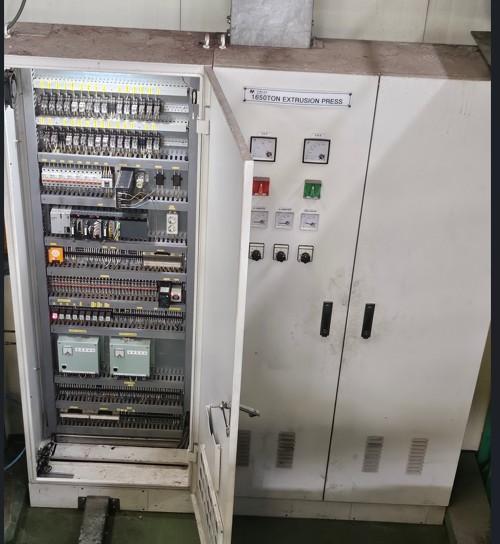

CONTROL SYSTEM
PLC System:.............LS XGK
HMI:....................Touch screen operator panel
Control Mode:...........Manual/Semi-Automatic/Automatic
Process Control:........Extrusion pressure & speed control

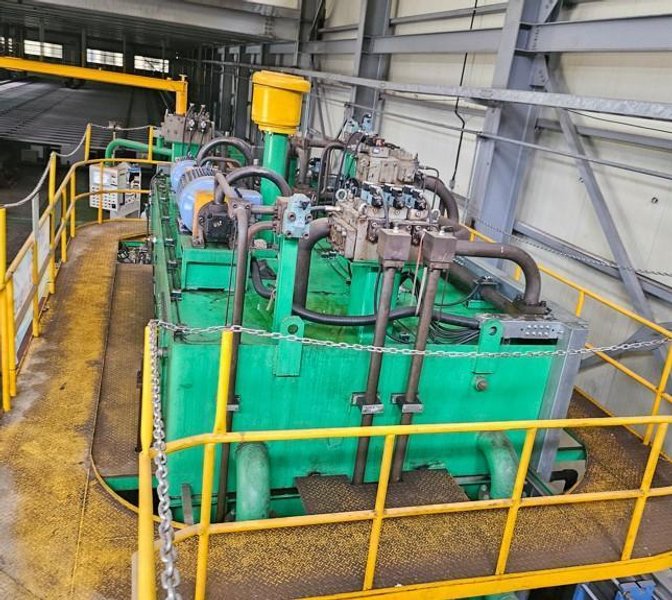

HYDRAULIC SYSTEM
Main Working Pressure:..20 – 25 MPa
Main Motor Power:.......2 x 132 kW
Hydraulic Pumps:........2 x Kawasaki LZ-500-110R1 (600l/MIN.)
Oil Tank Capacity:......8,000 liters
Oil cooling pump:.......120 lit./min.

BILLET & CONTAINER
Container cylinder:.....ø203.2 mm
Container Heating:......Induction
Billet Diameter:........150 mm
Billet Length:..........550 mm

DIE & TOOLING
Max Die Diameter:.......230 mm
Die Change System:......Manual
Die heater

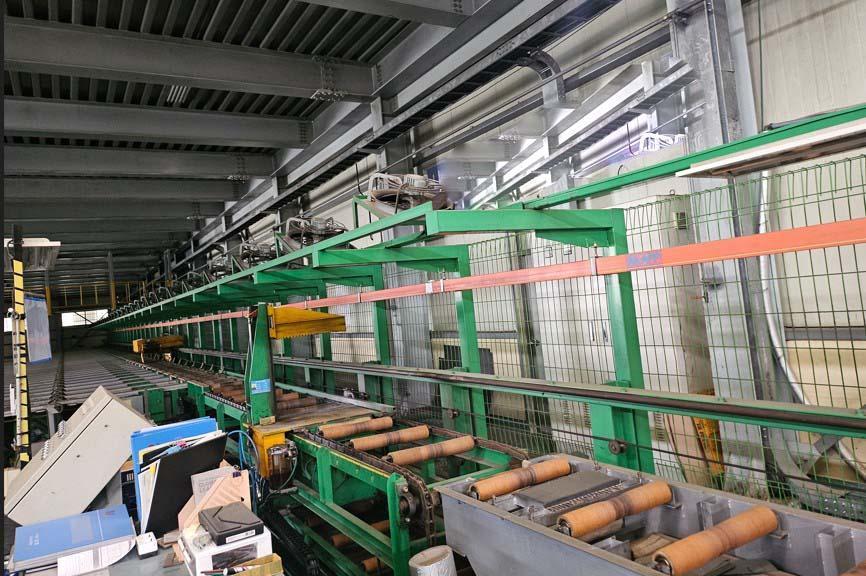

3. RUN-OUT TABLE
Length:.................40 mtrs
Cooling:................water/air
Profile support rollers

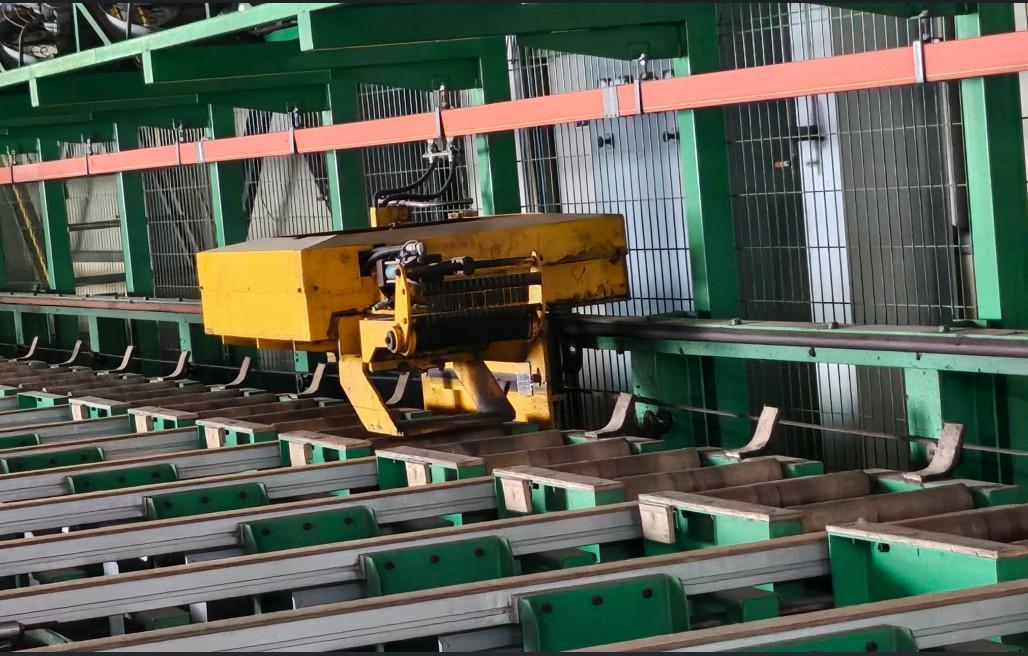

4. PULLER
Speed sync. with extrusion
Gripping:...............Hydraulic

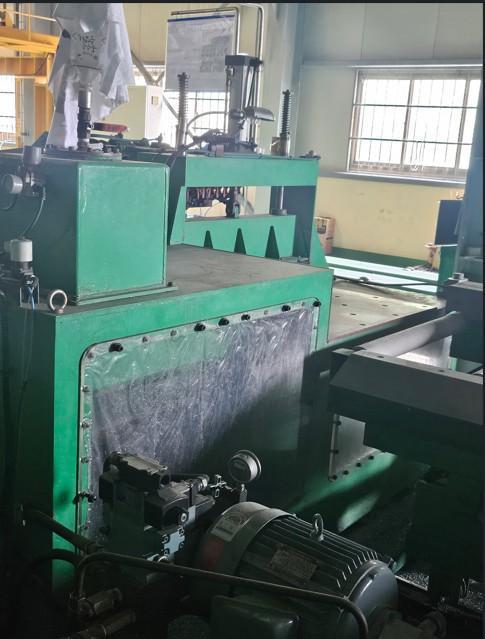

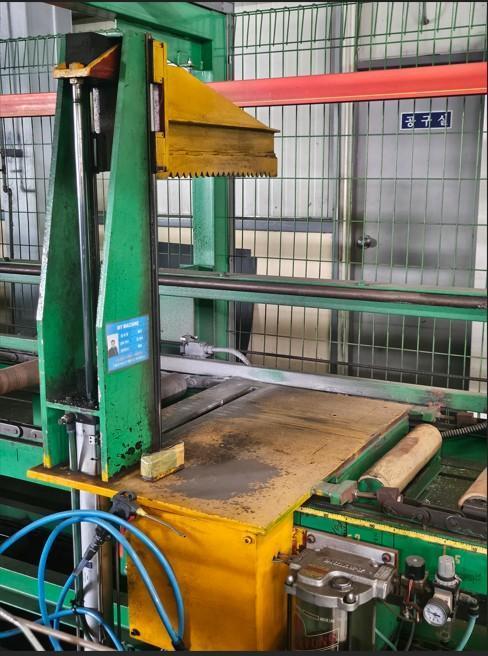

5. SHEAR
Cylinder:...............ø 155 mm
Stroke:.................571.5 mm

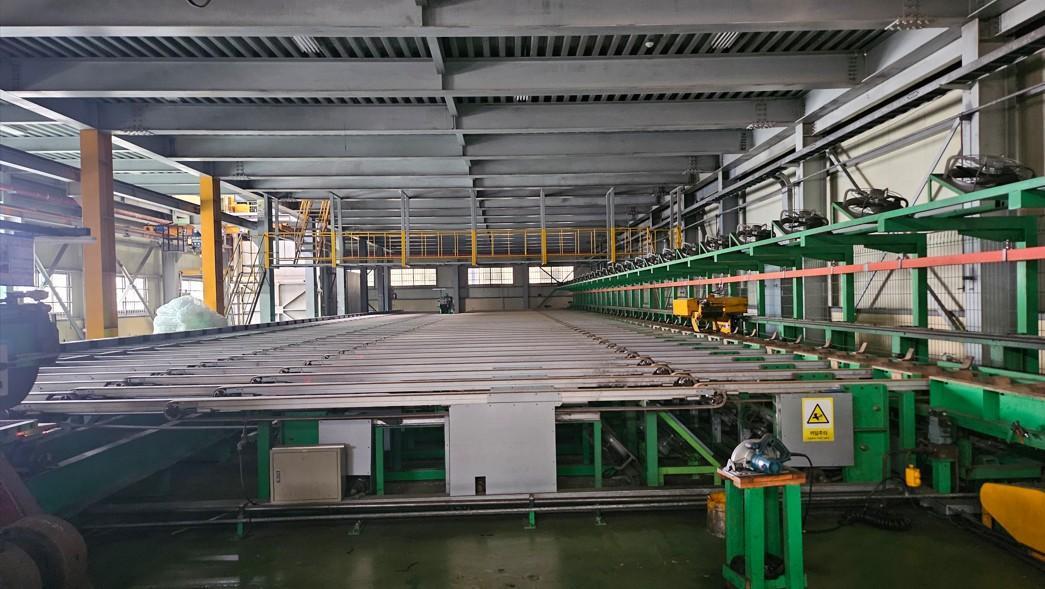

6. COOLING BED
Length:.................40 mtrs

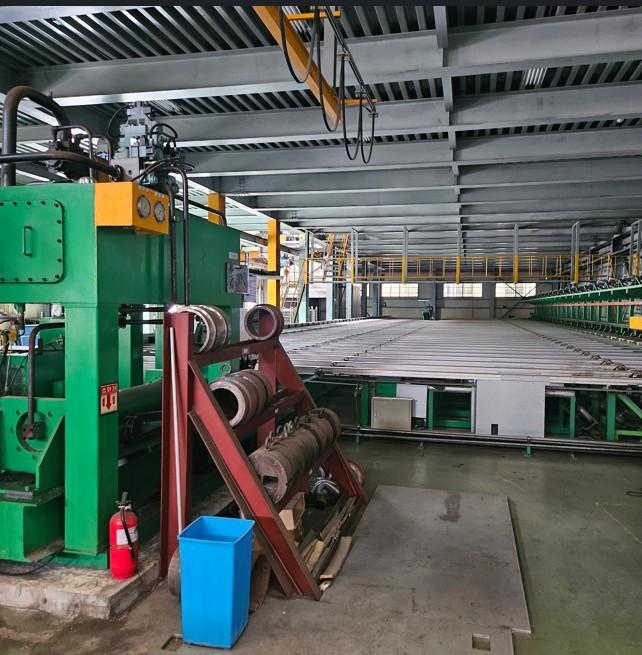

7. STRETCHER
Capacity:...............25 tons
Length:.................30 mtrs

8. CUTTING SAW

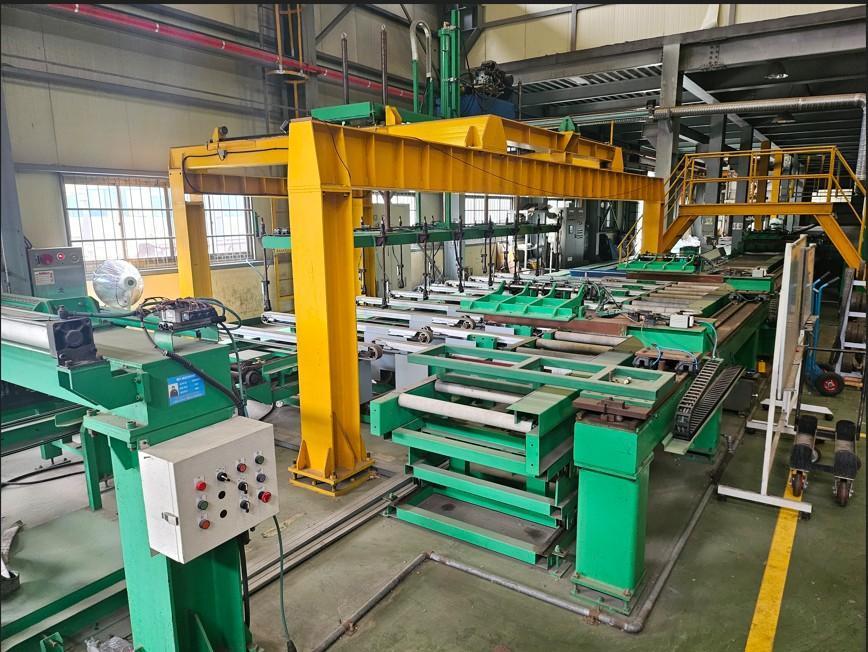

9. PACKING SYSTEM
Profile stacking
Bundle tying

FLOOR SPACE:............20 MTRS X 60 MTRS

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISION**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
