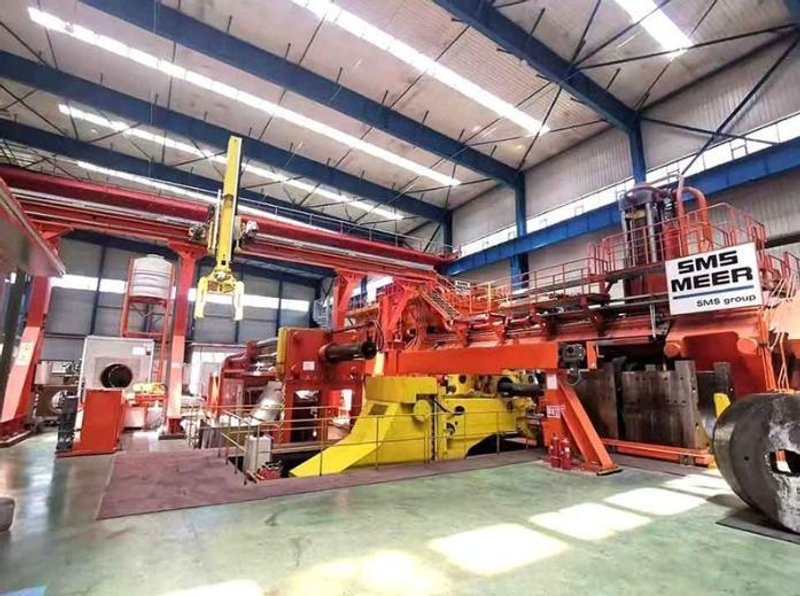

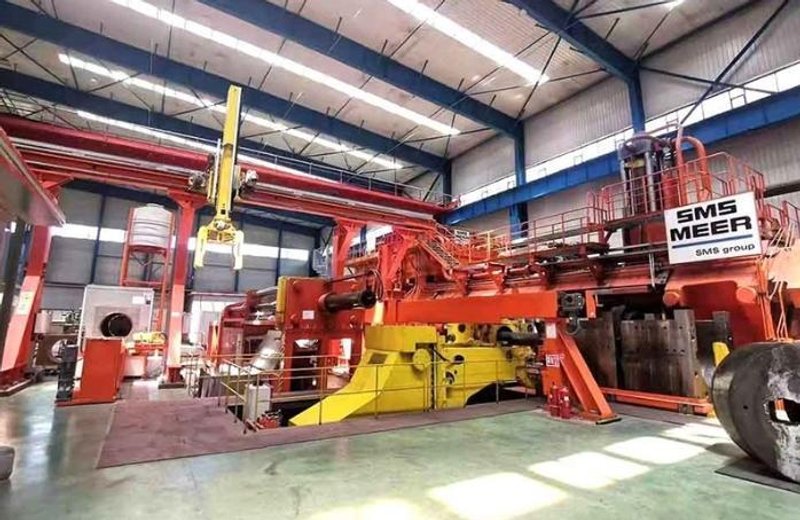

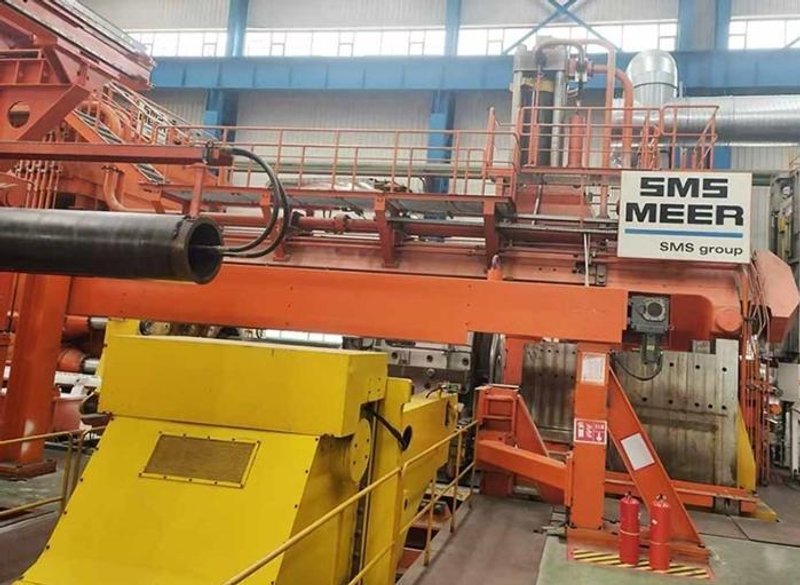

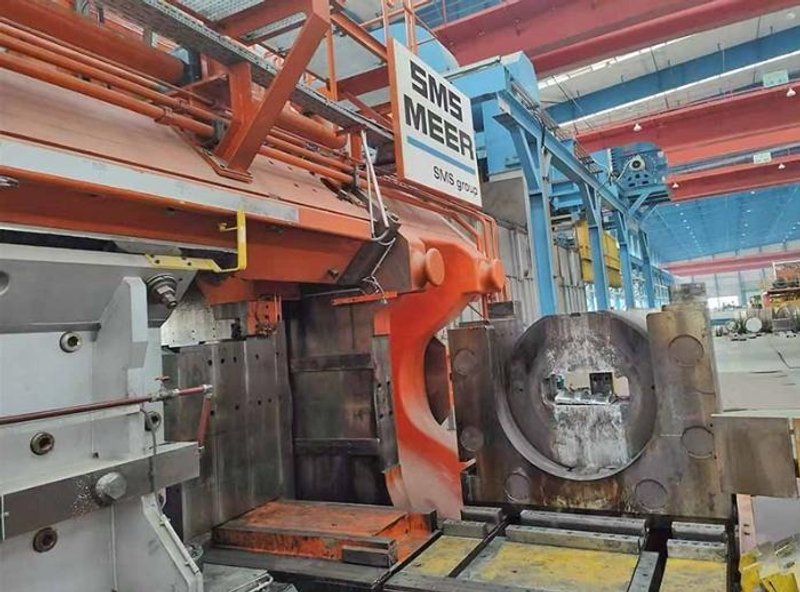

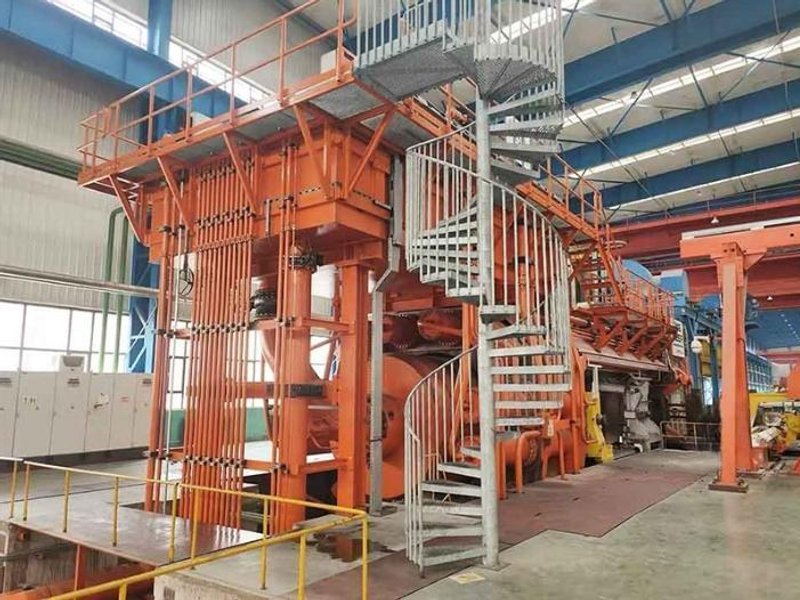

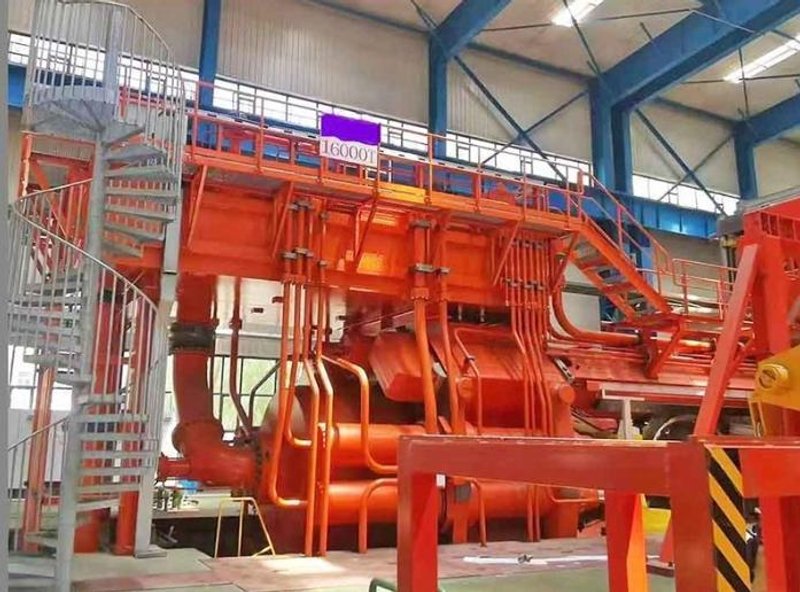

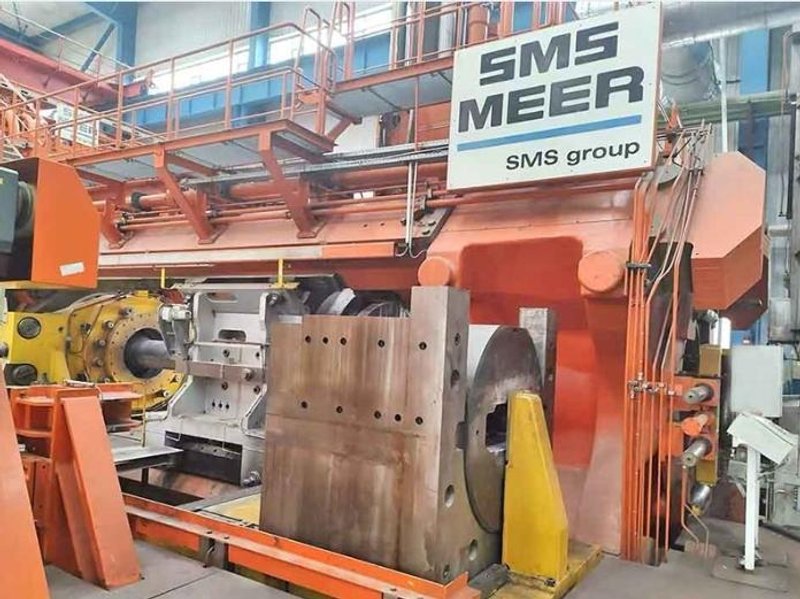

16,000 TON SMS HORIZONTAL SINGLE ACTION EXTRUSION PRESS
Stock # 14552

Specifications
Tons:................. 16,000 tonnes
Type:................. Aluminum Single Action
Builder:.............. SMS
Billet Diameter:...... 610mm
Mandrel:.............. No
Age/Rebuilt:.......... 2015
Main Ram Stroke:...... 3,700mm
Container Stroke:..... 3,850
Max Extrusion Speed:.. 20mm/sec

Additional Data:

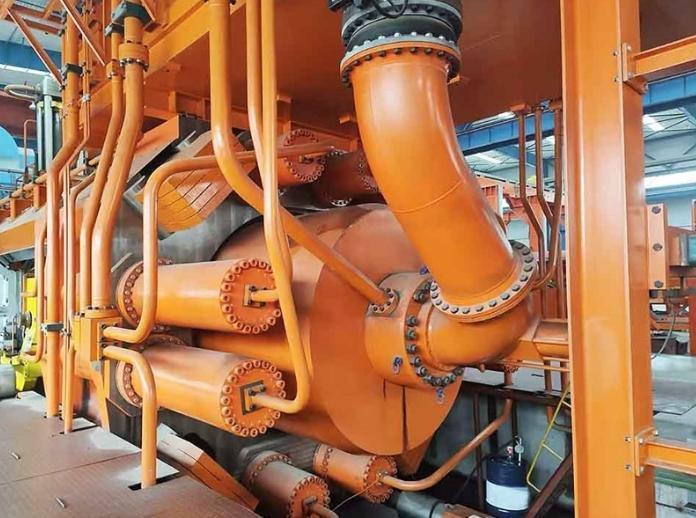

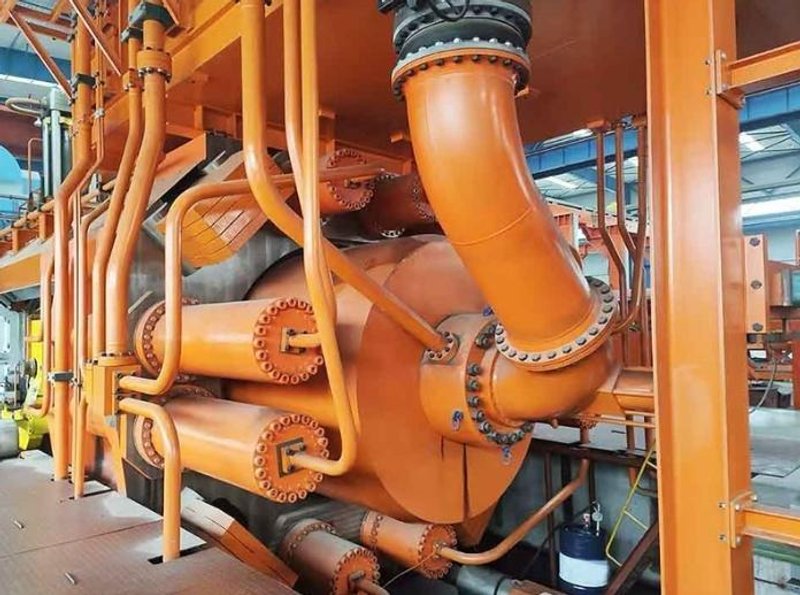

Main cylinder: 13560 MT Side cylinder: 2440 MT
Working pressure: 31 MPa Main cylinder dia.:2360 mm
Side cylinder dia.: 360 mm x 4 pcs Return force: 10.8 MN (10800 MT)
Extrusion stroke: 3700 mm Billet length: 900 – 2500 mm
Container inner dia.: 615 / 735 mm Ext speed: 19.5 mm/sec. Ext speed at 160 MN: approx. 10.6 mm/sec.
Min. speed: 0.20 mm/sec.

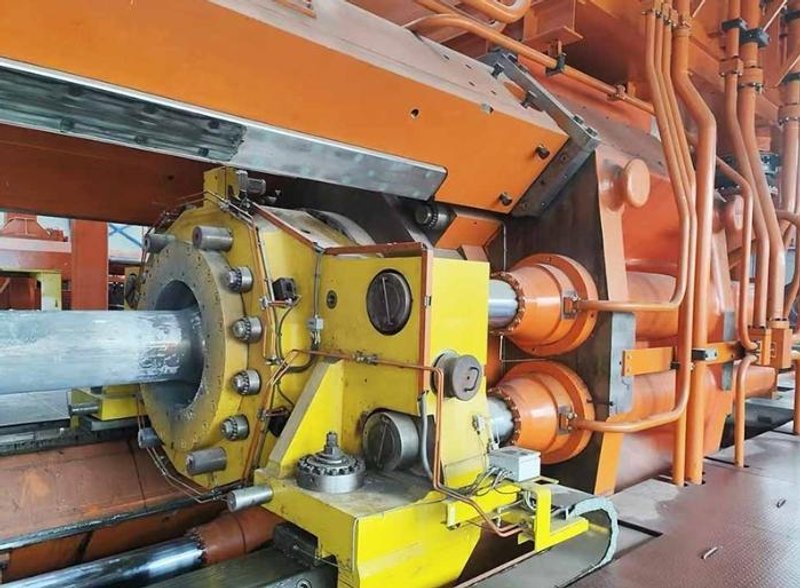

Billet container: Sealing force, variable max.: 22.4 MN
Container stroke: 3850 mm Container length: 2750mm
Container weight: approx. 84000 kg

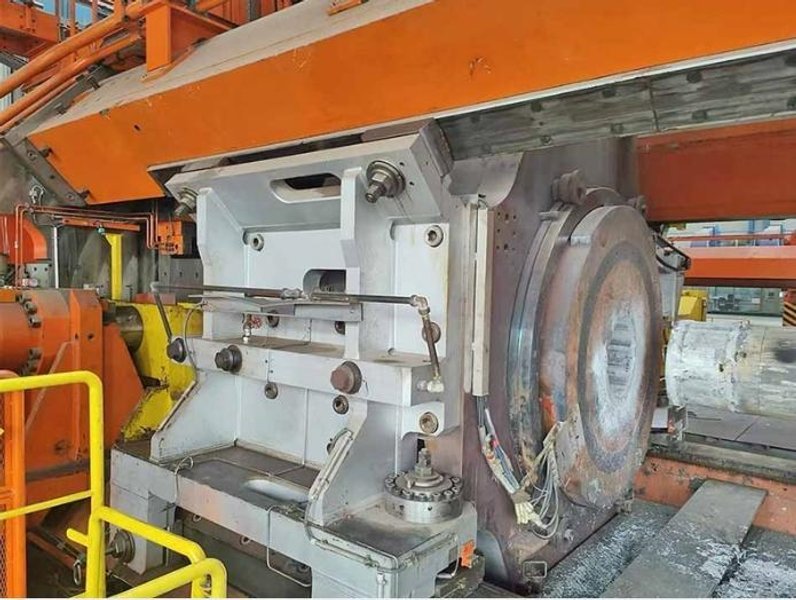

Shears: Discard shear: 8.9 MN Section shear/ die slide: 3.6 MN

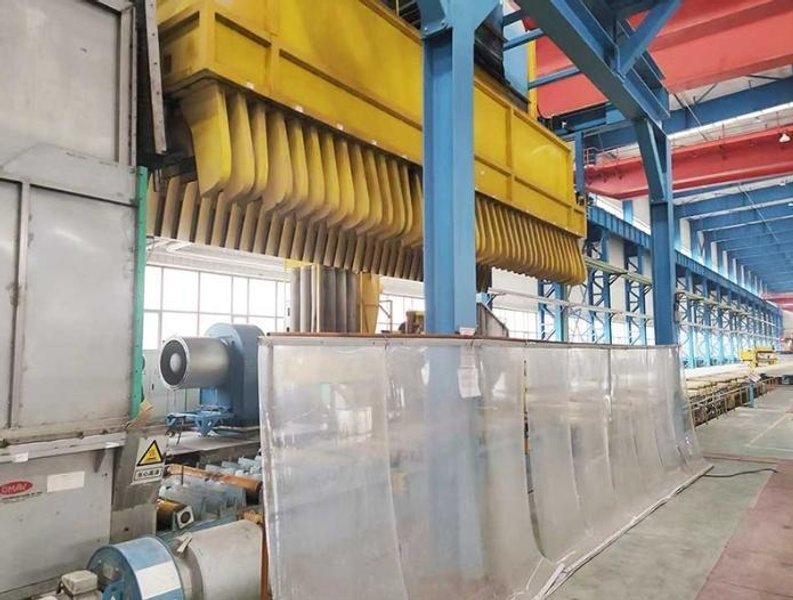

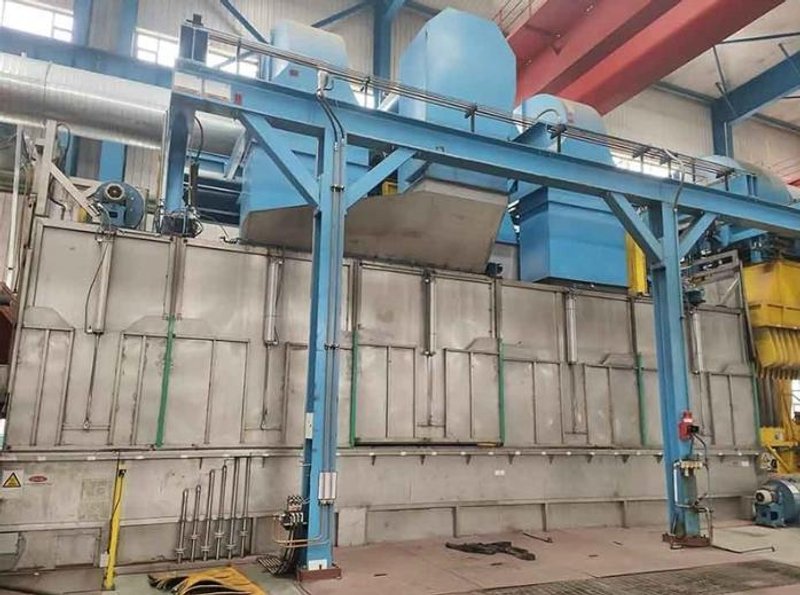

Quenching System Mfg: OMAV
Max profile height: 750 mm Max profile width: 1150 mm
Roller width: 1300 mm Roller gap: 400 mm
Max loading of run-out table: 260 kg/m Max loading of cooling table:160kg/m
Cooling type: fog/water spraying/air
Max cooling capacity: 1500 mm (W) x 750 mm (H)
Max fog cooling capacity: 400000 m³/h
Max air cooling capacity: 670000m³/h
Max water cooling flow: 450 m³/h - Quenching cover length: 16 m
Puller Mfg.: OMAV
Max pulling width: 1150 mm Max pulling - height: 750 mm
Pulling force: 0.15-20 kN Saw blade diameter: 2000 mm
Puller rail length: 110 m

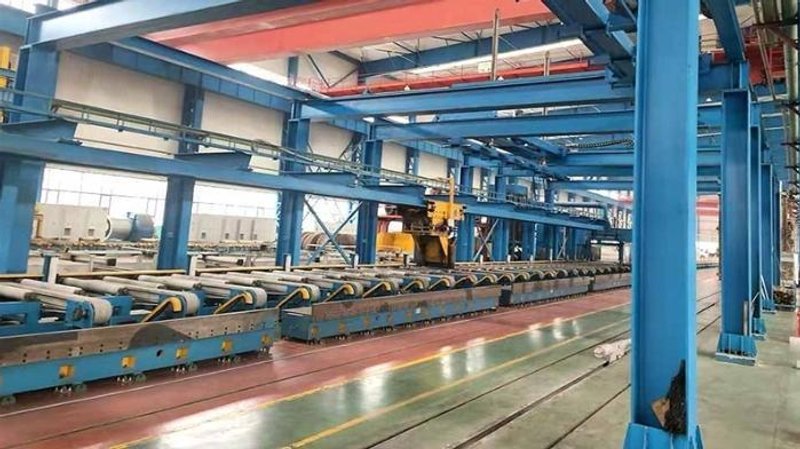

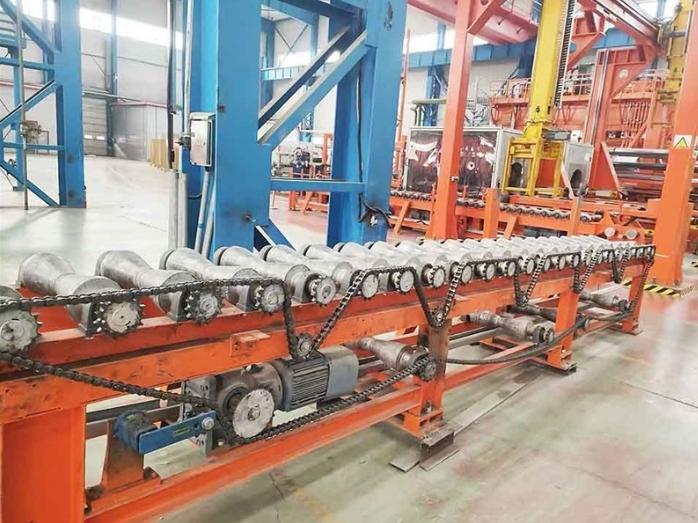

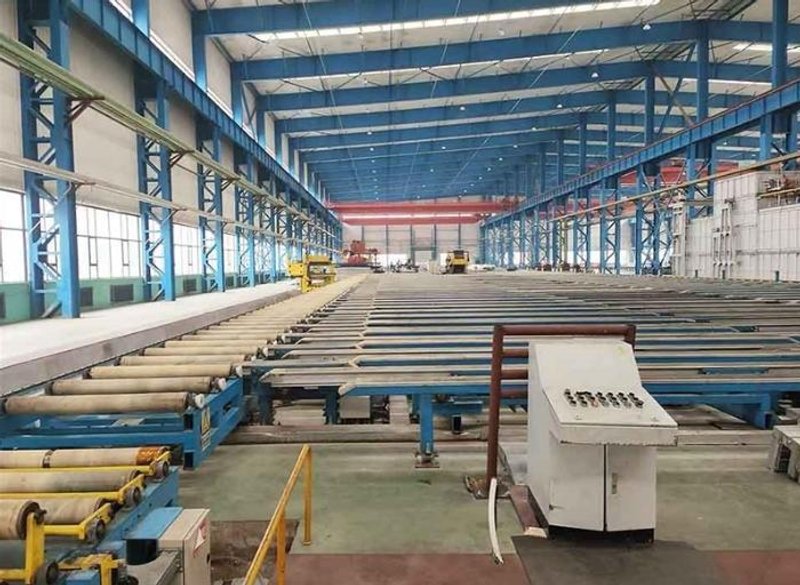

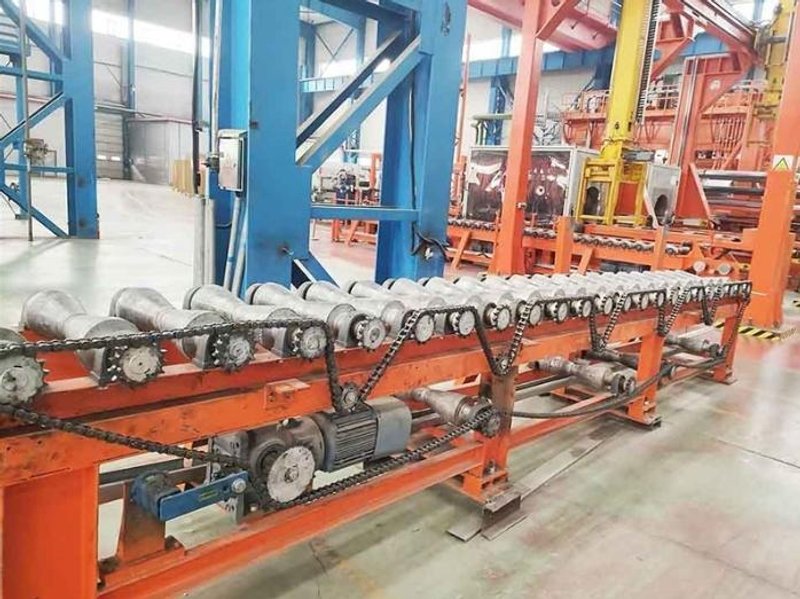

Run-Out Table Mfg.: SINO-HEAVY MACH
Total dimension: 140 x 31m - Initial table length 58m
Beam Gap: 1200mm - Horiz transfer distance: - 1150mm
Stepping speed: 20m/min - Transition table gap: 1200mm
Stretcher Mfg: SINO-HEAVY MACH
Max stretching force: 12mn - Max stroke: 2500mm
Profile length: 8-58m - Clamp size: 750/200 1150mm
Rotation angle: 20º

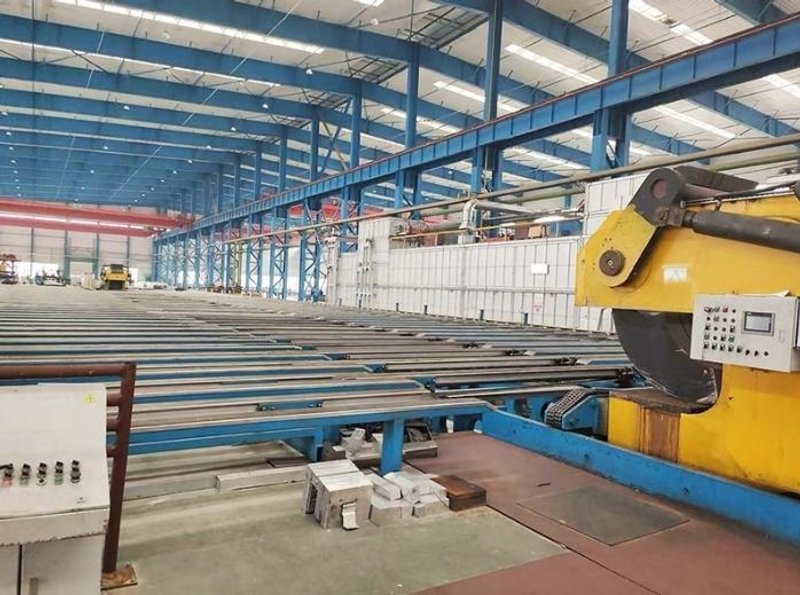

Finishing Saw Mfg: SINO-HEAVY MACH
Saw blade diameter: 2100 mm Infeed speed: 20-200 mm
Cutting range: ø750/200 * 1150 mm Gauge distance: 1.1-30 m
Cutting precision: ±2 mm
Profile Stacker Mfg.: SINO-HEAVY MACH,
Die Oven
Billet Peeling Machine

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
