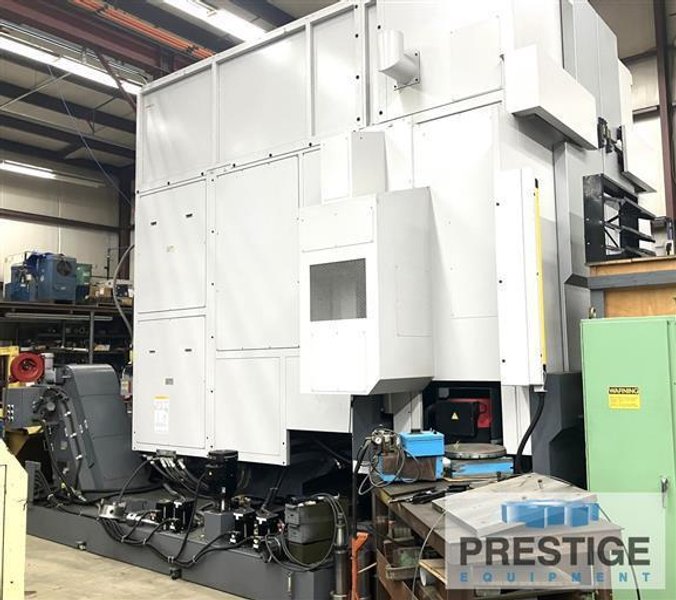

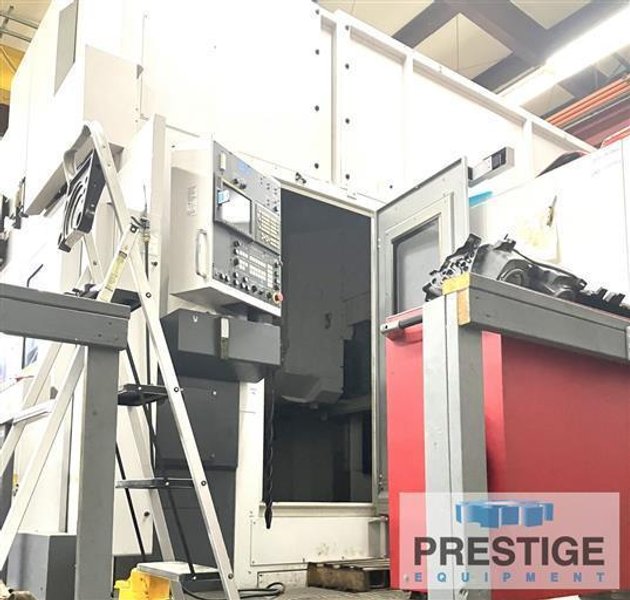

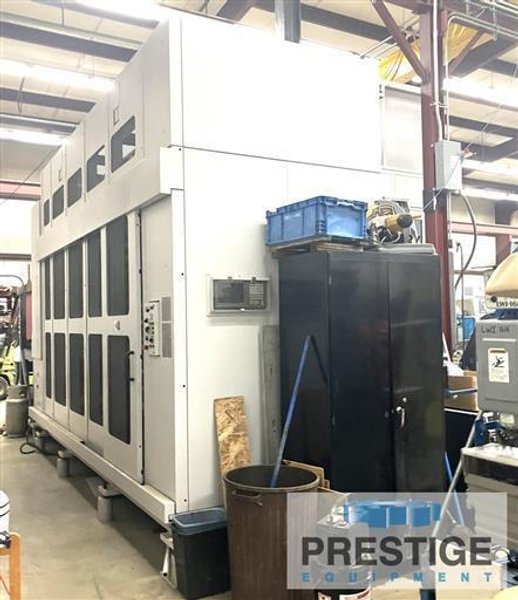

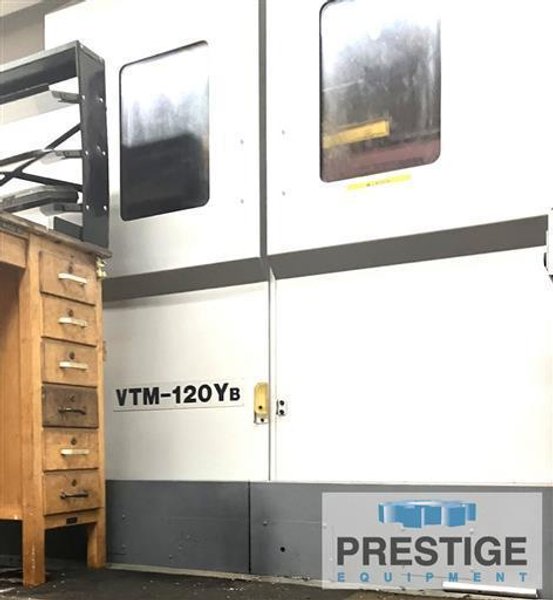

Boring Mills Vertical CNC

SPECIFICATIONS:
Table Diameter 49.21"
Maximum Swing Diameter 59.06"
Maximum Machining Diameter 47.24"
Maximum Turning Height 39.37"
Table Speeds 6-600 RPM
Table Motor 40 HP / 30 HP
X-Axis Travel 50"
Y-Axis Travel 39.37"
Z-Axis Travel 44.69"
C-Axis .001 Deg.
B-Axis Range 120 Degrees
Milling Spindle Motor 25 HP/ 20 HP
Milling Spindle Speeds 6000 RPM
Spindle Taper BT50 Big Plus
Cutting Feedrate, X/Y/Z Axes .00004 - 19.69 IPR
Rapid Traverse, X/Y/Z Axes 630 IPM
Total Weight 59,400 Lbs.



Equipped With:

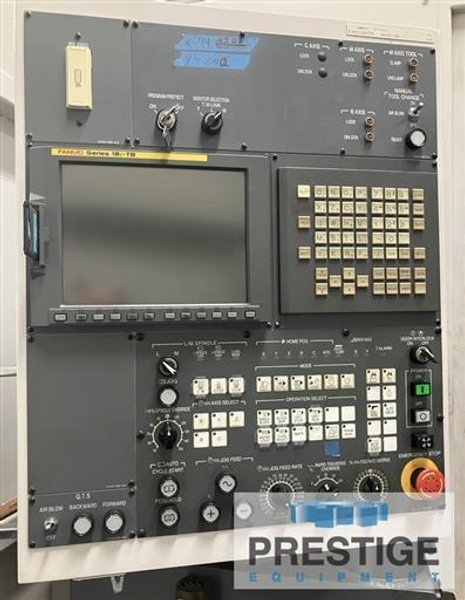

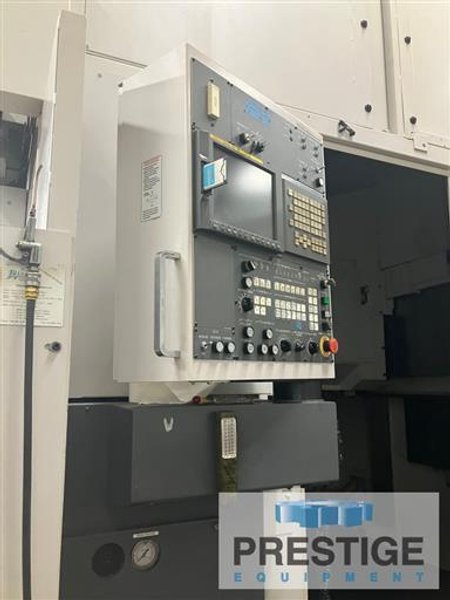

Fanuc 18iTB CNC Control

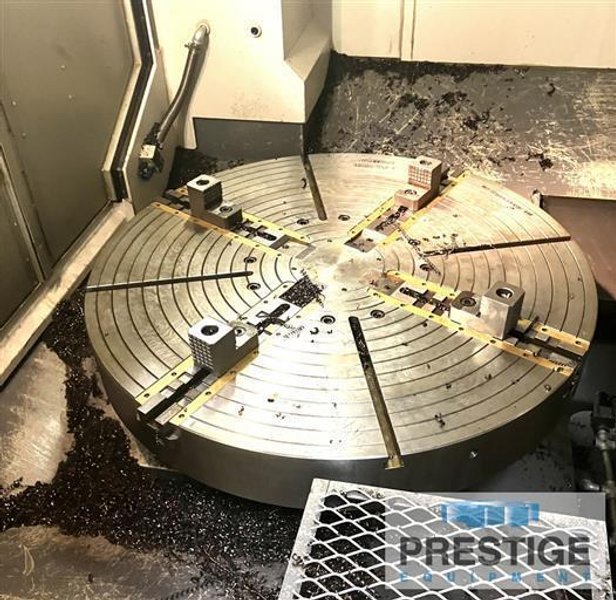

49.21" 4-Jaw Chuck

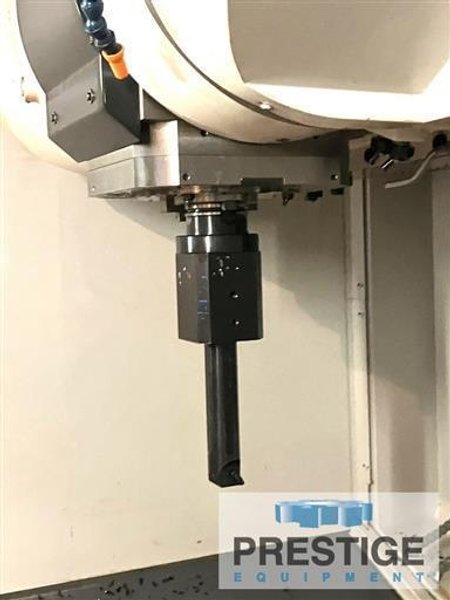

Live Milling With C-Axis

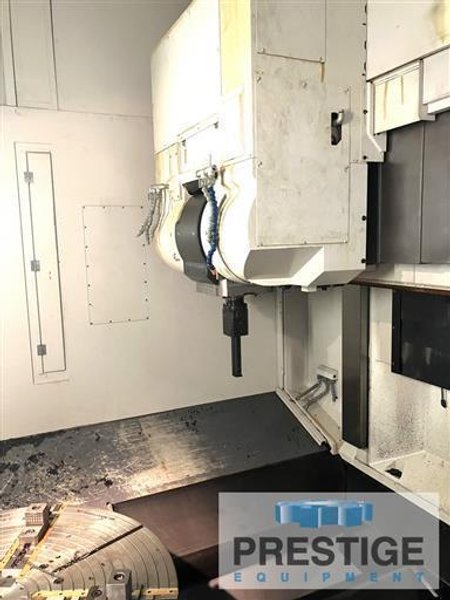

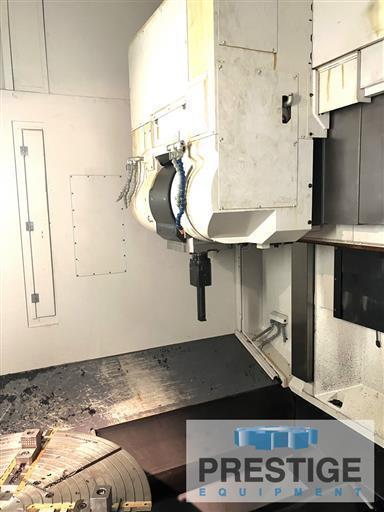

B-Axis Swivel Head
120-Station Automatic Tool Changer

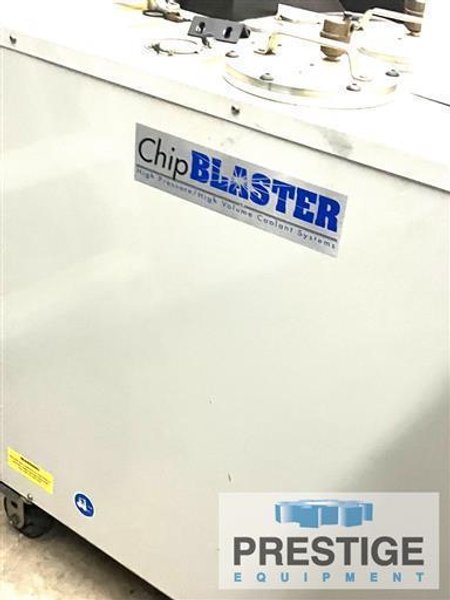

1000 PSI High Pressure Chip Blaster Coolant System
Renishaw Probe
Chip Conveyor

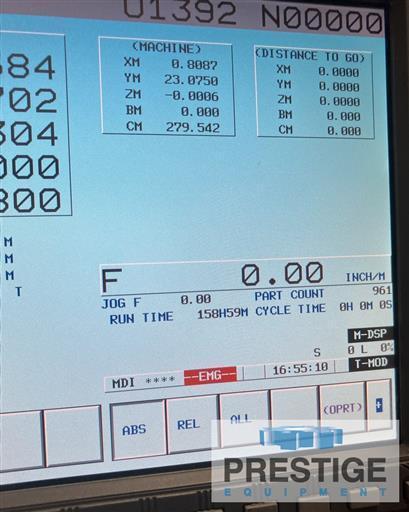

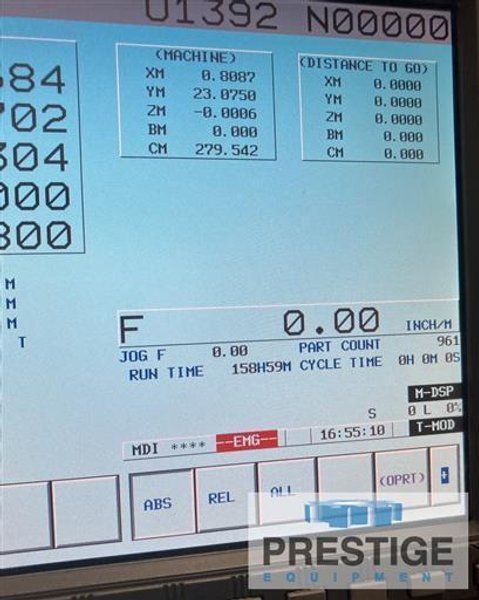

Condition: Like New! 159 Run Time Hours!
