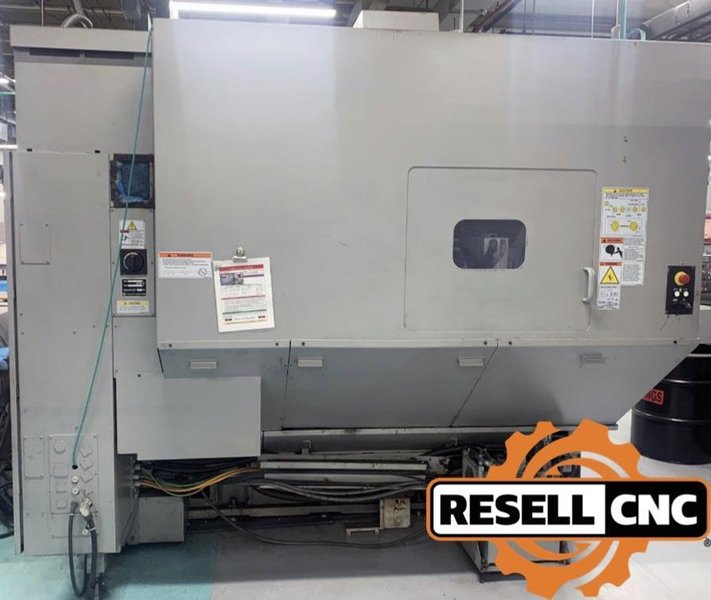

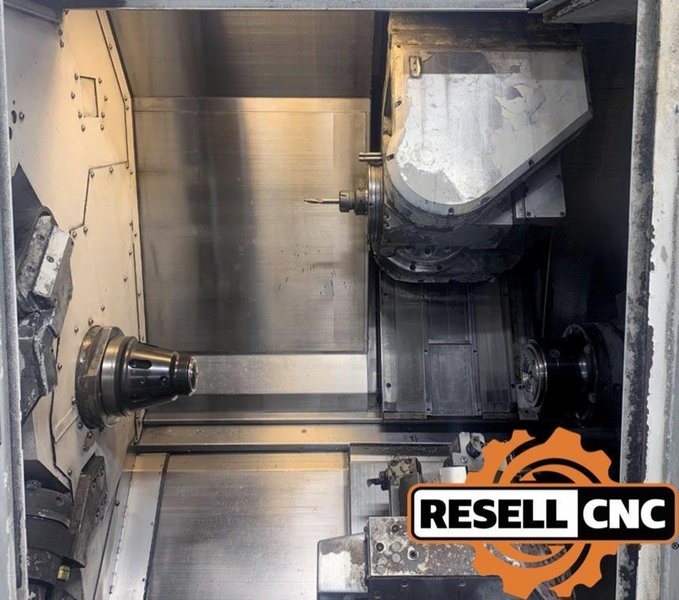

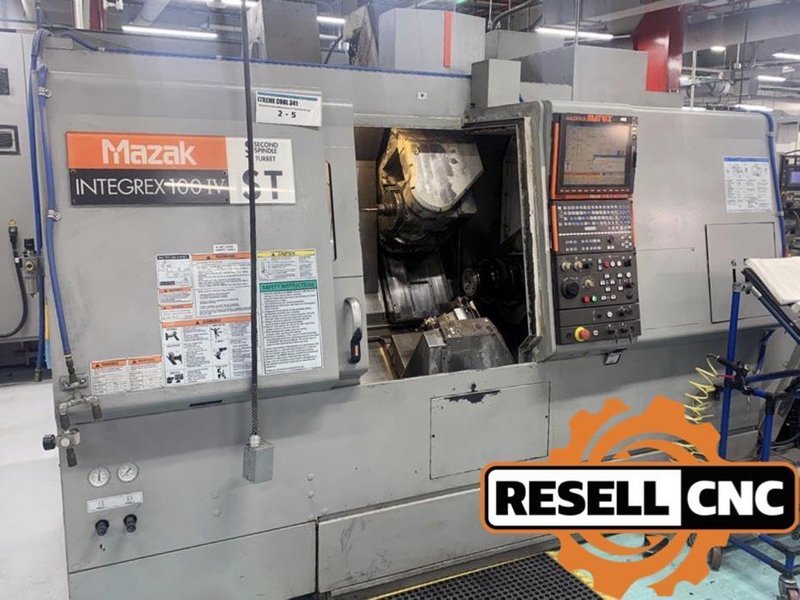

2009 Mazak Integrex 100-IV ST CNC Multi-Axis Turning Center
Brand
Category
Type
Model
Integrex 100-IV ST
Stock #
14873
Year
2009
Condition
Used
Location
Florida
ABOUT THIS MACHINEThe Mazak Integrex 100 4 ST is the ultimate all-in-one multi-axis milling and turning center, designed to streamline production, reduce setups, and deliver unmatched precision—turning complex parts into profit with every cycle!
**All descriptions and specifications are preliminary and must be confirmed by buyer prior to purchase.** LIVE TOOLING / MILLINGC-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
B-Axis: Equipped With
B-Axis Travel: B-Axis .0001 Degree
B-Axis Index 5 Degree (Coupling Clamp) " SPECIFICATIONSX-Travel: 16.14"
Z-Travel: 31.69"
Distance Between Centers: 30"
Max Swing Over Bed: 21.46"
Max Turning / Cutting Length: 29.65"
Max Cutting / Turning Diameter: 21.46"
SPINDLEBar Capacity: 2.00"
Chuck Type: Collet
Spindle Bore: 2.40"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-5
SECOND SPINDLETotal Spindles: 3
Sub-Spindle: Equipped With
Second Bar Capacity: 2.00"
Second Chuck Description: Collet
Second Spindle Speed: 6000 RPM
Second Spindle Motor: 15 HP
Second Spindle Nose: A2-5
TURRETSingle Turret: Equipped With
Single Turret Live Tooling: Equipped With
Tool Positions: 40
Twin Turret: Equipped With
Live Milling Max RPM: 12000

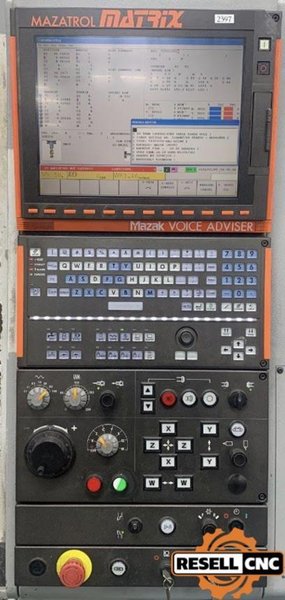

RPM CONTROLControl Make/Model: Mazak Matrix High Smoothing CNC Control
Control Options: Synchronized Tapping;Inch/Metric Conversion;EIA/ISO Code Input Function
Additional Control Options: 3D Coordinate Conversion
Absolute Positioning System XYZ Pitch Error Compensation Input EIA Dynamic Compensation Mazacc-3D High Speed Software Pkg. Tool Tip Point Control & Tool Radius Comp. OPTIONSAdditional Machine Specs: C-Axis .0001 Degree Incr.
Cat 40 ATC Magazine Auto Chuck Open & Close Spindle 1 & 2 C1+C2 Synchronous Function Coolant Types: Thru-Spindle Coolant
Coolant PSI: 213 PSI
Chip Removal: Chip Conveyor
|
