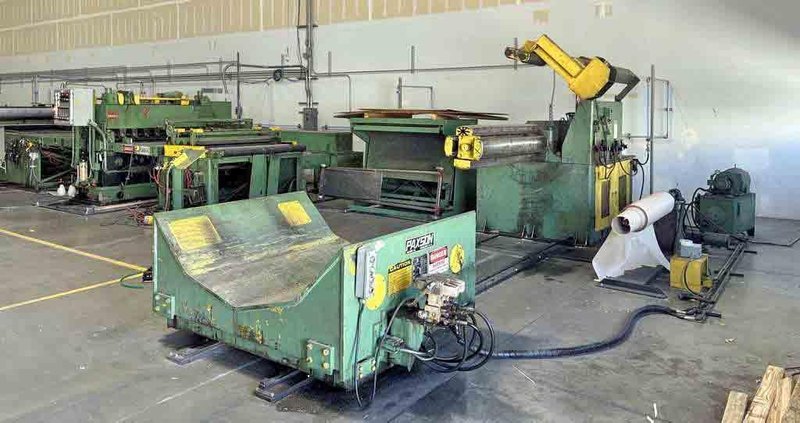

60" x 0.139" x 20,000# Rowe/Voss Cut To Length Line

60" x 0.139" x 20,000# Rowe/Voss Cut To Length Line

Width Capacity: 60"
Thickness: 0.019" - 0.139" @ 30,000 PSI Yield
0.019" - 0.125" @ 40,000 PSI Yield
0.022" - 0.107" @ 50,000 PSI Yield
Coil Weight: 20,000#
Line Speed: 150 FPM

Consisting of the following:

-Paxson Coil Car:
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control

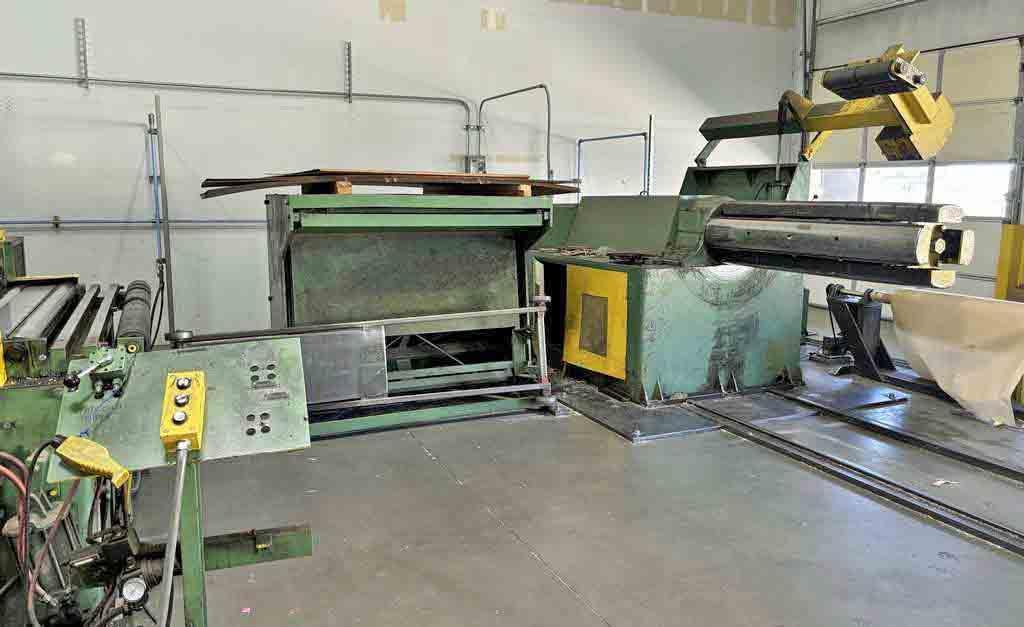

-Rowe Uncoiler:
Powered Expansion
Driven Mandrel
Overarm Holddown Roll

-Paper Winder:

-Rowe Peeler Table:

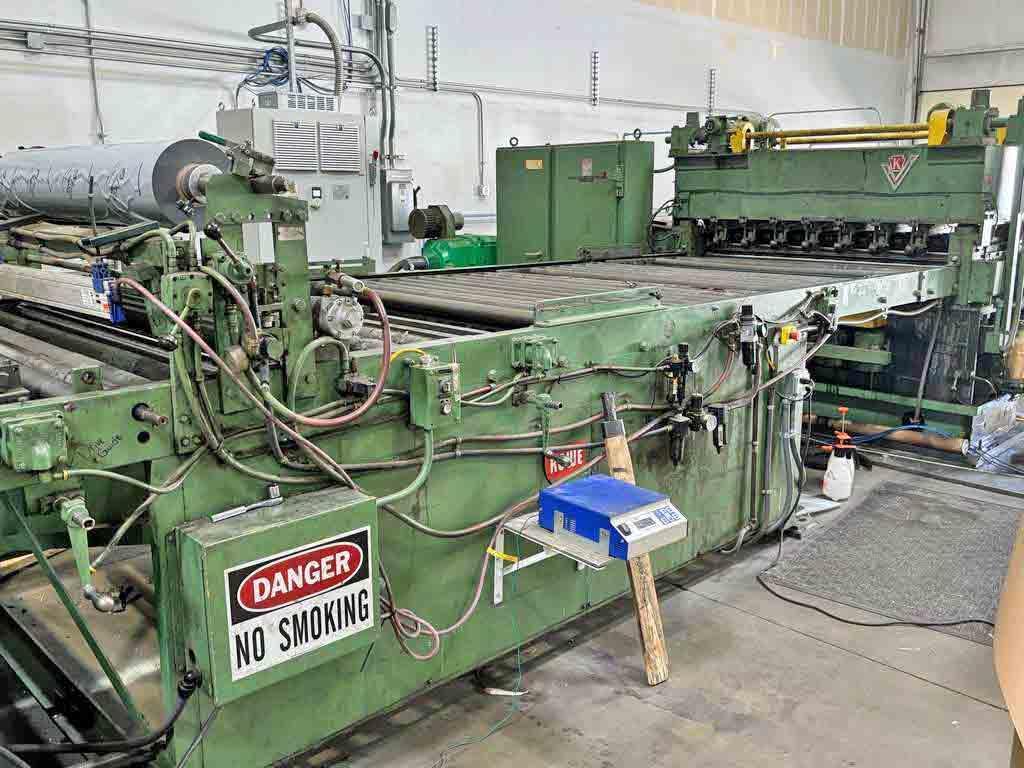

-Rowe 5 Roll Straightener:

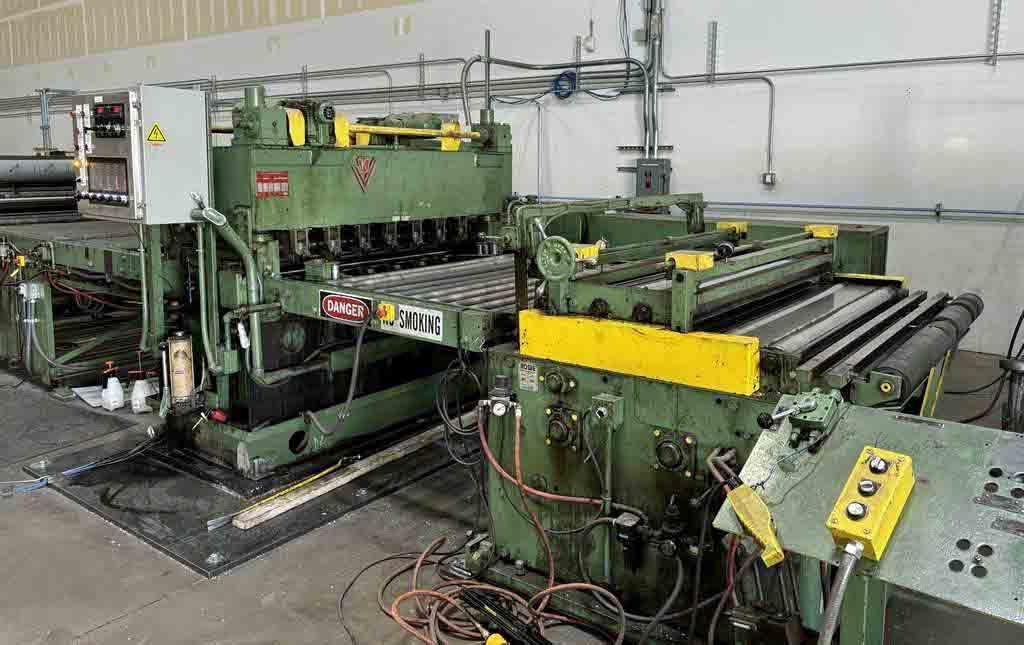

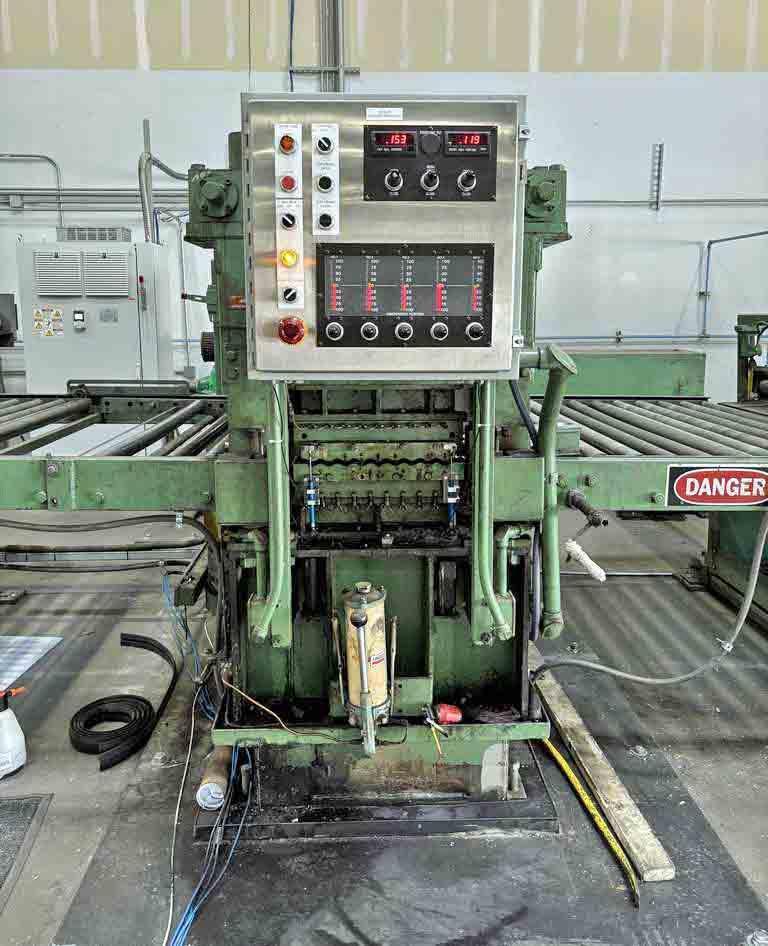

-Herr Voss Precision Leveler:

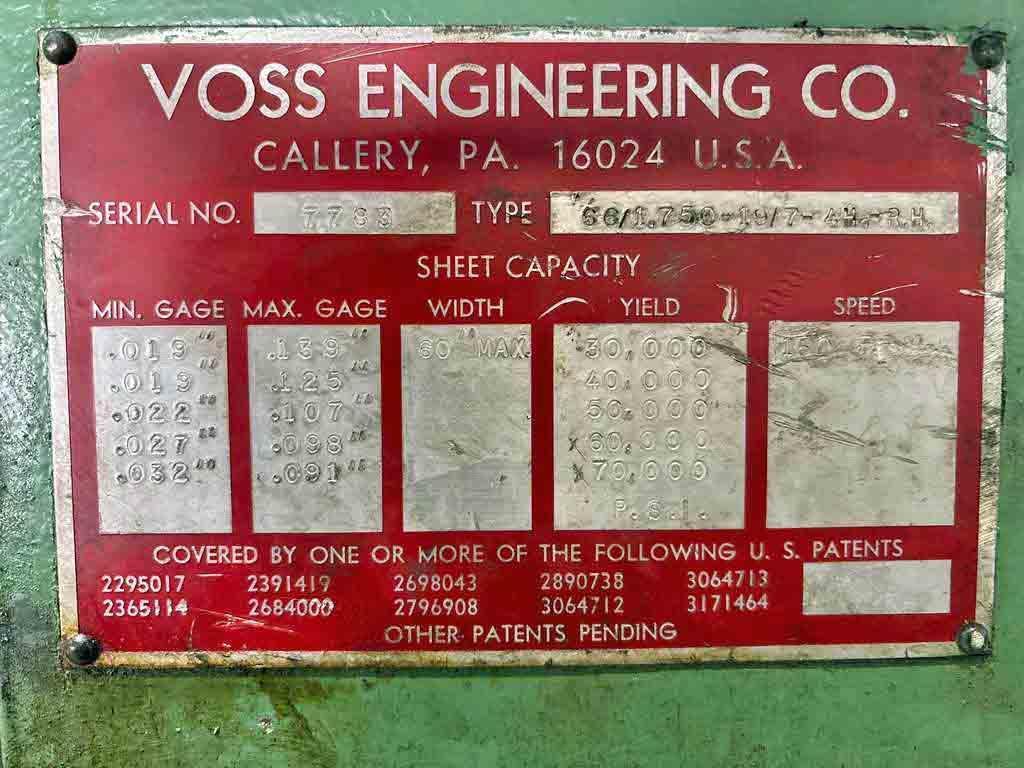

Model 66/1.750-19/7-4HI-R.H.
19 Work Rolls, 9 over 8
66" Roll Face
1.750" Roll Diameter
7 Flights of Back-ups
5 Flights Motorized
DC Drive Motor

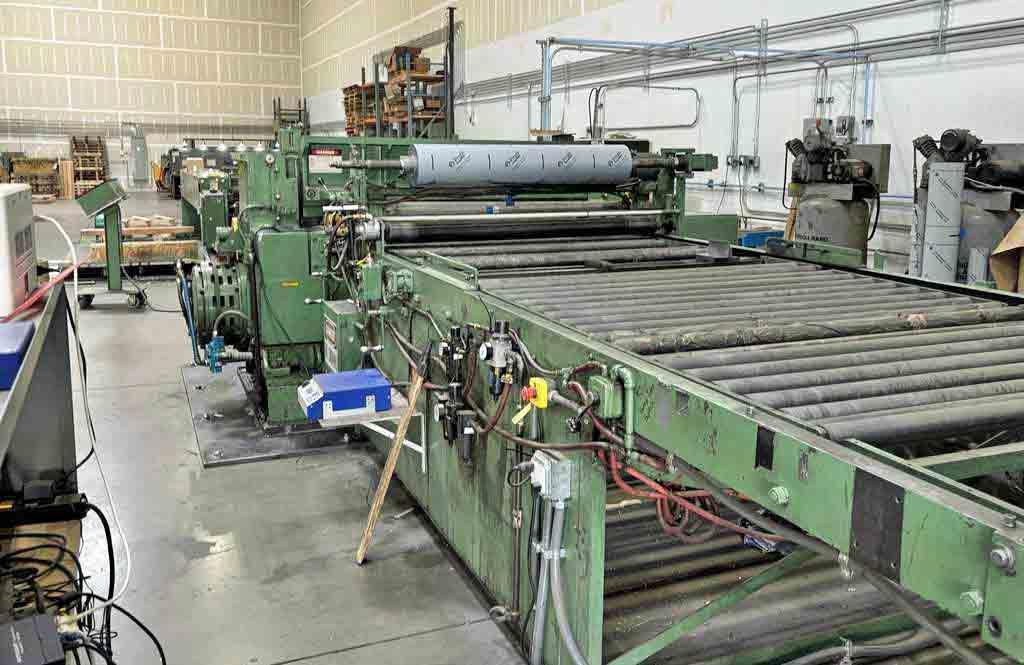

-Rowe Hump Table:

-Vinyl Applicator:

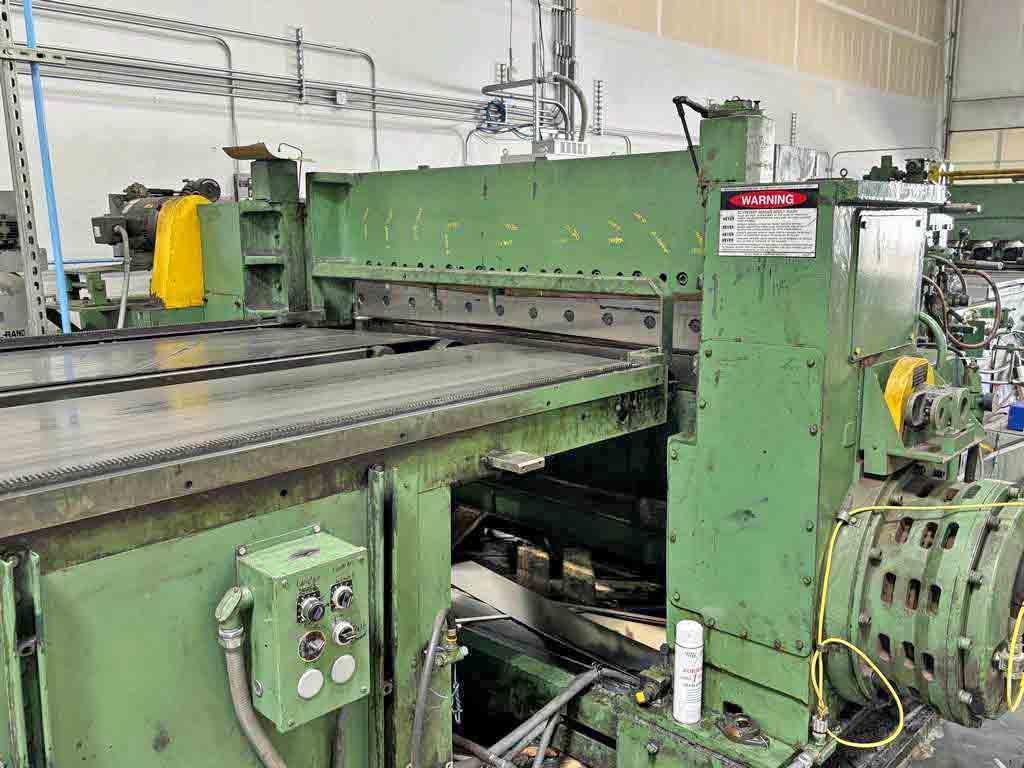

-Wysong High Speed Shear:
Bow-Tie Top Blade
Wichita Clutch and Brake
Drive Motor w/Blower

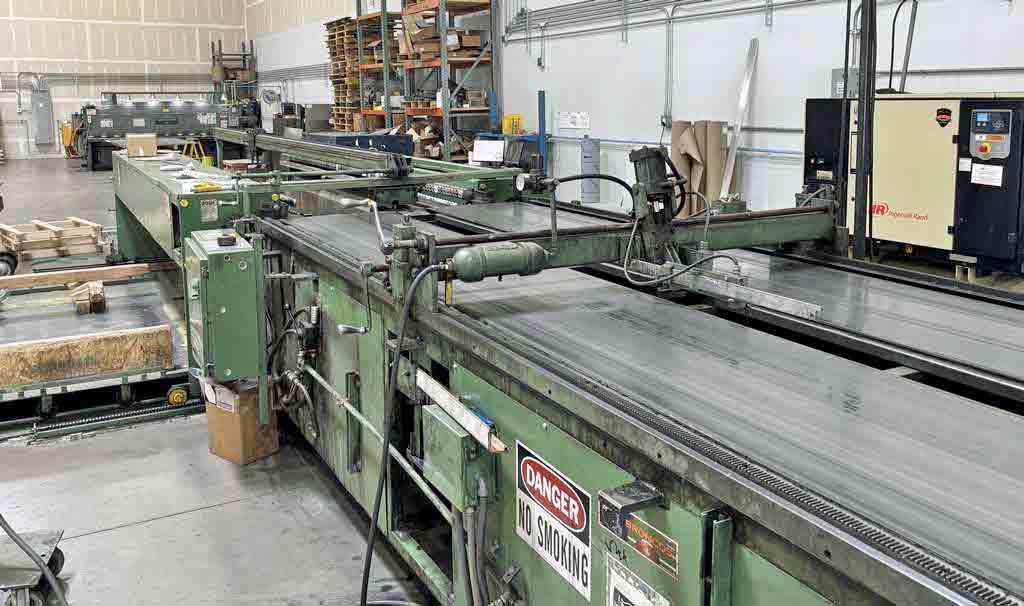

-Rowe Belt Runout Table & Gauge Head:
(2) Driven Belts

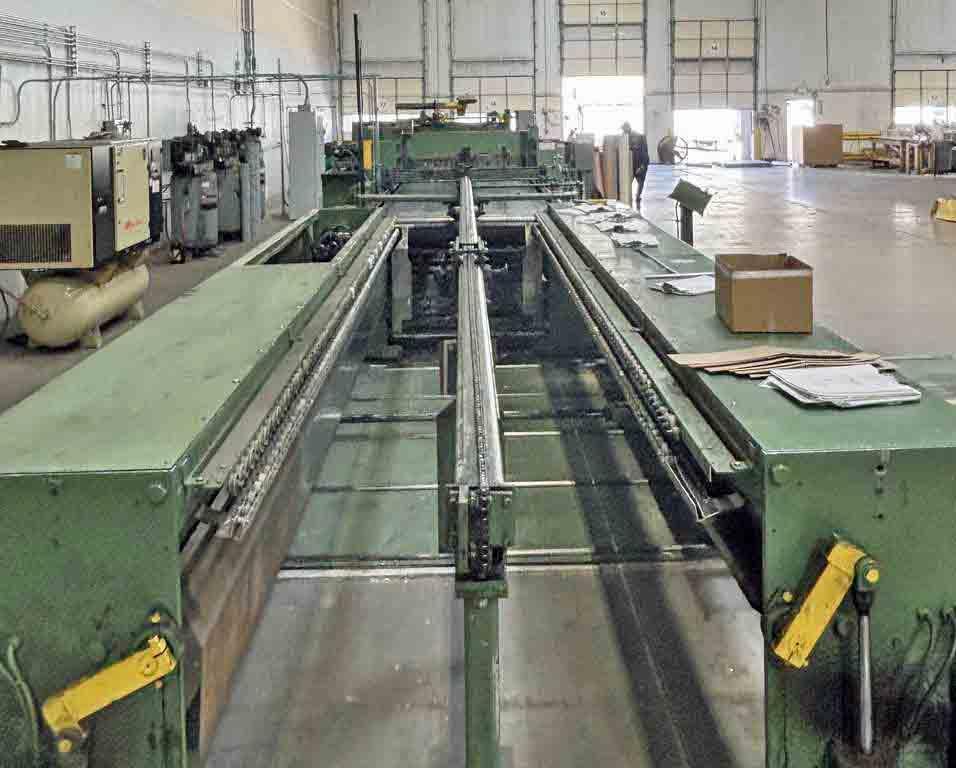

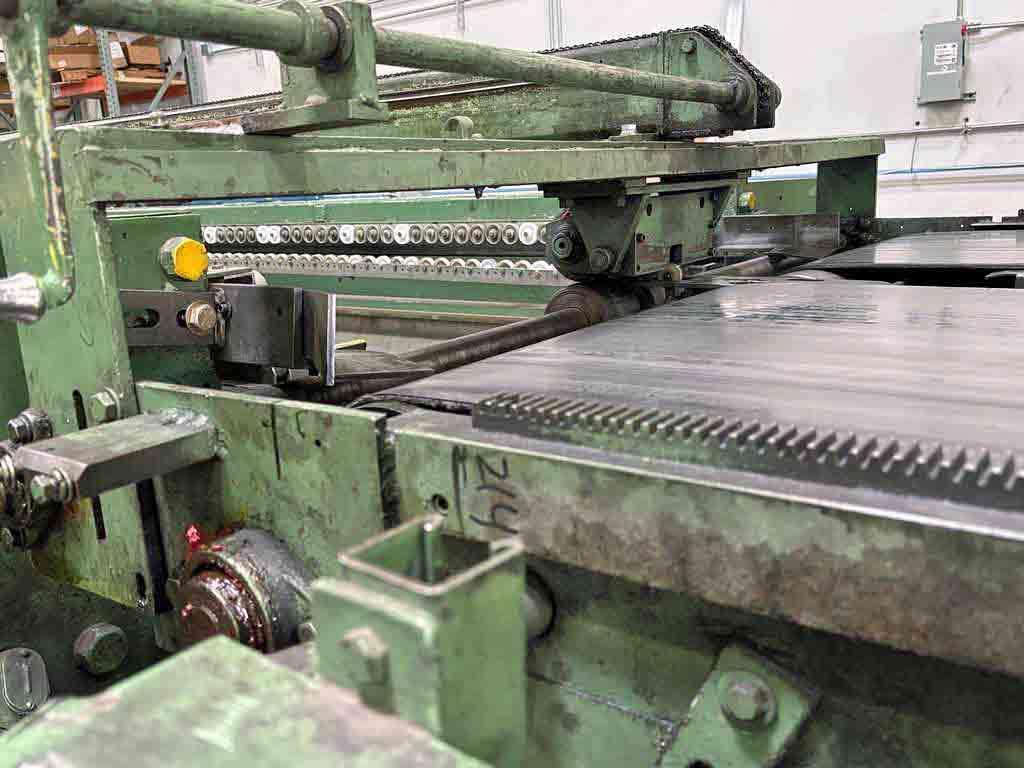

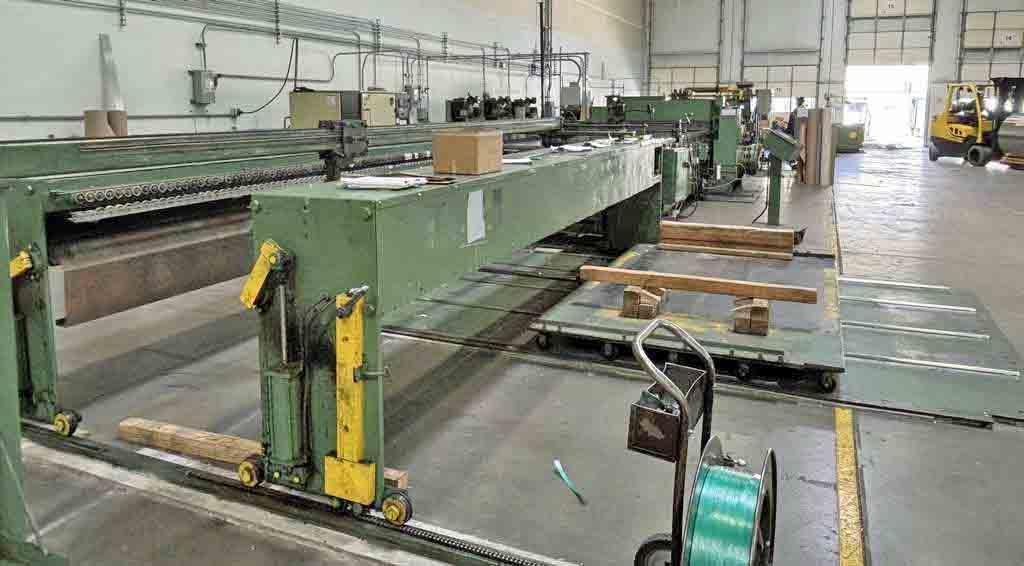

-Rowe Stacker:
4 Side Skate Wheel Drop Stacker
Powered Width Adjustment
Powered Length Adjustment
Side Discharge
20' Long

-Line is installed and running
