Name: 60" x 0.250" Rowe Cut To Length Components
Brand: ROWE
SKU: 2391
Availability: InStock

Brand

ROWE

Location

Ohio

Specifications
Files & Videos

Coil Width:            60"
Coil ID:               20" - 24"
Coil OD:               72"
Gauge Range:           0.048" - 0.250"
Line Direction:        Left to Right

Consisting of the following:

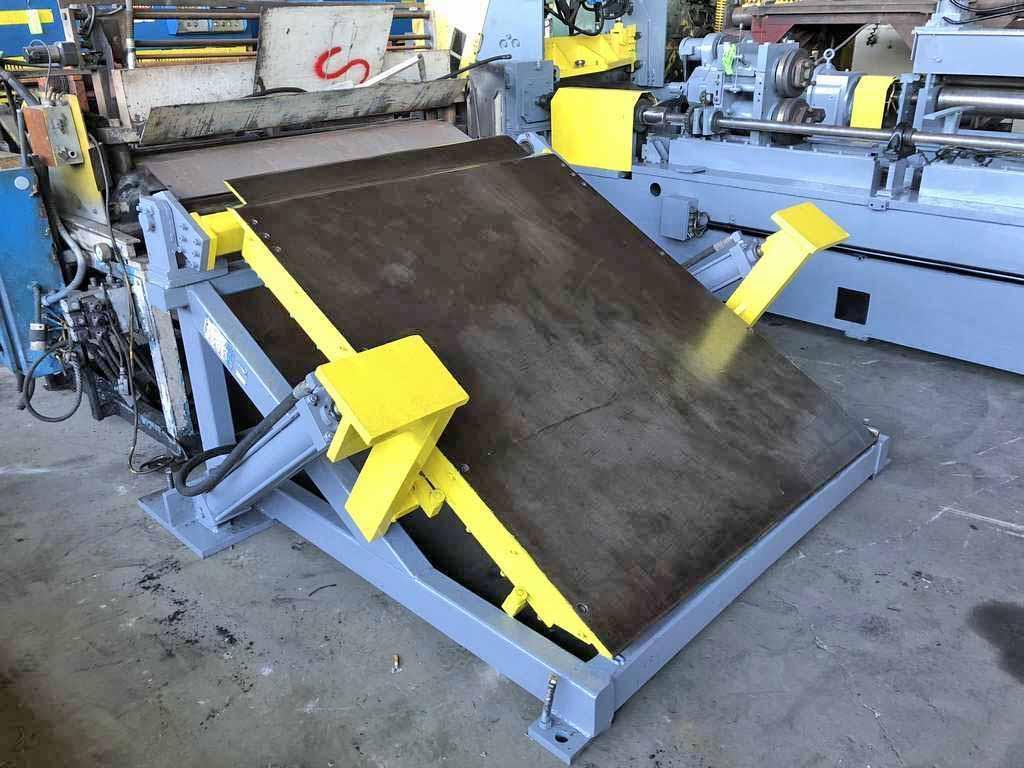

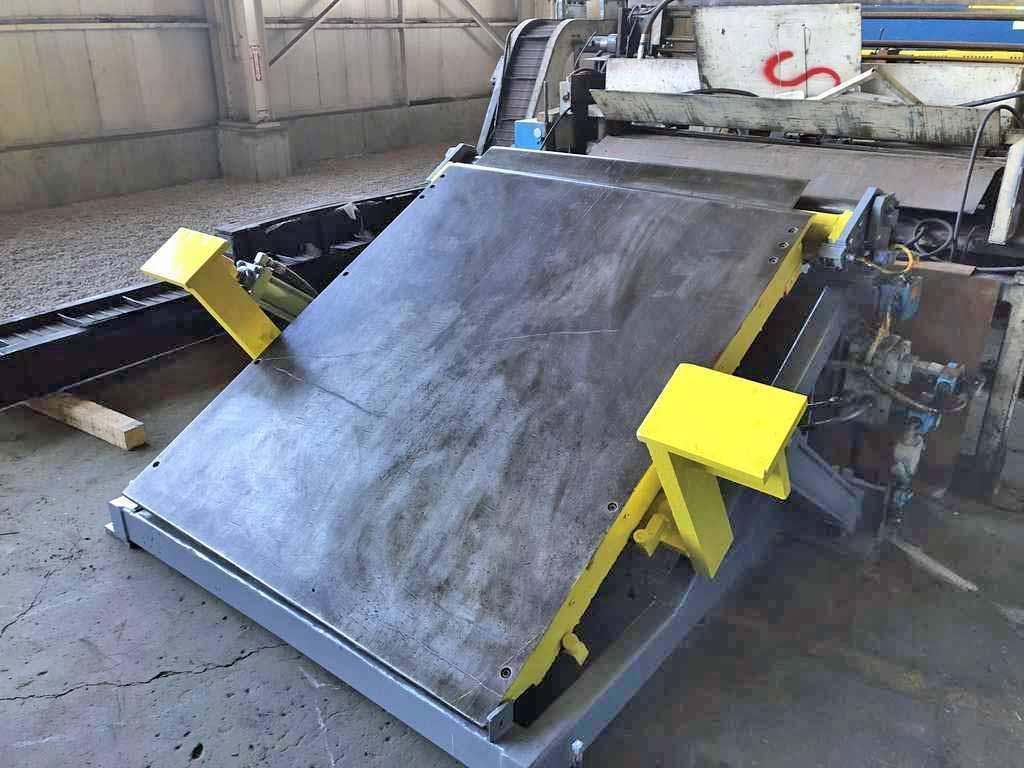

-Peeler Table:
Model PT/HD-60
S/N: 28057
Capacity: 60" W x 0.250"
(2) Hydraulic Cylinders for Up / Down Movement
(1) Hydraulic Cylinder for In / Out Movement of Peeler Blade
  Overall Size: 92" L x 74" W x 43" High

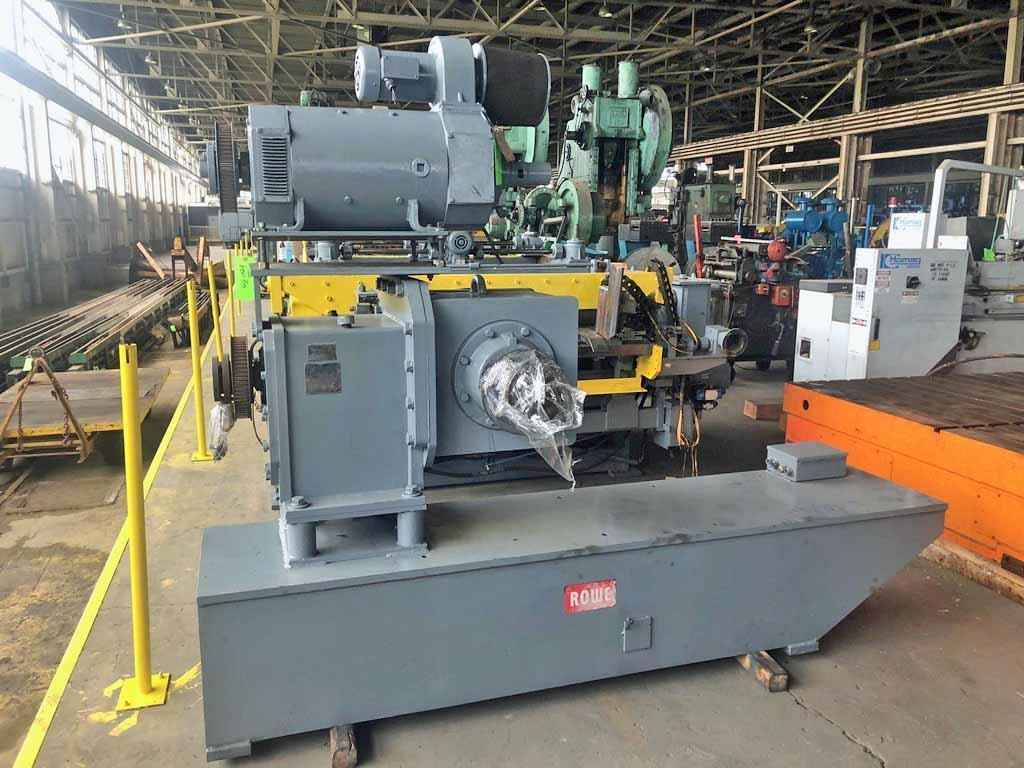

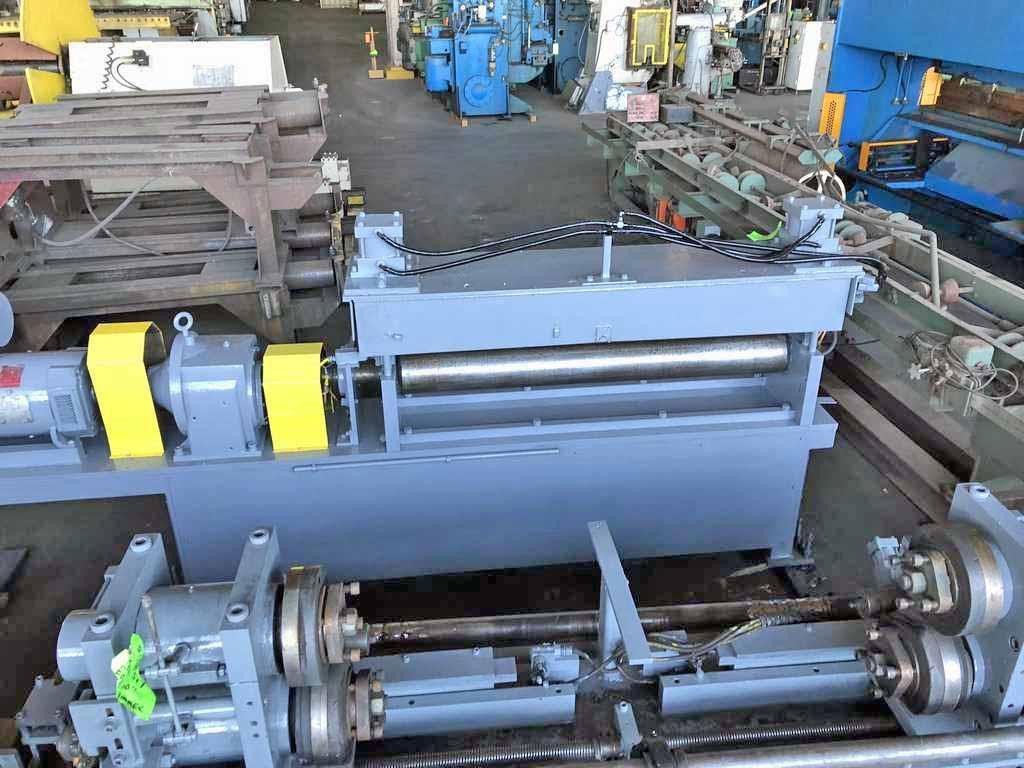

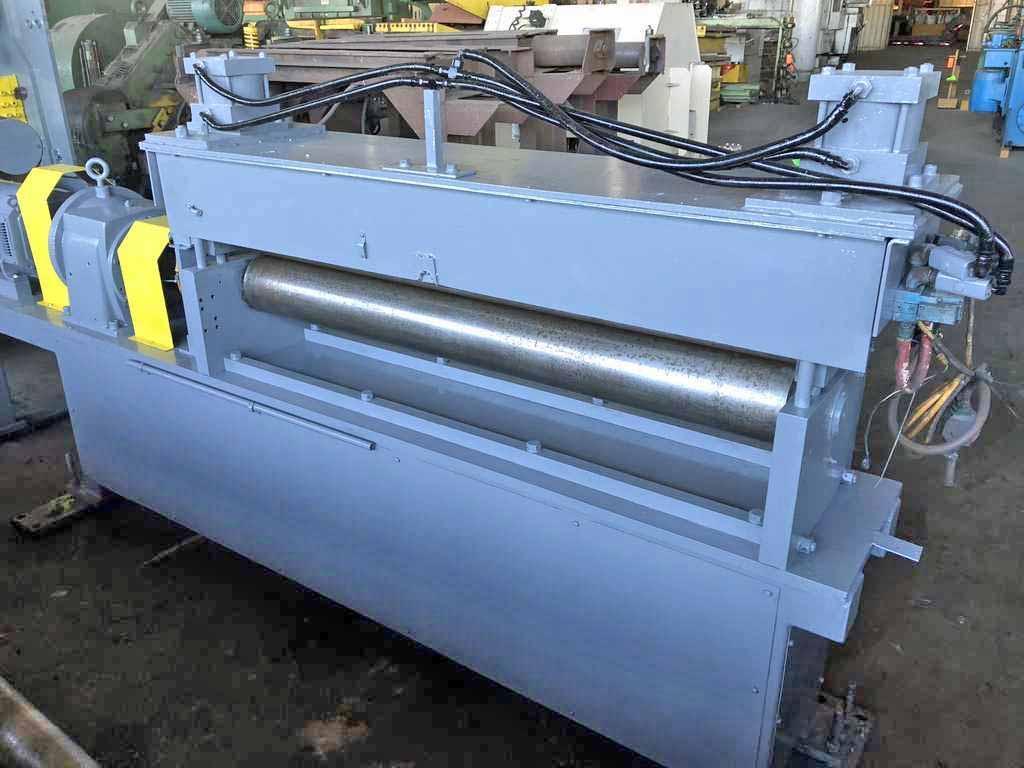

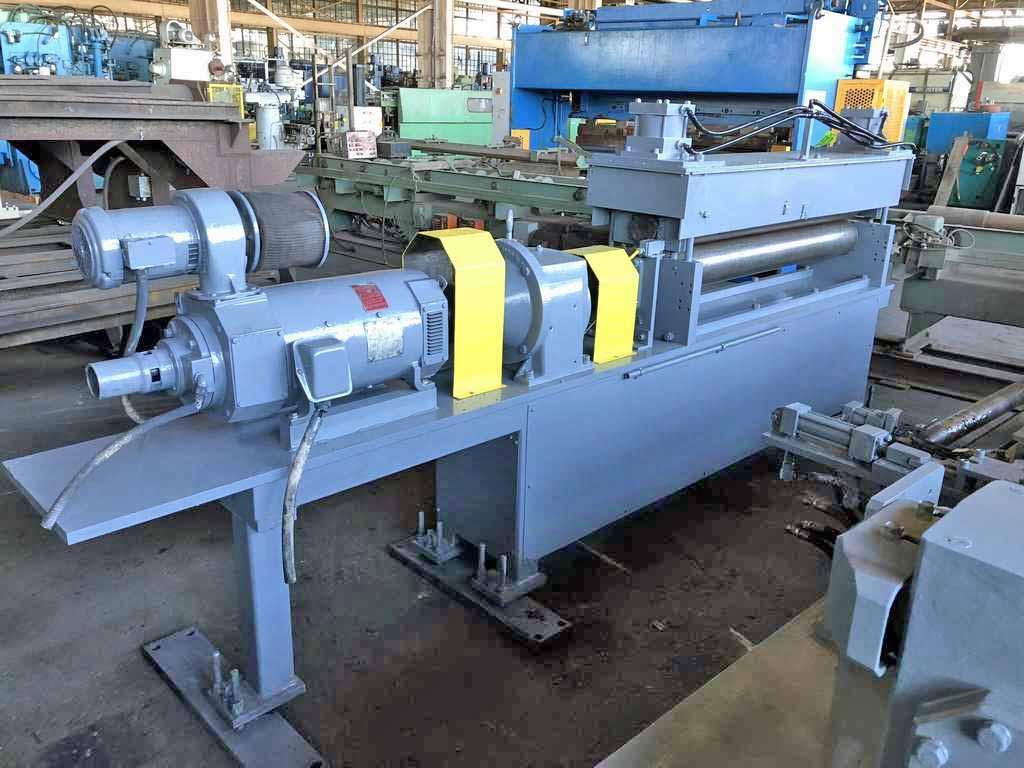

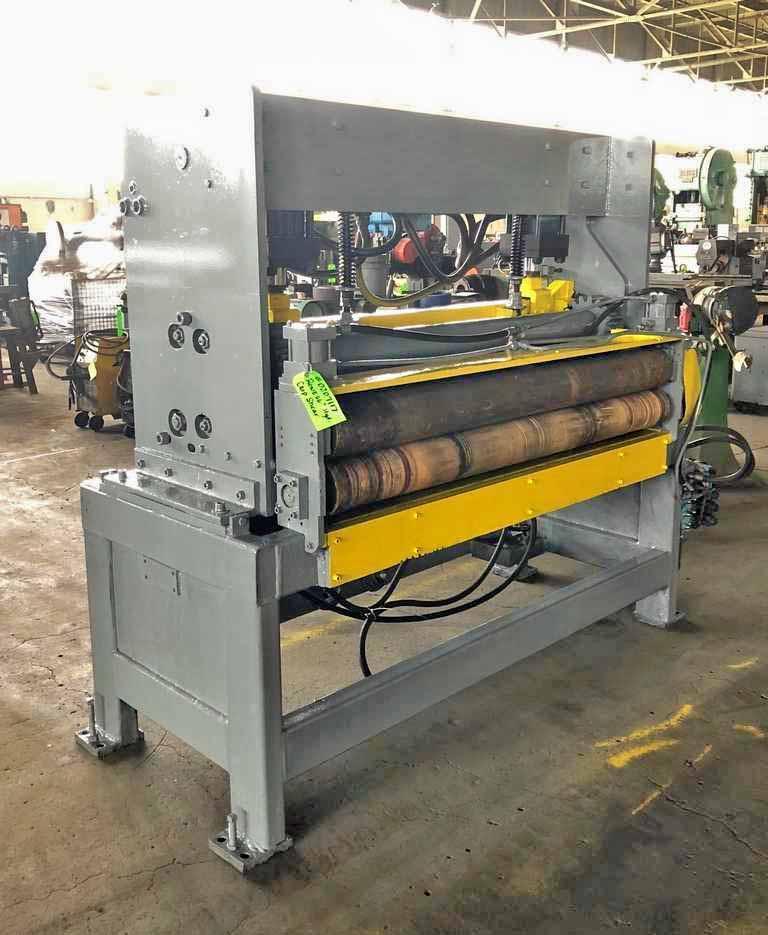

-Pinch Rolls:
Capacity: 60" x 0.250"
  S/N:
  60" Face x 7" Dia. Rolls
  62.5" Between Housings
  Air Cylinder Loaded
  25 HP DC Motor with Blower
    1750 RPM, 500 V
    Less Solid State Drive
  In-Line Gear Reducer
  Passline: 43"
  Overall Size: 157" L x 18" W x 63" High

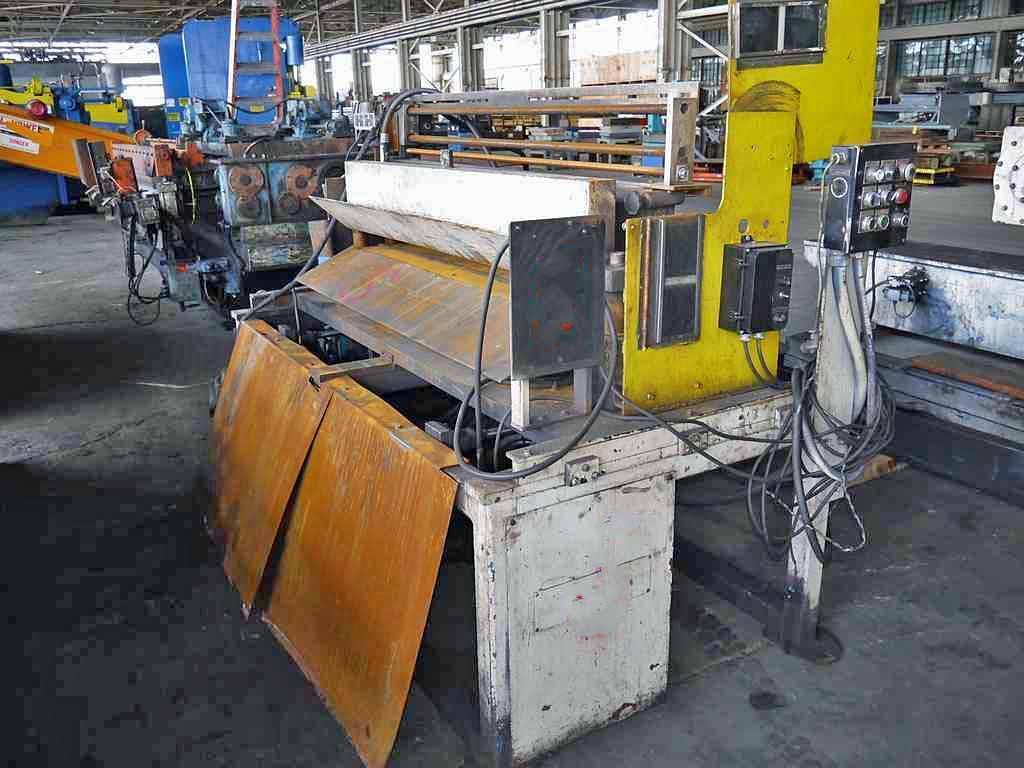

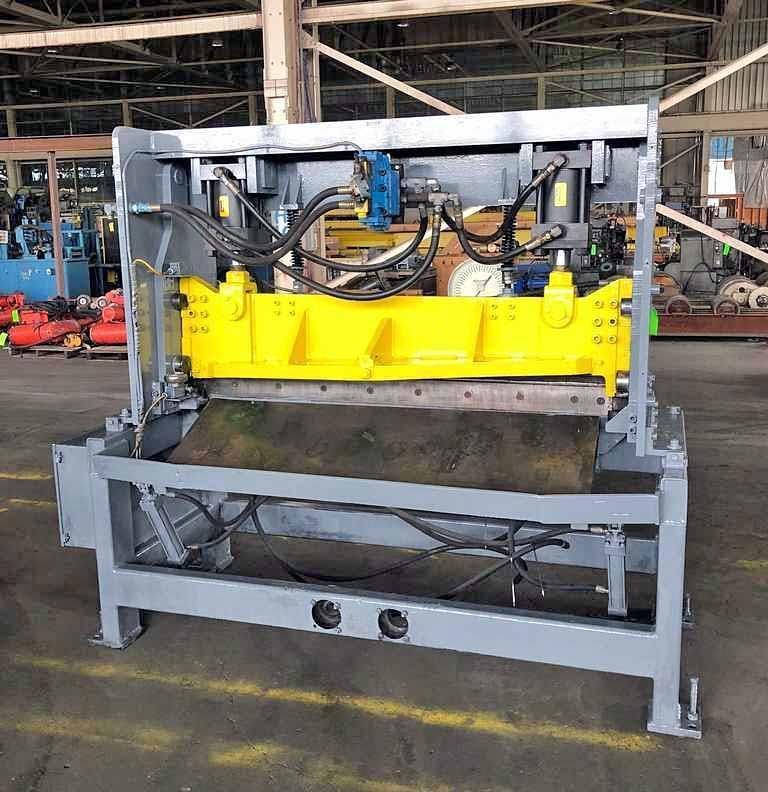

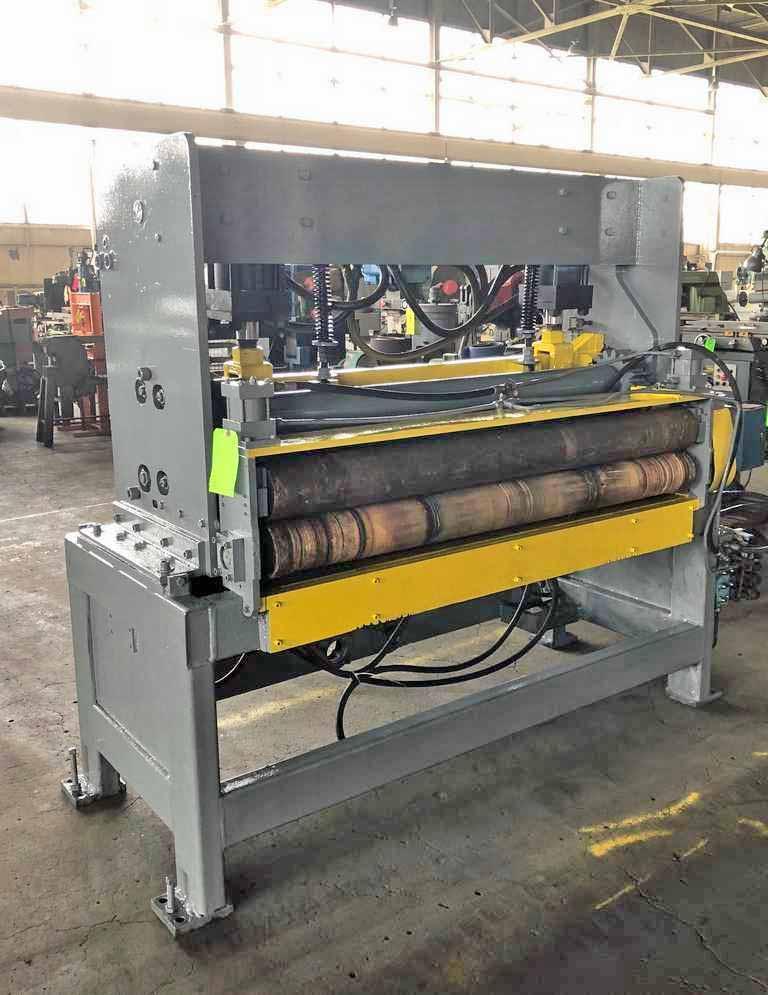

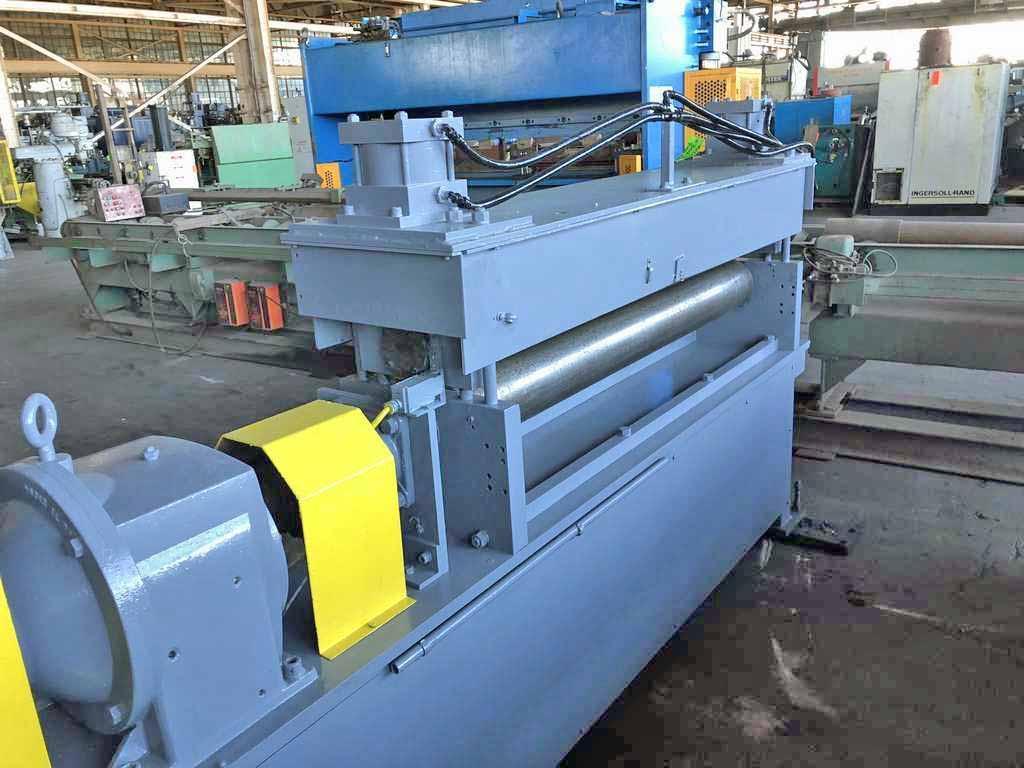

-Crop Shear:
S/N: 28069
Capacity: 0.250" x 60"
Entry Driven Pinch Rolls
    66" Face x 5.5" Dia., Rubber Covered
  Straight Blade Design: 64" Long Blade
Hydraulic Down Cut Via 2 Parker Cylinders
  (2) - 6" Bore Parker Hydraulic Cylinders
  Passline: 40.5"
Overall Size: 98" L x 48" W x 80" High

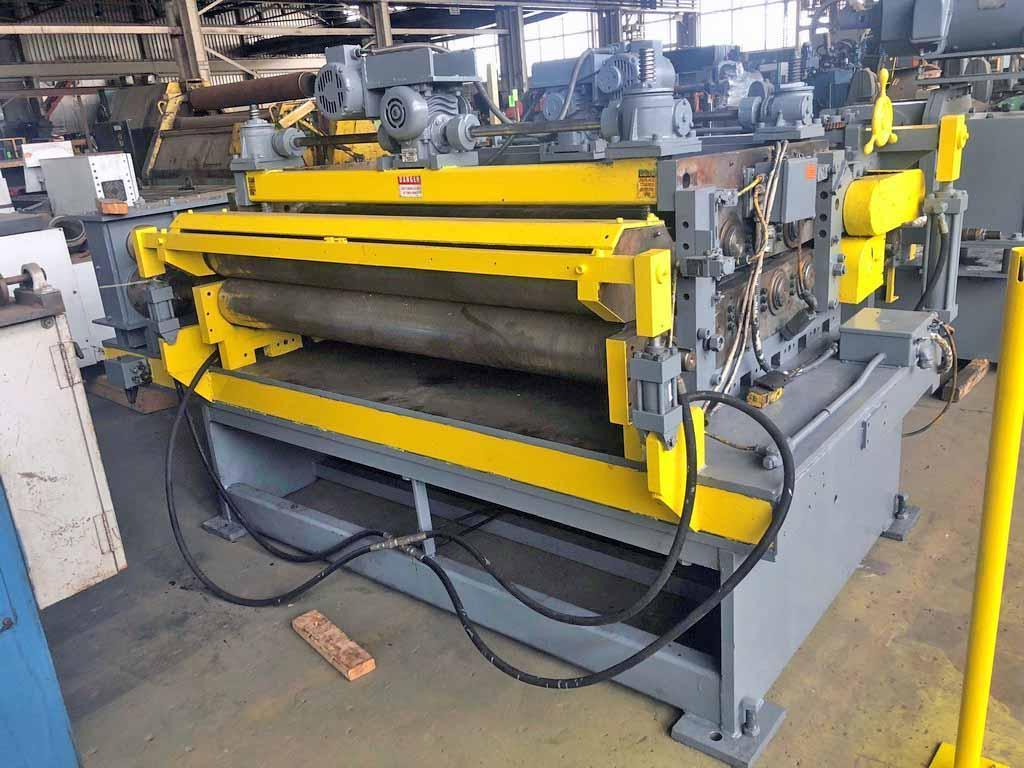

-Heavy Duty Straightener: (Sold)
Model C15-60
S/N: 28061
Capacity: 0.048" - 0.250" Mild Steel
Entry Side Guides
    Manual Adjustment
(4) Entry Driven Coil Breaker Rolls
65" W x 7" Dia.
(7) Work Rolls, 3 over 4 Design
    65" W x 7" Dia.
  (2) Exit Driven Pinch Rolls
    65" W x 7" Dia.
Hydraulic Open / Close on Pinch Rolls
  Vertical Adjustment of Work Rolls by 3 HP AC Motor thru Jackscrews
50 HP DC Drive, Variable Speed
Line Speed: 35 - 100 FPM
Passline: 43"
Overall Dimensions: Flattener 93" L x 124" W x 68" High
                      Drive: 108" L x 36" W

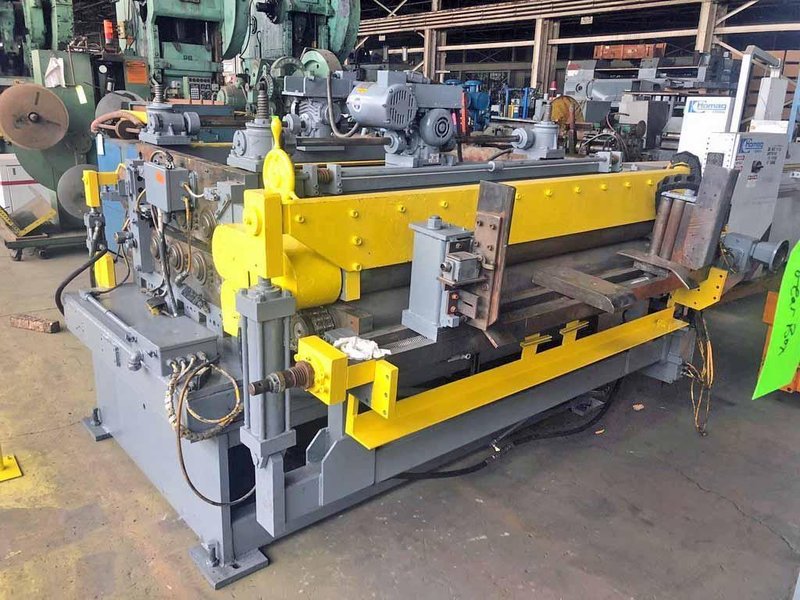

-Lee Shaffer Coil End Joiner:
S/N: 28072
Capacity: 60" x 0.250"
  Welding Platen: 64" Long
  Weld Clamp Station with Dual Weld Clamp Pads
  Weld Carriage Rides on Precision Screw Shaft
    driven by Vari-Speed DC Motor.
Exit Passline Roll
  Controls for:
    Left Weld Clamp Open / Close
    Right Hand Weld Clamp Open / Close
    Platen Index Left / Right
    Torch Jog, Fwd / Run
    Weld
    Emergency Stop
    Rheostat for Torch Feed Speed
  Passline: 42"
  Overall Size: 100" L x 60" W x 65" High
  Note: Less Welding Unit

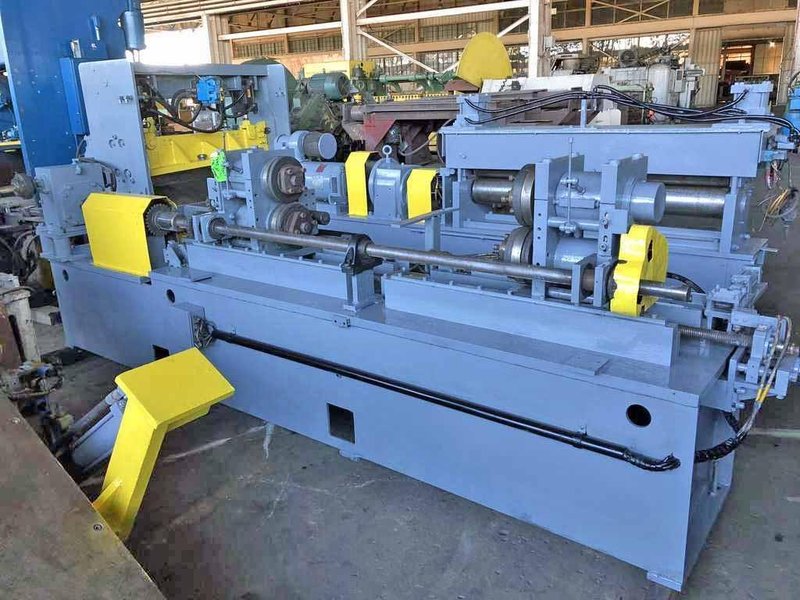

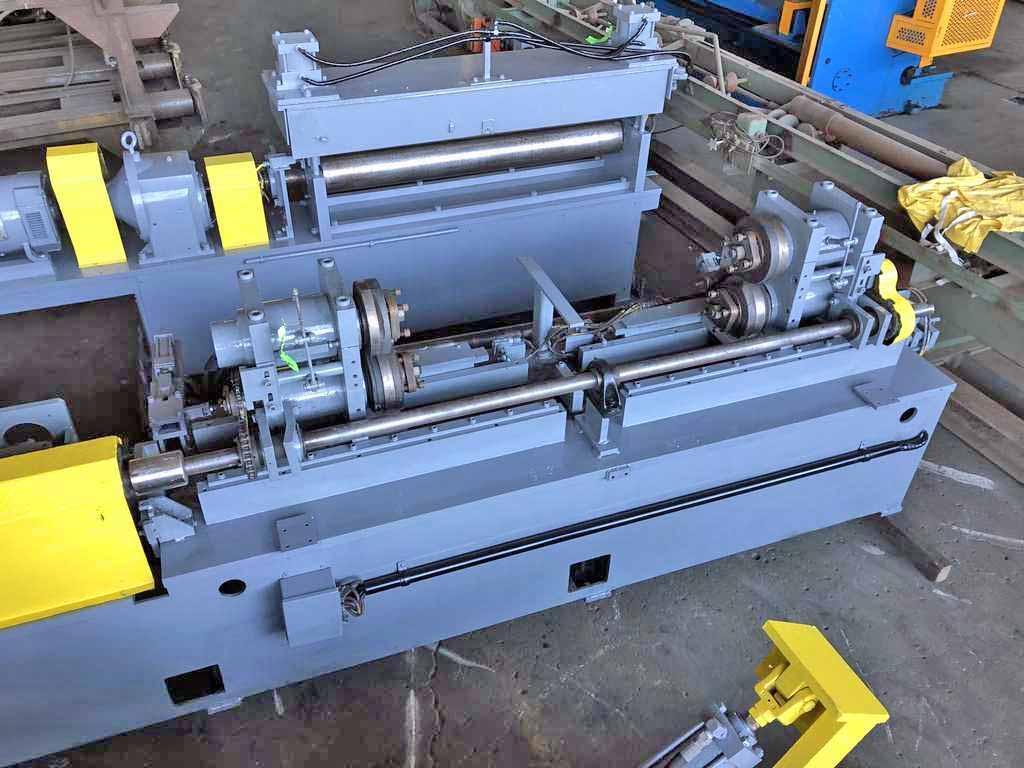

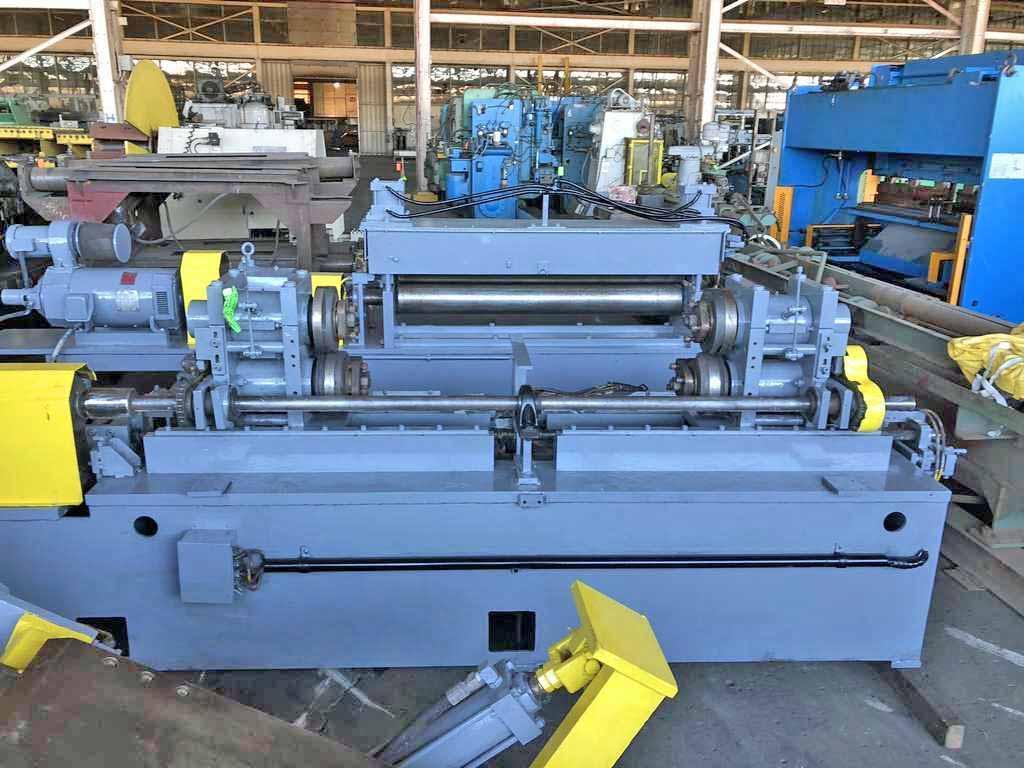

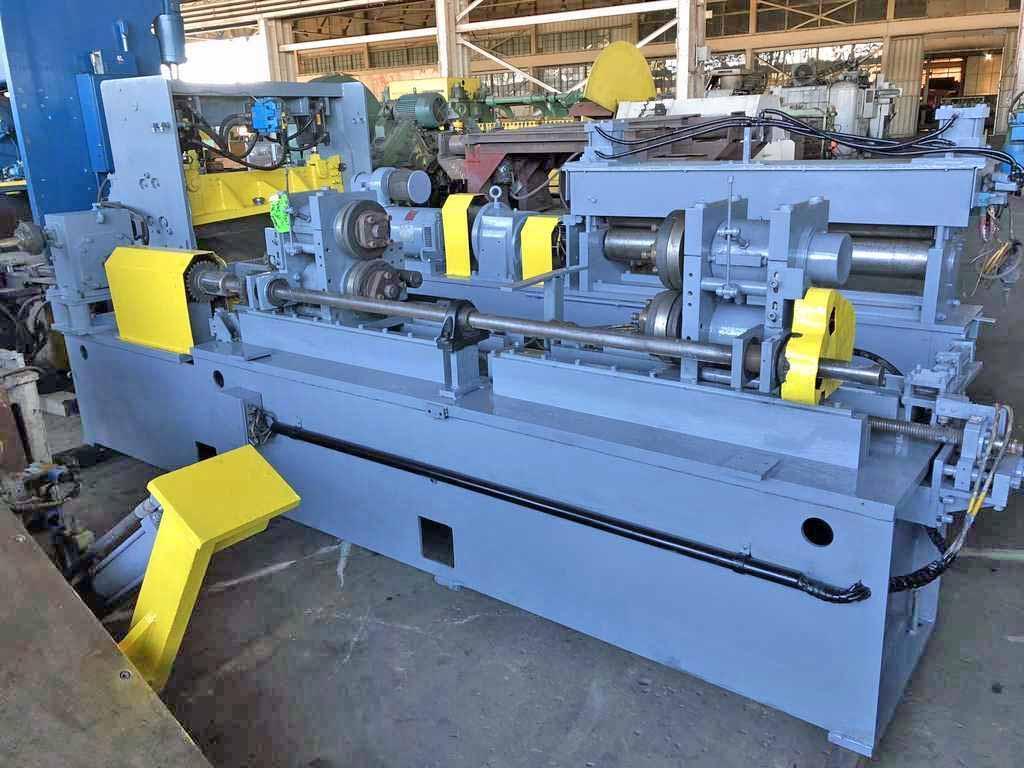

-Double Stub Edge Trimmer:
S/N: 28064
Capacity: 60" x 0.250"
  Double-Stub Design
  64" Max. Width
  Powered Width Adjustment
Entry Edge Guides on (1) Unit
  Passline: 42"
  Less Drive Motors
  Overall Size: 165" L x 58" W x 52" High

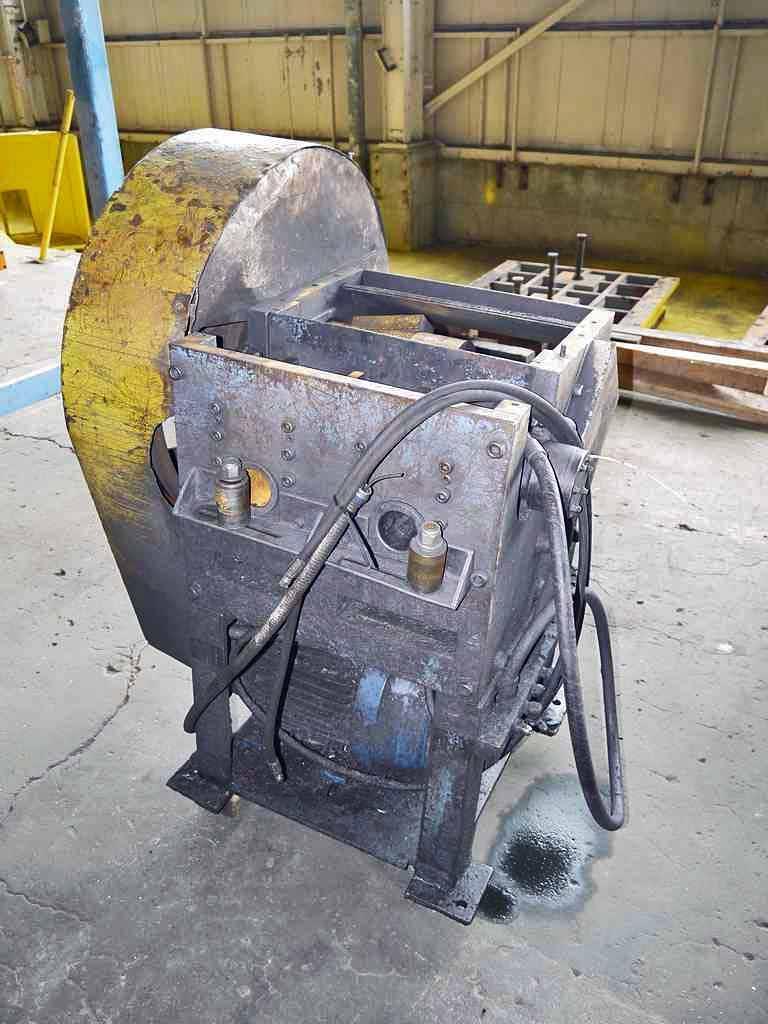

-Scrap Chopper:
S/N: 28066
Capacity: 0.250" Mild Steel
  (2) "Sets" of Entry Driven Pinch Rolls
    Each "Set" individually driven by Hydraulic Motors
  Chopper Blades: (2) 6" L x 2" W x 1.125" Thick Blades per Side
  Approx. 2" Max. Entry Strip Width
  AC Drive Motor
  Overall Size: 40" L x 36" Wide W x 52" High

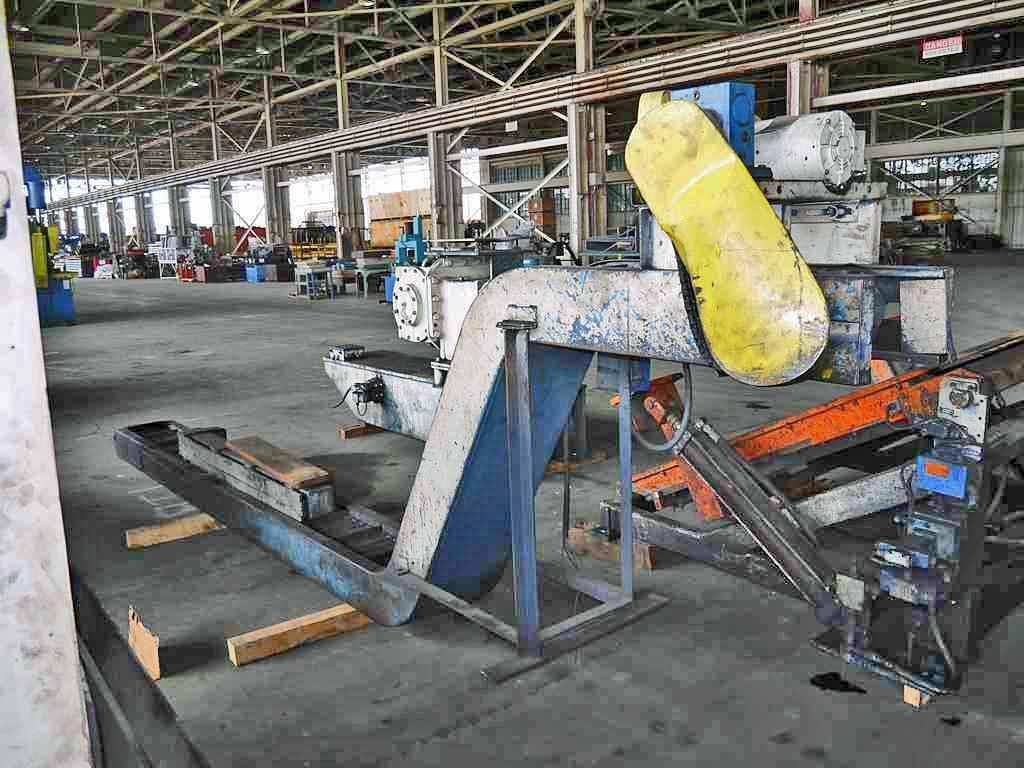

-Gooseneck Scrap Conveyor:
S/N: 28070
11" Wide Conveyor Belt
  AC Motor Driven
  Overall Size: 231" L x 28" W x 74" High
