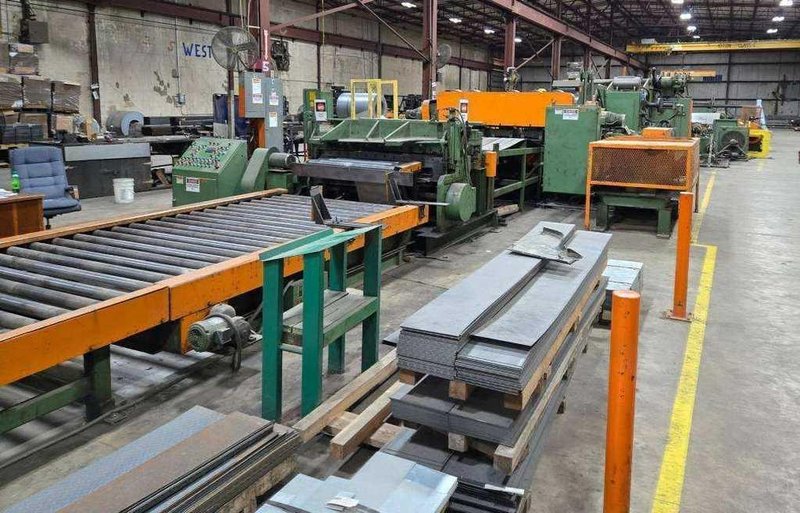

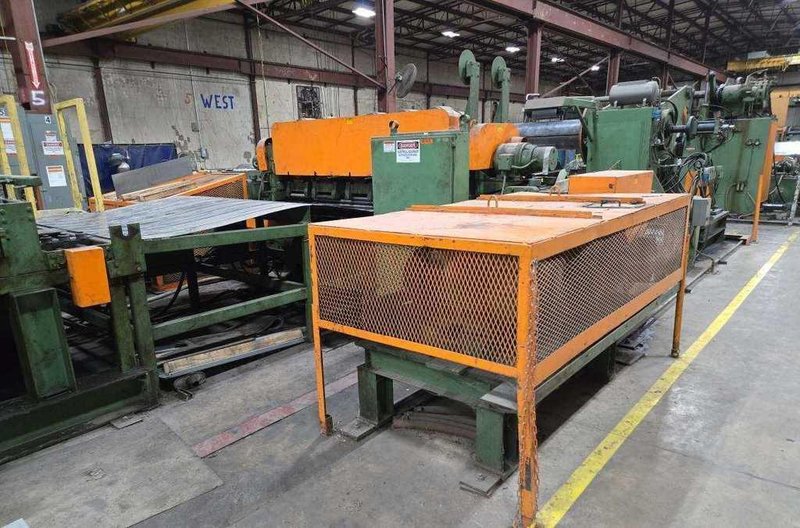

72" x 0.105" x 25,000# ROWE CUT TO LENGTH LINE STOCK# 3854
Brand
Category
Type
Model
Not specified
Stock #
3854
Year
Not specified
Condition
Very Good
Location
Ohio
|
Consisting of the following:

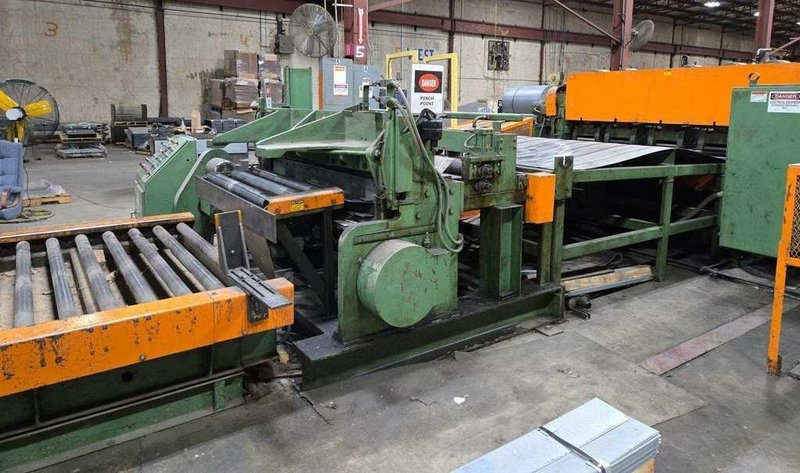

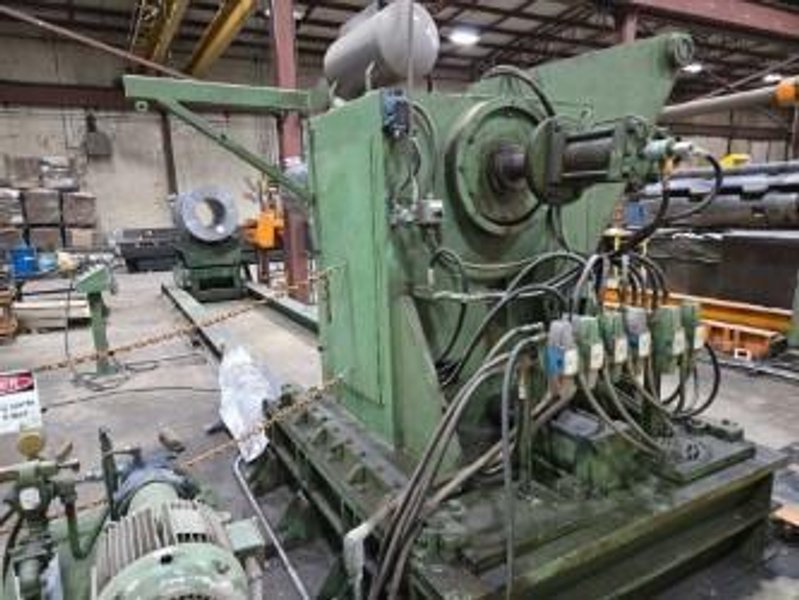

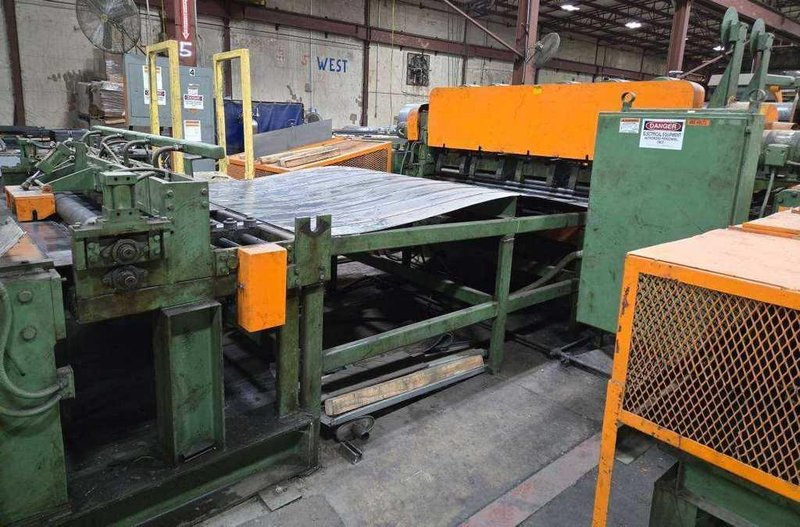

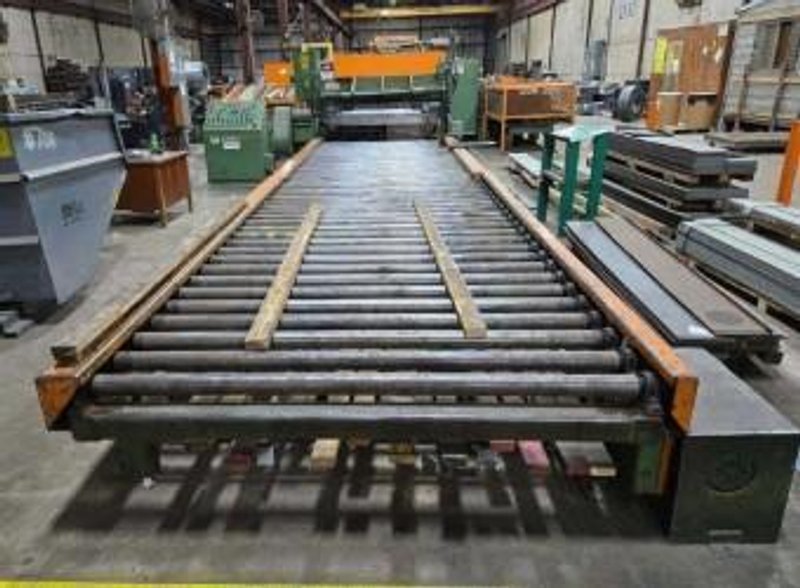

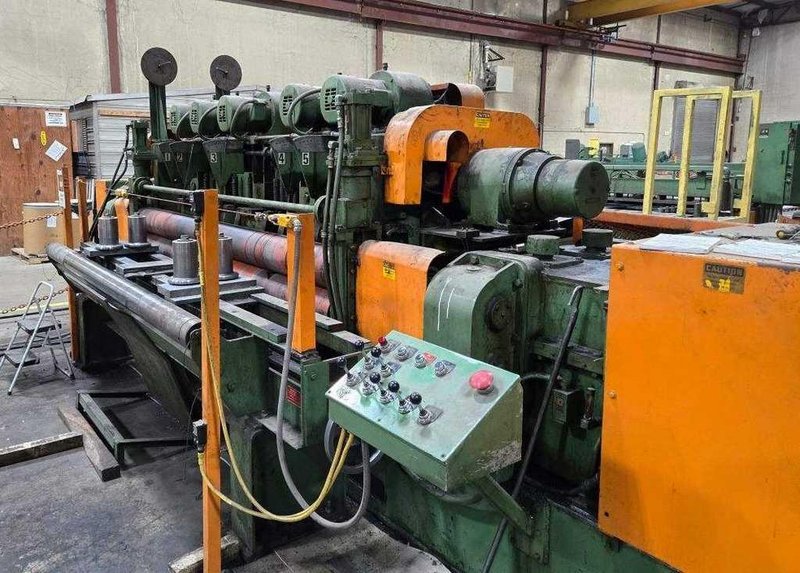

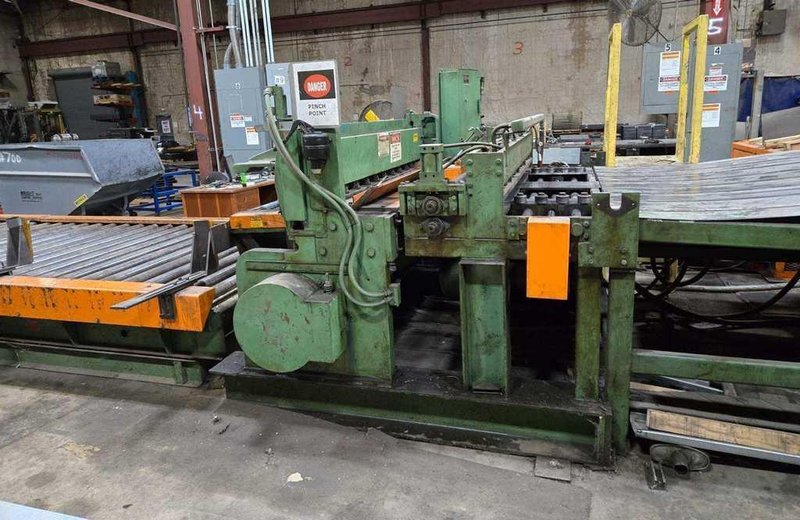

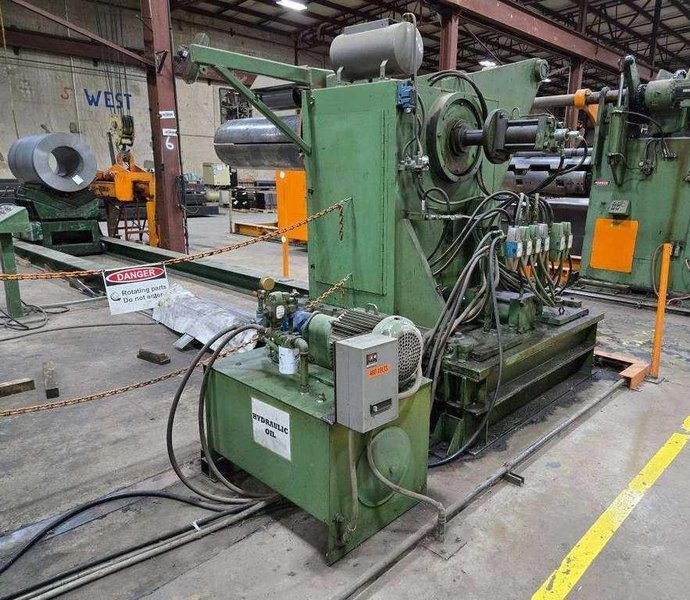

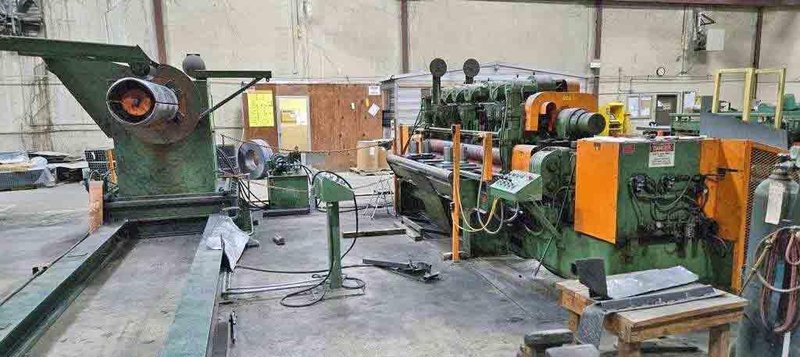

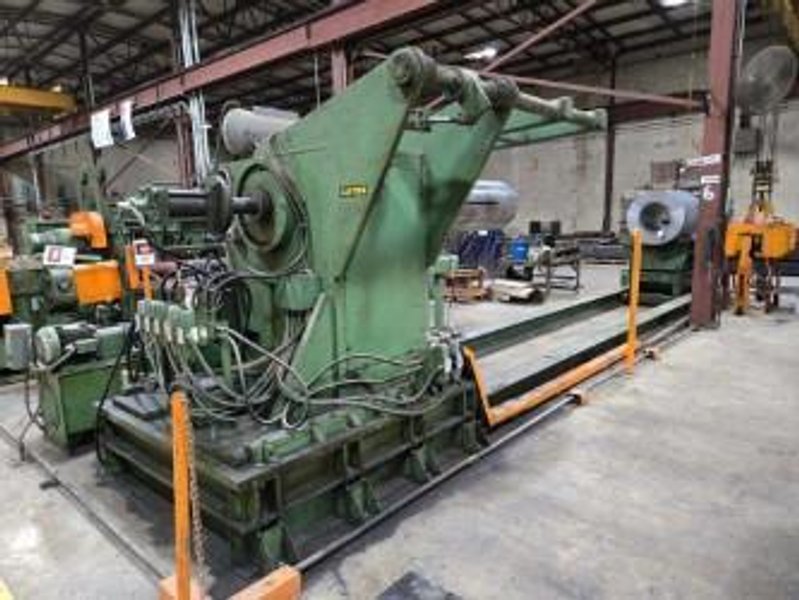

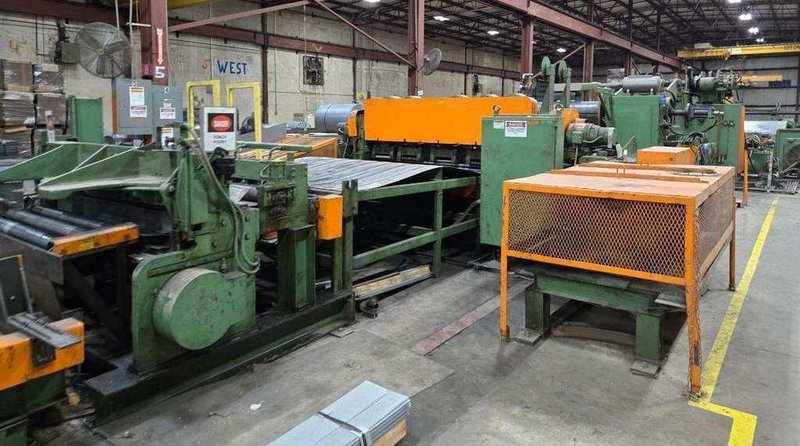

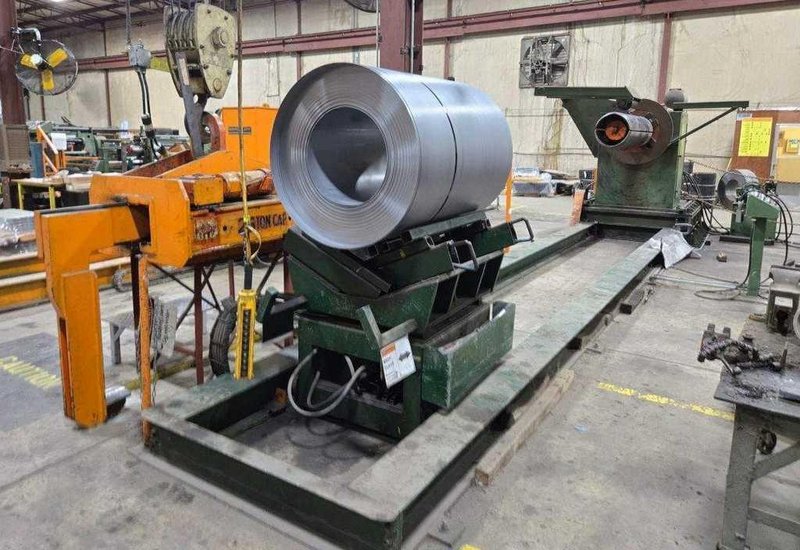

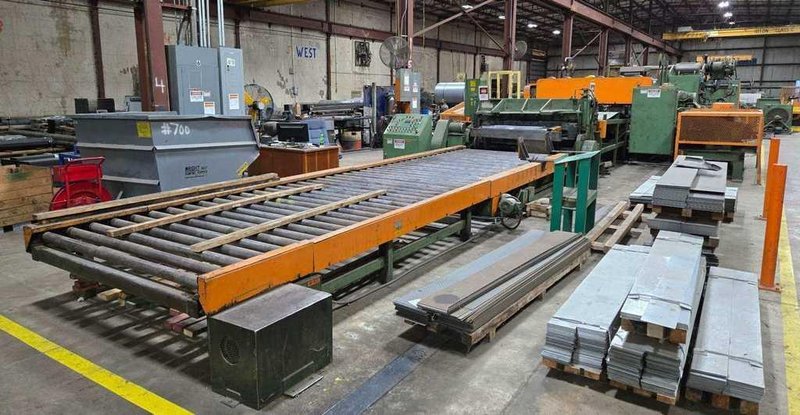

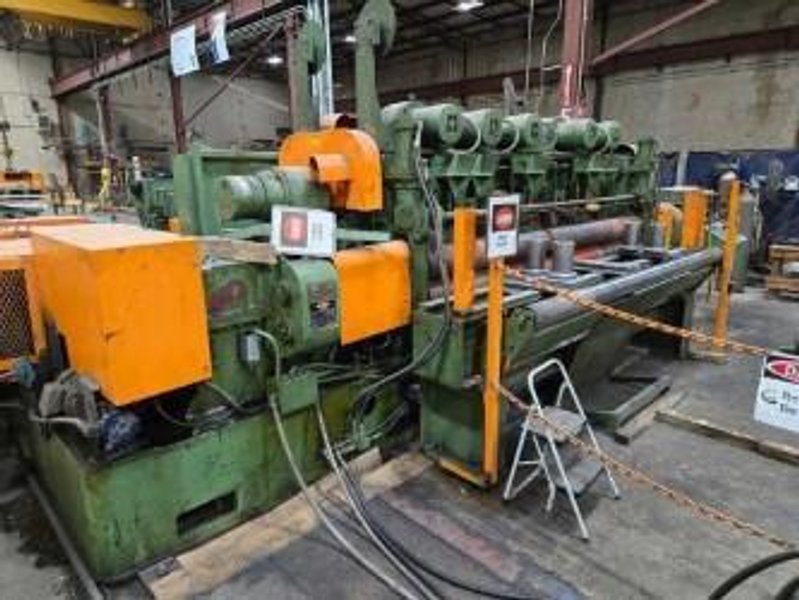

-Coil Car: Above Ground 25,000# Capacity -Uncoiler: 25,000# Capacity 68" Face Mandrel Hydraulic Expansion Holddown Roll Sliding Base Brake -Leveler: Mckay 15 Rolls (8 over 7) 2.50" Dia. x 92" Face Rolls Entry Passline Rolls Entry Side Guides Entry Driven Pinch Rolls 5 Flights of Motorized Backups DC Motor Drive thru Reducer Belt Drive to Leveler -Hump Table: -Driven Pinch Rolls: Entry Side Guides -Shear: Wysong Model 1272 S/N: P3-517 Capacity: 72" Wide x 0.105" (Mild Steel) Strokes Per Min.: 60 -Exit Powered Conveyor: 72" Wide x 10 Ft Long Scissors Lift Raise/Lower -Exit Powered Conveyor: 72" Wide x 14 Ft Long -Line Direction: Left to Right |
