ROWE - HERR VOSS 60" X .135" X 40,000LB CTL LINE
Brand
Category
Type
Model
Not specified
Stock #
116820
Year
Not specified
Condition
Used
Location
Not specified
|
ROWE - HERR VOSS 60" X .135" X 40,000LB CTL LINE
SPECIFICATIONS:
MAKE: ROWE / HERR VOSS
MATERIAL WIDTH: 12" - 60"
MATERIAL THICKNESS: .020" - .135"
WEIGHT CAPACITY: 40,000LB
COIL ID: 20"
COIL OD: 72"
SHEET MAX LENGTH :16'
DIRECTION: LEFT TO RIGHT

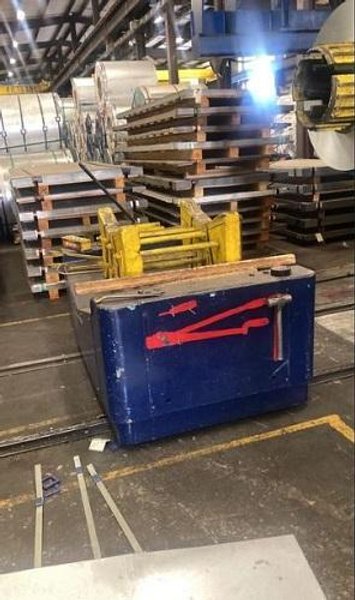

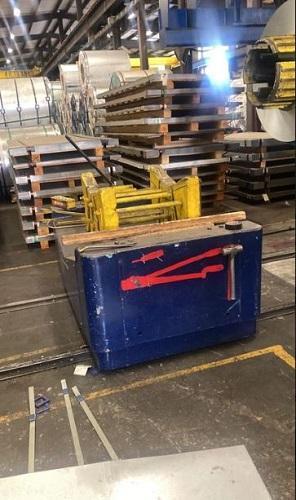

ENTRY COIL CAR
FLOOR STANDING V-TYPE DESIGN
POWERED LIFT & TRAVERSE

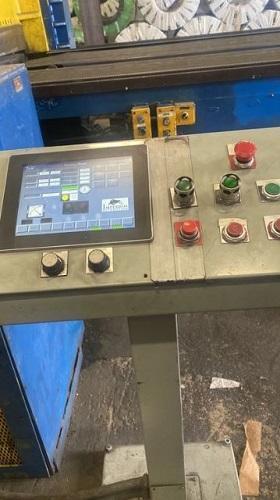

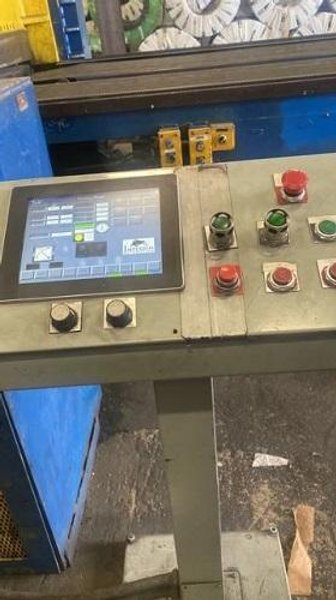

CONTROL PANEL

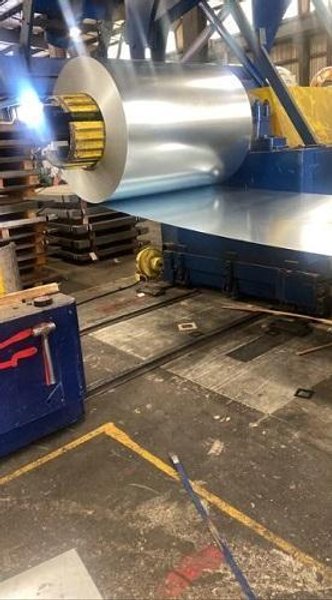

MANDREL UNCOILER
4-LEAF MANDREL
POWERED HOLD-DOWN ROLL
MOTORIZED EXPANSION
FEED-UP MOTOR
SLIDING BASE
COIL STRAIGHTENER
DRIVEN PINCH ROLLS
SIX (6) ADJUSTABLE WORK ROLLS
DC MOTOR DRIVE

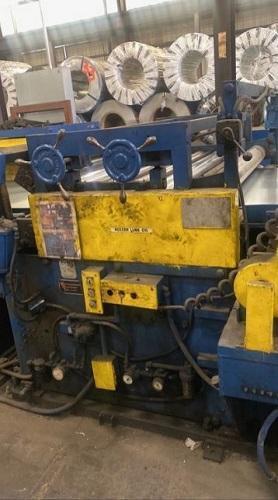

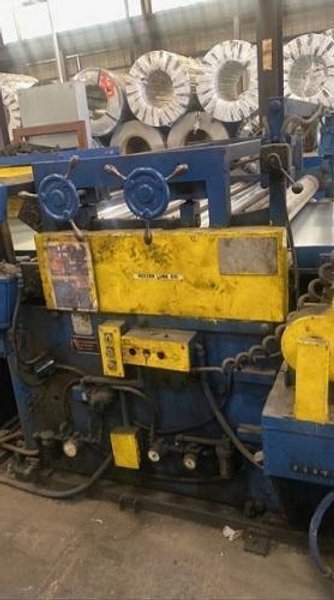

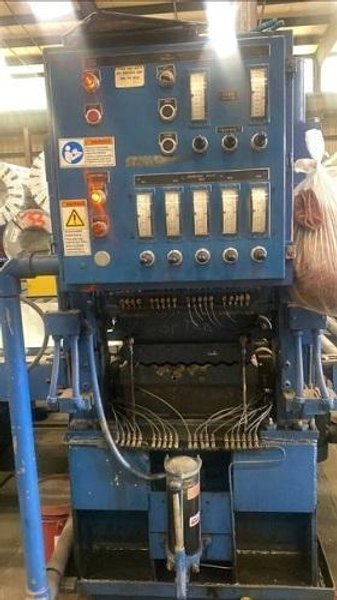

HERR-VOSS 6-HI PRECISION LEVELER
WORK ROLL WIDTH: 66"
WORK ROLL DIAMETER: 1.75"
NUMBER OF WORK ROLLS: 19
NUMBER OF BACK UP FLIGHTS: 7
POWERED WORK ROLLS ADJUSTMENT
125HP DC MOTOR DRIVE
ELECTRICAL CONTROLS
FEED-UP UNIT

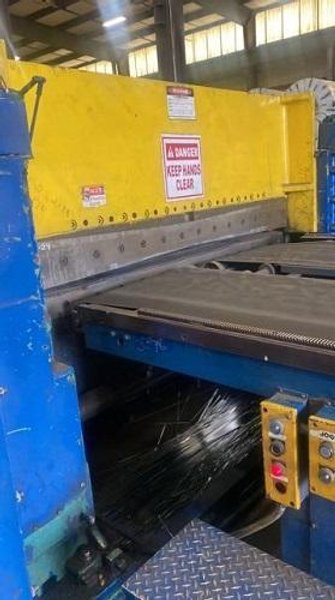

WYSONG MECHANICAL SHEAR
HIGH SPEED: 300 SPM
BOW TIE BLADE DESIGN
AC MOTOR DRIVE
AIR CLUTCH & BRAKE

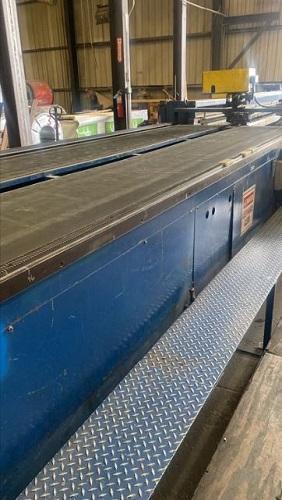

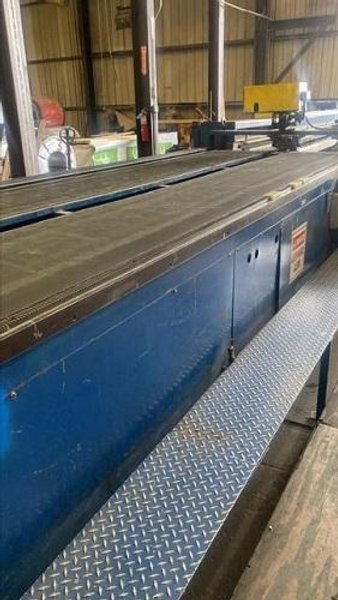

RUN-OUT BELT CONVEYOR
POSITIVE STOP MEASURING UNIT

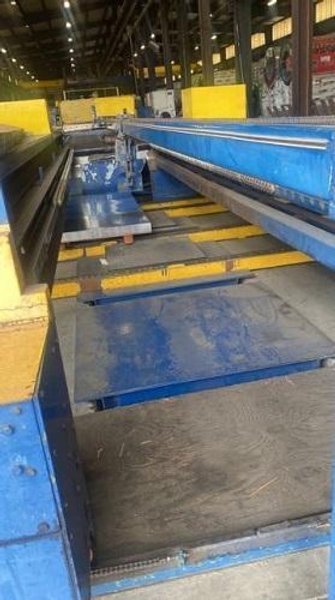

SHEET STACKER
ROLLER ARM HYDRAULIC FLIPPER ARMS
MOTORIZED WIDTH ADJUSTMENT
POWERED LIFT TABLE
DRIVEN CONVEYOR ROLLS
POWERED RUN-OUT CONVEYOR
ELECTRICS, HYDRAULICS, CONTROLS
|
