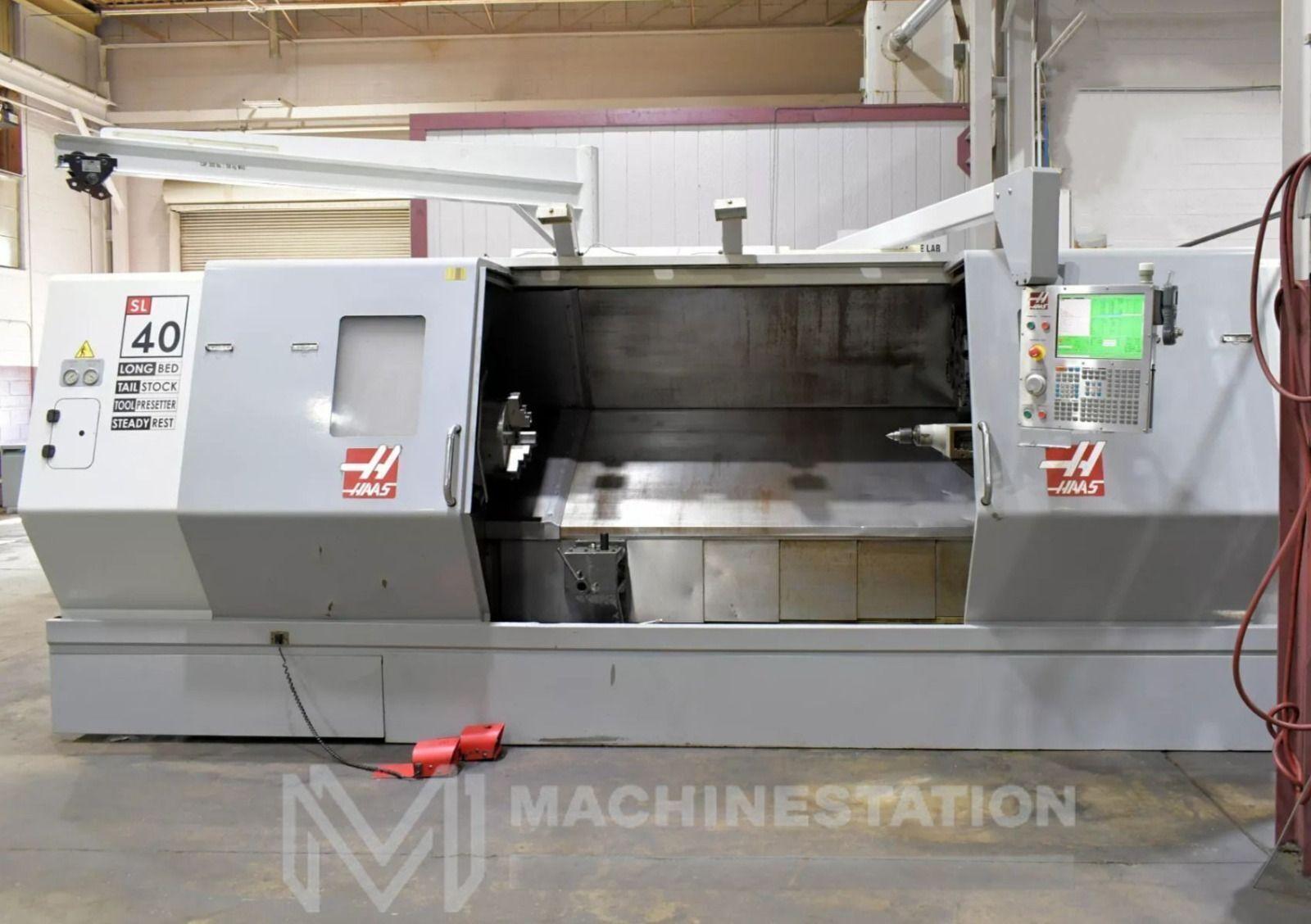

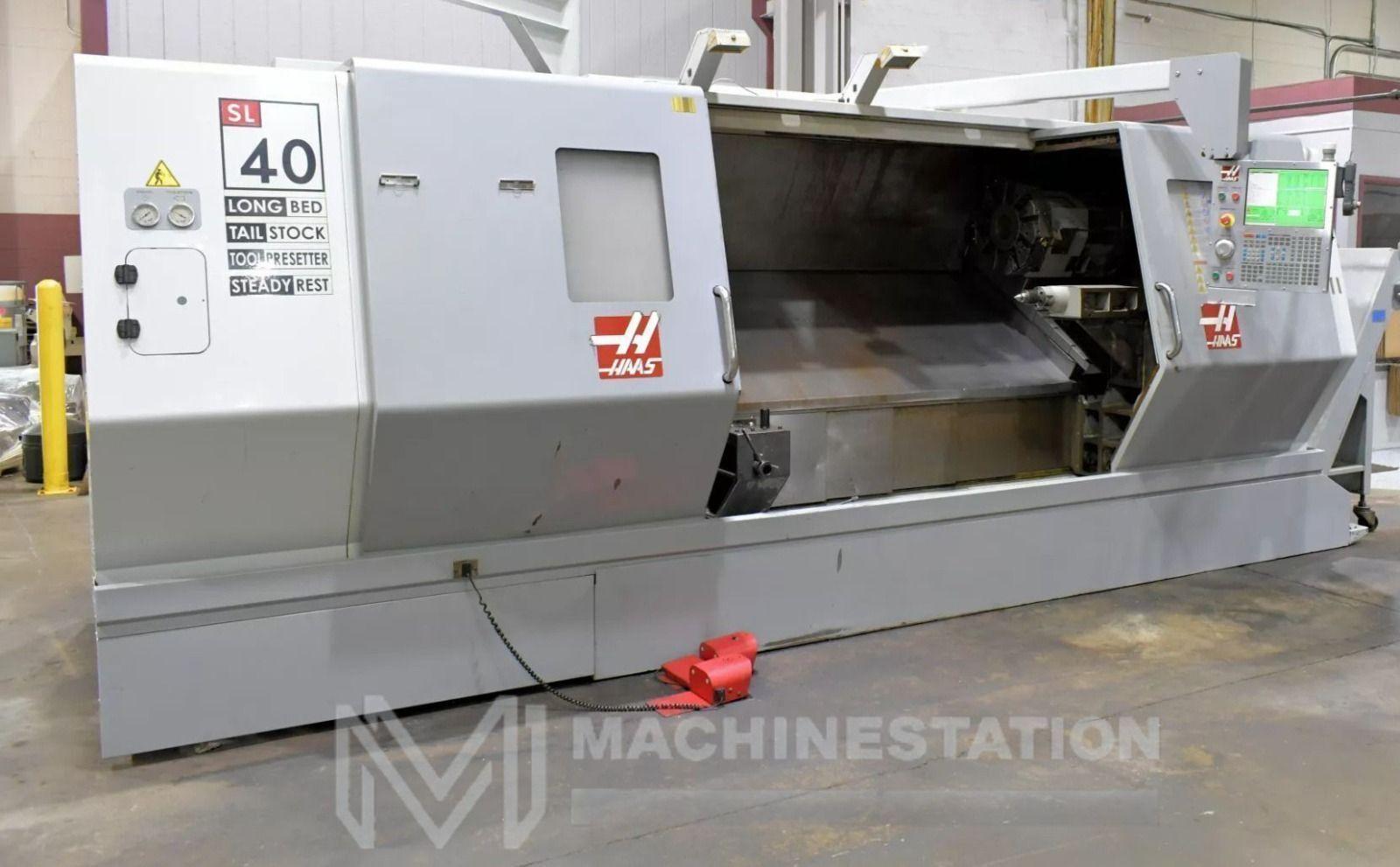

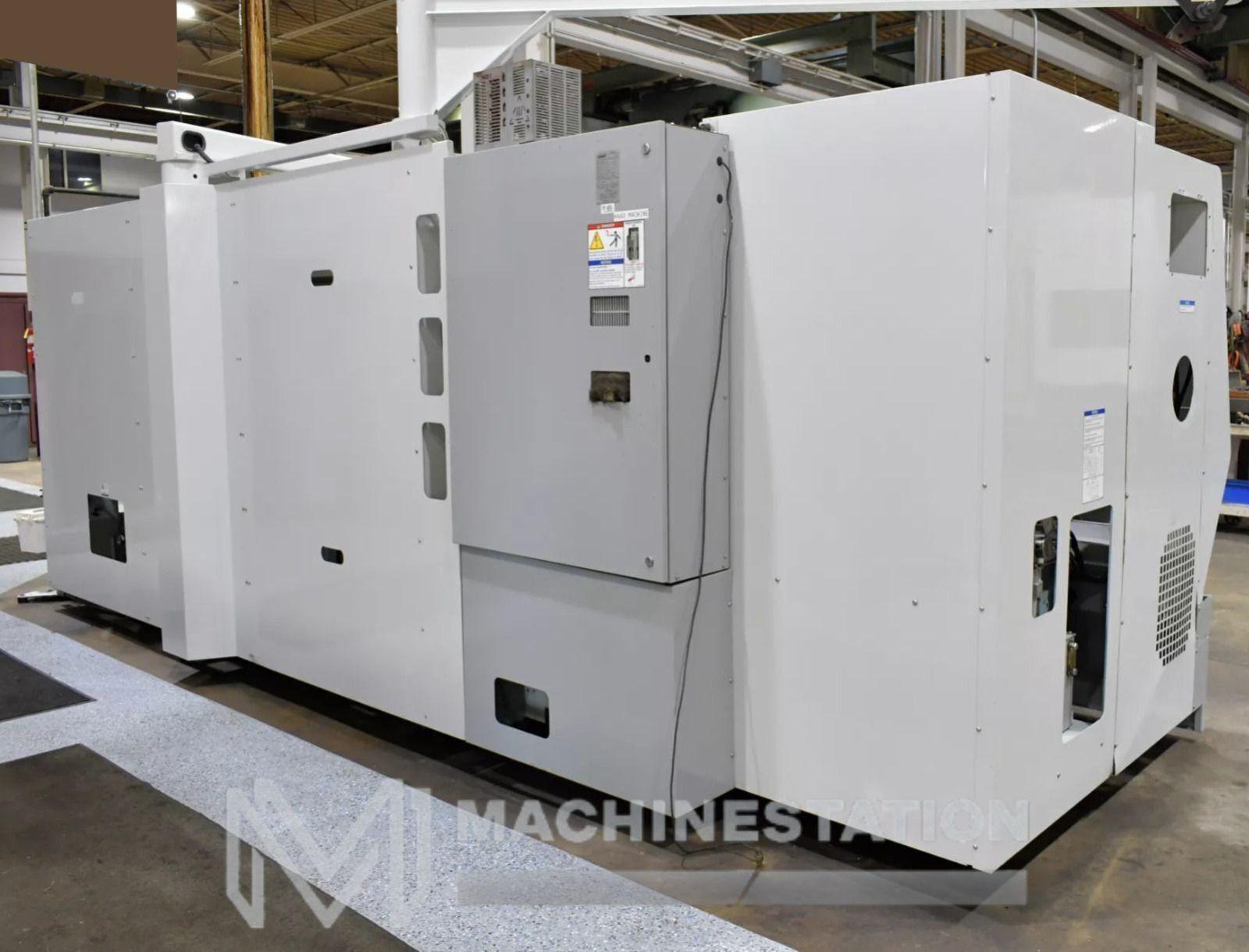

Haas SL-40L CNC Turning Center – Long Bed Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SL-40L
Stock #
113651
Year
2008
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: SL-40L
Year: 2008
Equipped With:

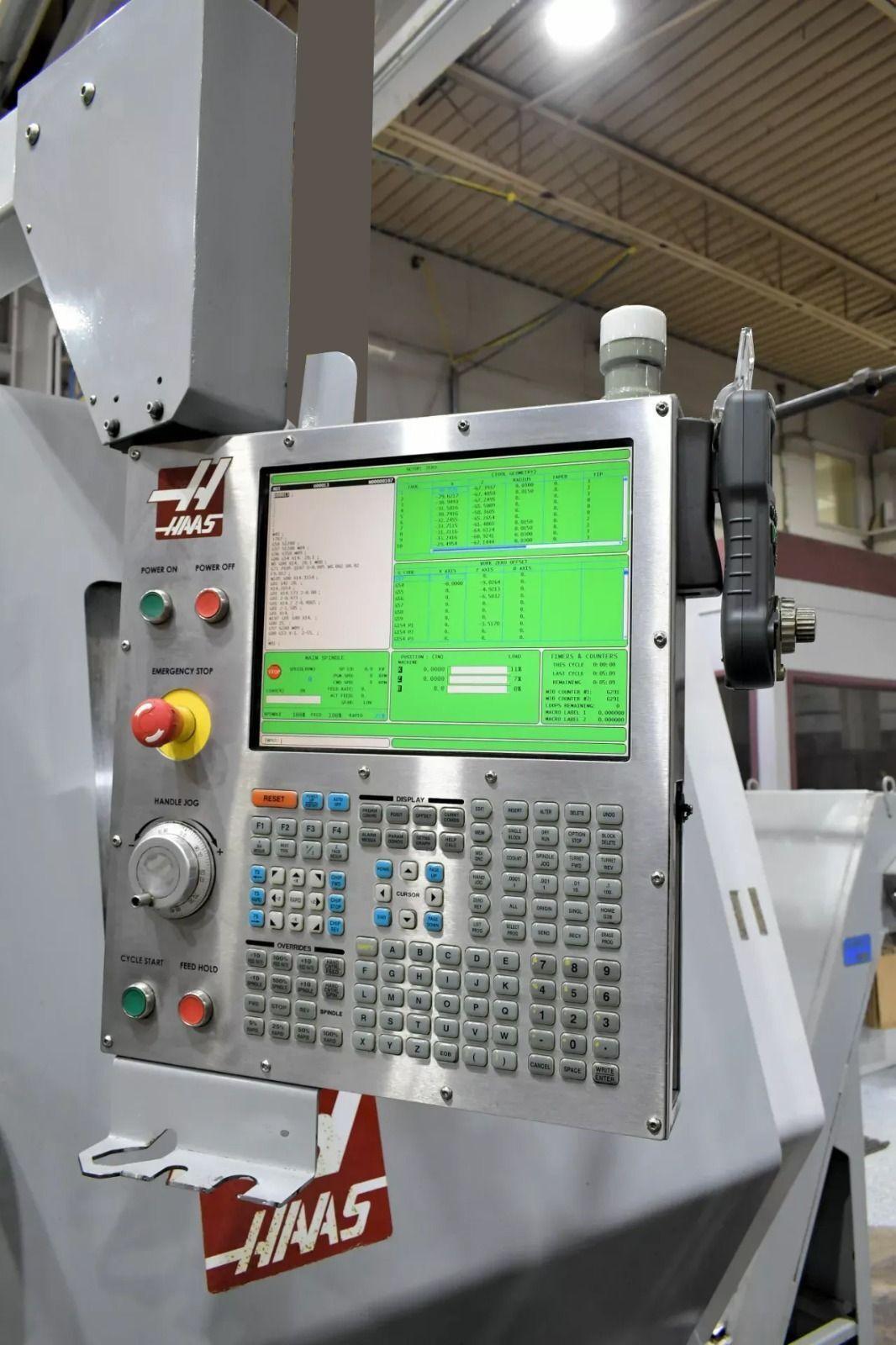

Haas CNC Control
80″ Long Bed

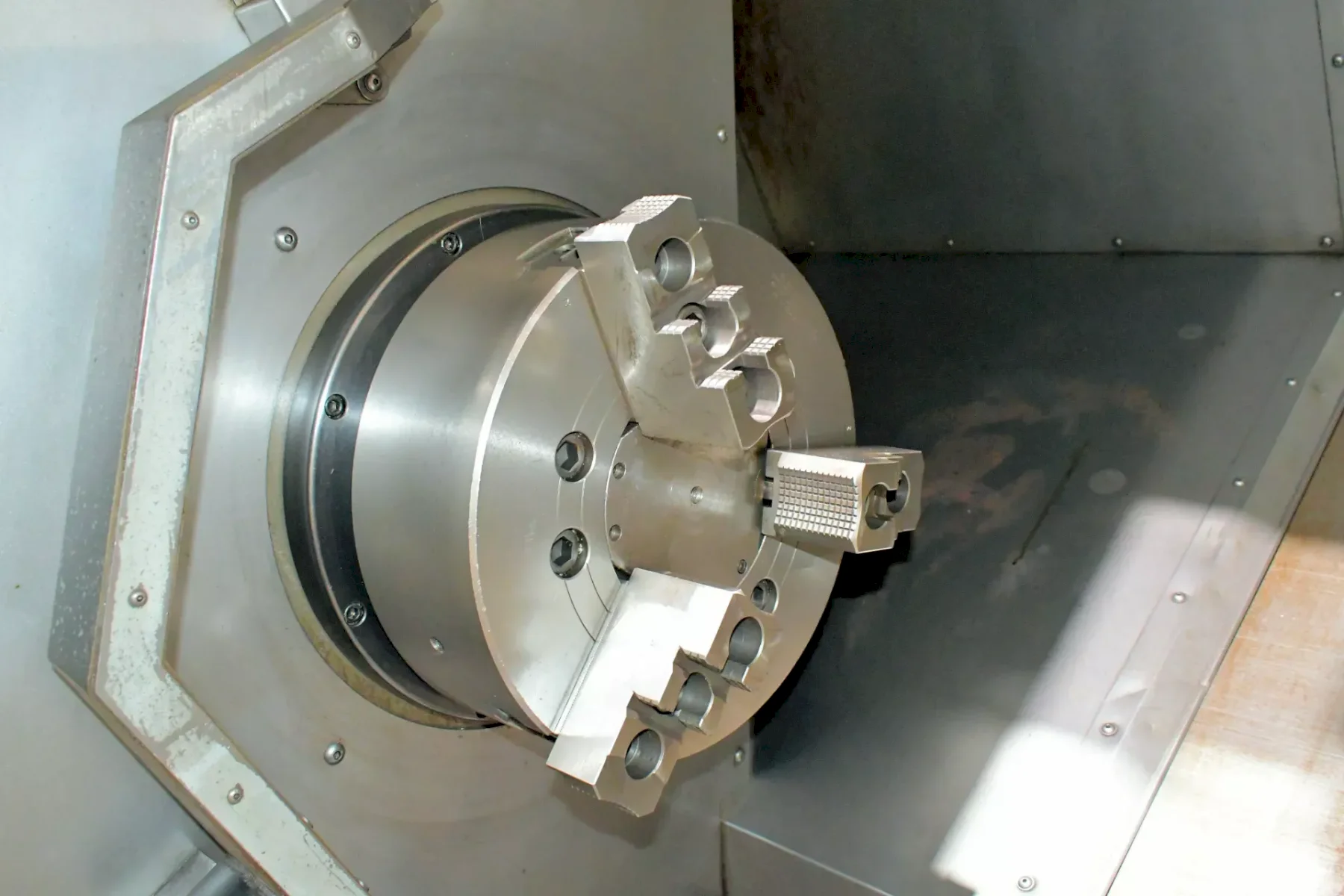

15″ 3-Jaw Chuck
A2-8 Gear Head Spindle

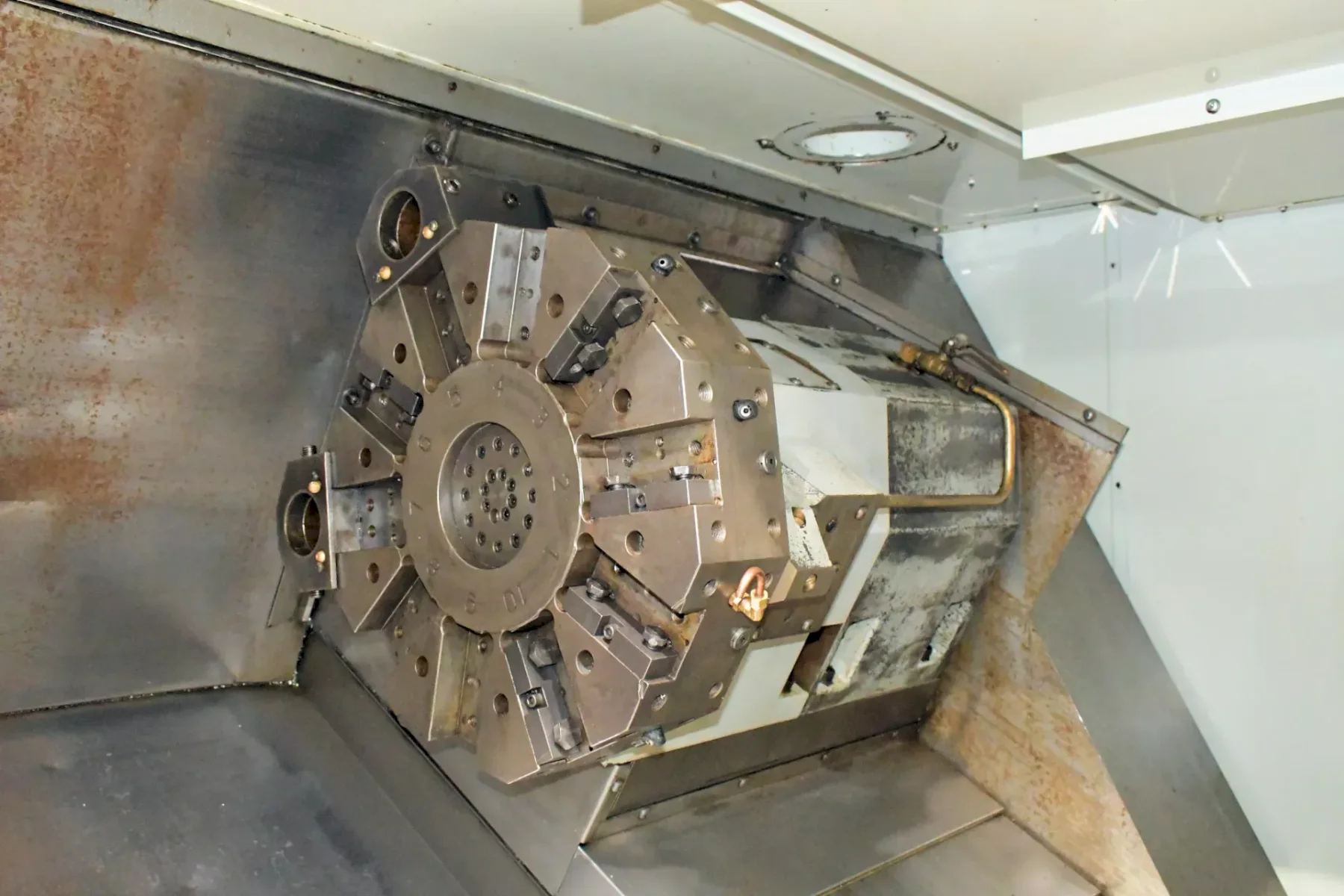

10 Station Automatic Turret
Steady Rest Provision
Tool Presetter

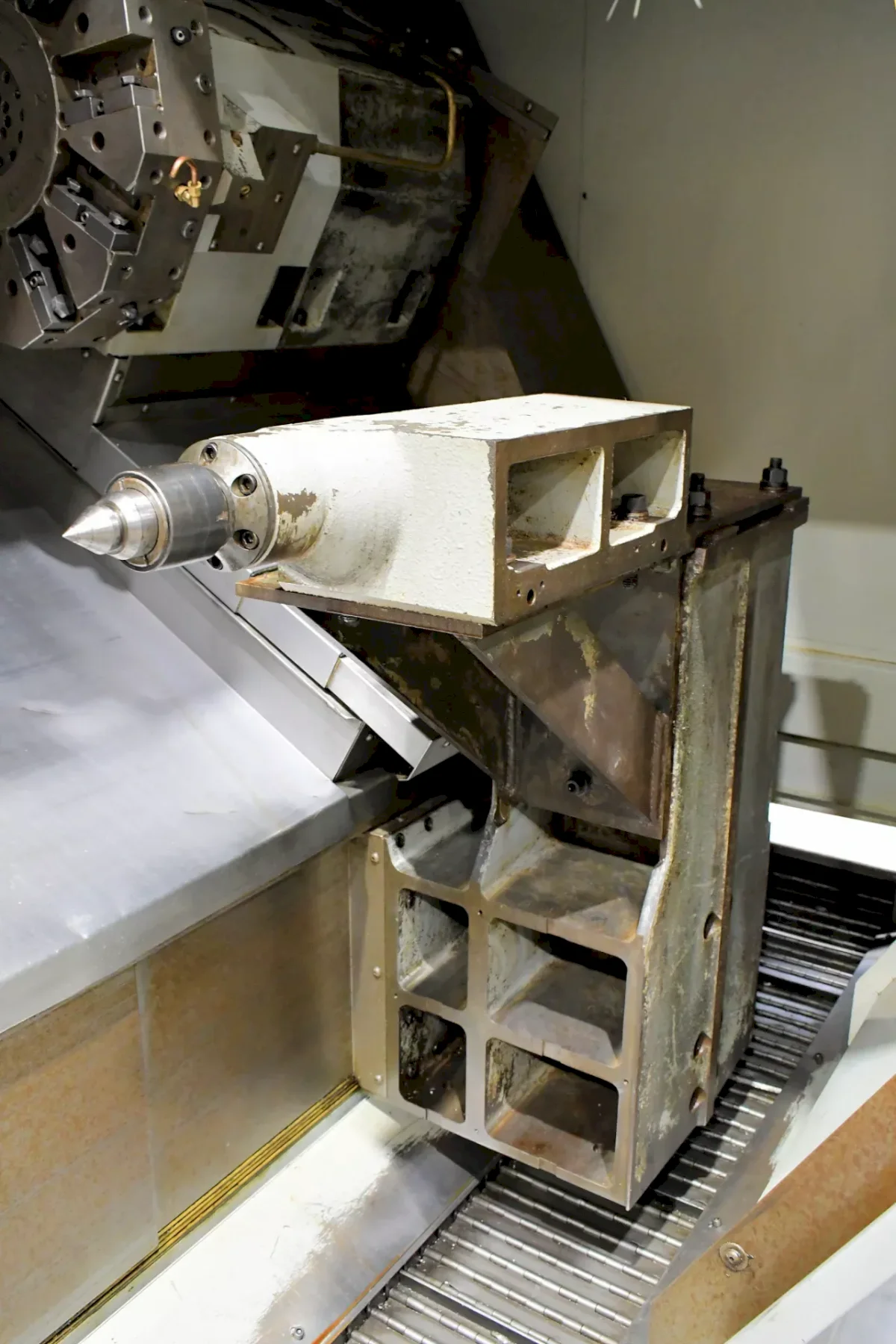

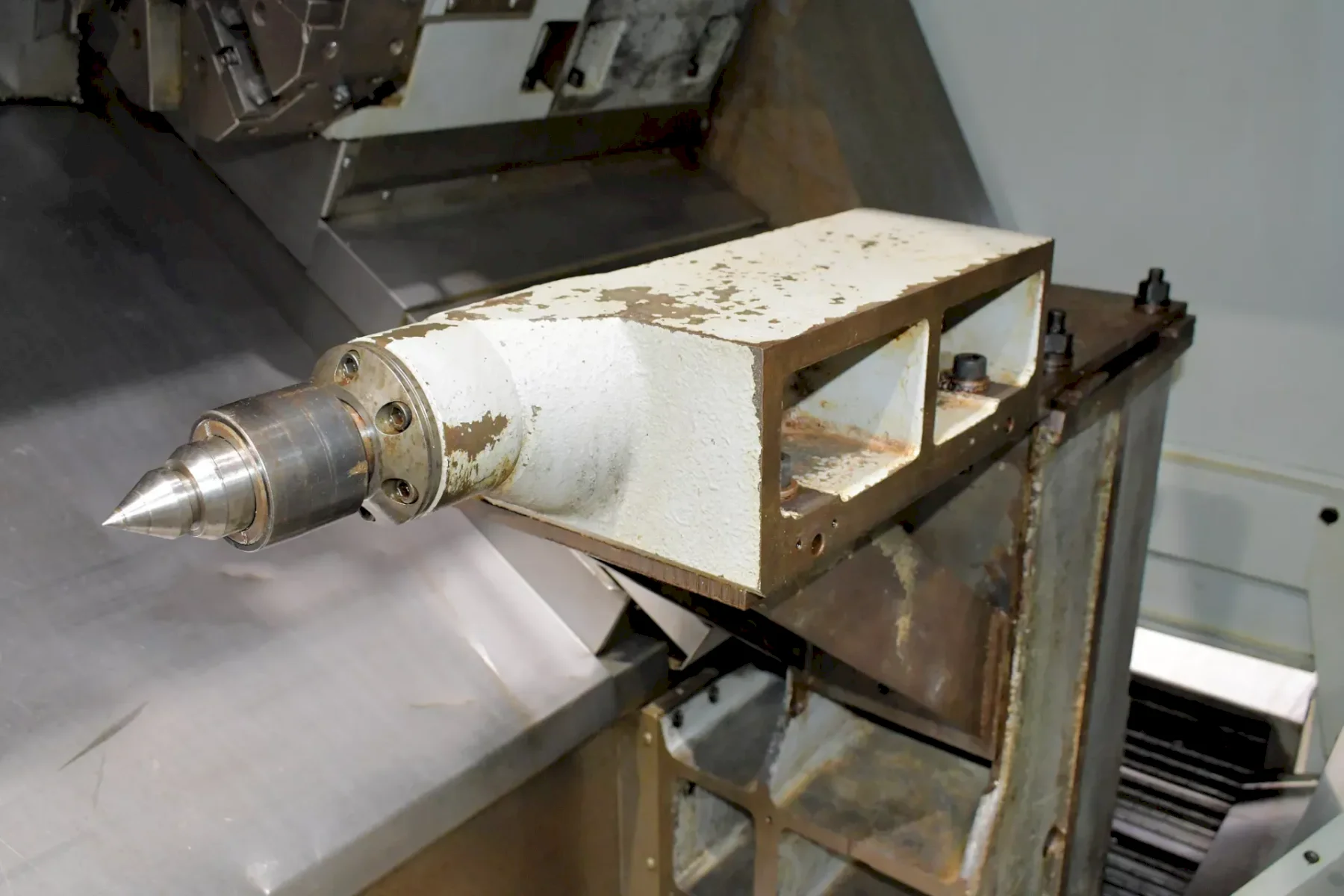

Programmable Tailstock

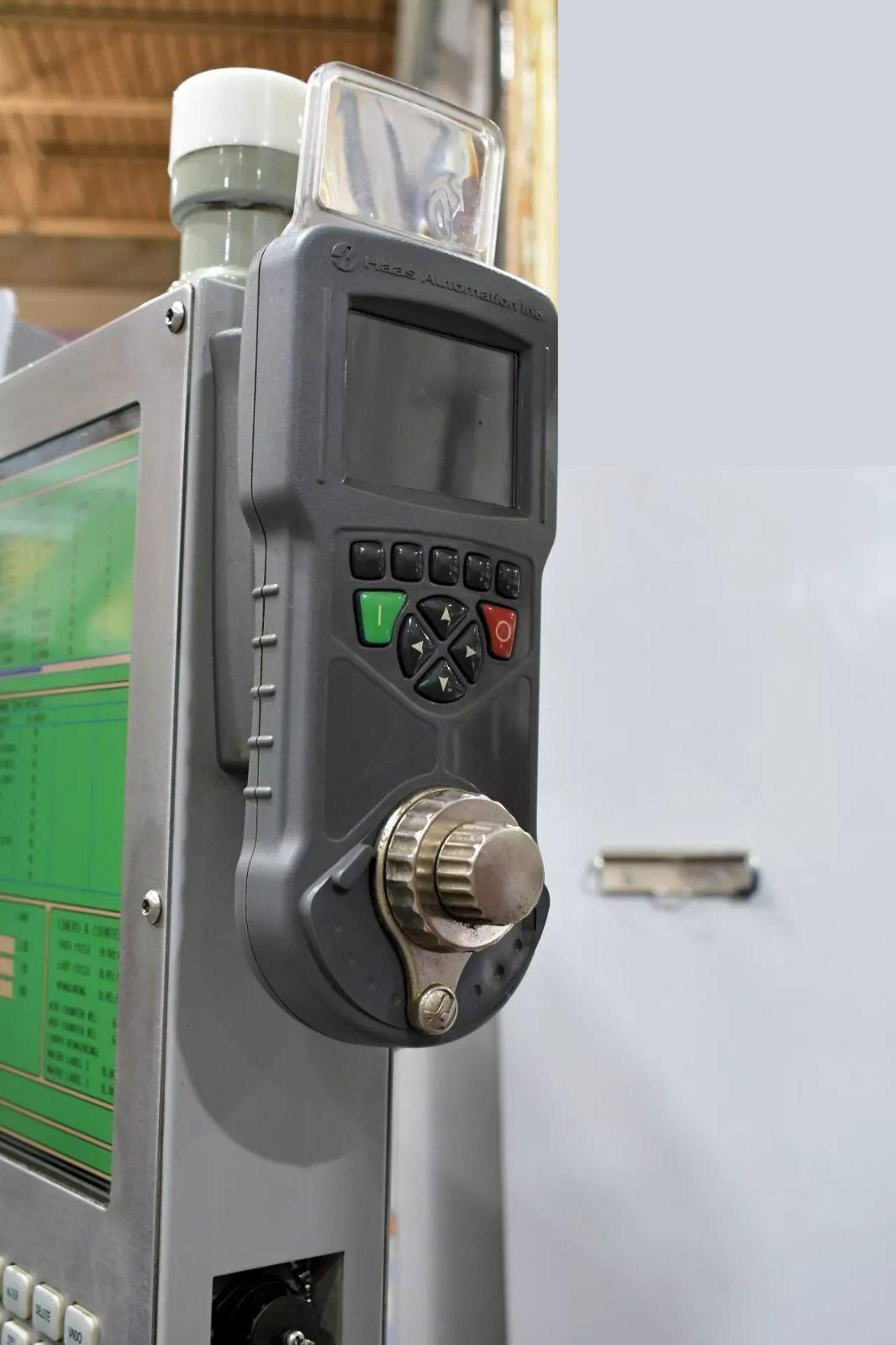

Remote Jog Handle
USB Port

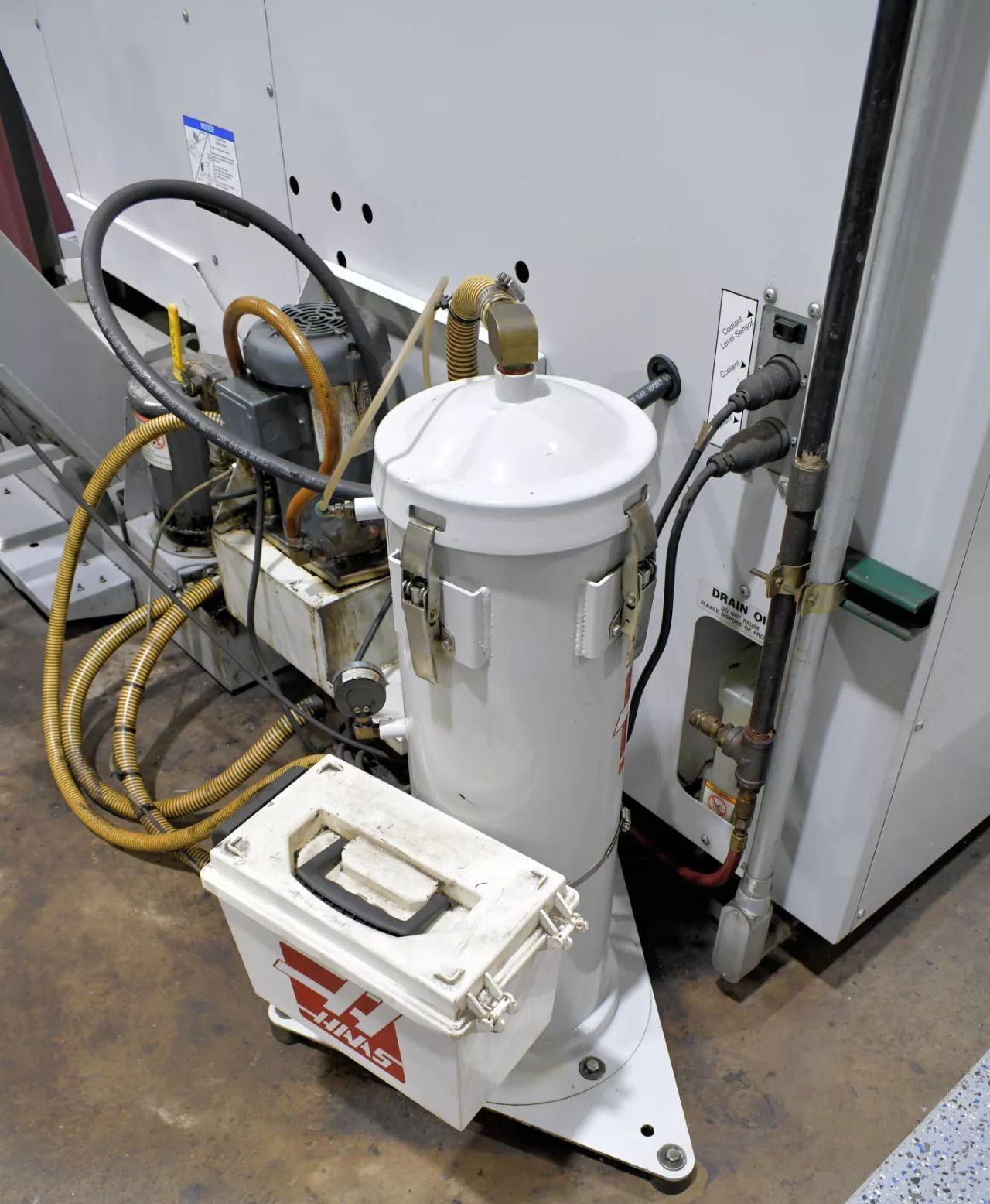

Auxiliary Filtration System
High Pressure Coolant – 300 psi
Coolant Tank

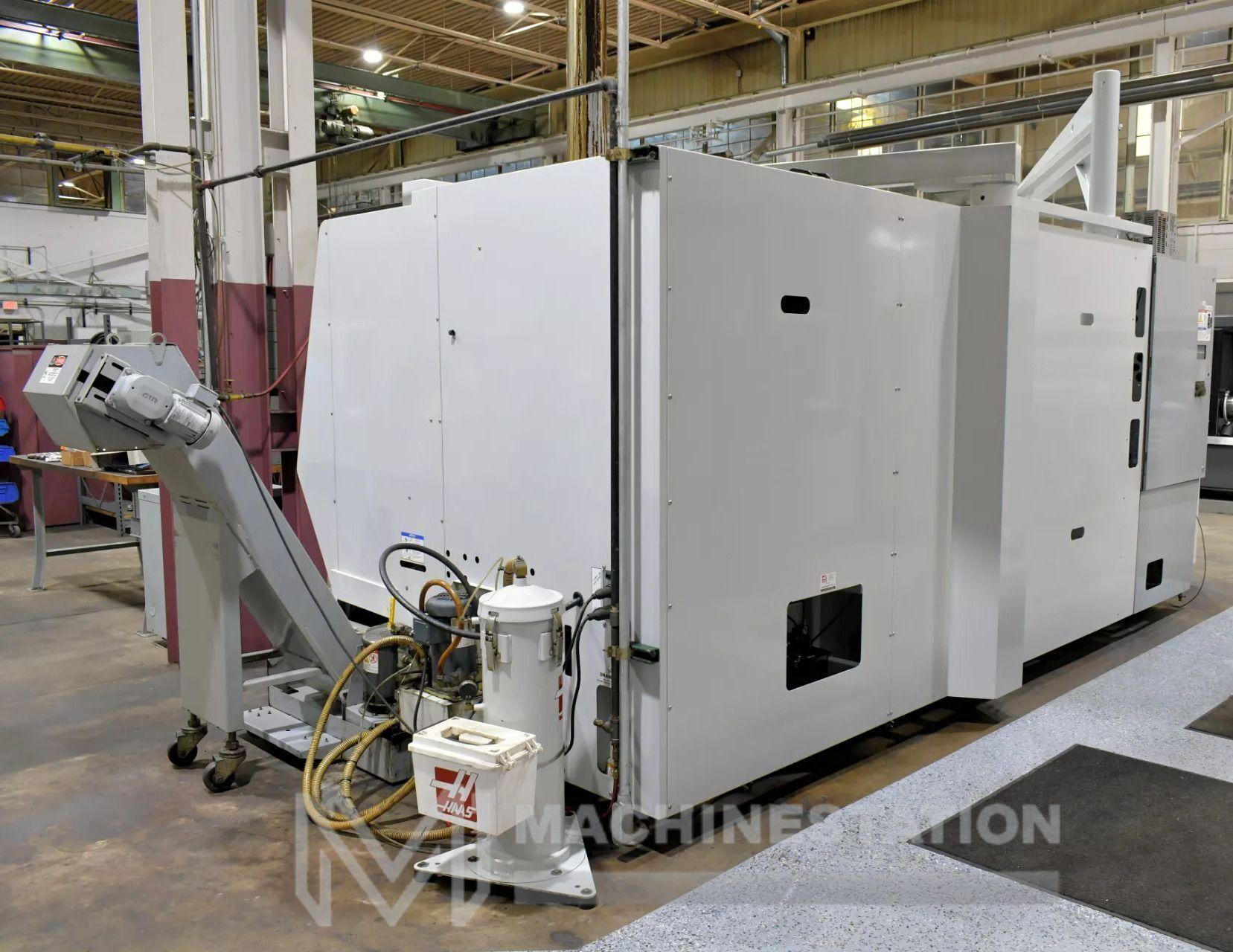

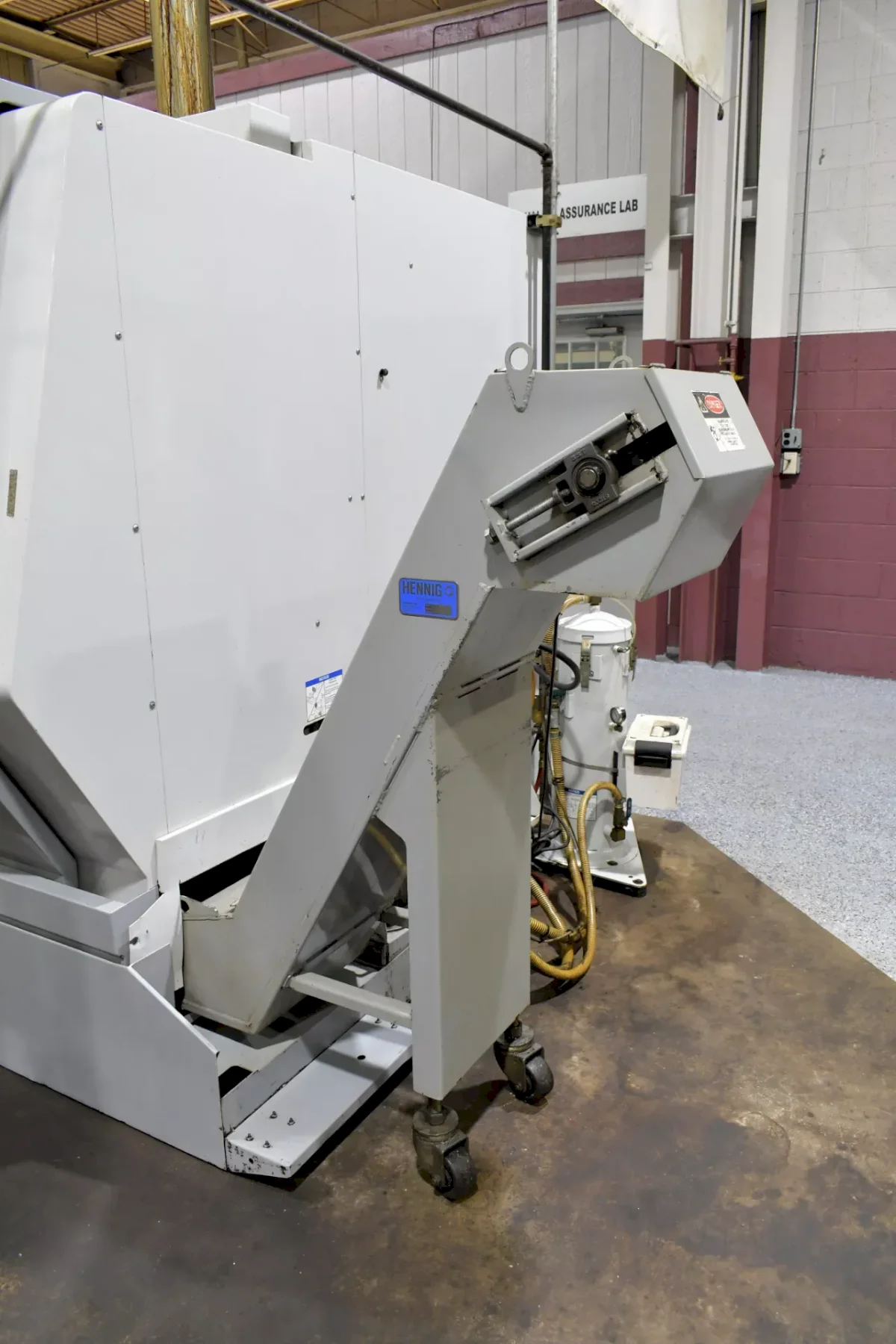

Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter : 25.5″
Max Swing Over Bed : 34.5″
Max Swing Over Cross Slide : 25.5″
Max Swing Over Tailstock : 25.5″
Max Turning Length: 80.0″
Max Bar Capacity : 4.0″
Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 80.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 320 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
General:
Power Source: AC 208v – 220v / 3-Phase / 60 Hz
Machine Dimensions: 254″ x 95″ x 105″ High
Machine Weight: 29,900 lbs Approx.
No files or videos to display
