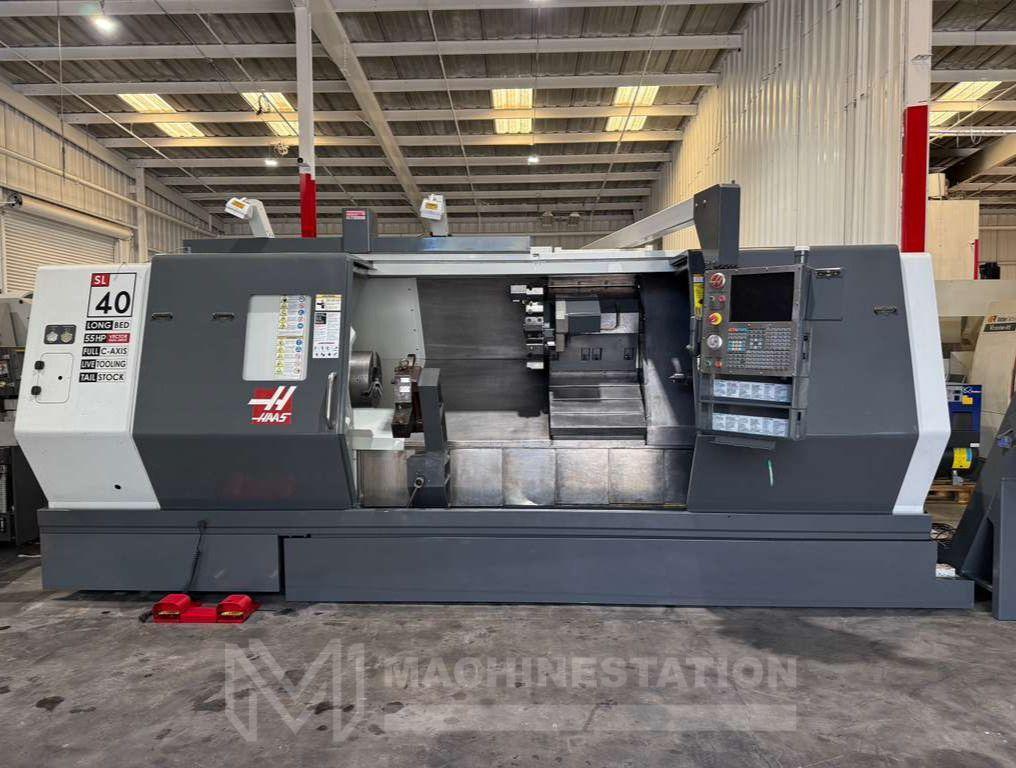

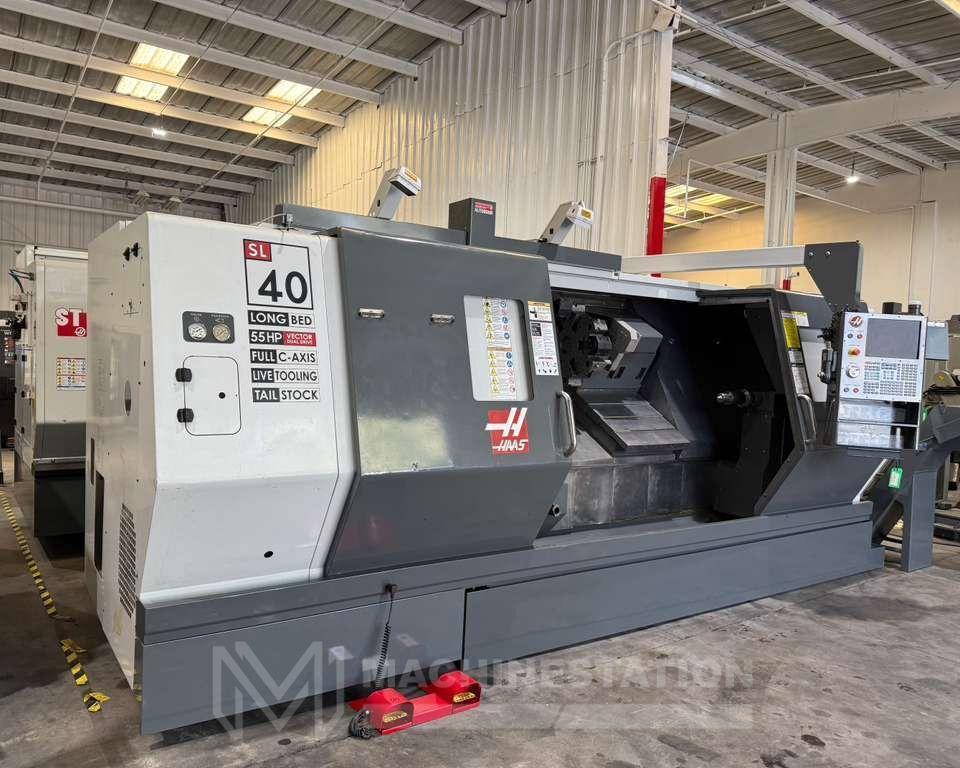

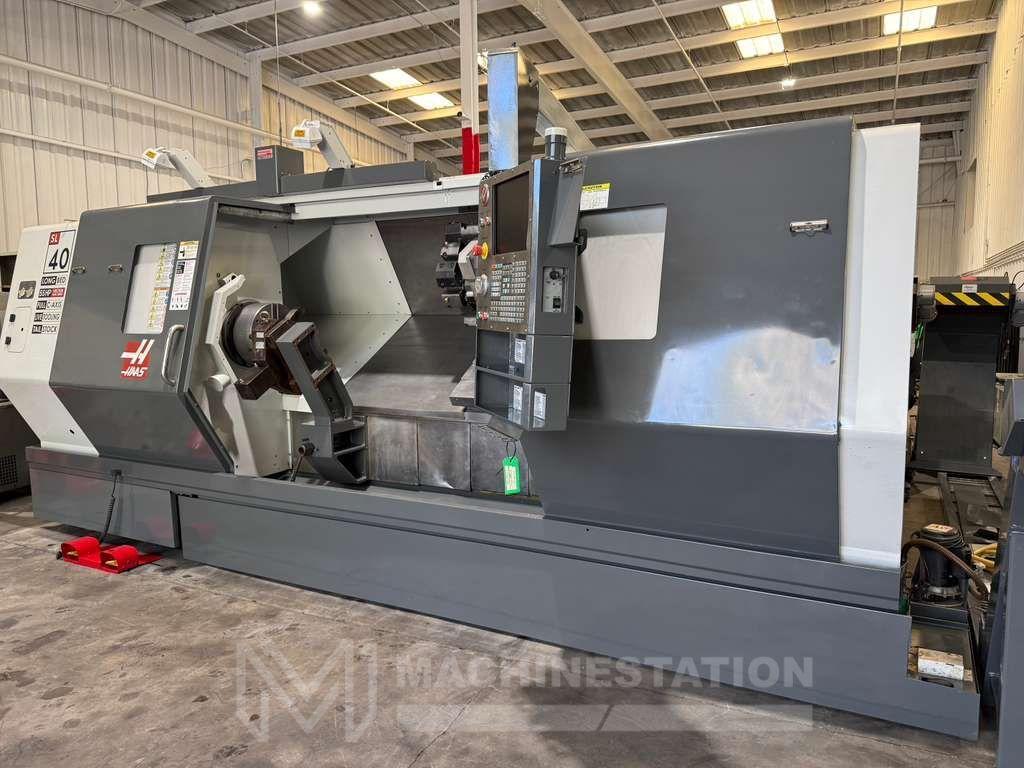

Haas SL-40L CNC Turning Center – C Axis Live Tooling, Steady Rest, Long Bed Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Haas SL-40L
Stock #
112855
Year
2004
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: SL-40L
Year: 2004
Condition: Used – Good
Equipped With:

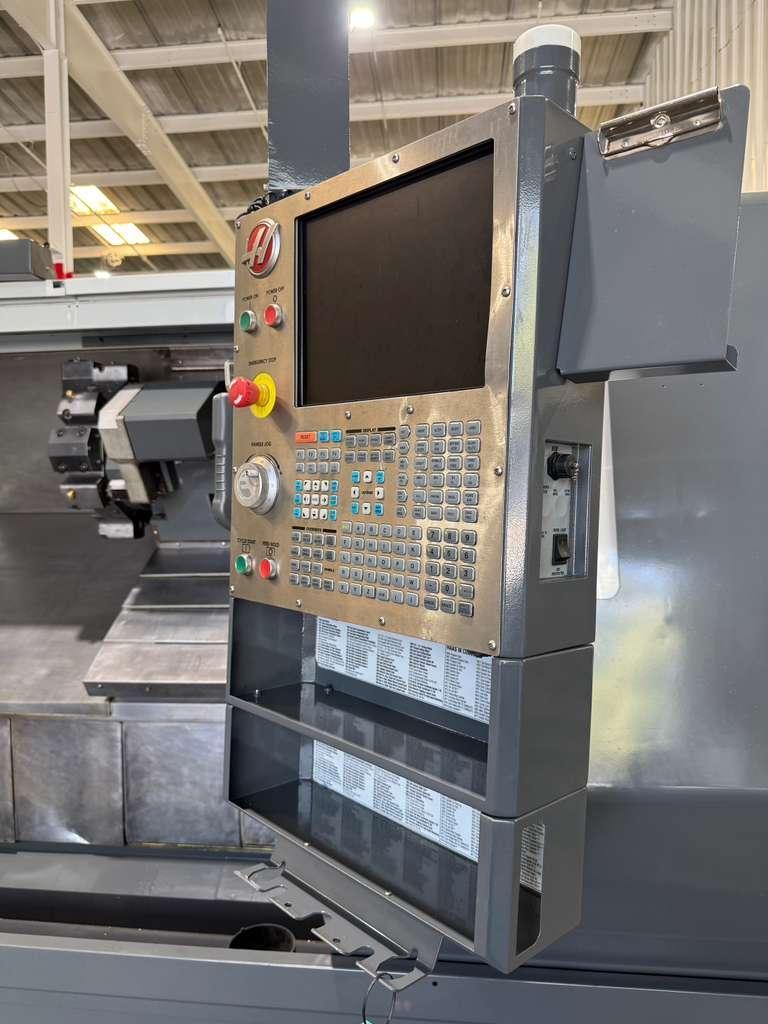

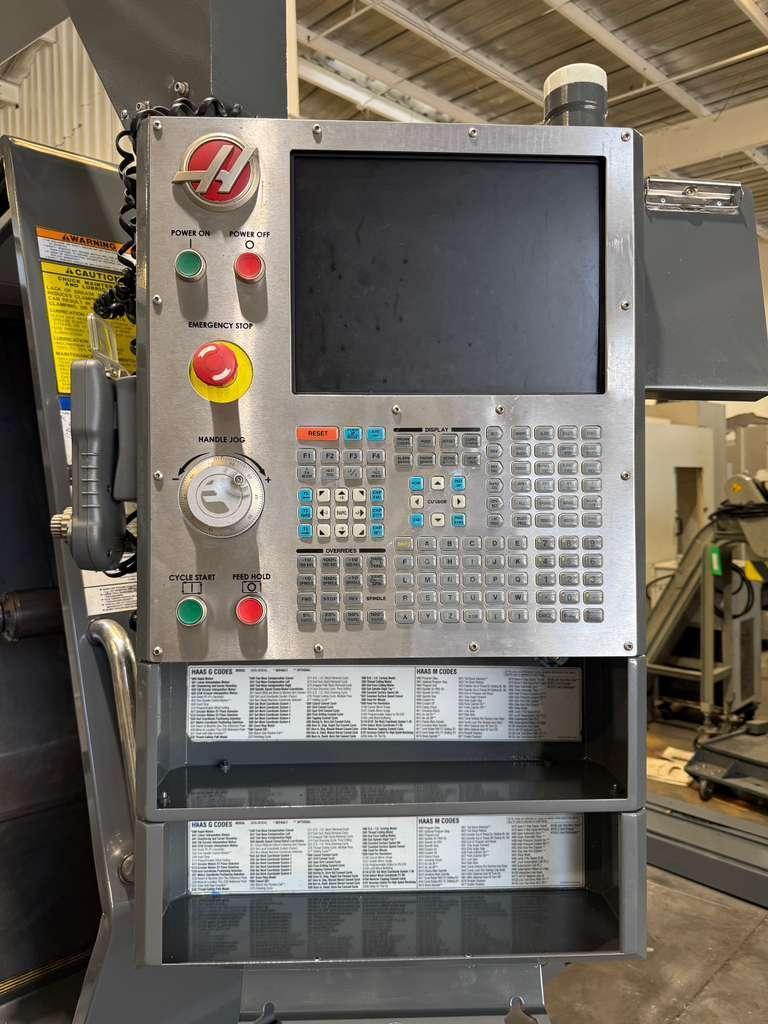

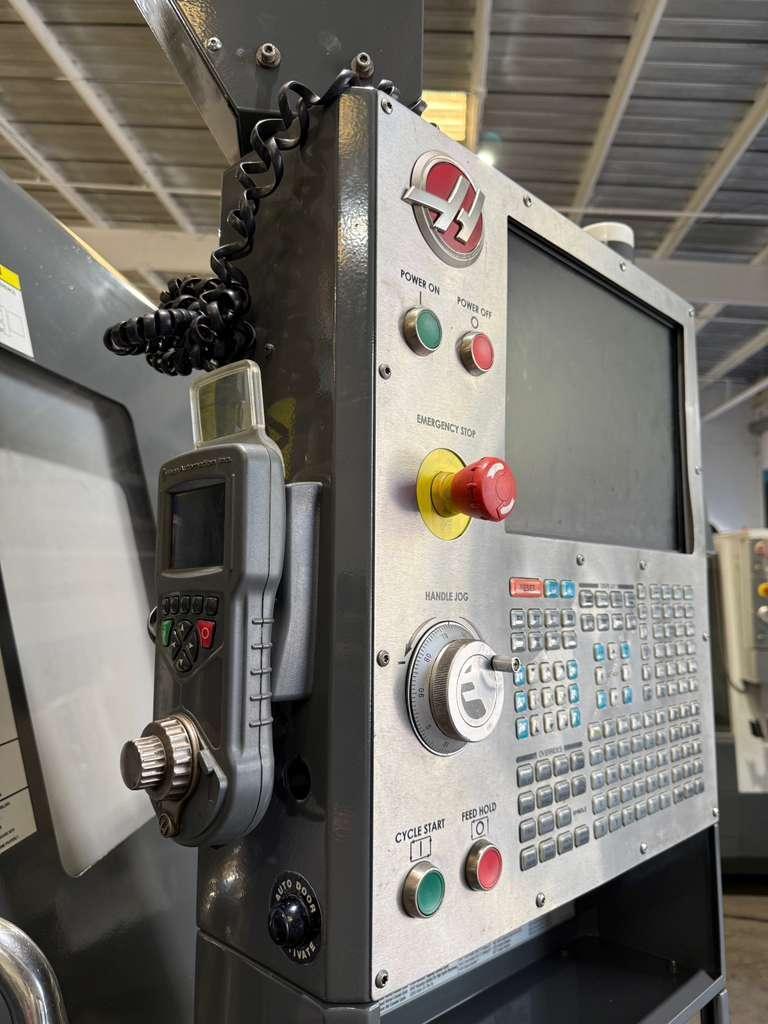

Haas CNC Control

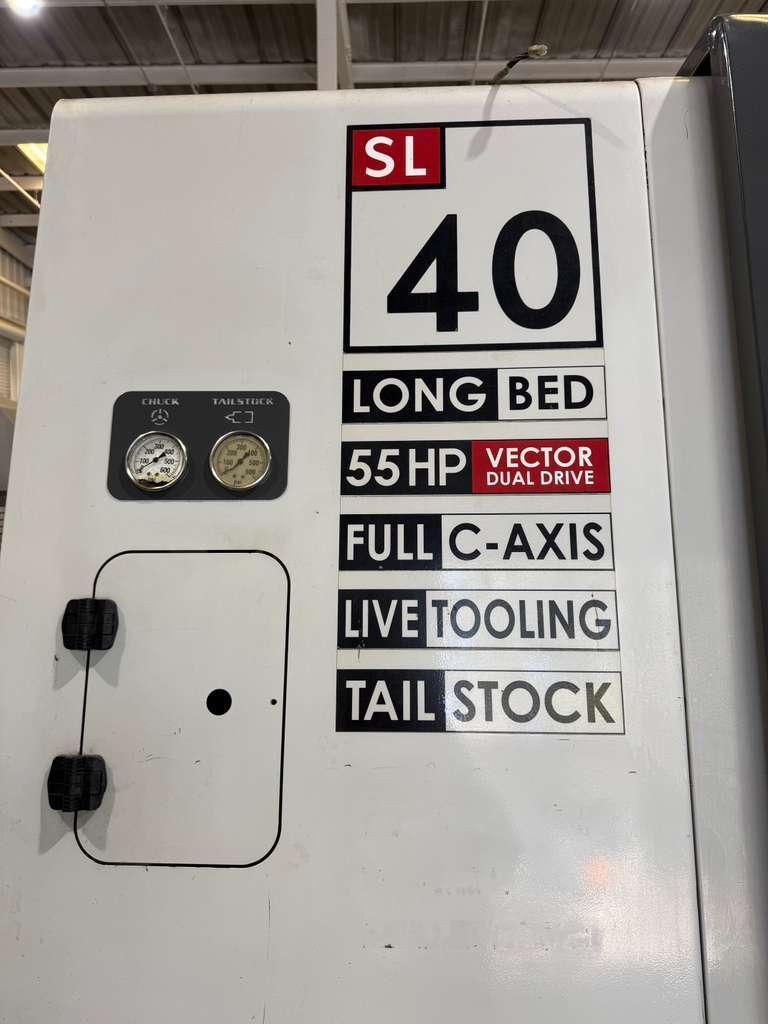

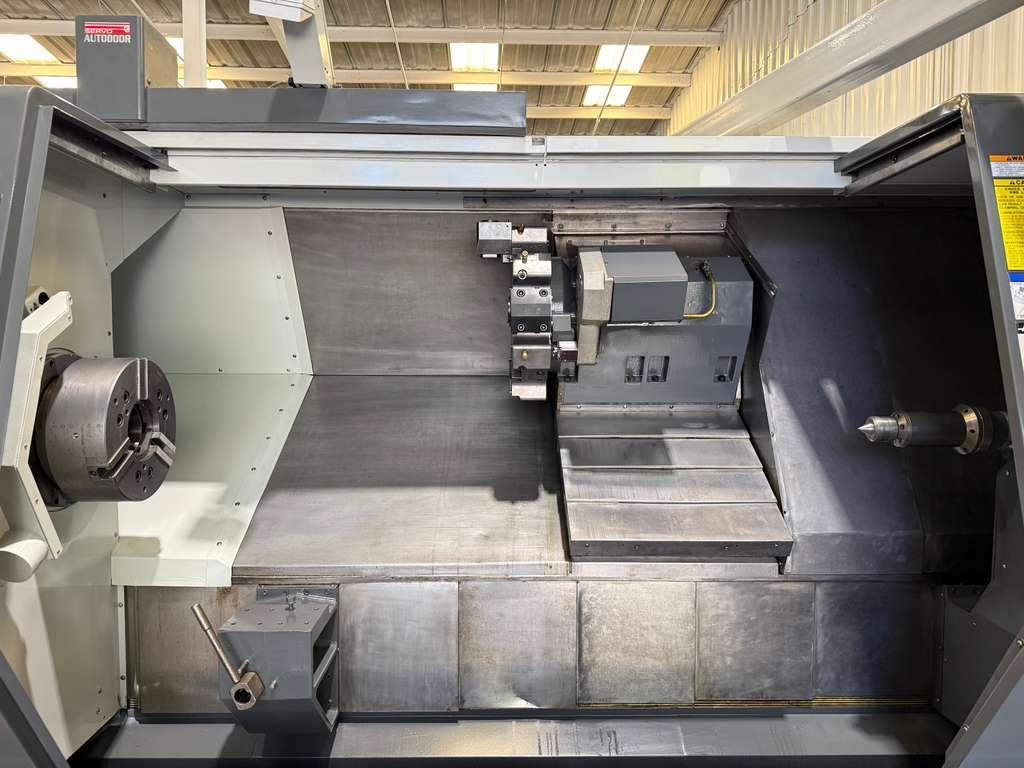

80″ Long Bed

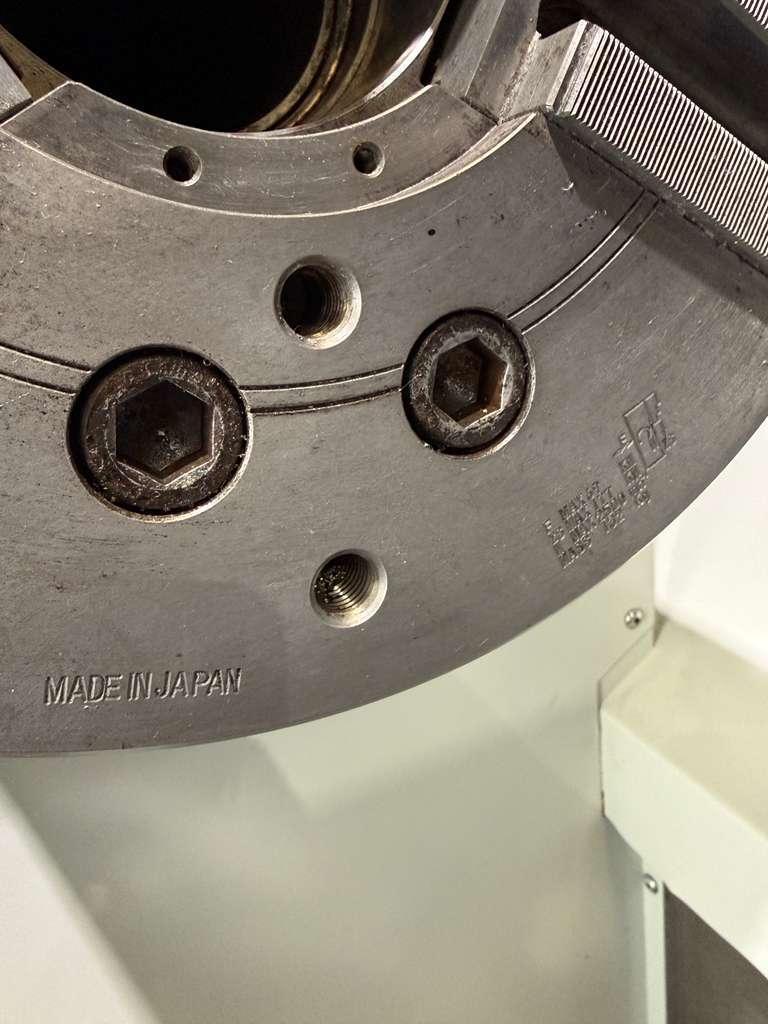

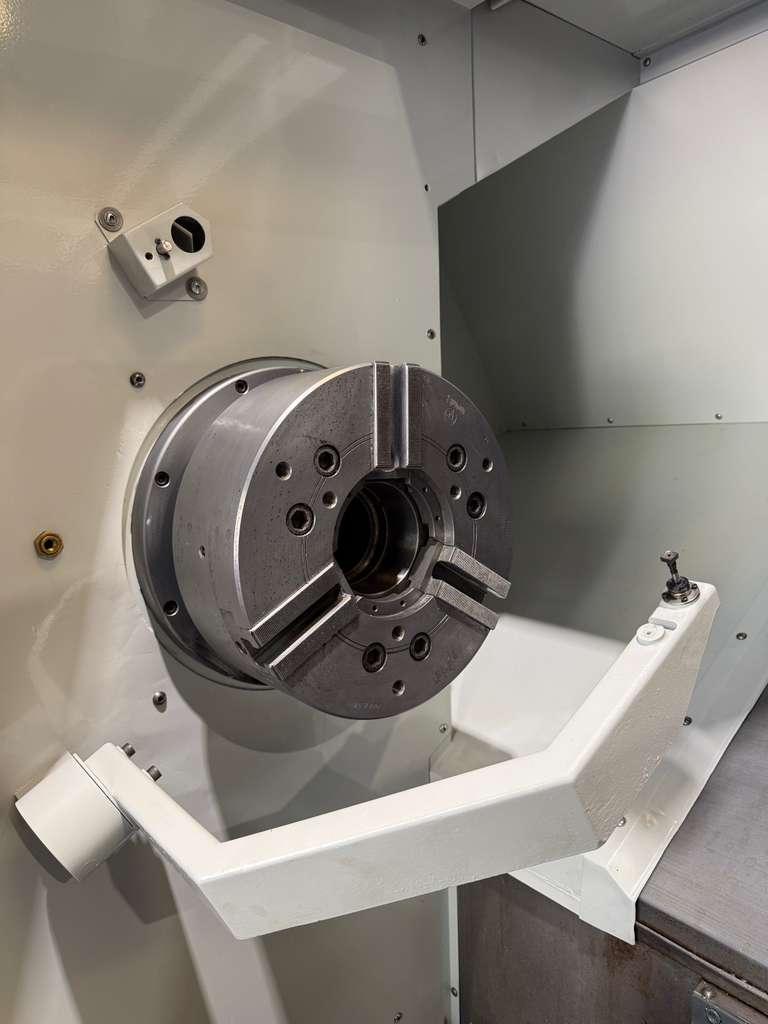

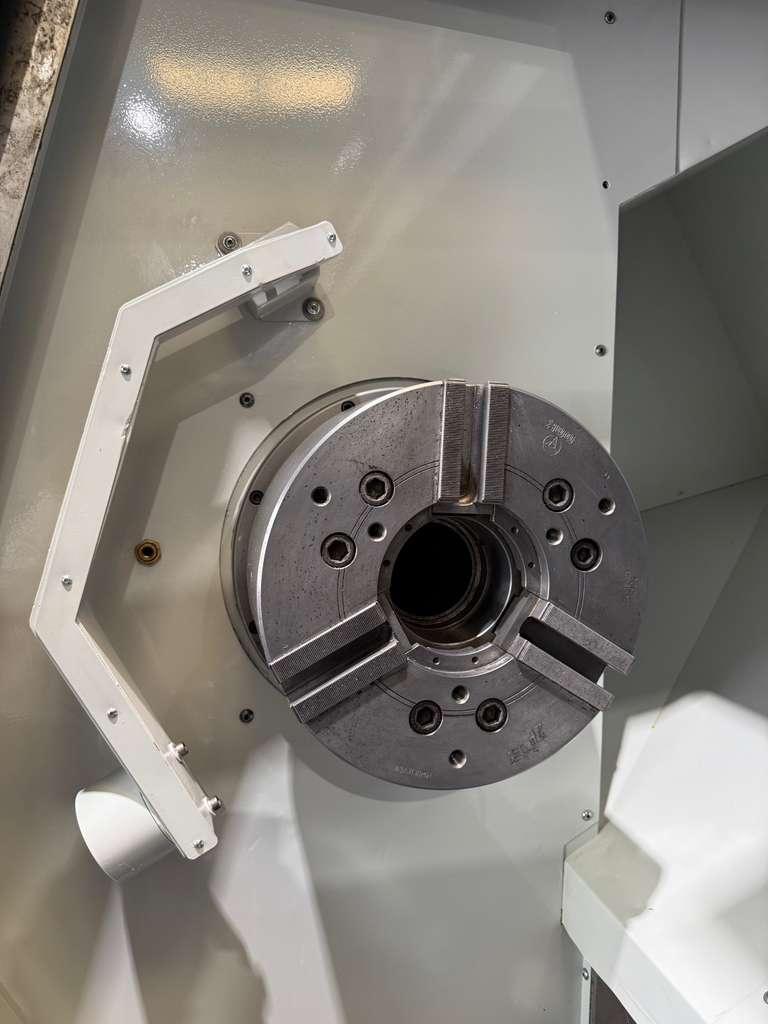

15″  3-Jaw MMK Hydrualic Chuck
Servo Controlled Full C Axis On Spindle

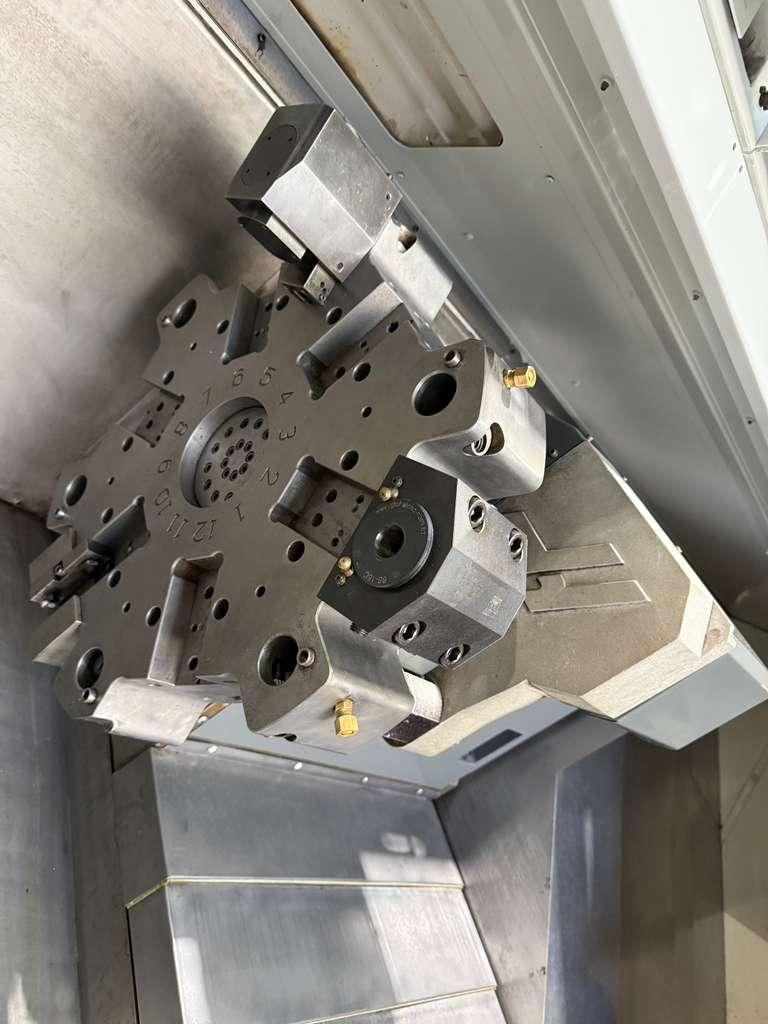

12 Station Live Tool Turret

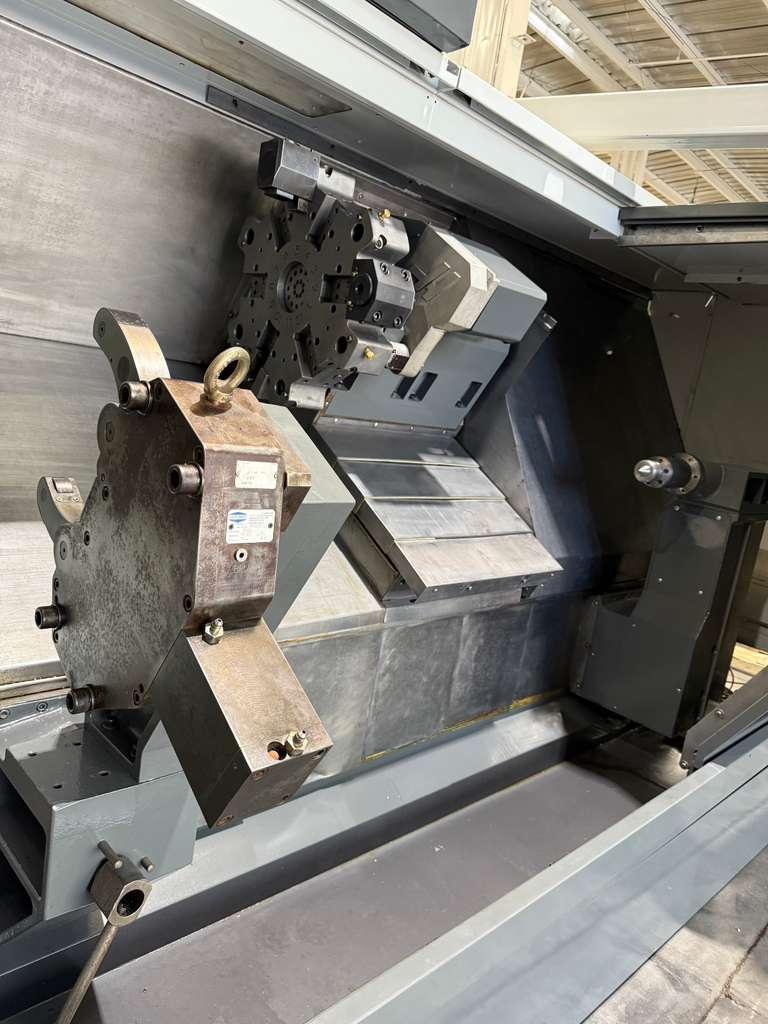

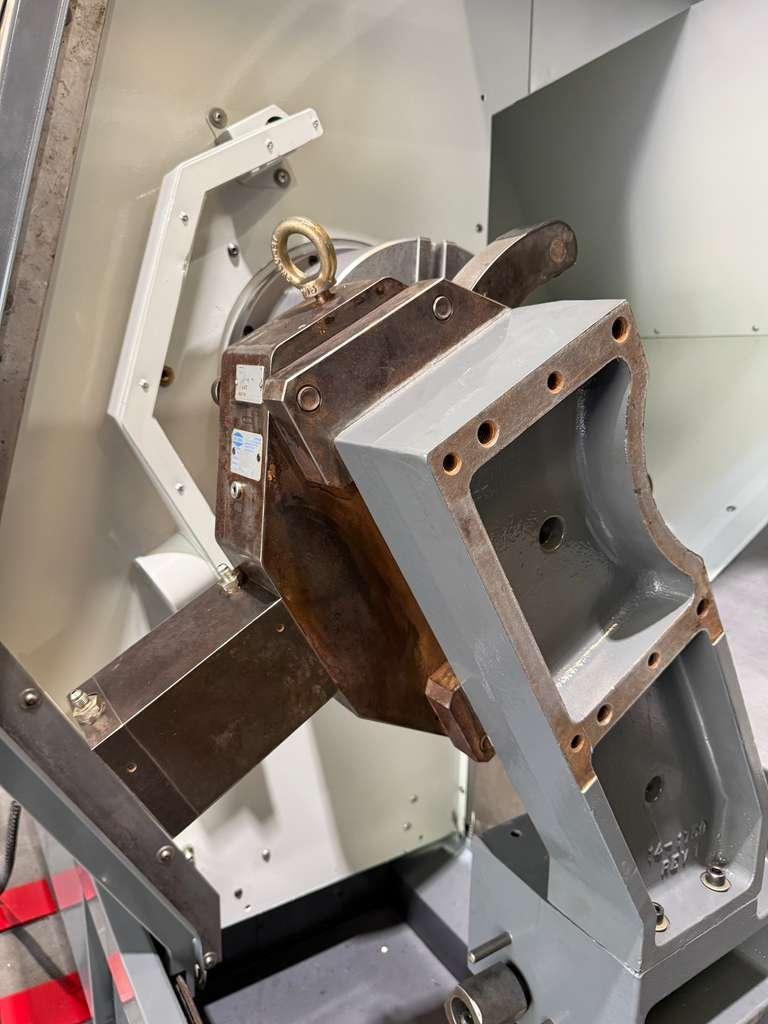

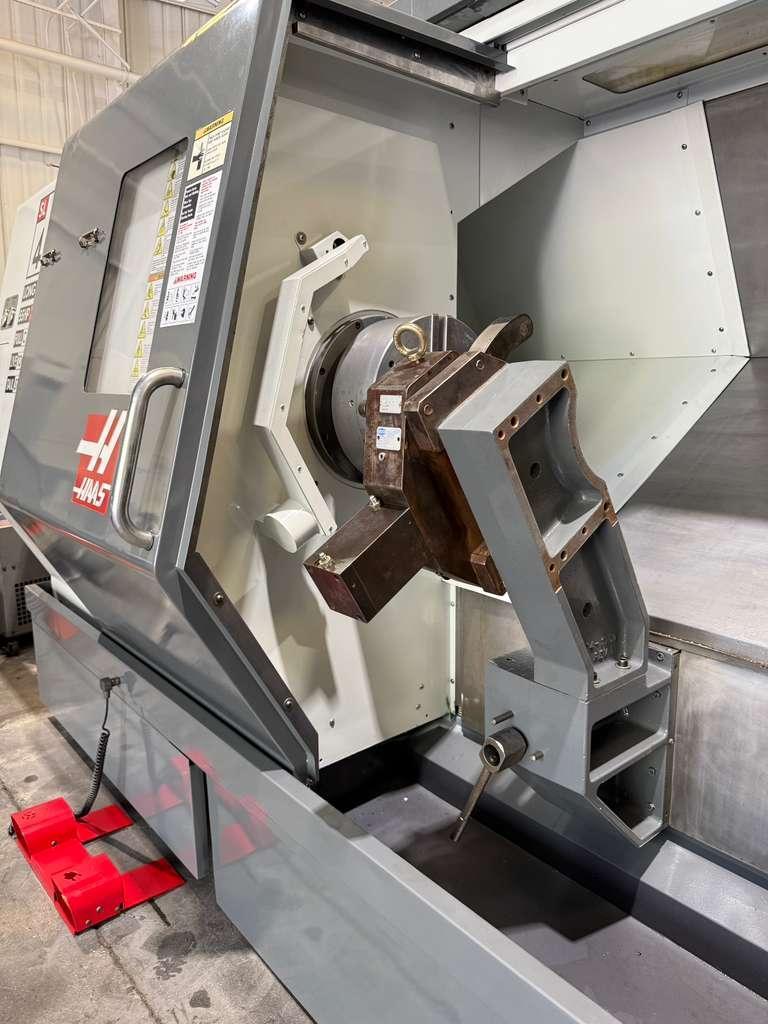

1.37″ – 9.64″ (Min – Max) Diameter Atling Steady Rest
55 HP Vector Drive
A2-8 Spindle Nose
Tool Presetter
Auto Door
Programmable Tailstock
Remote Jog Handle
Coolant System
Chip Conveyor
Automatic Lubrication system
Foot Switches
Capacity:
Max Turning Diameter : 27.5″
Max Swing Over Bed : 35.5″
Max Turning Length:  80.0″
Max Bar Capacity : 4.0″
Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 80.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 320 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 55 HP
Turret:
Turret Capacity: 12 Stations Live Tool
Turret Index Time: 1 Second
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 254″ x 95″ x 105″ High
Machine Weight: 29,900 lbs Approx.
