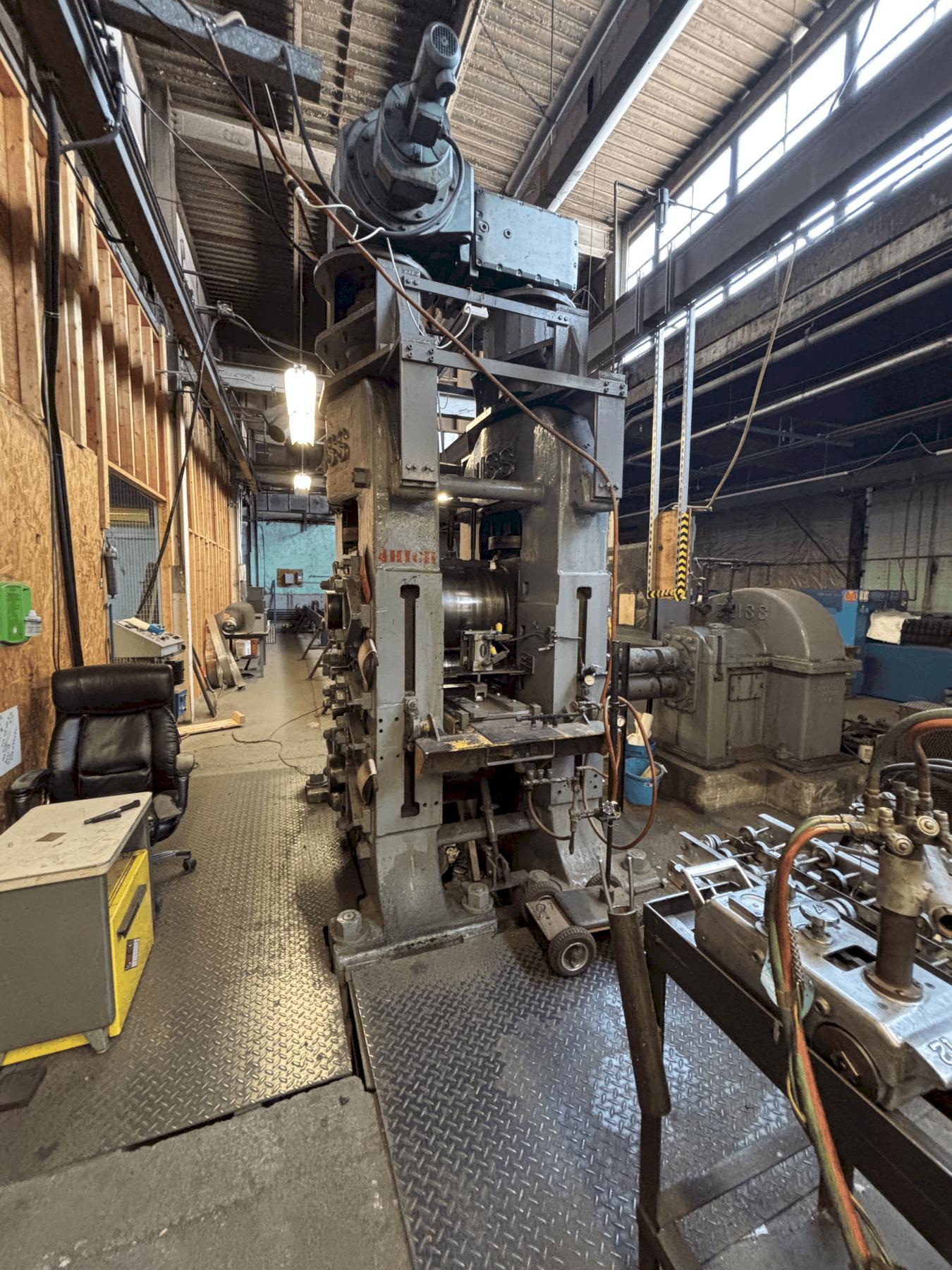

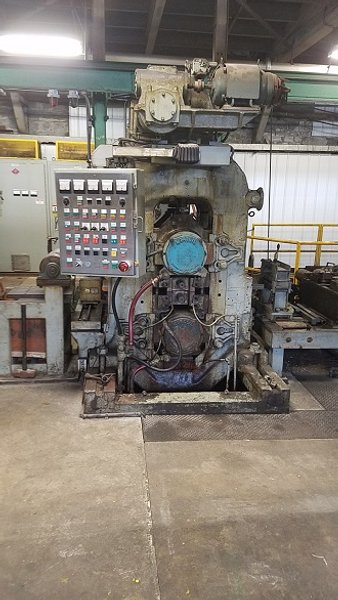

14" BLISS/UNITED 4HI NON-REVERSING MILL

MANUFACTURER - BLISS/UNITED
TYPE - 4HI NON REVERSING
WORK ROLL DIAMETER - 5.140" - 4.600"
BACKUP ROLL DIAMETER - 18"
WIDTH RANGE - 1.5" - 12"
ENTRY GAUGE THICKNESS - 0.215" - 0.010"
EXIT GAUGE THICKNESS - 0.205" - 0.010"
ENTRY ID - 16"/20"
ENTRY OD - 72"
EXIT ID - 20"
EXIT OD - 72"
MAIN MILL MOTOR - 200 HP
PAYOFF MOTOR - 100 HP
RECOILER MOTOR - 200 HP
BEARINGS TYPE - MORGOIL
SCREWDOWN - ELECTRO MECHANICAL
COOLANT SYSTEM - MILL DOES NOT HAVE COOLANT SYSTEM
MILL DIRECTION - RIGHT TO LEFT

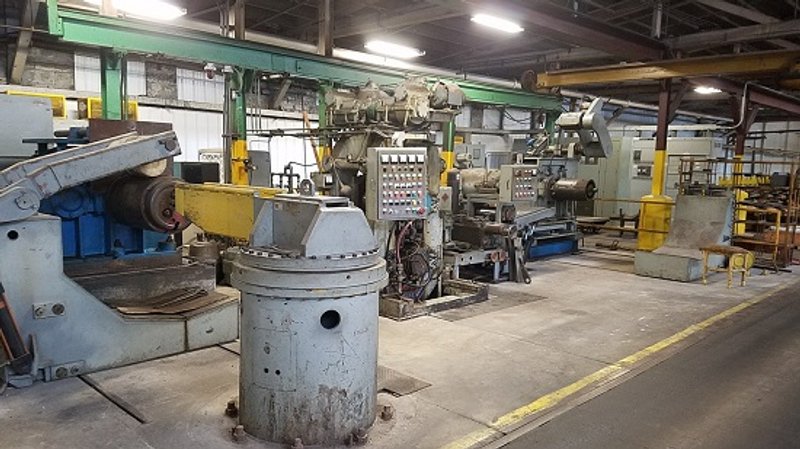

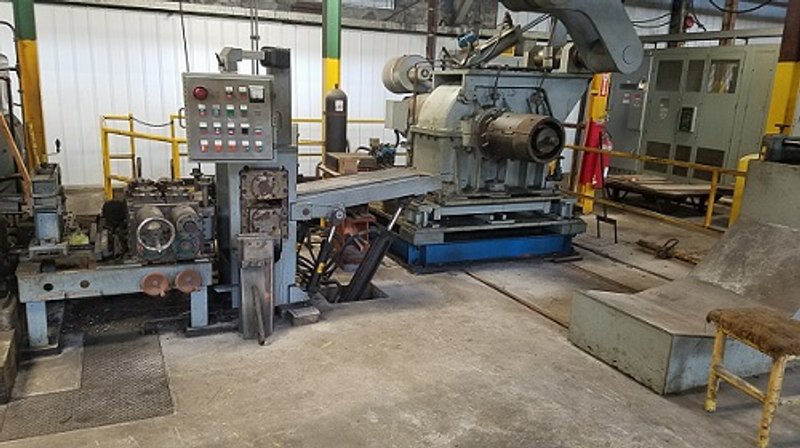

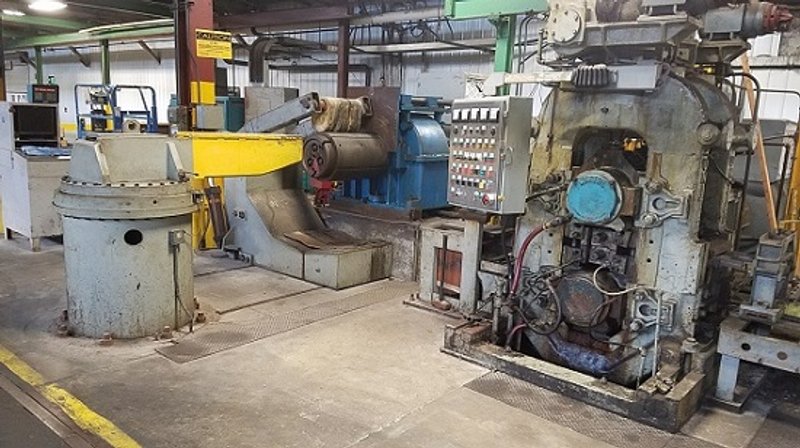

MILL CONFIGURATION:

ENTRY L-TYPE COIL CAR

MANDREL UNCOILER

ENTRY PEELER TABLE

ENTRY FEED ROLLS

2 SET ENTRY GUIDE ROLLS

4HI MILL STAND

DEFLECTOR ROLL

MANDREL RECOILER

EXIT L-TYPE COIL CAR

EXIT SINGLE ARM TURNSTILE

MILL HYDRAULIC, CONTROLS, ELECTRICS

LARGE QUANTITY OF SPARE ROLLS
