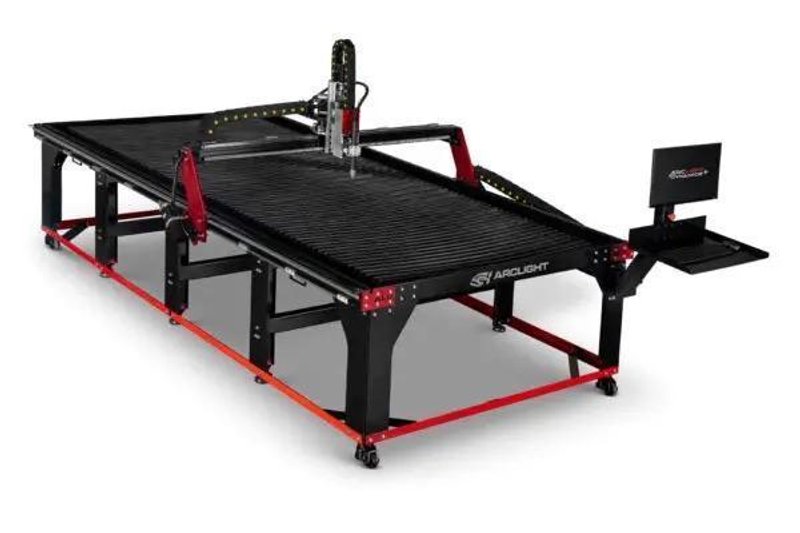

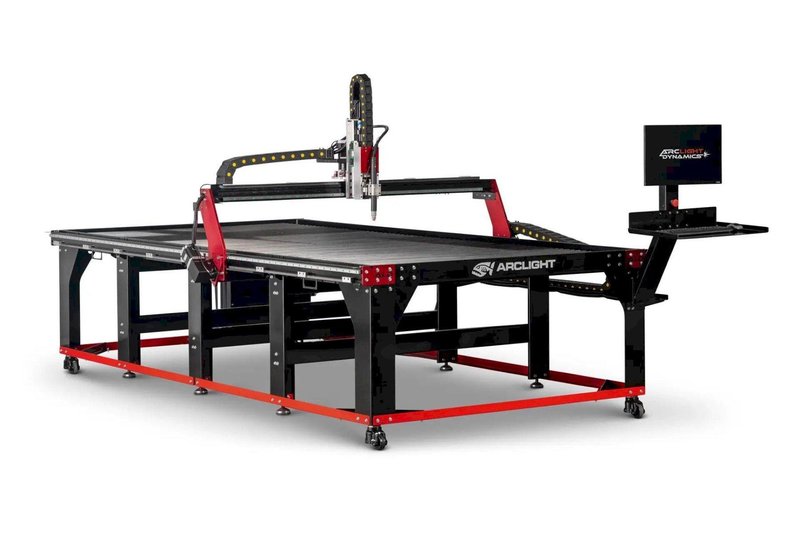

5′ x 10′ Arclight ArcPro Ultra CNC Plasma Table, 2025

Cutting envelope: 65″ x 132″ x 9″ Overall dimensions: 93″ x 186″, 74″ tall Weight capacity: 1.5″ thick mild steel Frame: Steel, precision-ground Table base dimensions: 73″ x 145″ Water pan capacity: 158.5 gallons Table power: 110V / 15-20A Overall weight: 1,300 lbs Positioning accuracy: .001″ Controller: Arc CNC Software Drive system: Dual-drive gantry on Hiwin precision linear rails Motors: NEMA 34 with planetary gear boxes Z-axis: Ball screw Year: 2025 Plasma source not included — available to add on for additional cost, buyer’s choice of amperage

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Collision Detection System Plate Engraver Plate Rollers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
