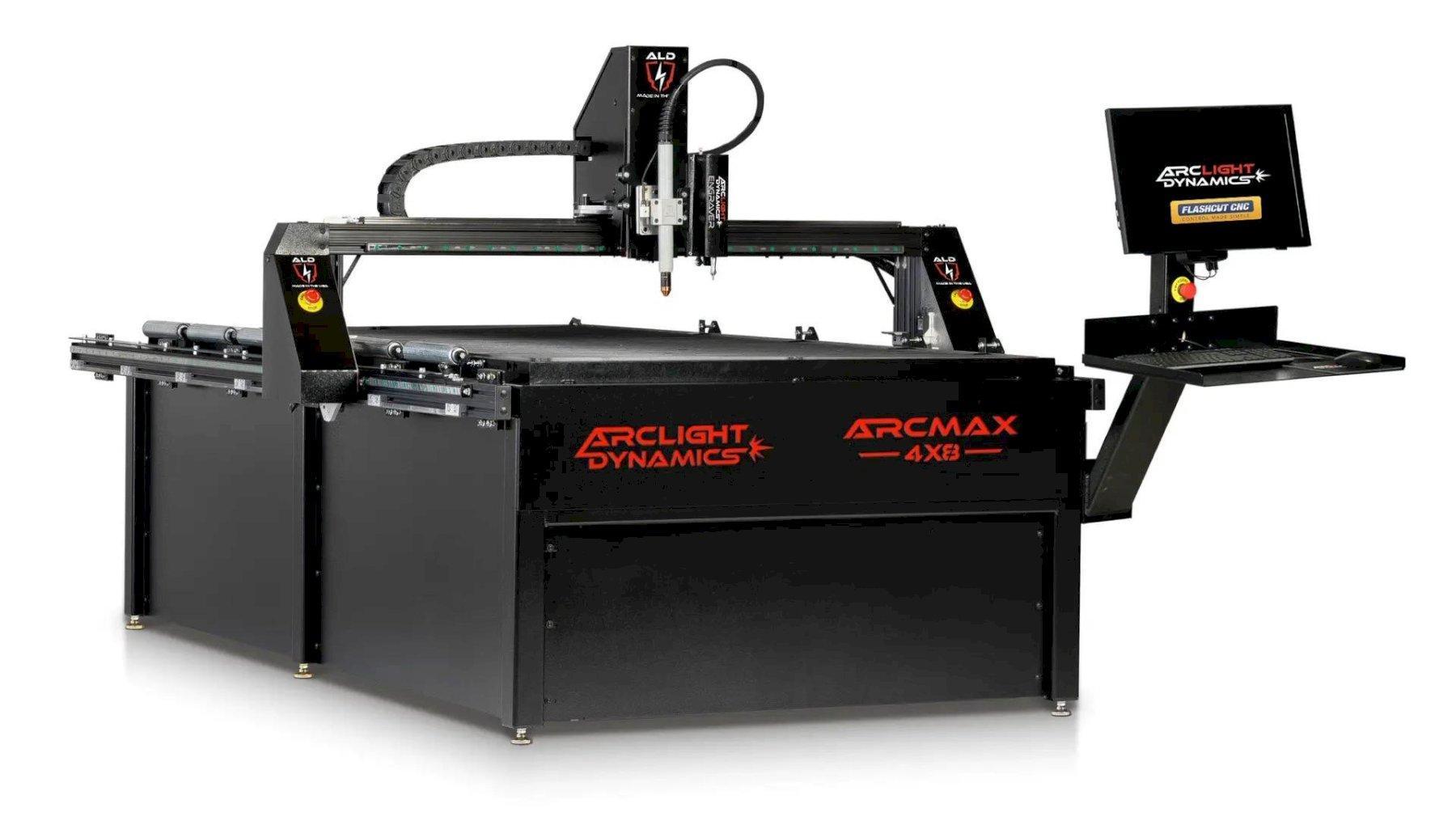

4′ x 8′ Arclight ArcMax Elite, 2025

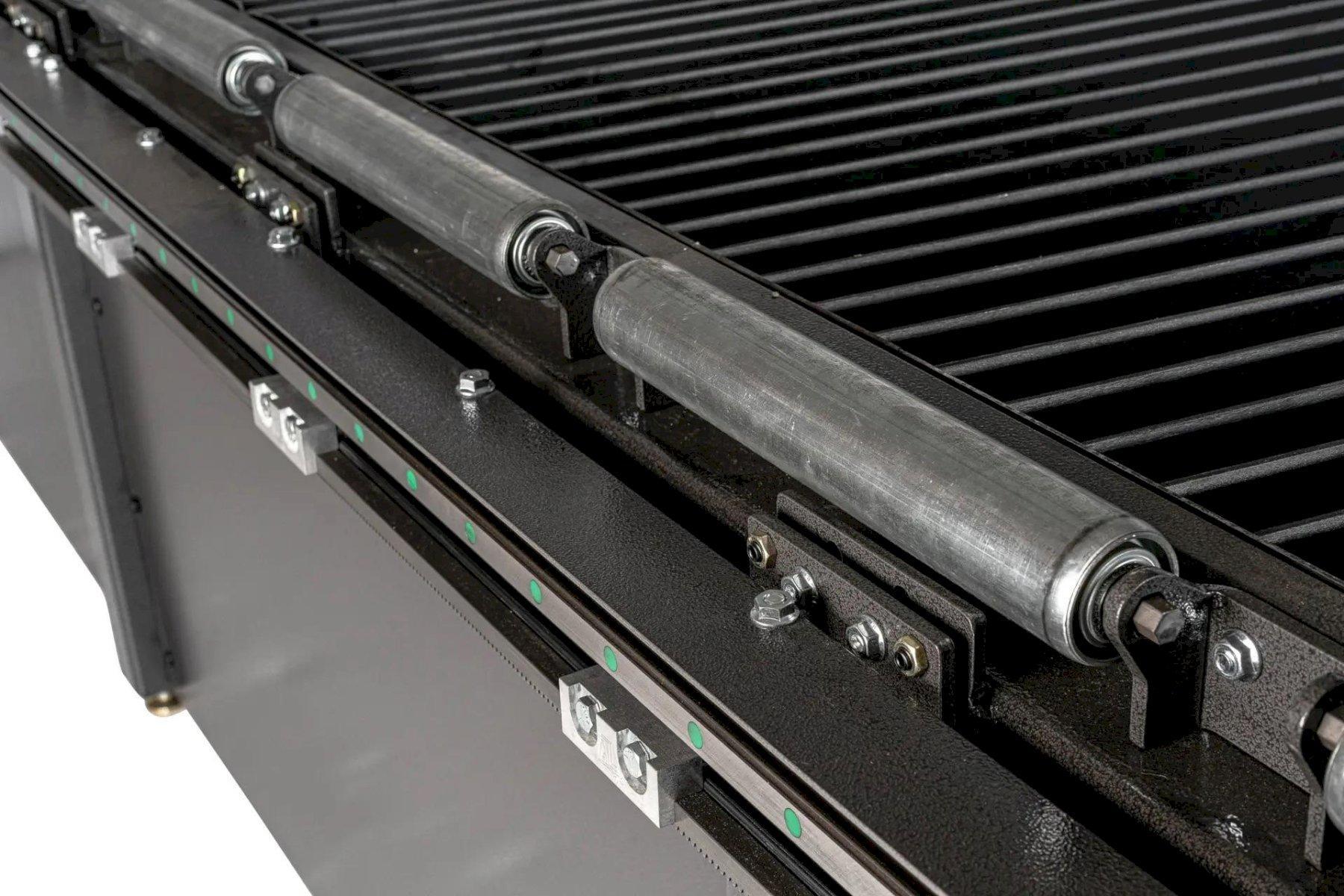

Refurbished by OEM Cutting envelope: 50″ x 97″ x 6.5″ Overall dimensions: 120″L x 76″W x 60″H Weight capacity: 2″ thick mild steel Frame: Fully welded steel Positioning accuracy: .001″ Table base dimensions: 58″ x 109″ Water pan capacity: 250 gallons Table power: 110V / 15-20A Overall weight: 2,500 lbs Controller: Flashcut CNC Drive system: HIWIN precision linear rails, low-mass aircraft-grade aluminum gantry Motors: NEMA 34, 940 oz stepper Rapids: 800 IPM Plasma source not included — available to add Hypertherm Plasmasource for additional cost, buyer’s choice of amperage

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Collision Detection System Laser Torch Alignment System Mobile Cabinet
