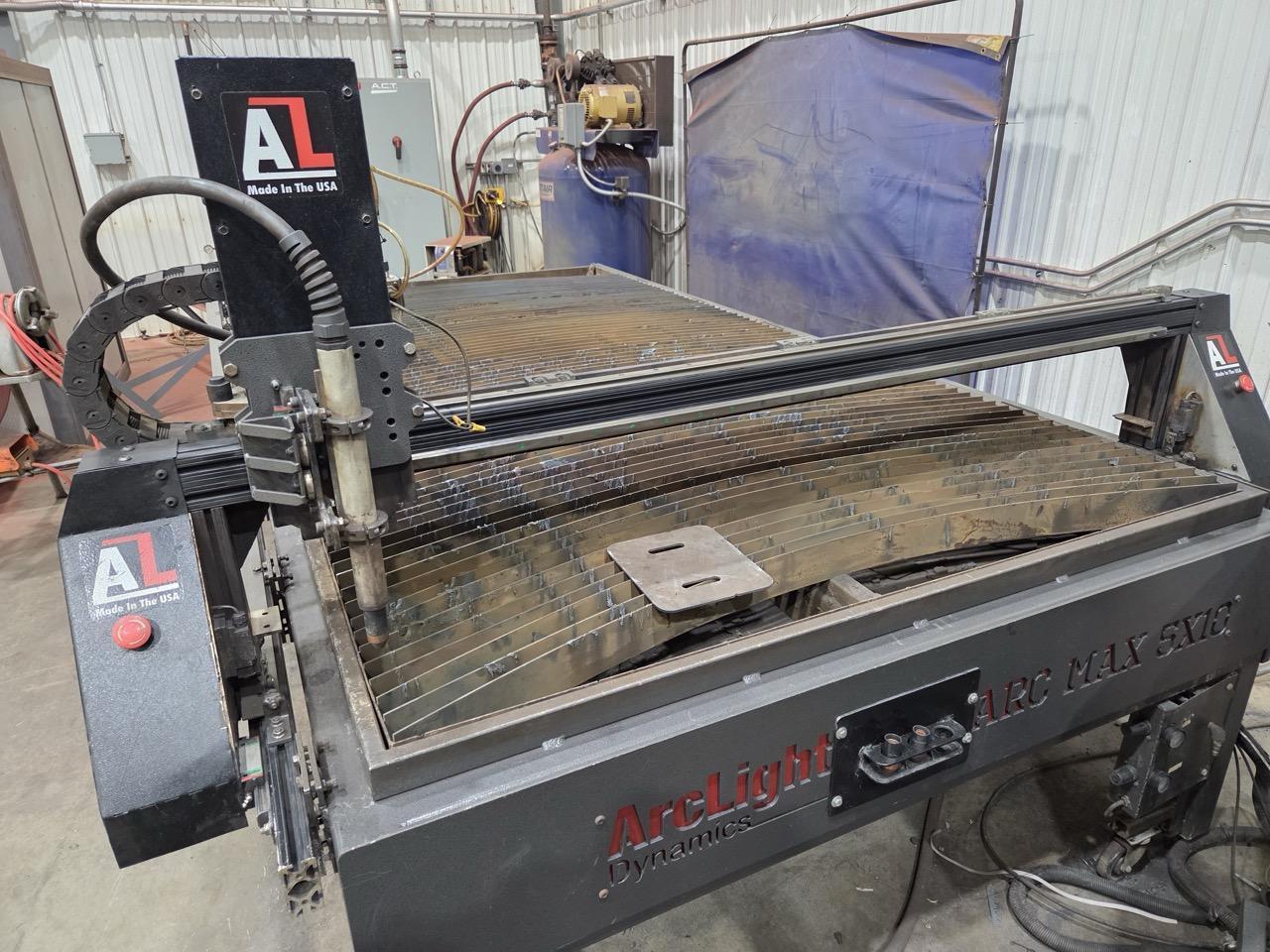

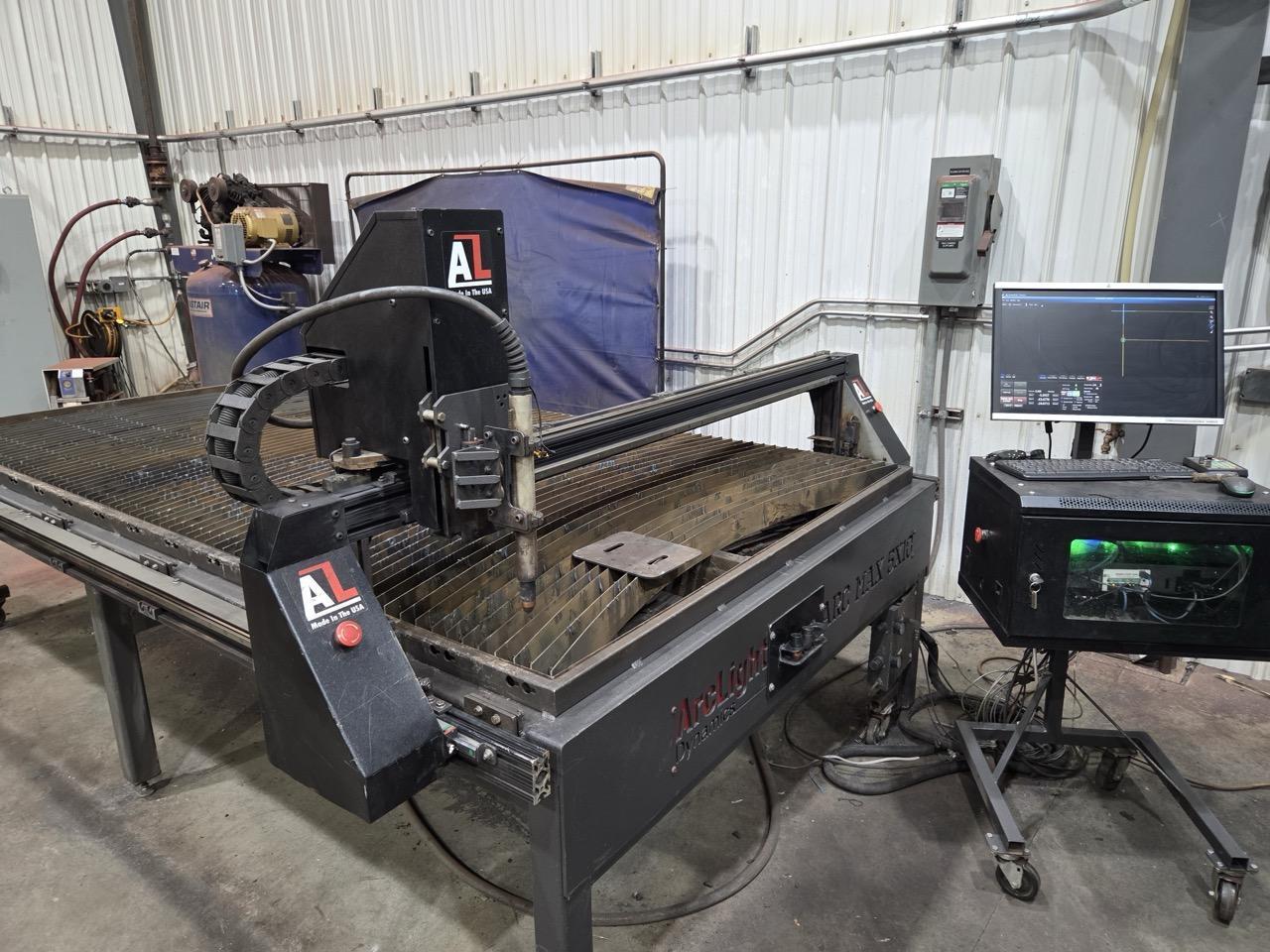

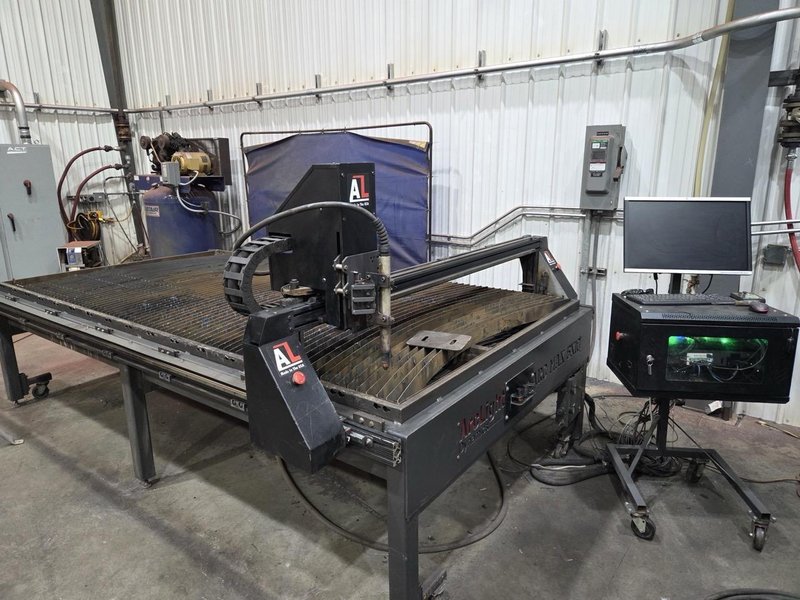

5′ x 10′ ArcLight Dynamics Arc Max Plasma Table, 2018 – Hypertherm Powermax 105, Tube Cutting Attachment

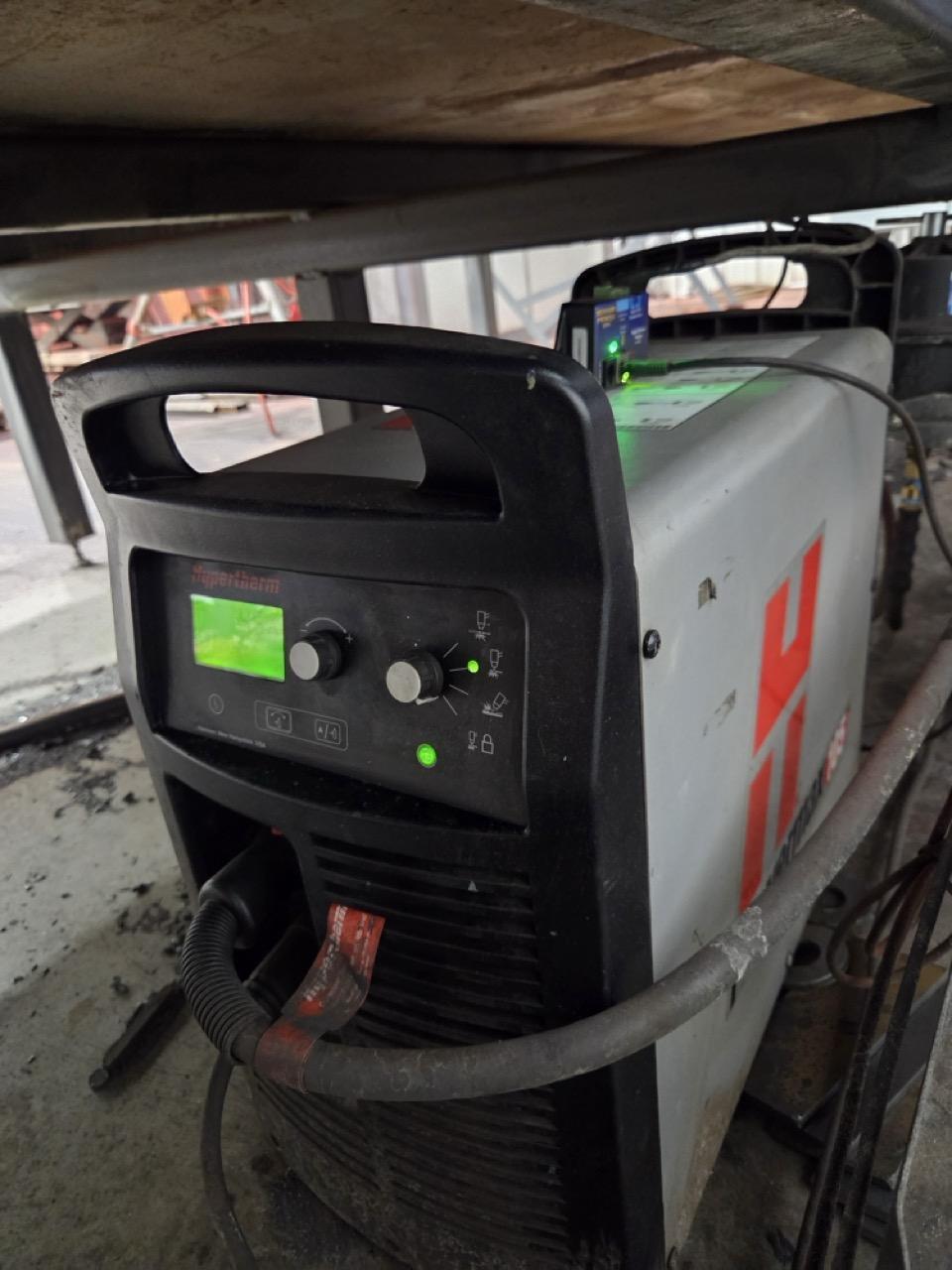

Table Size: 5′ × 10′ Table Type: Water Table Frame Construction: Fully Welded, Powder Coated Steel Frame Tubing: 3/16″ Wall Slat Surface: Flush with Table Side, Built-In Load Rollers Gantry Material: Aircraft Aluminum Drive System: Rack and Pinion X & Y Axis Rails: Dual 20mm Linear Guide Rails Linear Blocks: Hiwin Linear Slide Blocks Z-Axis: Anti-Backlash Lead Screw with Floating Head & Magnetic Torch Mount Drive Motors: Four 620 oz. Stepper Motors, 3:1 Gear Reduction Y-Axis Drive: Dual Motor Plasma Power Supply Make: Hypertherm Plasma Power Supply Model: Powermax 105 Input Power: Three-Phase Output Amperage: 105 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Tube Cutting Attachment Hypertherm Powermax 105 (3-Phase) Plasma Power Supply

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
