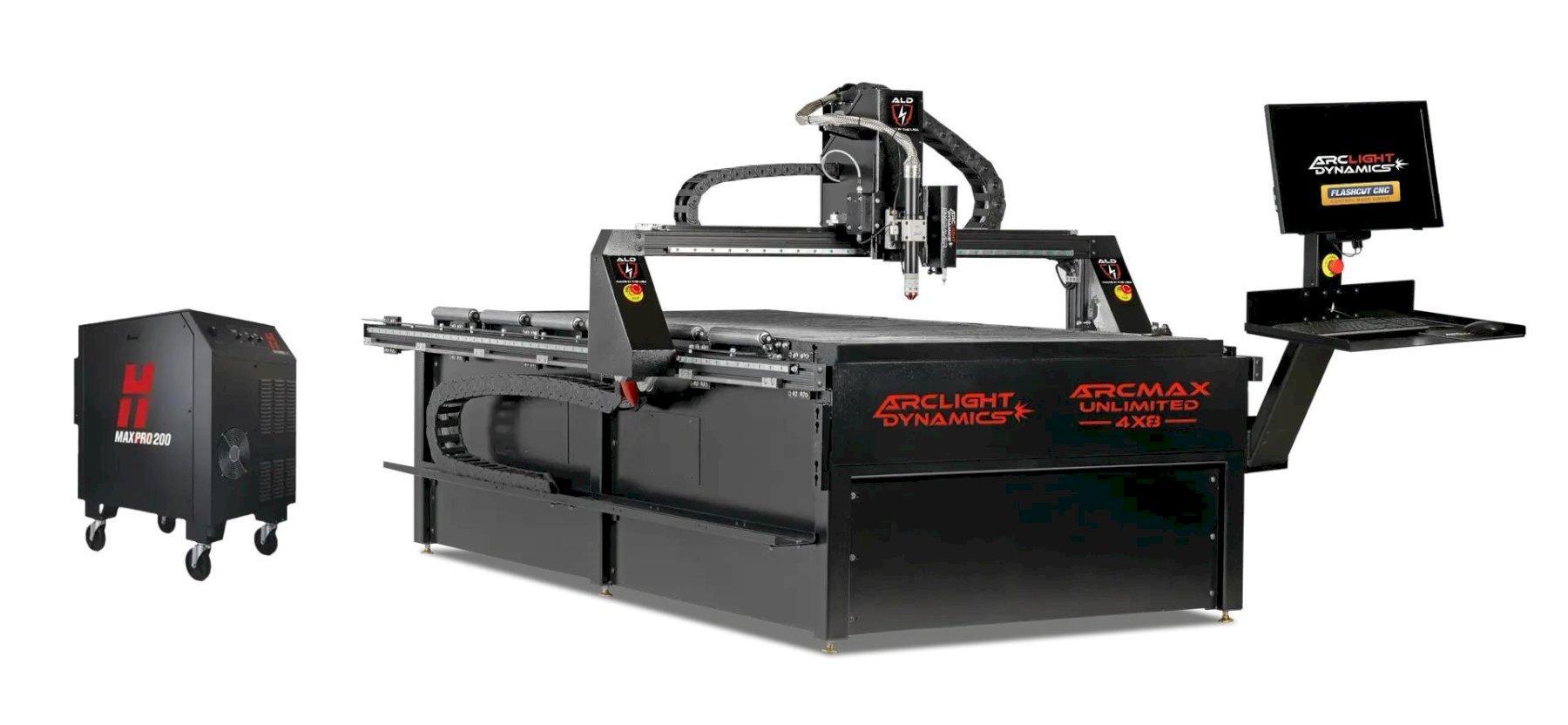

4′ x 8′ Arclight Unlimited CNC Plasma Table, 2025

OEM Demo Unit Cutting envelope: 50″ x 97″ x 6.5″ Overall dimensions: 120″L x 76″W x 60″H Weight capacity: up to 3″ thick mild steel Frame: Reinforced and fully welded steel Positioning accuracy: .001″ Table base dimensions: 58″ x 109″ Water pan capacity: 250 gallons Table power: 110V / 15-20A Overall weight: 3,000 lbs Controller: Flashcut CNC Drive system: HIWIN precision linear rails, low-mass aircraft-grade aluminum gantry Motors: NEMA 34, 940 oz stepper Rapids: 800 IPM MAXPRO 200 and Oxy-Fuel compatible Plasma source not included — available to add on for additional cost, buyer’s choice of amperage

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dual Plasma Torch Upgrade Collision Detection System Cool Flow Recirculation System Dynamic Water Control Touch Screen Monitor Laser Torch Alignment System OxyFuel Cutting System Plate Engraver

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
