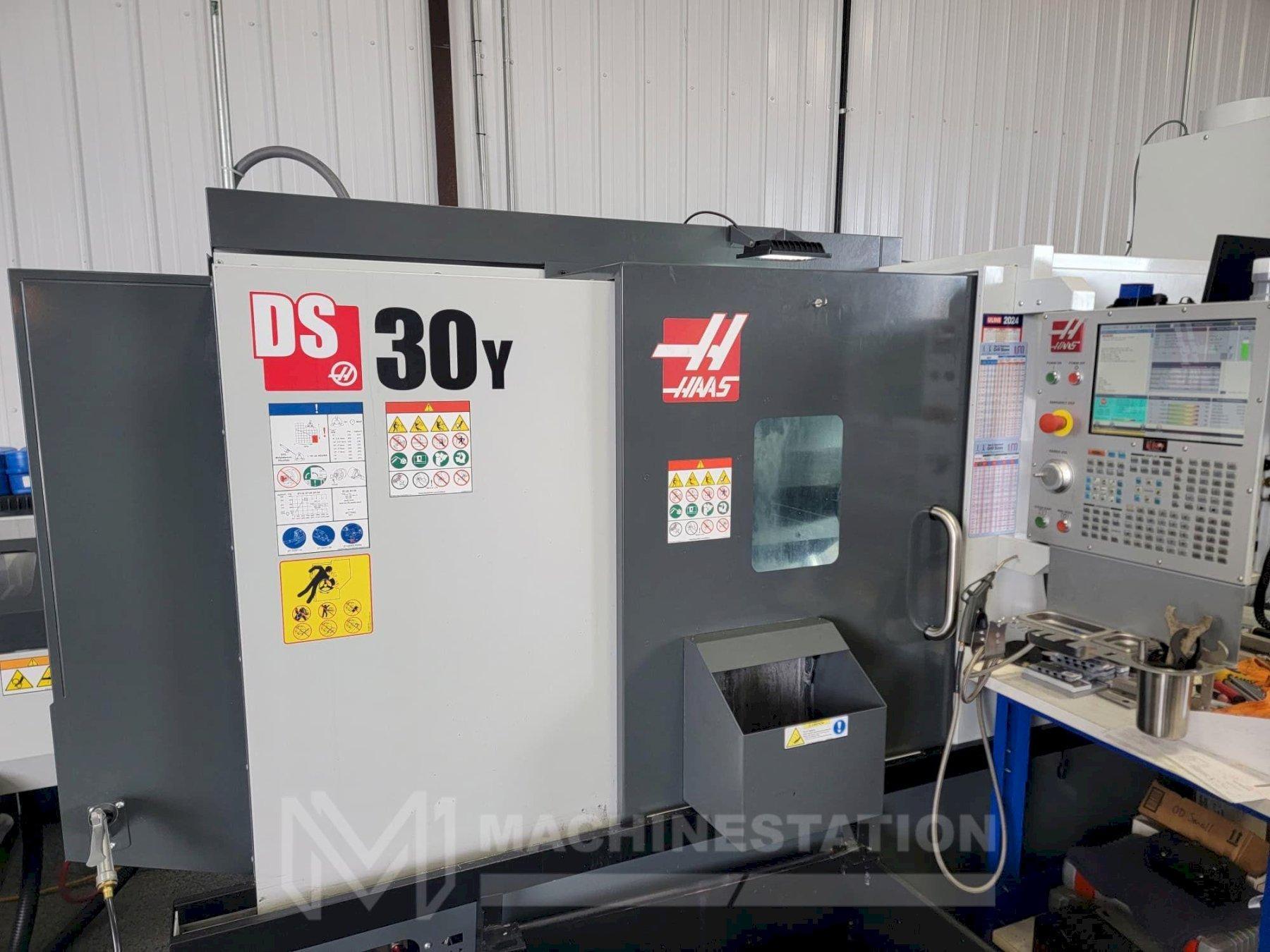

Name: Haas DS-30Y CNC Turning Center – 2023 Dual Spindle Y Axis Lathe
Brand: HAAS
SKU: 115141
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	DS-30Y
Year:	2023
Condition:	Used – Excellent

Equipped With:

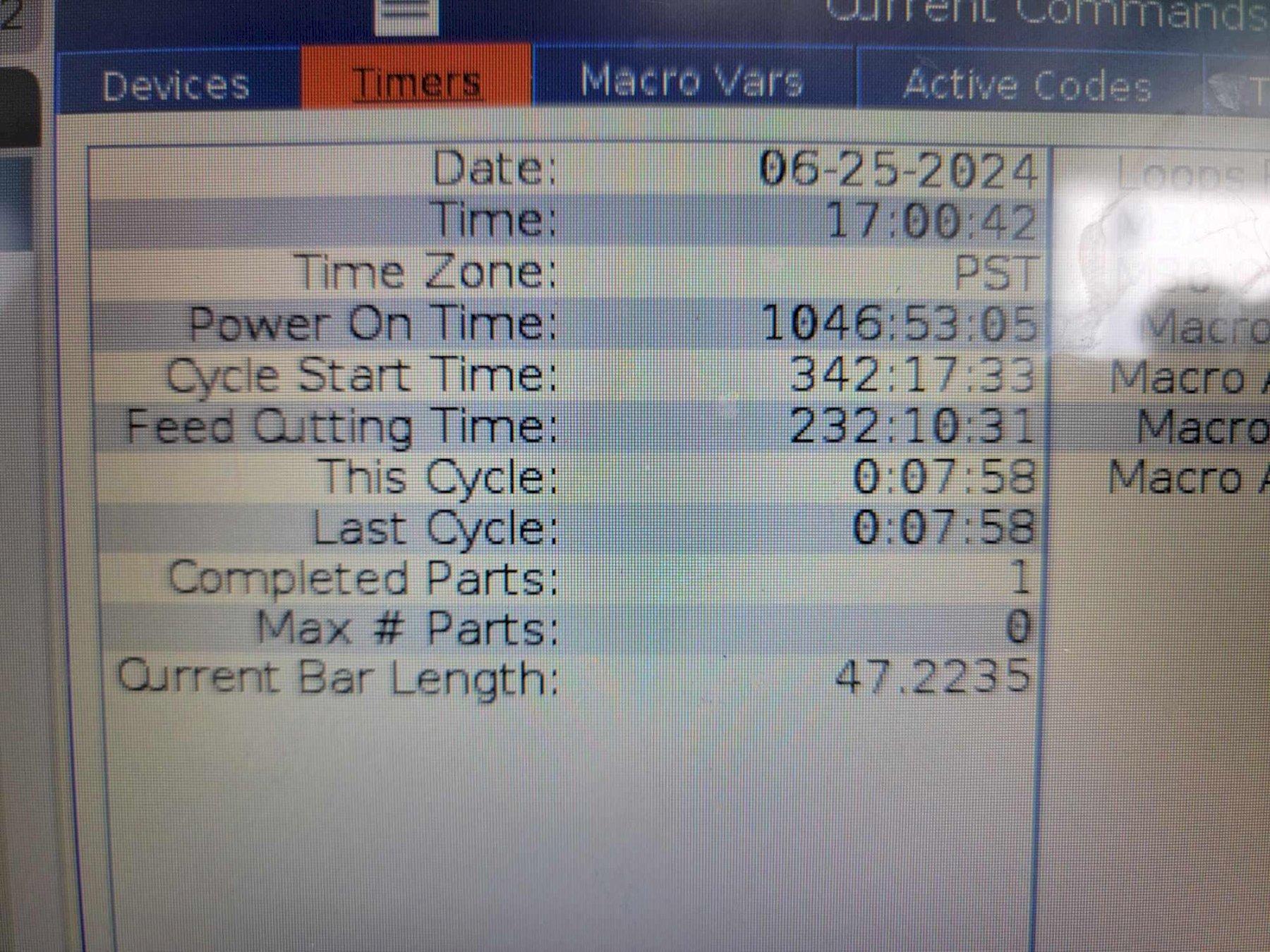

Haas CNC Control

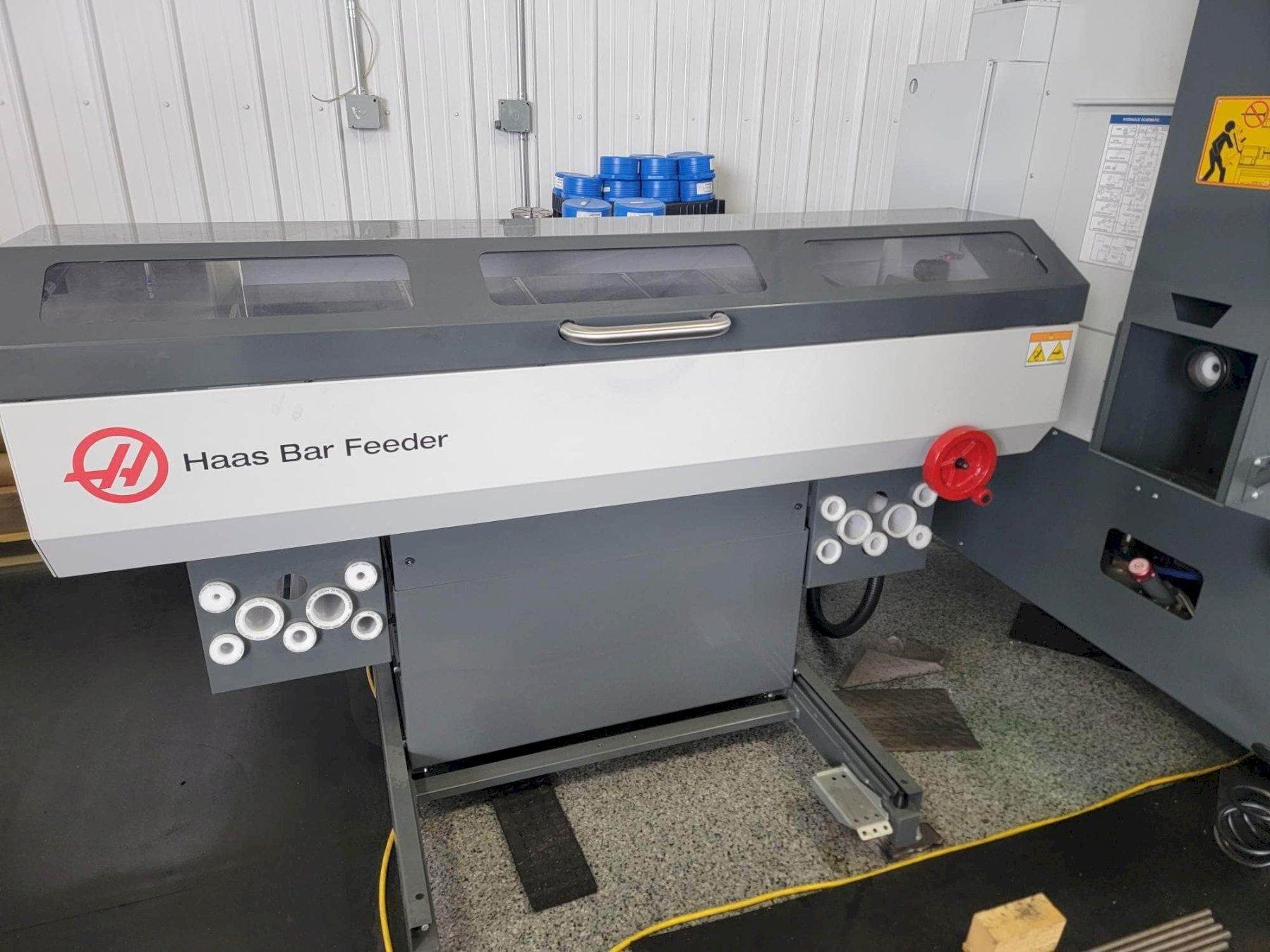

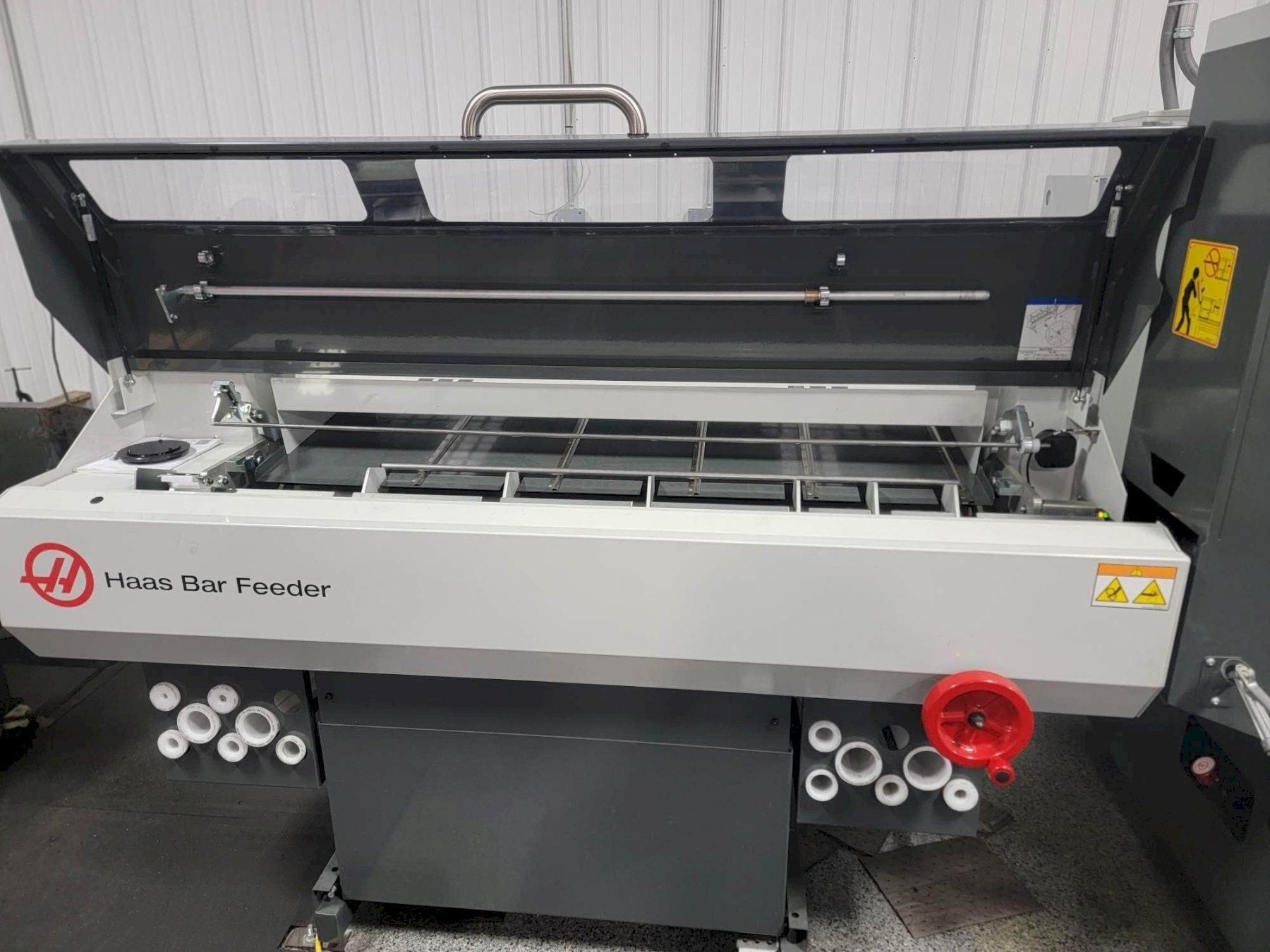

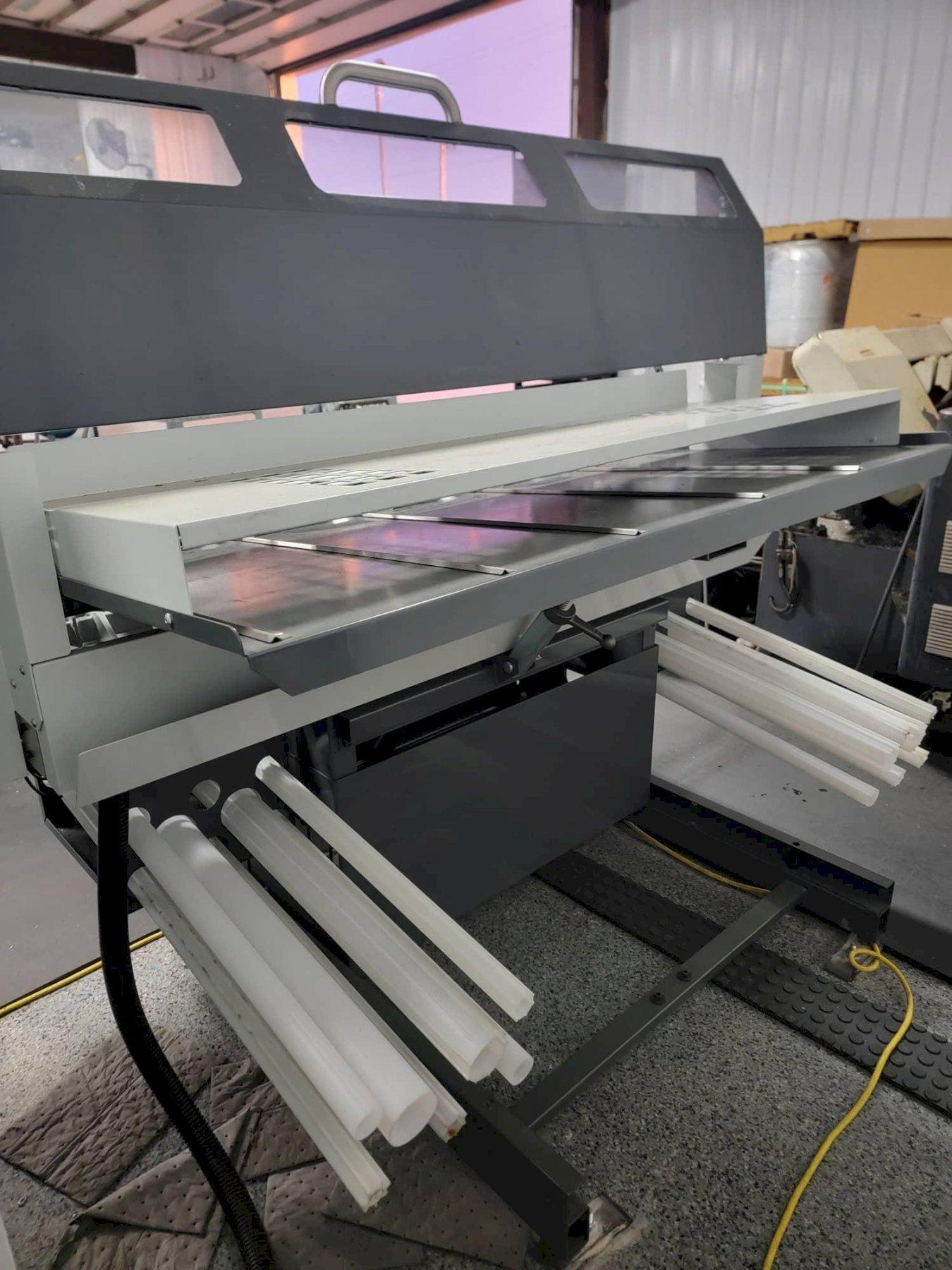

Haas Bar Feeder (Upgraded $22,095 Value Included)

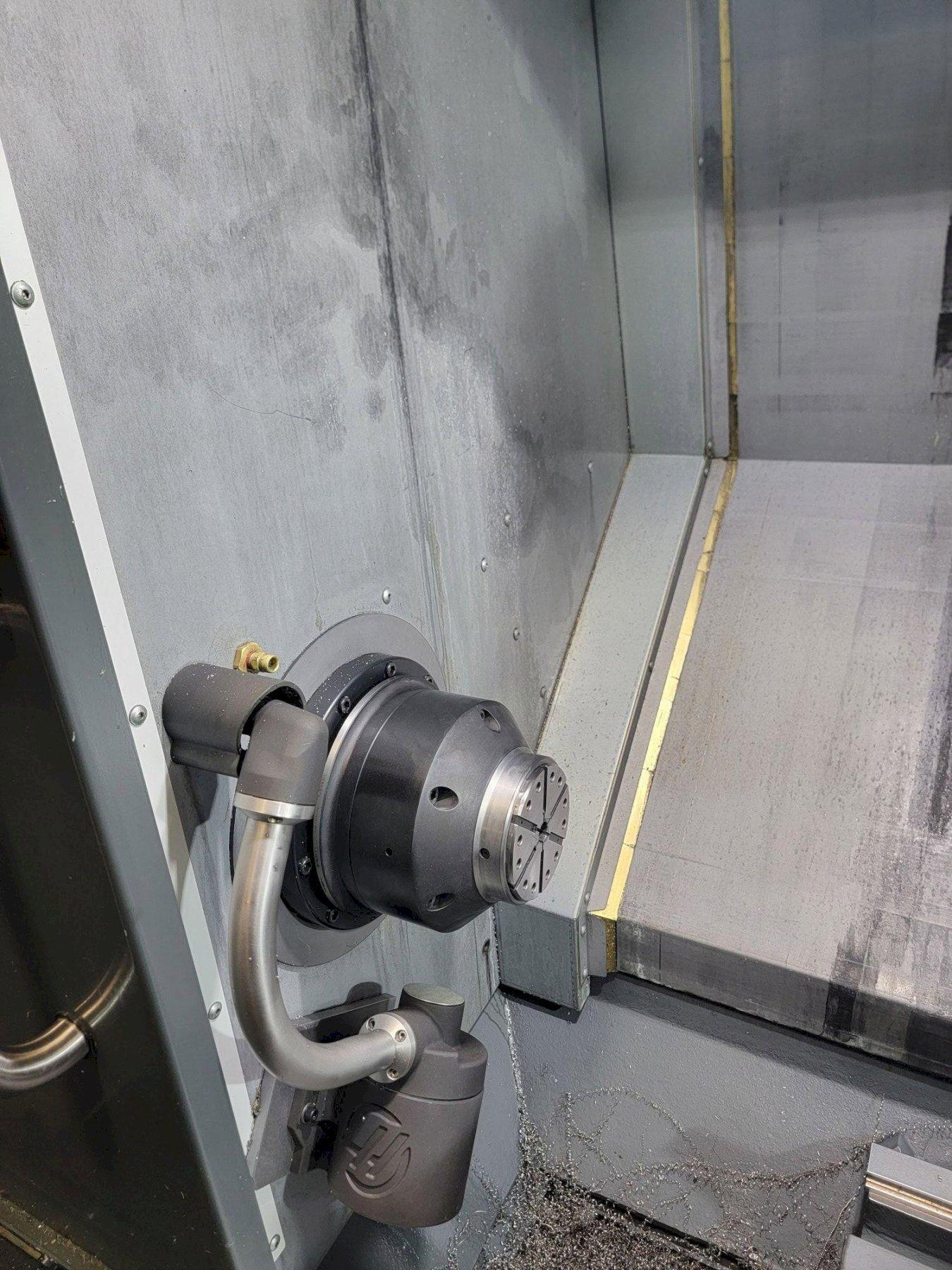

Sub Spindle
Chuck Air Blast (Upgraded $1,495 Value Included)

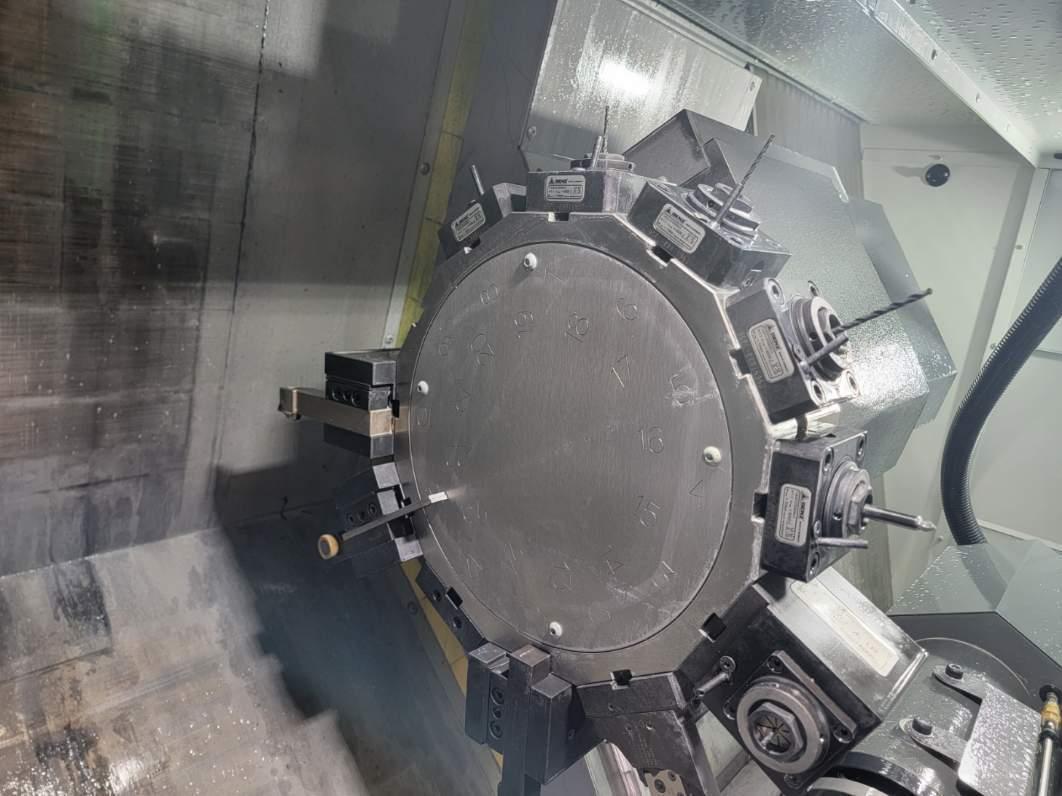

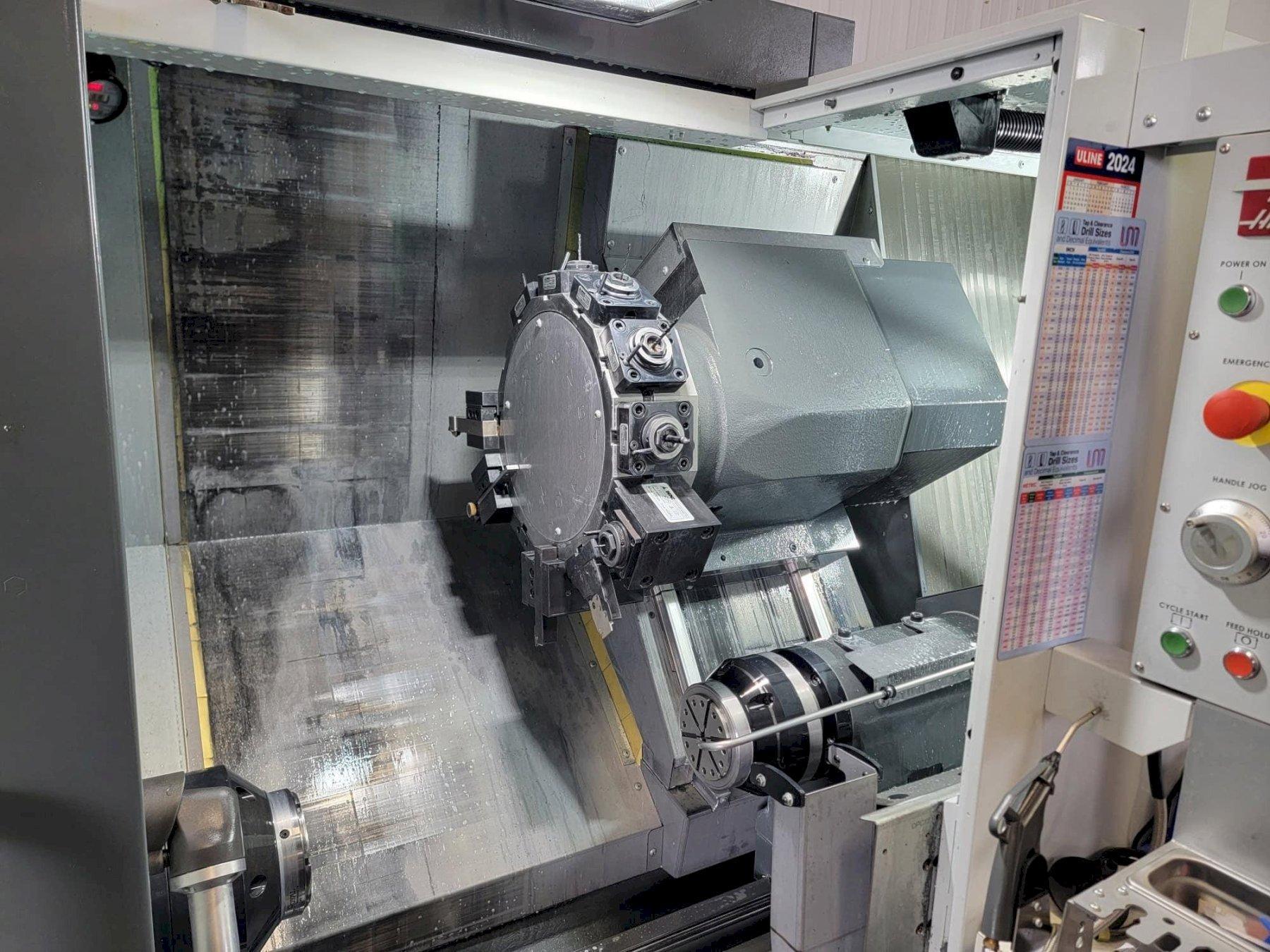

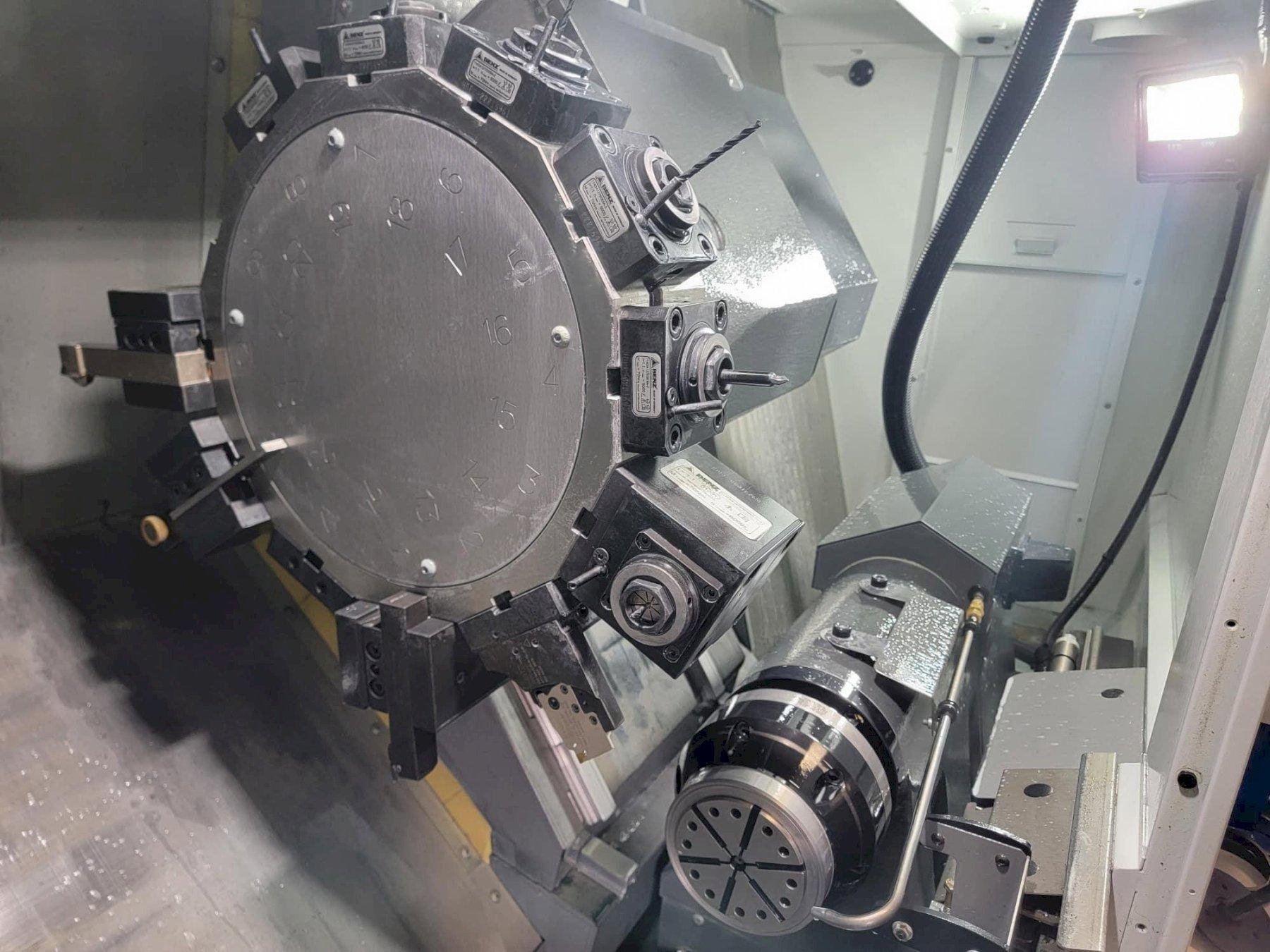

12 Station Live Tool Turret – 24 Positions
C & Y Axis Capability
4,000 RPM Live Tool Spindle Speed
Tool Presetter (Upgraded $6,195 Value Included)
Parts Catcher (Upgraded $3,795 Value Included)
Sub Spindle Air Blast (Upgraded $1,495 Value Included)
Enclosure Exhaust System (Upgraded $2,395 Value Included)
Rigid Tapping
Spindle Orientation
Visual Part Programming System & User-Definable Macro
Media Display
1 GB Max Memory
Compensation Tables
Wireless Networking
High Pressure Coolant – 300 PSI (Upgraded $9,195 Value Included)
Coolant Tank
Oil Skimmer (Upgraded $995 Value Included)
Belt Type Chip Conveyor (Upgraded $6,195 Value Included)

Capacity:
Max Turning Diameter : 13.75″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″

Travels:
X Axis Travel : 9.4″
Y Axis Travel : ± 2.0″
Z Axis Travel : 32.5″
C Axis : 0.01 °

Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM

Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4500 RPM
Spindle Motor: 30 HP

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.31″
Spindle Speed: 4000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations – 24 Positions
Live Tool Speed: 4,000 RPM
Turret Type: BMT-65

General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 12,200 lbs Approx.
