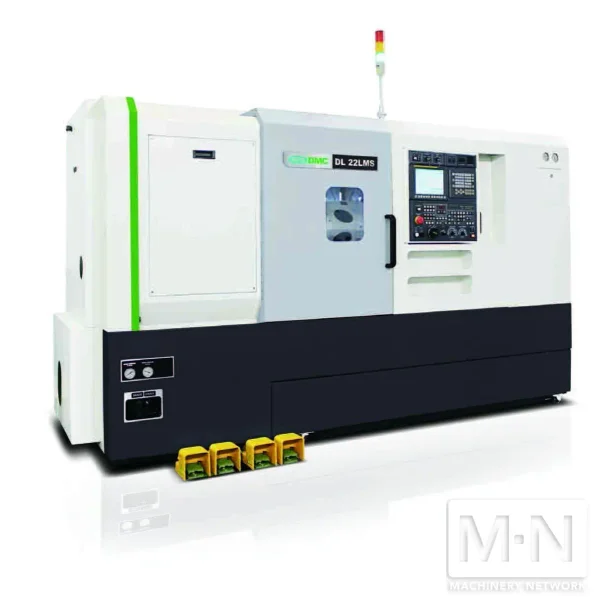

DMC DL22LA CNC Lathe

Name: DMC DL22LA CNC Lathe
Brand: DMC
SKU: 53196
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 22LA

Stock #:

53196

Status:

For Sale

Description

DMC DL22LA CNC Lathe, Fanuc 0iT Ctrl, 8” Chuck, 2.99” Spindle Bore, 3500rpm, 25hp, 21.25” Max Turn Length, 21.65” Max Swing, 15.35” Max Turn Dia., 12 Station Turret, 8.26” x 16.92” Travels, Automatic Tailstock, Programmable Quill, Chip Conveyor, Bar Feeder Interface, Tool Presetter, Parts Catcher *Located in Maine*

ImperialMetric

Swing	21.65"	549.91 mm
Machining Length	21.26"	540 mm
Max. Turning Length	21.26"	540 mm
Max. Turning Diameter	15.35"	389.89 mm
X-Axis	8.27"	210.06 mm
Z-Axis	22.83"	579.88 mm
Chuck Size	8"	203.2 mm
Bar Capacity	2.56"	65.024 mm
Spindle Bore	2.99 in
Spindle Nose	A2-6	A2-6
Power	25 hp	18.6 kW
Max RPM	3,500 RPM	3,500 RPM
Turret Stations	12	12
Tailstock	Yes	Yes
Dimensions	116.54" x 64.96" x 74.8"	116.54" x 64.96" x 74.8"
Weight	9,700 Lbs	9,700 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Automatic (Servo) Tailstock
Programmable Quill
Chip Conveyor
Bar Feeder Interface
Tool Presetter
Parts Catcher

No files or videos to display
