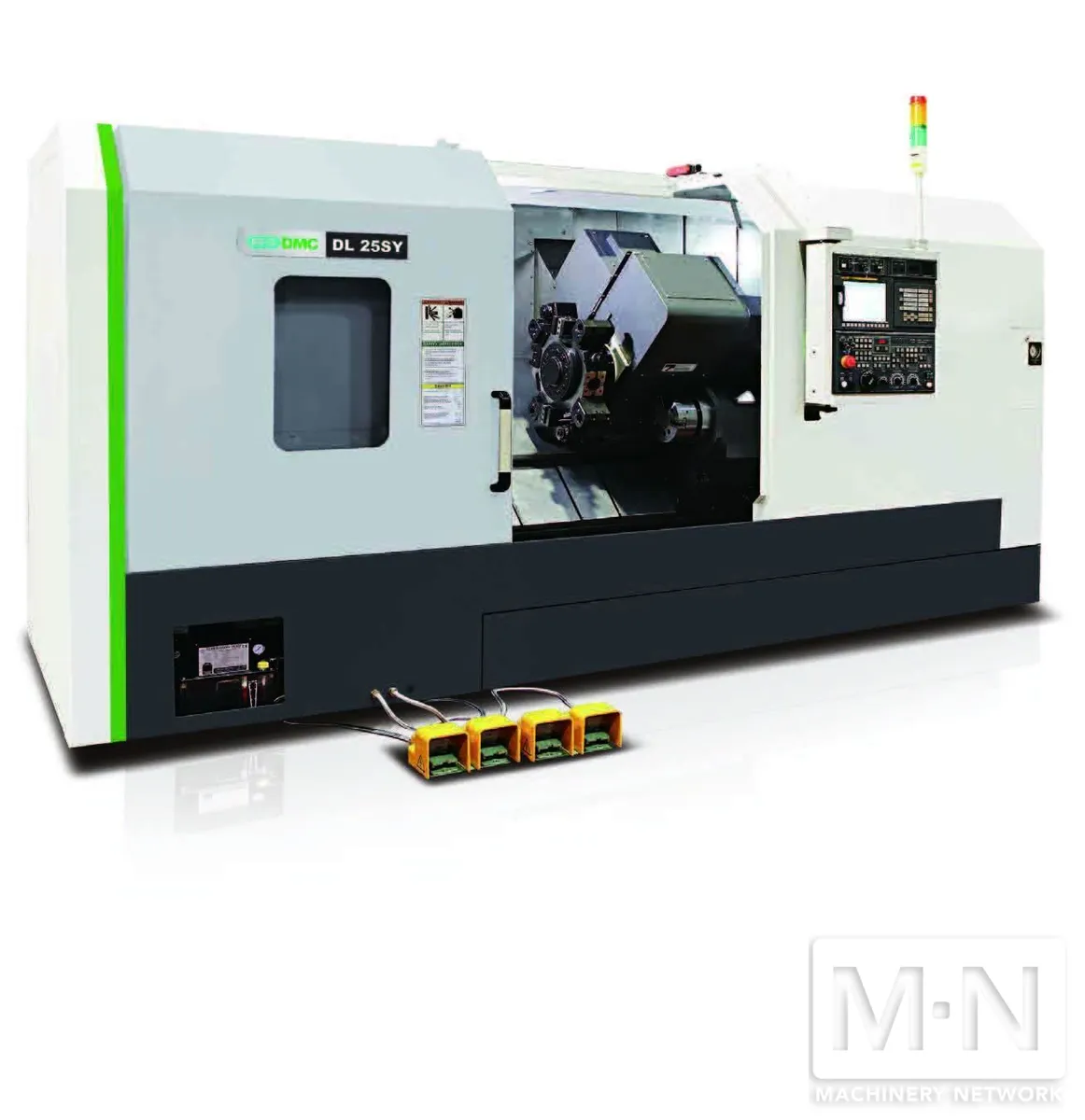

DMC DL25SY CNC Lathe w/ Milling, 2019 (2) Available - BRAND NEW IN CRATE

Brand
DMC
Category
Lathes & Turning Machines
Type
CNC Lathes
Model
DL 25SY
Stock #
53193
Year
2019
Condition
Not specified

Location

Not specified

Overview

Type:
CNC Lathes
Manufacturer:
DMC
Model:
DL 25SY
Year:
2019
Stock #:
53193
Status:
For Sale

Description

(2) DMC DL25SY CNC Lathe w/ Milling, Fanuc 0iT Ctrl, 8" Chuck Main, 3.39” Spindle Bore Main, 4000 RPM 25HP, 6” Chuck Sub, 1.57” Sub Spindle Bore, 6000rpm, 10hp, 39” Max Turn Length, 27.95” Max Swing, 15.75” Max Turn Dia., 12 Station Turret, 8” x 41” Travels, 37” B-Axis, +/- 2.17 Y-Axis, Chip Conveyor, Bar Feeder Interface, Tool Presetter, Parts Catcher, Parts Ejector, New 2019 *1 of 2 New in Original Crate in California, 2nd Machine Located in Maine*

Swing27.95"709.93 mm
Machining Length39.37"1,000 mm
Max. Turning Length39.37"1,000 mm
Max. Turning Diameter15.75"400.05 mm
X-Axis8.27"210.06 mm
Y-Axis±2.16"±2.16"
Z-Axis41.34"1,050 mm
Chuck Size8"203.2 mm
Bar Capacity2.99"75.946 mm
Spindle Bore3.39 in
Spindle NoseA2-8A2-8
Power29.5 hp22 kW
Max RPM4,000 RPM4,000 RPM
Turret Stations1212
Sub Spindle Power20.12 hp
Sub Spindle Max RPM6000 rpm6,000 RPM
Sub Spindle Chuck6 in
Sub Spindle Bar Capacity2.56 in
Sub Spindle Bore2.99 in
Sub Spindle NoseA2-6A2-6
Dimensions161.48" x 78.74" x 86.61"161.48" x 78.74" x 86.61"
Weight17,196 Lbs17,196 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Chip Conveyor
Bar Feeder Interface
Tool Presetter
Parts Catcher/Parts Catcher
Parts Ejector
