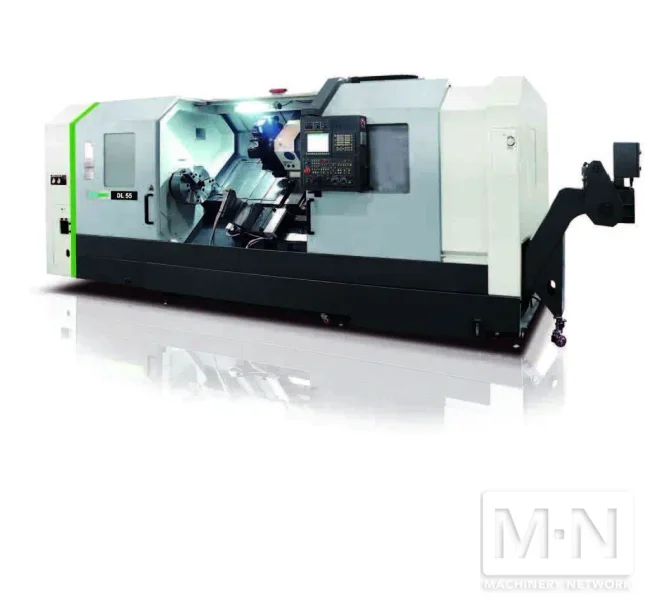

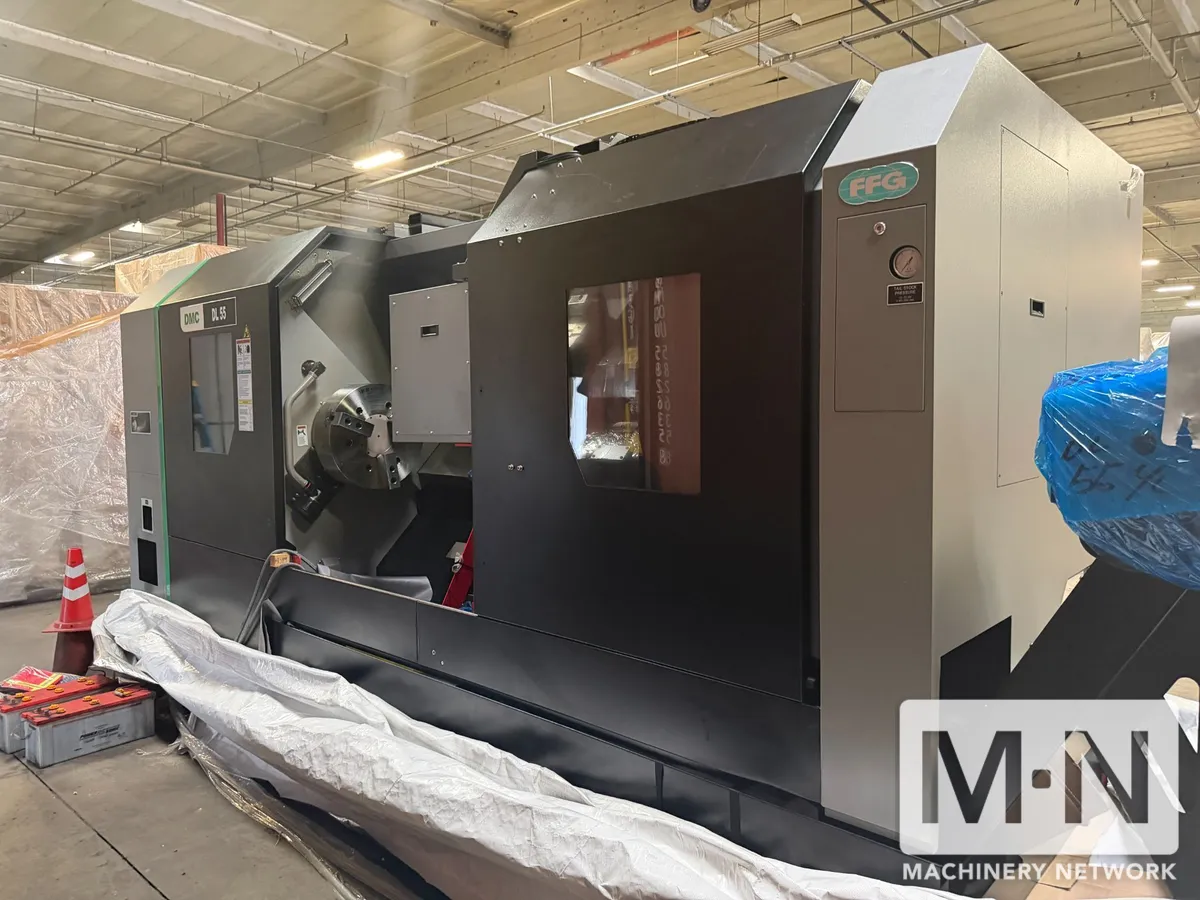

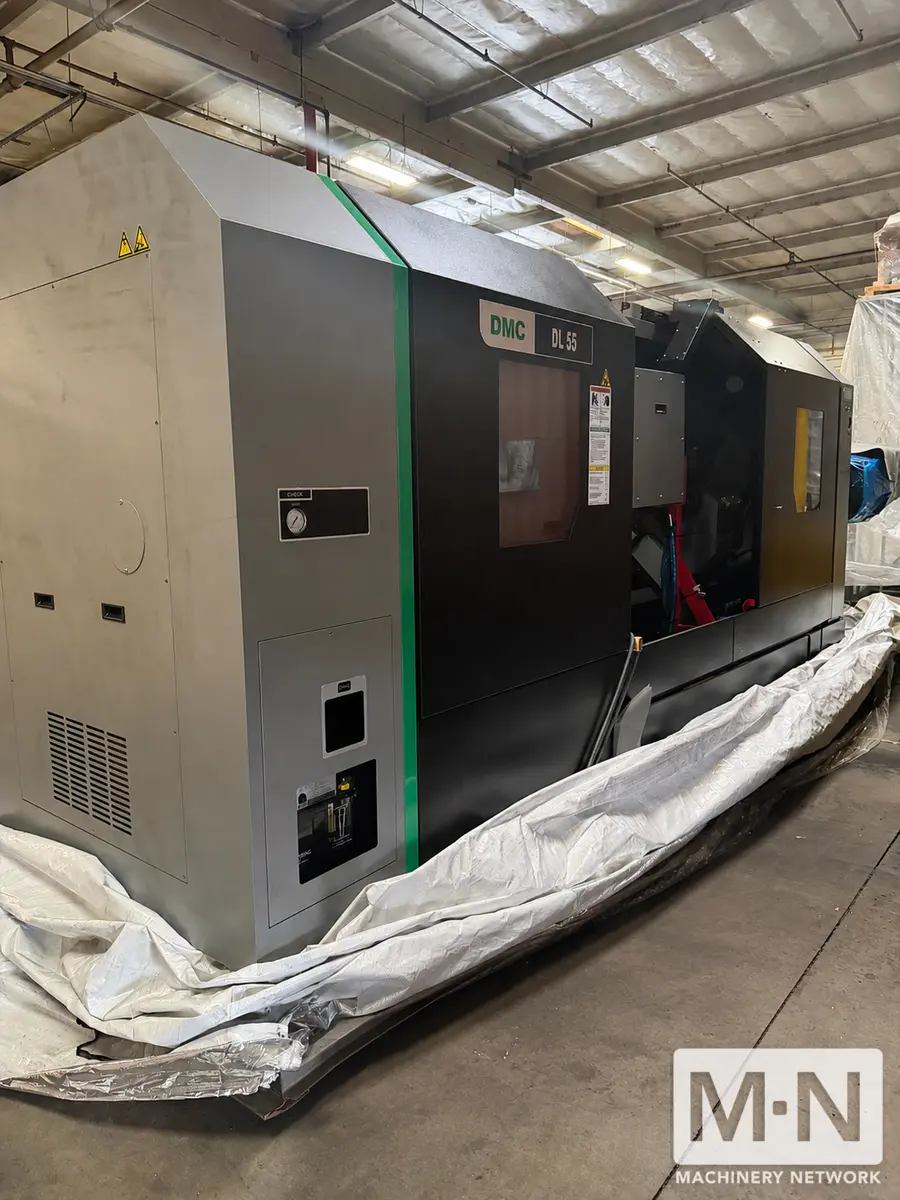

DMC DL55 CNC Lathe, 2019 - BRAND NEW IN CRATE

Name: DMC DL55 CNC Lathe, 2019 - BRAND NEW IN CRATE
Brand: DMC
SKU: 53192
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 55

Year:

2019

Stock #:

53192

Status:

For Sale

Description

(2) DMC DL55L CNC Lathe, Fanuc 0iT Ctrl, 21" Chuck, 7.13” Spindle Bore, 1700RPM, 50HP, 89.17” Max Turn Length, 30.51 Max Swing, 27.17” Max Turn Dia.,12 Station Turret, Programmable Tailstock, Programmable Quill, Chip Conveyor, Tool Presetter, Steady Rest, New 2018 *New in Original Crate, Located in California*

ImperialMetric

Swing	30.5"	774.7 mm
Machining Length	57.6"	1,463 mm
Max. Turning Length	57.68"	1,465.1 mm
Max. Turning Diameter	24.8"	629.92 mm
X-Axis	13.78"	350.01 mm
Z-Axis	60.24"	1,530.1 mm

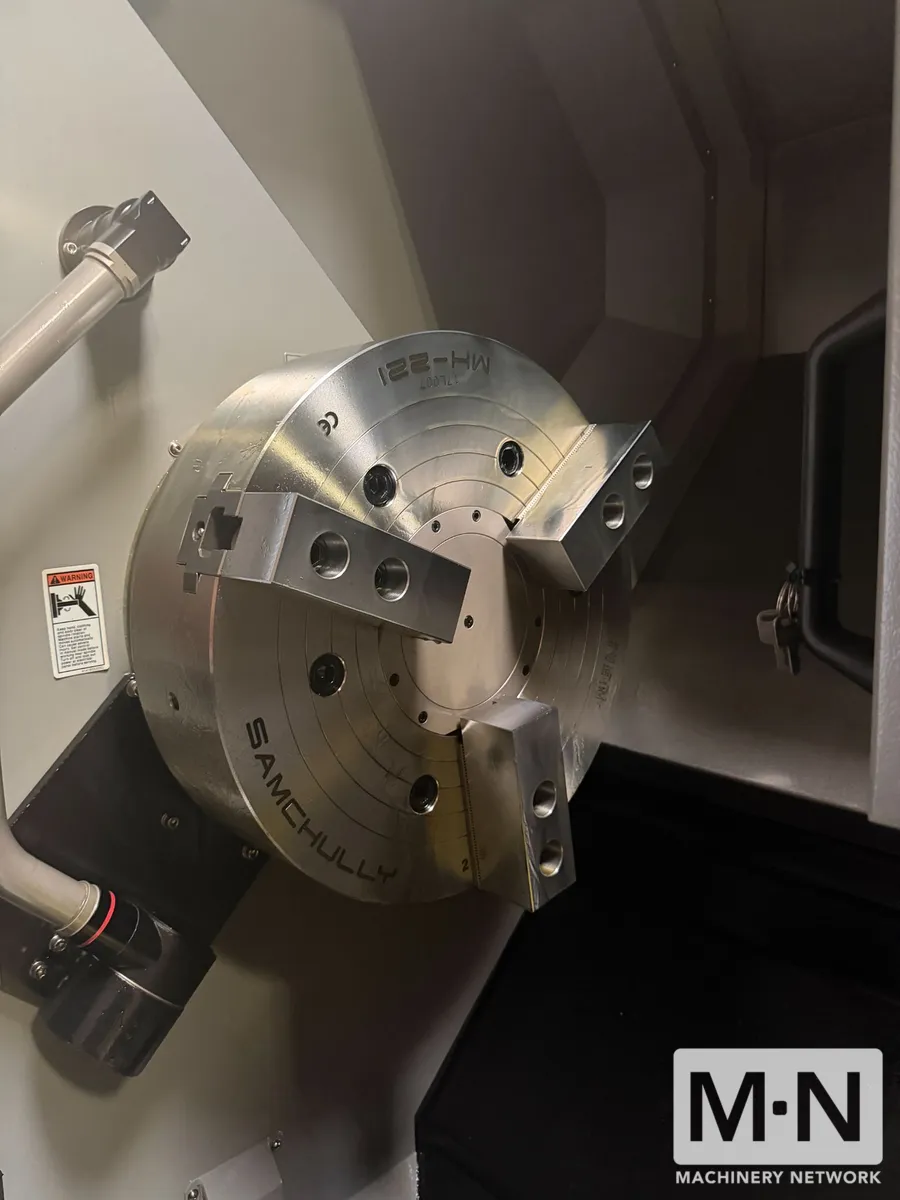

Chuck Size	21"	533.4 mm
Bar Capacity	6.38"	162.05 mm
Spindle Bore	7.13 in
Spindle Nose	A2-15	A2-15
Power	50 hp	37.3 kW
Max RPM	1,800 RPM	1,800 RPM

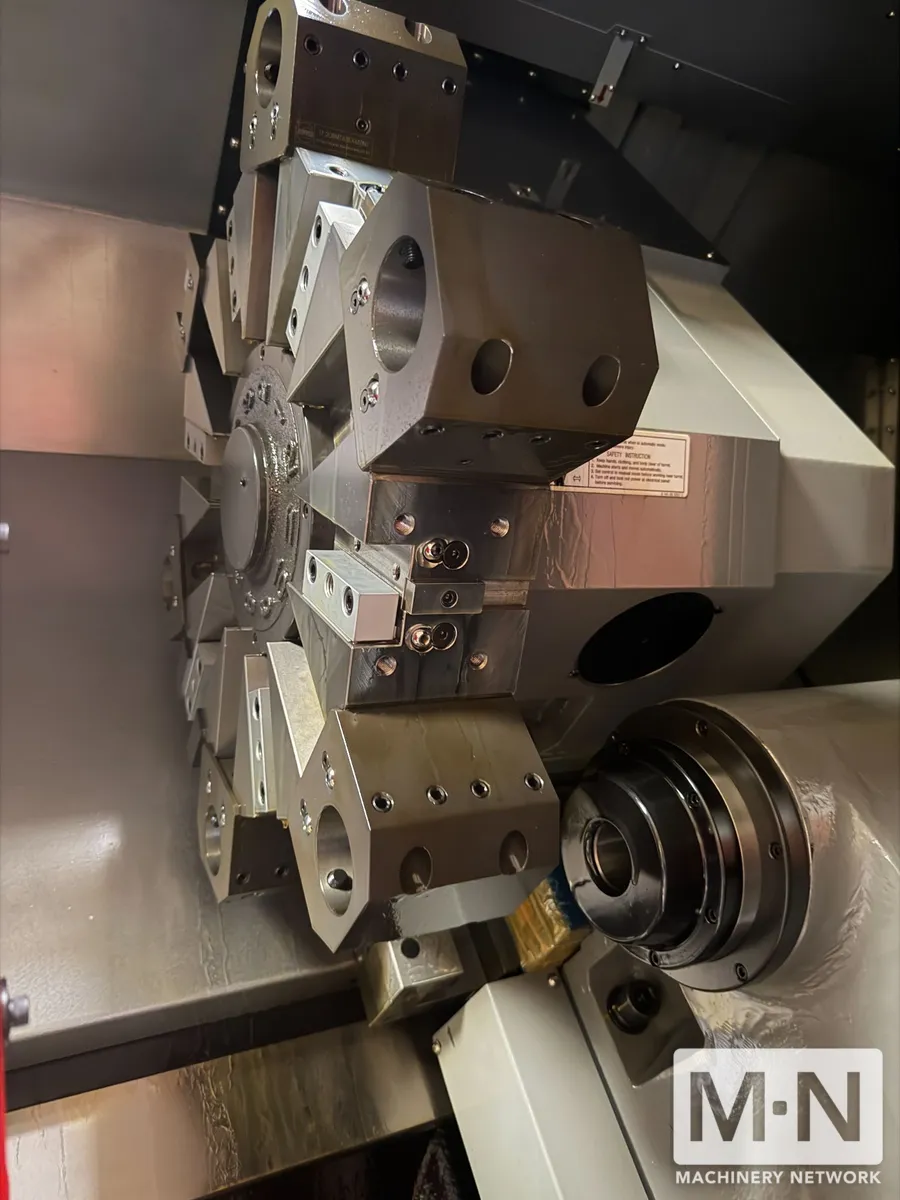

Turret Stations	12	12
Tailstock	Yes	Yes
Live Tooling	No	No
Sub Spindle	No	No
Dimensions	197.24" x 86.69" x 92.68"	197.24" x 86.69" x 92.68"
Weight	20,282 Lbs	20,282 Lbs

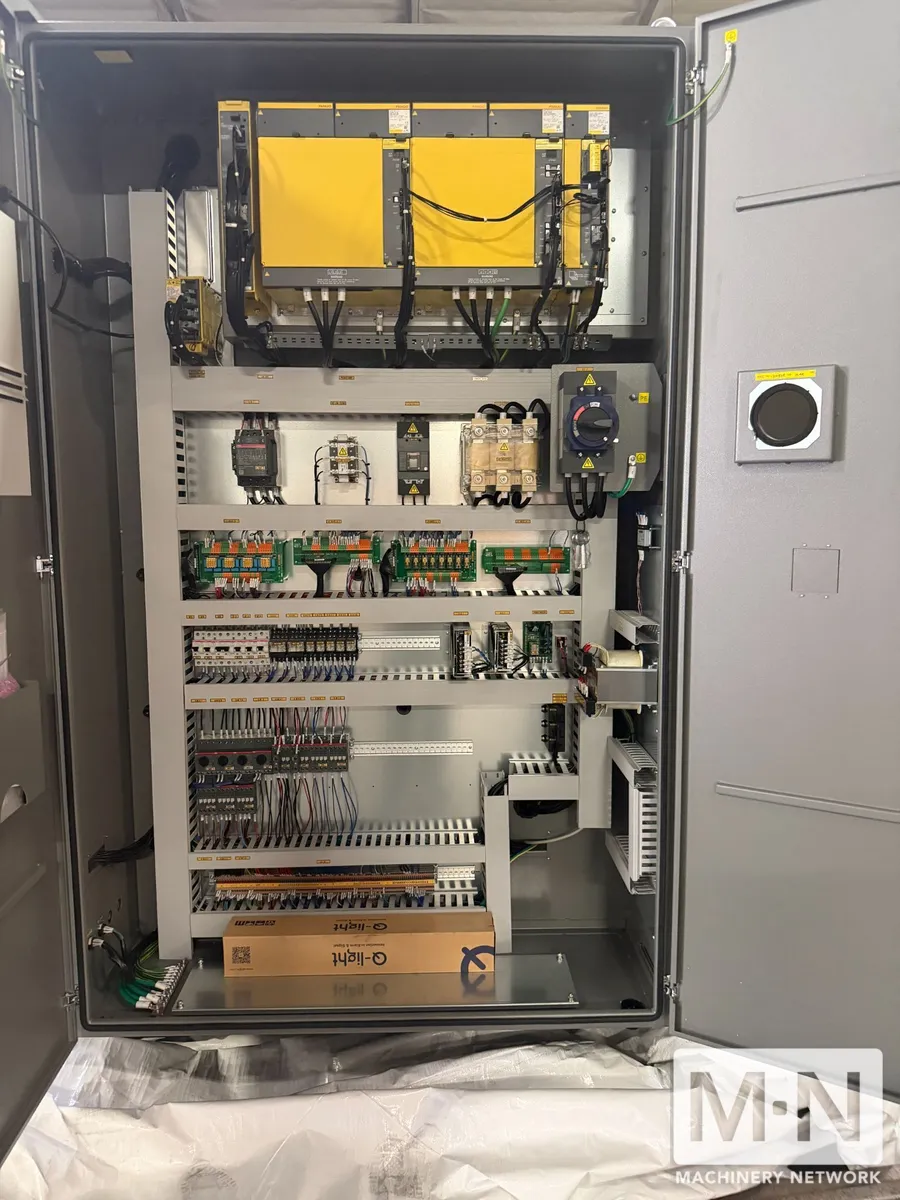

Fanuc 0i-T CNC Control
X/Z Box Way
Programmable Tailstock
Programmable Quill

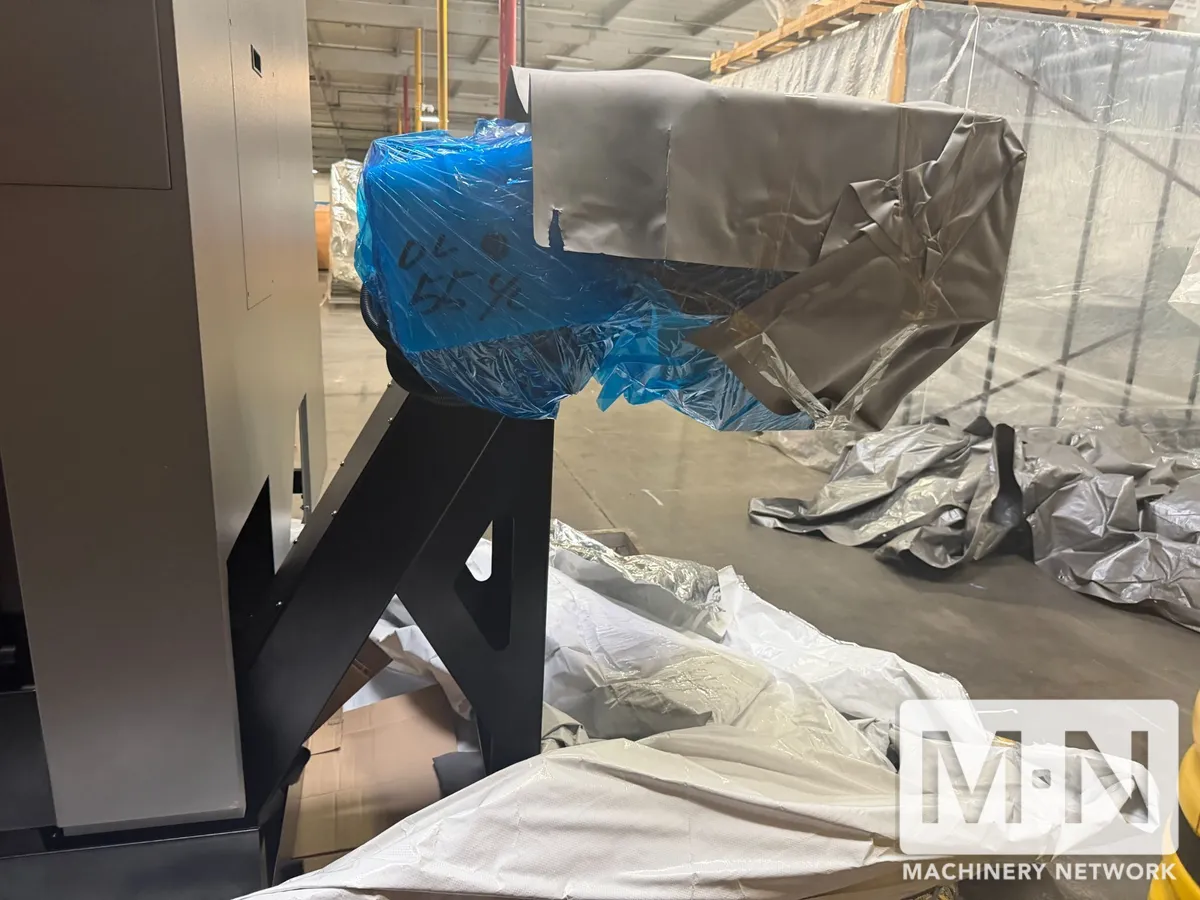

Chip Conveyor
Tool Presetter

No files or videos to display

DMC DL55 CNC Lathe, 2019 - BRAND NEW IN CRATE

Location

Specifications

Files & Videos

Overview

Description

Specifications

Equipped With:
