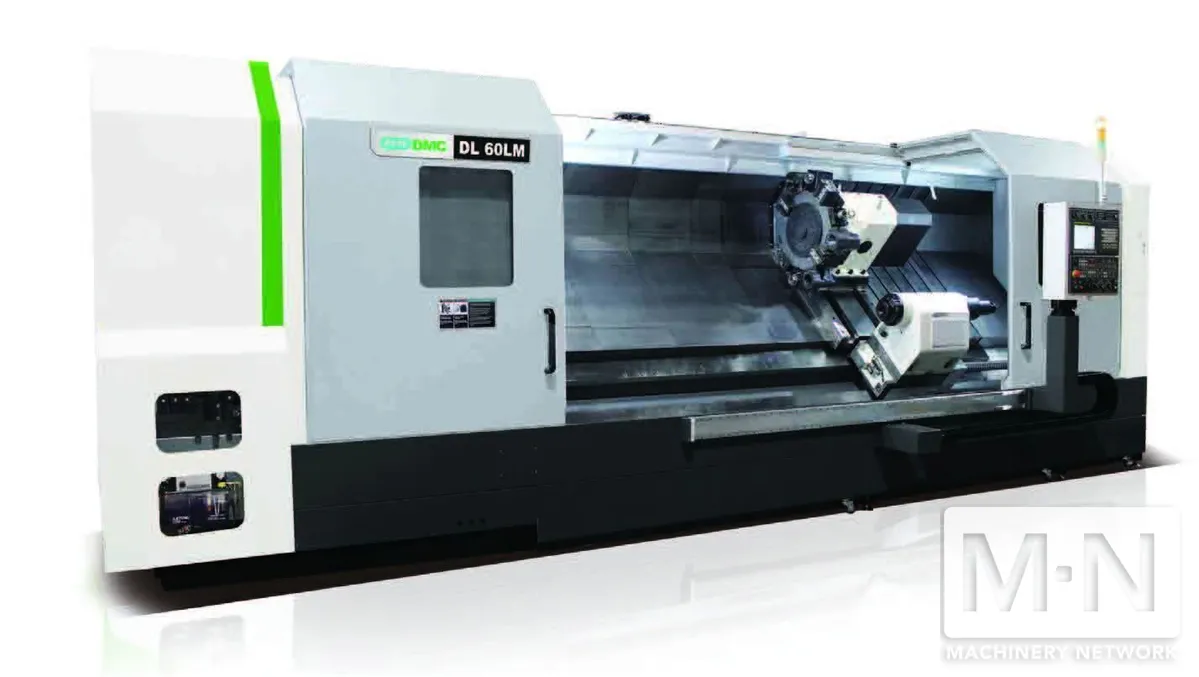

DMC DL60L CNC Lathe, 2018 - BRAND NEW IN CRATE

Name: DMC DL60L CNC Lathe, 2018 - BRAND NEW IN CRATE
Brand: DMC
SKU: 53191
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 60L

Year:

2018

Stock #:

53191

Status:

For Sale

Description

(2) DMC DL60L CNC Lathe, Fanuc 0it Ctrl, 24” Chuck, 7.13” Spindle Bore 1400 RPM, 60HP, 125” Max Turn Length, 40” Swing, 35.43” Turn Dia.,12 Station Turret, 18.5” x 128” Travels, Programmable Tailstock, Programmable Quill, Chip Conveyor, Tool Presetter, Steady Rest, New 2018 *New in Original Crate, Located in California*

ImperialMetric

Swing	40.55"	1,030 mm
Machining Length	125.98"	3,199.9 mm
Max. Turning Length	125.98"	3,199.9 mm
Max. Turning Diameter	35.43"	899.92 mm
X-Axis	18.5"	469.9 mm
Z-Axis	128.74"	3,270 mm
Chuck Size	24"	609.6 mm
Bar Capacity	6.14"	155.96 mm
Spindle Bore	7.13 in
Spindle Nose	A2-15	A2-15
Power	60.4 hp	45 kW
Max RPM	1,400 RPM	1,400 RPM
Turret Stations	12	12
Tailstock	Yes	Yes
Dimensions	292.8" x 108.27" x 105.71"	292.8" x 108.27" x 105.71"
Weight	49,165 Lbs	49,165 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Programmable Tailstock
Programmable Quill
Chip Conveyor
Tool Presetter
Steady Rest Preparation

No files or videos to display

DMC DL60L CNC Lathe, 2018 - BRAND NEW IN CRATE

Location

Specifications

Files & Videos

Overview

Description

Specifications

Equipped With:
