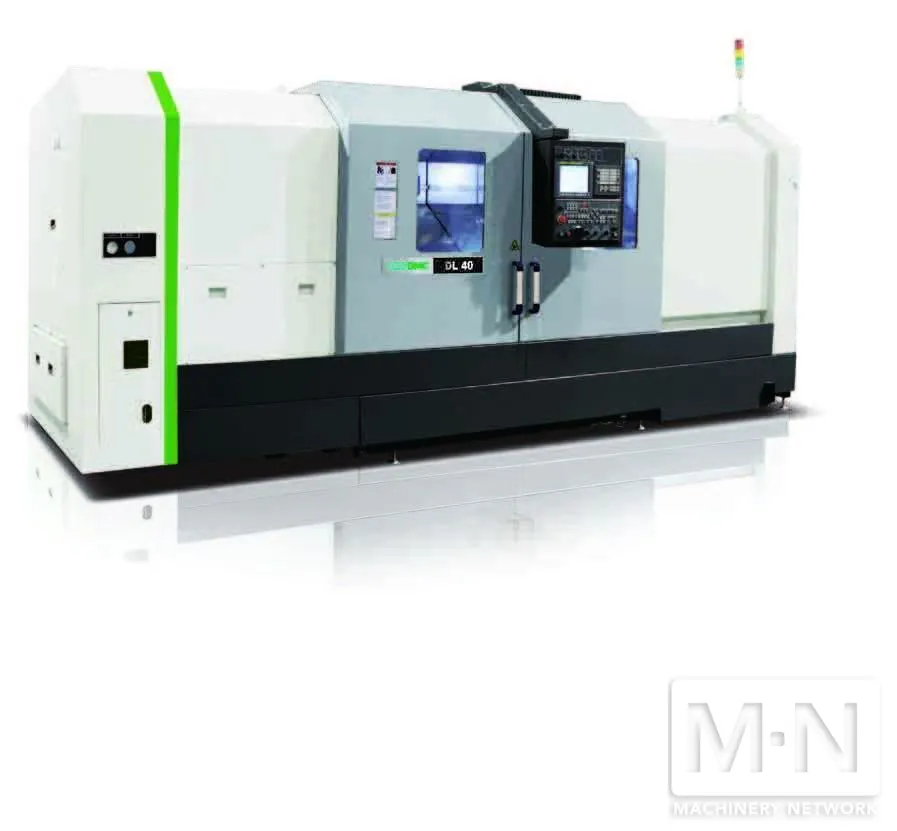

DMC DL40L CNC Lathe, 2018

Name: DMC DL40L CNC Lathe, 2018
Brand: DMC
SKU: 53190
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 40L

Year:

2018

Stock #:

53190

Status:

For Sale

Description

DMC DL40L CNC Lathe, Fanuc 0it Ctrl, 15” Chuck, 5.2” Spindle Bore, 2500RPM, 30HP, 65” Max Turn Length, 29.53” Swing, 22.05” Max Turn Dia., 10 Station Turret, 12.01” x 67.13” Travels, Programmable Tailstock, Programmable Quill, Chip Conveyor, Tool Presetter, New 2018 *Located in Houston, TX*

ImperialMetric

Swing	29.5"	749.3 mm
Machining Length	65.2"	1,656.1 mm
Max. Turning Length	65.16"	1,655.1 mm
Max. Turning Diameter	20.4"	518.16 mm
X-Axis	12.01"	305.05 mm
Z-Axis	67.13"	1,705.1 mm
Chuck Size	15"	381 mm
Bar Capacity	4.6"	116.84 mm
Spindle Bore	5.2 in
Spindle Nose	A2-11	A2-11
Power	30 hp	22.4 kW
Max RPM	2,000 RPM	2,000 RPM
Tailstock	Yes	Yes
Live Tooling	No	No
Sub Spindle	No	No
Dimensions	200" x 73.86" x 90.24"	200" x 73.86" x 90.24"
Weight	20,062 Lbs	20,062 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way. Zf Gearbox
Programmable Tailstock
Programmable Quill
Chip Conveyor
Tool Presetter
