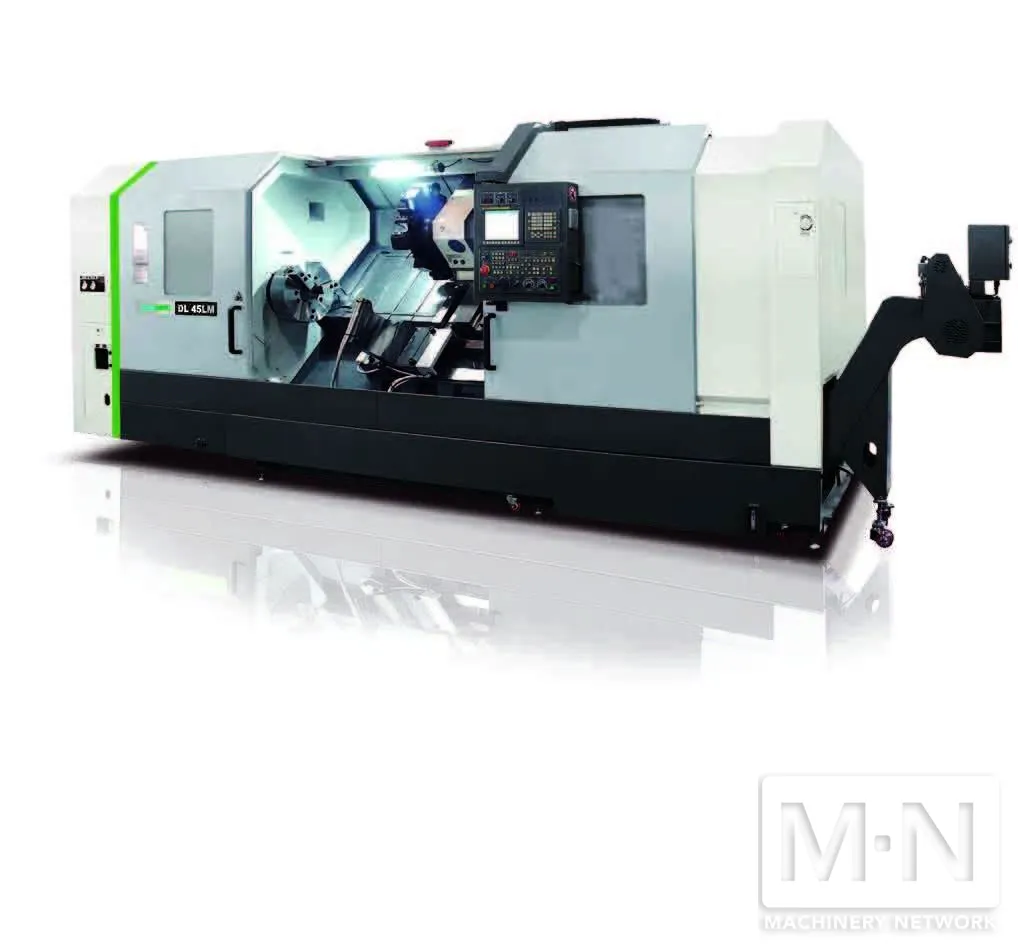

DMC DL45L CNC Lathe, 2018 - BRAND NEW IN CRATE

Name: DMC DL45L CNC Lathe, 2018 - BRAND NEW IN CRATE
Brand: DMC
SKU: 53184
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 45L

Year:

2018

Stock #:

53184

Status:

For Sale

Description

(2) DMC DL45L CNC Lathe, Fanuc 0iT Ctrl, 18" Chuck, 5.2” Spindle Bore, 2000RPM, 50HP, 89.17” Max Turn Length, 30.51” Swing, 27.17” Max Turn Dia., 12 Station Turret, 13.78” x 91.73” Travels, Programmable Tailstock, Programmable Quill, Tool Presetter, Steady Rest, New 2018 *New in Original Crate, Located in CA*

ImperialMetric

Swing	30.51"	774.95 mm
Machining Length	89.17"	2,264.9 mm
Max. Turning Length	65.16"	1,655.1 mm
Max. Turning Diameter	27.17"	690.12 mm
X-Axis	12.01"	305.05 mm
Z-Axis	68.9"	1,750.1 mm
Chuck Size	18"	457.2 mm
Bar Capacity	4.5"	114.3 mm
Spindle Bore	5.2 in
Spindle Nose	A2-11	A2-11
Power	50 hp	37.3 kW
Max RPM	2,000 RPM	2,000 RPM
Tailstock	Yes	Yes
Live Tooling	No	No
Sub Spindle	No	No
Dimensions	200" x 73.86" x 90.24"	200" x 73.86" x 90.24"
Weight	20,062 Lbs	20,062 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Programmable Tailstock
Programmable Quill
Tool Presetter
Steady Rest Preparation
Single Foot Pedal for Chuck Close/Open
