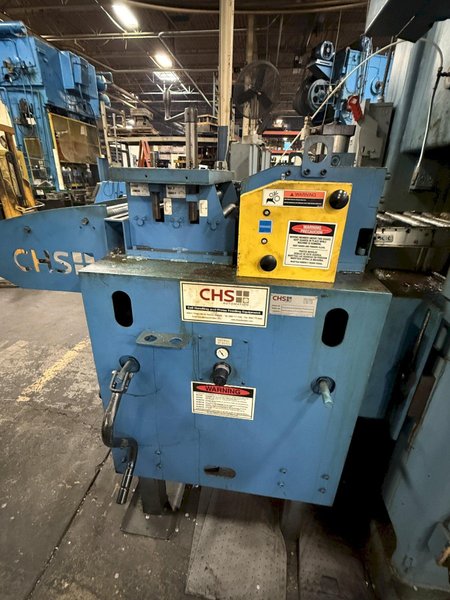

Nidec-CHS Automation Servo Feed Straightener - 18" Maximum Coil Width

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .150" x 12" Wide
Minimum Stock Thickness....  0.020"
Maximum Feed Length........ 999.99 inches
Material Feed Accuracy within 0.003 inches
Required Air Pressure Supply 60-80 PSI

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
Three inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Straightener model no PL-225-5-18
Five servo feed straightening rolls x 2.25" diameter
Upper servo feed straightening roll adjustments

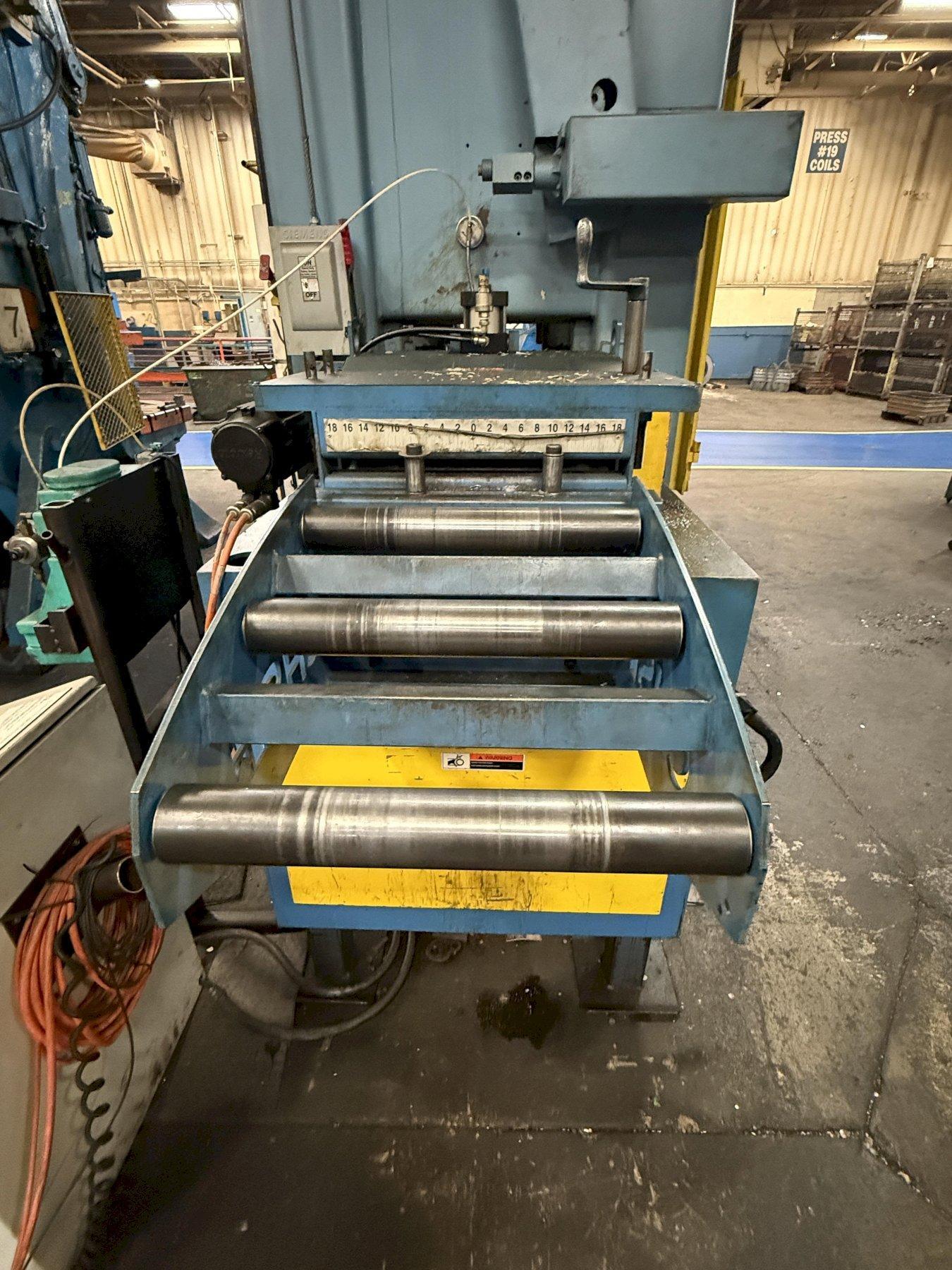

Cascade loop support rollers
AC servo roll feed drive and controls (Consult sales for complete details)
End of stock detector for automatic shut-off
Job memory storage
Batch counting
On the fly micro adjustment

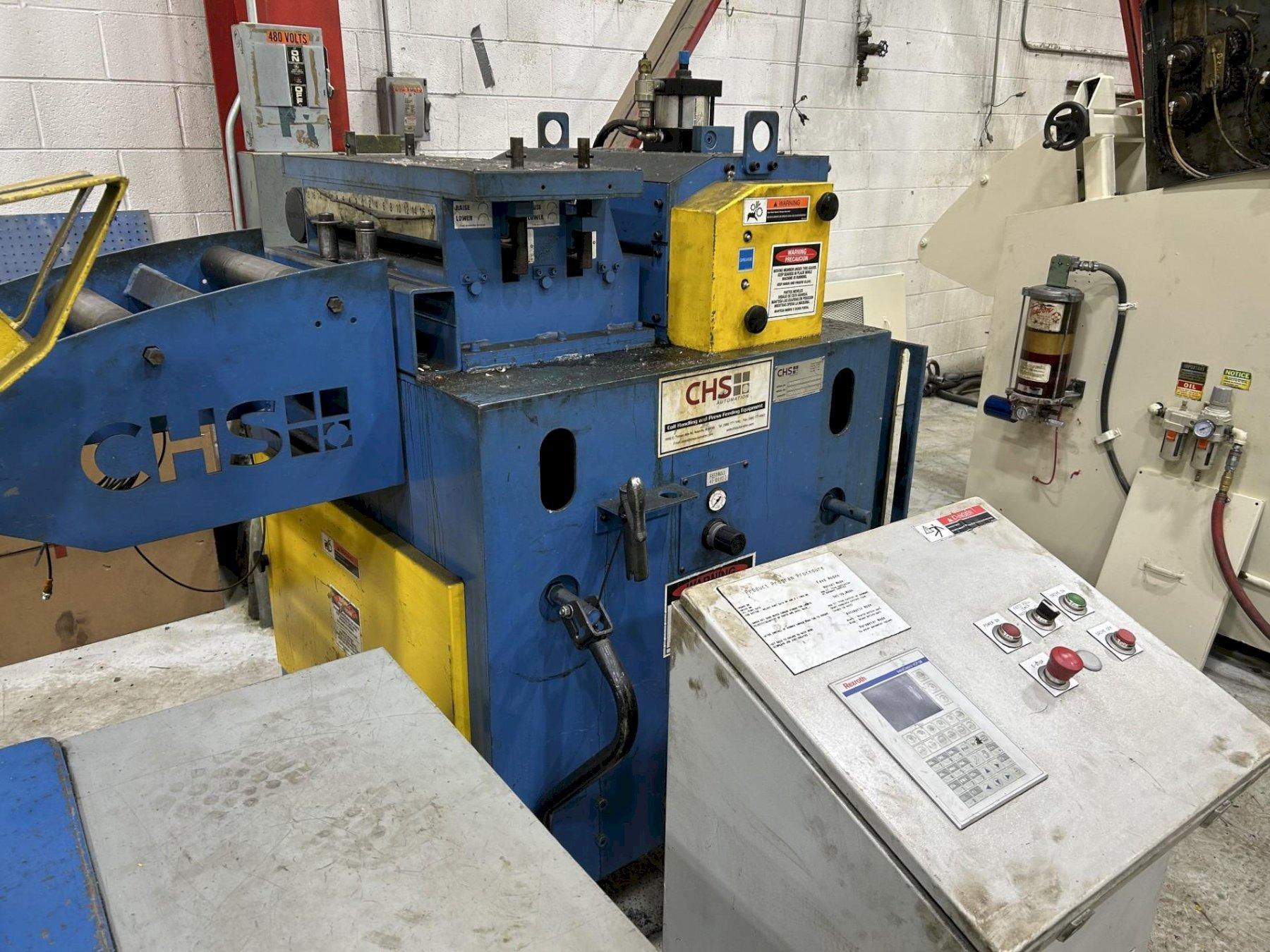

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
