Coil Width | 60 inches |
Coil Thickness | .070 inches |
CHS Automation Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 60"
Stock thickness capacity: .070" x 60" Wide
Stock thickness capacity: .187" x 18" Wide

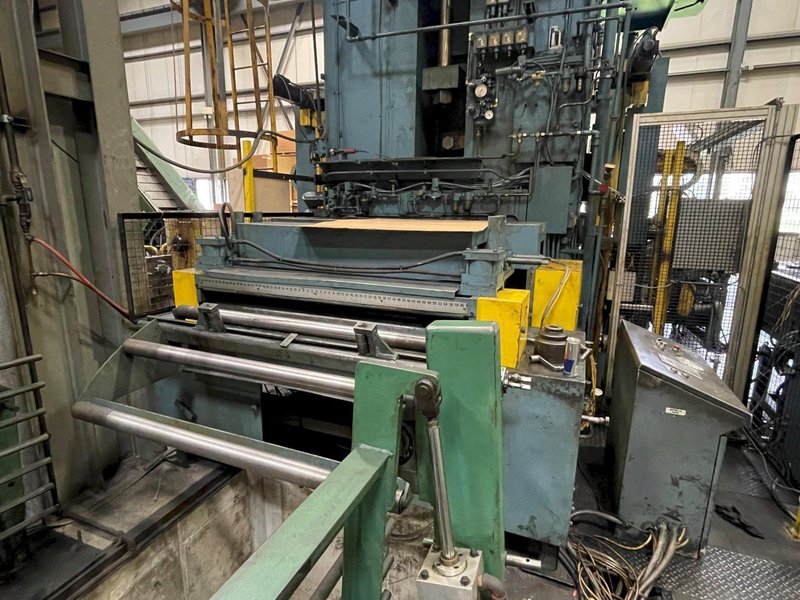

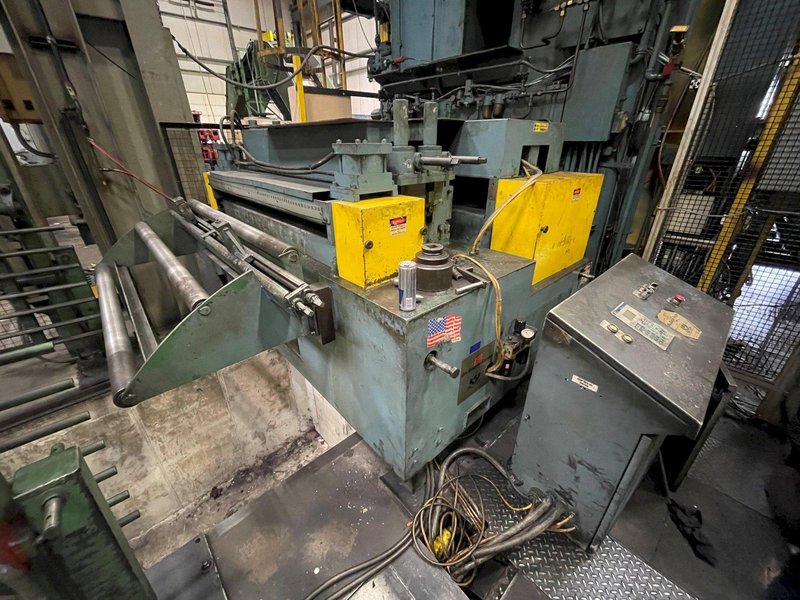

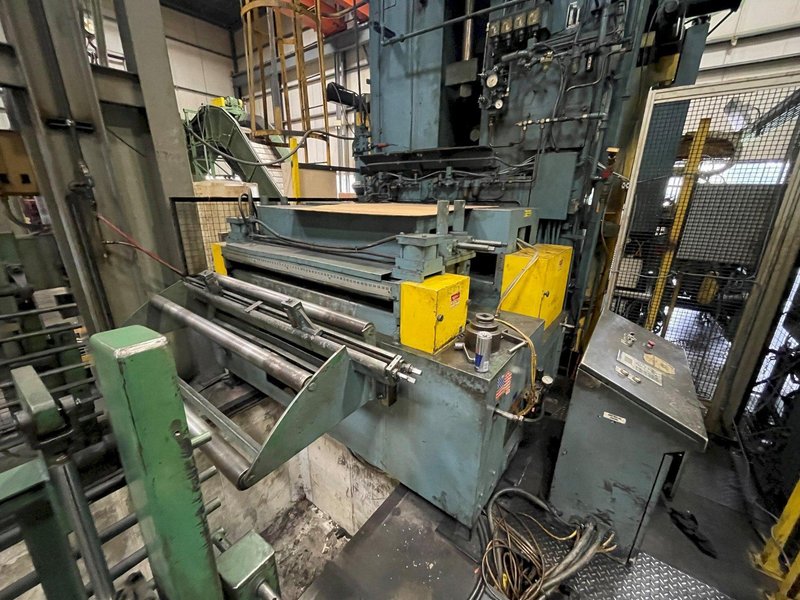

CHS Automation Servo Roll Feed Straightener Combination Press Feed, Model No.: DRFS-660
Six inch diameter full width upper and lower feed rolls
Matte chrome finish on upper and lower feed rolls
Air operated upper feed roll adjustment / pilot (dual cylinders)
Solenoid controlled pilot release
Centralized lubrication points
Hand crank stock width edge guides
Cabinet base mounted with heavy duty pass line adjustment
Five straightening rolls x 4 inch diameter
Individual upper straightening roll adjustments via screw jacks
Motorized pinch roll for stock threading
Air clutch engagement for motorized pinch roll
Air operated upper pinch roll adjustment
Cascade loop support rollers
AC servo drive and controls
Job memory, batch counting, on the fly micro adjustment
Remote pendant control for jog forward and reverse
Fused Disconnect |
