Coil Width | 36 inches |
Coil Thickness | .070 inches |

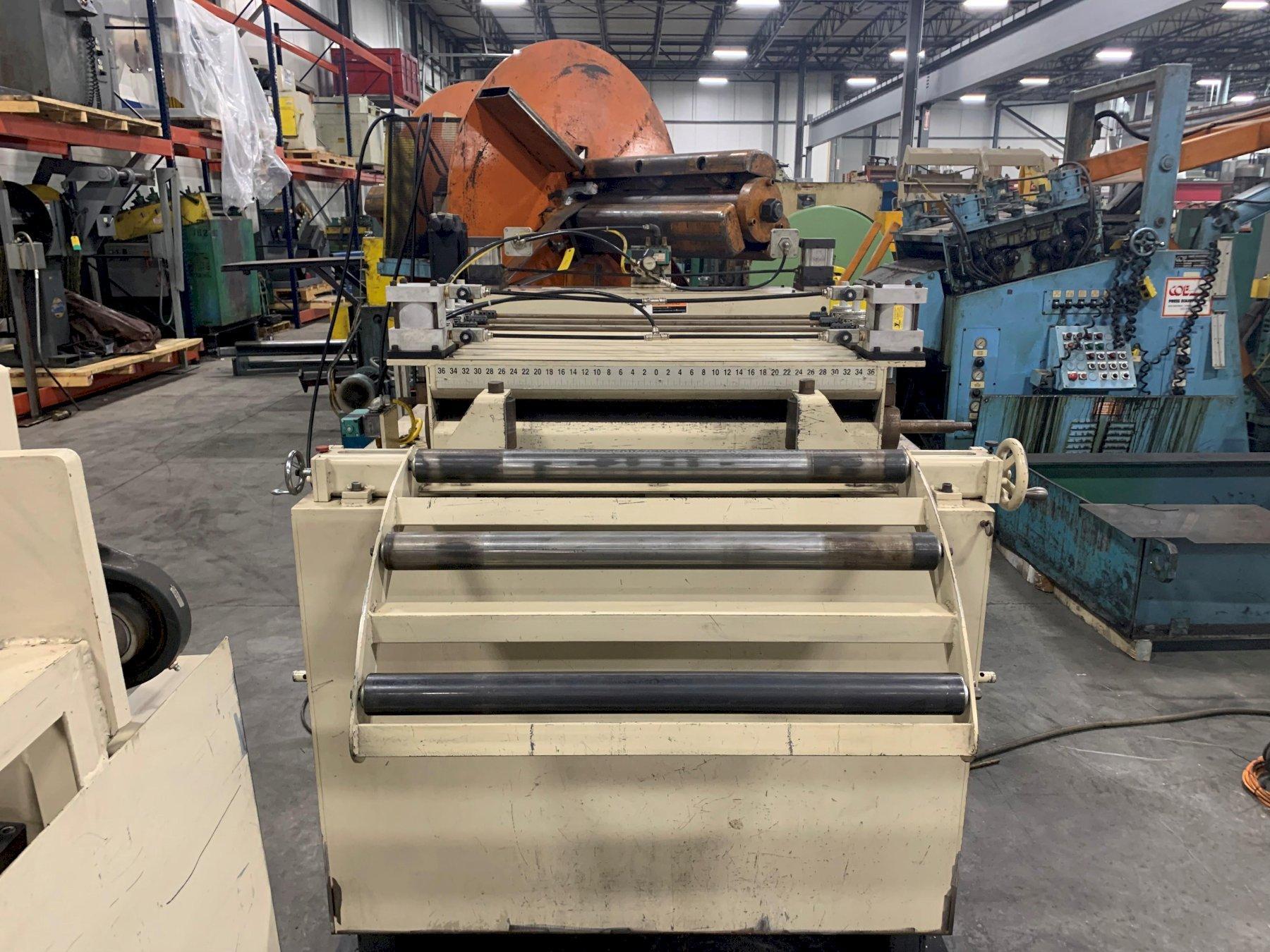

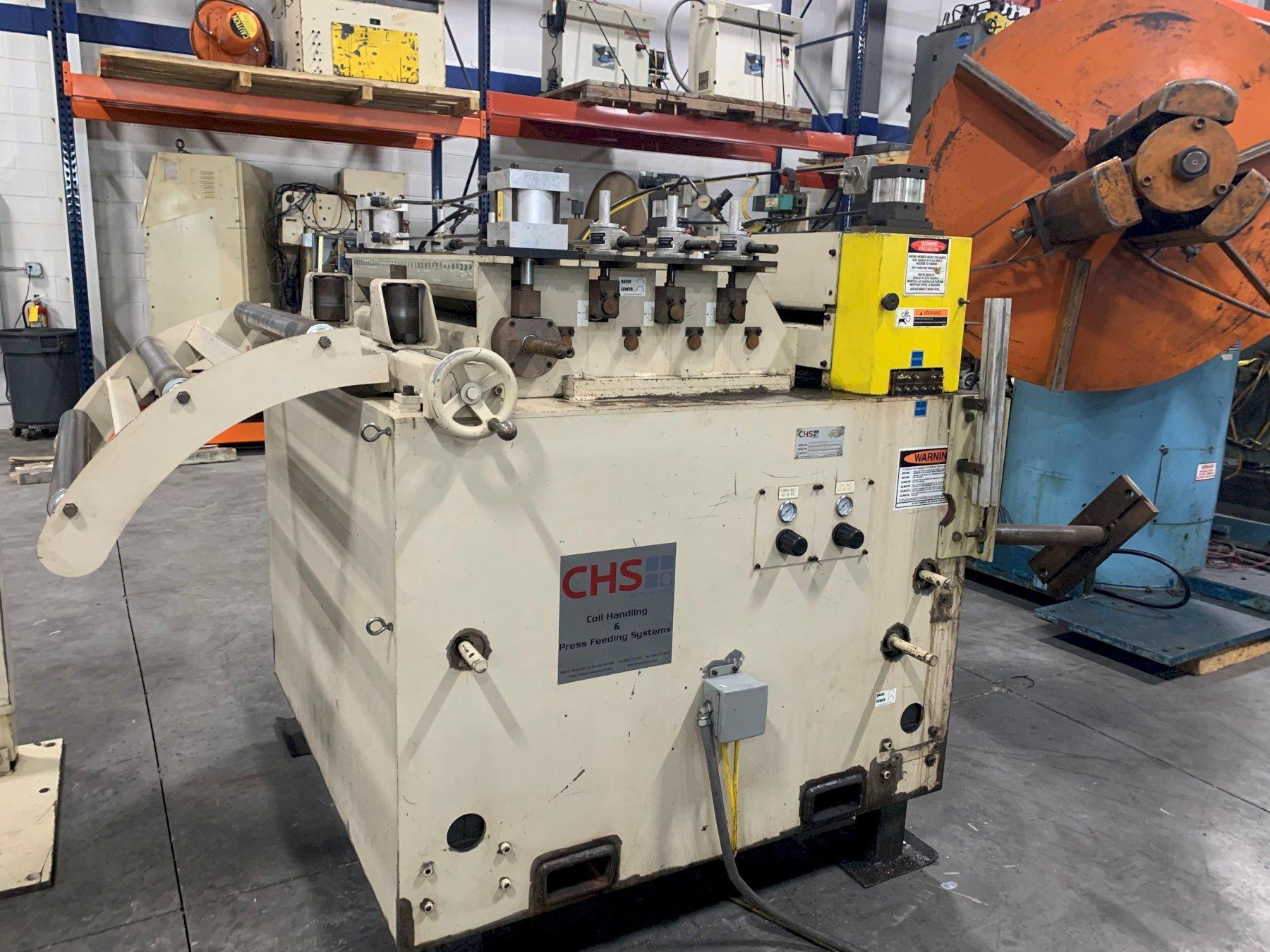

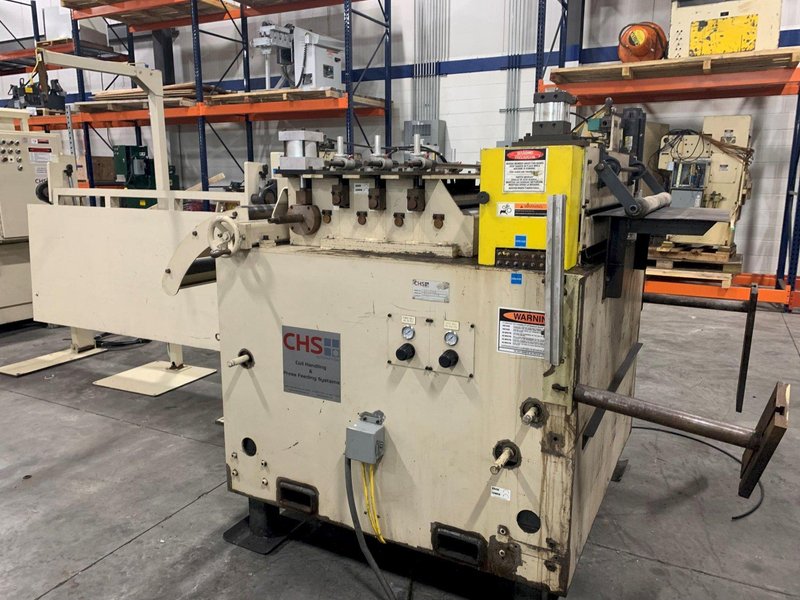

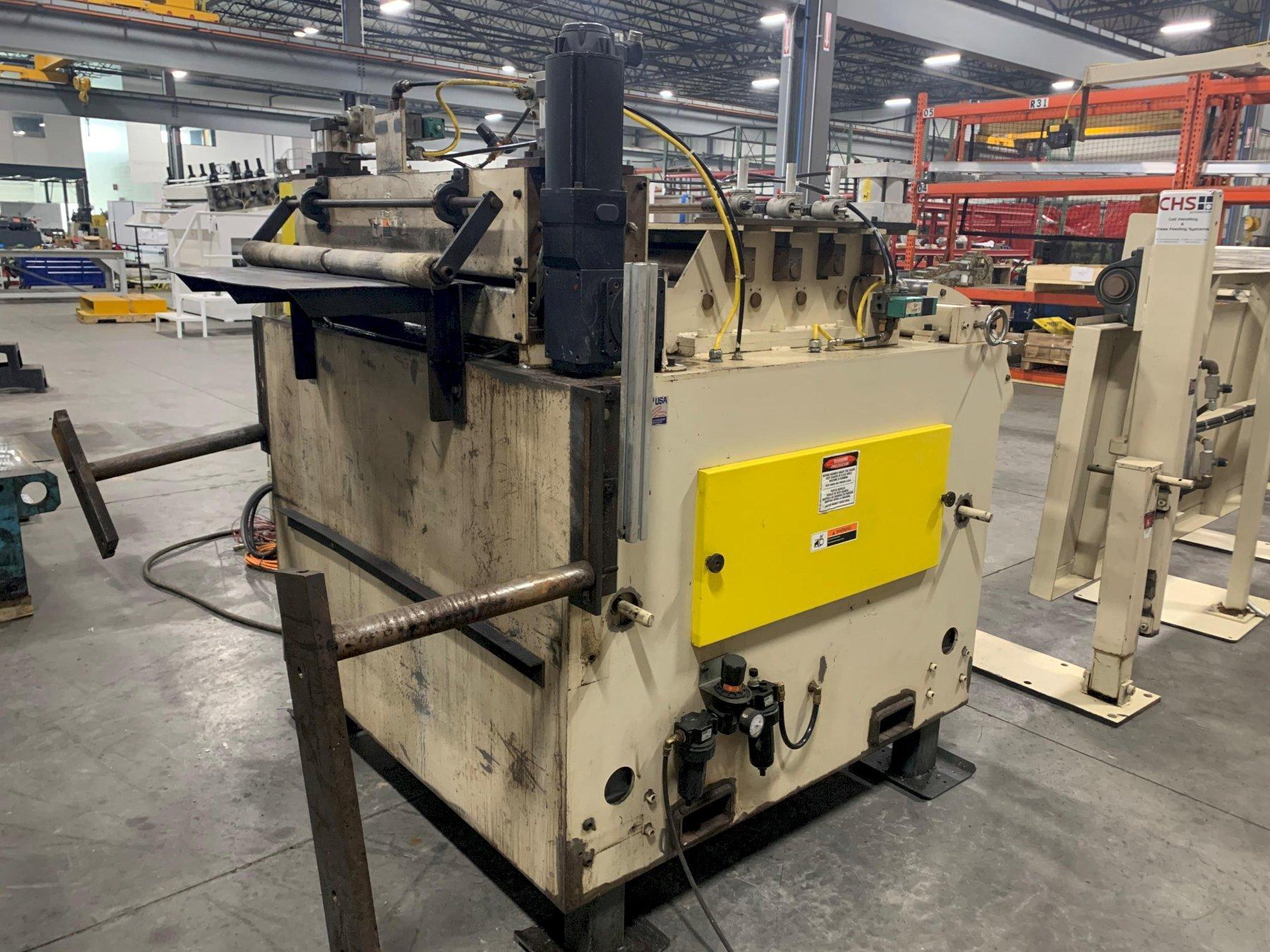

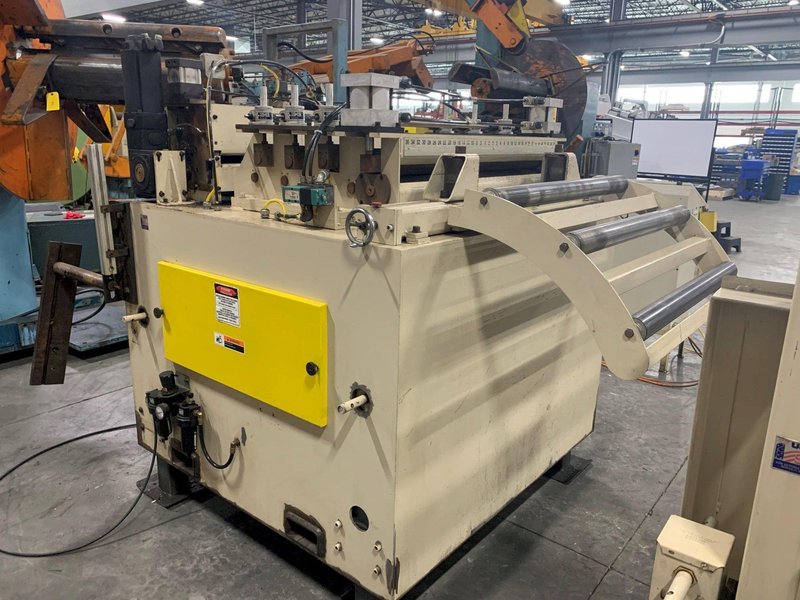

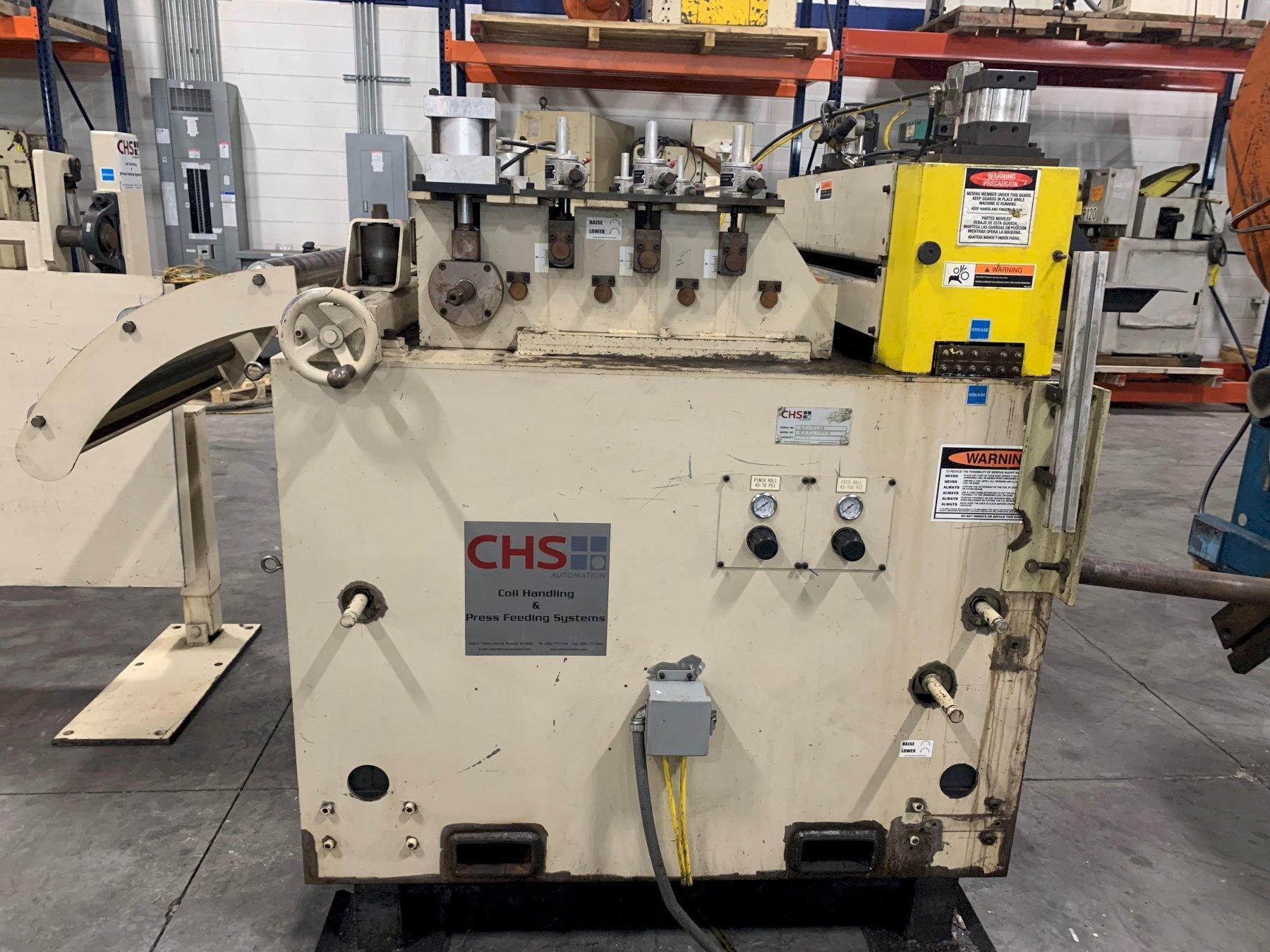

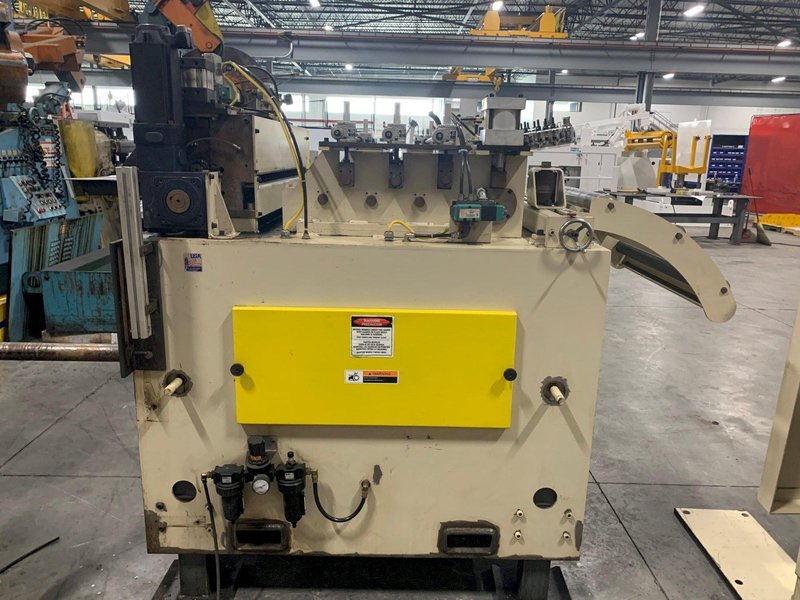

Used CHS Automation Servo Roll Feed Straightener Combination Press Feed Specifications:
Model: DRFS-336 Stock width capacity: 36"
Stock thickness capacity: .070" x 36" Wide
Stock thickness capacity: .125" x 12" Wide
CHS Automation Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
3 Inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Air pressure / regulators
Straightener Model No.: PTS-300-7-36
Seven servo feed straightening rolls x 3.00 diameter
Screw jack upper servo feed straightening roll adjustments
Servo feed pinch roll for stock threading (Manual)
Air operated upper pinch roll adjustment
Cascade loop support rollers
Self centering hand crank stock width edge guides

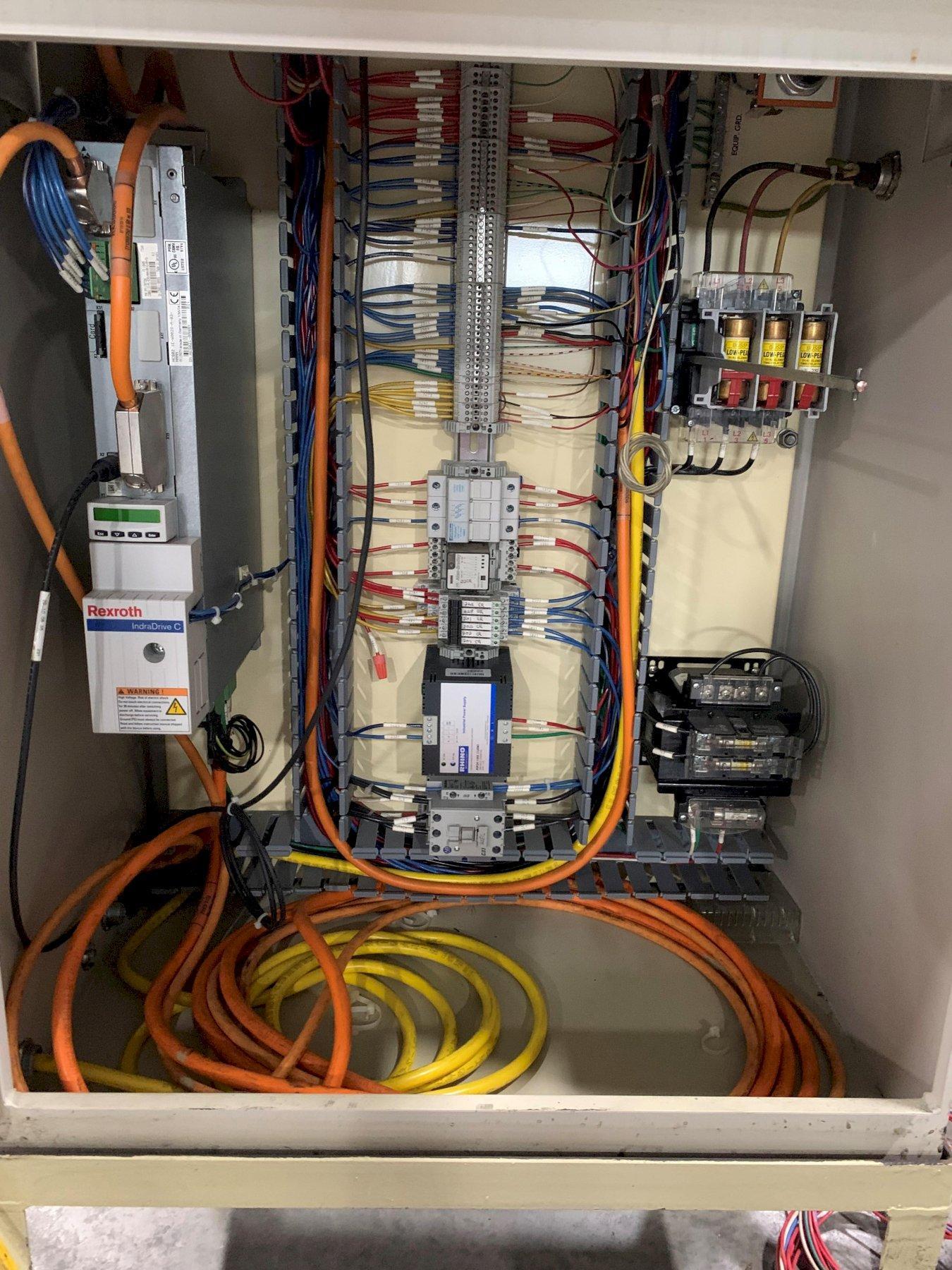

AC servo roll feed drive and controls
Job memory storage
On the fly micro adjustment

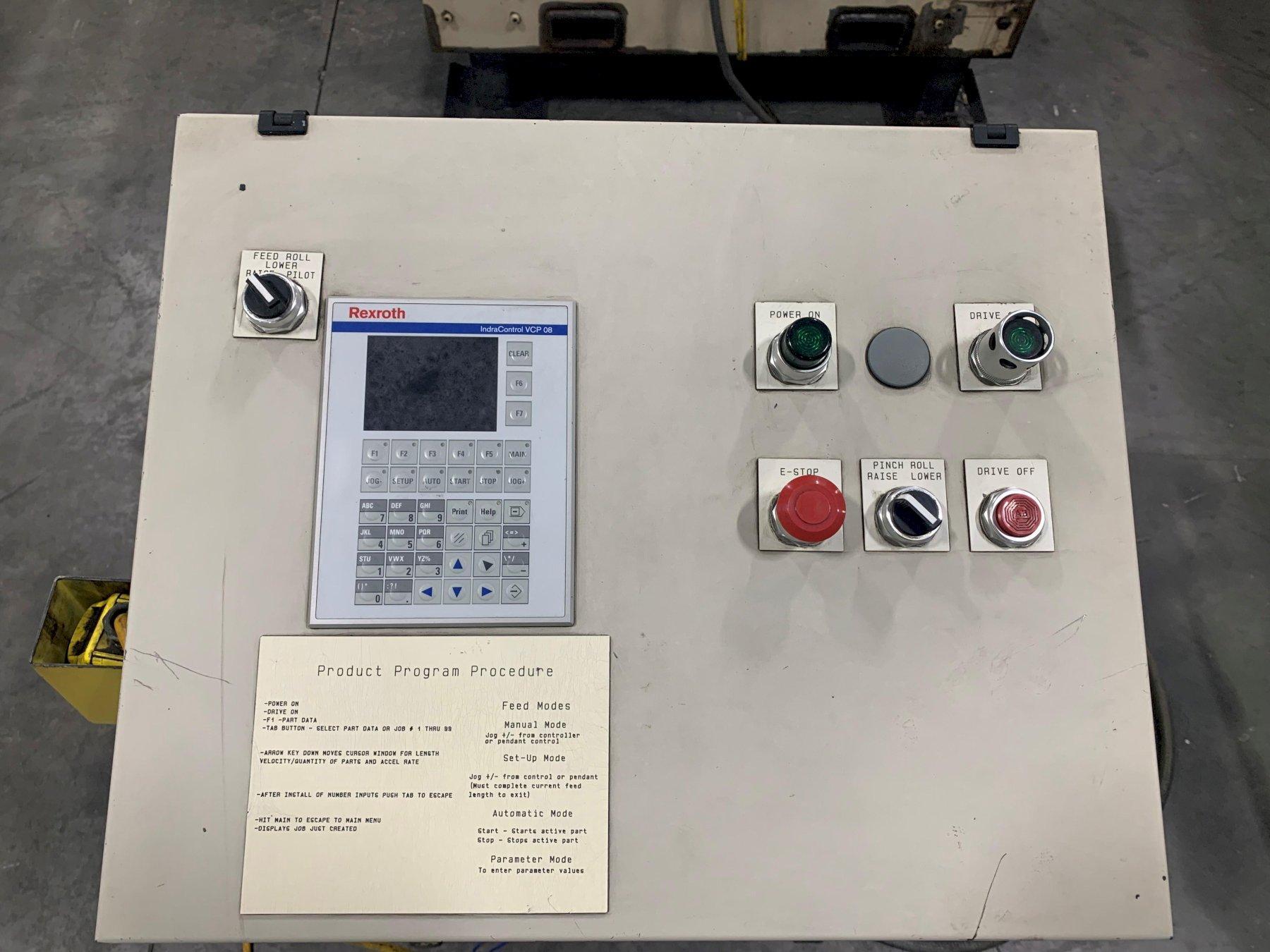

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
End of stock sensor
480 Volt This Used 36" CHS Automation Servo Feed Straightener can be inspected in Macomb Twp Michigan Facility upon request. Used Nidec-CHS Coil Servo Feed Straightener For Sale! |
