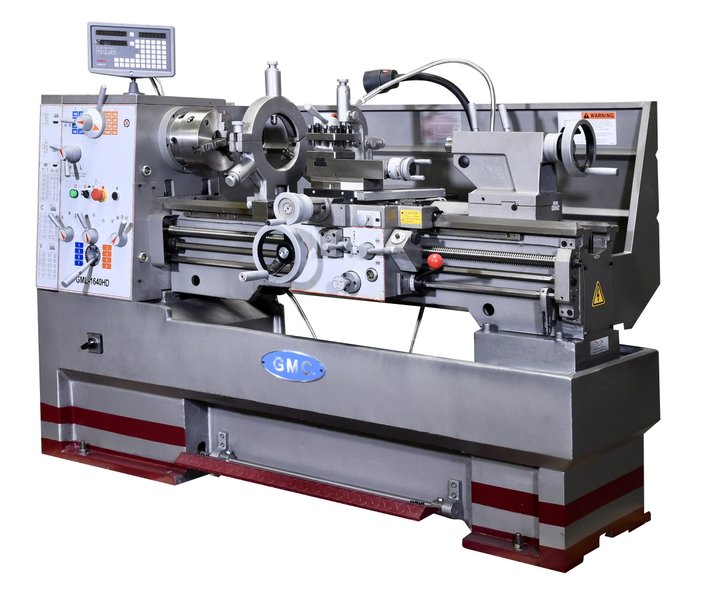

GML-1660HD, 16" x 60" Metal Lathe with 2-Axis DRO

GML-1660HD, 16" x 60" Metal Lathe with 2-Axis DRO

Name: GML-1660HD, 16" x 60" Metal Lathe with 2-Axis DRO
Brand: GMC
SKU: GML-1660HD
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

1 year parts warranty for this model
ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP

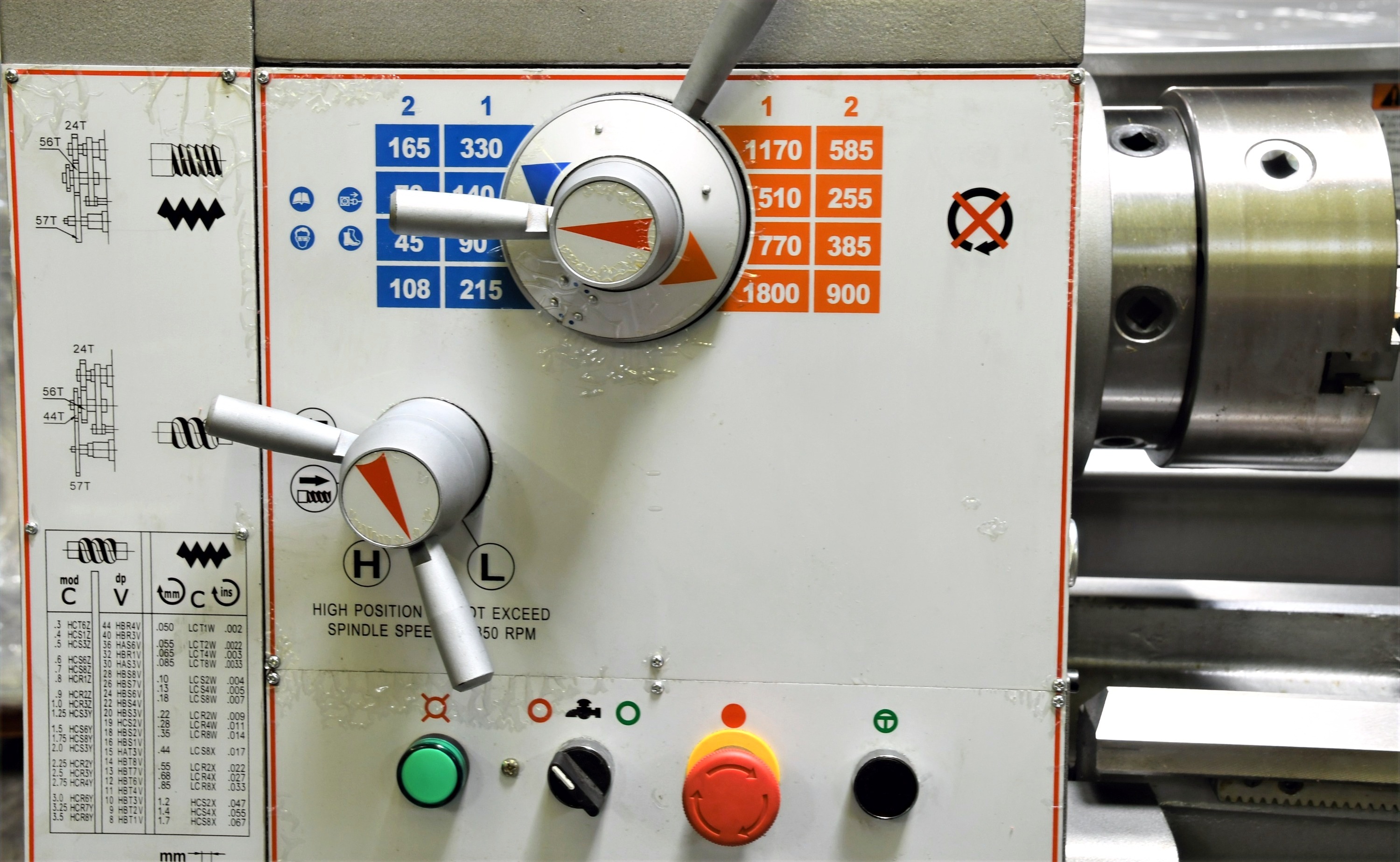

16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads

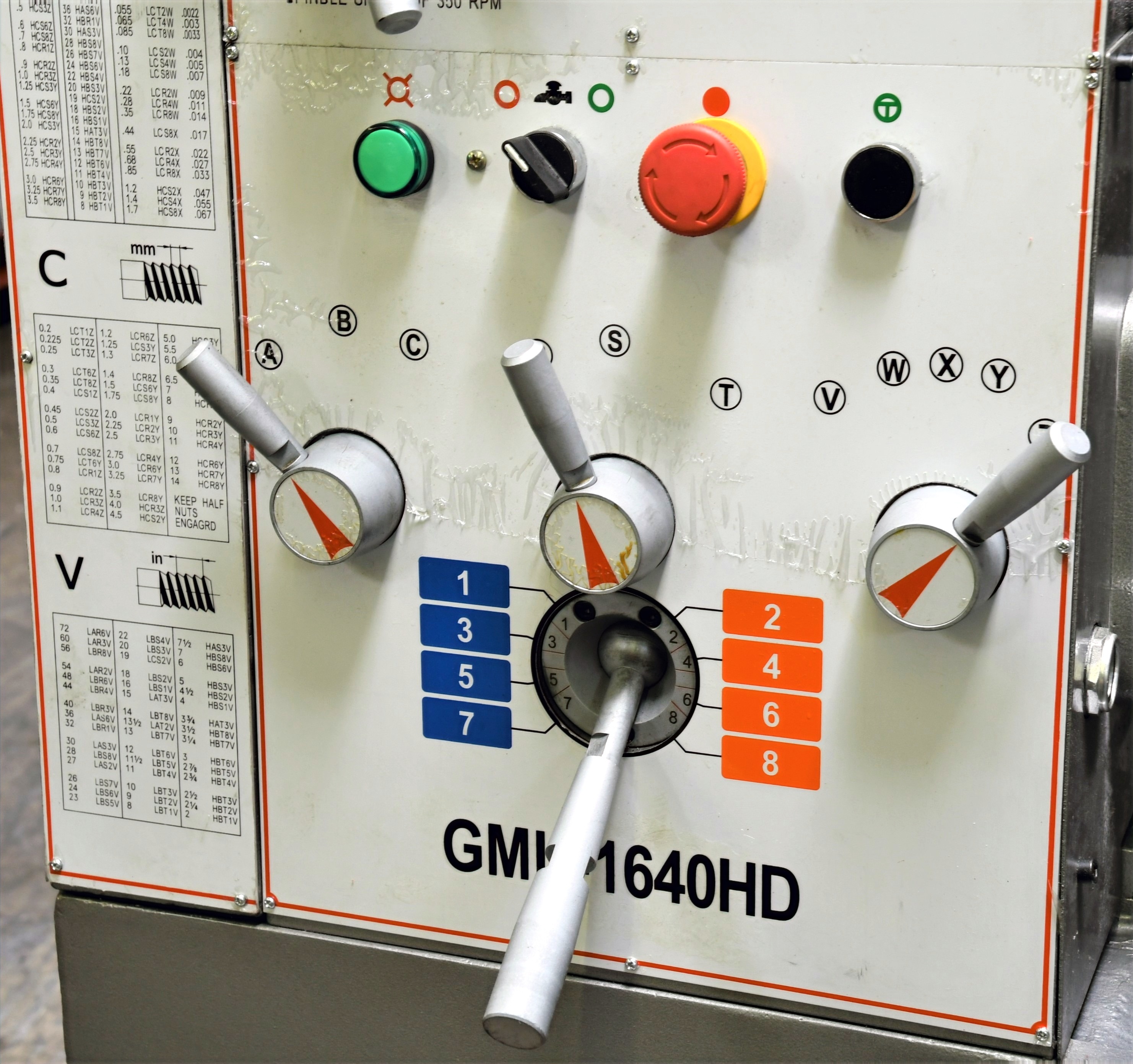

Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground

Automatic lubrication system in headstock and feed box

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Max. swing over bed	16 1/16"
Max. length of workpiece	60"
Max. swing over cross slide	10 1/4"
Max. Swing in gap	23 1/4"
Width of Bed	10 1/4"
Effective length in gap to spindle	8 1/2"
Effective length in gap to chuck jaws	3 1/2"
Spindle bore	2 1/16" D1-6
Taper of spindle center	M.T. #6 (MT6/MT4 sleeve)
Spindle speeds	45-1,800 rpm / 16 steps
Longitudinal feeds	0.0018-0.07 IPR, 42 kinds
Cross feeds	0.0009-0.03 IPR, 42 kinds
Inch threads	70-2 TPI, 45 kinds
Metric threads	0.2-14 mm , 39 kinds
Diametral Pitch threads	8-40 DP , 21 kinds
Module threads	0.3-3.6 mm, 18 kinds
Max. travel of top slide	4 1/4"
Max. travel of cross slide	8 1/2"
Spindle length w/o chuck Leadscrew length X TPI	20 1/2" 1 1/4" x 4 TPI

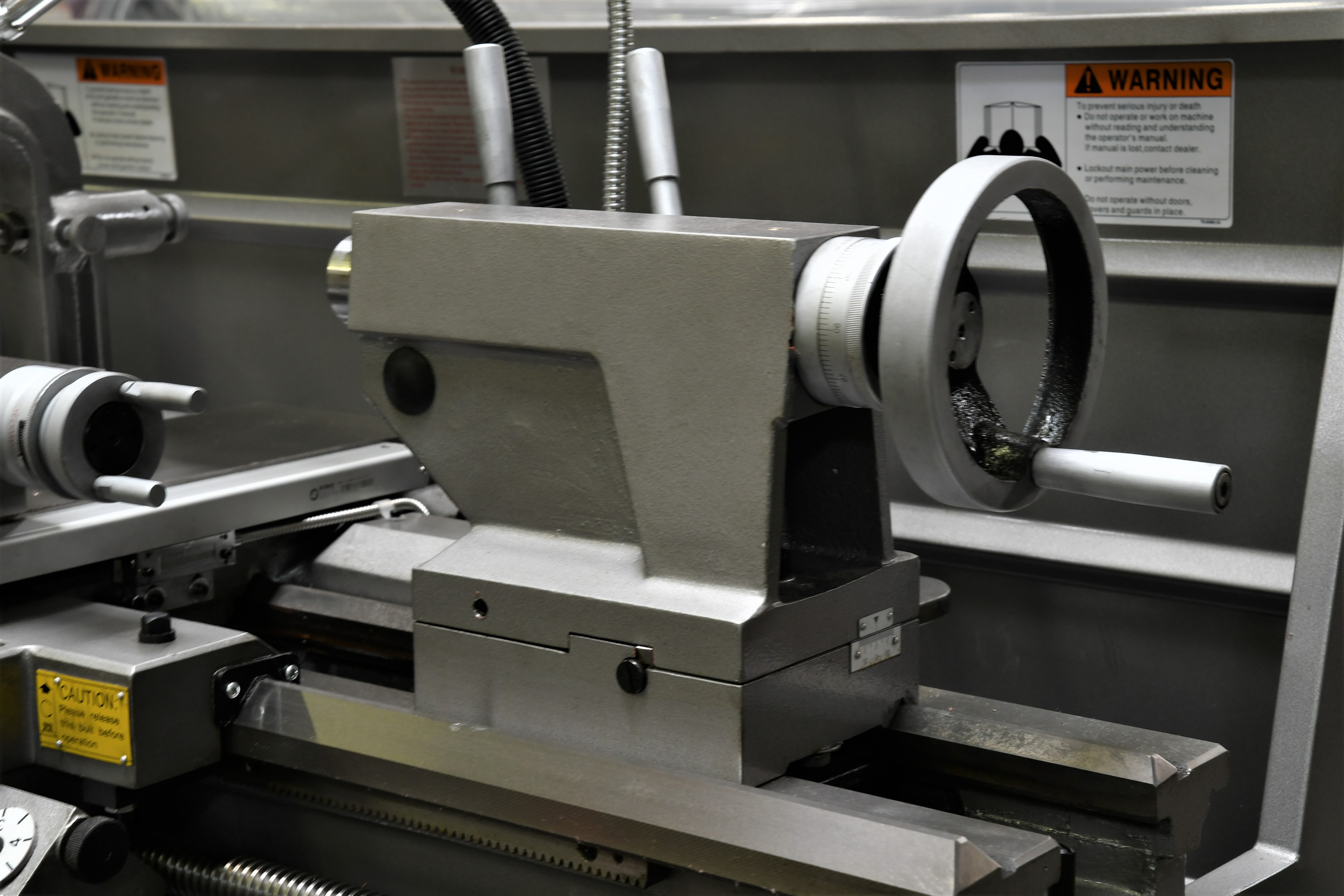

Diameter of tailstock quill	2 1/16"
Max. travel of tailstock quill	5"
Taper of tailstock quill center	MT4

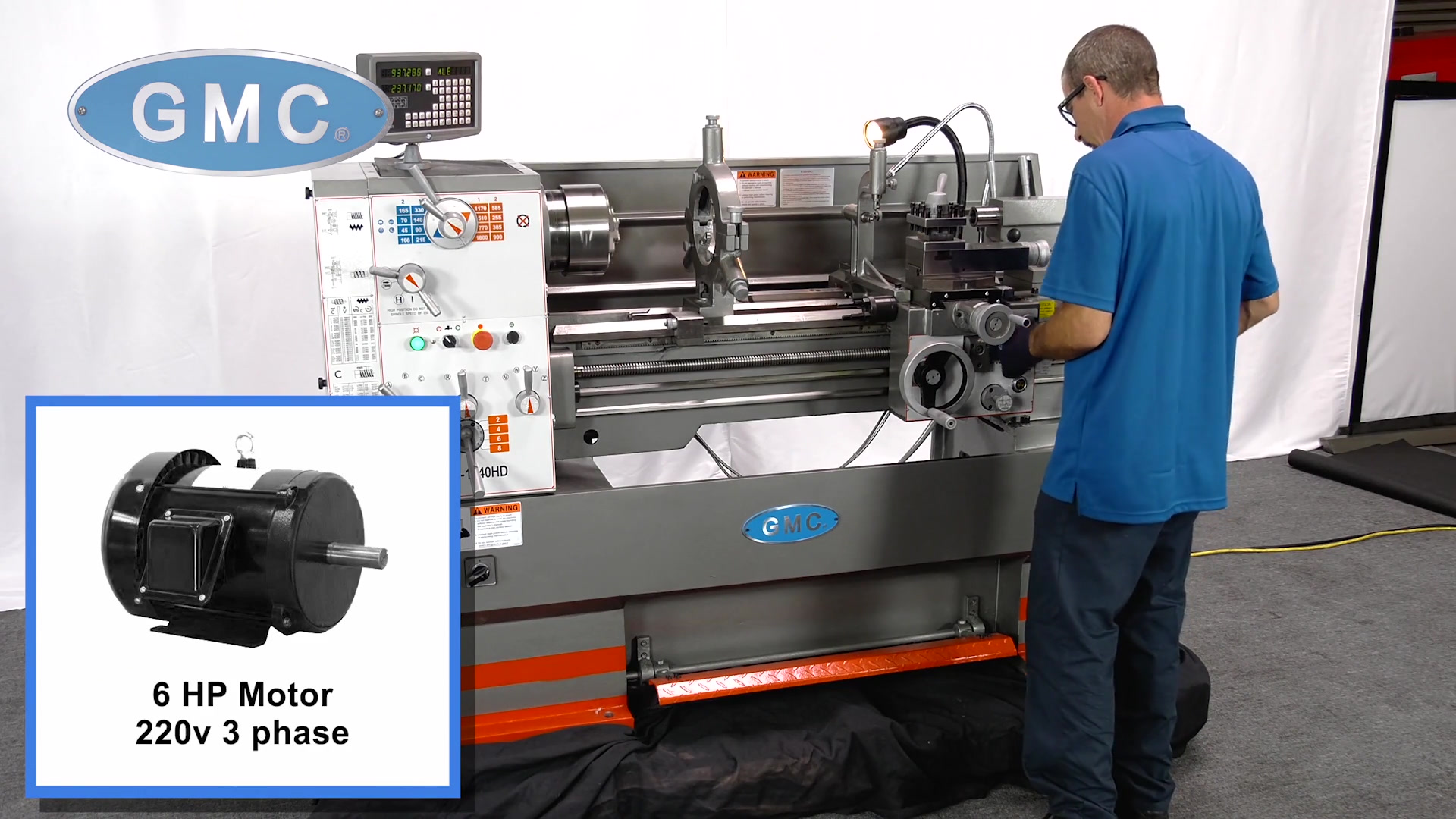

Main motor	6 HP, 220V/20A, 3 Phase
Coolant pump	1/8 HP, 220V, 3 Phase
Net weight	4,850 lbs.
Overall dimensions, LxWxH	100" x 32.2" x 56"
