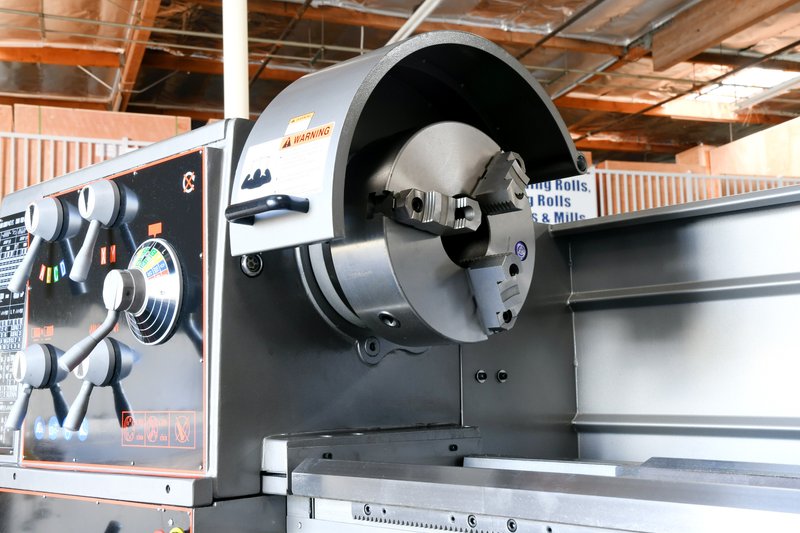

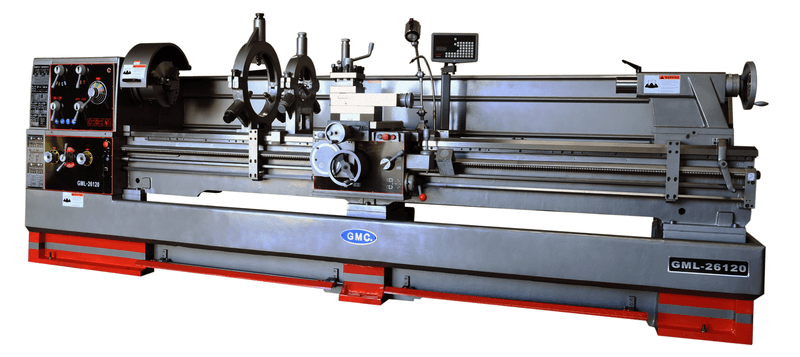

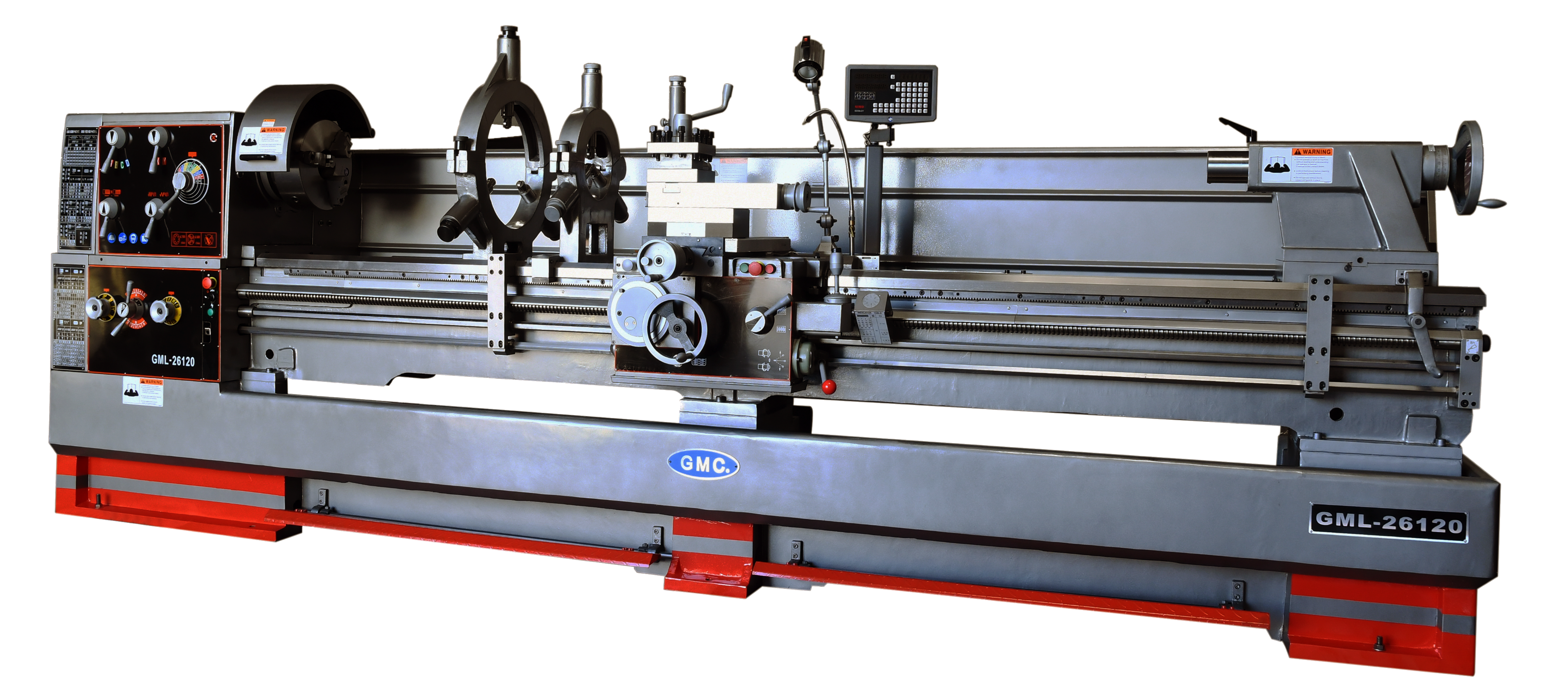

GML-26120, 26 x 120" Metal Lathe with 2-Axis DRO

GML-26120, 26 x 120" Metal Lathe with 2-Axis DRO

Name: GML-26120, 26 x 120" Metal Lathe with 2-Axis DRO
Brand: GMC
SKU: GML-26120
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

ISO 9001 certified

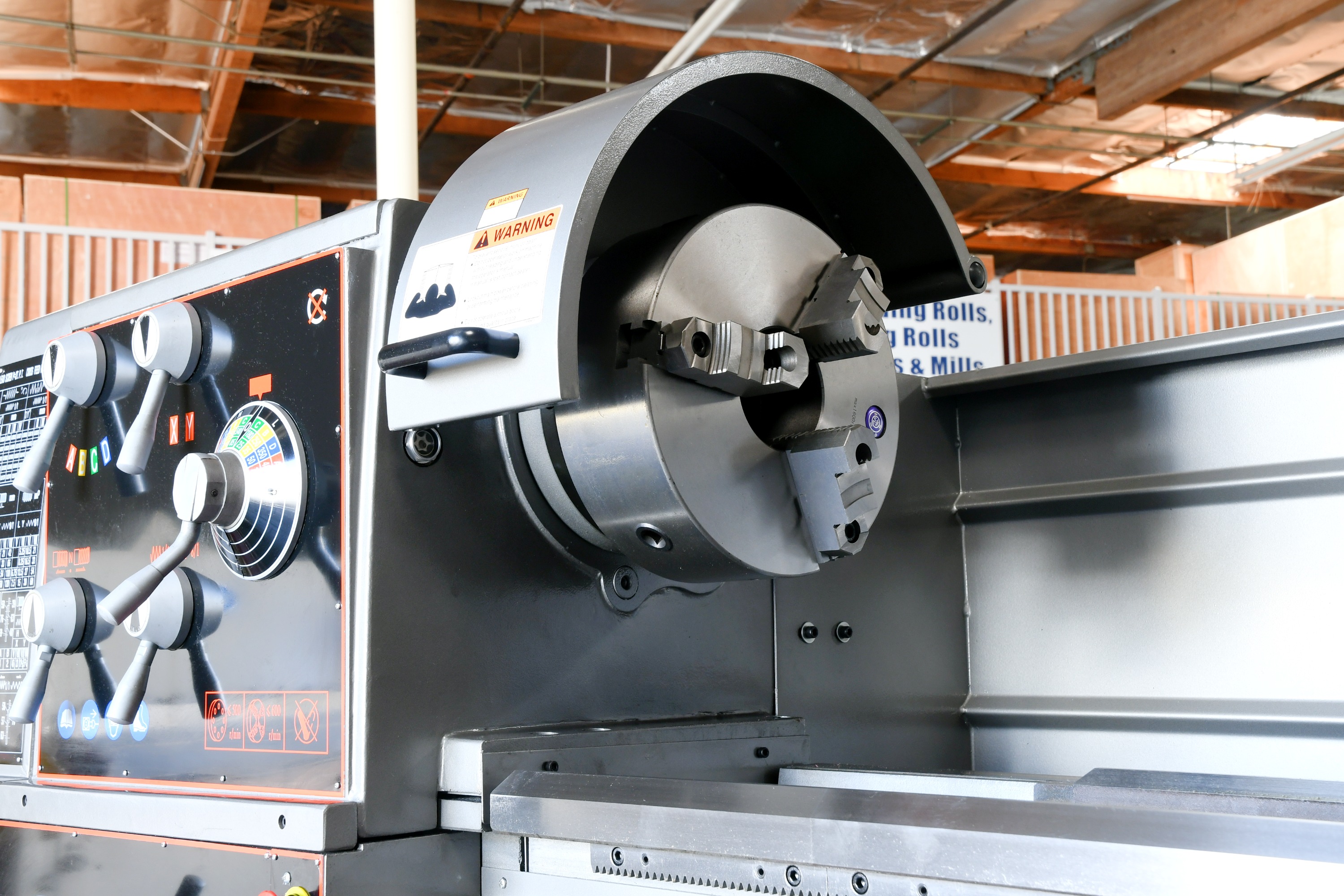

Large spindle bore 4-1/8”
Heavy Duty spindle D1-8

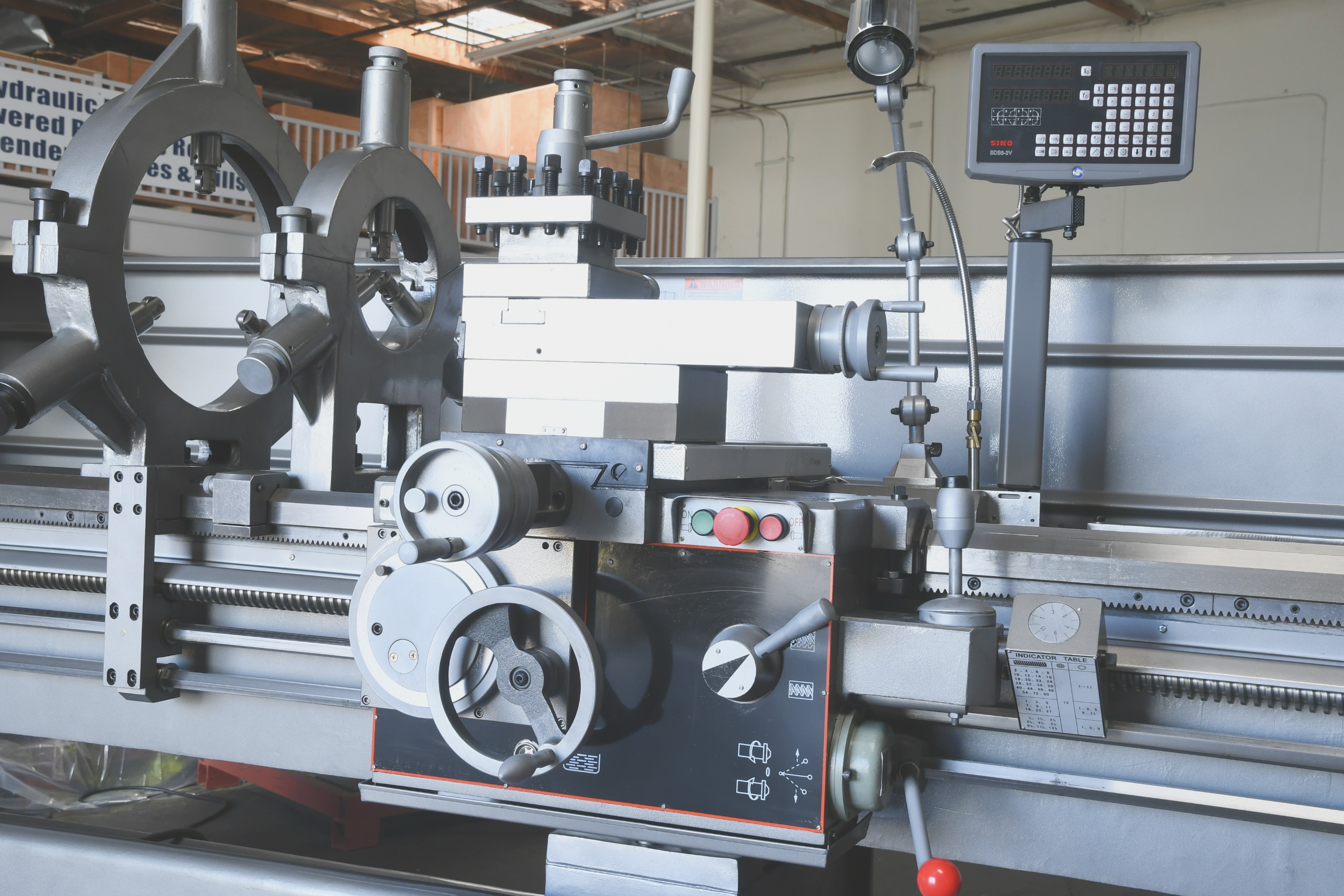

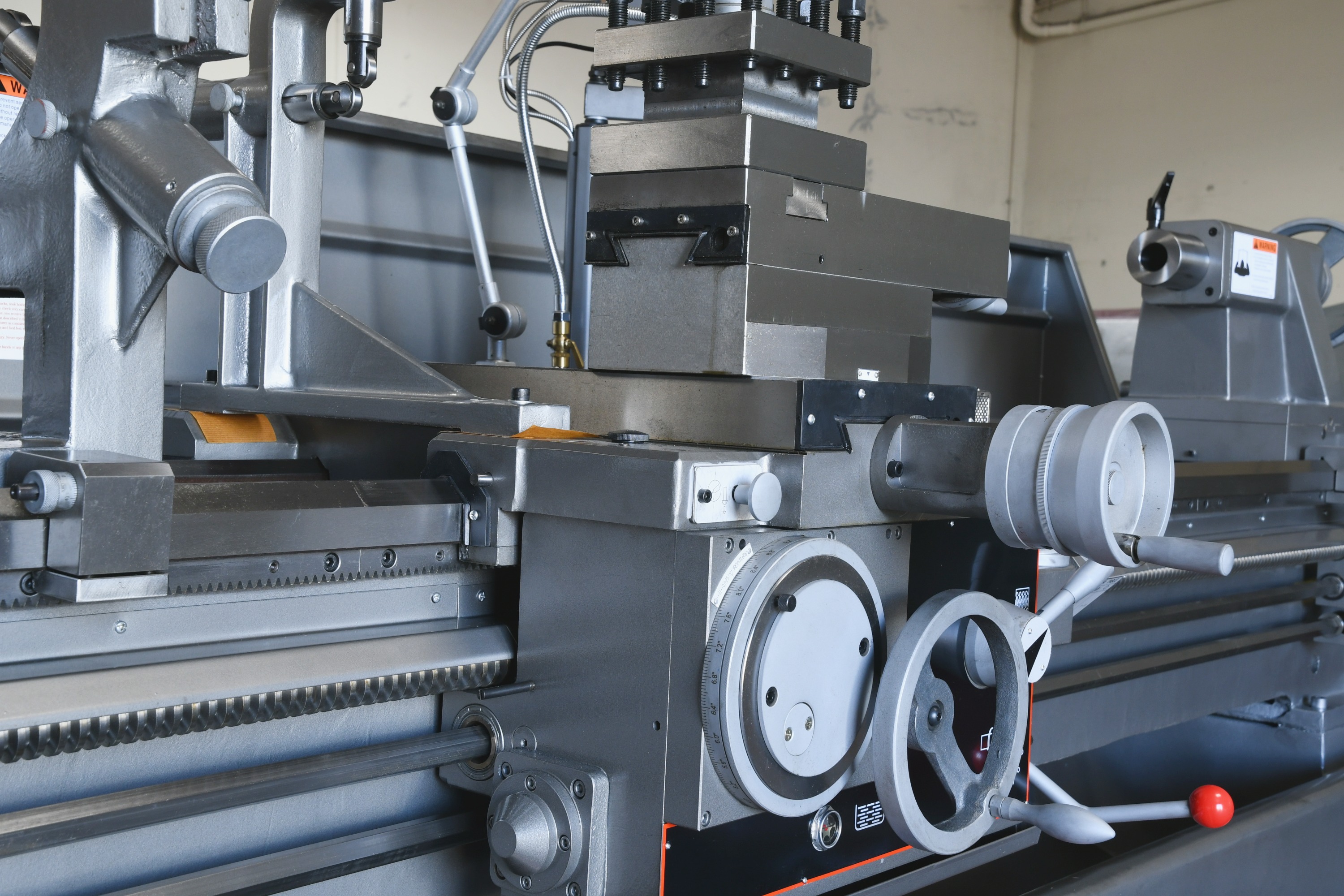

4-way rapid traverse on carriage
Heavy Duty guideway width 16”

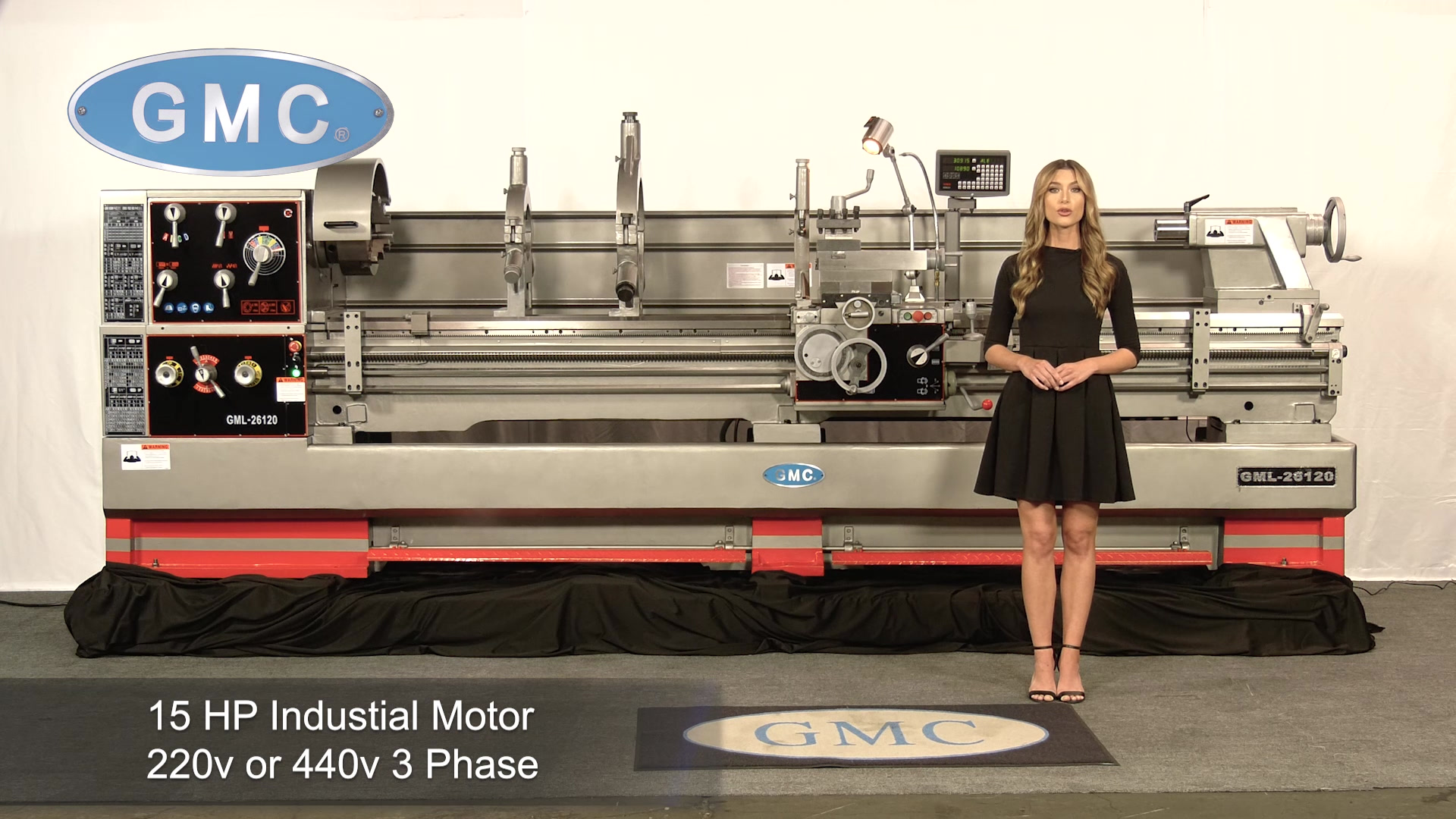

Heavy Duty main motor 15HP

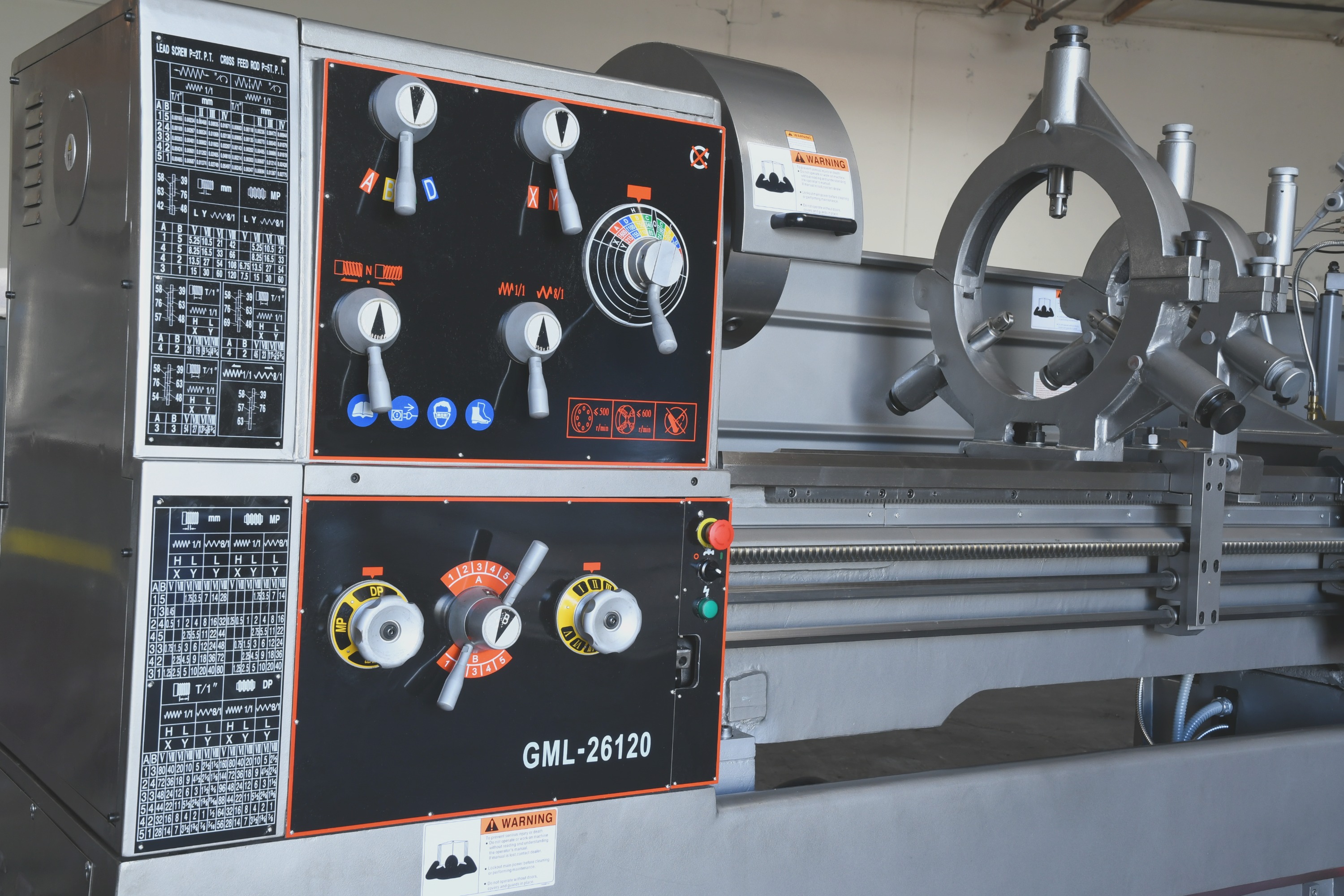

16 spindle speeds from 25-1,600 rpm, 16 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box

One year industrial warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Max. swing over bed	26"
Max. length of workpiece	120"
Max. swing over cross slide	17 1/4"
Max. Swing in gap	35 3/8"
Width of Bed	16"
Effective length in gap to spindle	9"
Effective length in gap to chuck jaws	4 1/2"
Spindle bore	4 1/8" D1-8
Taper of spindle center	M.T. #5
Spindle speeds	25-1,600 rpm / 16 steps
Longitudinal feeds	0.0016-0.055 IPR, 25 kinds
Cross feeds	0.0008-0.027 IPR, 25 kinds
Inch threads	80-7/16 TPI, 54 kinds
Metric threads	0.45-120 mm , 54 kinds
Diametral Pitch threads	7/8-160 DP , 42 kinds
Module threads	0.25-60mm, 46 kinds
Max. travel of top slide	9"
Max. travel of cross slide	14 1/2"
Spindle length w/o chuck Leadscrew length X TPI	20 1/2" 1 1/4" x 4 TPI
Diameter of tailstock quill	3 1/2"
Max. travel of tailstock quill	9 1/4"
Taper of tailstock quill center	MT5
Main motor Rapid traverse motor	15HP, 220V/40A or 440V/20A, 3 phase 1HP, 220V or 440V, 3 phase
Coolant pump	1/8 HP, 220V, or 440V, 3 phase
Net weight	9,850 lbs.
Overall dimensions, LxWxH	187" x 46" x 72"
