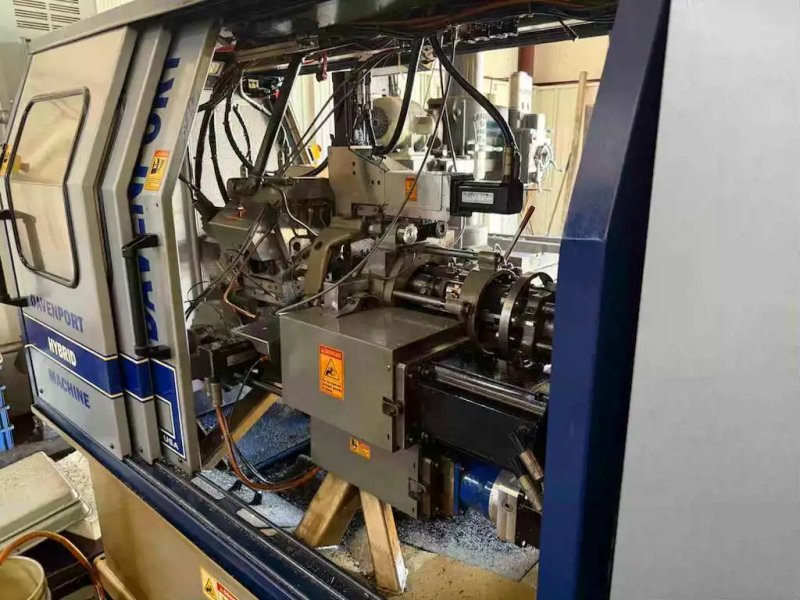

2021 DAVENPORT Hybrid (1701) MULTI-SPINDLE SCREW MACHINE

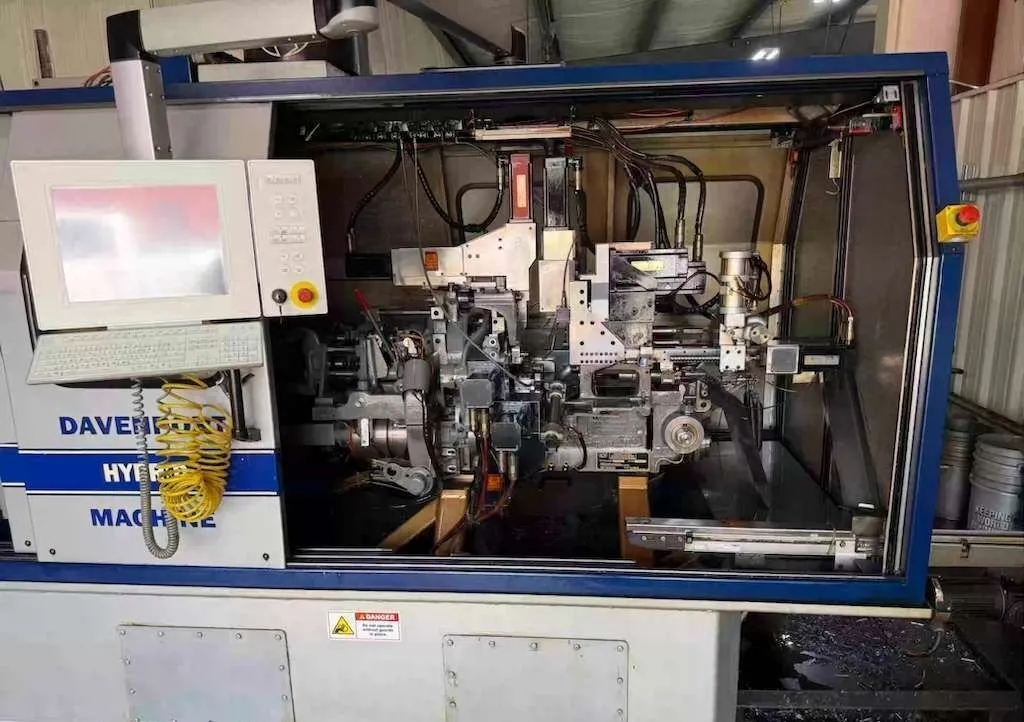

Davenport Hybrid CNC Multi-Spindle
Serial Number: SNHM-1002
Date of Manufacture: 09/08/2021

Equipped With:

Davenport Hybrid CNC control with B&R touchscreen operator interface

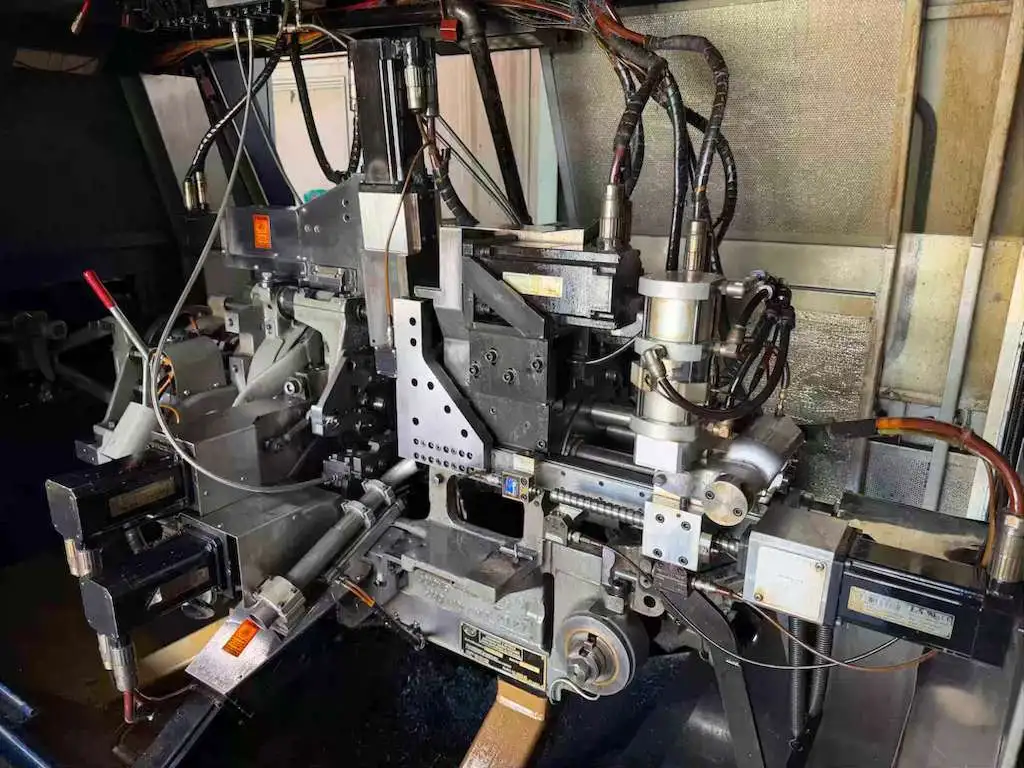

CNC-controlled tooling

CNC subspindle / pick-off with X and Z control

Allen-Bradley PowerFlex 40 variable frequency drive

Stock reel / stock carrier

Chip conveyor

Coolant system with separate coolant tank

Mist collector

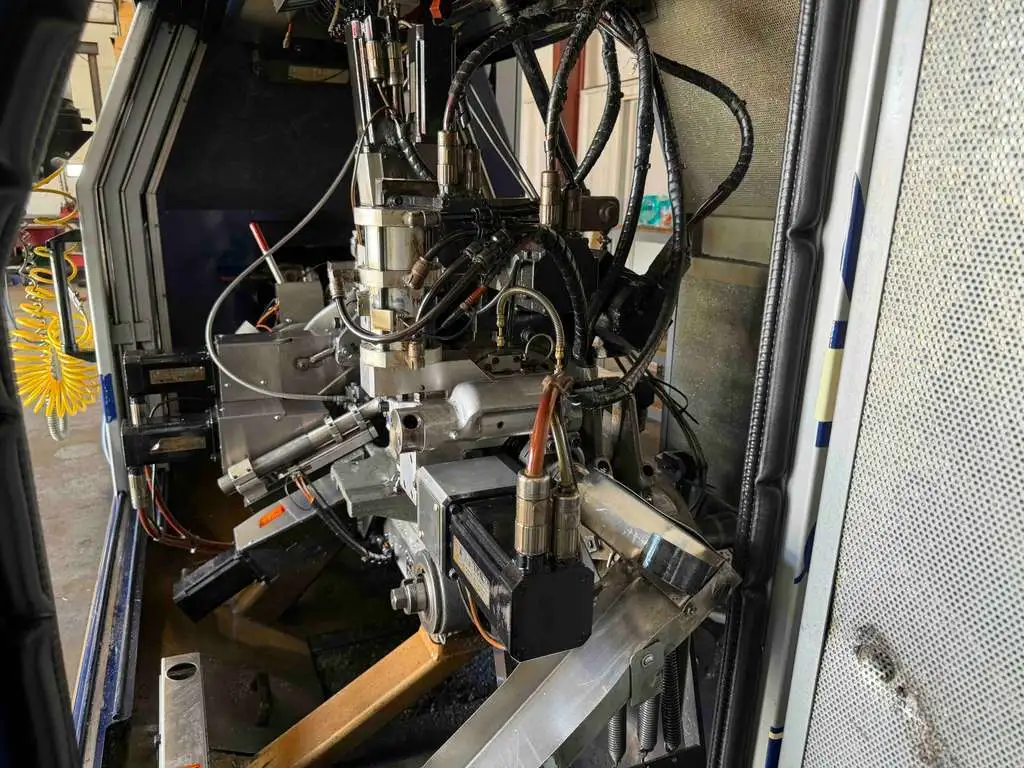

Pick-off / deburring spindle

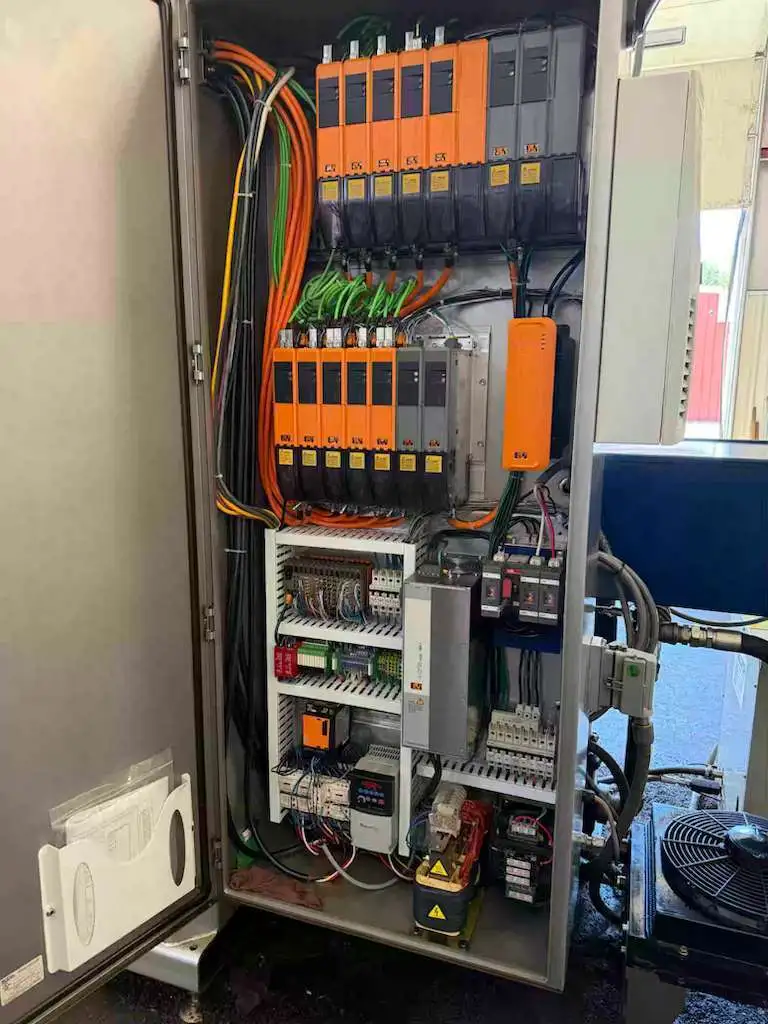

Servo-driven tooling

Full machine enclosure

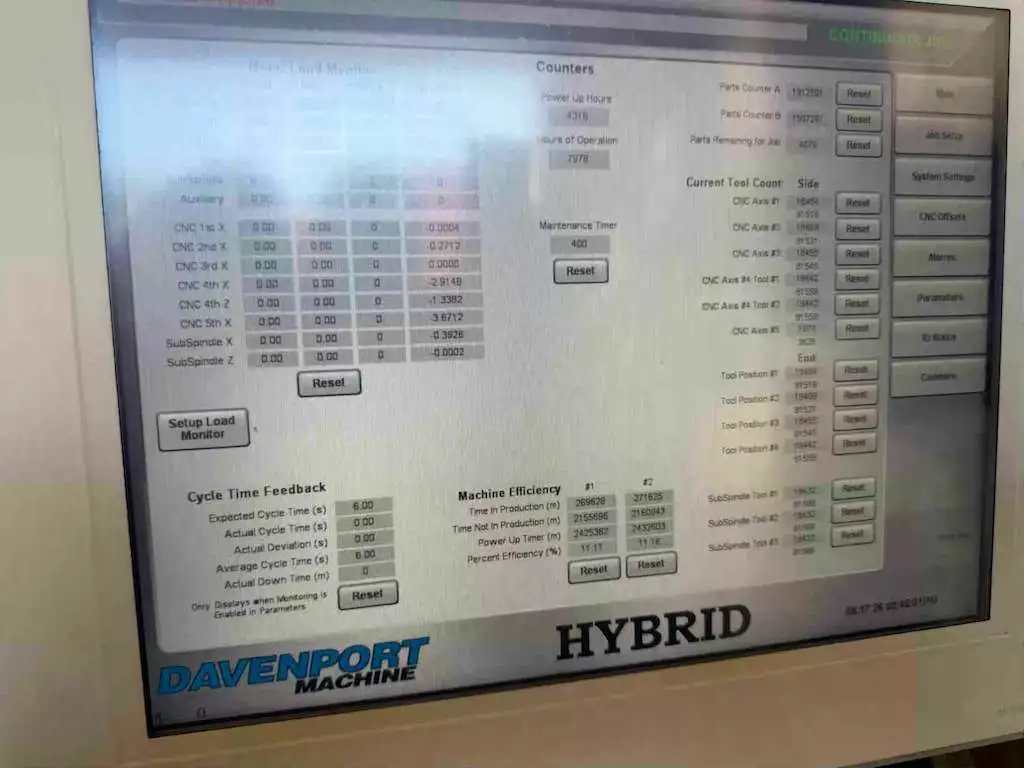

Control Counter Readings:

Total Production Run Time: 9,020 Hours

Counter readings shown on Davenport control; definitions to be verified

Standard Davenport Hybrid Specifications
Machining Capacity

Maximum Turning Length: 3.0″ (76.2 mm)

Number of Main (Work) Spindles: 5

Main Spindle Speed Range: 0–3,800 RPM

Spindle Indexing Time: 0.3 seconds minimum, variable

Stock Depletion Sensor: Yes

Burring Spindle Sensing Mechanism: Yes

Bar Capacity

Maximum Round: 0.875″ (22.2 mm)

Maximum Hex: 0.750″ (19.1 mm)

Maximum Square: 0.625″ (15.9 mm)

Minimum Bar Capacity: 0.187″ (4.8 mm)

Tooling

Independent Longitudinal Tool Stations: 5

Cross Slides: 3

Tool Arms: 2

Tooling Positions: 9, plus attachments

Pick-Off / Backworking

Spindle Pick-Off and Deburring: Yes

Maximum Pick-Off Diameter: 0.875″ (22.2 mm)

Tools Servicing Pick-Off Spindle: 1

Two tools available with optional Two Position Backworking configuration

Control

Davenport Machine PC & Touch Display

Utilities

Minimum Shop Air Pressure: 90 PSI

Air Requirement: Up to 20 CFM, option dependent

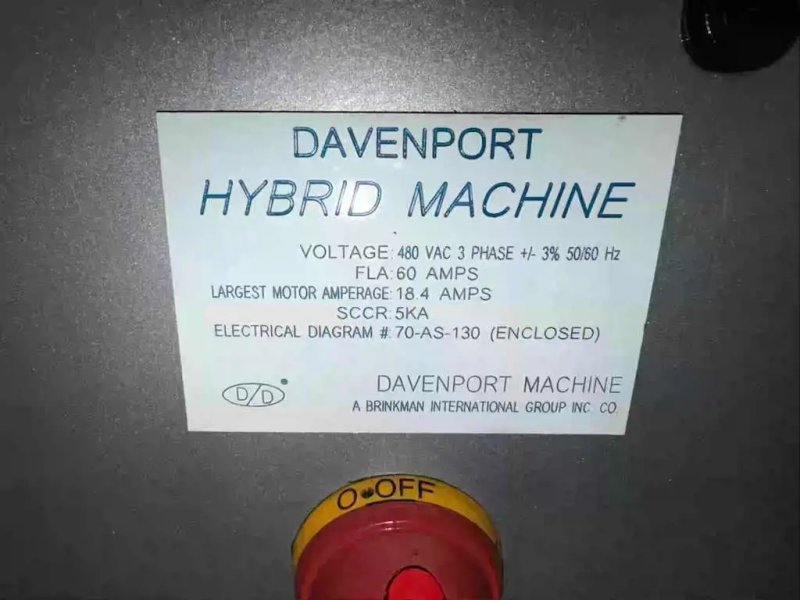

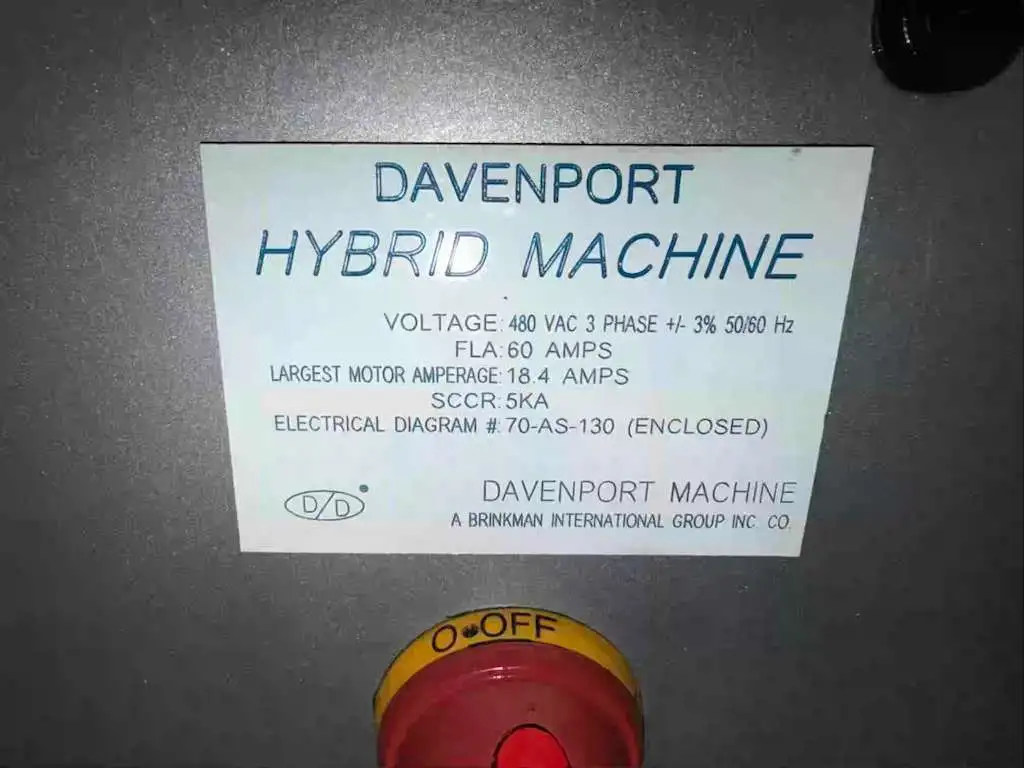

Total Power Requirement: 28,800 Watts

Machine Dimensions

Approx. Machine Dimensions: 9’4″ L x 4’8″ W x 8’10” H

Machine Weight: Approx. 7,700 lbs.

Stock Carrier

Approx. Dimensions: 10’4″ L x 11-1/2″ W x 11-1/2″ H

Approx. Weight: 225 lbs.

Stock Carrier Cover

Approx. Dimensions: 8’6″ L x 19″ W x 21″ H

Approx. Weight: 250 lbs.

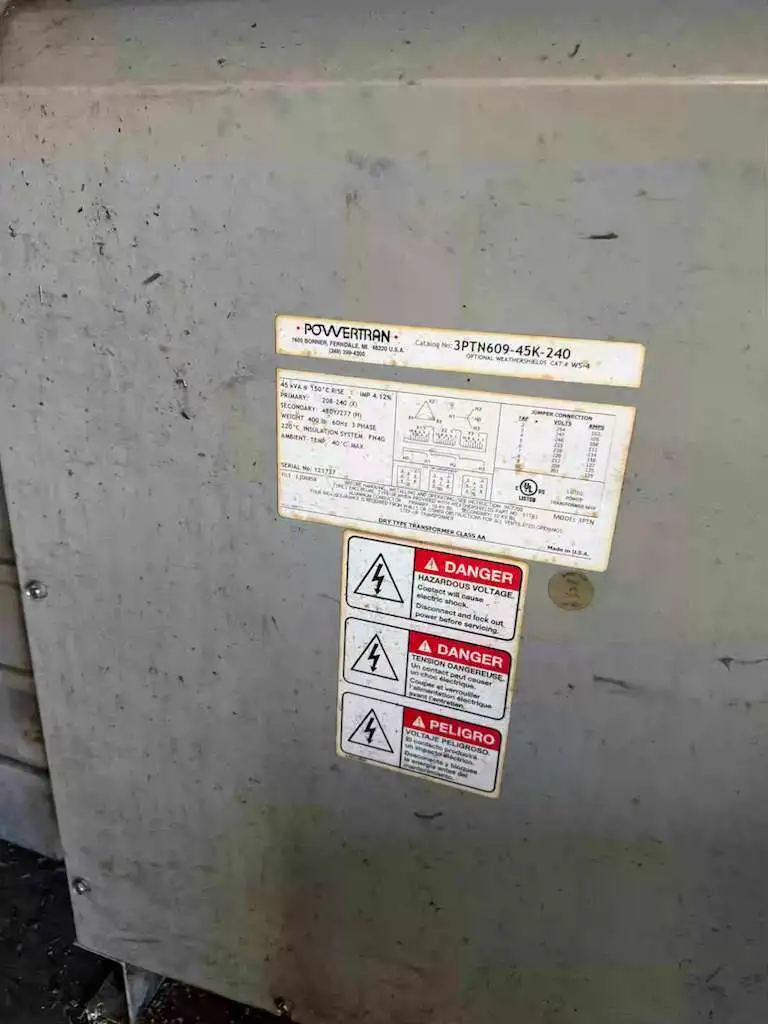

Transformer, If Required

Approx. Dimensions: 16″ L x 28″ W x 32″ H

Approx. Weight: 325 lbs.

Installation Area

Recommended Clear Area: 29′ L x 15′ W x 10′ H

Standard specifications taken from Davenport Hybrid machine manual. Machine-specific configuration and options subject to verification.
