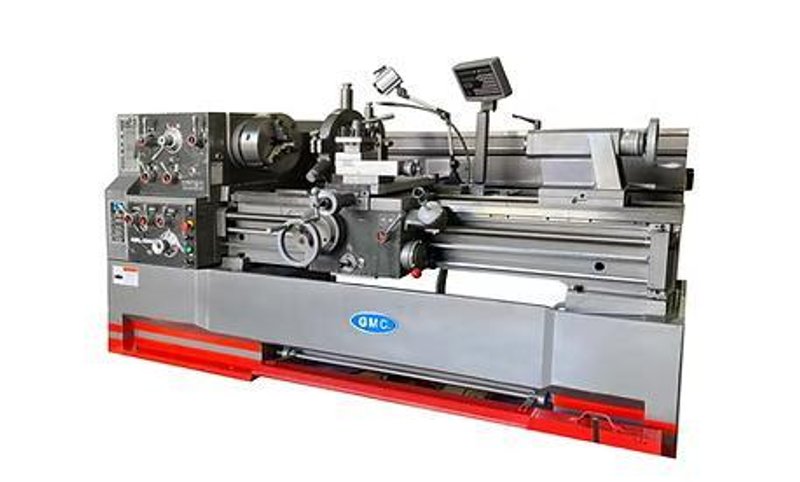

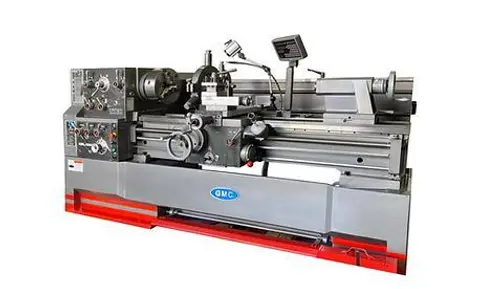

20" x 80" Bed Gap Metal Lathe | 3-1/8" Bore | 2-Axis DRO

• ISO 9001 certified

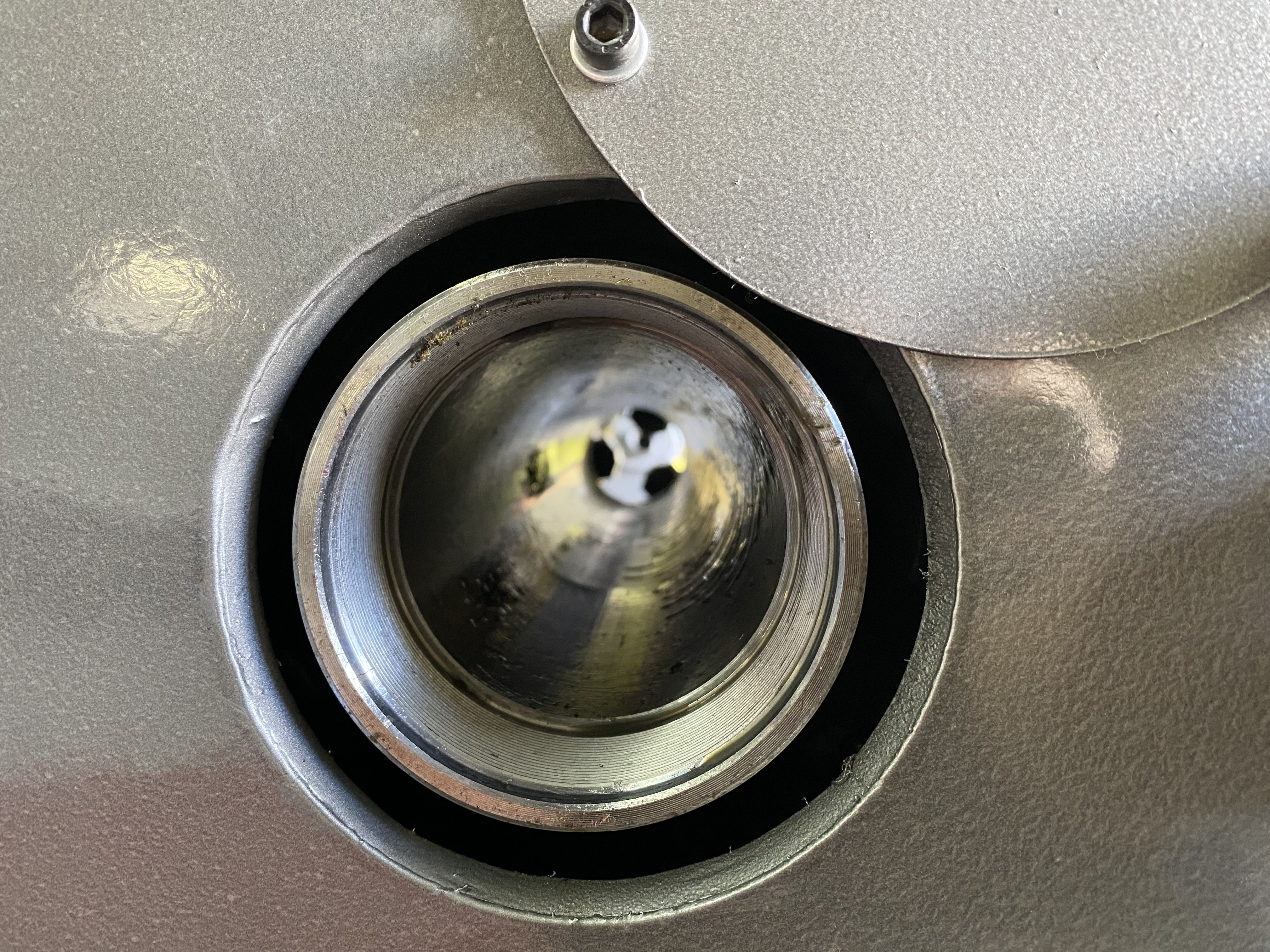

• Large spindle bore 3-1/8”
• Heavy Duty spindle D1-8
• Heavy Duty guideway width 12”
• Heavy Duty main motor 10HP
• 16 spindle speeds from 25-1,800 rpm, 12 speeds
• 4-way rapid traverse on the carriage longitudinal and cross
• 60 kinds of inch threads, and 41 kinds of metric threads
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial  warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

 This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
