- Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
- 1 year industrial warranty for parts for all Taiwan lathes
- One piece solid casting base, Meehanite high performance cast iron
- Machine bed is made of Meehanite casting – high performance cast iron
- ISO 9001 certified
- Large spindle bore 4-3/4” (120mm)
- Heavy Duty spindle D1-11
- Heavy Duty main motor 15HP

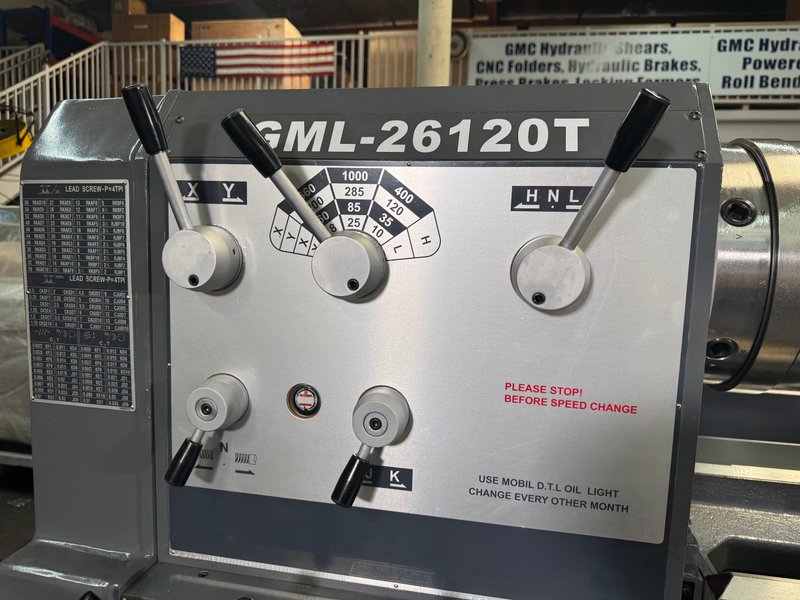

- 16 spindle speeds from 10-1,000 rpm, 12 speeds
- 2-speed tailstock
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
|
Specifications
|
GML-2680T
|
GML-26120 T GML-26160T
|
|
Max. swing over bed
|
26” 26” 26”
|
|
Max. length of workpiece
|
80”
|
129” 169”
|
|
Max. swing over cross slide
|
17-1/4” 17-1/4” 17-1/4”
|
|
Max. Swing in gap
|
35” 35” 35”
|
|
Width of Bed
|
15-3/4”
|
|
Effective length in gap to spindle
|
9”
|
|
Effective length in gap to chuck jaws
|
4-1/2”
|
|
Spindle bore
|
4-3/4” (120mm), D1-11
|
|
Taper of spindle center
|
MT# 7/MT5 with reducing sleeve
|
|
Spindle speeds
|
10-1,000 rpm / 12 steps
|
|
Longitudinal feeds
|
0.002-0.032 IPR, 35 kinds
|
|
Cross feeds
|
0.001-0.0094IPR, 35kinds
|
|
Inch threads
|
2-56 TPI, 44kinds
|
|
Metric threads
|
0.5-14mm , 24 kinds
|
| |
|
| |
|
|
Max. travel of top slide
|
8”
|
|
Max. travel of cross slide
|
13-1/2”
|
| |
|
|
Leadscrew length X TPI
|
1-1/2” x 4 TPI
|
|
Diameter of tailstock quill
|
3-1/2”
|
|
Max. travel of tailstock quill
|
7-1/2”
|
| |
|
|
Taper of tailstock quill center
|
M.T. # 5
|
| |
|
|
Main motor
Amperage draw
|
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V
|
|
Rapid traverse motor
|
1HP, 220V or 440V, 3 phase
|
|
Coolant pump motor
|
1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
|
|
Machine Oil
|
#30 weight machine oil, 8 Gallons
|
|
Machine weight, approx. LBS
|
6,720 LBS
|
8,590 LBS 10,810 LBS
|
|
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
|
137x50x73
142x44x77
|
186x50x73 219x50x73
191x44x77 232x44x77
|
|
