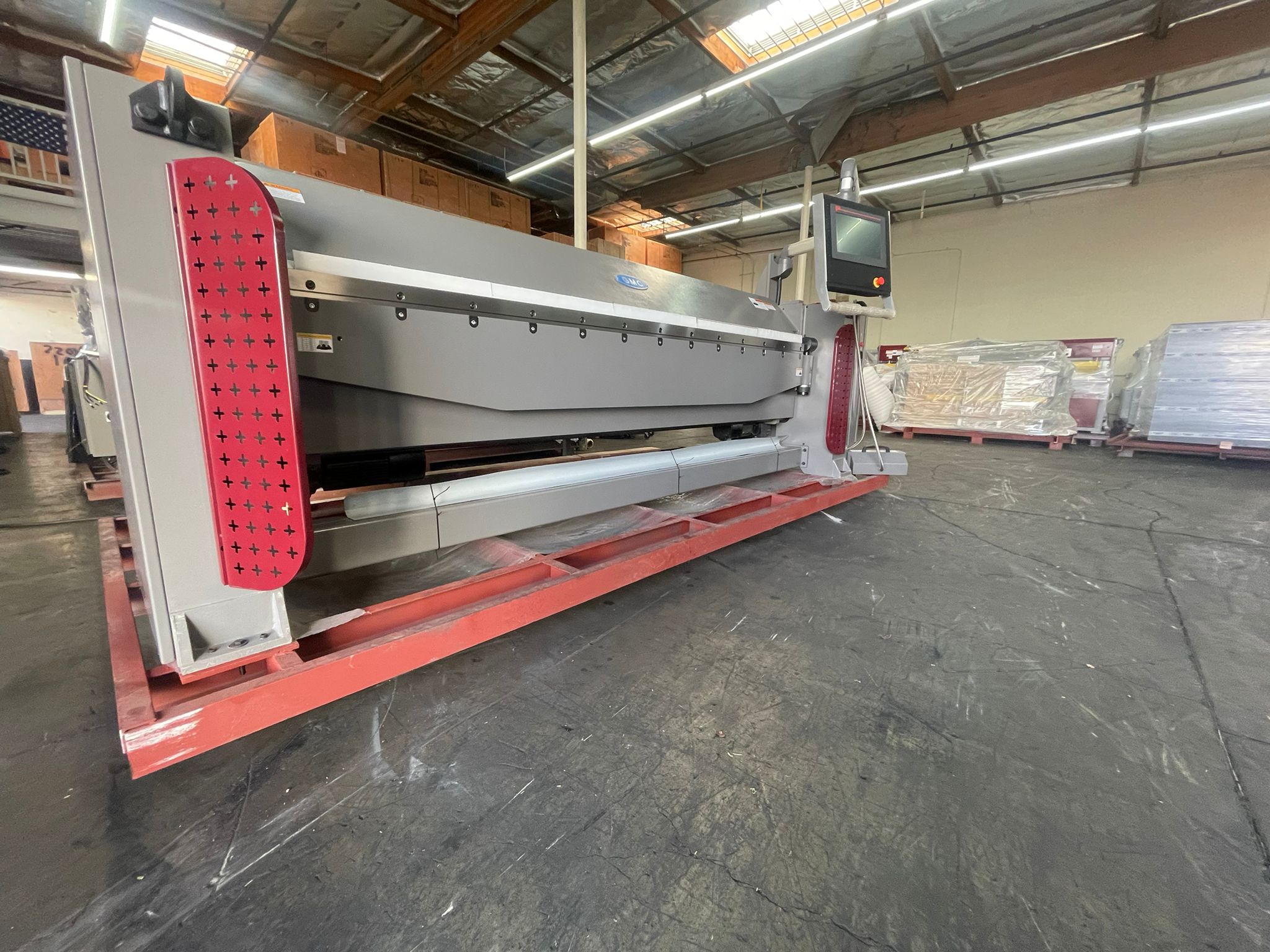

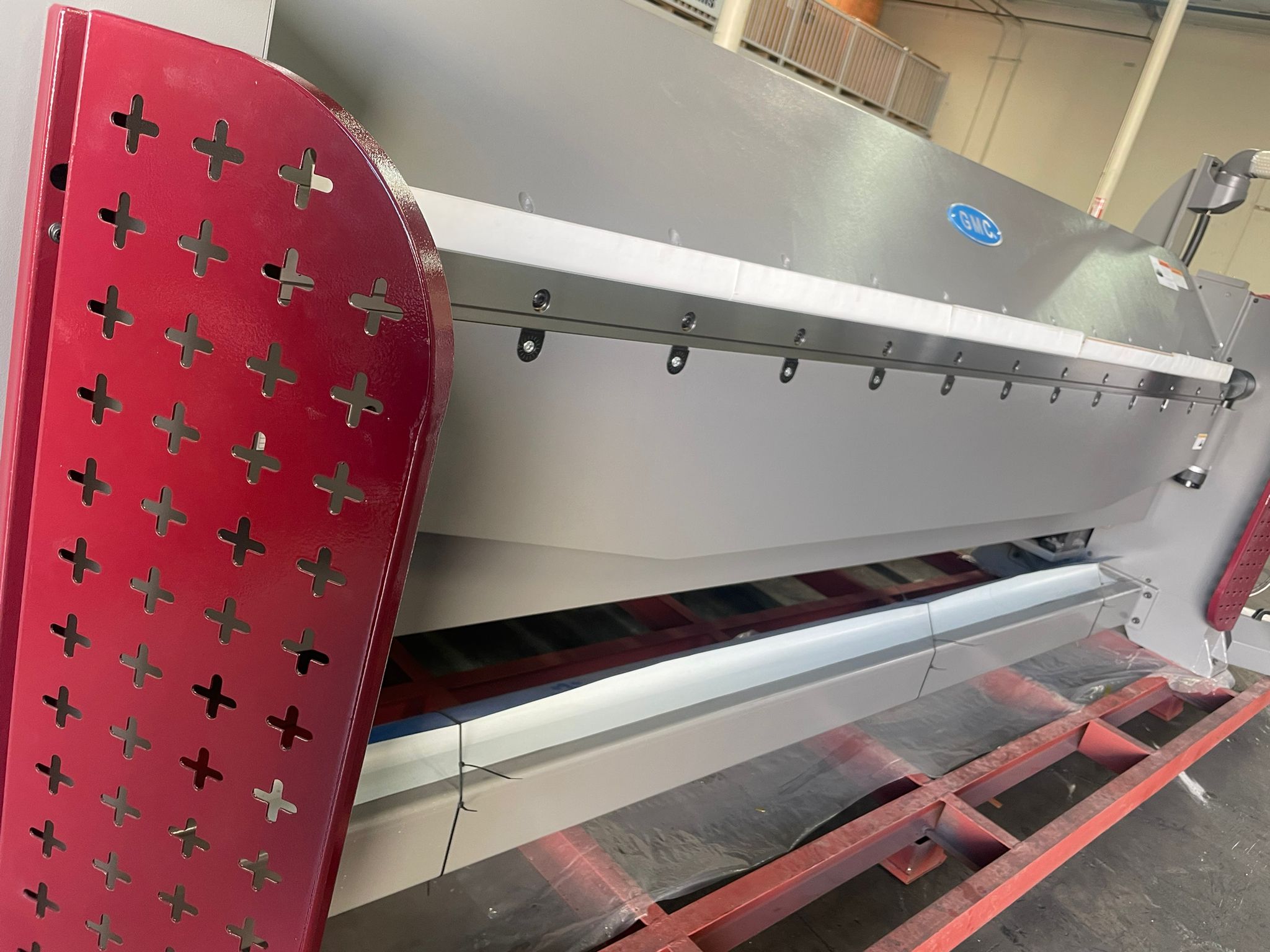

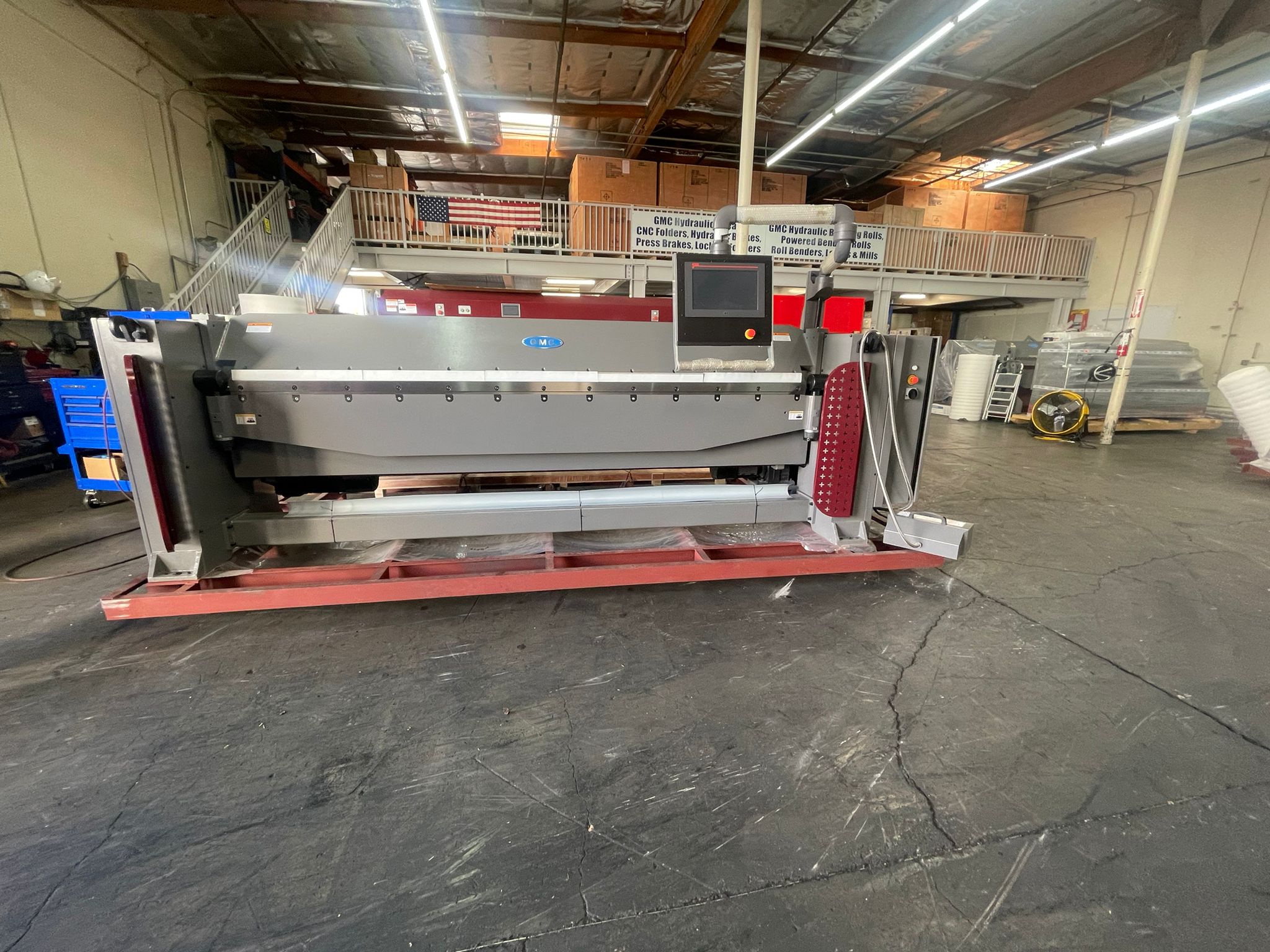

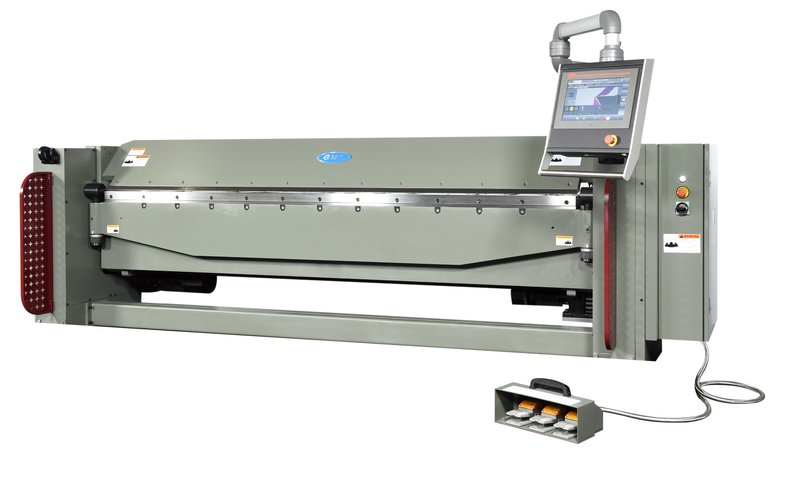

EFM-1014CNC, 10' x 14 Ga. - Sheet Metal Folder | CNC Folding Machine

Brand
Model
EFM-1014CNC
Stock #
EFM-1014CNC
Year
Not specified
Condition
New

Location

Not specified
Over the past two years, our sheet metal folding machine has become extremely popular amongst the metalworking community. The manufacturing world has demanded more of this model than any other Sheet Metal Folder. We listened and have made arrangements to keep this machine in stock at our Ontario, California facility.

  • ISO 9001 certified
  • Designed in US and Taiwan quality Machine
  • Meet OSHA and CE safety standard

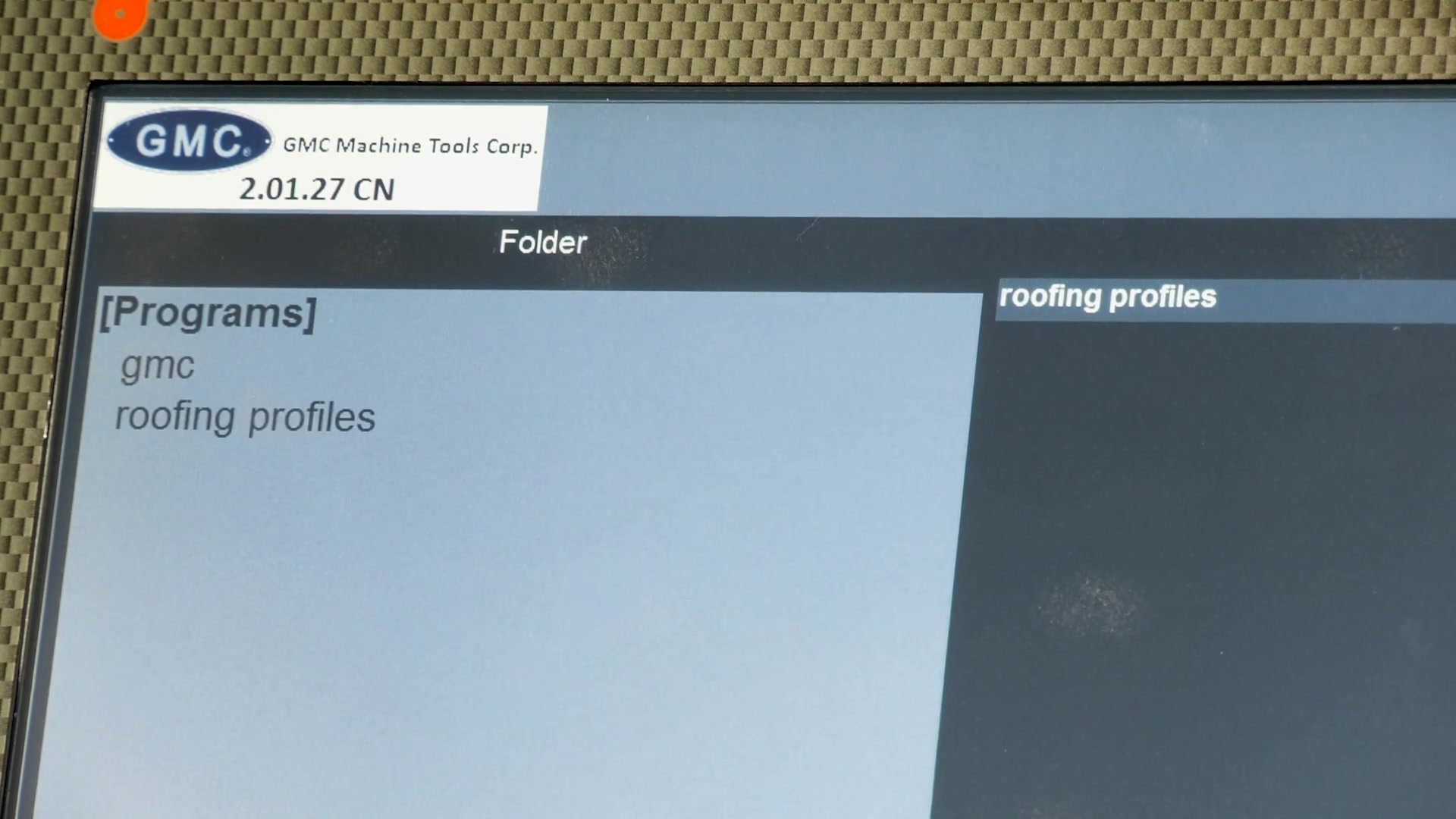

  • ESA CNC control, made in Italy
  • 16” large Digital glass touch screen
  • Max. 99 bends per program
  • Upto 2000 Programs Storage
  • Profiles library with graphics
  • Programmable Radius Bend
  • Programmable Angle/ Angle Correct
  • 48” CNC back gauge with table and fingers
  • Hardened nose bar and table, up to 48HRC
  • Comes with one 1” Insert Bar and one ½” Insert Bar
  • Yaskawa Servo motors and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • Power supply is 220V, 3 phase or 208V, 3 phase
  • One year industrial warranty for parts

This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Capacity

Mild Steel/hot roll, tensile 60,000PSI

Stainless Steel/cold roll, tensile 85,000PSI

Soft Aluminum, tensile 28,000PSI

Close hemming

Open hemming



14Ga.

18Ga.

10Ga. / 1/8”thick

26Ga.

24Ga


Bending Length Capacity 10'1"
Bend Angle Degree, programmable 0-135 degree
Hemming capacity, mild steel 24 Ga.
Hemming capacity, stainless steel 28 Ga.
Large Beam Opening/clamping opening 4-7/8"
Min. Reverse Bend 1/2"
Max, Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/2"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Motor for Bending Leaf

4 HP 3 Phase 35A

Prewired: 220VAC

Servo motor for back gauge

2 HP 3-Phase

220VAC

Clamping Motor

1-1/2 HP 3-Phase

Prewired: 220VAC

Machine Weight:

Shipping Weight:

9,850 LBS

10,150 LBS

Machine Size (LxWxH)

Shipping Dimensions:

168" x 79" x 67"

174" x 80" x 71"


For more complete information: https://www.gmcmachinetools.com/catalog
