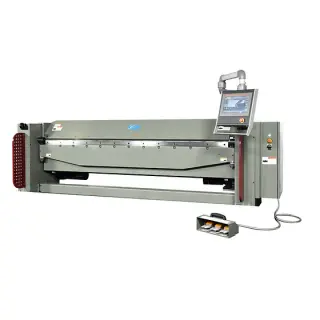

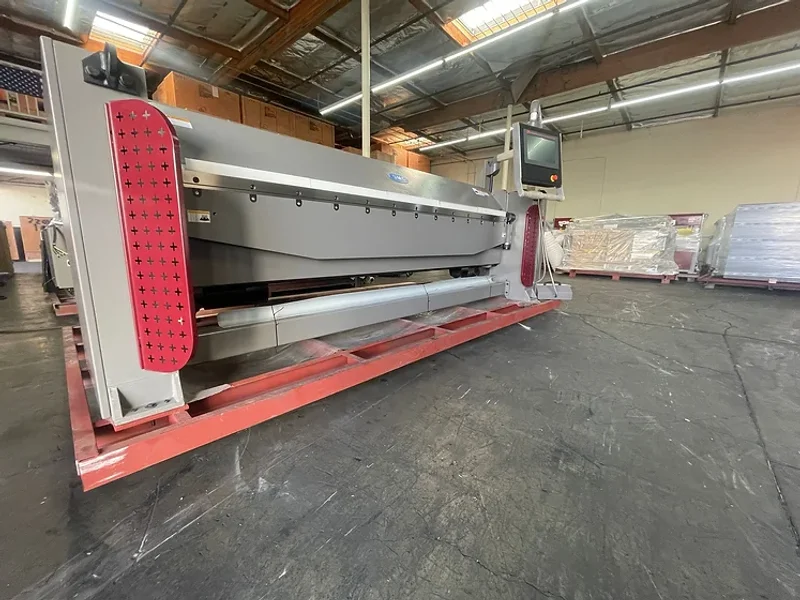

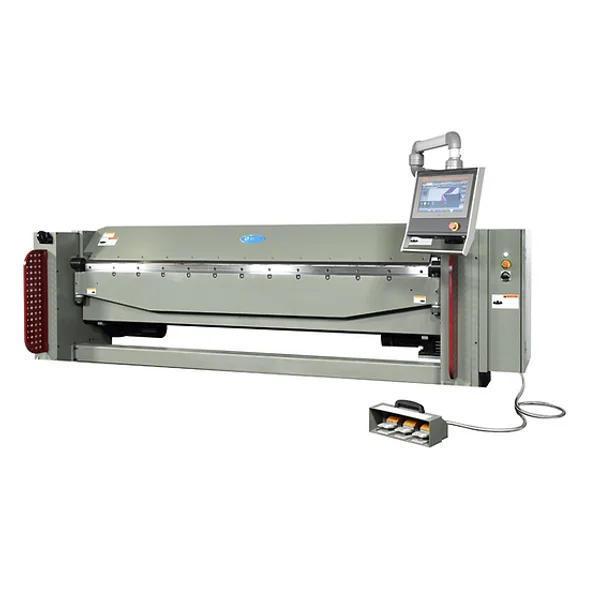

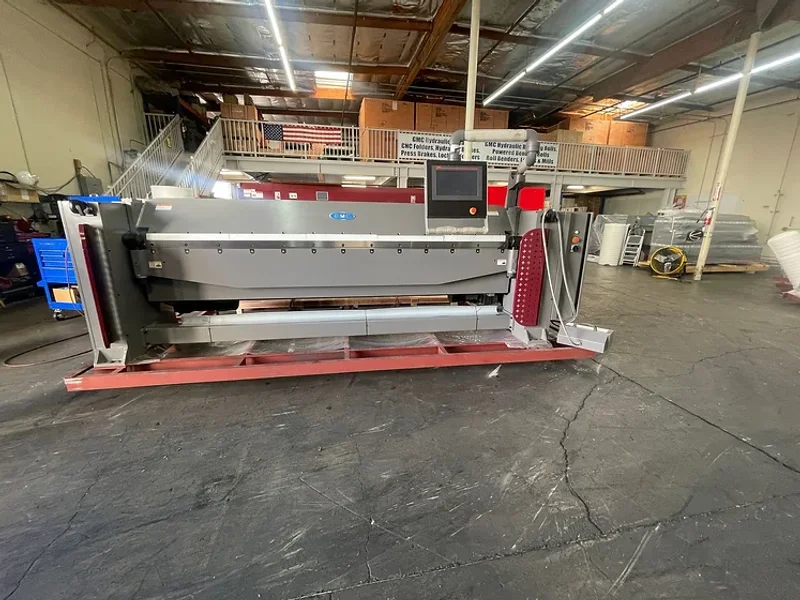

NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER

Brand
GMC
Category
Bending & Forming Equipment
Type
Folding Machines
Model
EFM-1014CNC
Stock #
19096
Year
Not specified
Condition
New
Location
California
NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER
  • ISO 9001 certified
  • Designed in US and Taiwan quality Machine
  • Meet OSHA and CE safety standard
  • ESA CNC control, made in Italy
  • Max. 99 bends per program
  • Upto 2000 Programs Storage
  • Profiles library with graphics
  • Programmable Radius Bend
  • Programmable Angle/ Angle Correct
  • 48” CNC back gauge with table and fingers
  • Hardened nose bar and table, up to 48HRC
  • Comes with one 1” Insert Bar and one ½” Insert Bar
  • Yaskawa Servo motors and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Meet OSHA standard, to start the program, need to press foot pedal twice
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • Need a step up transformer if power supply is 208V 3-Phase
  • One year industrial warranty for parts

OPTIONAL EQUIPMENT
  1. 1/2” thick insert bar for ½” min. reverse bend,capacity mild steel 28-20Ga - $1,950.00
  2. One day on-site training - $4,995.00

SPECIFICATIONS

Capacity:

Mild Steel



14 Ga.
Stainless Steel 18 Ga.
Close hemming 26 Ga.
Open hemming 24 Ga.
Bending Length Capacity 10'1"
Bend Angle Degree, programmable 0-135 degree
Hemming capacity, mild steel 20 Ga.
Hemming capacity, stainless steel 24 Ga.
Large Beam Opening/clamping opening 4-7/8"
Min. Reverse Bend 1/2"
Max, Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/2"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Motor for Bending Leaf

4 HP 3 Phase 35A

Prewired: 220VAC
Servo motor for back gauge

2 HP 3-Phase

220VAC
Clamping Motor

1-1/2 HP 3-Phase

Prewired: 220VAC

Machine Weight:

Shipping Weight:

9,850 LBS

10,150 LBS

Machine Size (LxWxH)

Shipping Dimensions:

168" x 79" x 67"

174" x 80" x 71"
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER

NEW 10' X 14GA - GMC MODEL EBB-1014CNC SHEET METAL FOLDER/BOX AND PAN BRAKE
GMC

Folding Machines

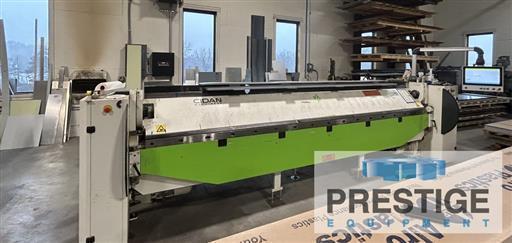

CIDAN Forma 30 11 Ga x 122" Combi Beam CNC Folding Machine
