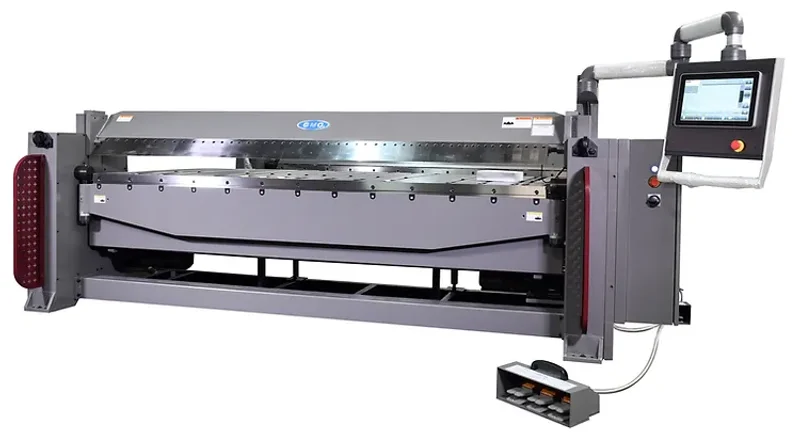

NEW 10' X 14GA - GMC MODEL EBB-1014CNC SHEET METAL FOLDER/BOX AND PAN BRAKE

Brand
GMC
Category
Bending & Forming Equipment
Type
Folding Machines
Model
EBB-1014CNC
Stock #
19097
Year
Not specified
Condition
New
Location
Not specified
NEW 10' X 14GA - GMC MODEL EBB-1014CNC SHEET METAL FOLDER/BOX AND PAN BRAKE
    • ISO 9001 certified
    • Designed in US and Taiwan quality Machine
    • Meet OSHA and CE safety standard

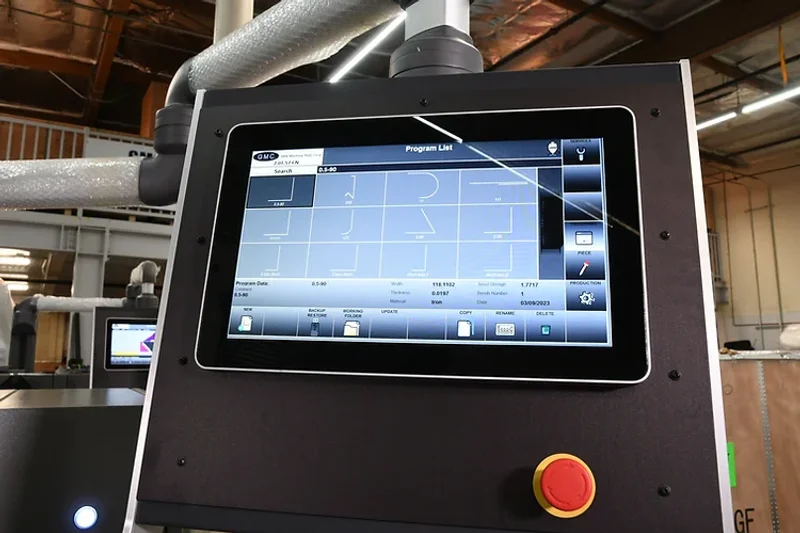

    • ESA S840 CNC control, made in Italy
    • Max. 99 bends per program
    • Upto 2000 Programs Storage
    • Profiles library with graphics
    • Programmable Radius Bend
    • Programmable Angle/ Angle Correct

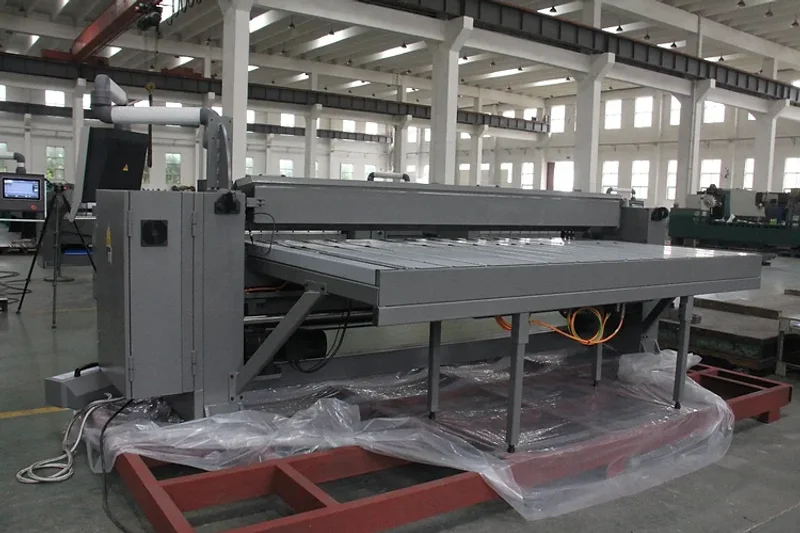

    • 48” CNC back gauge with table and fingers

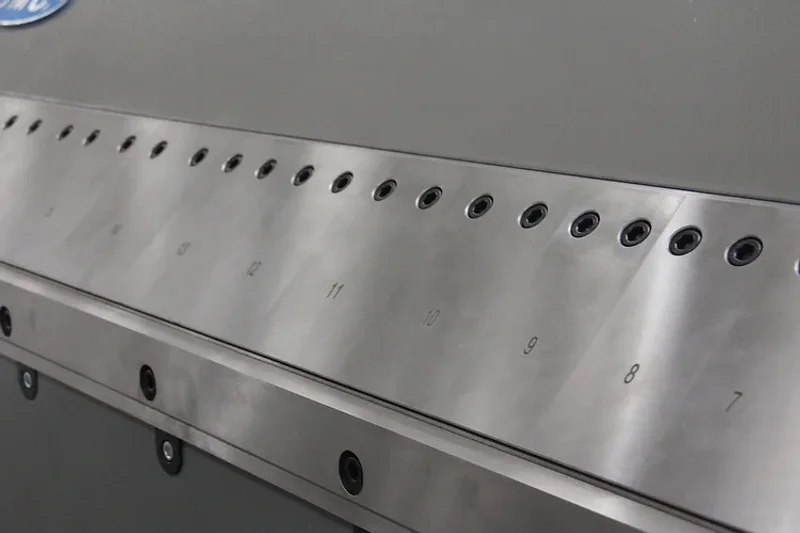

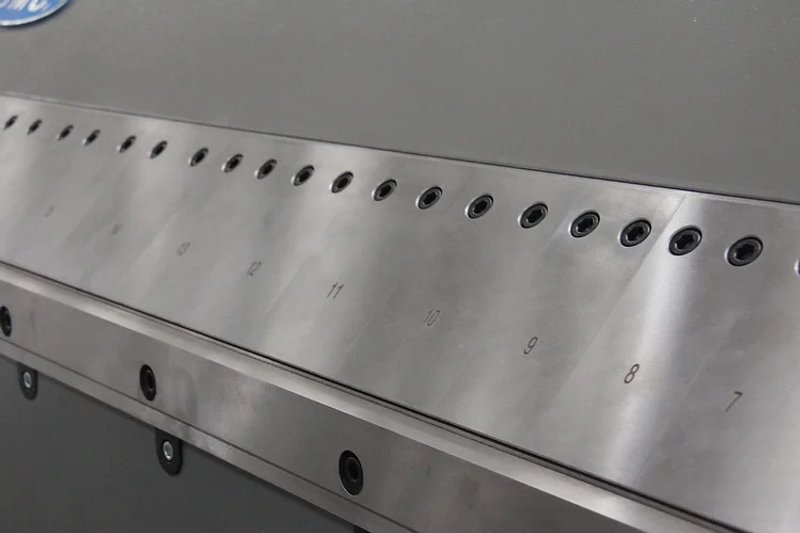

    • One piece 10' long straight finger
    • Comes with one 1” Insert Bar and one ½” Insert Bar
    • Yaskawa Servo motors and Drives
    • Schneider electrical components
    • All steel construction for maximum rigidity
    • Meet OSHA standard, to start the program, need to press foot pedal twice
    • Safety type foot pedal with handle and E-stop switch
    • Safety 24V low voltage & overload protection
    • Need to step up transformer if the power supply is 208V, 3 phase
    • One year industrial warranty for par

OPTIONAL EQUIPMENT

  1. One day on-site training - $4,995.00

SPECIFICATIONS

Specifications:

        GMC EBB-1014CNC

Capacity

Mild Steel

Stainless Steel

Close hemming with one piece finger

Open hemming



                  14Ga.

                  18Ga.

                  26Ga.

                  24Ga.

Bending length capacity

                  10’1”

Bend Angle Degree, programmable

              0- 135 degree

Max depth of box or pan

                  4”



Large Beam Opening/clamping opening

                  4-7/8”



Min. Reverse Bend

                  1/2”




Max. Table Back Gauge Distance

Min. Table Back Gauge Distance

                48-3/8”

                     1/2”

Back Gauge Repeatability

                0.0039”

Back Gauge Table height

                35-3/4”

Motor for bending leaf

          4HP, 220V,3phase

Servo motor for back gauge

Clamping motor

          2HP ,220V, 3phase

           1-1/2HP , 220V, 3phase

Amperage Draw

                  35A

Machine weight , LBS

Shipping weight

Machine dimensions, LWH

Shipping dimensions

              9,850 LBS

               10,150 LBS

              168x79x67”

              174x80x71”
