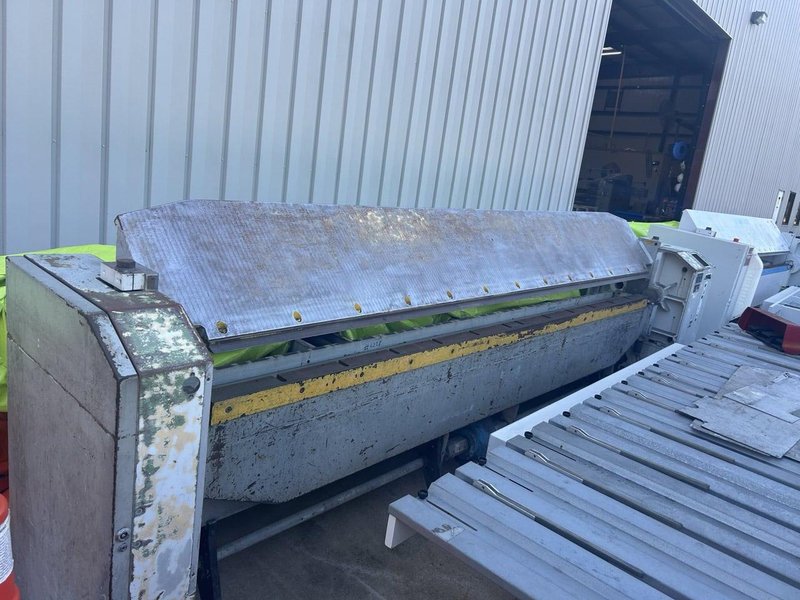

16 Gauge x 10′ Schechtl MAX3100 Folder, 2005 – Blasted, No Control, New Upper Tooling – Needs Control Upgrade

Brand
SCHECHTL
Category
Bending & Forming Equipment
Type
Folding Machines
Model
MAX3100
Stock #
771341
Year
2005
Condition
Not specified

Location

Not specified
Bending Length (Working Width): 122″ (3,100 mm) Bending Capacity (Mild Steel): 16 Gauge (1.5 mm) Bending Capacity (Aluminum): 14 Gauge (2.0 mm) Bending Capacity (Stainless Steel): 20 Gauge (1.0 mm) Clamping Beam Stroke / Opening: 4.7″ to 5.5″ (140 mm) Bending Beam Speed: 85° per second Clamping Beam Speed: 2.5″ per second Folding Beam Arc: 0° – 160° Closed Hem Capacity: 24-GaugeMotor-Operated Backgauge Depth: 39.5″ Backgauge Accuracy: ±0.004″ Power Requirements: 230V, 3-Phase, 60Hz @ 20 Amps Machine Net Weight: Approx. 4,500 to 5,450 lbs Physical Footprint Dimensions (L x W x H): 150.8″ x 70.5″ x 54.5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?
